定义
Webhook Definition：In web development, a webhook is a method of augmenting or altering the behavior of a web page or web application with custom callbacks;
上面是维基百科的定义，可以明确 webhook 就是一个回调函数，只不过这个回调函数修改的是 Web 也就是 HTTP 的请求内容
k8s 里面的 webhook 基本就只有两个，一个是 MutatingWebhook 另外一个是 ValidatingWebhook
ValidatingWebhook 顾名思义就是判断请求是否可准入
MutatingWebhook 顾名思义就是用来修改请求的参数，包括请求参数以及返回参数

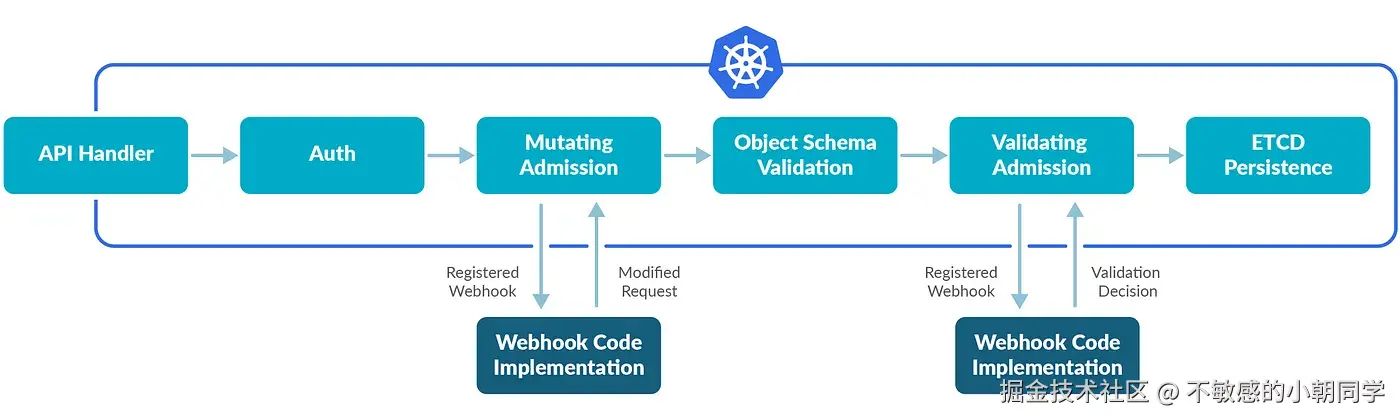

MutatingAdmissionWebhook 和 ValidateAdmissionWebhook 各自作用位置如下
具体流程如下
- 先提交资源的请求（CREATE、UPDATE、PATCH等）给 API-Server
- 通过API-Server的认证和授权
- 经过 MutatingAdmission，经过其对应的 webhook-controller 进行处理
- 经过资源对象校验认证
- 经过 ValidatingAdmission，经过其对应的 webhook-controller 进行处理
- 再写入ETCD
可见 webhook 其实是工作在 API-Server 这一层的
配置参数
上面的两个webhook其实是做的事情不一定，但是单独看配置，这两者几乎没有很大的区别
下面以一个具体的配置来进行解析
apiVersion: admissionregistration.k8s.io/v1
kind: ValidatingWebhookConfiguration
metadata:
name: "simple-kubernetes-webhook.acme.com"
webhooks:
- name: "simple-kubernetes-webhook.acme.com"
namespaceSelector: # 这个代表webhook是对哪个ns下的资源生效
matchLabels:
admission-webhook: enabled
rules: # 这个规则代表是具体对哪些resources生效
- apiGroups: [""] # 包括资源的版本，以及目标操作的类型
apiVersions: ["v1"]
operations: ["CREATE"]
resources: ["pods"]
scope: "*"
clientConfig: # 这个表示webhook-server的配置
service: # 配置的server是通过service来进行访问的
namespace: default # service所在的ns
name: simple-kubernetes-webhook # service的名字
path: /validate-pods # 具体进行hook的路径
port: 443 # 端口
caBundle: | # 鉴权用到的公钥
LS0tLxxxxxx
admissionReviewVersions: ["v1"]
sideEffects: None
timeoutSeconds: 2 # 超时时间
创建好对应的配置之后，我们编写对应的代码
代码解析
代码仓库参考 github.com/BoomChao/si…
这里配置了对应的 validate 和 mutate 相关的准入操作行为

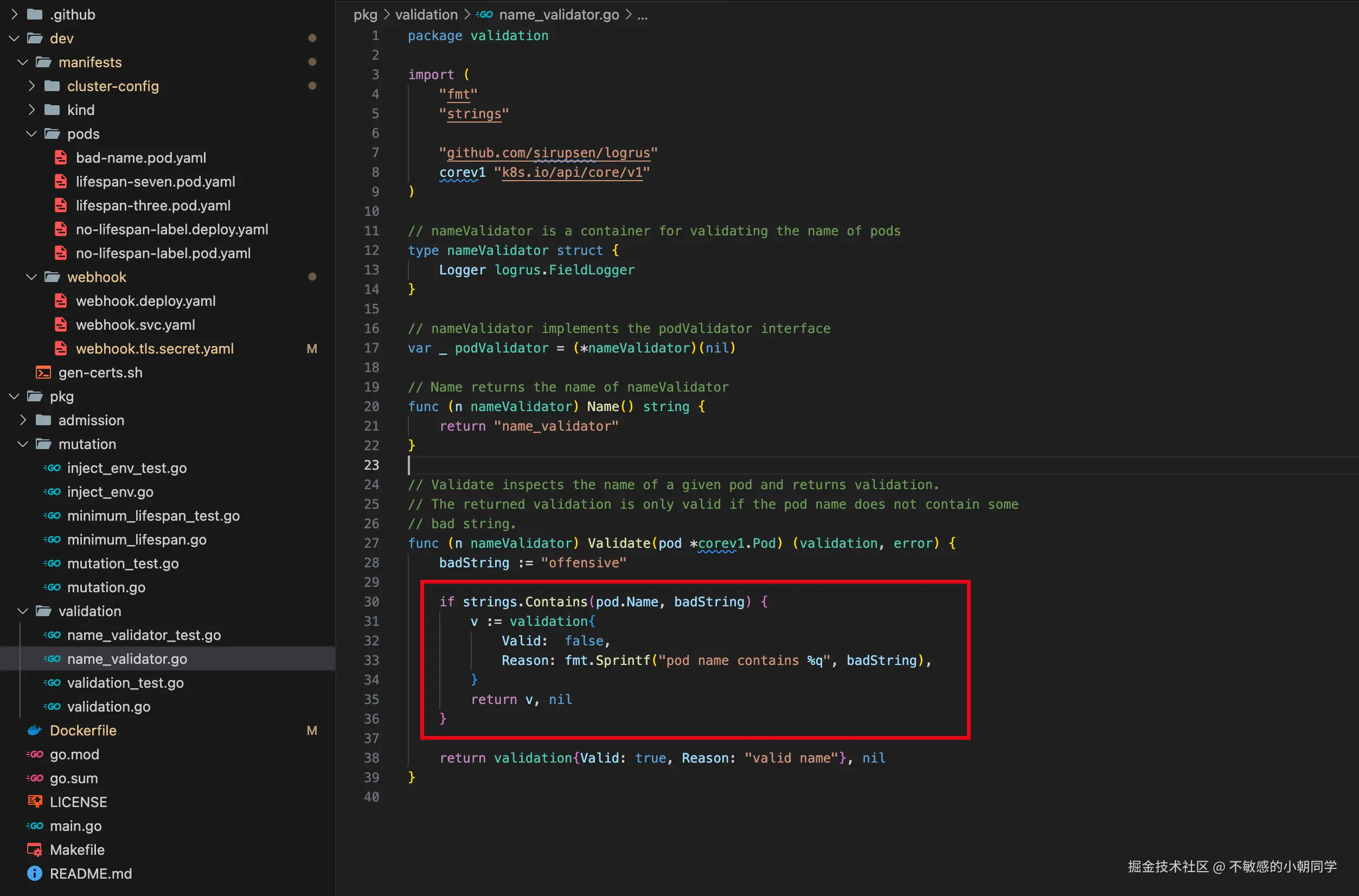

Validate 配置
这里配置如果pod的名称包含 offensive 则直接返回 error

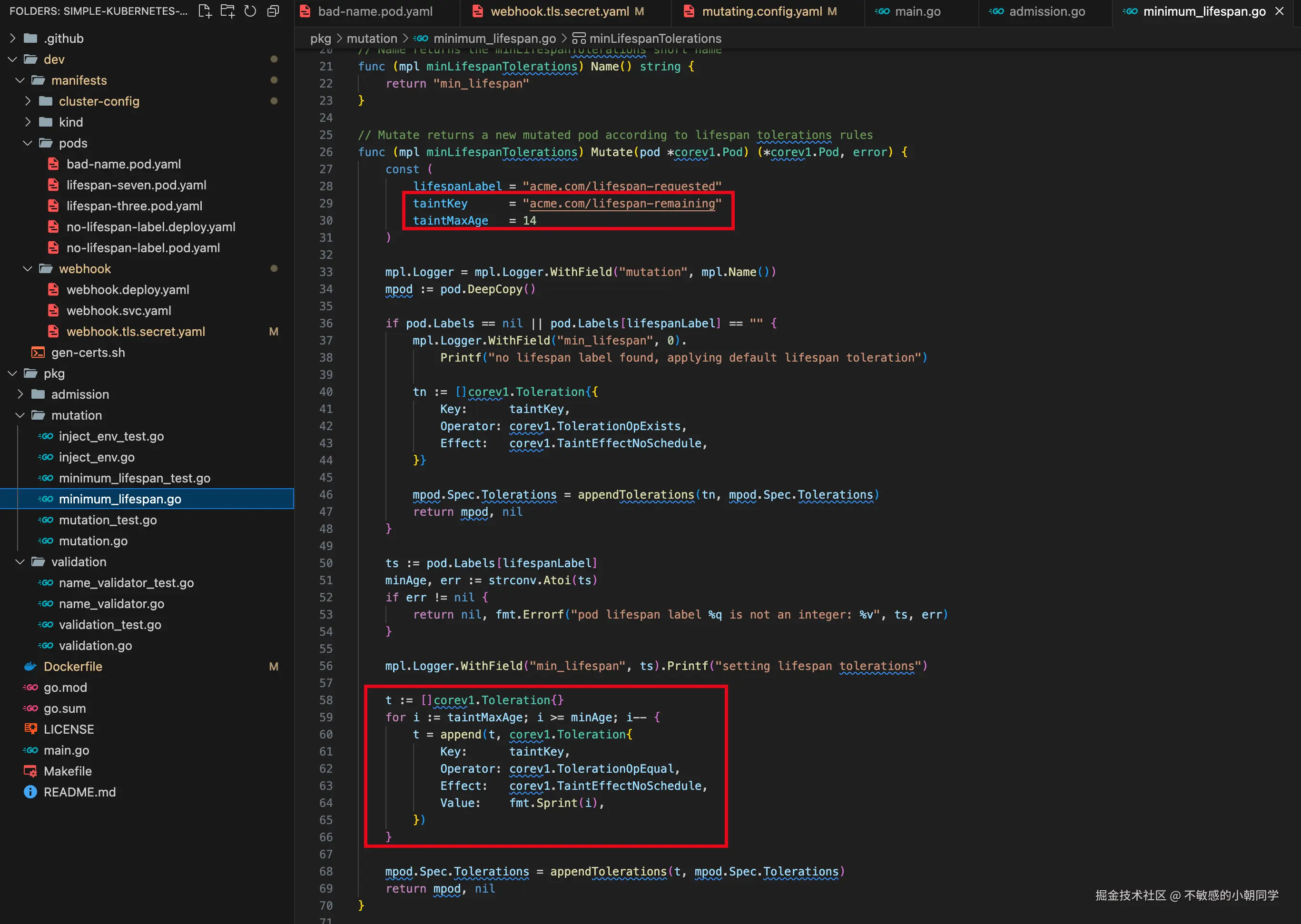

Mutate 配置
这里配置了对应的污点的参数，任何一个pod创建出来其自身的pod参数都会带上对应的特定的污点计数
功能验证
部署下面的两个pod来校验上面的功能是否正常
apiVersion: v1
kind: Pod
metadata:
name: offensive-pod
namespace: apps
spec:
containers:
- args:
- sleep
- "3600"
image: busybox
name: lifespan-offensive
restartPolicy: Always
该 pod 名称包含我们在 validate 里面的违禁词 offensive，所以此 pod 理论上无法创建出来
➜ pods git:(main) ✗ k apply -f bad-name.pod.yaml
Error from server: error when creating "bad-name.pod.yaml": admission webhook "simple-kubernetes-webhook.acme.com" denied the request: pod name contains "offensive"
报错信息如上所示
apiVersion: v1
kind: Pod
metadata:
labels:
acme.com/lifespan-requested: "3"
name: lifespan-three
namespace: apps
spec:
containers:
- args:
- sleep
- "3600"
image: busybox
name: lifespan-three
restartPolicy: Always
该 pod 的标签上的 acme.com/lifespan-requested 的值为3，则理论上创建成功之后会增加到 14

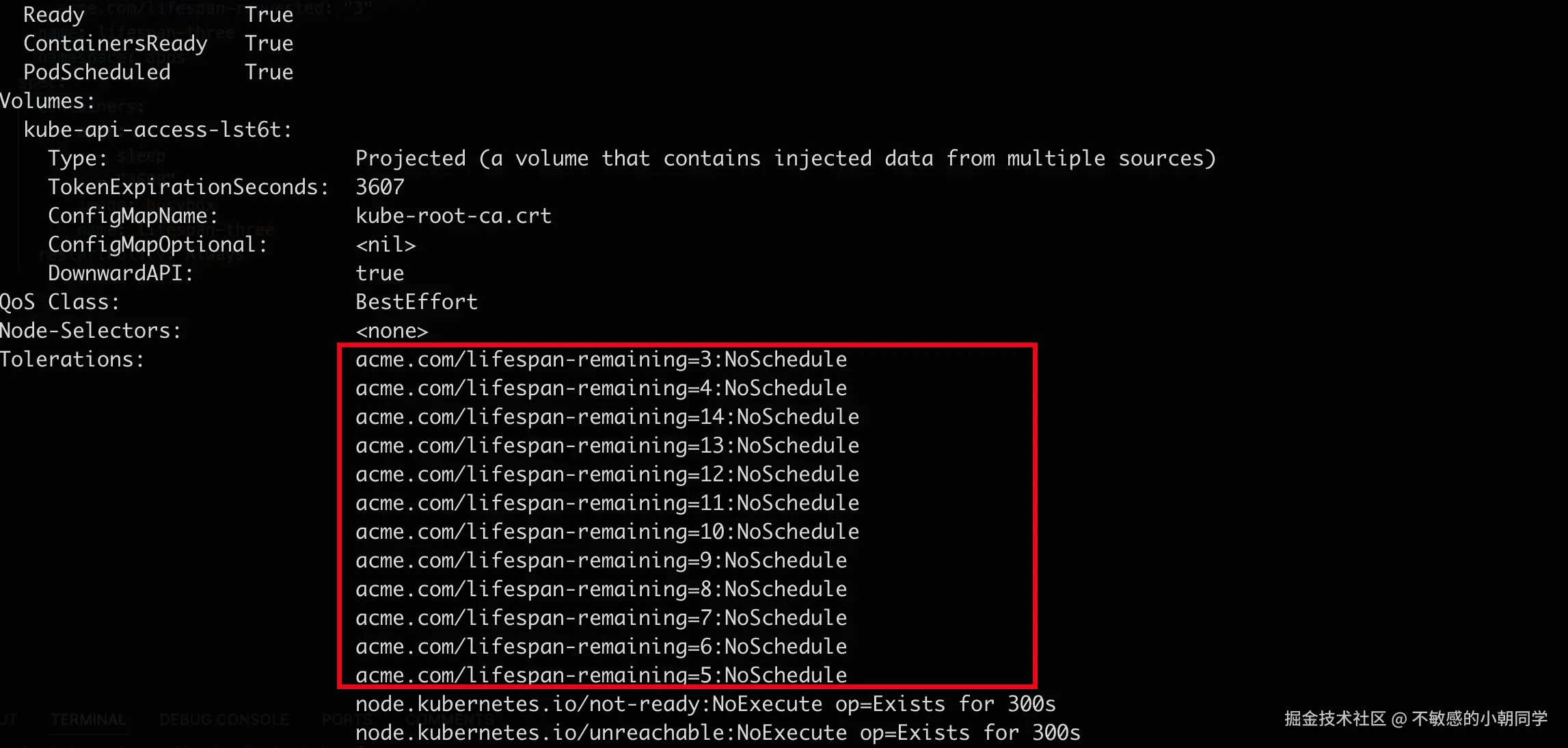

查看pod上的污点事件发现确实是会增加到14为止
新增资源超卖功能
基本原理

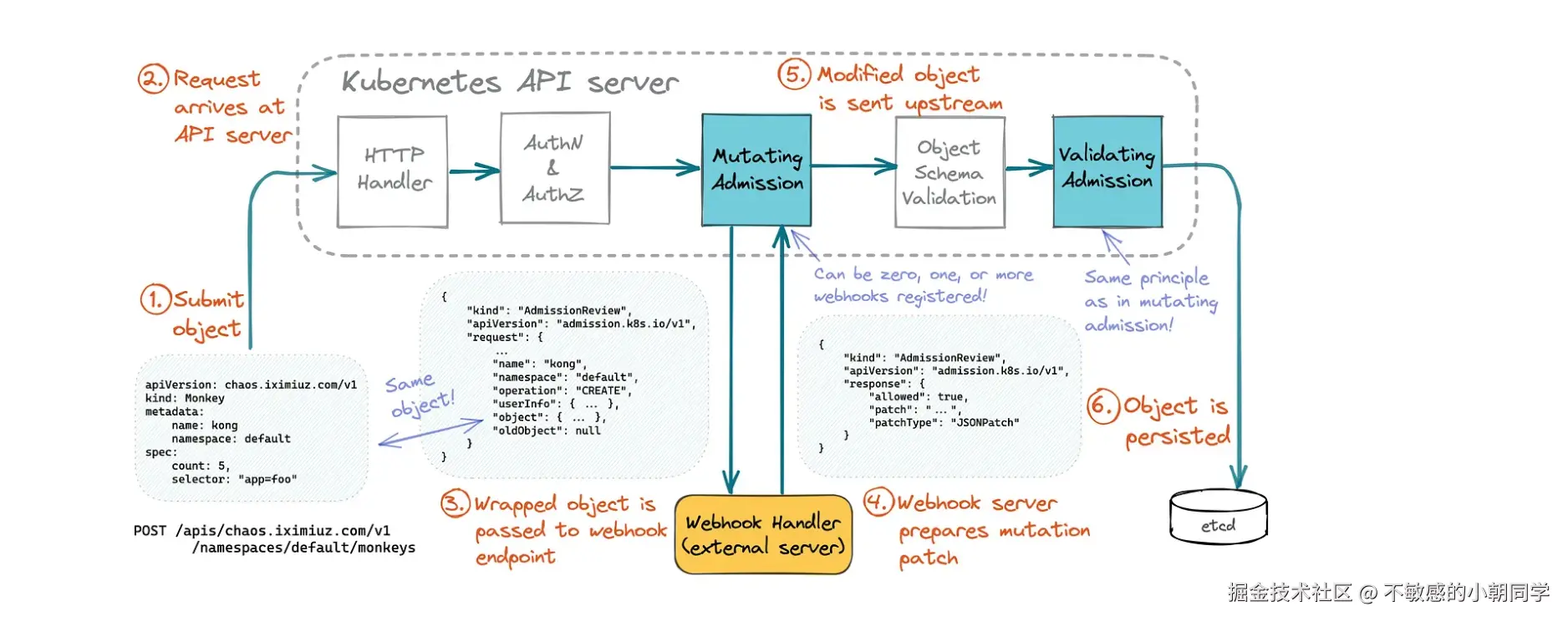

实际工作中我们可能经常遇到这样的场景，修改node自身的一些信息，但是这些信息又是其他组件，比如 kubelet 自动上报上来的，如果这时候 kubectl 直接修改则改动之后又会被复原回去

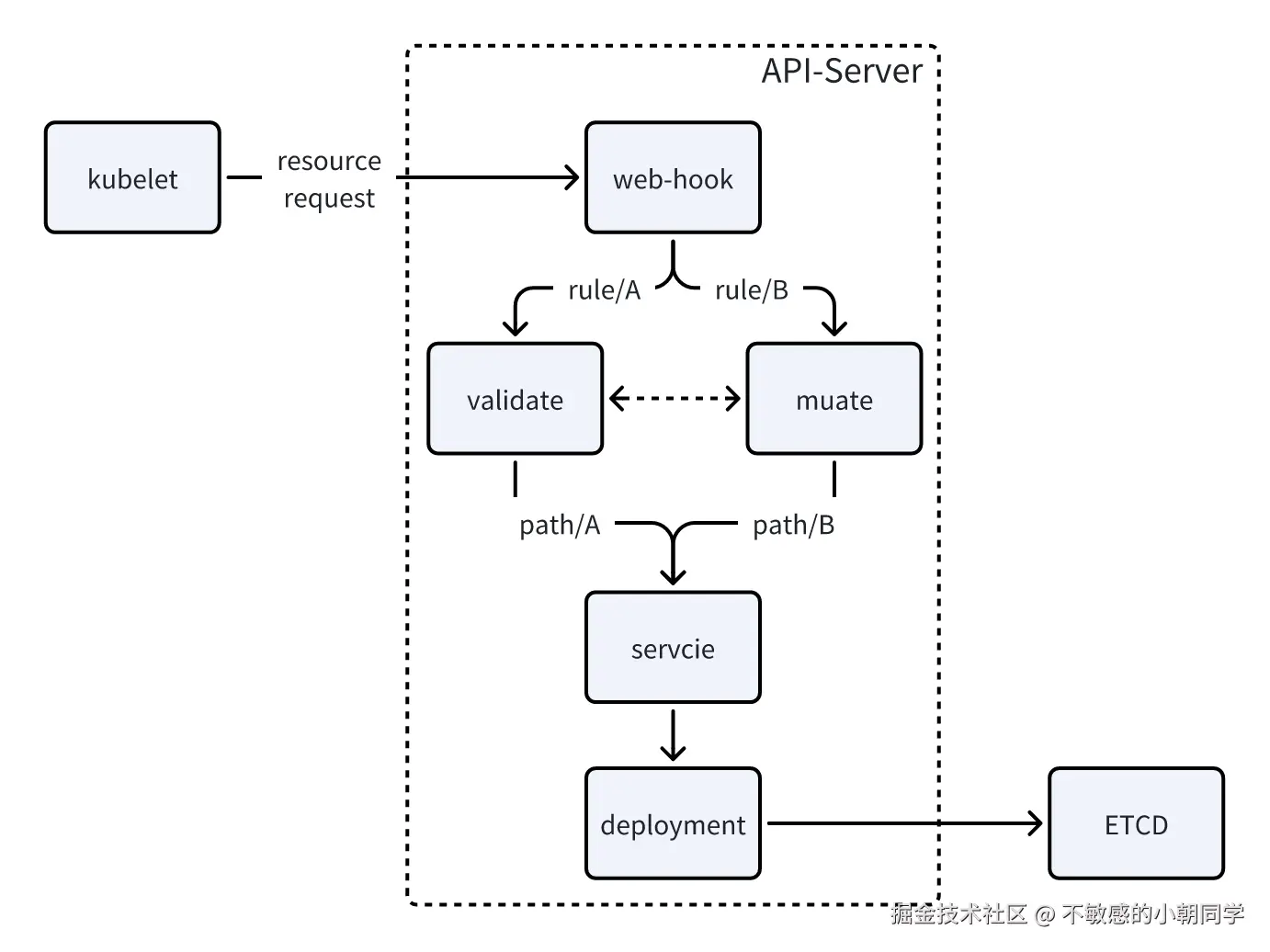

这时候 webhook 的作用就来了，我们可以让请求到达我们的 hook-server，然后hook-server劫持到该请求后尝试修改再发送给api-server，前后对比简图如下
- 其他资源上报给 API-Server 的请求会被 webhook 劫持；这里劫持是按照资源的 GVR 以及对应所执行的操作（比如CREATE、UPDATE、PATCH）进行实现的
- Webhook 获取到请求之后，会将该请求分发给对应的 Service，Service 将该请求再分发给该Service底下具体的应用
- 由 Webhook 应用按照业务逻辑来修改请求参数
- 之后该请求再发送给 API-Server
所以我们实际需要编写代码的组件只需要编写下面的 deployment 即可，也就是 webhook-controller
我们来做一个实际的功能，修改 node 的 allocatable 信息来做资源的超卖
如果能够尝试将 allocatable 的值改大，那么不久意味着这个node上可以调度上去更多的pod（当未达到pod数量的最高限制之前）
我们修改上面定义的 Mutate 的 webhook 的配置，来实现获取 kubelet 上报 node-status 信息的请求
配置的 yaml 如下，新增下面一个规则即可
rules:
- apiGroups: [""]
apiVersions: ["v1"]
operations: ["UPDATE"]
resources: ["nodes/status"]
注意：这里的 resources 填写的是 nodes/status，而不是 nodes
下面我们尝试修改 kubelet 上报的信息，来放大 node 上的可分配的配额信息，以此来实现资源超卖
修改步骤
具体步骤如下，修改不能只修改 Allocatable 而不修改 Capacity
- 计算出原始的 Capacity - Allocatable 的大小，这部分空间就是 reserverd 使用

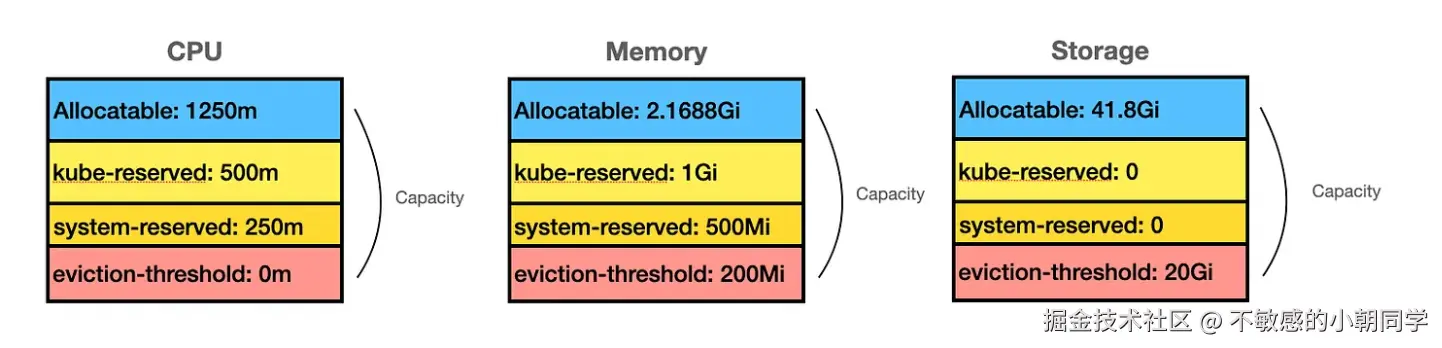

如下面这个图所示
Capacity = Allocatable + kube-reserverd + system-reserverd + eviction-threshold
- 计算超卖的量，比如在 Allocatable 的基础上增大一倍，计算出新的 Allocatable
- 则 Capacity 的值就等于 Allocatable + reserved 的使用
总结如下
reserverd = orginalCapacity - originalAllocatable
newAllocatable = [....]
newCapacity = newAllocatable + reserverd
代码实现
代码实现如下 代码仓库
func (nc *nodeCap) Mutate(node *corev1.Node) (*corev1.Node, error) {
nc.Logger.Info("node-cap mutator")
originalCPUCapacity := node.Status.Capacity.Cpu()
originalCPUAllocatable := node.Status.Allocatable.Cpu()
nc.Logger.Info("Original CPU Capacity: ", originalCPUCapacity.String())
nc.Logger.Info("Original CPU Allocatable: ", originalCPUAllocatable.String())
reserved := originalCPUCapacity
reserved.Sub(*originalCPUAllocatable)
newCPUAllocatable := originalCPUAllocatable.Value() * 2
newCPUCapacity := newCPUAllocatable + reserved.Value()
nc.Logger.Info("New CPU Allocatable: ", newCPUAllocatable)
nc.Logger.Info("New CPU Capacity: ", newCPUCapacity)
node.Status.Allocatable[corev1.ResourceCPU] = *resource.NewQuantity(newCPUAllocatable, resource.DecimalSI)
node.Status.Capacity[corev1.ResourceCPU] = *resource.NewQuantity(newCPUCapacity, resource.DecimalSI)
return node, nil
}
重新构建镜像
docker build -t simple-kubernetes-webhook:latest .
然后将之前的 simple-kubernetes-webhook pod 删除重建

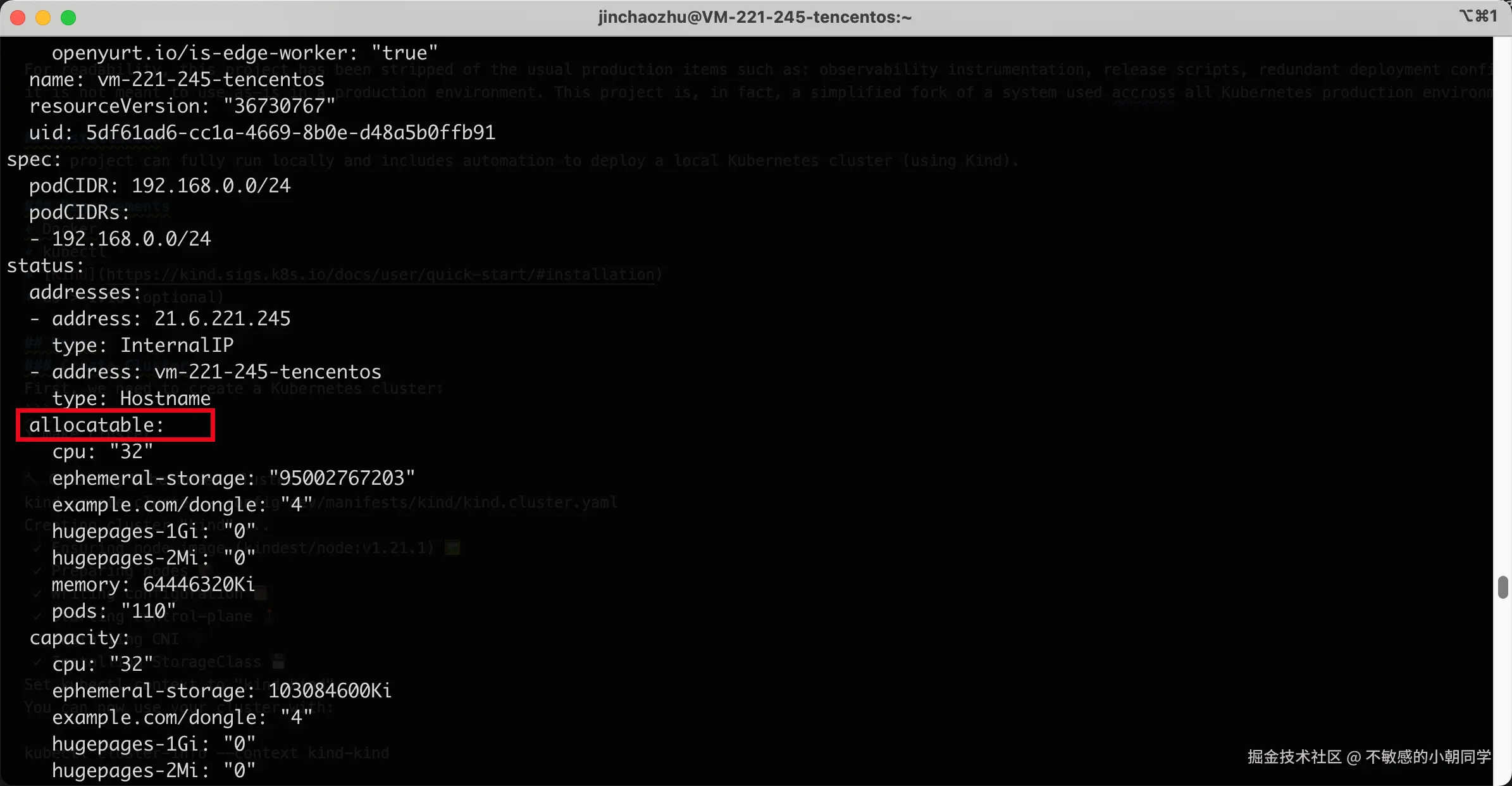

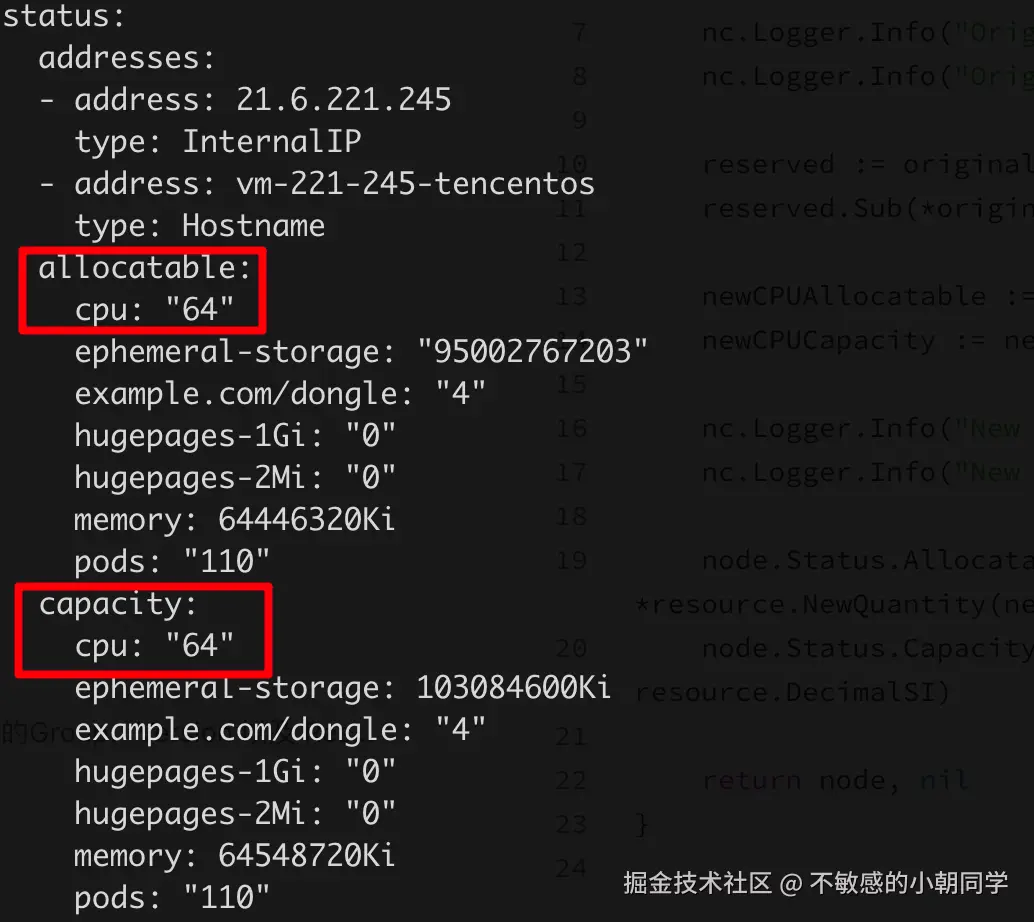

可看到 node 层面这里的 Allocatable 以及 Capacity 均已经被我们调整过来了
我们尝试部署一个大核心的pod，限制 CPU 的 limit 和 request 都是 32core，尝试是否能够部署成功
apiVersion: apps/v1
kind: Deployment
metadata:
name: nginx-deployment
labels:
app: nginx
spec:
replicas: 1
selector:
matchLabels:
app: nginx
template:
metadata:
labels:
app: nginx
spec:
containers:
- name: nginx
image: nginx:latest
resources:
requests:
cpu: "32" # 请求 32 核心
limits:
cpu: "32" # 限制为 32 核心

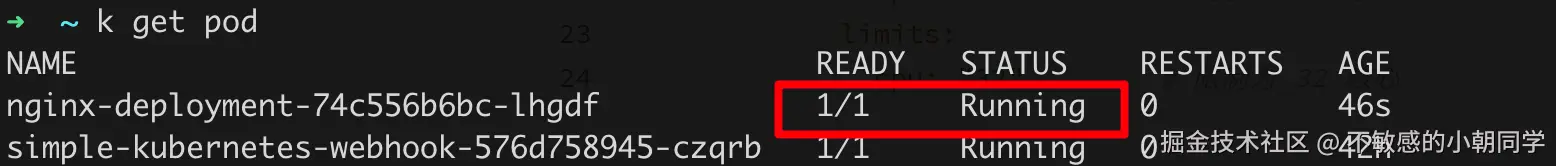

可看到也能部署成功
我们删除掉 webhook 的配置，重启之前已经部署好的 nginx-pod
k delete -f mutating.node.config.yaml
k delete pod nginx-deployment-74c556b6bc-vhkfv

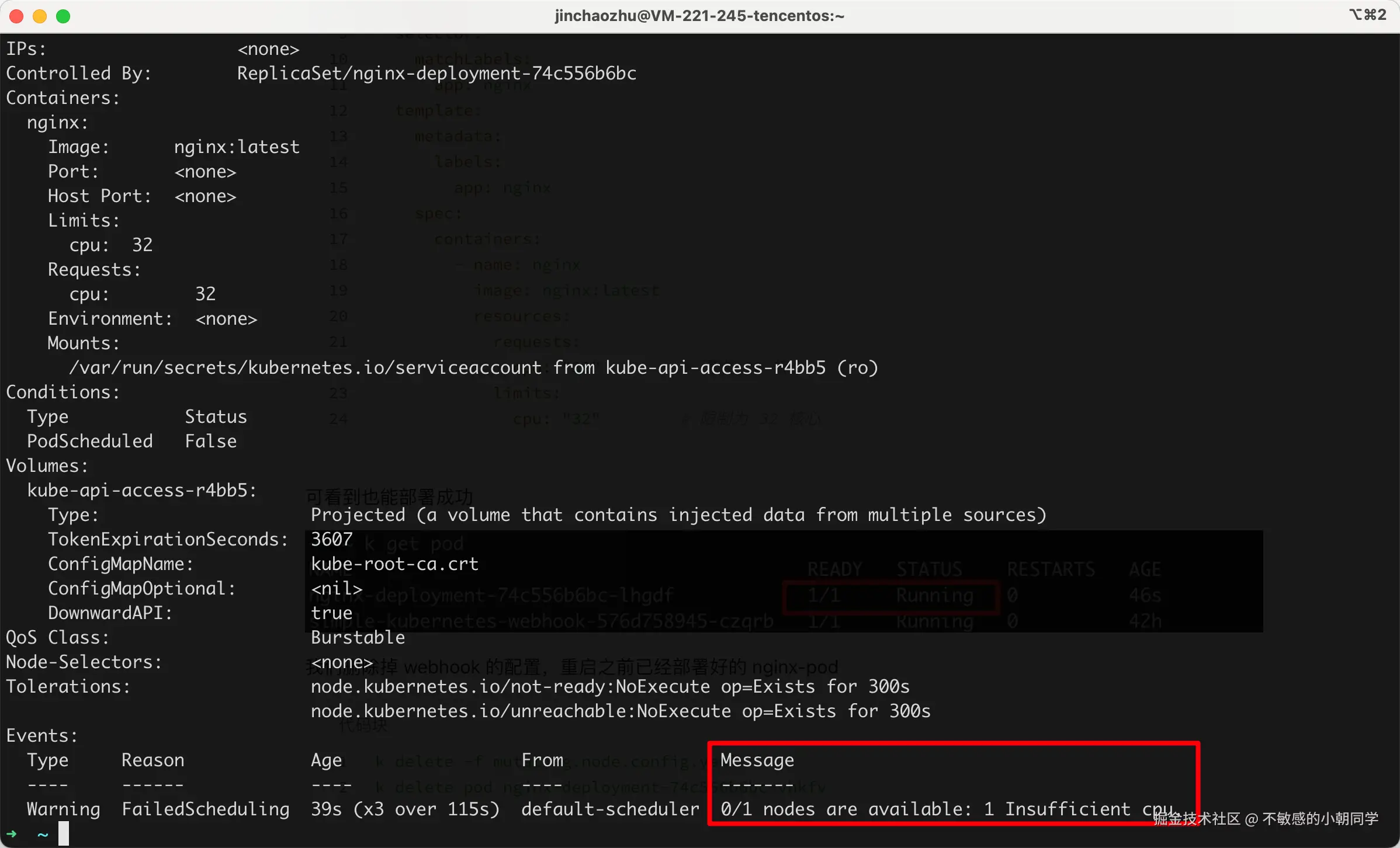

查看pod重建之后的状态
可发现如果不经超卖，则无法部署上去我们的大核心的pod
Q&A
怎么查看CVG?
参考这篇文章
k8s暴露出的API一共只有如下几个，我们可以执行 k proxy 然后访问就能看到所有的 api 路径
➜ ~ curl 127.0.0.1:8001
{
"paths": [
"/.well-known/openid-configuration",
"/api",
"/api/v1",
"/apis",
"/apis/",
"/apis/admissionregistration.k8s.io",
"/apis/admissionregistration.k8s.io/v1",
"/apis/apiextensions.k8s.io",
"/apis/apiextensions.k8s.io/v1",
"/apis/apiregistration.k8s.io",
"/apis/apiregistration.k8s.io/v1",
"/apis/apps",
"/apis/apps/v1",
"/apis/authentication.k8s.io",
"/apis/authentication.k8s.io/v1",
"/apis/authorization.k8s.io",
"/apis/authorization.k8s.io/v1",
"/apis/autoscaling",
"/apis/autoscaling/v1",
"/apis/autoscaling/v2",
"/apis/autoscaling/v2beta1",
"/apis/autoscaling/v2beta2",
"/apis/batch",
"/apis/batch/v1",
"/apis/batch/v1beta1",
"/apis/certificates.k8s.io",
"/apis/certificates.k8s.io/v1",
"/apis/coordination.k8s.io",
"/apis/coordination.k8s.io/v1",
"/apis/crd.projectcalico.org",
"/apis/crd.projectcalico.org/v1",
"/apis/discovery.k8s.io",
"/apis/discovery.k8s.io/v1",
"/apis/discovery.k8s.io/v1beta1",
"/apis/events.k8s.io",
"/apis/events.k8s.io/v1",
"/apis/events.k8s.io/v1beta1",
"/apis/flowcontrol.apiserver.k8s.io",
"/apis/flowcontrol.apiserver.k8s.io/v1beta1",
"/apis/flowcontrol.apiserver.k8s.io/v1beta2",
"/apis/metrics.k8s.io",
"/apis/metrics.k8s.io/v1beta1",
"/apis/monitoring.coreos.com",
"/apis/monitoring.coreos.com/v1",
"/apis/monitoring.coreos.com/v1alpha1",
"/apis/networking.k8s.io",
"/apis/networking.k8s.io/v1",
"/apis/node.k8s.io",
"/apis/node.k8s.io/v1",
"/apis/node.k8s.io/v1beta1",
"/apis/policy",
"/apis/policy/v1",
"/apis/policy/v1beta1",
"/apis/rbac.authorization.k8s.io",
"/apis/rbac.authorization.k8s.io/v1",
"/apis/scheduling.k8s.io",
"/apis/scheduling.k8s.io/v1",
"/apis/stable.example.com",
"/apis/stable.example.com/v1",
"/apis/storage.k8s.io",
"/apis/storage.k8s.io/v1",
"/apis/storage.k8s.io/v1beta1",
"/healthz",
"/healthz/autoregister-completion",
"/healthz/etcd",
"/healthz/log",
"/healthz/ping",
"/healthz/poststarthook/aggregator-reload-proxy-client-cert",
"/healthz/poststarthook/apiservice-openapi-controller",
"/healthz/poststarthook/apiservice-registration-controller",
"/healthz/poststarthook/apiservice-status-available-controller",
"/healthz/poststarthook/bootstrap-controller",
"/healthz/poststarthook/crd-informer-synced",
"/healthz/poststarthook/generic-apiserver-start-informers",
"/healthz/poststarthook/kube-apiserver-autoregistration",
"/healthz/poststarthook/priority-and-fairness-config-consumer",
"/healthz/poststarthook/priority-and-fairness-config-producer",
"/healthz/poststarthook/priority-and-fairness-filter",
"/healthz/poststarthook/rbac/bootstrap-roles",
"/healthz/poststarthook/scheduling/bootstrap-system-priority-classes",
"/healthz/poststarthook/start-apiextensions-controllers",
"/healthz/poststarthook/start-apiextensions-informers",
"/healthz/poststarthook/start-cluster-authentication-info-controller",
"/healthz/poststarthook/start-kube-aggregator-informers",
"/healthz/poststarthook/start-kube-apiserver-admission-initializer",
"/livez",
"/livez/autoregister-completion",
"/livez/etcd",
"/livez/log",
"/livez/ping",
"/livez/poststarthook/aggregator-reload-proxy-client-cert",
"/livez/poststarthook/apiservice-openapi-controller",
"/livez/poststarthook/apiservice-registration-controller",
"/livez/poststarthook/apiservice-status-available-controller",
"/livez/poststarthook/bootstrap-controller",
"/livez/poststarthook/crd-informer-synced",
"/livez/poststarthook/generic-apiserver-start-informers",
"/livez/poststarthook/kube-apiserver-autoregistration",
"/livez/poststarthook/priority-and-fairness-config-consumer",
"/livez/poststarthook/priority-and-fairness-config-producer",
"/livez/poststarthook/priority-and-fairness-filter",
"/livez/poststarthook/rbac/bootstrap-roles",
"/livez/poststarthook/scheduling/bootstrap-system-priority-classes",
"/livez/poststarthook/start-apiextensions-controllers",
"/livez/poststarthook/start-apiextensions-informers",
"/livez/poststarthook/start-cluster-authentication-info-controller",
"/livez/poststarthook/start-kube-aggregator-informers",
"/livez/poststarthook/start-kube-apiserver-admission-initializer",
"/logs",
"/metrics",
"/openapi/v2",
"/openid/v1/jwks",
"/readyz",
"/readyz/autoregister-completion",
"/readyz/etcd",
"/readyz/informer-sync",
"/readyz/log",
"/readyz/ping",
"/readyz/poststarthook/aggregator-reload-proxy-client-cert",
"/readyz/poststarthook/apiservice-openapi-controller",
"/readyz/poststarthook/apiservice-registration-controller",
"/readyz/poststarthook/apiservice-status-available-controller",
"/readyz/poststarthook/bootstrap-controller",
"/readyz/poststarthook/crd-informer-synced",
"/readyz/poststarthook/generic-apiserver-start-informers",
"/readyz/poststarthook/kube-apiserver-autoregistration",
"/readyz/poststarthook/priority-and-fairness-config-consumer",
"/readyz/poststarthook/priority-and-fairness-config-producer",
"/readyz/poststarthook/priority-and-fairness-filter",
"/readyz/poststarthook/rbac/bootstrap-roles",
"/readyz/poststarthook/scheduling/bootstrap-system-priority-classes",
"/readyz/poststarthook/start-apiextensions-controllers",
"/readyz/poststarthook/start-apiextensions-informers",
"/readyz/poststarthook/start-cluster-authentication-info-controller",
"/readyz/poststarthook/start-kube-aggregator-informers",
"/readyz/poststarthook/start-kube-apiserver-admission-initializer",
"/readyz/shutdown",
"/version"
]
}%
而 node 的资源路径是在 /api/v1 路径下

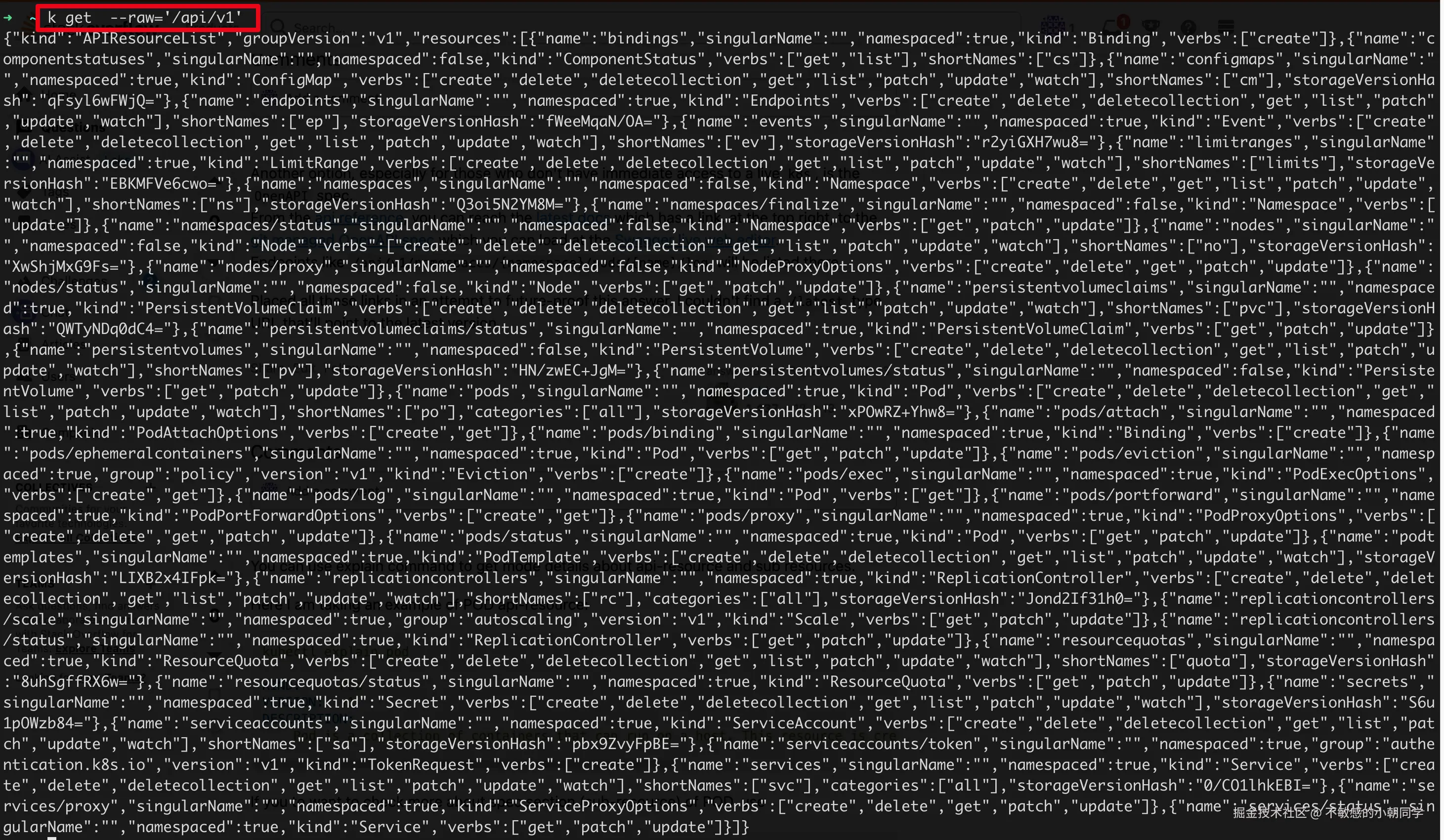

执行 k get --raw='/api/v1' 就能看到很多信息
过滤出 node 相关的信息
- name: nodes
singularName: ""
namespaced: false
kind: Node
verbs:
- create
- delete
- deletecollection
- get
- list
- patch
- update
- watch
shortNames:
- no
storageVersionHash: XwShjMxG9Fs=
- name: nodes/proxy
singularName: ""
namespaced: false
kind: NodeProxyOptions
verbs:
- create
- delete
- get
- patch
- update
- name: nodes/status
singularName: ""
namespaced: false
kind: Node
verbs:
- get
- patch
- update
可看到一共有三种资源，nodes，nodes/proxy，以及 nodes/status 这几种资源
参考资料
k8s关于webhook的介绍 MutatingWebhookConfiguration ValidatingWebhookConfiguration
node 的 Allocatable 和 Capacity 之间的关系
