慢性肾病数据可视化分析系统- 简介
基于大数据的慢性肾病数据可视化分析系统是一个专门针对慢性肾病患者临床数据进行深度分析和可视化展示的综合性平台。系统采用Hadoop分布式存储架构结合Spark大数据计算引擎，能够高效处理海量的慢性肾病患者临床数据，包括血压水平、肾功能指标、血液生化指标等多维度医疗数据。系统支持Python+Django和Java+SpringBoot双技术栈实现，前端采用Vue+ElementUI+Echarts技术栈构建直观的数据可视化界面。系统核心功能涵盖慢性肾病患病情况统计分析、肾功能指标深度分析、血液生化指标综合评估、多指标联合诊断价值分析、疾病进展与严重程度评估以及临床特征模式识别分析六大模块。通过Spark SQL进行数据查询优化，结合Pandas和NumPy进行数据预处理，系统能够自动化完成血压分级患病风险统计、肾功能损害严重程度分级、贫血程度与肾功能关联分析等复杂的统计计算任务。数据存储采用MySQL关系型数据库，确保数据一致性和查询效率，同时通过Echarts图表库实现多样化的数据可视化效果，为医疗研究人员和临床医生提供直观的数据分析结果展示。
慢性肾病数据可视化分析系统-技术 框架
开发语言：Python或Java（两个版本都支持）
大数据框架：Hadoop+Spark（本次没用Hive，支持定制）
后端框架：Django+Spring Boot(Spring+SpringMVC+Mybatis)（两个版本都支持）
前端：Vue+ElementUI+Echarts+HTML+CSS+JavaScript+jQuery
详细技术点：Hadoop、HDFS、Spark、Spark SQL、Pandas、NumPy
数据库：MySQL
慢性肾病数据可视化分析系统- 背景
慢性肾病作为全球性的公共卫生问题，其发病率在世界范围内持续上升，已成为威胁人类健康的重要疾病之一。随着人口老龄化进程加快和生活方式的改变，慢性肾病的患病人群不断扩大，给医疗卫生系统带来了巨大压力。传统的慢性肾病数据分析主要依赖于小规模的临床研究和统计软件处理，面对日益增长的海量医疗数据，传统分析方法在处理效率、数据规模和分析深度方面都存在明显局限。医疗机构每日产生的患者检验数据、影像数据、病历记录等信息呈指数级增长，这些数据蕴含着丰富的临床价值和研究潜力。大数据技术的快速发展为医疗数据分析提供了新的技术手段，Hadoop和Spark等分布式计算框架能够有效处理大规模医疗数据集，为慢性肾病的流行病学研究、临床诊断辅助和治疗方案优化提供了技术支撑。
本课题的研究具有重要的理论价值和实践意义。从技术角度来看，将大数据分析技术应用于慢性肾病数据处理，能够探索医疗大数据分析的有效方法和技术路径，为医疗信息化建设提供参考经验。系统通过整合多维度的患者临床指标数据，构建了相对完整的慢性肾病数据分析框架，有助于发现疾病发展规律和关键影响因素。从实用价值来说，系统能够为医疗工作者提供便捷的数据分析工具，通过自动化的统计分析和可视化展示，减少人工分析的时间成本，提高数据分析的准确性和一致性。对于医学研究而言，系统支持的多指标关联分析和疾病进展评估功能，可以协助研究人员识别慢性肾病的临床特征模式，为制定更加精准的诊疗方案提供数据支持。另外，作为一个教学实践项目，本系统的开发过程能够加深对大数据技术在垂直领域应用的理解，锻炼解决实际问题的能力，为后续的技术学习和职业发展奠定基础。
慢性肾病数据可视化分析系统-视频展示

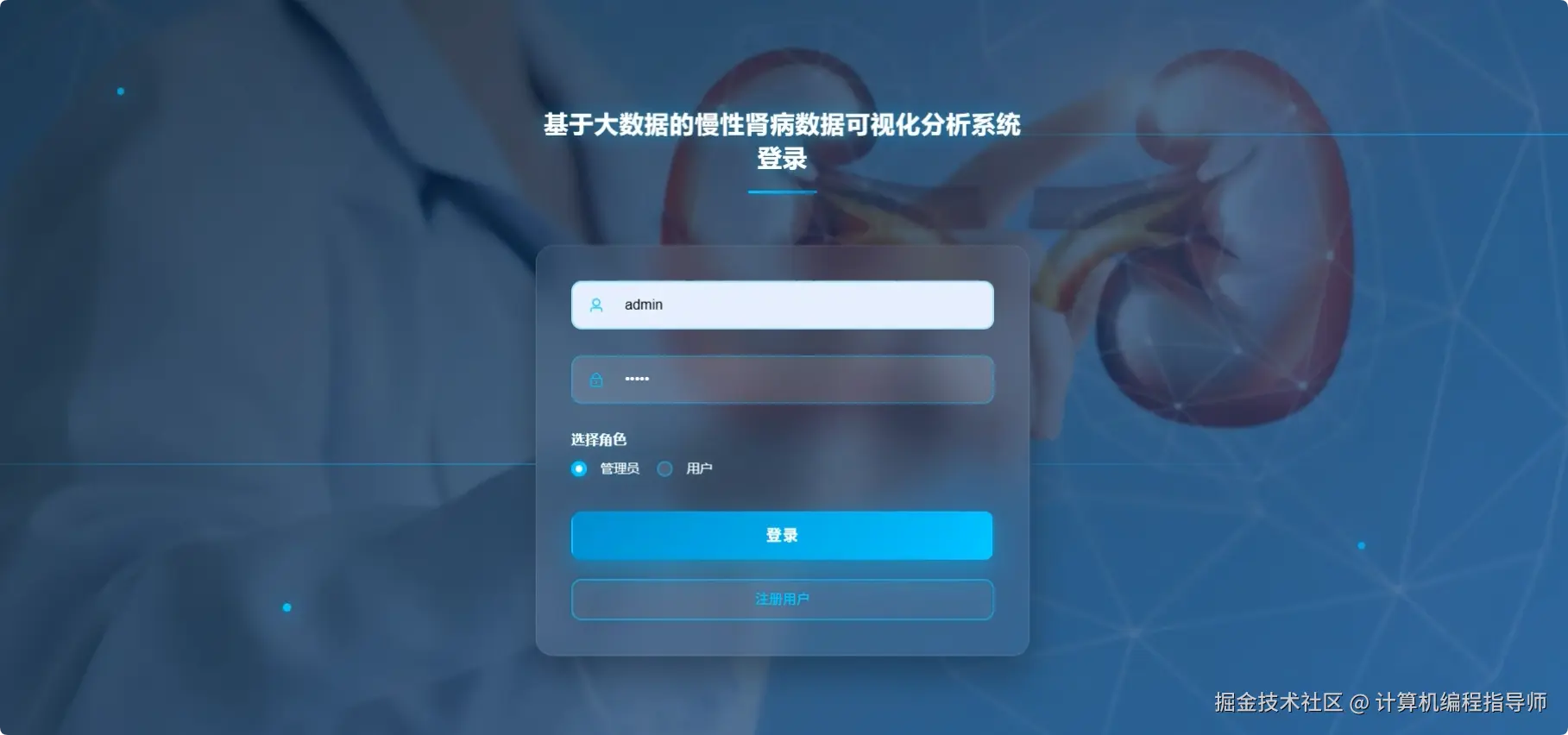

慢性肾病数据可视化分析系统-图片展示
慢性肾病数据可视化分析系统-代码展示
from pyspark.sql.functions import col, count, when, mean, stddev, corr, desc, asc
from pyspark.sql.types import StructType, StructField, StringType, DoubleType, IntegerType
import pandas as pd
import numpy as np
from django.http import JsonResponse
from django.views.decorators.http import require_http_methods
from django.views.decorators.csrf import csrf_exempt
import json
import mysql.connector
from decimal import Decimal
spark = SparkSession.builder.appName("ChronicKidneyDiseaseAnalysis").config("spark.sql.adaptive.enabled", "true").config("spark.sql.adaptive.coalescePartitions.enabled", "true").getOrCreate()
@csrf_exempt
@require_http_methods(["POST"])
def analyze_blood_pressure_disease_relation(request):
try:
connection = mysql.connector.connect(host='localhost', user='root', password='password', database='kidney_disease')
cursor = connection.cursor()
cursor.execute("SELECT bp, class FROM kidney_disease_data WHERE bp IS NOT NULL AND class IS NOT NULL")
data = cursor.fetchall()
df = spark.createDataFrame(data, ["bp", "class"])
bp_ranges = [("正常", 0, 120), ("高血压前期", 120, 140), ("1级高血压", 140, 160), ("2级高血压", 160, 300)]
result_data = []
for range_name, min_val, max_val in bp_ranges:
filtered_df = df.filter((col("bp") >= min_val) & (col("bp") < max_val))
total_count = filtered_df.count()
disease_count = filtered_df.filter(col("class") == "ckd").count()
normal_count = filtered_df.filter(col("class") == "notckd").count()
disease_rate = (disease_count / total_count * 100) if total_count > 0 else 0
normal_rate = (normal_count / total_count * 100) if total_count > 0 else 0
avg_bp = filtered_df.select(mean("bp")).collect()[0][0] if total_count > 0 else 0
std_bp = filtered_df.select(stddev("bp")).collect()[0][0] if total_count > 0 else 0
result_data.append({
'bp_range': range_name,
'total_patients': total_count,
'disease_patients': disease_count,
'normal_patients': normal_count,
'disease_rate': round(disease_rate, 2),
'normal_rate': round(normal_rate, 2),
'avg_bp_value': round(float(avg_bp or 0), 2),
'bp_std_deviation': round(float(std_bp or 0), 2)
})
correlation_result = df.select(corr("bp", when(col("class") == "ckd", 1).otherwise(0))).collect()[0][0]
hypertension_df = df.filter(col("bp") >= 140)
hypertension_disease_rate = hypertension_df.filter(col("class") == "ckd").count() / hypertension_df.count() * 100 if hypertension_df.count() > 0 else 0
cursor.close()
connection.close()
return JsonResponse({
'success': True,
'data': result_data,
'correlation_coefficient': round(float(correlation_result or 0), 4),
'hypertension_disease_rate': round(hypertension_disease_rate, 2),
'total_analyzed': df.count()
})
except Exception as e:
return JsonResponse({'success': False, 'error': str(e)})
@csrf_exempt
@require_http_methods(["POST"])
def analyze_kidney_function_indicators(request):
try:
connection = mysql.connector.connect(host='localhost', user='root', password='password', database='kidney_disease')
cursor = connection.cursor()
cursor.execute("SELECT bu, sc, al, sg, class FROM kidney_disease_data WHERE bu IS NOT NULL AND sc IS NOT NULL AND al IS NOT NULL AND sg IS NOT NULL")
data = cursor.fetchall()
df = spark.createDataFrame(data, ["bu", "sc", "al", "sg", "class"])
bu_analysis = df.select(mean("bu"), stddev("bu")).collect()[0]
sc_analysis = df.select(mean("sc"), stddev("sc")).collect()[0]
al_analysis = df.select(mean("al"), stddev("al")).collect()[0]
sg_analysis = df.select(mean("sg"), stddev("sg")).collect()[0]
bu_abnormal_count = df.filter(col("bu") > 50).count()
sc_abnormal_count = df.filter(col("sc") > 1.2).count()
al_abnormal_count = df.filter(col("al") > 0).count()
sg_abnormal_low_count = df.filter(col("sg") < 1.005).count()
sg_abnormal_high_count = df.filter(col("sg") > 1.030).count()
total_patients = df.count()
disease_patients = df.filter(col("class") == "ckd")
normal_patients = df.filter(col("class") == "notckd")
disease_bu_avg = disease_patients.select(mean("bu")).collect()[0][0]
disease_sc_avg = disease_patients.select(mean("sc")).collect()[0][0]
disease_al_avg = disease_patients.select(mean("al")).collect()[0][0]
normal_bu_avg = normal_patients.select(mean("bu")).collect()[0][0]
normal_sc_avg = normal_patients.select(mean("sc")).collect()[0][0]
normal_al_avg = normal_patients.select(mean("al")).collect()[0][0]
severity_levels = []
mild_damage = df.filter((col("bu") > 50) & (col("bu") <= 100) & (col("sc") > 1.2) & (col("sc") <= 2.0))
moderate_damage = df.filter((col("bu") > 100) & (col("bu") <= 200) & (col("sc") > 2.0) & (col("sc") <= 5.0))
severe_damage = df.filter((col("bu") > 200) | (col("sc") > 5.0))
severity_levels.append({'level': 'mild', 'count': mild_damage.count(), 'percentage': round(mild_damage.count() / total_patients * 100, 2)})
severity_levels.append({'level': 'moderate', 'count': moderate_damage.count(), 'percentage': round(moderate_damage.count() / total_patients * 100, 2)})
severity_levels.append({'level': 'severe', 'count': severe_damage.count(), 'percentage': round(severe_damage.count() / total_patients * 100, 2)})
correlation_matrix = {}
correlation_matrix['bu_sc'] = df.select(corr("bu", "sc")).collect()[0][0]
correlation_matrix['bu_al'] = df.select(corr("bu", "al")).collect()[0][0]
correlation_matrix['sc_al'] = df.select(corr("sc", "al")).collect()[0][0]
proteinuria_analysis = df.filter(col("al") > 1.0)
proteinuria_severe_kidney = proteinuria_analysis.filter((col("bu") > 100) | (col("sc") > 2.0)).count()
proteinuria_total = proteinuria_analysis.count()
cursor.close()
connection.close()
return JsonResponse({
'success': True,
'indicators_stats': {
'bu': {'mean': round(float(bu_analysis[0] or 0), 2), 'std': round(float(bu_analysis[1] or 0), 2), 'abnormal_count': bu_abnormal_count},
'sc': {'mean': round(float(sc_analysis[0] or 0), 2), 'std': round(float(sc_analysis[1] or 0), 2), 'abnormal_count': sc_abnormal_count},
'al': {'mean': round(float(al_analysis[0] or 0), 2), 'std': round(float(al_analysis[1] or 0), 2), 'abnormal_count': al_abnormal_count},
'sg': {'mean': round(float(sg_analysis[0] or 0), 4), 'std': round(float(sg_analysis[1] or 0), 4), 'abnormal_low': sg_abnormal_low_count, 'abnormal_high': sg_abnormal_high_count}
},
'disease_comparison': {
'disease_group': {'bu_avg': round(float(disease_bu_avg or 0), 2), 'sc_avg': round(float(disease_sc_avg or 0), 2), 'al_avg': round(float(disease_al_avg or 0), 2)},
'normal_group': {'bu_avg': round(float(normal_bu_avg or 0), 2), 'sc_avg': round(float(normal_sc_avg or 0), 2), 'al_avg': round(float(normal_al_avg or 0), 2)}
},
'severity_analysis': severity_levels,
'correlation_analysis': {k: round(float(v or 0), 4) for k, v in correlation_matrix.items()},
'proteinuria_kidney_relation': {'severe_cases': proteinuria_severe_kidney, 'total_proteinuria': proteinuria_total, 'severity_rate': round(proteinuria_severe_kidney / proteinuria_total * 100, 2) if proteinuria_total > 0 else 0}
})
except Exception as e:
return JsonResponse({'success': False, 'error': str(e)})
@csrf_exempt
@require_http_methods(["POST"])
def analyze_multi_indicator_diagnosis(request):
try:
connection = mysql.connector.connect(host='localhost', user='root', password='password', database='kidney_disease')
cursor = connection.cursor()
cursor.execute("SELECT bu, sc, al, hemo, rbcc, wbcc, sod, pot, bp, class FROM kidney_disease_data WHERE bu IS NOT NULL AND sc IS NOT NULL AND al IS NOT NULL AND hemo IS NOT NULL")
data = cursor.fetchall()
df = spark.createDataFrame(data, ["bu", "sc", "al", "hemo", "rbcc", "wbcc", "sod", "pot", "bp", "class"])
abnormal_combinations = df.withColumn("bu_abnormal", when(col("bu") > 50, 1).otherwise(0)) \
.withColumn("sc_abnormal", when(col("sc") > 1.2, 1).otherwise(0)) \
.withColumn("al_abnormal", when(col("al") > 0, 1).otherwise(0)) \
.withColumn("hemo_abnormal", when(col("hemo") < 11.0, 1).otherwise(0))
combination_stats = []
total_count = abnormal_combinations.count()
single_abnormal = abnormal_combinations.filter((col("bu_abnormal") + col("sc_abnormal") + col("al_abnormal") + col("hemo_abnormal")) == 1)
double_abnormal = abnormal_combinations.filter((col("bu_abnormal") + col("sc_abnormal") + col("al_abnormal") + col("hemo_abnormal")) == 2)
triple_abnormal = abnormal_combinations.filter((col("bu_abnormal") + col("sc_abnormal") + col("al_abnormal") + col("hemo_abnormal")) == 3)
all_abnormal = abnormal_combinations.filter((col("bu_abnormal") + col("sc_abnormal") + col("al_abnormal") + col("hemo_abnormal")) == 4)
combination_stats.append({'combination': 'single', 'count': single_abnormal.count(), 'disease_rate': round(single_abnormal.filter(col("class") == "ckd").count() / single_abnormal.count() * 100, 2) if single_abnormal.count() > 0 else 0})
combination_stats.append({'combination': 'double', 'count': double_abnormal.count(), 'disease_rate': round(double_abnormal.filter(col("class") == "ckd").count() / double_abnormal.count() * 100, 2) if double_abnormal.count() > 0 else 0})
combination_stats.append({'combination': 'triple', 'count': triple_abnormal.count(), 'disease_rate': round(triple_abnormal.filter(col("class") == "ckd").count() / triple_abnormal.count() * 100, 2) if triple_abnormal.count() > 0 else 0})
combination_stats.append({'combination': 'all_four', 'count': all_abnormal.count(), 'disease_rate': round(all_abnormal.filter(col("class") == "ckd").count() / all_abnormal.count() * 100, 2) if all_abnormal.count() > 0 else 0})
high_risk_combinations = abnormal_combinations.filter((col("bu_abnormal") == 1) & (col("sc_abnormal") == 1) & (col("hemo_abnormal") == 1))
high_risk_disease_rate = high_risk_combinations.filter(col("class") == "ckd").count() / high_risk_combinations.count() * 100 if high_risk_combinations.count() > 0 else 0
electrolyte_abnormal = df.filter(((col("sod") < 135) | (col("sod") > 145)) | ((col("pot") < 3.5) | (col("pot") > 5.0))) if 'sod' in df.columns and 'pot' in df.columns else df.limit(0)
electrolyte_disease_correlation = electrolyte_abnormal.filter(col("class") == "ckd").count() / electrolyte_abnormal.count() * 100 if electrolyte_abnormal.count() > 0 else 0
diagnostic_value_ranking = []
for indicator in ['bu', 'sc', 'al', 'hemo']:
disease_group_mean = df.filter(col("class") == "ckd").select(mean(indicator)).collect()[0][0]
normal_group_mean = df.filter(col("class") == "notckd").select(mean(indicator)).collect()[0][0]
difference_ratio = abs(float(disease_group_mean or 0) - float(normal_group_mean or 0)) / float(normal_group_mean or 1)
diagnostic_value_ranking.append({'indicator': indicator, 'difference_ratio': round(difference_ratio, 4)})
diagnostic_value_ranking.sort(key=lambda x: x['difference_ratio'], reverse=True)
optimal_combination = abnormal_combinations.filter((col("bu_abnormal") == 1) & (col("sc_abnormal") == 1))
optimal_sensitivity = optimal_combination.filter(col("class") == "ckd").count() / df.filter(col("class") == "ckd").count() * 100
optimal_specificity = optimal_combination.filter(col("class") == "notckd").count() / df.filter(col("class") == "notckd").count() * 100
cursor.close()
connection.close()
return JsonResponse({
'success': True,
'combination_analysis': combination_stats,
'high_risk_patterns': {
'bu_sc_hemo_combination': {
'count': high_risk_combinations.count(),
'disease_rate': round(high_risk_disease_rate, 2)
}
},
'electrolyte_correlation': {
'abnormal_count': electrolyte_abnormal.count(),
'disease_correlation_rate': round(electrolyte_disease_correlation, 2)
},
'diagnostic_value_ranking': diagnostic_value_ranking,
'optimal_diagnostic_combination': {
'combination': 'bu_sc',
'sensitivity': round(optimal_sensitivity, 2),
'specificity': round(optimal_specificity, 2)
},
'total_analyzed_patients': total_count
})
except Exception as e:
return JsonResponse({'success': False, 'error': str(e)})
慢性肾病数据可视化分析系统-结语
计算机专业学生的福音：基于大数据的慢性肾病可视化分析系统完整实现方案
25个核心功能模块详解：慢性肾病大数据可视化分析系统从零到部署全攻略
同样是数据分析系统，为什么加上Hadoop+Spark后效果截然不同？
