AI识别发票并提取字段内容

介绍：OCR识别应用

步骤一：引入依赖

<dashscope.sdk.version>2.18.4</dashscope.sdk.version>

<dependency>
    <groupId>com.alibaba</groupId>
    <artifactId>dashscope-sdk-java</artifactId>
    <version>${dashscope.sdk.version}</version>
</dependency>

步骤二：配置

spring:
  application:
    name: RuoYi-Vue-Plus
  ai:
    dashscope:
      api-key: 个人key
ocr:
  dashscope:
    model: qwen-vl-ocr-latest

步骤三：字段提取接口

[1]ImageController

	/**
     * 字段提取
     *
     * @param imageRequestBo
     * @return
     * @throws Exception
     */
    @PostMapping("/textExtractImage")
    public R<Void> textExtractImage(@RequestBody ImageRequestBo imageRequestBo) throws Exception {
        return toAjax(imageService.textExtractImage(imageRequestBo));
    }

[2]ImageService

public interface ImageService {
    /**
     * 字段提取
     *
     * @param imageRequestBo
     * @return
     */
    int textExtractImage(ImageRequestBo imageRequestBo) throws Exception;
}

[3]ImageServiceImpl

@Service
@Slf4j
public class ImageServiceImpl implements ImageService {
    @Autowired
    private ModelPropertyConfig modelPropertyConfig;

    /**
     * 字段提取
     *
     * @param imageRequestBo
     * @return
     */
    @Override
    public int textExtractImage(ImageRequestBo imageRequestBo) throws Exception {
        MultiModalConversation conv = new MultiModalConversation();
        Map<String, Object> map = new HashMap<>();
        map.put("image", imageRequestBo.getImageUrl());
        // 输入图像的最大像素阈值，超过该值图像会按原比例缩小，直到总像素低于max_pixels
        map.put("max_pixels", "6422528");
        // 输入图像的最小像素阈值，小于该值图像会按原比例放大，直到总像素大于min_pixels
        map.put("min_pixels", "3136");
        // 开启图像自动转正功能
        map.put("enable_rotate", true);

        MultiModalMessage userMessage = MultiModalMessage.builder()
            .role(Role.USER.getValue())
            .content(Arrays.asList(
                map,
                Collections.singletonMap("text", imageRequestBo.getPromptText())))
            .build();

        // 创建主JSON对象
        JsonObject resultSchema = new JsonObject();
        resultSchema.addProperty("销售方名称", "");
        resultSchema.addProperty("购买方名称", "");
        resultSchema.addProperty("不含税价", "");
        resultSchema.addProperty("组织机构代码", "");
        resultSchema.addProperty("发票代码", "");

        // 配置内置的OCR任务
        OcrOptions ocrOptions = OcrOptions.builder()
            .task(OcrOptions.Task.KEY_INFORMATION_EXTRACTION)
            .taskConfig(OcrOptions.TaskConfig.builder()
                .resultSchema(resultSchema)
                .build())
            .build();

        MultiModalConversationParam param = MultiModalConversationParam.builder()
            .apiKey(modelPropertyConfig.getCommonApiKey())
            .model(modelPropertyConfig.getOcrModelName())
            .message(userMessage)
            .ocrOptions(ocrOptions)
            .build();
        MultiModalConversationResult result = conv.call(param);
        log.info("result: {}", JSONUtil.toJsonStr(result));
        return 1;
    }
}

[4]ModelPropertyConfig

@Data
@Component
public class ModelPropertyConfig {
    /**
     * 通用key
     */
    @Value("${spring.ai.dashscope.api-key}")
    private String commonApiKey;

    /**
     * OCR模型
     */
    @Value("${ocr.dashscope.model}")
    private String ocrModelName;
}

[5]ImageRequestBo

@Data
public class ImageRequestBo {
    /**
     * 图片url
     */
    private String imageUrl;

    /**
     * 提示词
     */
    private String promptText;
}

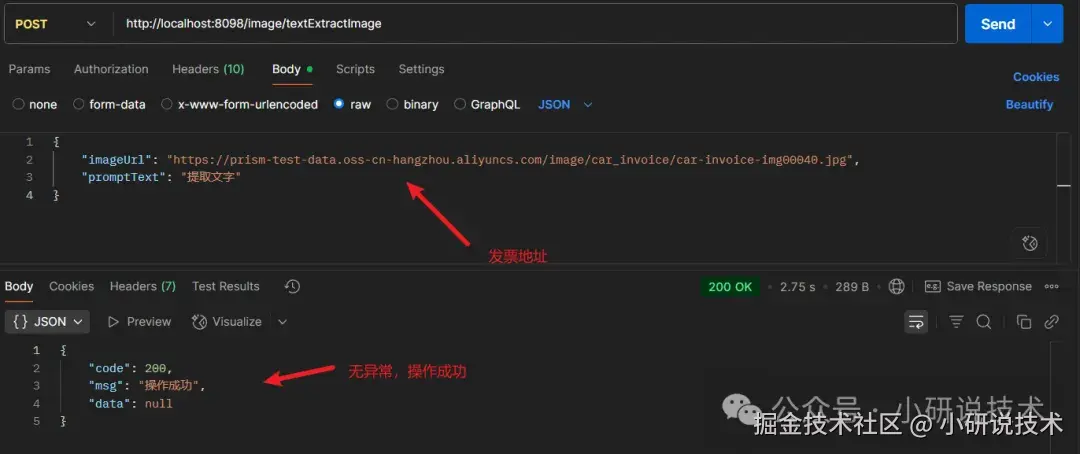

步骤四：接口测试

发票地址：https://prism-test-data.oss-cn-hangzhou.aliyuncs.com/image/car_invoice/car-invoice-img00040.jpg

日志打印

result: {"requestId":"d2a7cea2-31c2-9f71-8742-295742f7c3fe","usage":{"inputTokens":1173,"outputTokens":103,"totalTokens":1276,"imageTokens":1001,"inputTokensDetails":{"textTokens":172,"imageTokens":1001},"outputTokensDetails":{"textTokens":103}},"output":{"choices":[{"finishReason":"stop","message":{"role":"assistant","content":[{"text":"```json\n{\n    \"不含税价\": \"230769.23\",\n    \"发票代码\": \"142011726001\",\n    \"组织机构代码\": \"\",\n    \"购买方名称\": \"蔡应时\",\n    \"销售方名称\": \"湖北中基汽车销售服务有限公司\",\n    \"销售方税号\": \"91420000670389609X\"\n}\n```","ocr_result":{"kv_result":{"销售方名称":"湖北中基汽车销售服务有限公司","不含税价":"230769.23","购买方名称":"蔡应时","发票代码":"142011726001","组织机构代码":""}}}]}}]}}

经过验证，字段内容与值与发票一致！
