农作物产量数据分析与可视化系统- 简介
基于Hadoop+Spark的农作物产量数据分析与可视化系统是一个集大数据存储、分布式计算和智能分析于一体的综合性农业数据分析平台。该系统以Hadoop分布式文件系统（HDFS）作为底层数据存储架构，确保海量农业数据的可靠存储和高效管理。通过Spark大数据处理引擎，系统能够对农作物产量相关的多维度数据进行快速并行计算和深度分析。系统采用Python+Django作为后端开发框架，结合Spark SQL进行复杂的数据查询和统计分析，同时利用Pandas和NumPy进行精细化的数据处理和科学计算。前端采用Vue+ElementUI构建用户界面，通过Echarts图表库实现数据的动态可视化展示。系统围绕地理环境因素、农业生产措施、作物种类特性、气候条件影响和多维度综合分析五大核心维度，提供超过20种专业的数据分析功能，包括区域产量对比、土壤类型分析、化肥灌溉效益评估、气候条件关联分析等。通过大数据技术的深度应用，系统能够从海量农业数据中挖掘出有价值的生产规律和增产模式，为现代农业决策提供科学的数据支撑和分析洞察。
农作物产量数据分析与可视化系统-技术 框架
开发语言：Python或Java（两个版本都支持）
大数据框架：Hadoop+Spark（本次没用Hive，支持定制）
后端框架：Django+Spring Boot(Spring+SpringMVC+Mybatis)（两个版本都支持）
前端：Vue+ElementUI+Echarts+HTML+CSS+JavaScript+jQuery
详细技术点：Hadoop、HDFS、Spark、Spark SQL、Pandas、NumPy
数据库：MySQL
农作物产量数据分析与可视化系统- 背景
当前我国正处于农业现代化转型的关键时期，传统农业生产模式面临着资源约束趋紧、环境压力加大、气候变化影响加剧等多重挑战。农作物产量的稳定增长不仅关系到国家粮食安全，更是实现乡村振兴战略的重要基础。然而，影响农作物产量的因素极其复杂，涉及土壤条件、气候环境、种植技术、管理措施等多个维度，这些因素之间相互作用，形成了复杂的非线性关系网络。传统的农业数据分析方法往往局限于小规模样本和单一因素的简单统计，难以处理大规模、多维度的农业数据，更无法深入挖掘数据背后隐藏的产量规律和增产模式。随着物联网、遥感技术、农业传感器等技术的快速发展，农业领域产生了海量的结构化和半结构化数据，这为深度分析农作物产量影响机制提供了前所未有的数据基础，也对数据处理和分析技术提出了更高要求。
本系统的开发具有多层次的实际应用价值和技术探索意义。从技术层面来看，系统通过Hadoop+Spark大数据架构的实际应用，为处理海量农业数据提供了可行的技术方案，验证了分布式计算在农业数据分析领域的有效性和可扩展性。系统结合了多种数据分析算法和可视化技术，在实际业务场景中检验了这些技术的集成应用效果。从应用层面来看，系统能够为农业管理部门提供基于数据的决策参考，帮助识别不同区域的优势作物品种和最佳种植条件组合，为制定差异化的农业扶持政策和资源配置方案提供量化依据。对于农业科研机构而言，系统提供的多维度分析功能可以辅助开展作物育种、栽培技术优化等研究工作。对于农业生产者来说，系统的分析结果能够为精准施肥、合理选种、科学管理等实践活动提供指导建议。同时，作为一个毕业设计项目，本系统在有限的开发周期内整合了大数据存储、分布式计算、数据分析、可视化展示等多个技术环节，为类似的农业信息化项目开发积累了宝贵的技术经验和实践案例。
农作物产量数据分析与可视化系统-视频展示

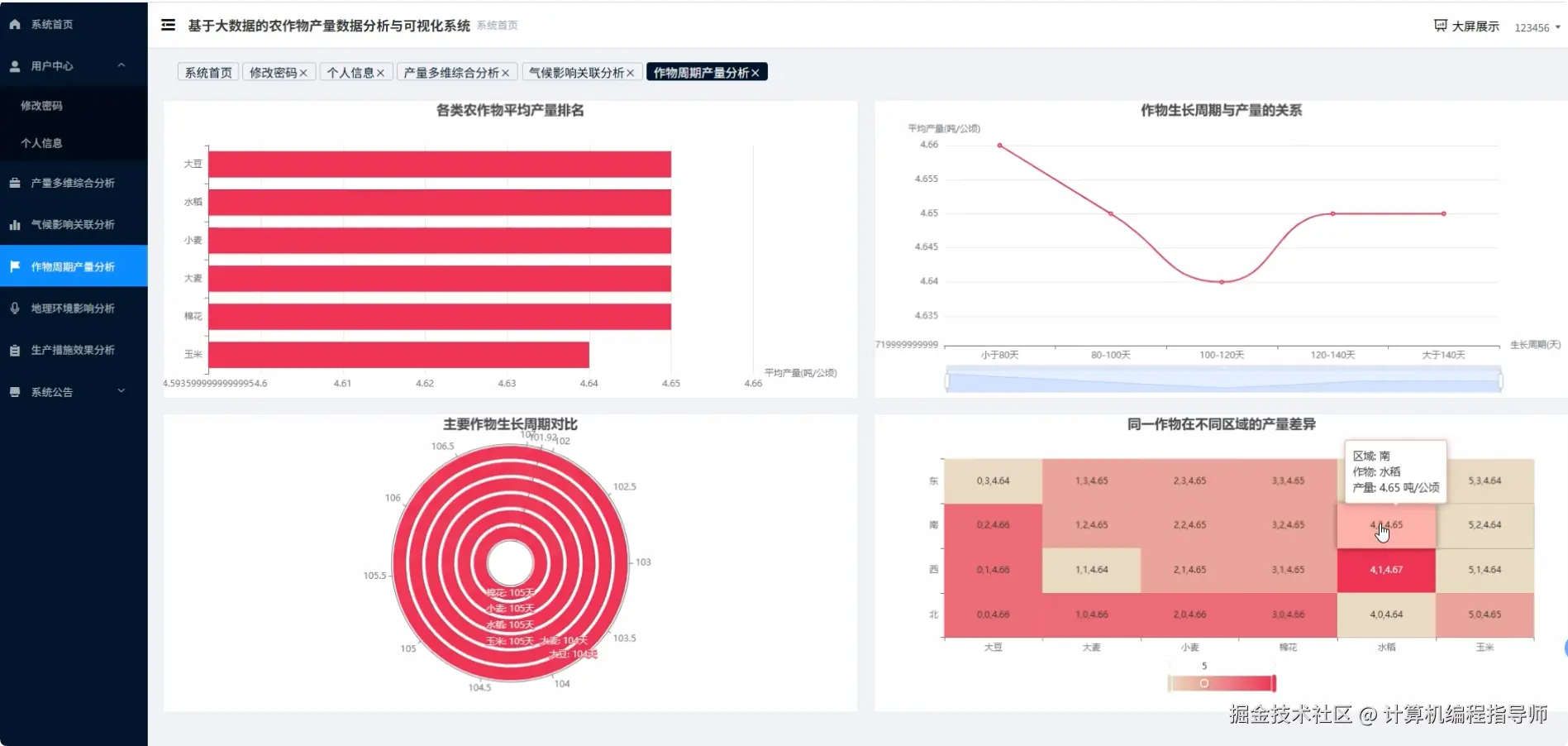

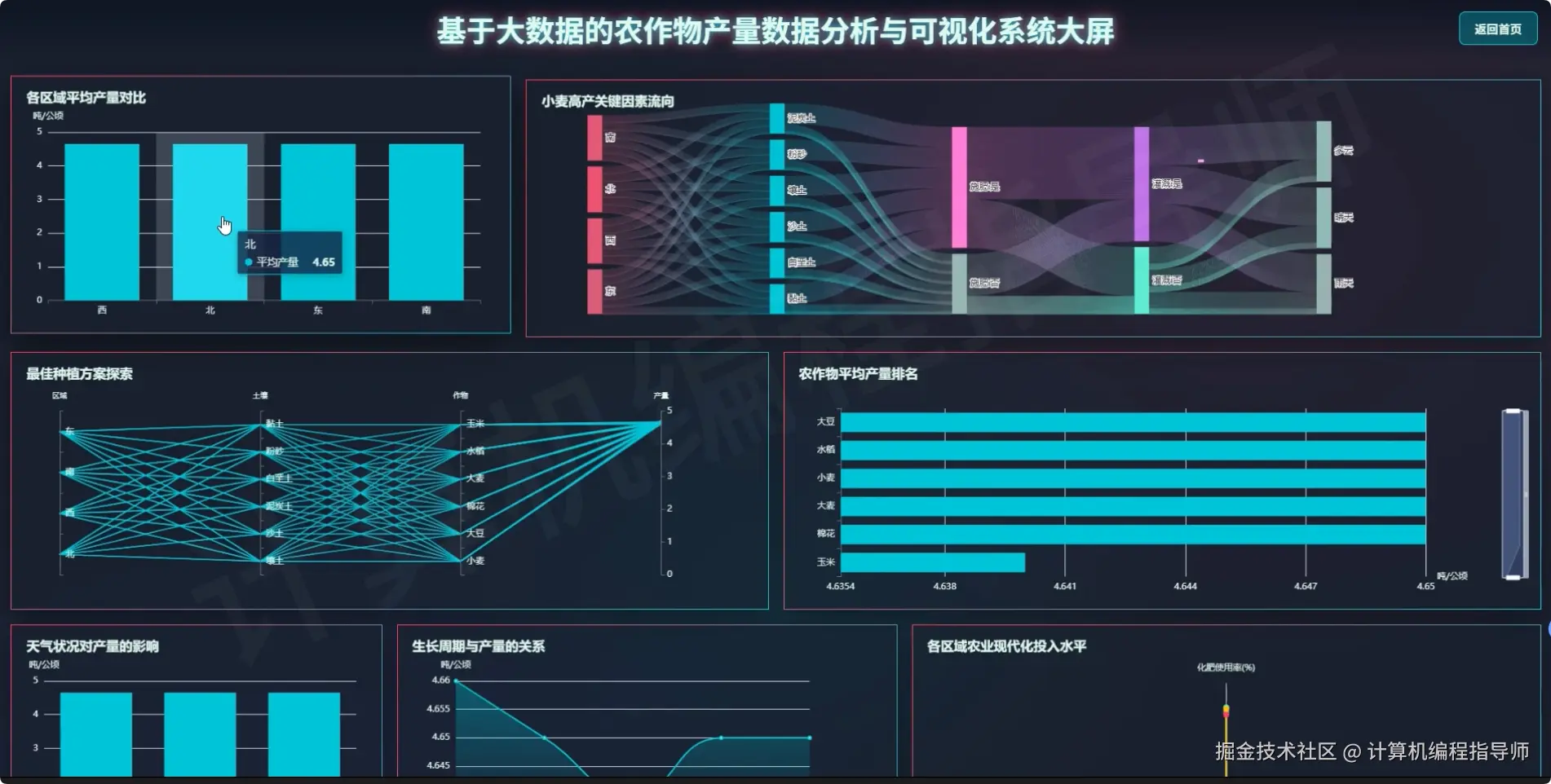

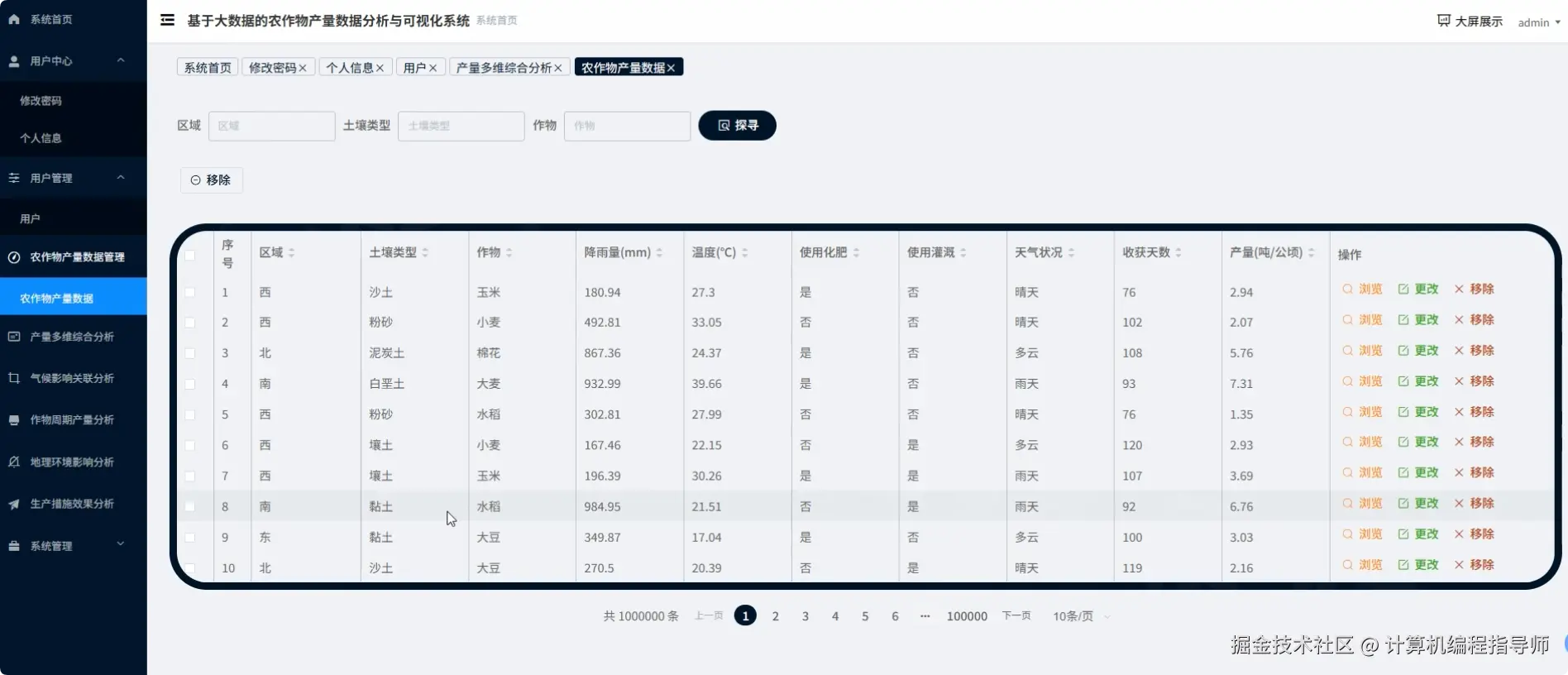

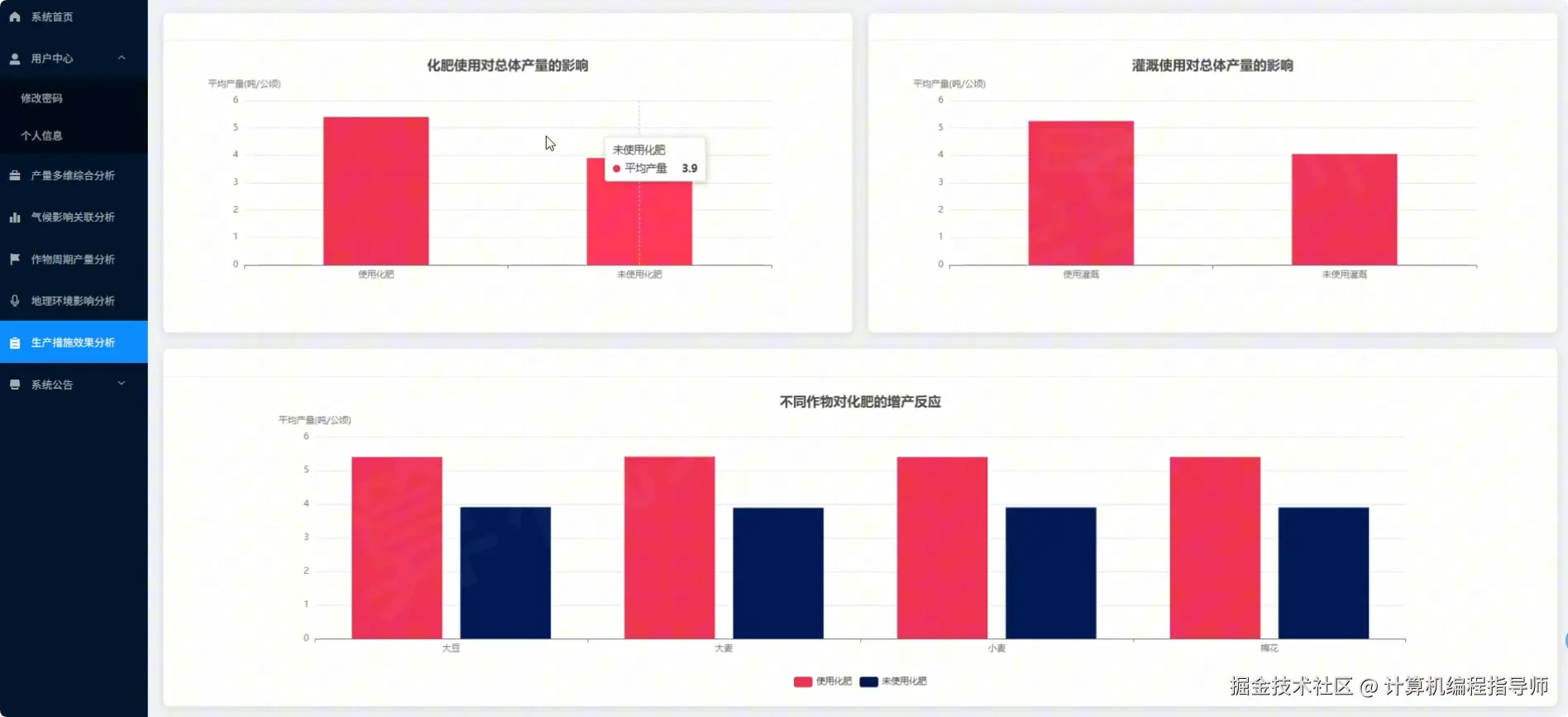

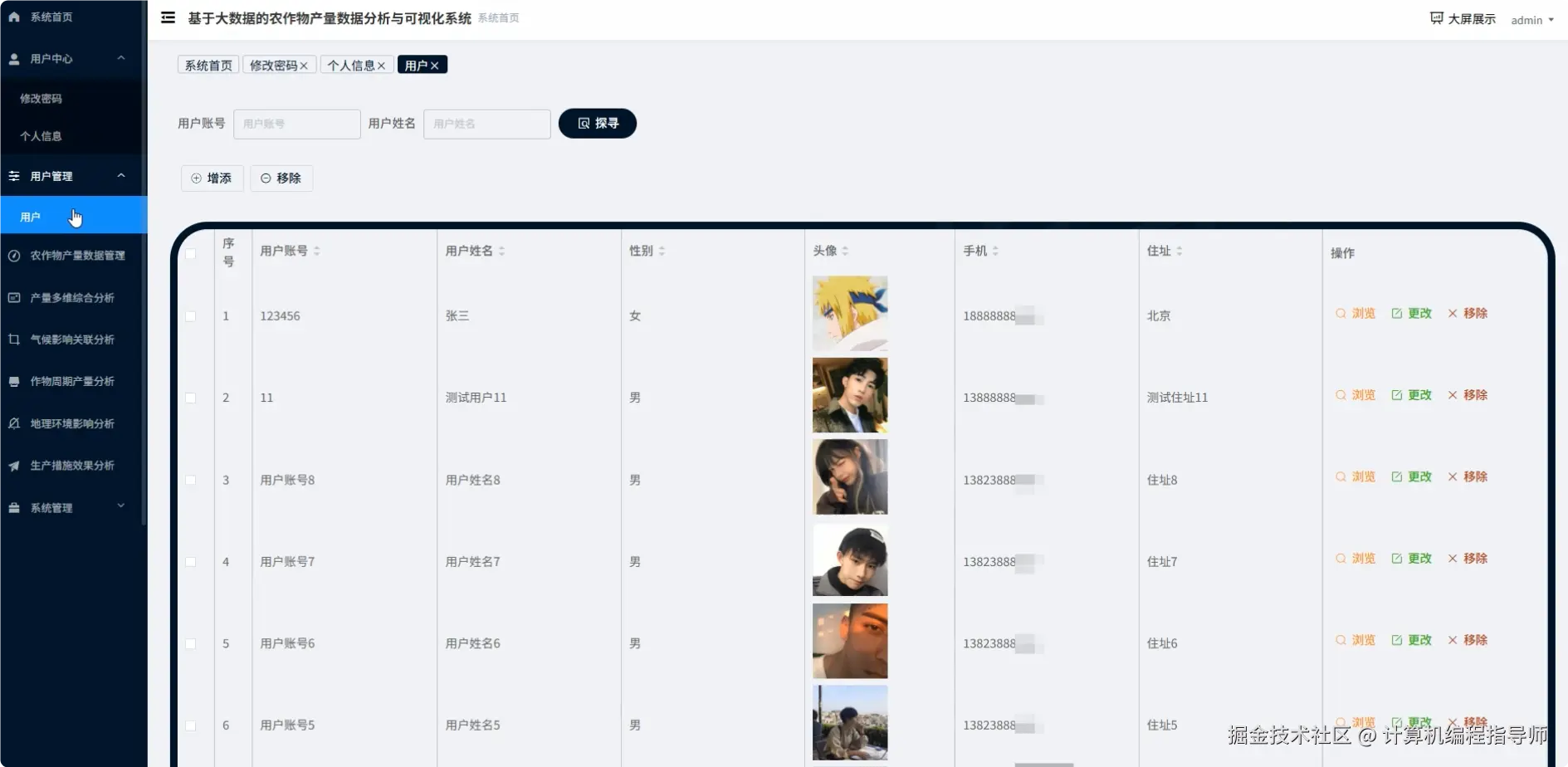

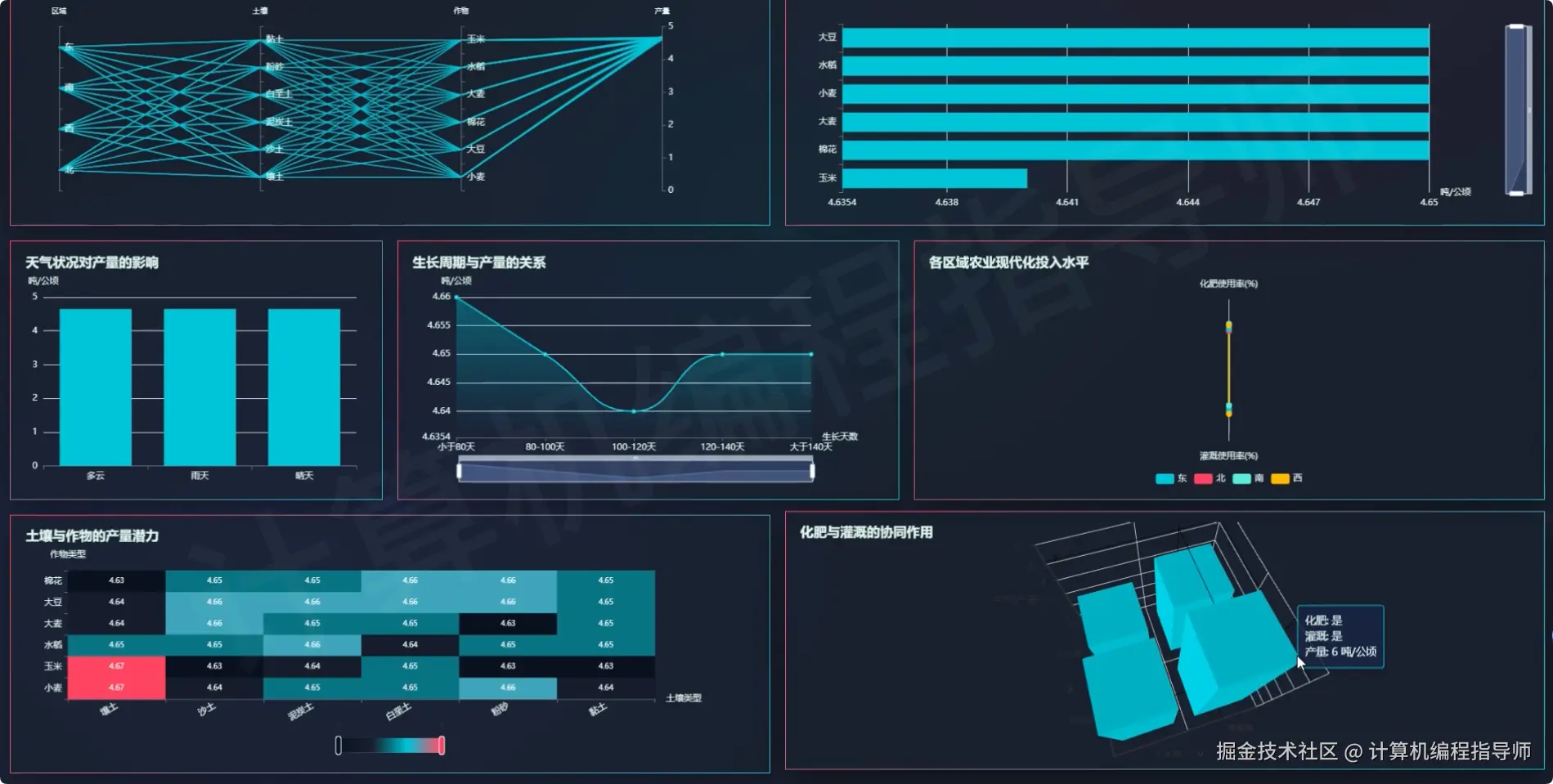

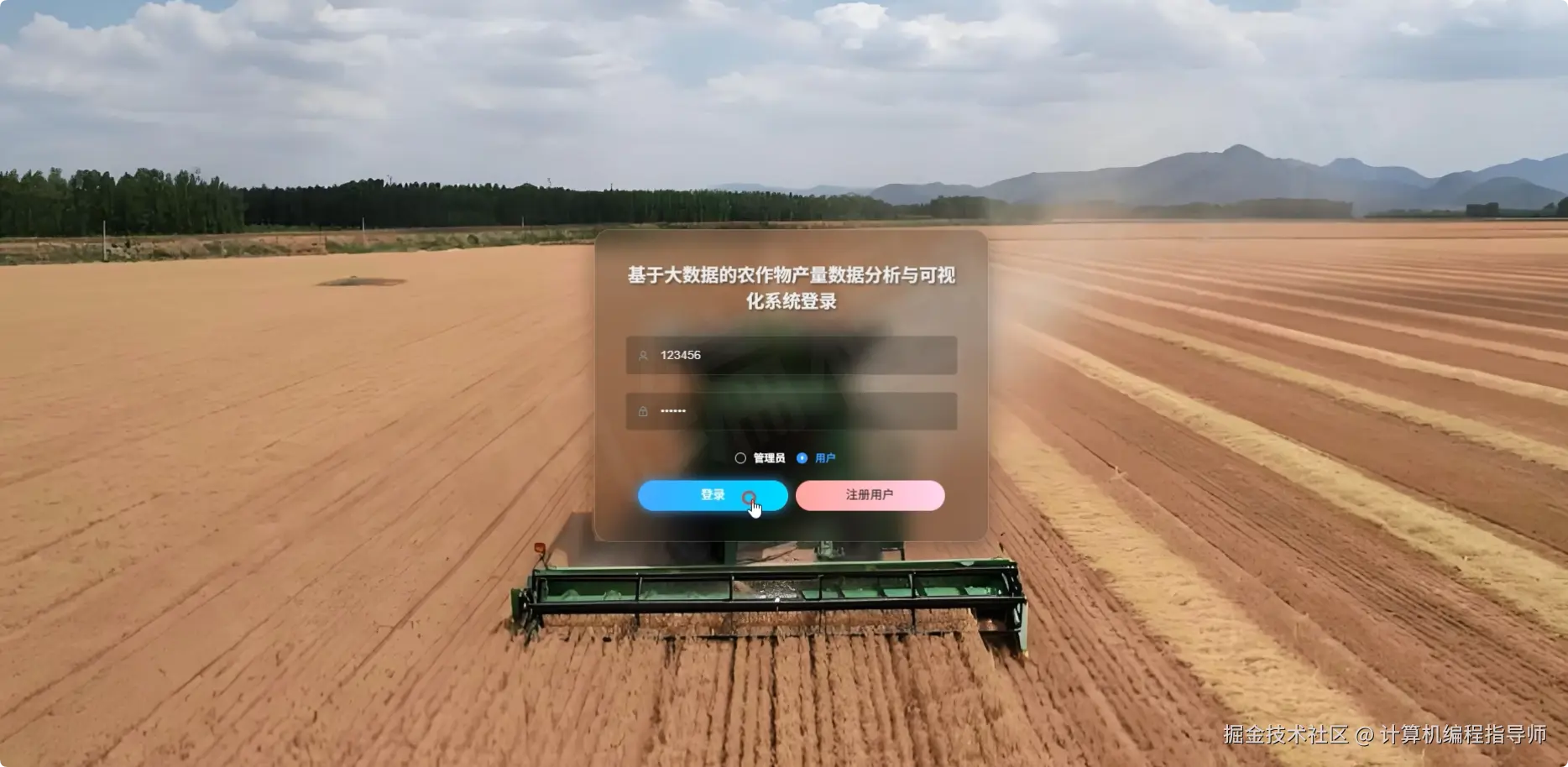

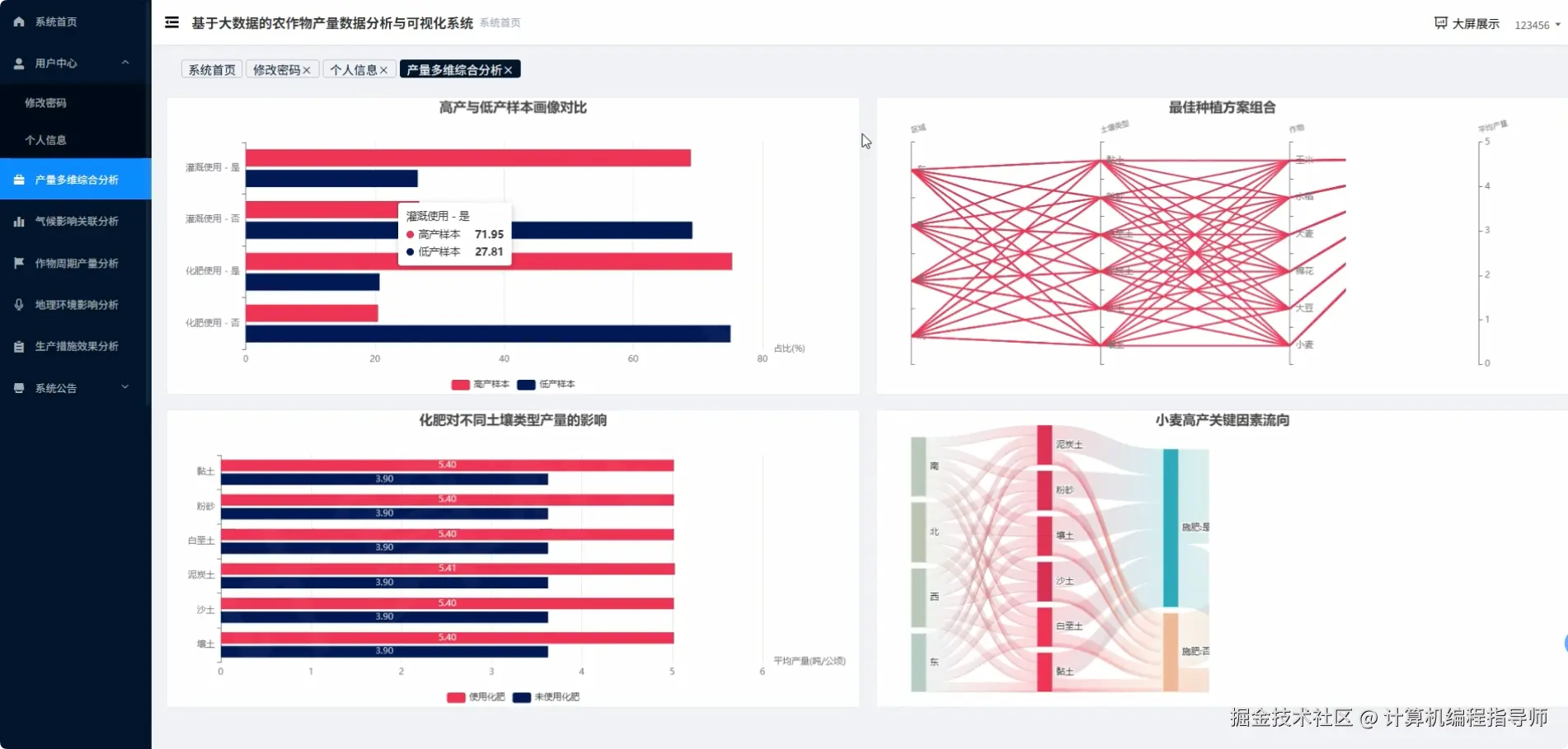

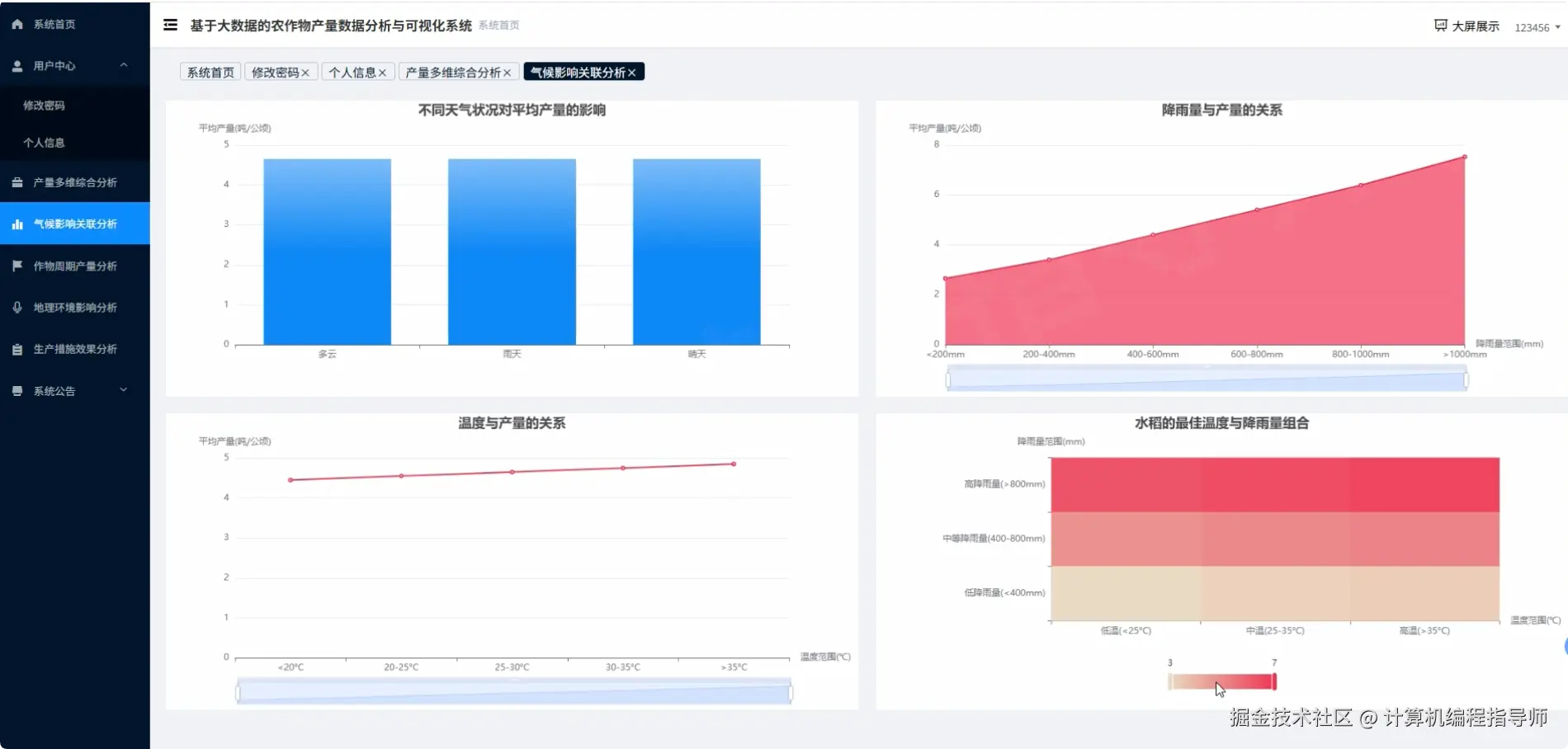

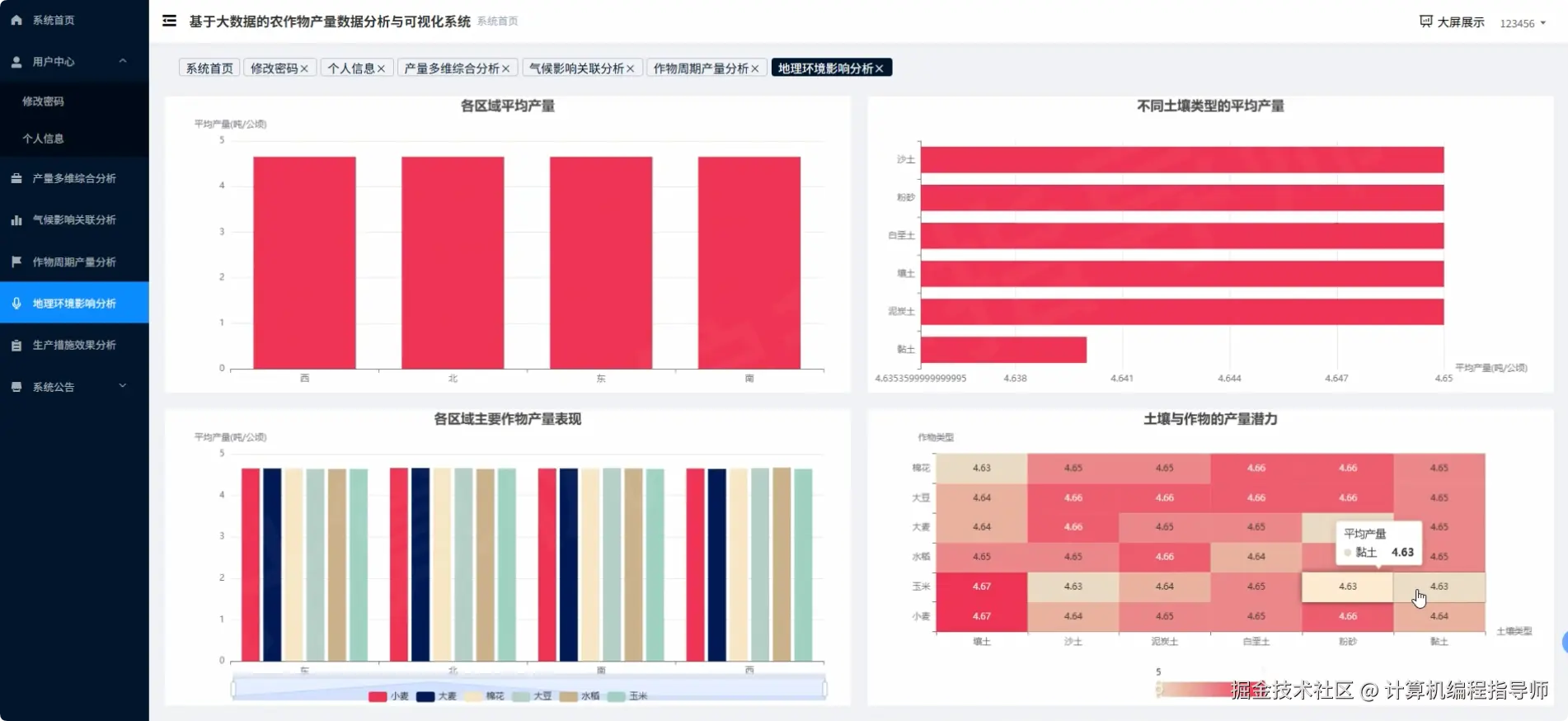

农作物产量数据分析与可视化系统-图片展示
农作物产量数据分析与可视化系统-代码展示
from pyspark.sql.functions import *
from pyspark.sql.types import *
import pandas as pd
import numpy as np
from django.http import JsonResponse
from django.views.decorators.csrf import csrf_exempt
import json
spark = SparkSession.builder.appName("CropYieldAnalysis").config("spark.sql.adaptive.enabled", "true").config("spark.sql.adaptive.coalescePartitions.enabled", "true").getOrCreate()
crop_df = spark.read.csv("hdfs://localhost:9000/crop_data/cleaned_crop_yield.csv", header=True, inferSchema=True)
@csrf_exempt
def regional_yield_analysis(request):
if request.method == 'POST':
data = json.loads(request.body)
analysis_type = data.get('analysis_type', 'region_avg')
if analysis_type == 'region_avg':
result_df = crop_df.groupBy("Region").agg(
avg("Yield_tons_per_hectare").alias("avg_yield"),
count("*").alias("sample_count"),
max("Yield_tons_per_hectare").alias("max_yield"),
min("Yield_tons_per_hectare").alias("min_yield"),
stddev("Yield_tons_per_hectare").alias("yield_stddev")
).orderBy(desc("avg_yield"))
pandas_result = result_df.toPandas()
pandas_result['yield_coefficient'] = pandas_result['yield_stddev'] / pandas_result['avg_yield']
pandas_result['productivity_rank'] = pandas_result['avg_yield'].rank(ascending=False, method='dense')
analysis_summary = {
'total_regions': len(pandas_result),
'highest_yield_region': pandas_result.iloc[0]['Region'],
'highest_avg_yield': float(pandas_result.iloc[0]['avg_yield']),
'yield_gap': float(pandas_result.iloc[0]['avg_yield'] - pandas_result.iloc[-1]['avg_yield']),
'regions_above_national_avg': len(pandas_result[pandas_result['avg_yield'] > pandas_result['avg_yield'].mean()])
}
elif analysis_type == 'soil_region_combo':
result_df = crop_df.groupBy("Region", "Soil_Type").agg(
avg("Yield_tons_per_hectare").alias("combo_avg_yield"),
count("*").alias("combo_count")
).filter(col("combo_count") >= 10)
pandas_result = result_df.toPandas()
pandas_result['combo_rank'] = pandas_result['combo_avg_yield'].rank(ascending=False, method='dense')
best_combo = pandas_result.iloc[pandas_result['combo_avg_yield'].idxmax()]
analysis_summary = {
'best_region_soil_combo': f"{best_combo['Region']} - {best_combo['Soil_Type']}",
'best_combo_yield': float(best_combo['combo_avg_yield']),
'total_valid_combos': len(pandas_result)
}
response_data = {
'success': True,
'analysis_results': pandas_result.to_dict('records'),
'summary': analysis_summary,
'data_source': 'Hadoop HDFS',
'processing_engine': 'Apache Spark'
}
return JsonResponse(response_data, safe=False)
@csrf_exempt
def agricultural_measures_analysis(request):
if request.method == 'POST':
data = json.loads(request.body)
measure_type = data.get('measure_type', 'fertilizer_impact')
if measure_type == 'fertilizer_impact':
fertilizer_effect = crop_df.groupBy("Fertilizer_Used").agg(
avg("Yield_tons_per_hectare").alias("avg_yield_by_fertilizer"),
count("*").alias("sample_count"),
stddev("Yield_tons_per_hectare").alias("yield_variance")
).collect()
fertilized_yield = [row['avg_yield_by_fertilizer'] for row in fertilizer_effect if row['Fertilizer_Used'] == 'Yes'][0]
non_fertilized_yield = [row['avg_yield_by_fertilizer'] for row in fertilizer_effect if row['Fertilizer_Used'] == 'No'][0]
fertilizer_boost = fertilized_yield - non_fertilized_yield
fertilizer_boost_percentage = (fertilizer_boost / non_fertilized_yield) * 100
crop_fertilizer_response = crop_df.groupBy("Crop", "Fertilizer_Used").agg(
avg("Yield_tons_per_hectare").alias("crop_specific_yield")
).collect()
crop_response_dict = {}
for row in crop_fertilizer_response:
crop = row['Crop']
if crop not in crop_response_dict:
crop_response_dict[crop] = {'with_fertilizer': 0, 'without_fertilizer': 0}
if row['Fertilizer_Used'] == 'Yes':
crop_response_dict[crop]['with_fertilizer'] = row['crop_specific_yield']
else:
crop_response_dict[crop]['without_fertilizer'] = row['crop_specific_yield']
crop_fertilizer_benefits = []
for crop, yields in crop_response_dict.items():
if yields['with_fertilizer'] > 0 and yields['without_fertilizer'] > 0:
benefit = yields['with_fertilizer'] - yields['without_fertilizer']
benefit_rate = (benefit / yields['without_fertilizer']) * 100
crop_fertilizer_benefits.append({
'crop': crop,
'yield_increase': benefit,
'increase_rate': benefit_rate,
'fertilized_yield': yields['with_fertilizer'],
'baseline_yield': yields['without_fertilizer']
})
crop_fertilizer_benefits.sort(key=lambda x: x['increase_rate'], reverse=True)
elif measure_type == 'irrigation_fertilizer_synergy':
synergy_analysis = crop_df.groupBy("Irrigation_Used", "Fertilizer_Used").agg(
avg("Yield_tons_per_hectare").alias("synergy_avg_yield"),
count("*").alias("treatment_count")
).collect()
treatment_results = {}
for row in synergy_analysis:
key = f"irrigation_{row['Irrigation_Used']}_fertilizer_{row['Fertilizer_Used']}"
treatment_results[key] = {
'avg_yield': row['synergy_avg_yield'],
'sample_size': row['treatment_count']
}
control_yield = treatment_results.get('irrigation_No_fertilizer_No', {}).get('avg_yield', 0)
irrigation_only = treatment_results.get('irrigation_Yes_fertilizer_No', {}).get('avg_yield', 0)
fertilizer_only = treatment_results.get('irrigation_No_fertilizer_Yes', {}).get('avg_yield', 0)
both_treatments = treatment_results.get('irrigation_Yes_fertilizer_Yes', {}).get('avg_yield', 0)
if control_yield > 0:
irrigation_effect = irrigation_only - control_yield
fertilizer_effect = fertilizer_only - control_yield
expected_combined = control_yield + irrigation_effect + fertilizer_effect
actual_combined = both_treatments
synergy_effect = actual_combined - expected_combined
synergy_coefficient = synergy_effect / expected_combined if expected_combined > 0 else 0
crop_fertilizer_benefits = []
analysis_summary = {
'fertilizer_yield_boost': float(fertilizer_boost),
'fertilizer_boost_percentage': float(fertilizer_boost_percentage),
'most_responsive_crop': crop_fertilizer_benefits[0]['crop'] if crop_fertilizer_benefits else 'N/A',
'max_response_rate': crop_fertilizer_benefits[0]['increase_rate'] if crop_fertilizer_benefits else 0
}
if measure_type == 'irrigation_fertilizer_synergy':
analysis_summary.update({
'synergy_effect': float(synergy_effect) if 'synergy_effect' in locals() else 0,
'synergy_coefficient': float(synergy_coefficient) if 'synergy_coefficient' in locals() else 0
})
response_data = {
'success': True,
'fertilizer_benefits': crop_fertilizer_benefits,
'treatment_comparison': treatment_results if measure_type == 'irrigation_fertilizer_synergy' else None,
'analysis_summary': analysis_summary
}
return JsonResponse(response_data, safe=False)
@csrf_exempt
def climate_impact_analysis(request):
if request.method == 'POST':
data = json.loads(request.body)
climate_factor = data.get('climate_factor', 'rainfall_temperature')
if climate_factor == 'rainfall_temperature':
rainfall_bins = [0, 300, 600, 900, 1200, float('inf')]
rainfall_labels = ['Very_Low', 'Low', 'Moderate', 'High', 'Very_High']
temperature_bins = [0, 15, 20, 25, 30, float('inf')]
temperature_labels = ['Cold', 'Cool', 'Moderate', 'Warm', 'Hot']
climate_df = crop_df.withColumn(
"rainfall_category",
when(col("Rainfall_mm") <= 300, "Very_Low")
.when(col("Rainfall_mm") <= 600, "Low")
.when(col("Rainfall_mm") <= 900, "Moderate")
.when(col("Rainfall_mm") <= 1200, "High")
.otherwise("Very_High")
).withColumn(
"temperature_category",
when(col("Temperature_Celsius") <= 15, "Cold")
.when(col("Temperature_Celsius") <= 20, "Cool")
.when(col("Temperature_Celsius") <= 25, "Moderate")
.when(col("Temperature_Celsius") <= 30, "Warm")
.otherwise("Hot")
)
climate_yield_analysis = climate_df.groupBy("rainfall_category", "temperature_category").agg(
avg("Yield_tons_per_hectare").alias("climate_avg_yield"),
count("*").alias("climate_sample_count"),
stddev("Yield_tons_per_hectare").alias("climate_yield_stddev")
).filter(col("climate_sample_count") >= 5)
climate_pandas = climate_yield_analysis.toPandas()
climate_pandas['yield_stability'] = climate_pandas['climate_yield_stddev'] / climate_pandas['climate_avg_yield']
climate_pandas['climate_score'] = climate_pandas['climate_avg_yield'] * (1 / (1 + climate_pandas['yield_stability']))
best_climate = climate_pandas.iloc[climate_pandas['climate_score'].idxmax()]
weather_impact = crop_df.groupBy("Weather_Condition").agg(
avg("Yield_tons_per_hectare").alias("weather_avg_yield"),
count("*").alias("weather_count")
).collect()
weather_rankings = sorted(weather_impact, key=lambda x: x['weather_avg_yield'], reverse=True)
rice_optimal_conditions = crop_df.filter(col("Crop") == "Rice").groupBy("rainfall_category", "temperature_category").agg(
avg("Yield_tons_per_hectare").alias("rice_specific_yield"),
count("*").alias("rice_sample_count")
).filter(col("rice_sample_count") >= 3).collect()
rice_conditions_sorted = sorted(rice_optimal_conditions, key=lambda x: x['rice_specific_yield'], reverse=True)
rainfall_yield_correlation = crop_df.select("Rainfall_mm", "Yield_tons_per_hectare").toPandas()
rainfall_correlation = rainfall_yield_correlation['Rainfall_mm'].corr(rainfall_yield_correlation['Yield_tons_per_hectare'])
temperature_yield_correlation = crop_df.select("Temperature_Celsius", "Yield_tons_per_hectare").toPandas()
temperature_correlation = temperature_yield_correlation['Temperature_Celsius'].corr(temperature_yield_correlation['Yield_tons_per_hectare'])
analysis_summary = {
'optimal_climate_combination': f"{best_climate['rainfall_category']} rainfall + {best_climate['temperature_category']} temperature",
'optimal_climate_yield': float(best_climate['climate_avg_yield']),
'best_weather_condition': weather_rankings[0]['Weather_Condition'],
'rainfall_yield_correlation': float(rainfall_correlation),
'temperature_yield_correlation': float(temperature_correlation),
'rice_best_conditions': f"{rice_conditions_sorted[0]['rainfall_category']} + {rice_conditions_sorted[0]['temperature_category']}" if rice_conditions_sorted else "Insufficient data"
}
response_data = {
'success': True,
'climate_analysis': climate_pandas.to_dict('records'),
'weather_rankings': [{'weather': w['Weather_Condition'], 'avg_yield': w['weather_avg_yield']} for w in weather_rankings],
'rice_conditions': [{'conditions': f"{r['rainfall_category']}+{r['temperature_category']}", 'yield': r['rice_specific_yield']} for r in rice_conditions_sorted[:5]],
'analysis_summary': analysis_summary
}
return JsonResponse(response_data, safe=False)
农作物产量数据分析与可视化系统-结语
基于Hadoop+Spark的农作物产量数据分析与可视化系统：Python版本vs Java版本，哪个更适合大数据毕设？
2026年必选！基于Hadoop+Spark的农作物产量数据分析系统：5大维度+20种分析功能详解
