Spring 中的 initializeBean 方法小总结

Spring 中的 initializeBean 方法小总结

背景

spring-beans 模块中的 AbstractAutowireCapableBeanFactory.java 文件里有 initializeBean 方法，这个方法会负责 bean 的 initialization(初始化)，本文会对其主要逻辑进行总结。

正文

该方法的代码复制如下 ⬇️

	/**
	 * Initialize the given bean instance, applying factory callbacks
	 * as well as init methods and bean post processors.
	 * <p>Called from {@link #createBean} for traditionally defined beans,
	 * and from {@link #initializeBean} for existing bean instances.
	 * @param beanName the bean name in the factory (for debugging purposes)
	 * @param bean the new bean instance we may need to initialize
	 * @param mbd the bean definition that the bean was created with
	 * (can also be {@code null}, if given an existing bean instance)
	 * @return the initialized bean instance (potentially wrapped)
	 * @see BeanNameAware
	 * @see BeanClassLoaderAware
	 * @see BeanFactoryAware
	 * @see #applyBeanPostProcessorsBeforeInitialization
	 * @see #invokeInitMethods
	 * @see #applyBeanPostProcessorsAfterInitialization
	 */
	@SuppressWarnings("deprecation")
	protected Object initializeBean(String beanName, Object bean, @Nullable RootBeanDefinition mbd) {
		// Skip initialization of a NullBean
		if (bean.getClass() == NullBean.class) {
			return bean;
		}

		invokeAwareMethods(beanName, bean);

		Object wrappedBean = bean;
		if (mbd == null || !mbd.isSynthetic()) {
			wrappedBean = applyBeanPostProcessorsBeforeInitialization(wrappedBean, beanName);
		}

		try {
			invokeInitMethods(beanName, wrappedBean, mbd);
		}
		catch (Throwable ex) {
			throw new BeanCreationException(
					(mbd != null ? mbd.getResourceDescription() : null), beanName, ex.getMessage(), ex);
		}
		if (mbd == null || !mbd.isSynthetic()) {
			wrappedBean = applyBeanPostProcessorsAfterInitialization(wrappedBean, beanName);
		}

		return wrappedBean;
	}

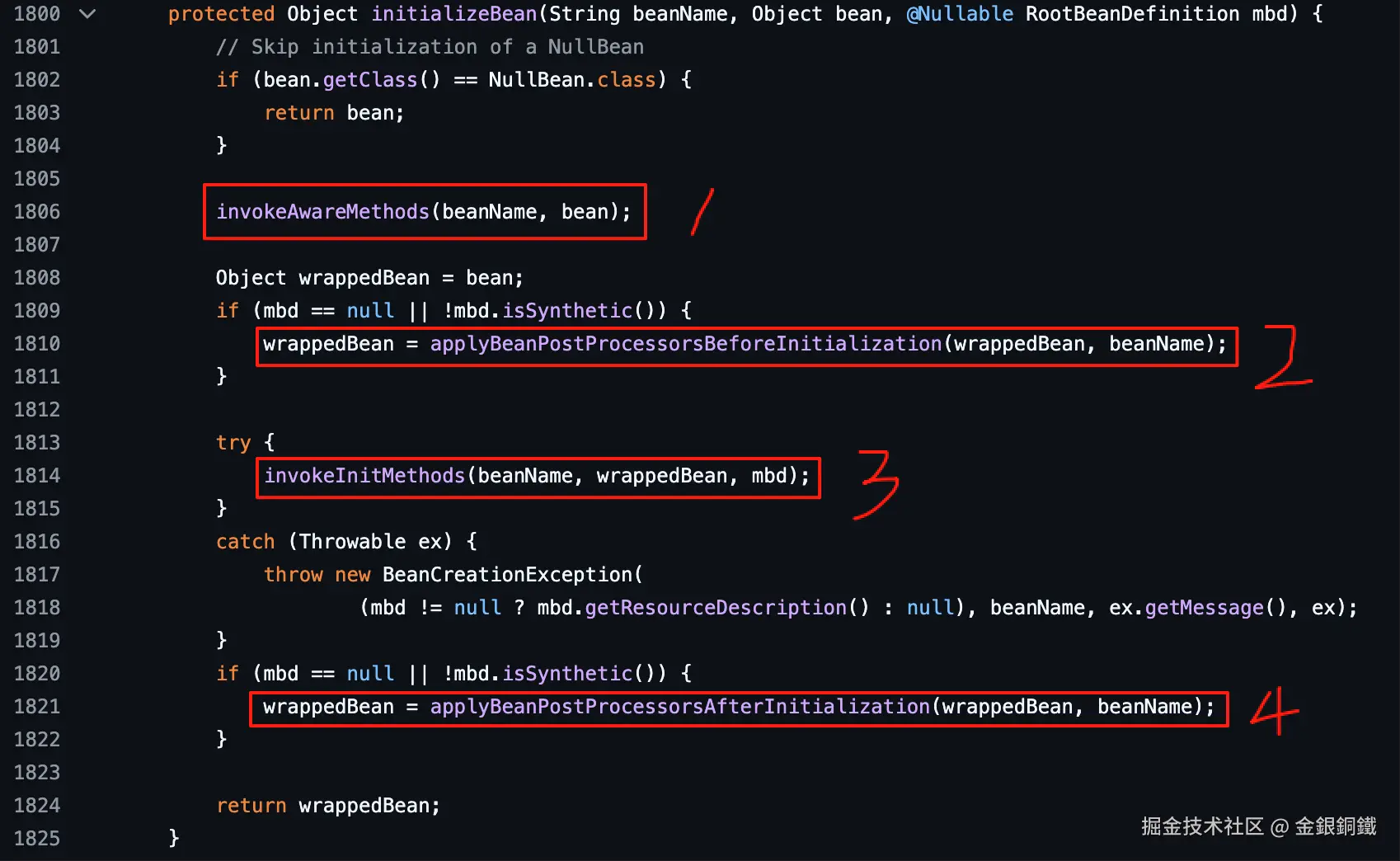

其中的主要逻辑共有 4 步，我把 4 个步骤的位置在下图中标出来了 ⬇️

从调用的方法的名称来看，除了第 1 步之外，其余的 3 步都和 init/initialization（初始化）有关，不妨就把第 2/3/4 步分别简称为 "前"/"中"/"后"，而第一步则可以简称为"知"。于是可以把 4 个步骤概括如下 ⬇️

主要步骤	做了什么	核心代码
Step 1: 知	处理 3 个 BeanXXXAware 接口	invokeAwareMethods(beanName, bean);
Step 2: 前	在 Step 3 之前 调用各个 BeanPostProcessor 的 postProcessBeforeInitialization 方法	wrappedBean = applyBeanPostProcessorsBeforeInitialization(wrappedBean, beanName);
Step 3: 中	处理 InitializingBean 接口以及用户指定的 init method	invokeInitMethods(beanName, wrappedBean, mbd);
Step 4: 后	在 Step 3 之后 调用各个 BeanPostProcessor 的 postProcessAfterInitialization 方法	wrappedBean = applyBeanPostProcessorsAfterInitialization(wrappedBean, beanName);

Step 1: 知

invokeAwareMethods(String, Object) 方法的代码复制如下 ⬇️

	private void invokeAwareMethods(String beanName, Object bean) {
		if (bean instanceof Aware) {
			if (bean instanceof BeanNameAware beanNameAware) {
				beanNameAware.setBeanName(beanName);
			}
			if (bean instanceof BeanClassLoaderAware beanClassLoaderAware) {
				ClassLoader bcl = getBeanClassLoader();
				if (bcl != null) {
					beanClassLoaderAware.setBeanClassLoader(bcl);
				}
			}
			if (bean instanceof BeanFactoryAware beanFactoryAware) {
				beanFactoryAware.setBeanFactory(AbstractAutowireCapableBeanFactory.this);
			}
		}
	}

如果当前的 bean implement 了以下 3 个 BeanXXXAware 接口中的任意一个，在 invokeAwareMethods(String, Object) 方法中就会进行相应处理。

BeanXXXAware 接口	接口中定义了什么方法	例子

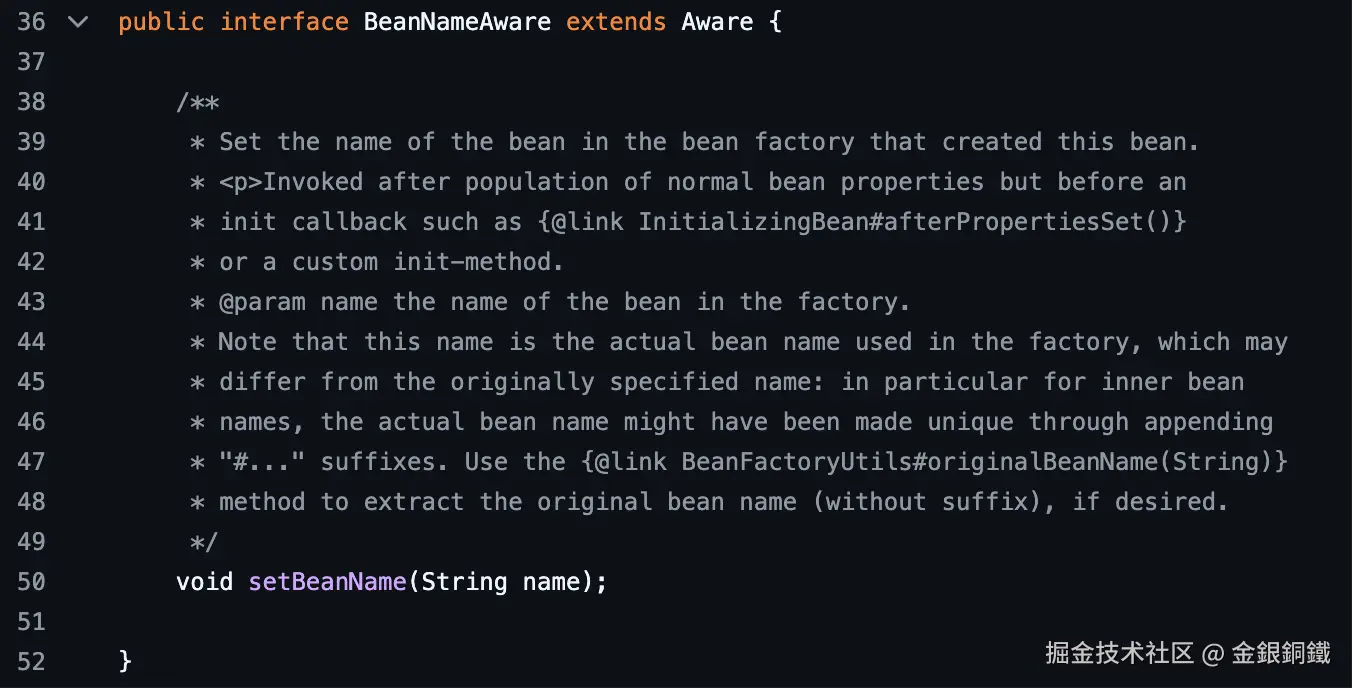

BeanNameAware		假设一个 bean $B$ 需要感知自身的 beanName，我们可以让 $B$ implement BeanNameAware 接口，那么在 invokeAwareMethods(String, Object) 方法中就会用 $B$ 来调用 setBeanName(String) 方法，从而将对应的 beanName 填进去
BeanClassLoaderAware		略
BeanFactoryAware		假设一个 bean $B$ 需要感知 BeanFactory，我们可以让 $B$ implement BeanFactoryAware 接口，那么在 invokeAwareMethods(String, Object) 方法中就会用 $B$ 来调用 setBeanFactory(BeanFactory) 方法，从而将 BeanFactory 填进去

简要的类图如下 ⬇️（类图中把方法声明里所抛的异常省略了）

classDiagram
class Aware
<<interface>> Aware
Aware <|-- BeanNameAware
<<interface>> BeanNameAware

Aware <|-- BeanClassLoaderAware

<<interface>> BeanClassLoaderAware

Aware <|-- BeanFactoryAware
<<interface>> BeanFactoryAware

BeanNameAware: void setBeanName(String name)
BeanClassLoaderAware: void setBeanClassLoader(ClassLoader classLoader)
BeanFactoryAware: void setBeanFactory(BeanFactory beanFactory)

由于上方的类图中的接口所在包的包名普遍很长，我把这些接口的名称与对应的 fully qualified class name 的关系列在下表里了 ⬇️

接口名	fully qualified class name
Aware	org.springframework.beans.factory.Aware
BeanNameAware	org.springframework.beans.factory.BeanNameAware
BeanClassLoaderAware	org.springframework.beans.factory.BeanClassLoaderAware
BeanFactoryAware	org.springframework.beans.factory.BeanFactoryAware

Step 2: 前

applyBeanPostProcessorsBeforeInitialization(Object, String) 方法的代码复制如下 ⬇️

	@Deprecated(since = "6.1")
	@Override
	public Object applyBeanPostProcessorsBeforeInitialization(Object existingBean, String beanName)
			throws BeansException {

		Object result = existingBean;
		for (BeanPostProcessor processor : getBeanPostProcessors()) {
			Object current = processor.postProcessBeforeInitialization(result, beanName);
			if (current == null) {
				return result;
			}
			result = current;
		}
		return result;
	}

这里的逻辑是遍历所有的 BeanPostProcessor，依次调用它们的 postProcessBeforeInitialization 方法(如果 postProcessBeforeInitialization 方法的返回值为 null，则提前结束)。

应用场景 1: @PostConstruct 的处理

我们平时用的 @PostConstruct 注解，它对应的 BeanPostProcessor 是 CommonAnnotationBeanPostProcessor。而对 @PostConstruct 的支持，就体现在 Step 2 里(可以在它的基类 InitDestroyAnnotationBeanPostProcessor 的 postProcessBeforeInitialization(Object bean, String beanName) 方法 打断点进行验证，这里就不展开说了)。

和 CommonAnnotationBeanPostProcessor 相关的简要类图如下 ⬇️ （请注意，图中略去了所有的泛型以及方法声明中的所有异常，也略去了一些与本文关系不大的类/接口/方法）

classDiagram
class PriorityOrdered
class Ordered
class InstantiationAwareBeanPostProcessor
class BeanPostProcessor
class DestructionAwareBeanPostProcessor
class MergedBeanDefinitionPostProcessor
<<interface>> PriorityOrdered
<<interface>> Ordered
<<interface>> InstantiationAwareBeanPostProcessor
<<interface>> BeanPostProcessor
<<interface>> DestructionAwareBeanPostProcessor
<<interface>> MergedBeanDefinitionPostProcessor
Ordered <|-- PriorityOrdered
DestructionAwareBeanPostProcessor <|.. InitDestroyAnnotationBeanPostProcessor
MergedBeanDefinitionPostProcessor <|.. InitDestroyAnnotationBeanPostProcessor
InstantiationAwareBeanPostProcessor <|.. CommonAnnotationBeanPostProcessor
PriorityOrdered <|.. InitDestroyAnnotationBeanPostProcessor
InitDestroyAnnotationBeanPostProcessor <|-- CommonAnnotationBeanPostProcessor
Ordered: getOrder()
BeanPostProcessor <|-- InstantiationAwareBeanPostProcessor
BeanPostProcessor <|-- DestructionAwareBeanPostProcessor
BeanPostProcessor <|-- MergedBeanDefinitionPostProcessor
InstantiationAwareBeanPostProcessor: postProcessBeforeInstantiation(Class, String)
InstantiationAwareBeanPostProcessor: postProcessAfterInstantiation(Object, String)
InstantiationAwareBeanPostProcessor: postProcessProperties(PropertyValues, Object, String)

BeanPostProcessor: postProcessBeforeInitialization(Object, String)
BeanPostProcessor: postProcessAfterInitialization(Object, String)
DestructionAwareBeanPostProcessor: postProcessBeforeDestruction(Object, String)
DestructionAwareBeanPostProcessor: boolean requiresDestruction(Object)

MergedBeanDefinitionPostProcessor: postProcessMergedBeanDefinition(RootBeanDefinition, Class, String)

MergedBeanDefinitionPostProcessor: resetBeanDefinition(String)

由于上方的类图中的类/接口所在包的包名普遍很长，我把这些类/接口的名称与对应的 fully qualified class name 的关系列在下表里了 ⬇️

类名/接口名	fully qualified class name
CommonAnnotationBeanPostProcessor	org.springframework.context.annotation.CommonAnnotationBeanPostProcessor
InitDestroyAnnotationBeanPostProcessor	org.springframework.beans.factory.annotation.InitDestroyAnnotationBeanPostProcessor
PriorityOrdered	org.springframework.core.PriorityOrdered
Ordered	org.springframework.core.Ordered
InstantiationAwareBeanPostProcessor	org.springframework.beans.factory.config.InstantiationAwareBeanPostProcessor
BeanPostProcessor	org.springframework.beans.factory.config.BeanPostProcessor
DestructionAwareBeanPostProcessor	org.springframework.beans.factory.config.DestructionAwareBeanPostProcessor
MergedBeanDefinitionPostProcessor	org.springframework.beans.factory.support.MergedBeanDefinitionPostProcessor

应用场景 2: ApplicationContextAwareProcessor

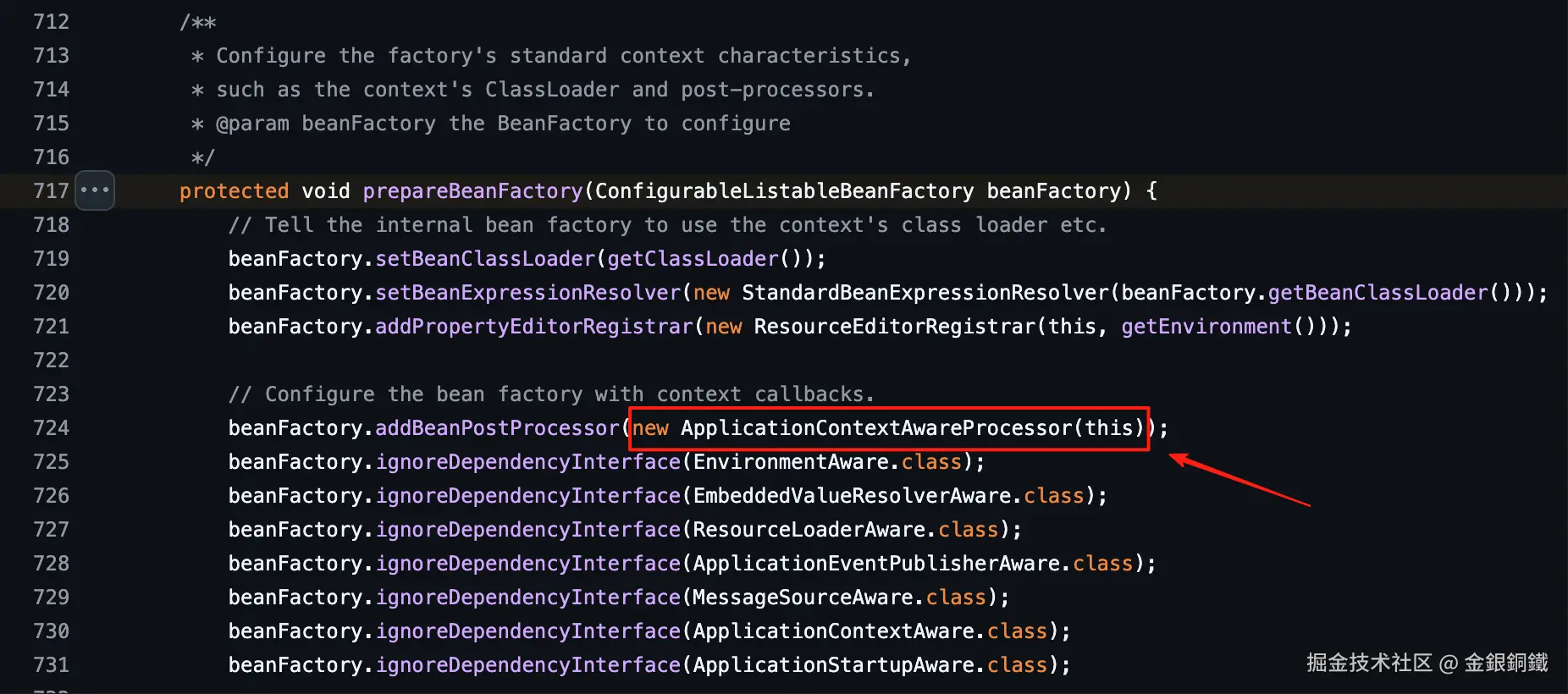

在 AbstractApplicationContext.java 里的 prepareBeanFactory(...) 方法中，会添加 ApplicationContextAwareProcessor 这个 BeanPostProcessor ⬇️

在 ApplicationContextAwareProcessor 里，可以找到如下的代码 ⬇️

	@Override
	public @Nullable Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException {
		if (bean instanceof Aware) {
			invokeAwareInterfaces(bean);
		}
		return bean;
	}

	private void invokeAwareInterfaces(Object bean) {
		if (bean instanceof EnvironmentAware environmentAware) {
			environmentAware.setEnvironment(this.applicationContext.getEnvironment());
		}
		if (bean instanceof EmbeddedValueResolverAware embeddedValueResolverAware) {
			embeddedValueResolverAware.setEmbeddedValueResolver(this.embeddedValueResolver);
		}
		if (bean instanceof ResourceLoaderAware resourceLoaderAware) {
			resourceLoaderAware.setResourceLoader(this.applicationContext);
		}
		if (bean instanceof ApplicationEventPublisherAware applicationEventPublisherAware) {
			applicationEventPublisherAware.setApplicationEventPublisher(this.applicationContext);
		}
		if (bean instanceof MessageSourceAware messageSourceAware) {
			messageSourceAware.setMessageSource(this.applicationContext);
		}
		if (bean instanceof ApplicationStartupAware applicationStartupAware) {
			applicationStartupAware.setApplicationStartup(this.applicationContext.getApplicationStartup());
		}
		if (bean instanceof ApplicationContextAware applicationContextAware) {
			applicationContextAware.setApplicationContext(this.applicationContext);
		}
	}

上面的逻辑比较直观，如果当前 bean $B$ implement 以下 7 个 XXXAware 接口中的任何一个，那么这个接口上定义的 setXXX(...) 方法会被调用。

• EnvironmentAware
• EmbeddedValueResolverAware
• ResourceLoaderAware
• ApplicationEventPublisherAware
• MessageSourceAware
• ApplicationStartupAware
• ApplicationContextAware

我画了简单的类图来展示这 7 个 XXXAware 接口和 Aware 接口之间的关系 ⬇️

classDiagram
class Aware
class EnvironmentAware
class EmbeddedValueResolverAware
class ResourceLoaderAware
class ApplicationEventPublisherAware
class MessageSourceAware
class ApplicationStartupAware
class ApplicationContextAware
<<interface>> Aware
<<interface>> EnvironmentAware
<<interface>> EmbeddedValueResolverAware
<<interface>> ResourceLoaderAware
<<interface>> ApplicationEventPublisherAware
<<interface>> MessageSourceAware
<<interface>> ApplicationStartupAware
<<interface>> ApplicationContextAware
Aware <|-- EnvironmentAware
Aware <|-- EmbeddedValueResolverAware
Aware <|-- ResourceLoaderAware
Aware <|-- ApplicationEventPublisherAware
Aware <|-- MessageSourceAware
Aware <|-- ApplicationStartupAware
Aware <|-- ApplicationContextAware

EnvironmentAware: setEnvironment(Environment)
EmbeddedValueResolverAware: setEmbeddedValueResolver(StringValueResolver)
ResourceLoaderAware: setResourceLoader(ResourceLoader)
ApplicationEventPublisherAware: setApplicationEventPublisher(ApplicationEventPublisher)
MessageSourceAware: setMessageSource(MessageSource)
ApplicationStartupAware: setApplicationStartup(ApplicationStartup)
ApplicationContextAware: setApplicationContext(ApplicationContext)

由于上方的类图中的接口所在包的包名普遍很长，我把这些接口的名称与对应的 fully qualified class name 的关系列在下表里了 ⬇️

接口名	fully qualified class name
Aware	org.springframework.beans.factory.Aware
EnvironmentAware	org.springframework.context.EnvironmentAware
EmbeddedValueResolverAware	org.springframework.context.EmbeddedValueResolverAware
ResourceLoaderAware	org.springframework.context.ResourceLoaderAware
ApplicationEventPublisherAware	org.springframework.context.ApplicationEventPublisherAware
MessageSourceAware	org.springframework.context.MessageSourceAware
ApplicationStartupAware	org.springframework.context.ApplicationStartupAware
ApplicationContextAware	org.springframework.context.ApplicationContextAware

Step 3: 中

invokeInitMethods(String, Object, RootBeanDefinition) 方法的代码复制如下 ⬇️

	/**
	 * Give a bean a chance to initialize itself after all its properties are set,
	 * and a chance to know about its owning bean factory (this object).
	 * <p>This means checking whether the bean implements {@link InitializingBean}
	 * or defines any custom init methods, and invoking the necessary callback(s)
	 * if it does.
	 * @param beanName the bean name in the factory (for debugging purposes)
	 * @param bean the new bean instance we may need to initialize
	 * @param mbd the merged bean definition that the bean was created with
	 * (can also be {@code null}, if given an existing bean instance)
	 * @throws Throwable if thrown by init methods or by the invocation process
	 * @see #invokeCustomInitMethod
	 */
	protected void invokeInitMethods(String beanName, Object bean, @Nullable RootBeanDefinition mbd)
			throws Throwable {

		boolean isInitializingBean = (bean instanceof InitializingBean);
		if (isInitializingBean && (mbd == null || !mbd.hasAnyExternallyManagedInitMethod("afterPropertiesSet"))) {
			if (logger.isTraceEnabled()) {
				logger.trace("Invoking afterPropertiesSet() on bean with name '" + beanName + "'");
			}
			((InitializingBean) bean).afterPropertiesSet();
		}

		if (mbd != null && bean.getClass() != NullBean.class) {
			String[] initMethodNames = mbd.getInitMethodNames();
			if (initMethodNames != null) {
				for (String initMethodName : initMethodNames) {
					if (StringUtils.hasLength(initMethodName) &&
							!(isInitializingBean && "afterPropertiesSet".equals(initMethodName)) &&
							!mbd.hasAnyExternallyManagedInitMethod(initMethodName)) {
						invokeCustomInitMethod(beanName, bean, mbd, initMethodName);
					}
				}
			}
		}
	}

这个方法会处理以下 2 种情况

• 如果当前 bean $B$ implement 了 InitializingBean 接口，则尝试通过 $B$ 来调用 InitializingBean 接口中的 afterPropertiesSet() 方法
• 如果当前 bean $B$ 指定了 init method（例如可以在 xml 文件里指定 init method），则尝试通过 $B$ 来调用这些 init method

Step 4: 后

applyBeanPostProcessorsAfterInitialization(Object, String) 方法的代码复制如下 ⬇️

	@Deprecated(since = "6.1")
	@Override
	public Object applyBeanPostProcessorsAfterInitialization(Object existingBean, String beanName)
			throws BeansException {

		Object result = existingBean;
		for (BeanPostProcessor processor : getBeanPostProcessors()) {
			Object current = processor.postProcessAfterInitialization(result, beanName);
			if (current == null) {
				return result;
			}
			result = current;
		}
		return result;
	}

这一步和 Step 2 的代码类似，其逻辑是遍历所有的 BeanPostProcessor，依次调用它们的 postProcessAfterInitialization 方法 (如果 postProcessAfterInitialization 方法的返回值为 null，则提前结束)。

验证 4 个步骤

本文已经描述了 initializeBean 方法的 4 个步骤的主要逻辑。但是纸上得来终觉浅，我们还是写点代码验证一下。搭建一个完整的项目需要写不少代码，相信大家都有这方面的经验了，我只把核心的 java 代码以及 xml 文件的内容复制出来。

java 代码

请读者朋友在验证时，将以下 java 代码保存为 Main.java 并调整成合适的 package 语句。

package org.example.p0920;

import org.springframework.beans.BeansException;
import org.springframework.beans.factory.*;
import org.springframework.beans.factory.config.BeanPostProcessor;
import org.springframework.context.EnvironmentAware;
import org.springframework.context.support.ClassPathXmlApplicationContext;
import org.springframework.core.env.Environment;

public class Main {
    public static void main(String[] args) {
        new ClassPathXmlApplicationContext("simple-config.xml");
    }
}

class MyBPP implements BeanPostProcessor {
    @Override
    public Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException {
        System.out.println("执行时机: Step 4(由 MyBPP 处理)");
        return BeanPostProcessor.super.postProcessAfterInitialization(bean, beanName);
    }
}


class SimpleBean implements
        BeanNameAware, BeanClassLoaderAware, BeanFactoryAware,
        EnvironmentAware, InitializingBean {

    @Override
    public void setBeanName(String name) {
        System.out.println("执行时机: Step 1 中的第 1 步(Step 1 里共有 3 步)");
    }

    @Override
    public void setBeanClassLoader(ClassLoader classLoader) {
        System.out.println("执行时机: Step 1 中的第 2 步(Step 1 里共有 3 步)");
    }

    @Override
    public void setBeanFactory(BeanFactory beanFactory) throws BeansException {
        System.out.println("执行时机: Step 1 中的第 3 步(Step 1 里共有 3 步)");
    }


    @Override
    public void setEnvironment(Environment environment) {
        // AutowiredAnnotationBeanPostProcessor 中会处理 7 个 XXXAware 接口，这里仅以 EnvironmentAware 作为示例，
        // 另外 6 个就不赘述了
        System.out.println("执行时机: Step 2(由 AutowiredAnnotationBeanPostProcessor 处理)");
    }


    @Override
    public void afterPropertiesSet() {
        System.out.println("执行时机: Step 3 中的第 1 步(对 InitializingBean 接口的处理)");
    }

    public void specifiedInitMethod() {
        System.out.println("执行时机: Step 3 中的第 2 步(对 init method 的处理)");
    }
}

xml 文件

xml 文件的内容如下 ⬇️

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:util="http://www.springframework.org/schema/util"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="
        http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util.xsd
http://www.springframework.org/schema/context
https://www.springframework.org/schema/context/spring-context.xsd"
>
    <bean id="simpleBean" class="org.example.p0920.SimpleBean" init-method="specifiedInitMethod"/>

    <bean id="bpp" class="org.example.p0920.MyBPP"/>

</beans>

请将以上代码保存为 simple-config.xml（用其他文件名保存也没问题，但是请注意调整对应的 java 代码，具体位置如下 ⬇️）

另外，在您的电脑上，可以用其他的 package，但是请注意需要修改 xml 文件里对应的 package 名称（位置如下 ⬇️）

将代码准备好后，就可以运行 Main.java 中的 main(...) 方法了，相关的运行结果是 ⬇️

执行时机: Step 1 中的第 1 步(Step 1 里共有 3 步)
执行时机: Step 1 中的第 2 步(Step 1 里共有 3 步)
执行时机: Step 1 中的第 3 步(Step 1 里共有 3 步)
执行时机: Step 2(由 AutowiredAnnotationBeanPostProcessor 处理)
执行时机: Step 3 中的第 1 步(对 InitializingBean 接口的处理)
执行时机: Step 3 中的第 2 步(对 init method 的处理)
执行时机: Step 4(由 MyBPP 处理)

可见，initializeBean 方法的确是按照 "知"/"前"/"中"/"后" 4 个步骤来运转的。
