openlayers旋转图片

主要思想：通过ol-ext实现图片旋转功能

一、计算多边形中心的坐标

//计算polygon中心点坐标
const computedCenter = (coord: number[][][]) => {
    let extent = boundingExtent(coord[0]);
    //得到多边形外接矩形坐标--[minX,minY,maxX,maxY]
    let center = getCenter(extent);
    return center;
}

二、计算图片旋转角度

//计算图片旋转角度--旋转线段（顺时针）--first为固定点，second为旋转后的点
const setAngle = (first: number[], second: number[]) => {
    let y = second[1] - first[1];
    let x = second[0] - first[0];
    let radAngle = Math.atan2(y, x);
    if (x > 0) {
        radAngle = -radAngle;
    } else {
        radAngle = Math.PI - radAngle;
    }
    return radAngle
}

三、地图上显示图片

import GeoImageLayer from 'ol-ext/layer/GeoImage'
import GeoImageSource from 'ol-ext/source/GeoImage'
const addGeoImage = (coord: number[][][],imgUrl:string) => {
    let centerPoint = computedCenter(coord);
    let rotate = setAngle(coord[0][1], coord[0][0]);
    let geoImg = new GeoImageLayer({
        name: "geoImage",
        opacity: 1,
        source: new GeoImageSource({
        url: imgUrl,
        imageRotate: rotate,
        imageScale: [1500,1900],
        imageCenter: olProj.fromLonLat(centerPoint)
        }),
        zIndex: 2
    });
    map.addLayer(geoImg)
}

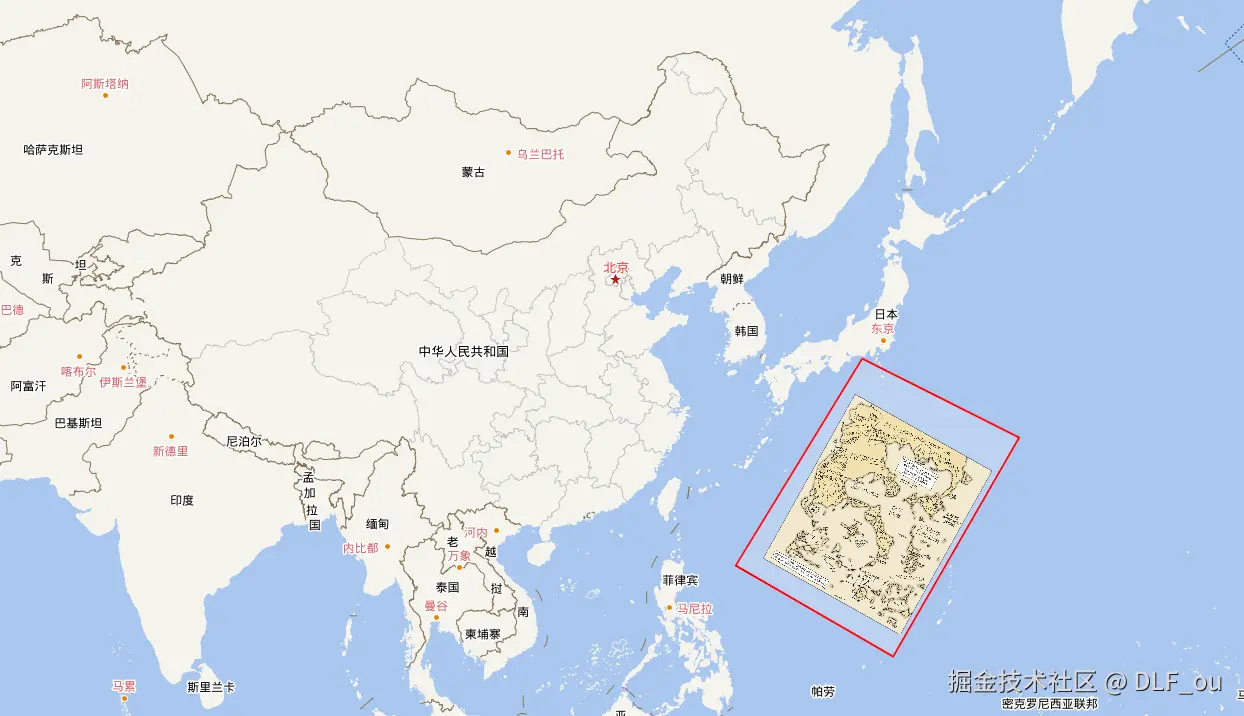

四、实现效果

项目地址：github.com/DLFouge/vue…

欢迎指正与star
