全球用水量数据可视化分析系统- 简介
基于大数据的全球用水量数据可视化分析系统是一套综合运用Hadoop分布式存储、Spark大数据处理引擎以及现代Web开发技术构建的水资源数据分析平台。该系统以全球各国历年用水数据为核心，通过HDFS分布式文件系统存储海量水资源数据，运用Spark SQL进行高效的数据查询与统计分析，结合Pandas和NumPy进行深度数据挖掘处理。系统采用Django作为后端框架，构建RESTful API接口，前端基于Vue.js框架配合ElementUI组件库开发用户界面，通过Echarts图表库实现丰富的数据可视化展示。系统核心功能涵盖全球水资源消耗时序演变分析、各国用水特征横向对比分析、水资源稀缺性专题归因分析、重点国家水资源状况深度剖析以及多维指标关联与聚类探索分析。通过对总用水量、人均用水量、农业工业生活用水占比、降雨量影响、地下水消耗率等多维度指标的综合分析，为用户提供直观清晰的全球水资源利用状况洞察，支持按年份、国家、稀缺等级等多种维度进行数据筛选和对比分析。
全球用水量数据可视化分析系统-技术 框架
开发语言：Python或Java（两个版本都支持）
大数据框架：Hadoop+Spark（本次没用Hive，支持定制）
后端框架：Django+Spring Boot(Spring+SpringMVC+Mybatis)（两个版本都支持）
前端：Vue+ElementUI+Echarts+HTML+CSS+JavaScript+jQuery
详细技术点：Hadoop、HDFS、Spark、Spark SQL、Pandas、NumPy
数据库：MySQL
全球用水量数据可视化分析系统- 背景
随着全球人口持续增长和经济快速发展，水资源短缺问题日益凸显，已成为制约可持续发展的关键因素之一。世界各国在水资源管理方面面临着不同程度的挑战，包括用水需求不断攀升、水资源分布不均、气候变化影响加剧等问题。传统的水资源数据管理和分析方式往往局限于单一地区或单一时间段，缺乏全球视角下的系统性分析和长时间序列的动态追踪。大数据技术的快速发展为处理和分析海量水资源数据提供了新的技术路径，Hadoop和Spark等分布式计算框架能够高效处理跨越多年、覆盖全球的大规模数据集。与此同时，数据可视化技术的成熟也使得复杂的统计分析结果能够以直观友好的方式呈现给用户。在这样的技术背景下，构建一个基于大数据技术的全球用水量数据可视化分析系统，对于理解全球水资源利用格局、识别用水趋势变化、支持水资源管理决策具有重要的现实需求。
本课题的研究意义主要体现在技术实践和应用价值两个层面。从技术角度看，该系统将大数据处理技术与Web开发技术有机结合，为计算机专业学生提供了一个综合性的技术实践平台，有助于加深对Hadoop分布式存储、Spark大数据计算、数据可视化等核心技术的理解和掌握。通过实际开发过程，学生能够体验完整的大数据项目开发流程，从数据存储、处理到前端展示的全链路技术应用。从应用价值角度来看，该系统能够为水资源研究提供一定的数据分析工具支持，通过对全球用水数据的多维度分析，可以帮助用户更好地理解不同国家和地区的用水特征、识别水资源利用中存在的问题和趋势。虽然作为毕业设计项目，系统在数据规模和算法复杂度方面相对有限，但其设计思路和技术架构为后续更深入的水资源数据分析研究提供了基础框架。同时，该项目也体现了大数据技术在环境资源领域的应用潜力，展示了跨学科技术融合的可能性。
全球用水量数据可视化分析系统-视频展示

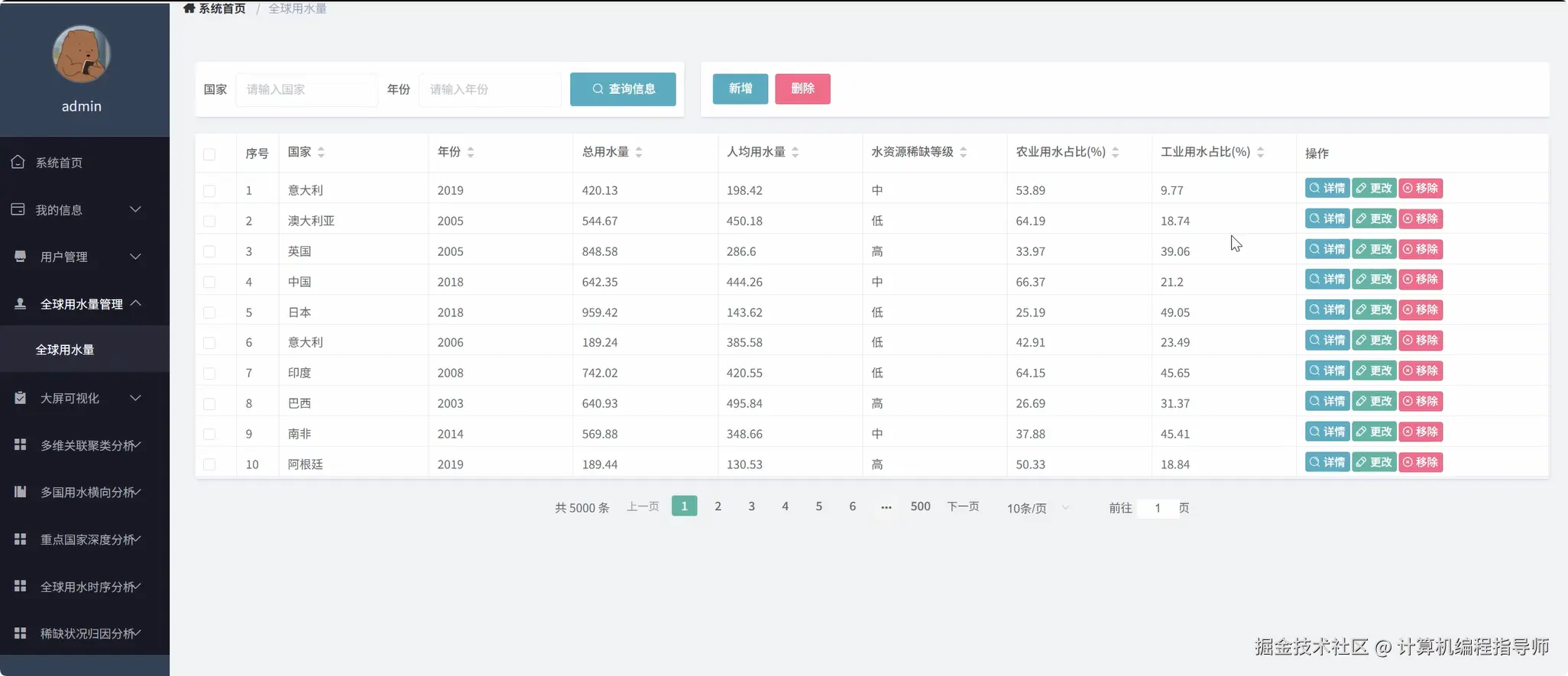

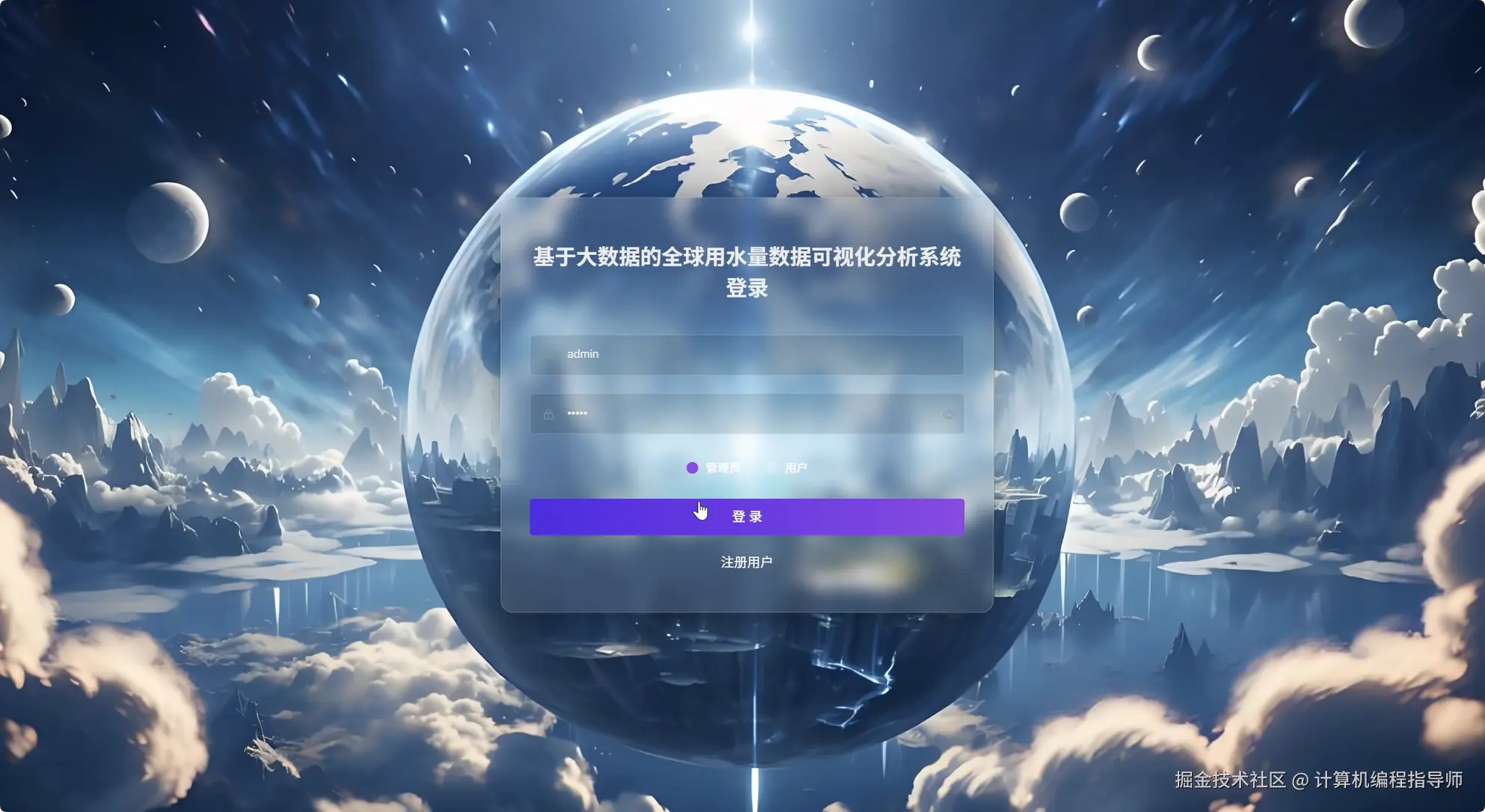

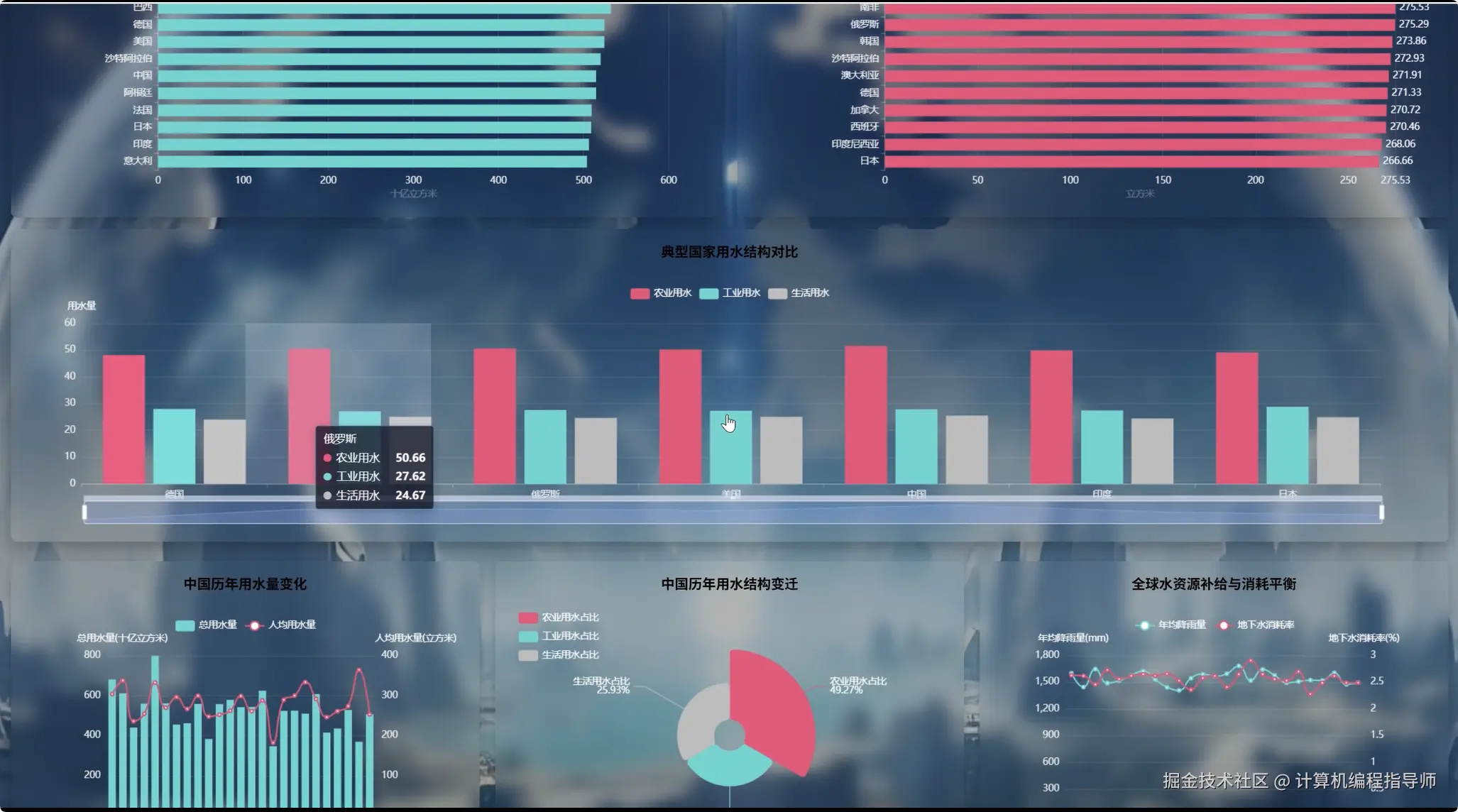

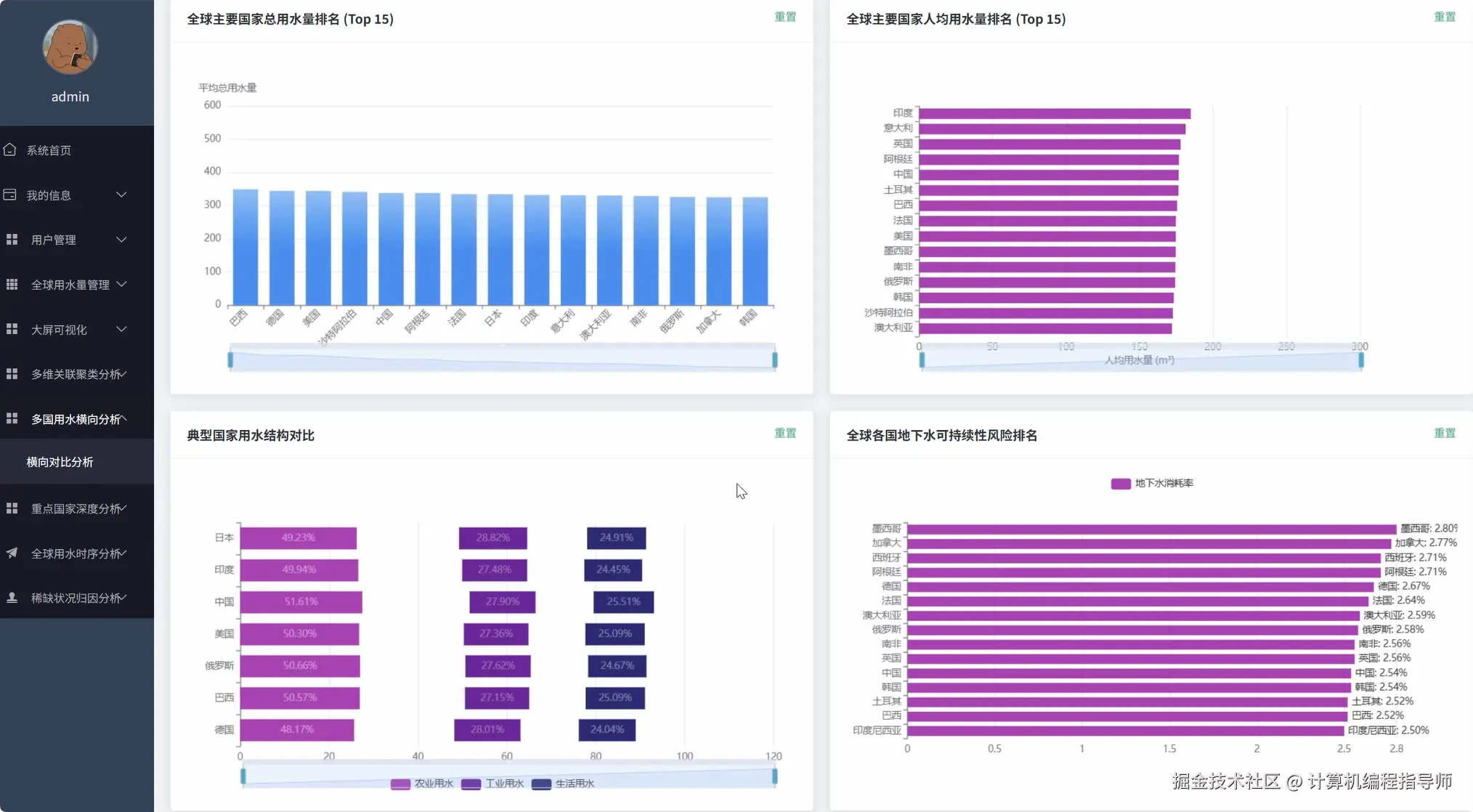

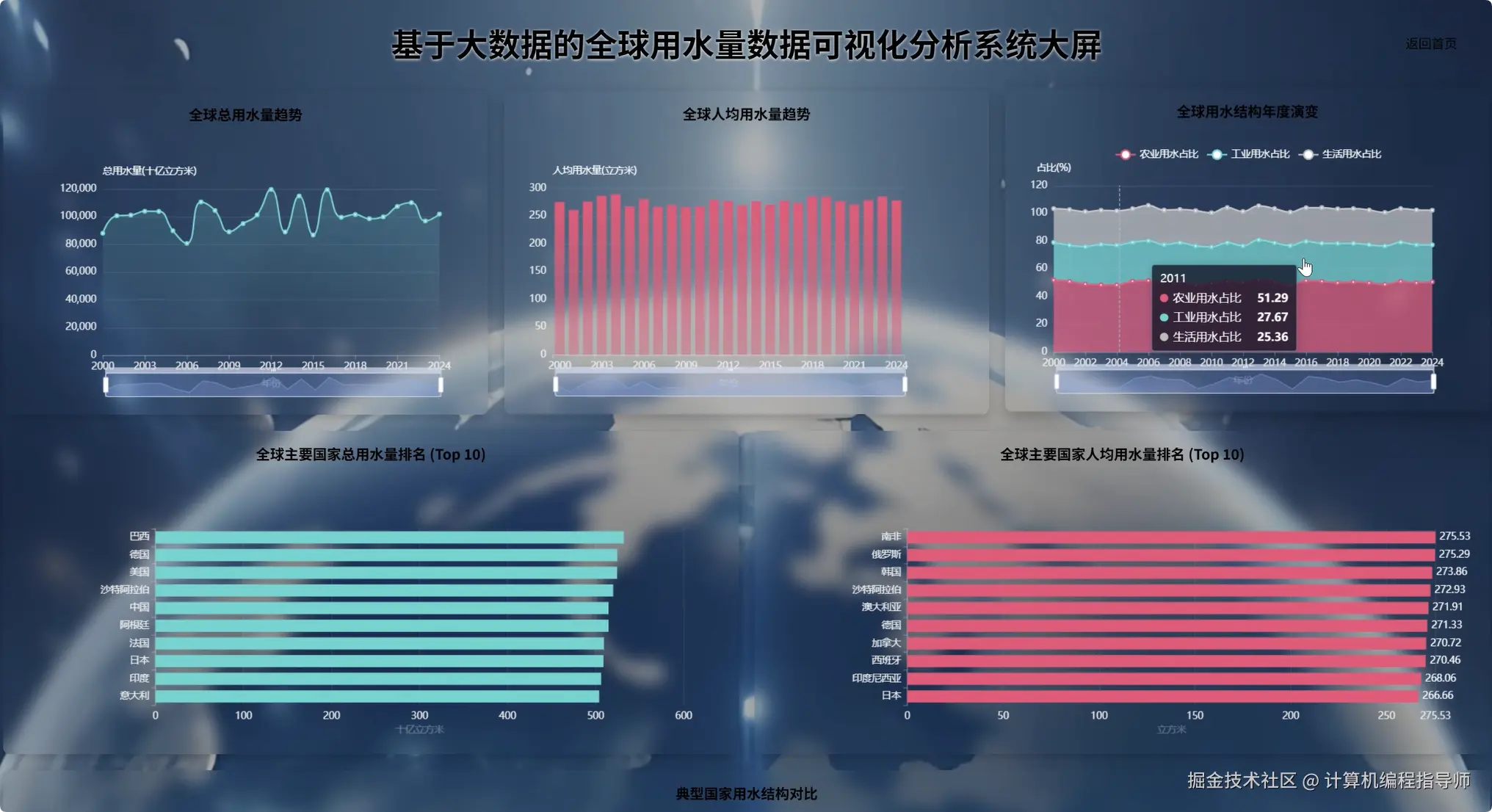

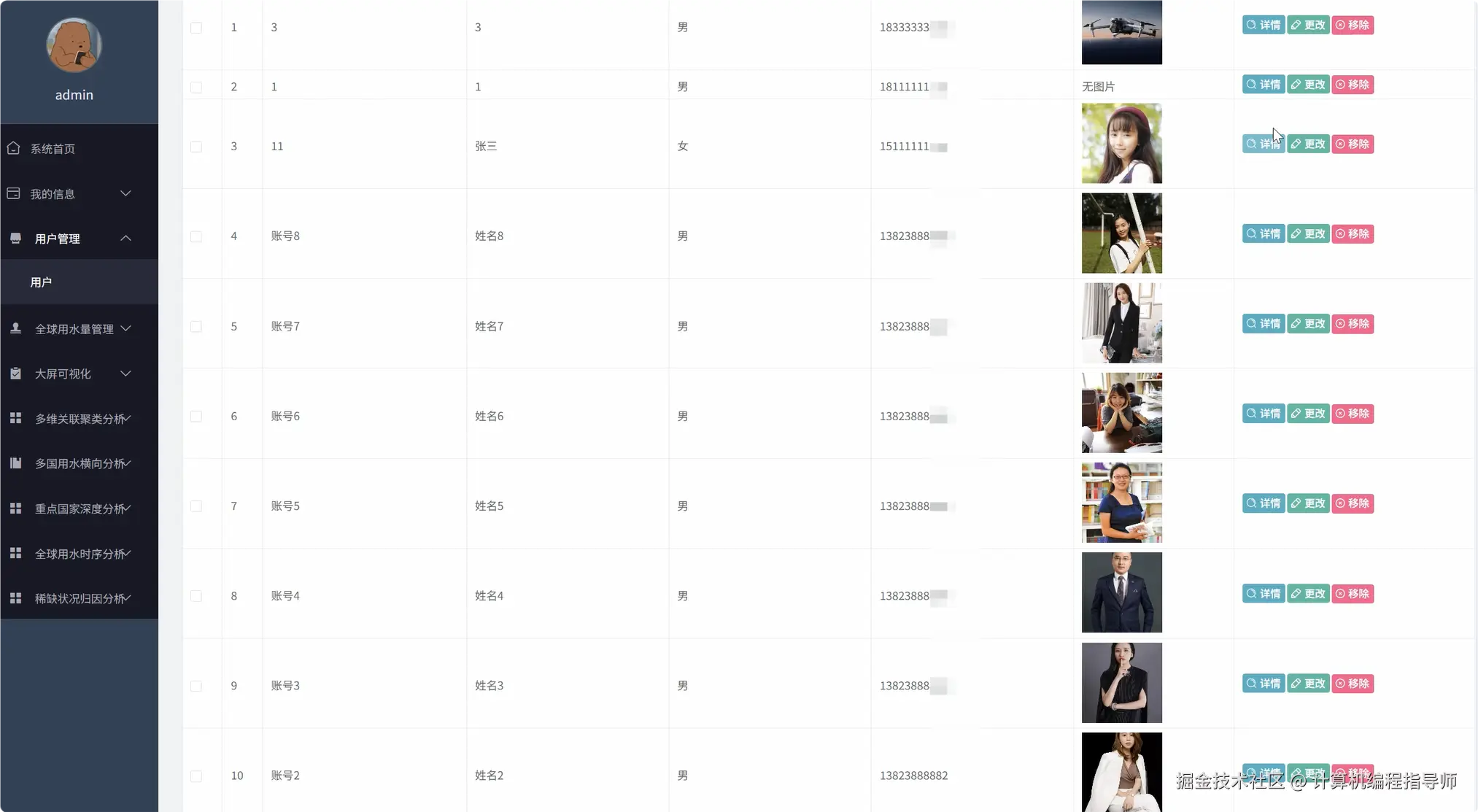

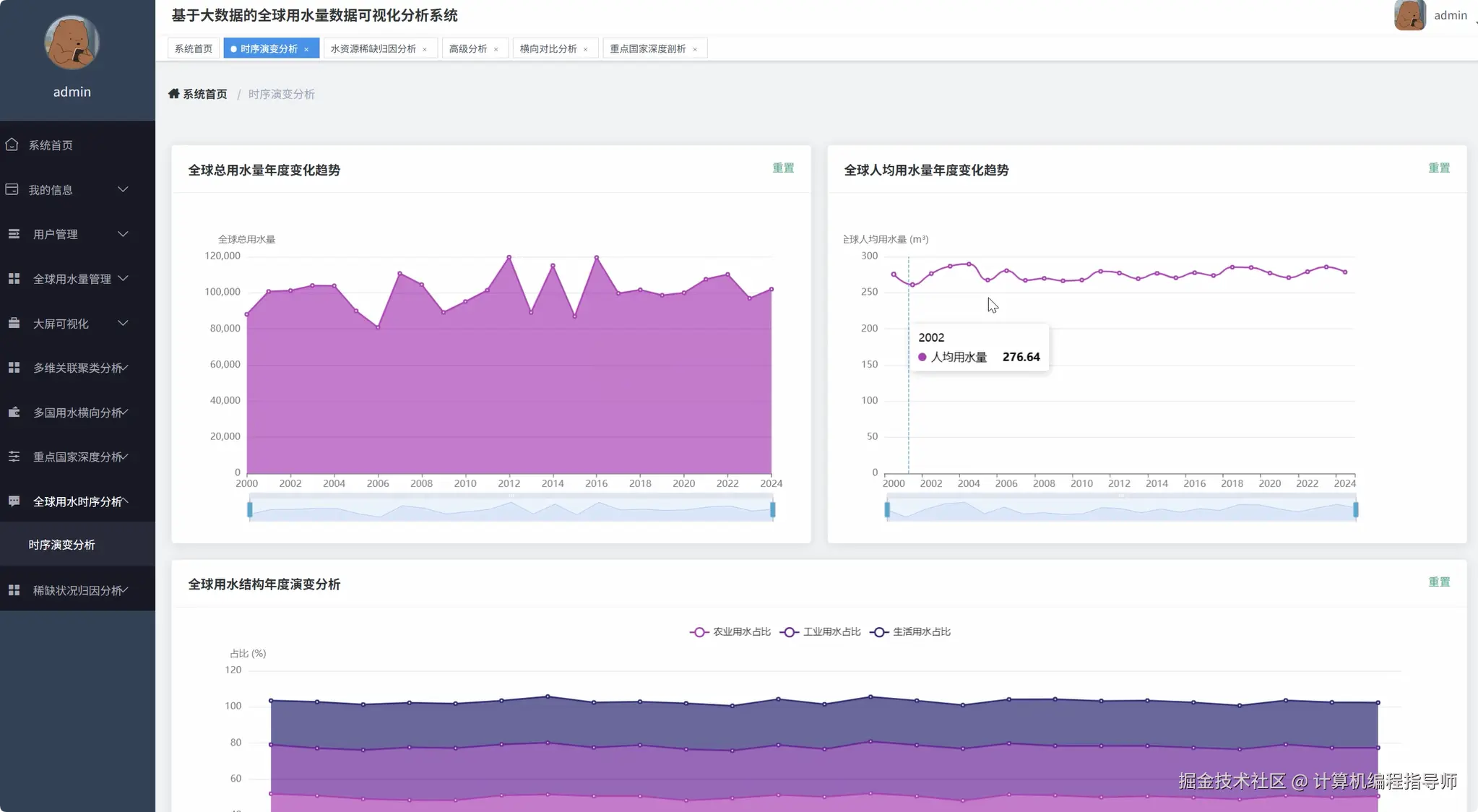

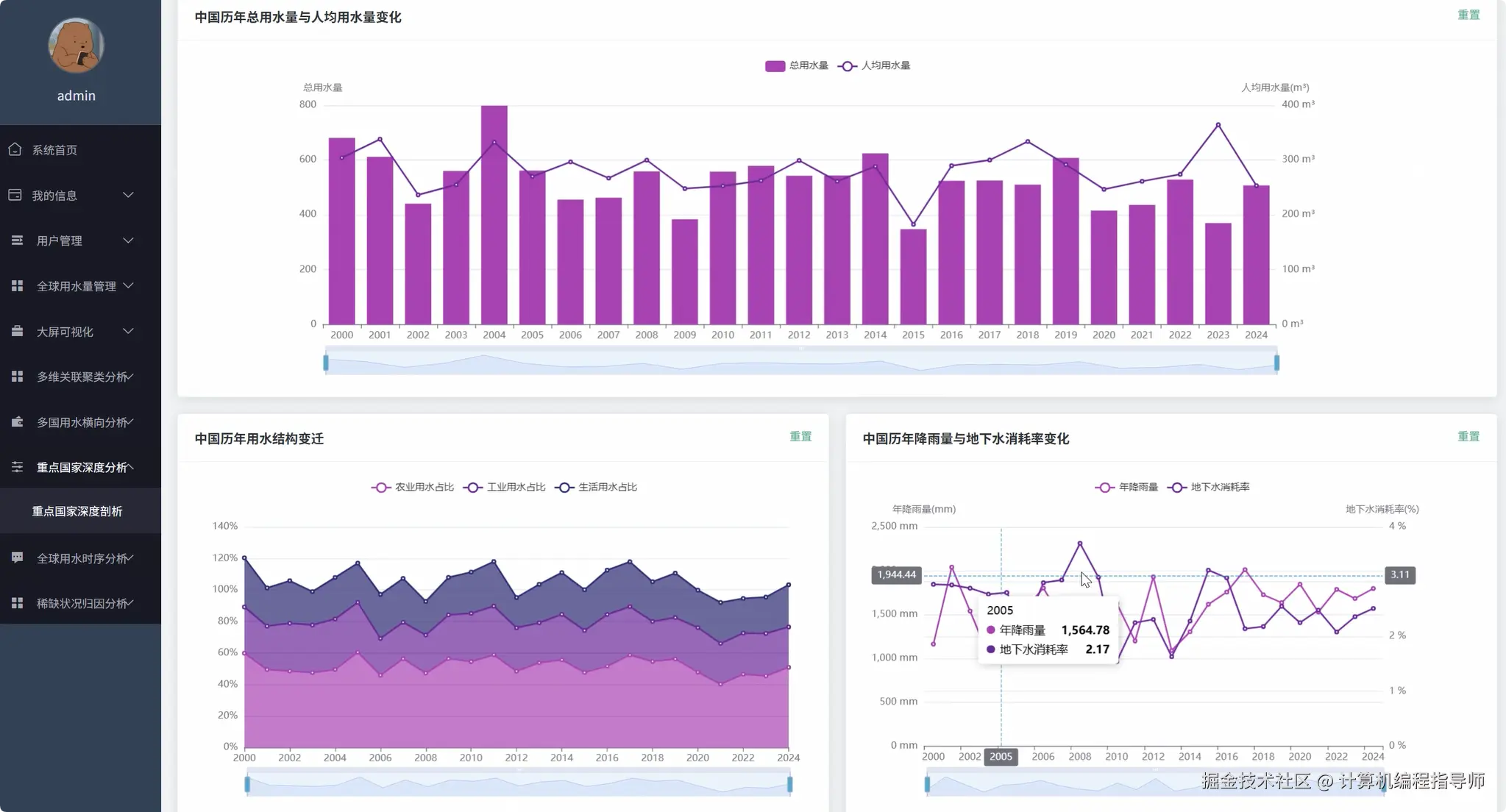

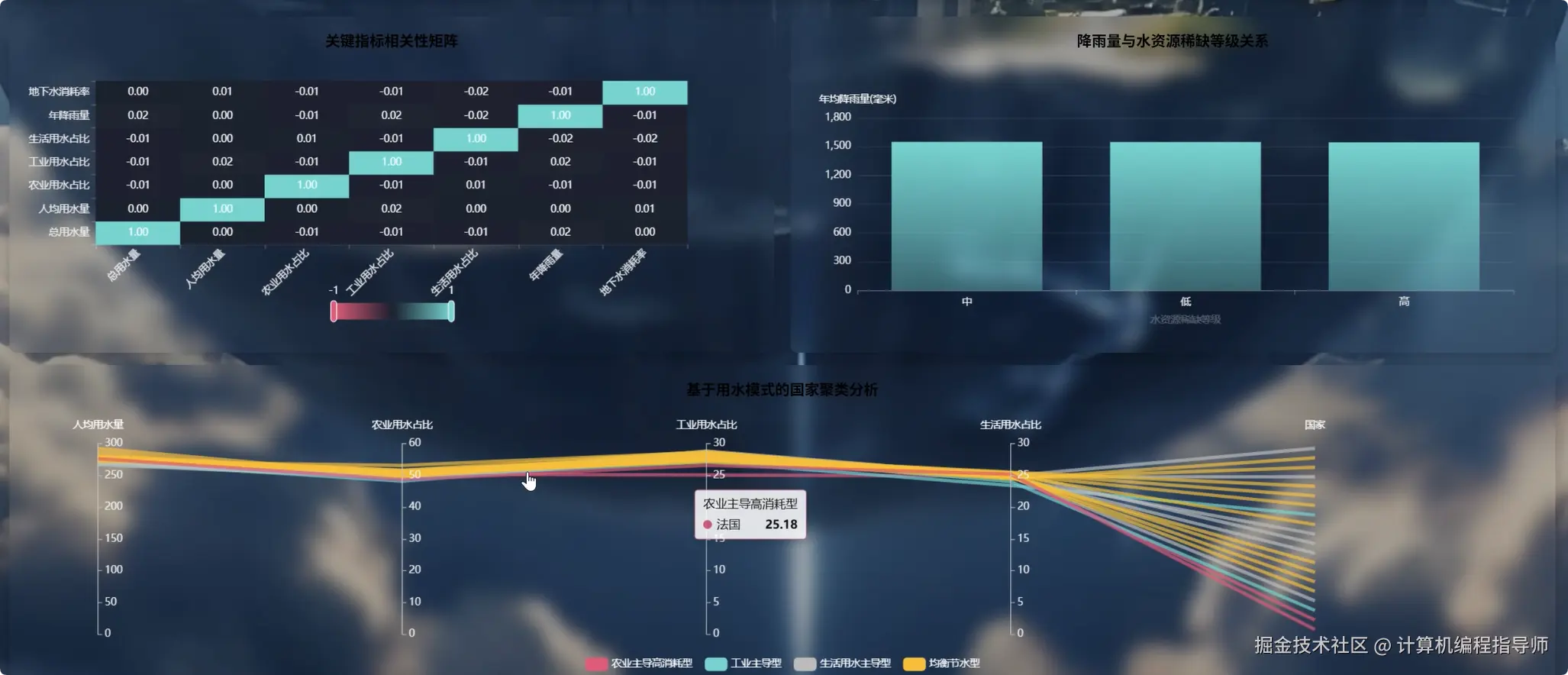

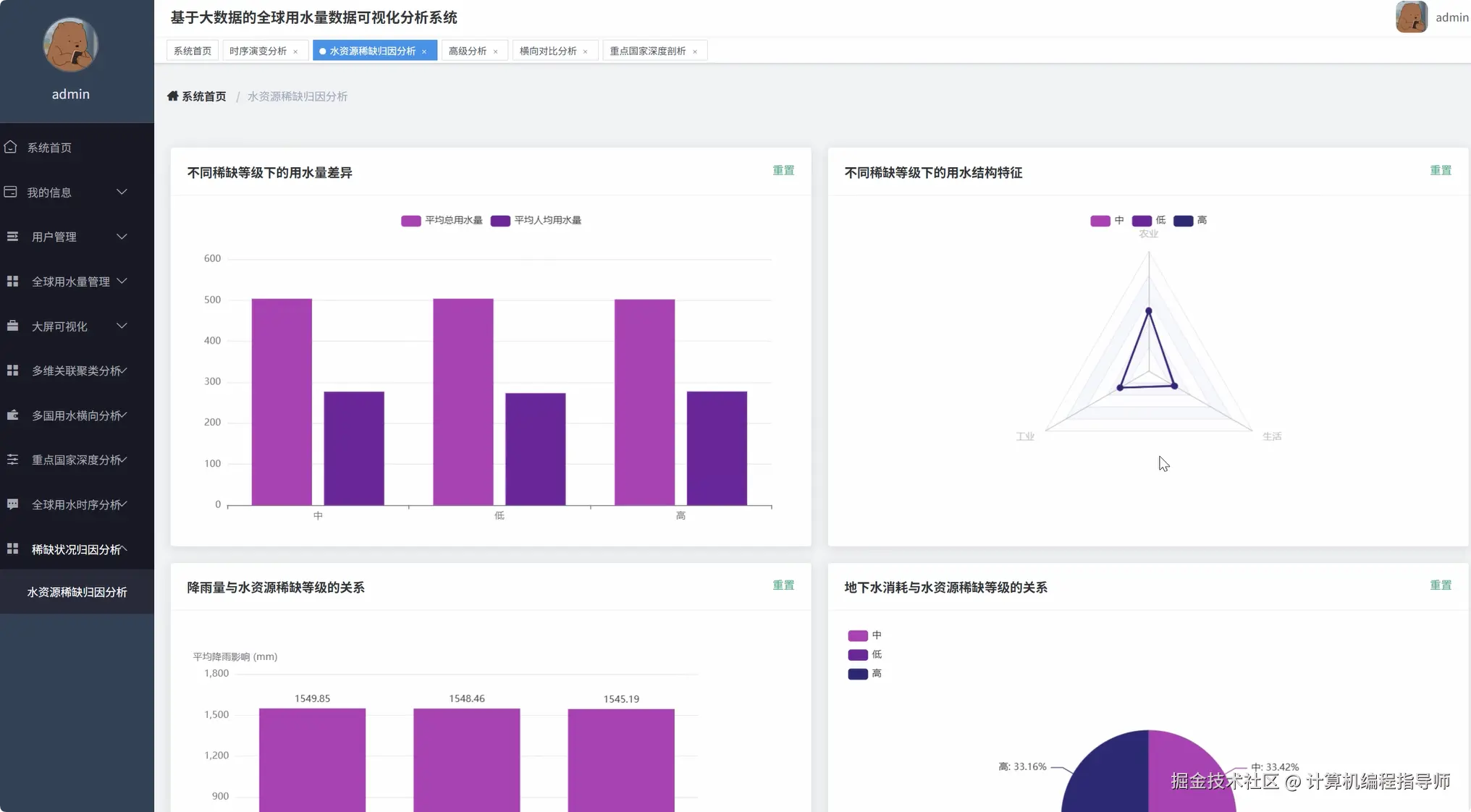

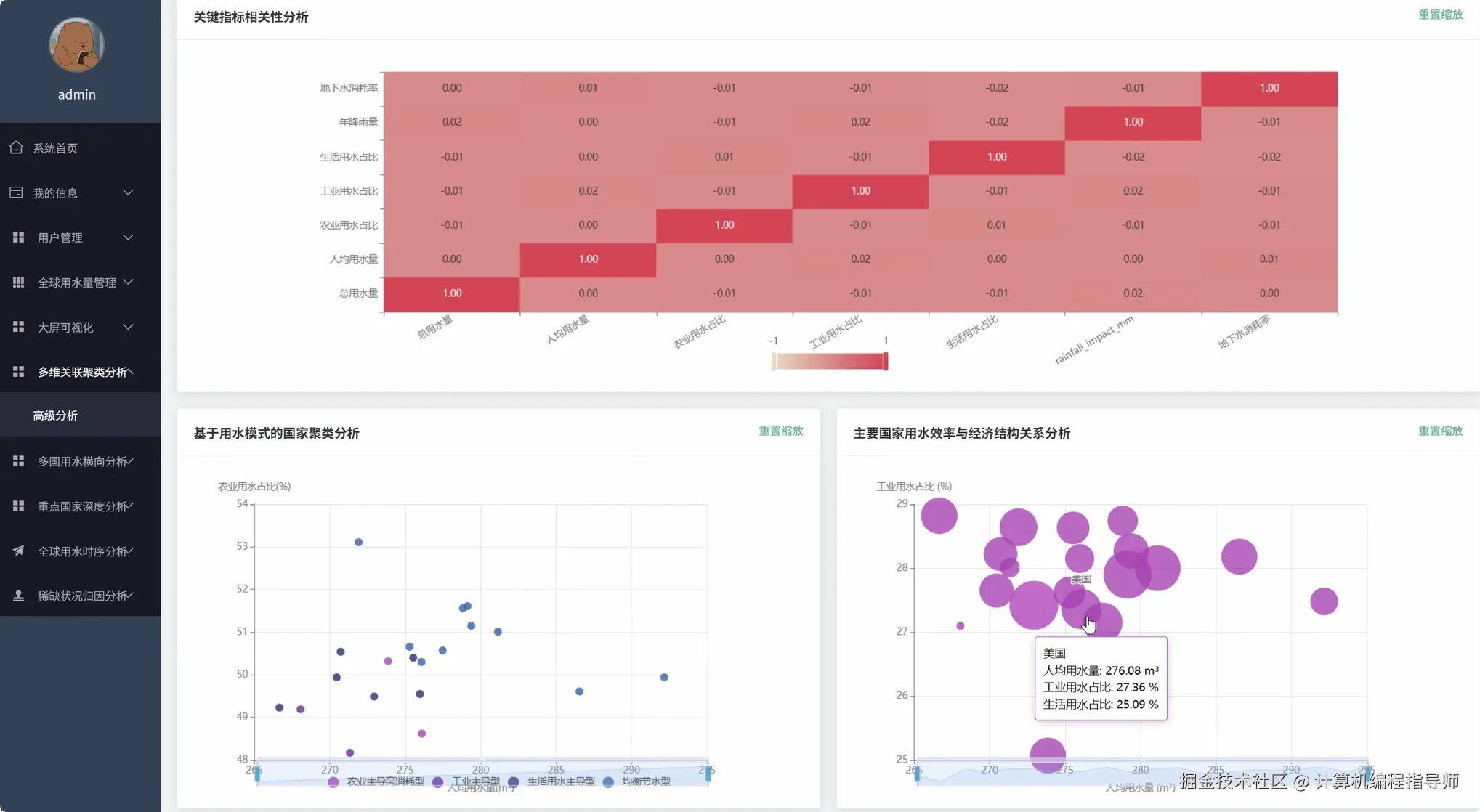

全球用水量数据可视化分析系统-图片展示
全球用水量数据可视化分析系统-代码展示
from pyspark.sql.functions import col, sum as spark_sum, avg, count, desc, asc, year, when, isnan, isnull
from pyspark.ml.feature import VectorAssembler
from pyspark.ml.clustering import KMeans
from django.http import JsonResponse
from django.views.decorators.csrf import csrf_exempt
import json
import pandas as pd
import numpy as np
def global_water_consumption_trend_analysis(request):
spark = SparkSession.builder.appName("GlobalWaterTrendAnalysis").getOrCreate()
water_df = spark.read.format("csv").option("header", "true").option("inferSchema", "true").load("hdfs://localhost:9000/water_data/global_water_consumption.csv")
yearly_consumption = water_df.groupBy("Year").agg(spark_sum("Total_Water_Consumption_Billion_Cubic_Meters").alias("total_consumption"),avg("Per_Capita_Water_Use_Liters_per_Day").alias("avg_per_capita"),avg("Agricultural_Water_Use_Percent").alias("avg_agricultural_percent"),avg("Industrial_Water_Use_Percent").alias("avg_industrial_percent"),avg("Household_Water_Use_Percent").alias("avg_household_percent")).orderBy("Year")
yearly_data = yearly_consumption.collect()
trend_data = []
for row in yearly_data:
trend_record = {"year": row["Year"],"total_consumption": round(row["total_consumption"], 2),"avg_per_capita": round(row["avg_per_capita"], 2),"agricultural_percent": round(row["avg_agricultural_percent"], 2),"industrial_percent": round(row["avg_industrial_percent"], 2),"household_percent": round(row["avg_household_percent"], 2)}
trend_data.append(trend_record)
consumption_growth_rates = []
for i in range(1, len(trend_data)):
prev_consumption = trend_data[i-1]["total_consumption"]
curr_consumption = trend_data[i]["total_consumption"]
growth_rate = ((curr_consumption - prev_consumption) / prev_consumption) * 100 if prev_consumption != 0 else 0
consumption_growth_rates.append({"year": trend_data[i]["year"], "growth_rate": round(growth_rate, 3)})
water_scarcity_trend = water_df.groupBy("Year", "Water_Scarcity_Level").agg(count("Country").alias("country_count")).orderBy("Year", "Water_Scarcity_Level")
scarcity_data = water_scarcity_trend.collect()
scarcity_trend_formatted = {}
for row in scarcity_data:
year = row["Year"]
scarcity_level = row["Water_Scarcity_Level"]
country_count = row["country_count"]
if year not in scarcity_trend_formatted:
scarcity_trend_formatted[year] = {}
scarcity_trend_formatted[year][scarcity_level] = country_count
spark.stop()
return JsonResponse({"status": "success","trend_data": trend_data,"growth_rates": consumption_growth_rates,"scarcity_trend": scarcity_trend_formatted})
def country_water_consumption_comparison(request):
spark = SparkSession.builder.appName("CountryWaterComparison").getOrCreate()
water_df = spark.read.format("csv").option("header", "true").option("inferSchema", "true").load("hdfs://localhost:9000/water_data/global_water_consumption.csv")
country_consumption = water_df.groupBy("Country").agg(avg("Total_Water_Consumption_Billion_Cubic_Meters").alias("avg_total_consumption"),avg("Per_Capita_Water_Use_Liters_per_Day").alias("avg_per_capita"),avg("Agricultural_Water_Use_Percent").alias("avg_agricultural"),avg("Industrial_Water_Use_Percent").alias("avg_industrial"),avg("Household_Water_Use_Percent").alias("avg_household"),avg("Groundwater_Depletion_Rate_Percent").alias("avg_groundwater_depletion"))
top_consumers = country_consumption.orderBy(desc("avg_total_consumption")).limit(20).collect()
top_per_capita = country_consumption.orderBy(desc("avg_per_capita")).limit(20).collect()
consumption_ranking = []
for i, row in enumerate(top_consumers):
ranking_record = {"rank": i + 1,"country": row["Country"],"avg_total_consumption": round(row["avg_total_consumption"], 2),"avg_per_capita": round(row["avg_per_capita"], 2),"avg_agricultural": round(row["avg_agricultural"], 2),"avg_industrial": round(row["avg_industrial"], 2),"avg_household": round(row["avg_household"], 2),"avg_groundwater_depletion": round(row["avg_groundwater_depletion"], 2)}
consumption_ranking.append(ranking_record)
per_capita_ranking = []
for i, row in enumerate(top_per_capita):
per_capita_record = {"rank": i + 1,"country": row["Country"],"avg_per_capita": round(row["avg_per_capita"], 2),"avg_total_consumption": round(row["avg_total_consumption"], 2),"water_use_structure": {"agricultural": round(row["avg_agricultural"], 2),"industrial": round(row["avg_industrial"], 2),"household": round(row["avg_household"], 2)}}
per_capita_ranking.append(per_capita_record)
typical_countries = ["China", "United States", "India", "Brazil", "Russia"]
typical_comparison = []
for country in typical_countries:
country_data = country_consumption.filter(col("Country") == country).collect()
if country_data:
row = country_data[0]
country_info = {"country": country,"avg_total_consumption": round(row["avg_total_consumption"], 2),"avg_per_capita": round(row["avg_per_capita"], 2),"water_structure": {"agricultural": round(row["avg_agricultural"], 2),"industrial": round(row["avg_industrial"], 2),"household": round(row["avg_household"], 2)},"sustainability_risk": round(row["avg_groundwater_depletion"], 2)}
typical_comparison.append(country_info)
spark.stop()
return JsonResponse({"status": "success","total_consumption_ranking": consumption_ranking,"per_capita_ranking": per_capita_ranking,"typical_countries_comparison": typical_comparison})
def water_scarcity_correlation_analysis(request):
spark = SparkSession.builder.appName("WaterScarcityAnalysis").getOrCreate()
water_df = spark.read.format("csv").option("header", "true").option("inferSchema", "true").load("hdfs://localhost:9000/water_data/global_water_consumption.csv")
scarcity_analysis = water_df.groupBy("Water_Scarcity_Level").agg(avg("Total_Water_Consumption_Billion_Cubic_Meters").alias("avg_total_consumption"),avg("Per_Capita_Water_Use_Liters_per_Day").alias("avg_per_capita"),avg("Agricultural_Water_Use_Percent").alias("avg_agricultural"),avg("Industrial_Water_Use_Percent").alias("avg_industrial"),avg("Household_Water_Use_Percent").alias("avg_household"),avg("Rainfall_Impact_Annual_Precipitation_mm").alias("avg_rainfall"),avg("Groundwater_Depletion_Rate_Percent").alias("avg_groundwater_depletion"),count("Country").alias("country_count"))
scarcity_results = scarcity_analysis.collect()
scarcity_comparison = {}
for row in scarcity_results:
scarcity_level = row["Water_Scarcity_Level"]
scarcity_data = {"avg_total_consumption": round(row["avg_total_consumption"], 2),"avg_per_capita": round(row["avg_per_capita"], 2),"water_use_structure": {"agricultural": round(row["avg_agricultural"], 2),"industrial": round(row["avg_industrial"], 2),"household": round(row["avg_household"], 2)},"environmental_factors": {"avg_rainfall": round(row["avg_rainfall"], 2),"avg_groundwater_depletion": round(row["avg_groundwater_depletion"], 2)},"country_count": row["country_count"]}
scarcity_comparison[scarcity_level] = scarcity_data
correlation_features = ["Total_Water_Consumption_Billion_Cubic_Meters","Per_Capita_Water_Use_Liters_per_Day","Agricultural_Water_Use_Percent","Industrial_Water_Use_Percent","Household_Water_Use_Percent","Rainfall_Impact_Annual_Precipitation_mm","Groundwater_Depletion_Rate_Percent"]
pandas_df = water_df.select(*correlation_features).toPandas()
correlation_matrix = pandas_df.corr()
correlation_data = {}
for i, col1 in enumerate(correlation_features):
correlation_data[col1] = {}
for j, col2 in enumerate(correlation_features):
correlation_data[col1][col2] = round(correlation_matrix.iloc[i, j], 3)
assembler = VectorAssembler(inputCols=["Per_Capita_Water_Use_Liters_per_Day","Agricultural_Water_Use_Percent","Industrial_Water_Use_Percent","Household_Water_Use_Percent"], outputCol="features")
cluster_df = water_df.select("Country", "Per_Capita_Water_Use_Liters_per_Day","Agricultural_Water_Use_Percent","Industrial_Water_Use_Percent","Household_Water_Use_Percent").na.drop()
feature_df = assembler.transform(cluster_df)
kmeans = KMeans(k=4, seed=42, featuresCol="features", predictionCol="cluster")
model = kmeans.fit(feature_df)
clustered_df = model.transform(feature_df)
cluster_results = clustered_df.select("Country", "cluster", "Per_Capita_Water_Use_Liters_per_Day","Agricultural_Water_Use_Percent","Industrial_Water_Use_Percent","Household_Water_Use_Percent").collect()
country_clusters = {}
for row in cluster_results:
cluster_id = row["cluster"]
if cluster_id not in country_clusters:
country_clusters[cluster_id] = []
country_info = {"country": row["Country"],"per_capita_use": round(row["Per_Capita_Water_Use_Liters_per_Day"], 2),"agricultural_percent": round(row["Agricultural_Water_Use_Percent"], 2),"industrial_percent": round(row["Industrial_Water_Use_Percent"], 2),"household_percent": round(row["Household_Water_Use_Percent"], 2)}
country_clusters[cluster_id].append(country_info)
spark.stop()
return JsonResponse({"status": "success","scarcity_level_analysis": scarcity_comparison,"correlation_matrix": correlation_data,"country_clustering": country_clusters})
