命令模式的深度解析：从标准实现到TPL Dataflow高性能架构

用户53036983118
32 阅读7分钟

命令模式是对一类对象公共操作的抽象，它们具有相同的方法签名，所以具有类似的操作，可以被抽象出来，成为一个抽象的命令对象。实际操作的调用者就不是和一组对象打交道，它是需要以来这个命令对象的方法签名，并根据这个签名调用相关的方法。

以上是命令模式的大概含义，这里可以联想到事件驱动，command和handler,也可以联想到AOP的思想。联想到数据流的操作我就写了个数据流操作类库。

Snipaste_2025-09-14_15-03-02

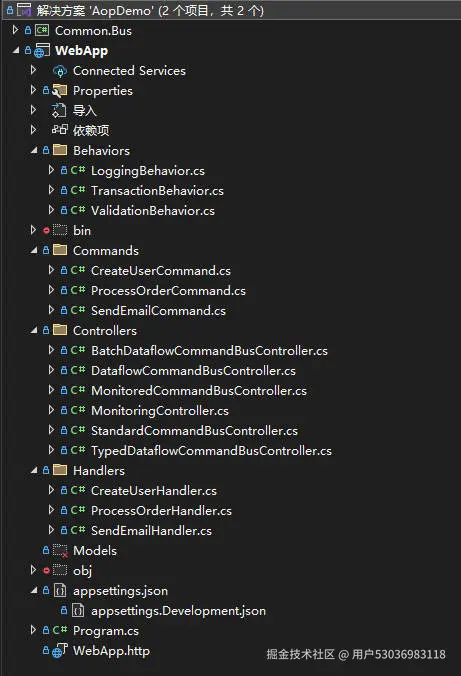

Snipaste_2025-09-14_15-03-15

之前写了一些有关AOP的，但是感觉还是差点意思，补上这次的可能在项目中会弥补一些短板回来，就是灵活性。
但是该项目重点是数据流的处理，所以web端来实现只是一个例子，大量数据的处理最主要的是后台任务吧，通过接口调用只是一个实例展示。

有关数据流这块代码核心如下：

复制代码

using System;
using System.Collections.Concurrent;
using System.Collections.Generic;
using System.Linq;
using System.Reflection;
using System.Threading;
using System.Threading.Tasks;
using System.Threading.Tasks.Dataflow;
using Microsoft.Extensions.DependencyInjection;
using Microsoft.Extensions.Logging;
using Common.Bus.Core;
using Common.Bus.Monitoring;

namespace Common.Bus.Implementations
{
    /// <summary>
    /// 基于TPL数据流的高性能CommandBus实现
    /// 支持并行处理、背压控制和监控
    /// </summary>
    public class DataflowCommandBus : ICommandBus, IDisposable
    {
        private readonly IServiceProvider _provider;
        private readonly ILogger<DataflowCommandBus>? _logger;
        private readonly ConcurrentDictionary<Type, Func<object>> _handlerCache = new();
        private readonly ConcurrentDictionary<Type, Func<object[]>> _behaviorsCache = new();

        // 数据流网络
        private ActionBlock<DataflowCommandRequest> _commandProcessor = null!;

        // 背压控制
        private readonly SemaphoreSlim _concurrencyLimiter;
        private readonly int _maxConcurrency;

        // 监控指标
        private long _processedCommands;
        private long _failedCommands;
        private long _totalProcessingTime;

        public DataflowCommandBus(IServiceProvider serviceProvider, ILogger<DataflowCommandBus>? logger = null,
            int? maxConcurrency = null)
        {
            _provider = serviceProvider;
            _logger = logger;
            _maxConcurrency = maxConcurrency ?? Environment.ProcessorCount * 2;
            _concurrencyLimiter = new SemaphoreSlim(_maxConcurrency, _maxConcurrency);

            // 创建数据流网络
            CreateDataflowNetwork();
        }

        private void CreateDataflowNetwork()
        {
            // 创建命令处理器
            _commandProcessor = new ActionBlock<DataflowCommandRequest>(
                async request =>
                {
                    try
                    {
                        await _concurrencyLimiter.WaitAsync();
                        var startTime = DateTime.UtcNow;

                        // 执行完整的命令处理管道
                        var result = await ProcessCommandPipeline(request);

                        var processingTime = DateTime.UtcNow - startTime;
                        Interlocked.Add(ref _totalProcessingTime, processingTime.Ticks);
                        Interlocked.Increment(ref _processedCommands);

                        request.TaskCompletionSource.SetResult(result);
                    }
                    catch (Exception ex)
                    {
                        Interlocked.Increment(ref _failedCommands);
                        _logger?.LogError(ex, "Command processing failed for {CommandType}", request.CommandType.Name);
                        request.TaskCompletionSource.SetException(ex);
                    }
                    finally
                    {
                        _concurrencyLimiter.Release();
                    }
                },
                new ExecutionDataflowBlockOptions
                {
                    MaxDegreeOfParallelism = _maxConcurrency,
                    BoundedCapacity = _maxConcurrency * 2
                });
        }

        public async Task<TResult> SendAsync<TCommand, TResult>(TCommand command, CancellationToken ct = default)
            where TCommand : ICommand<TResult>
        {
            var commandType = typeof(TCommand);
            var requestId = Guid.NewGuid();
            var tcs = new TaskCompletionSource<object>();

            var request = new DataflowCommandRequest(requestId, commandType, typeof(TResult), command, tcs);

            // 发送到数据流网络
            if (!_commandProcessor.Post(request))
            {
                throw new InvalidOperationException("Unable to queue command for processing - system may be overloaded");
            }

            try
            {
                var result = await tcs.Task.WaitAsync(ct);
                return (TResult)result;
            }
            catch (OperationCanceledException) when (ct.IsCancellationRequested)
            {
                _logger?.LogWarning("Command {CommandType} was cancelled", commandType.Name);
                throw;
            }
        }

        private async Task<object> ProcessCommandPipeline(DataflowCommandRequest request)
        {
            // 使用反射调用泛型方法
            var method = typeof(DataflowCommandBus).GetMethod(nameof(ProcessCommandPipelineGeneric), BindingFlags.NonPublic | BindingFlags.Instance);
            var genericMethod = method!.MakeGenericMethod(request.CommandType, request.ResultType);

            var task = (Task)genericMethod.Invoke(this, new object[] { request })!;
            await task;

            var resultProperty = task.GetType().GetProperty("Result");
            return resultProperty?.GetValue(task) ?? throw new InvalidOperationException("Failed to get result from task");
        }

        private async Task<TResult> ProcessCommandPipelineGeneric<TCommand, TResult>(DataflowCommandRequest request)
            where TCommand : ICommand<TResult>
        {
            // 获取处理器和行为的工厂函数
            var handlerFactory = GetCachedHandler<TCommand, TResult>(request.CommandType);
            var behaviorsFactory = GetCachedBehaviors<TCommand, TResult>(request.CommandType);

            // 创建处理器和行为的实例
            var handler = handlerFactory();
            var behaviors = behaviorsFactory();

            // 构建处理管道
            Func<Task<TResult>> pipeline = () => ExecuteHandler<TCommand, TResult>(handler, (TCommand)request.Command);

            // 按顺序应用管道行为
            foreach (var behavior in behaviors.Reverse())
            {
                var currentBehavior = behavior;
                var currentPipeline = pipeline;
                pipeline = async () => (TResult)await ExecuteBehavior(currentBehavior, (TCommand)request.Command, currentPipeline);
            }

            return await pipeline();
        }

        private async Task<object> ExecuteBehavior<TCommand, TResult>(
            ICommandPipelineBehavior<TCommand, TResult> behavior,
            TCommand command,
            Func<Task<TResult>> next)
            where TCommand : ICommand<TResult>
        {
            try
            {
                var result = await behavior.Handle(command, next, CancellationToken.None);
                return result!;
            }
            catch (Exception ex)
            {
                throw new InvalidOperationException($"Error executing behavior {behavior.GetType().Name}: {ex.Message}", ex);
            }
        }

        private Func<ICommandHandler<TCommand, TResult>> GetCachedHandler<TCommand, TResult>(Type commandType)
            where TCommand : ICommand<TResult>
        {
            return (Func<ICommandHandler<TCommand, TResult>>)_handlerCache.GetOrAdd(commandType, _ =>
            {
                return new Func<ICommandHandler<TCommand, TResult>>(() =>
                {
                    using var scope = _provider.CreateScope();
                    var handler = scope.ServiceProvider.GetService<ICommandHandler<TCommand, TResult>>();
                    if (handler == null)
                        throw new InvalidOperationException($"No handler registered for {commandType.Name}");
                    return handler;
                });
            });
        }

        private Func<ICommandPipelineBehavior<TCommand, TResult>[]> GetCachedBehaviors<TCommand, TResult>(Type commandType)
            where TCommand : ICommand<TResult>
        {
            return (Func<ICommandPipelineBehavior<TCommand, TResult>[]>)_behaviorsCache.GetOrAdd(commandType, _ =>
            {
                return new Func<ICommandPipelineBehavior<TCommand, TResult>[]>(() =>
                {
                    using var scope = _provider.CreateScope();
                    var behaviors = scope.ServiceProvider.GetServices<ICommandPipelineBehavior<TCommand, TResult>>().ToArray();
                    return behaviors;
                });
            });
        }

        private async Task<TResult> ExecuteHandler<TCommand, TResult>(ICommandHandler<TCommand, TResult> handler, TCommand command)
            where TCommand : ICommand<TResult>
        {
            return await handler.HandleAsync(command, CancellationToken.None);
        }

        private async Task<object> ExecuteHandler(object handler, object command)
        {
            var handlerType = handler.GetType();
            var handleMethod = handlerType.GetMethod("HandleAsync");

            if (handleMethod == null)
                throw new InvalidOperationException($"Handler {handlerType.Name} does not have HandleAsync method");

            var task = (Task)handleMethod.Invoke(handler, new object[] { command, CancellationToken.None })!;
            await task;

            var resultProperty = task.GetType().GetProperty("Result");
            return resultProperty?.GetValue(task) ?? throw new InvalidOperationException("Failed to get result from task");
        }

        private Func<object> GetCachedHandler(Type commandType)
        {
            return _handlerCache.GetOrAdd(commandType, _ =>
            {
                // 获取命令类型实现的ICommand<TResult>接口
                var commandInterface = commandType.GetInterfaces()
                    .FirstOrDefault(i => i.IsGenericType && i.GetGenericTypeDefinition() == typeof(ICommand<>));

                if (commandInterface == null)
                    throw new InvalidOperationException($"Command type {commandType.Name} does not implement ICommand<TResult>");

                var resultType = commandInterface.GetGenericArguments()[0];
                var handlerType = typeof(ICommandHandler<,>).MakeGenericType(commandType, resultType);

                // 返回一个工厂函数，而不是直接返回处理器实例
                return new Func<object>(() =>
                {
                    using var scope = _provider.CreateScope();
                    var handler = scope.ServiceProvider.GetService(handlerType);
                    if (handler == null)
                        throw new InvalidOperationException($"No handler registered for {commandType.Name}");
                    return handler;
                });
            });
        }

        private Func<object[]> GetCachedBehaviors(Type commandType)
        {
            return _behaviorsCache.GetOrAdd(commandType, _ =>
            {
                // 获取命令类型实现的ICommand<TResult>接口
                var commandInterface = commandType.GetInterfaces()
                    .FirstOrDefault(i => i.IsGenericType && i.GetGenericTypeDefinition() == typeof(ICommand<>));

                if (commandInterface == null)
                    throw new InvalidOperationException($"Command type {commandType.Name} does not implement ICommand<TResult>");

                var resultType = commandInterface.GetGenericArguments()[0];
                var behaviorType = typeof(ICommandPipelineBehavior<,>).MakeGenericType(commandType, resultType);

                // 返回一个工厂函数，而不是直接返回行为实例
                return new Func<object[]>(() =>
                {
                    using var scope = _provider.CreateScope();
                    var behaviors = scope.ServiceProvider.GetServices(behaviorType).Where(b => b != null).ToArray();
                    return behaviors!;
                });
            });
        }

        // 监控和统计方法
        public DataflowMetrics GetMetrics()
        {
            return new DataflowMetrics
            {
                ProcessedCommands = Interlocked.Read(ref _processedCommands),
                FailedCommands = Interlocked.Read(ref _failedCommands),
                TotalProcessingTime = TimeSpan.FromTicks(Interlocked.Read(ref _totalProcessingTime)),
                AverageProcessingTime = _processedCommands > 0
                    ? TimeSpan.FromTicks(Interlocked.Read(ref _totalProcessingTime) / _processedCommands)
                    : TimeSpan.Zero,
                AvailableConcurrency = _concurrencyLimiter.CurrentCount,
                MaxConcurrency = _maxConcurrency,
                InputQueueSize = _commandProcessor.InputCount
            };
        }

        public void ClearCache()
        {
            _handlerCache.Clear();
            _behaviorsCache.Clear();
        }

        public void Dispose()
        {
            _commandProcessor?.Complete();
            _concurrencyLimiter?.Dispose();
        }
    }

    // 辅助类
    internal class DataflowCommandRequest
    {
        public Guid Id { get; }
        public Type CommandType { get; }
        public Type ResultType { get; }
        public object Command { get; }
        public TaskCompletionSource<object> TaskCompletionSource { get; }

        public DataflowCommandRequest(Guid id, Type commandType, Type resultType, object command, TaskCompletionSource<object> tcs)
        {
            Id = id;
            CommandType = commandType;
            ResultType = resultType;
            Command = command;
            TaskCompletionSource = tcs;
        }
    }

}

复制代码



其他普通或者批量操作就参考其他代码：
exercisebook/AOP/EventBusAOP/AopNew at main · liuzhixin405/exercisebook

一下是项目更详细介绍，如有错误多多指正：

CommandBus AOP 项目

这是一个基于AOP（面向切面编程）的CommandBus项目，使用TPL Dataflow进行数据流处理优化，支持多种CommandBus实现和实时监控。

项目结构


AopNew/

├── Common.Bus/                    # 核心库

│   ├── Core/                      # 核心接口和抽象

│   │   ├── ICommand.cs           # 命令接口

│   │   ├── ICommandBus.cs        # 命令总线接口

│   │   ├── ICommandHandler.cs    # 命令处理器接口

│   │   ├── ICommandPipelineBehavior.cs # 管道行为接口

│   │   ├── ICommandProcessor.cs  # 命令处理器接口

│   │   ├── ICommandRequest.cs    # 命令请求接口

│   │   └── CommandBusType.cs     # CommandBus类型枚举

│   ├── Implementations/          # 具体实现

│   │   ├── CommandBus.cs         # 标准CommandBus

│   │   ├── DataflowCommandBus.cs # TPL Dataflow CommandBus

│   │   ├── BatchDataflowCommandBus.cs # 批处理Dataflow CommandBus

│   │   ├── TypedDataflowCommandBus.cs # 类型安全Dataflow CommandBus

│   │   ├── MonitoredCommandBus.cs # 带监控的CommandBus

│   │   └── CommandBusServiceLocator.cs # 服务定位器

│   ├── Monitoring/               # 监控相关

│   │   ├── IDataflowMetrics.cs   # 数据流指标接口

│   │   ├── IMetricsCollector.cs  # 指标收集器接口

│   │   ├── DataflowMetrics.cs    # 数据流指标实现

│   │   └── BatchDataflowMetrics.cs # 批处理指标实现

│   └── Extensions/               # 扩展方法

│       └── ServiceCollectionExtensions.cs # DI扩展方法

└── WebApp/                       # Web应用程序

    ├── Commands/                 # 命令定义

    │   ├── ProcessOrderCommand.cs

    │   ├── CreateUserCommand.cs

    │   └── SendEmailCommand.cs

    ├── Handlers/                 # 命令处理器

    │   ├── ProcessOrderHandler.cs

    │   ├── CreateUserHandler.cs

    │   └── SendEmailHandler.cs

    ├── Behaviors/                # 管道行为

    │   ├── LoggingBehavior.cs

    │   ├── ValidationBehavior.cs

    │   └── TransactionBehavior.cs

    ├── Controllers/              # API控制器

    │   ├── StandardCommandBusController.cs

    │   ├── DataflowCommandBusController.cs

    │   ├── BatchDataflowCommandBusController.cs

    │   ├── TypedDataflowCommandBusController.cs

    │   ├── MonitoredCommandBusController.cs

    │   └── MonitoringController.cs

    ├── Program.cs                # 应用程序入口

    ├── WebApp.csproj            # 项目文件

    └── WebApp.http              # HTTP测试文件

CommandBus实现类型

1. Standard CommandBus

  • 类型: CommandBusType.Standard

  • 特点: 标准同步处理，适合简单场景

  • 控制器: StandardCommandBusController

2. Dataflow CommandBus

  • 类型: CommandBusType.Dataflow

  • 特点: 基于TPL Dataflow的异步并发处理，适合高并发场景

  • 控制器: DataflowCommandBusController

3. Batch Dataflow CommandBus

  • 类型: CommandBusType.BatchDataflow

  • 特点: 支持批量处理，适合大批量数据场景

  • 控制器: BatchDataflowCommandBusController

4. Typed Dataflow CommandBus

  • 类型: CommandBusType.TypedDataflow

  • 特点: 强类型安全，适合复杂业务场景

  • 控制器: TypedDataflowCommandBusController

5. Monitored CommandBus

  • 类型: CommandBusType.Monitored

  • 特点: 包含性能监控，适合生产环境

  • 控制器: MonitoredCommandBusController

使用方法

1. 依赖注入配置

在Program.cs中一次性注册所有CommandBus实现：


// 一次性注册所有CommandBus实现

builder.Services.AddAllCommandBusImplementations();




// 注册命令处理器

builder.Services.AddScoped<ICommandHandler<ProcessOrderCommand, string>, ProcessOrderHandler>();

builder.Services.AddScoped<ICommandHandler<CreateUserCommand, int>, CreateUserHandler>();

builder.Services.AddScoped<ICommandHandler<SendEmailCommand, bool>, SendEmailHandler>();




// 注册管道行为

builder.Services.AddScoped(typeof(ICommandPipelineBehavior<,>), typeof(LoggingBehavior<,>));

builder.Services.AddScoped(typeof(ICommandPipelineBehavior<,>), typeof(ValidationBehavior<,>));

builder.Services.AddScoped(typeof(ICommandPipelineBehavior<,>), typeof(TransactionBehavior<,>));

2. 在控制器中使用

每个控制器直接注入对应的CommandBus实现：


public class StandardCommandBusController : ControllerBase

{

    private readonly CommandBus _commandBus;




    public StandardCommandBusController(CommandBus commandBus)

    {

        _commandBus = commandBus;

    }




    [HttpPost("process-order")]

    public async Task<IActionResult> ProcessOrder([FromBody] ProcessOrderCommand command)

    {

        var result = await _commandBus.SendAsync<ProcessOrderCommand, string>(command);



        return Ok(new {

            Success = true,

            Result = result,

            BusType = "Standard"

        });

    }

}

3. 专用控制器端点

每个CommandBus实现都有专门的控制器端点：


# 标准CommandBus

POST /api/StandardCommandBus/process-order

POST /api/StandardCommandBus/create-user

POST /api/StandardCommandBus/send-email




# Dataflow CommandBus

POST /api/DataflowCommandBus/process-order

POST /api/DataflowCommandBus/create-user

POST /api/DataflowCommandBus/send-email




# 批处理Dataflow CommandBus

POST /api/BatchDataflowCommandBus/process-order

POST /api/BatchDataflowCommandBus/create-user

POST /api/BatchDataflowCommandBus/send-email




# 类型安全Dataflow CommandBus

POST /api/TypedDataflowCommandBus/process-order

POST /api/TypedDataflowCommandBus/create-user

POST /api/TypedDataflowCommandBus/send-email




# 带监控的CommandBus

POST /api/MonitoredCommandBus/process-order

POST /api/MonitoredCommandBus/create-user

POST /api/MonitoredCommandBus/send-email

API端点

CommandBus专用控制器

每个CommandBus实现都有专门的控制器：

  • StandardCommandBusController - 标准CommandBus演示

  • DataflowCommandBusController - TPL Dataflow CommandBus演示

  • BatchDataflowCommandBusController - 批处理Dataflow CommandBus演示

  • TypedDataflowCommandBusController - 类型安全Dataflow CommandBus演示

  • MonitoredCommandBusController - 带监控的CommandBus演示

监控控制器

  • MonitoringController - 实时监控和SSE数据流

  - GET /api/Monitoring/dashboard - 监控面板

  - GET /api/Monitoring/stream - SSE实时数据流

  - GET /api/Monitoring/metrics - 获取当前指标

示例请求

处理订单


POST /api/TypedDataflowCommandBus/process-order

Content-Type: application/json




{

    "product": "笔记本电脑",

    "quantity": 2,

    "priority": 1

}

创建用户


POST /api/TypedDataflowCommandBus/create-user

Content-Type: application/json




{

    "name": "张三",

    "email": "zhangsan@example.com",

    "age": 25

}

发送邮件


POST /api/MonitoredCommandBus/send-email

Content-Type: application/json




{

    "to": "user@example.com",

    "subject": "测试邮件",

    "body": "这是一封测试邮件"

}

运行项目

  1. 克隆项目到本地

  2. 在项目根目录运行：

   ```bash

   dotnet build

   dotnet run --project WebApp

   ```

  1. 访问 https://localhost:5056 查看Swagger文档

  2. 访问 https://localhost:5056/api/Monitoring/dashboard 查看监控面板

技术特性

  • 多种CommandBus实现: 支持标准、Dataflow、批处理、类型安全、监控等多种实现

  • 枚举驱动选择: 通过枚举类型轻松切换不同的CommandBus实现

  • AOP支持: 内置日志、验证、事务等管道行为

  • 实时监控: 支持SSE实时数据流和性能指标监控

  • 类型安全: 强类型命令和处理器，编译时类型检查

  • 高并发: 基于TPL Dataflow的异步并发处理

  • 批量处理: 支持批量命令处理，提高吞吐量

  • 依赖注入: 完整的DI支持，易于测试和扩展

扩展指南

添加新的CommandBus实现

  1. 实现ICommandBus接口

  2. 在ServiceCollectionExtensions.AddAllCommandBusImplementations中注册

  3. 创建对应的控制器

添加新的管道行为

  1. 实现ICommandPipelineBehavior<TCommand, TResult>接口

  2. 在Program.cs中注册服务

  3. 行为将自动应用到所有命令处理

添加新的命令和处理器

  1. 在Commands目录中定义命令

  2. 在Handlers目录中实现处理器

  3. 在Program.cs中注册服务

avatar
文章
阅读
粉丝
