基于大数据的全球能源消耗量数据分析与可视化系统-功能介绍
本系统是一套基于大数据技术的全球能源消耗量数据分析与可视化平台，采用Hadoop+Spark大数据框架作为核心数据处理引擎，通过Python开发语言结合Django后端框架构建稳定的服务架构。系统运用Spark SQL、Pandas、NumPy等数据分析技术对海量的全球能源数据进行深度挖掘，实现了四个维度的综合分析：全球能源消耗宏观趋势分析、不同国家维度的能源状况横向对比、能源结构与可持续发展专题分析以及能源效率与消耗模式分析。前端采用Vue框架配合ElementUI组件库构建用户界面，集成Echarts图表库实现数据的动态可视化展示，支持折线图、柱状图、散点图、聚类图等多种图表形式。系统通过HDFS分布式文件系统存储和管理大规模能源数据，利用Spark的分布式计算能力处理复杂的数据分析任务，最终将分析结果以CSV格式输出并通过前端可视化界面展现给用户，为全球能源发展趋势研究、国家间能源政策对比以及可持续发展决策提供数据支撑和可视化分析工具。
基于大数据的全球能源消耗量数据分析与可视化系统-选题背景意义
选题背景 随着全球工业化进程的加速和人口增长，能源消耗问题日益成为各国政府和研究机构关注的焦点。传统的能源数据分析方法往往局限于小规模数据处理，面对全球范围内跨越多年的海量能源统计数据时显得力不从心。当前全球正处于能源转型的关键时期，各国都在积极推动可再生能源发展，减少对化石燃料的依赖，这使得对全球能源消耗数据的深度分析变得尤为重要。然而，现有的能源数据分析工具大多缺乏对大数据技术的有效运用，无法充分挖掘海量数据中蕴含的价值规律。大数据技术的快速发展为解决这一问题提供了新的思路，Hadoop和Spark等分布式计算框架能够高效处理TB级别的能源数据，为全球能源消耗模式的深入研究提供了技术基础，这也是本课题选择采用大数据技术进行全球能源数据分析的重要背景。 选题意义 本课题的研究意义主要体现在技术实践和应用价值两个层面。从技术角度来看，通过将Hadoop+Spark大数据技术应用于全球能源数据分析，能够在一定程度上验证大数据框架在处理复杂多维数据分析任务中的实用性，为后续相关领域的技术应用提供参考经验。系统设计的四个分析维度涵盖了宏观趋势、国别对比、专题研究和效率评估，这种多层次的分析框架对于理解全球能源发展规律具有一定的参考价值。从应用意义来说，虽然本系统作为毕业设计项目在规模和深度上有所限制，但其产出的可视化分析结果仍然能够为能源政策研究人员和相关专业学生提供直观的数据展示工具。系统通过Echarts实现的动态可视化功能，能够帮助用户更好地理解复杂的能源数据关系，这对于促进能源领域的科普教育和政策讨论具有积极作用。同时，本课题的完成过程也有助于提升计算机专业学生在大数据技术应用方面的实践能力。
基于大数据的全球能源消耗量数据分析与可视化系统-技术选型
大数据框架：Hadoop+Spark（本次没用Hive，支持定制） 开发语言：Python+Java（两个版本都支持） 后端框架：Django+Spring Boot(Spring+SpringMVC+Mybatis)（两个版本都支持） 前端：Vue+ElementUI+Echarts+HTML+CSS+JavaScript+jQuery 详细技术点：Hadoop、HDFS、Spark、Spark SQL、Pandas、NumPy 数据库：MySQL
基于大数据的全球能源消耗量数据分析与可视化系统-视频展示

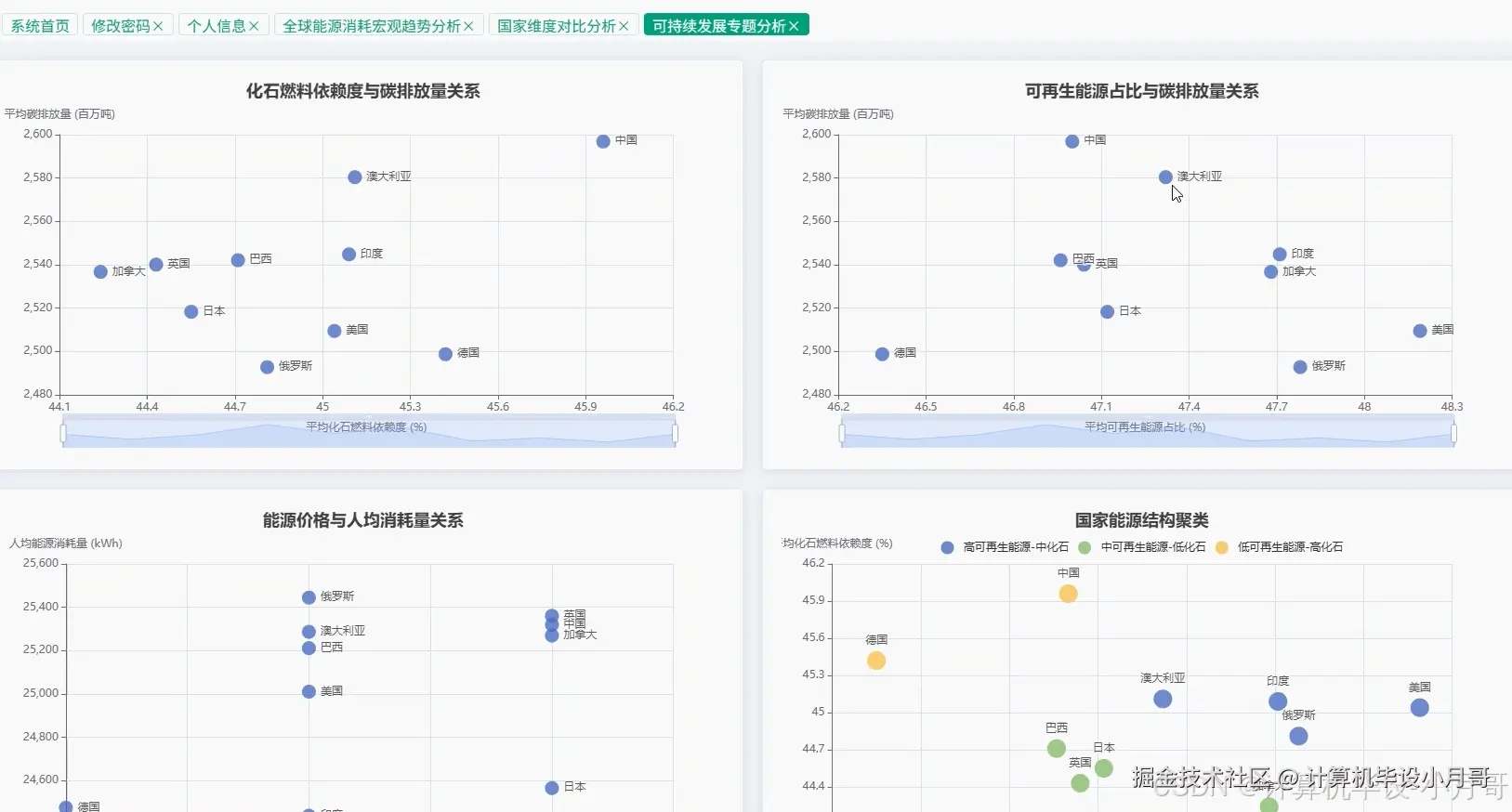

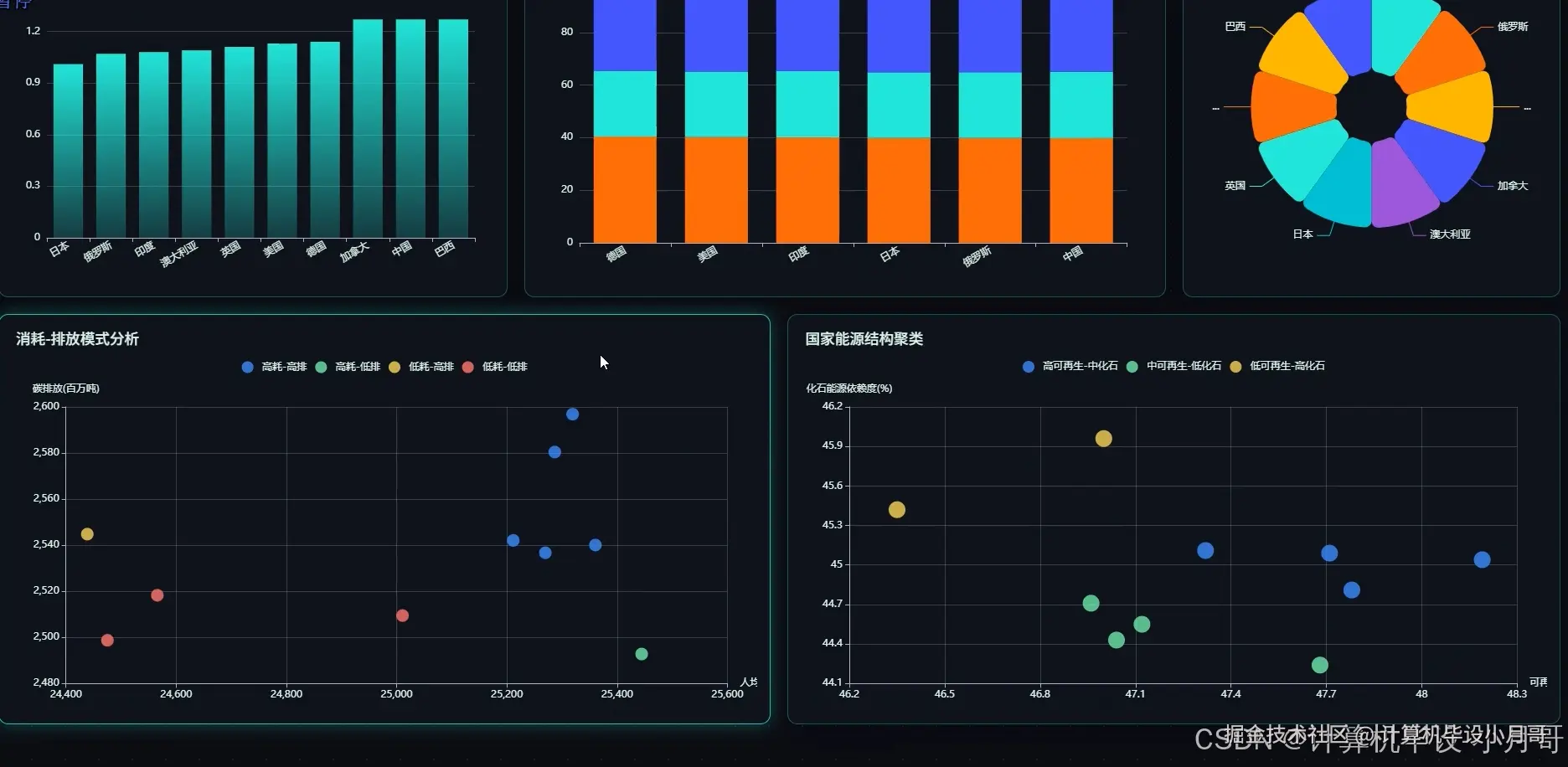

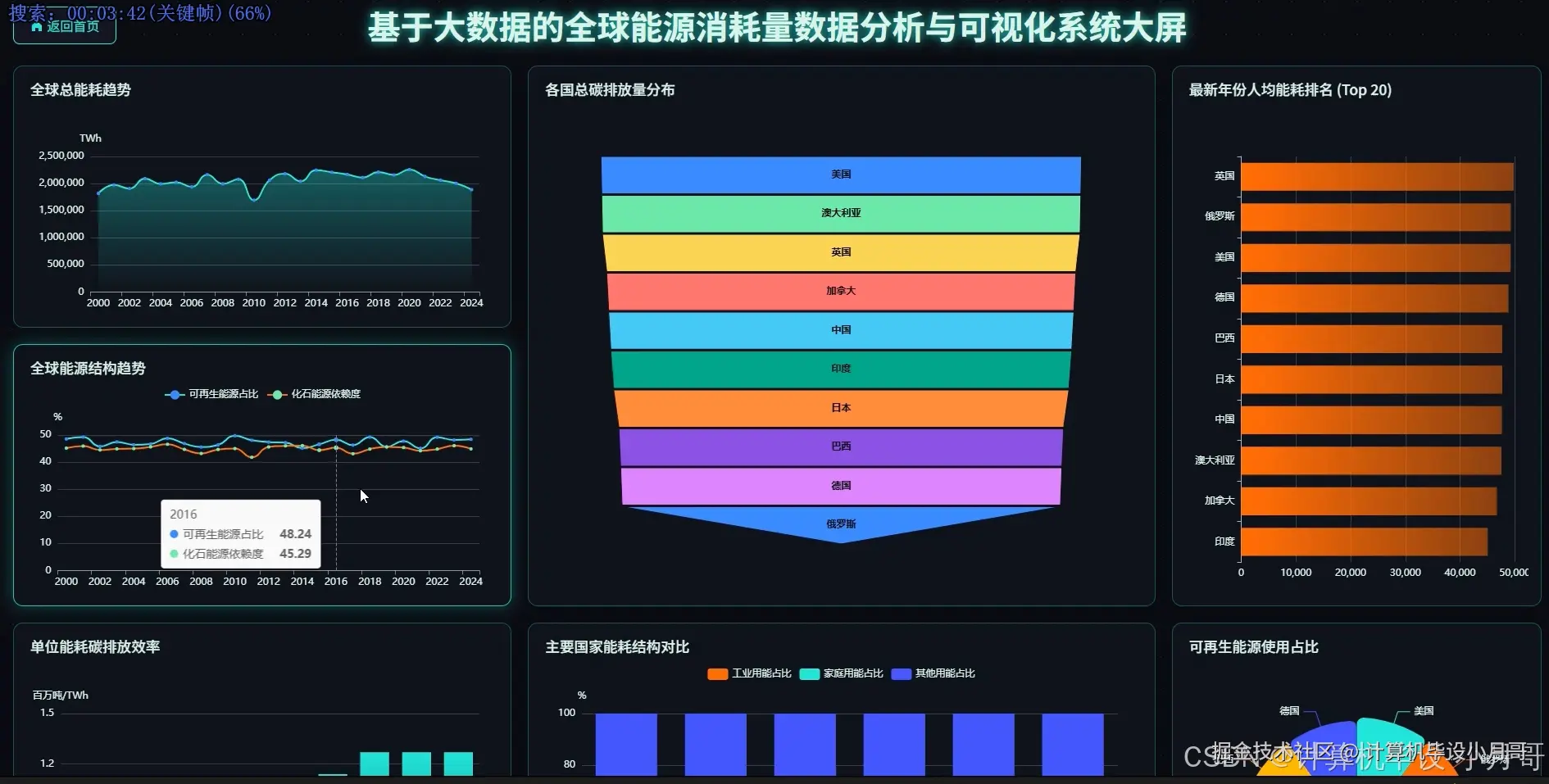

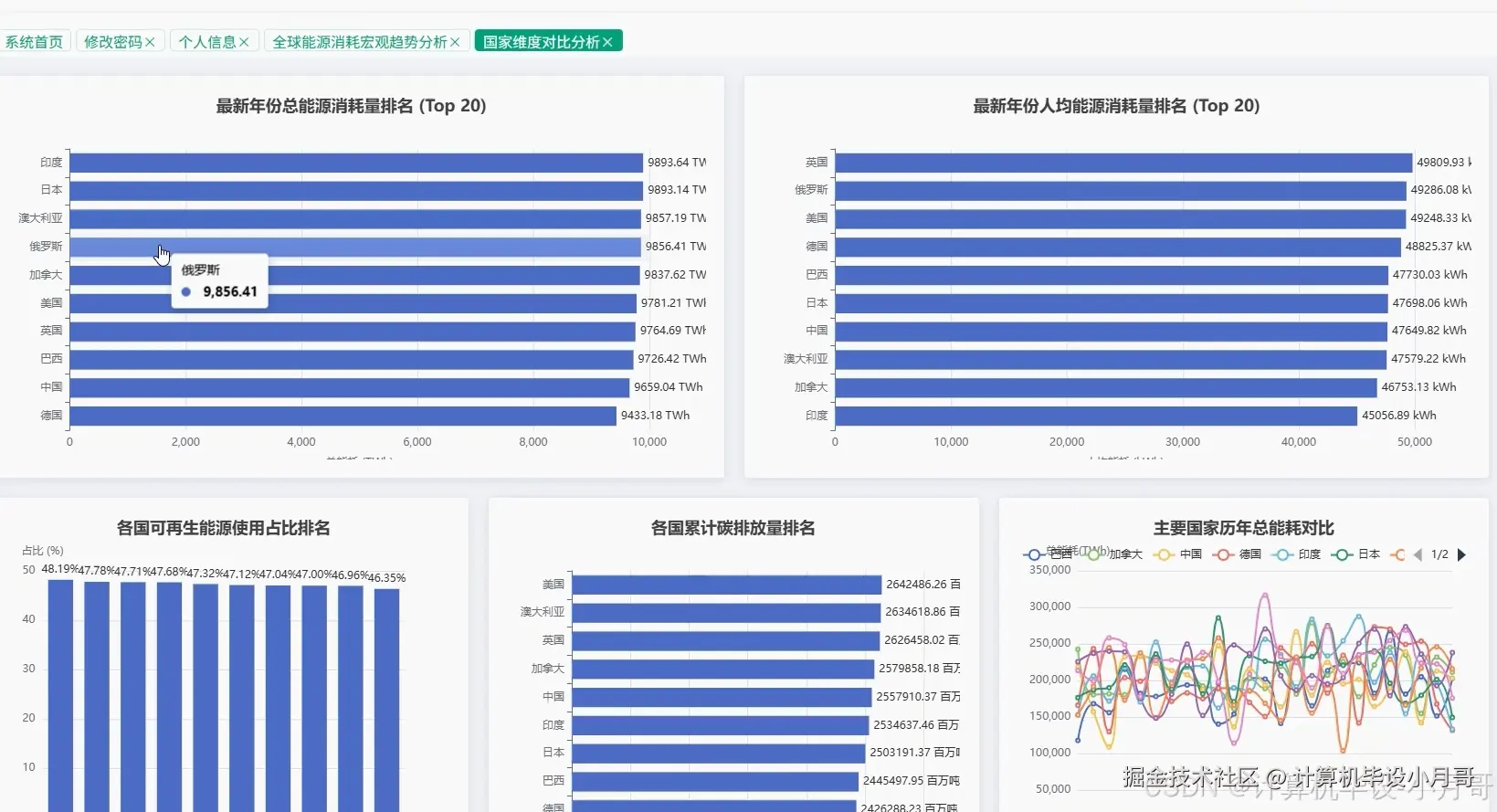

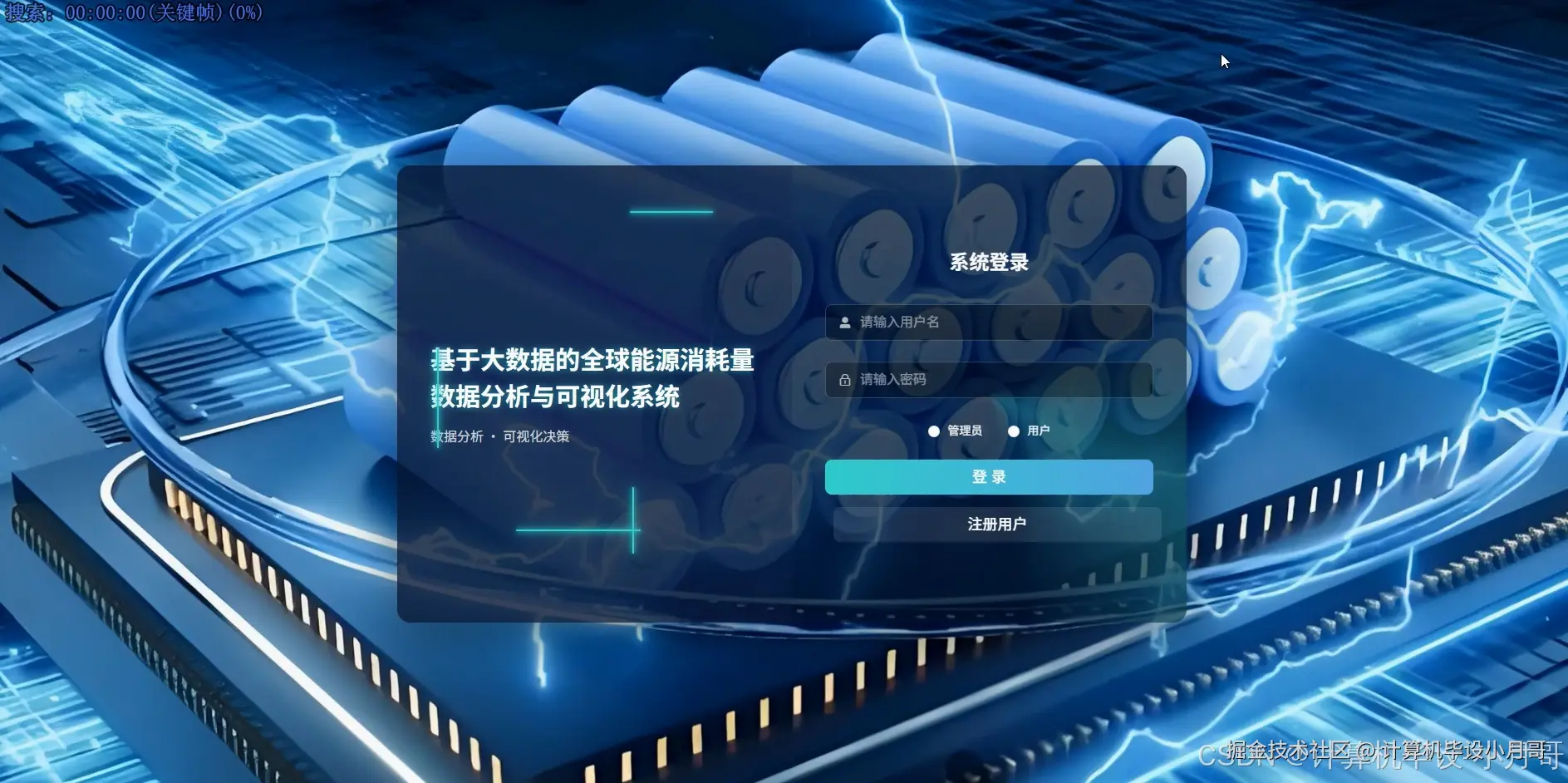

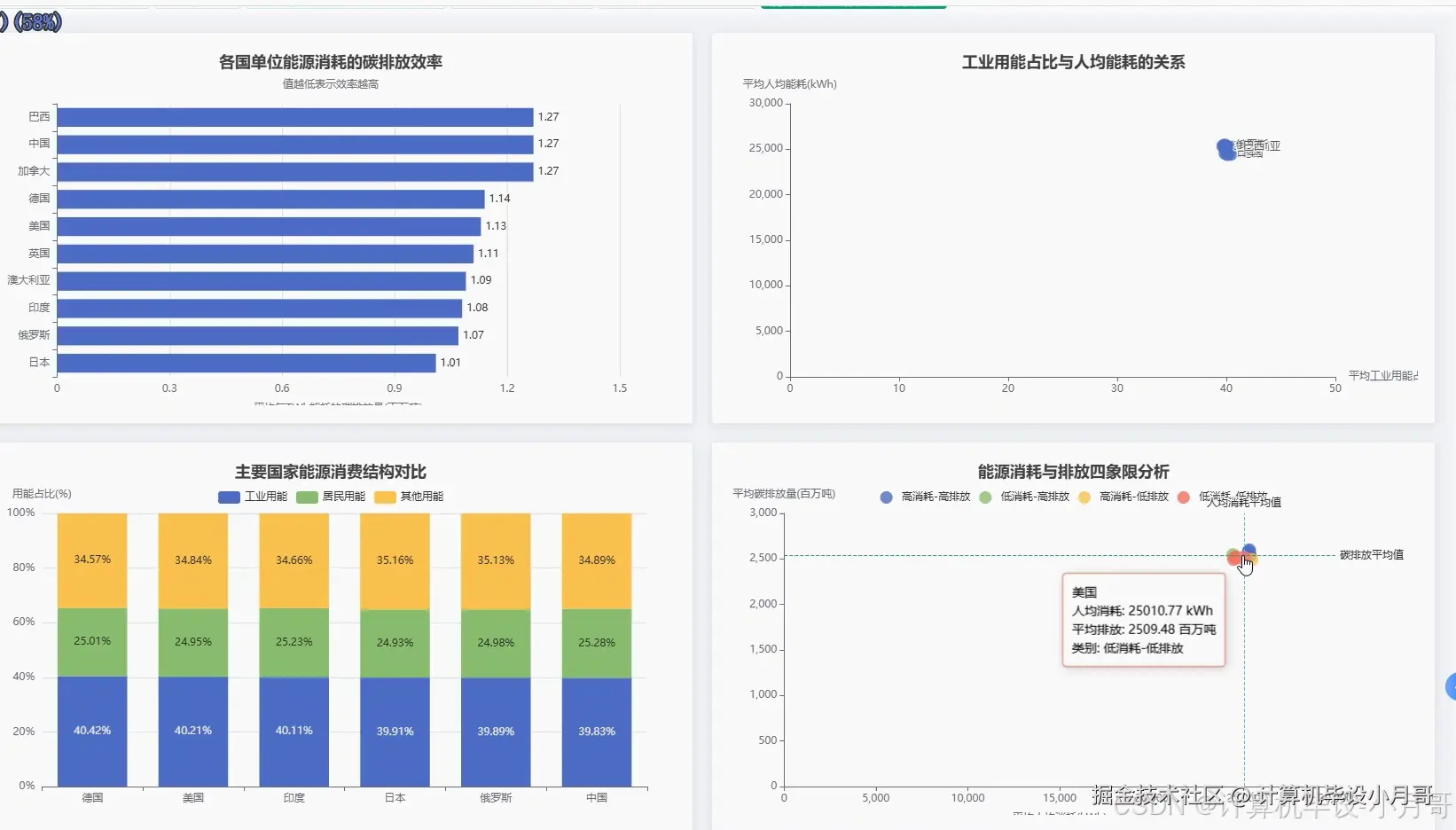

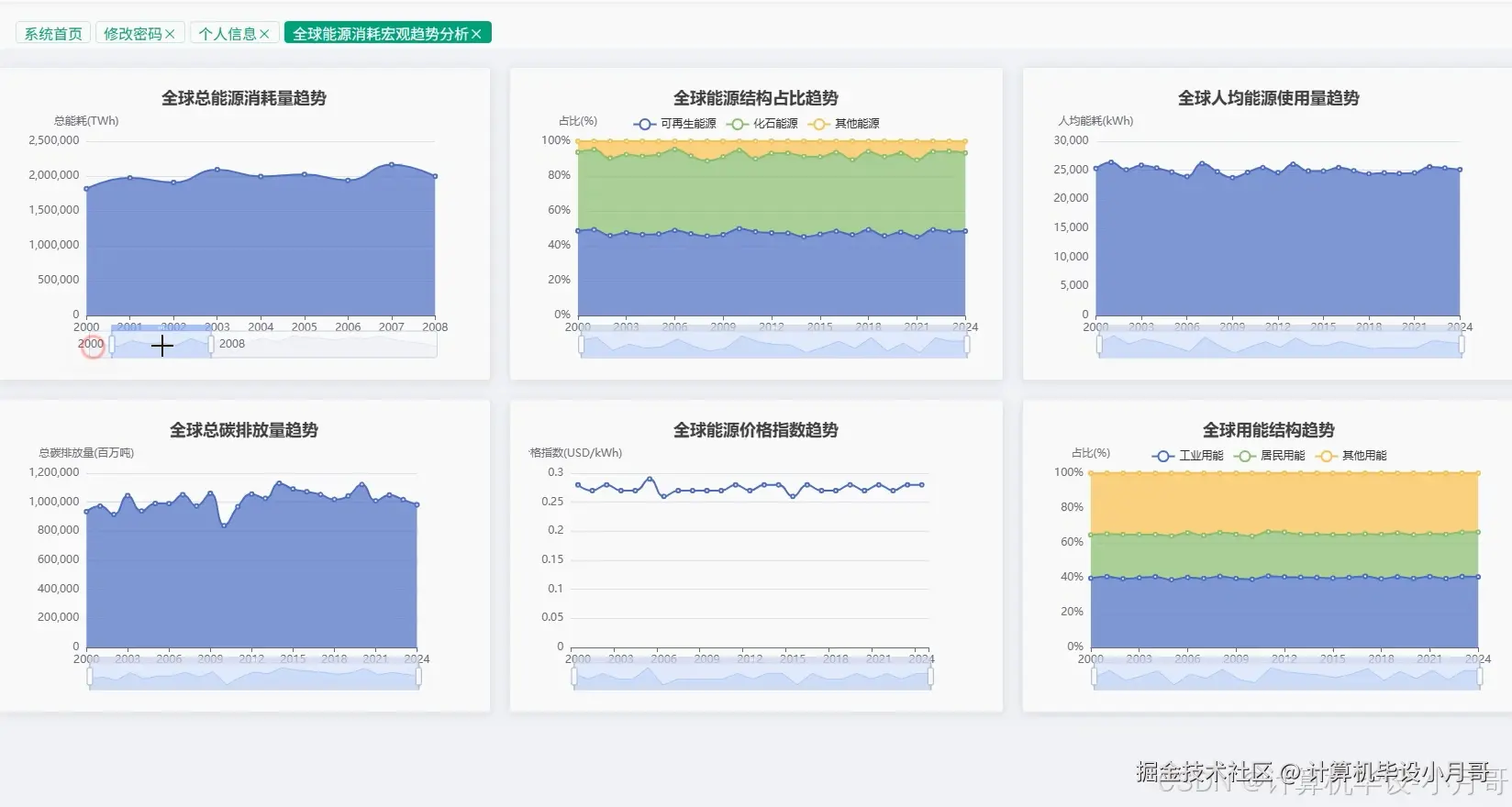

基于大数据的全球能源消耗量数据分析与可视化系统-图片展示
基于大数据的全球能源消耗量数据分析与可视化系统-代码展示
from pyspark.sql import SparkSession
from pyspark.sql.functions import sum as spark_sum, avg, year, desc, asc, col, when, isnan, isnull
import pandas as pd
import numpy as np
from sklearn.cluster import KMeans
import mysql.connector
from django.http import JsonResponse
spark = SparkSession.builder.appName("GlobalEnergyAnalysis").config("spark.sql.adaptive.enabled", "true").config("spark.sql.adaptive.coalescePartitions.enabled", "true").getOrCreate()
def global_energy_trend_analysis(request):
energy_df = spark.read.option("header", "true").option("inferSchema", "true").csv("hdfs://localhost:9000/energy_data/global_energy_consumption.csv")
energy_df = energy_df.filter(col("Year").isNotNull() & col("Total Energy Consumption (TWh)").isNotNull())
yearly_total_consumption = energy_df.groupBy("Year").agg(spark_sum("Total Energy Consumption (TWh)").alias("Total_Consumption")).orderBy("Year")
yearly_renewable_share = energy_df.groupBy("Year").agg(avg("Renewable Energy Share (%)").alias("Avg_Renewable_Share")).orderBy("Year")
yearly_per_capita = energy_df.groupBy("Year").agg(avg("Per Capita Energy Use (kWh)").alias("Avg_Per_Capita")).orderBy("Year")
yearly_carbon_emissions = energy_df.groupBy("Year").agg(spark_sum("Carbon Emissions (Million Tons)").alias("Total_Carbon_Emissions")).orderBy("Year")
yearly_energy_price = energy_df.groupBy("Year").agg(avg("Energy Price Index (USD/kWh)").alias("Avg_Energy_Price")).orderBy("Year")
yearly_industrial_share = energy_df.groupBy("Year").agg(avg("Industrial Energy Use (%)").alias("Avg_Industrial_Share")).orderBy("Year")
yearly_household_share = energy_df.groupBy("Year").agg(avg("Household Energy Use (%)").alias("Avg_Household_Share")).orderBy("Year")
trend_result = yearly_total_consumption.join(yearly_renewable_share, "Year").join(yearly_per_capita, "Year").join(yearly_carbon_emissions, "Year").join(yearly_energy_price, "Year").join(yearly_industrial_share, "Year").join(yearly_household_share, "Year")
pandas_result = trend_result.toPandas()
pandas_result.to_csv("/tmp/global_energy_trend_analysis.csv", index=False)
result_dict = pandas_result.to_dict("records")
connection = mysql.connector.connect(host='localhost', database='energy_analysis', user='root', password='password')
cursor = connection.cursor()
cursor.execute("DELETE FROM global_trend_analysis")
for record in result_dict:
insert_query = "INSERT INTO global_trend_analysis (year, total_consumption, avg_renewable_share, avg_per_capita, total_carbon_emissions, avg_energy_price, avg_industrial_share, avg_household_share) VALUES (%s, %s, %s, %s, %s, %s, %s, %s)"
cursor.execute(insert_query, (record['Year'], record['Total_Consumption'], record['Avg_Renewable_Share'], record['Avg_Per_Capita'], record['Total_Carbon_Emissions'], record['Avg_Energy_Price'], record['Avg_Industrial_Share'], record['Avg_Household_Share']))
connection.commit()
cursor.close()
connection.close()
return JsonResponse({"status": "success", "data": result_dict, "message": "全球能源趋势分析完成"})
def country_energy_comparison_analysis(request):
energy_df = spark.read.option("header", "true").option("inferSchema", "true").csv("hdfs://localhost:9000/energy_data/global_energy_consumption.csv")
energy_df = energy_df.filter(col("Country").isNotNull() & col("Total Energy Consumption (TWh)").isNotNull())
latest_year = energy_df.agg({"Year": "max"}).collect()[0][0]
latest_year_data = energy_df.filter(col("Year") == latest_year)
top_consumers = latest_year_data.select("Country", "Total Energy Consumption (TWh)").orderBy(desc("Total Energy Consumption (TWh)")).limit(20)
top_per_capita = latest_year_data.select("Country", "Per Capita Energy Use (kWh)").orderBy(desc("Per Capita Energy Use (kWh)")).limit(20)
country_renewable_avg = energy_df.groupBy("Country").agg(avg("Renewable Energy Share (%)").alias("Avg_Renewable_Share")).orderBy(desc("Avg_Renewable_Share")).limit(20)
country_carbon_total = energy_df.groupBy("Country").agg(spark_sum("Carbon Emissions (Million Tons)").alias("Total_Carbon_Emissions")).orderBy(desc("Total_Carbon_Emissions")).limit(20)
major_countries = ["China", "United States", "India", "Russia", "Japan", "Germany", "Iran", "Saudi Arabia", "South Korea", "Canada"]
major_countries_filter = col("Country").isin(major_countries)
major_countries_trend = energy_df.filter(major_countries_filter).select("Country", "Year", "Total Energy Consumption (TWh)").orderBy("Year", "Country")
top_consumers_pd = top_consumers.toPandas()
top_per_capita_pd = top_per_capita.toPandas()
country_renewable_pd = country_renewable_avg.toPandas()
country_carbon_pd = country_carbon_total.toPandas()
major_countries_pd = major_countries_trend.toPandas()
comparison_result = {"top_consumers": top_consumers_pd.to_dict("records"), "top_per_capita": top_per_capita_pd.to_dict("records"), "top_renewable": country_renewable_pd.to_dict("records"), "top_carbon_emitters": country_carbon_pd.to_dict("records"), "major_countries_trend": major_countries_pd.to_dict("records")}
top_consumers_pd.to_csv("/tmp/country_energy_comparison.csv", index=False)
connection = mysql.connector.connect(host='localhost', database='energy_analysis', user='root', password='password')
cursor = connection.cursor()
cursor.execute("DELETE FROM country_comparison_analysis")
for record in top_consumers_pd.to_dict("records"):
insert_query = "INSERT INTO country_comparison_analysis (country, total_consumption, analysis_type) VALUES (%s, %s, %s)"
cursor.execute(insert_query, (record['Country'], record['Total Energy Consumption (TWh)'], 'top_consumer'))
connection.commit()
cursor.close()
connection.close()
return JsonResponse({"status": "success", "data": comparison_result, "message": "国家能源对比分析完成"})
def energy_sustainability_analysis(request):
energy_df = spark.read.option("header", "true").option("inferSchema", "true").csv("hdfs://localhost:9000/energy_data/global_energy_consumption.csv")
clean_df = energy_df.filter(col("Fossil Fuel Dependency (%)").isNotNull() & col("Carbon Emissions (Million Tons)").isNotNull() & col("Renewable Energy Share (%)").isNotNull())
fossil_carbon_correlation = clean_df.select("Country", "Fossil Fuel Dependency (%)", "Carbon Emissions (Million Tons)")
renewable_carbon_correlation = clean_df.select("Country", "Renewable Energy Share (%)", "Carbon Emissions (Million Tons)")
price_consumption_correlation = clean_df.select("Country", "Energy Price Index (USD/kWh)", "Per Capita Energy Use (kWh)")
clustering_data = clean_df.select("Country", "Renewable Energy Share (%)", "Fossil Fuel Dependency (%)").groupBy("Country").agg(avg("Renewable Energy Share (%)").alias("Avg_Renewable"), avg("Fossil Fuel Dependency (%)").alias("Avg_Fossil")).collect()
clustering_df = pd.DataFrame([(row['Country'], row['Avg_Renewable'], row['Avg_Fossil']) for row in clustering_data], columns=['Country', 'Renewable_Share', 'Fossil_Dependency'])
clustering_features = clustering_df[['Renewable_Share', 'Fossil_Dependency']].fillna(0)
kmeans = KMeans(n_clusters=4, random_state=42, n_init=10)
clustering_df['Cluster'] = kmeans.fit_predict(clustering_features)
cluster_labels = {0: "高可再生能源型", 1: "化石能源依赖型", 2: "混合均衡型", 3: "转型过渡型"}
clustering_df['Cluster_Label'] = clustering_df['Cluster'].map(cluster_labels)
fossil_carbon_pd = fossil_carbon_correlation.toPandas()
renewable_carbon_pd = renewable_carbon_correlation.toPandas()
price_consumption_pd = price_consumption_correlation.toPandas()
correlation_results = {"fossil_carbon": fossil_carbon_pd.corr().iloc[0, 1] if len(fossil_carbon_pd) > 1 else 0, "renewable_carbon": renewable_carbon_pd.corr().iloc[0, 1] if len(renewable_carbon_pd) > 1 else 0, "price_consumption": price_consumption_pd.corr().iloc[0, 1] if len(price_consumption_pd) > 1 else 0}
sustainability_result = {"correlations": correlation_results, "country_clusters": clustering_df.to_dict("records"), "fossil_carbon_data": fossil_carbon_pd.to_dict("records"), "renewable_carbon_data": renewable_carbon_pd.to_dict("records")}
clustering_df.to_csv("/tmp/energy_sustainability_analysis.csv", index=False)
connection = mysql.connector.connect(host='localhost', database='energy_analysis', user='root', password='password')
cursor = connection.cursor()
cursor.execute("DELETE FROM sustainability_analysis")
for record in clustering_df.to_dict("records"):
insert_query = "INSERT INTO sustainability_analysis (country, renewable_share, fossil_dependency, cluster_id, cluster_label) VALUES (%s, %s, %s, %s, %s)"
cursor.execute(insert_query, (record['Country'], record['Renewable_Share'], record['Fossil_Dependency'], record['Cluster'], record['Cluster_Label']))
connection.commit()
cursor.close()
connection.close()
spark.stop()
return JsonResponse({"status": "success", "data": sustainability_result, "message": "能源可持续发展分析完成"})
基于大数据的全球能源消耗量数据分析与可视化系统-结语
