15-画曲线用到划线的Api 曲线 API 是一些计算曲线坐标的公式，从中取出一些点，用点模型或者线模型画出来 Ell

画曲线

用到 划线的Api
曲线 API 是一些计算曲线坐标的公式，从中取出一些点，用点模型或者线模型画出来

EllipseCurve 画椭圆曲线

用来画规则曲线用的
new THREE.EllipseCurve(0, 0, 100, 50, 0, Math.PI / 2)
- 椭圆中心是 0,0，长短半轴长分别是 100、50
- 弧度从0°画到90°
例子1椭圆
line1.js

import * as THREE from "three";

const arc = new THREE.EllipseCurve(0, 0, 100, 50);
// getPoints 方法从中取出一些点的坐标，传入的是分段数，20 段就是 21 个点。
const pointsList = arc.getPoints(20);

// 21 个点的坐标设置为 BufferGeometry 的顶点，通过 setFromPoints 方法
const geometry = new THREE.BufferGeometry();
geometry.setFromPoints(pointsList);

const material = new THREE.PointsMaterial({
  color: new THREE.Color("skyblue"),
  size: 10,
});

const points = new THREE.Points(geometry, material);

console.log(points);

export default points;

-main.js

import { OrbitControls } from "three/examples/jsm/controls/OrbitControls";

import * as THREE from "three";
import mesh from "./line1";

const scene = new THREE.Scene();

scene.add(mesh);

const axesHelper = new THREE.AxesHelper(200);
scene.add(axesHelper);

const width = window.innerWidth;
const height = window.innerHeight;

const camera = new THREE.PerspectiveCamera(60, width / height, 1, 1000);
camera.position.set(0, 100, 200);
camera.lookAt(0, 0, 0);

const renderer = new THREE.WebGLRenderer();
renderer.setSize(width, height);

function render() {
  renderer.render(scene, camera);
  requestAnimationFrame(render);
}

render();

document.body.append(renderer.domElement);

const controls = new OrbitControls(camera, renderer.domElement);

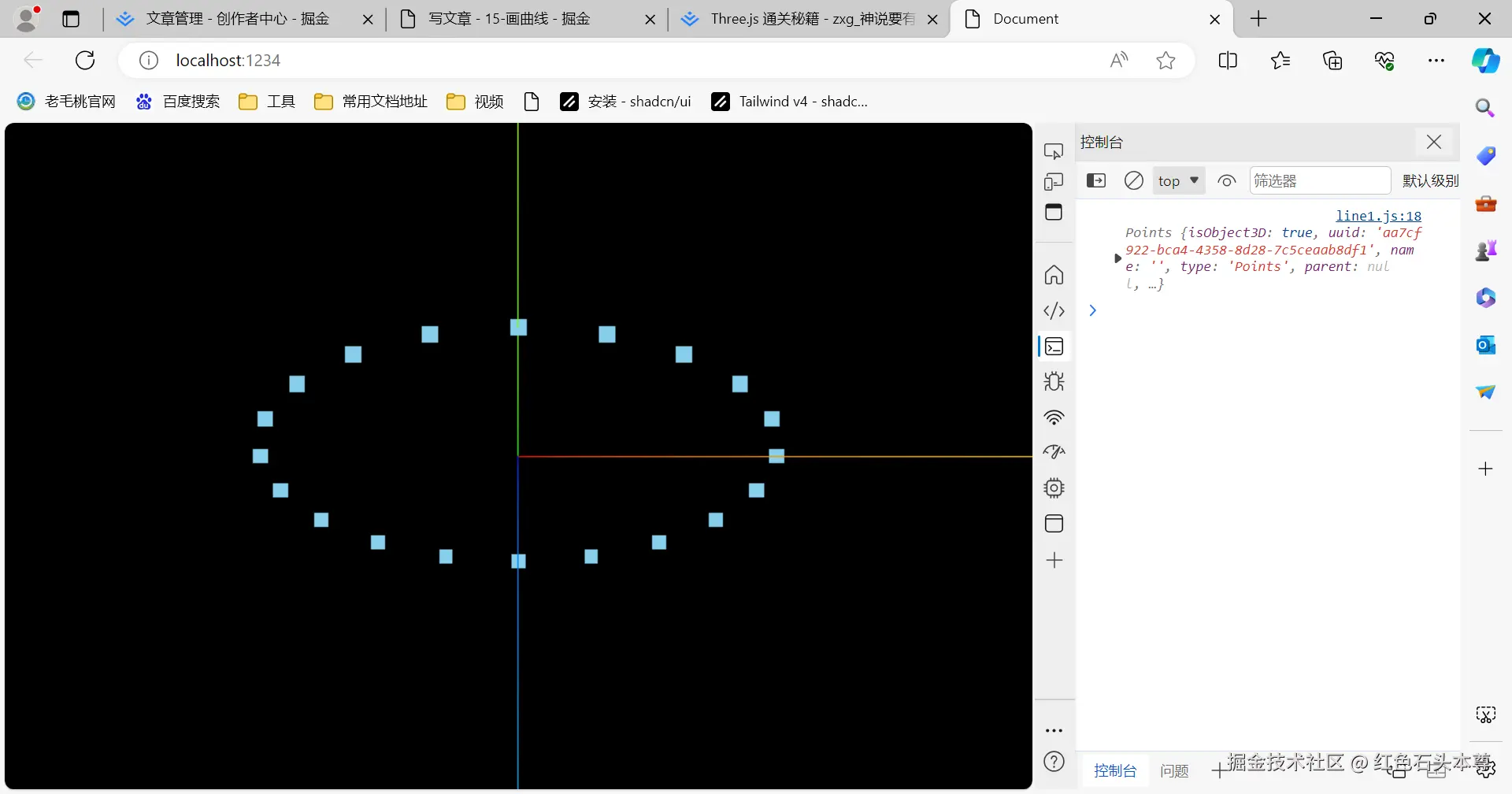

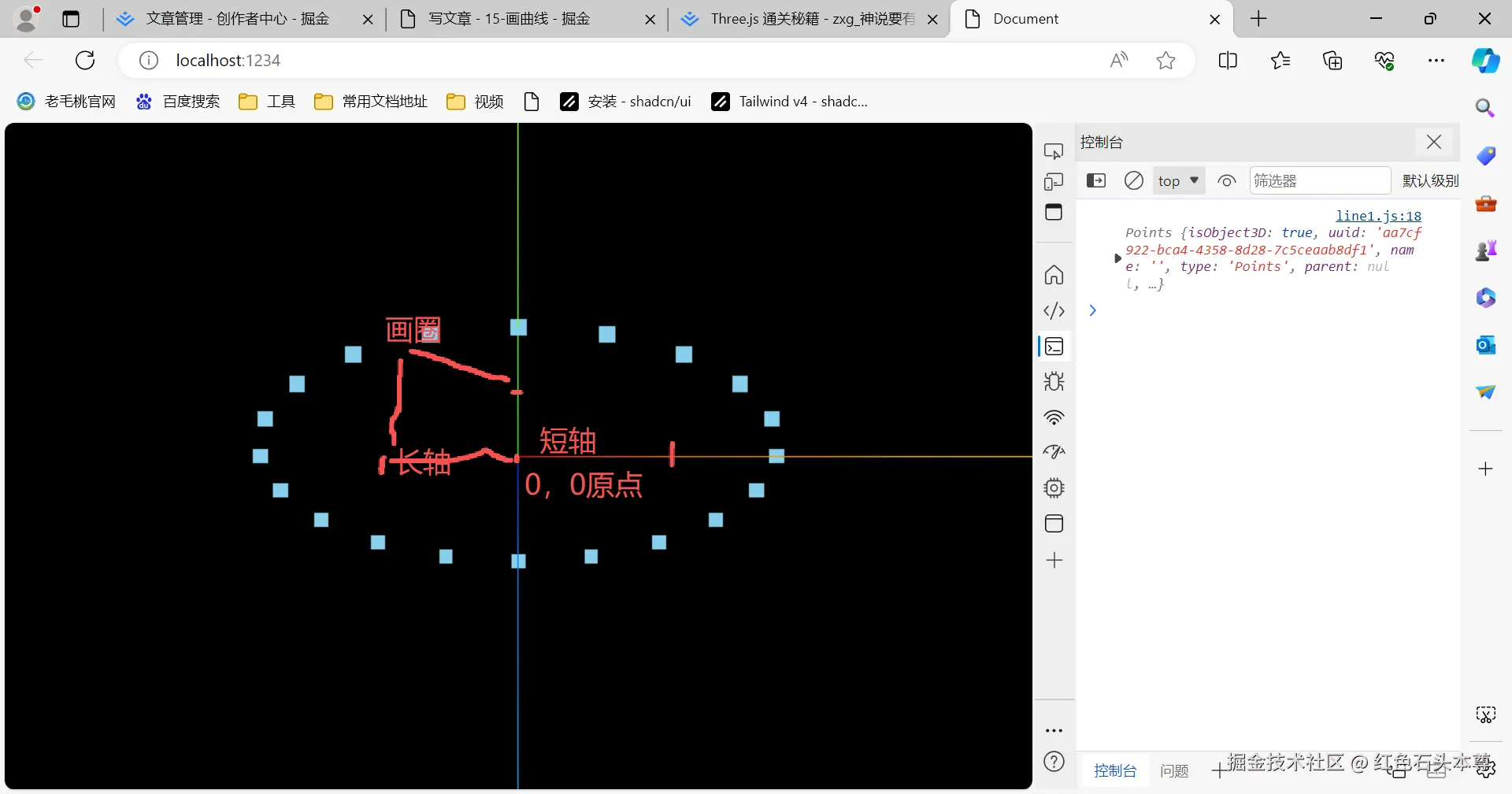

效果图入校
详解
换线模型
- line1.js

import * as THREE from "three";

const arc = new THREE.EllipseCurve(0, 0, 100, 50);
// getPoints 方法从中取出一些点的坐标，传入的是分段数，20 段就是 21 个点。
const pointsList = arc.getPoints(20);

// 21 个点的坐标设置为 BufferGeometry 的顶点，通过 setFromPoints 方法
const geometry = new THREE.BufferGeometry();
geometry.setFromPoints(pointsList);

// 换成线模型
const material = new THREE.LineBasicMaterial({
  color: new THREE.Color("orange"),
});
const line = new THREE.Line(geometry, material);
console.log(line);

export default line;

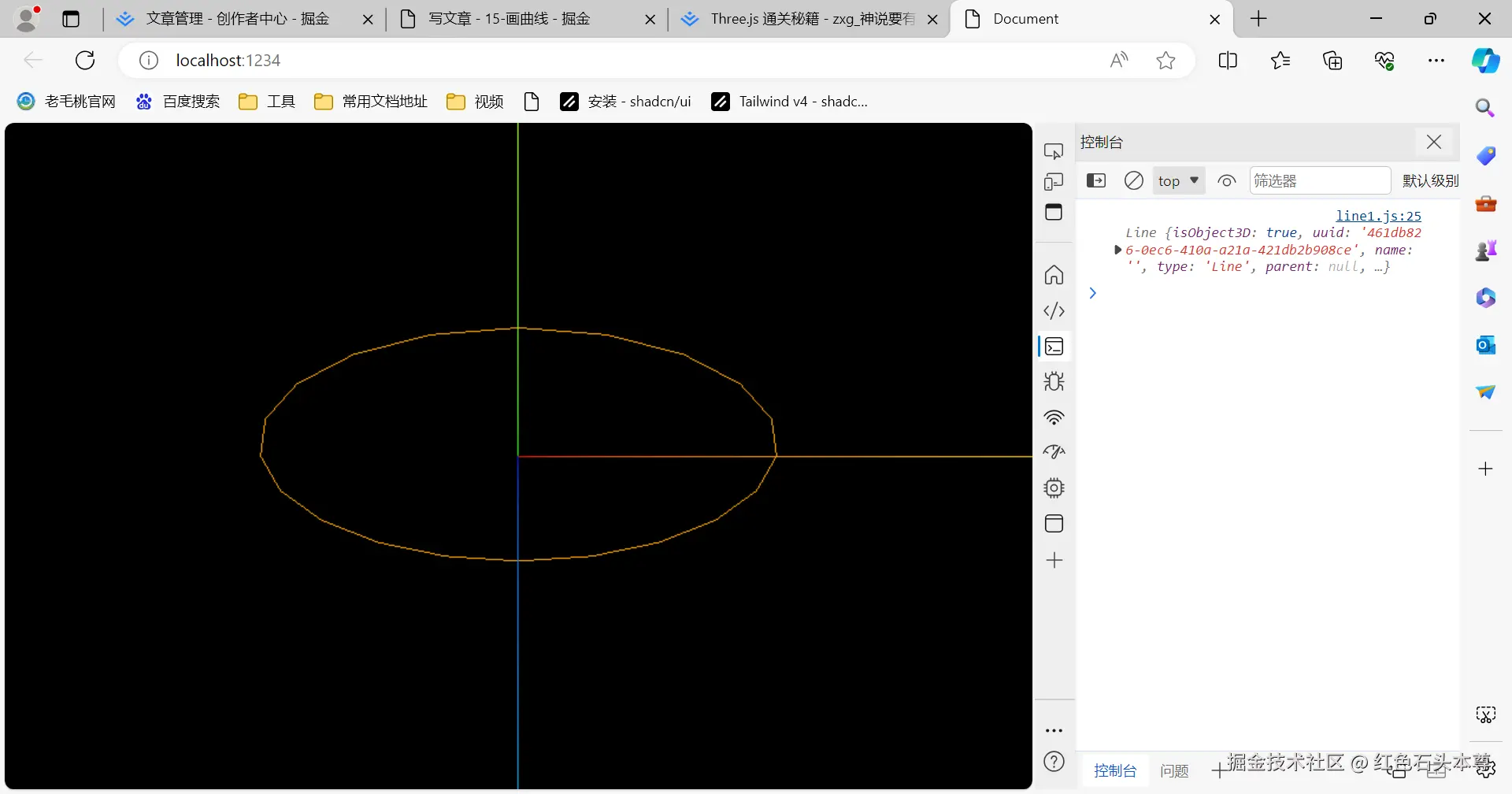

如下图：
会看到不是很圆润，是因为分段数不够的原因我给80的时候如下
第三个第四个参数一样就是圆了
- line1.js

import * as THREE from "three";

const arc = new THREE.EllipseCurve(0, 0, 100, 100);
// getPoints 方法从中取出一些点的坐标，传入的是分段数，20 段就是 21 个点。
const pointsList = arc.getPoints(80);

// 21 个点的坐标设置为 BufferGeometry 的顶点，通过 setFromPoints 方法
const geometry = new THREE.BufferGeometry();
geometry.setFromPoints(pointsList);
// 换成线模型
const material = new THREE.LineBasicMaterial({
  color: new THREE.Color("orange"),
});
const line = new THREE.Line(geometry, material);

export default line;

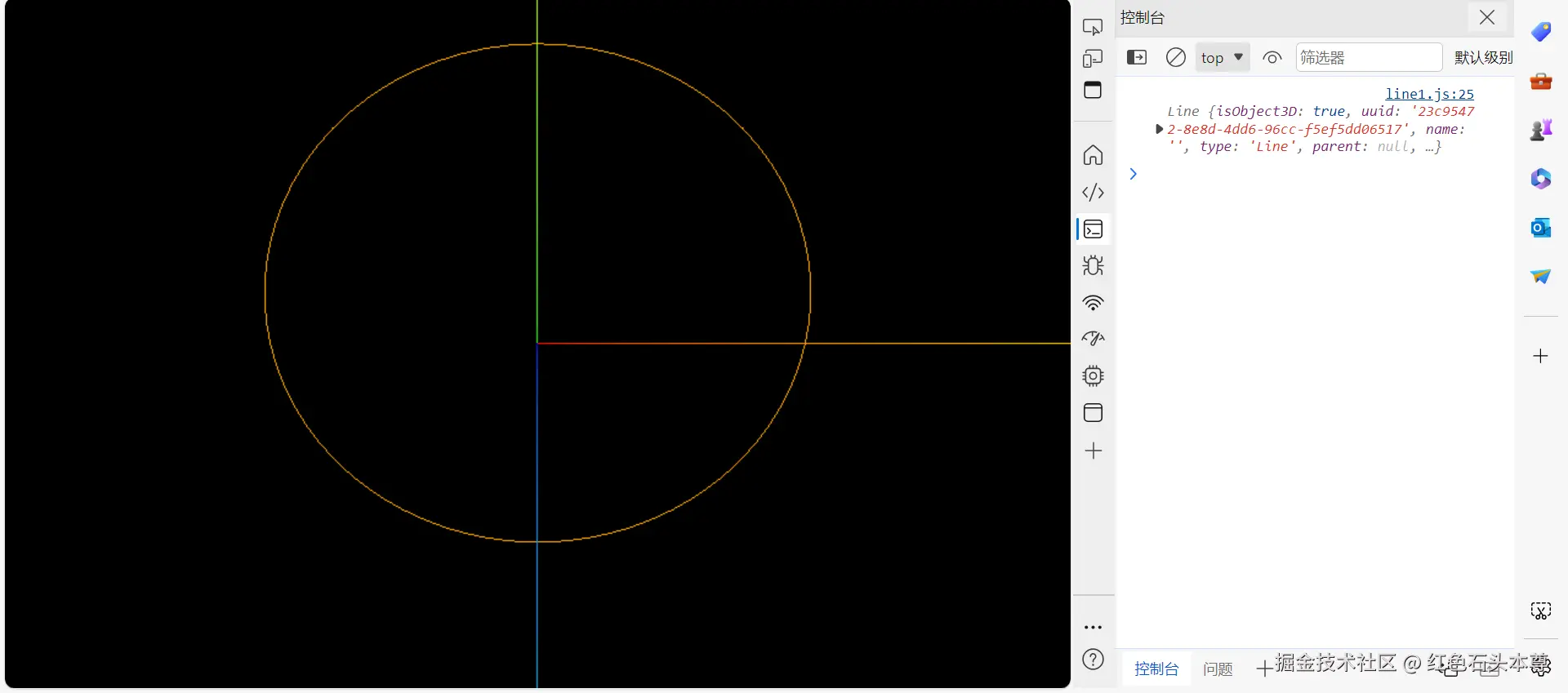

如下图：

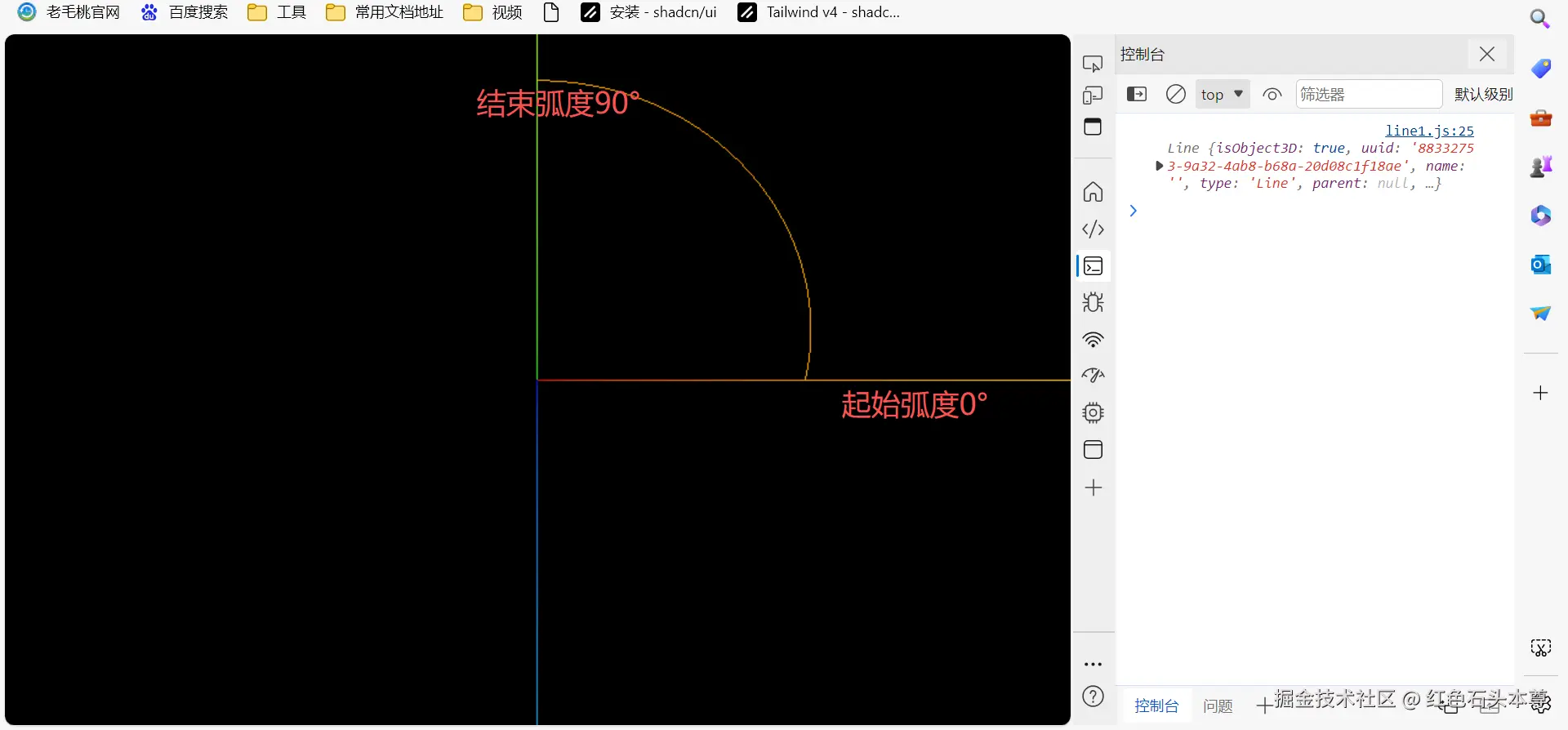

添加弧度
- line1.js

// 修改这一行
const arc = new THREE.EllipseCurve(0, 0, 100, 100, 0, Math.PI / 2);

SplineCurve

这个是用来画不规则曲线用的
new THREE.SplineCurve(arr)
- arr: 坐标集合
line2.js

import * as THREE from "three";

// 坐标点集合
const arr = [
  new THREE.Vector2(-100, 0),
  new THREE.Vector2(-50, 50),
  new THREE.Vector2(0, 0),
  new THREE.Vector2(50, -50),
  new THREE.Vector2(100, 0),
];

const curve = new THREE.SplineCurve(arr);//画曲线
const pointsArr = curve.getPoints(20);//分断

const geometry = new THREE.BufferGeometry();
geometry.setFromPoints(pointsArr);

const material = new THREE.LineBasicMaterial({
  color: new THREE.Color("skyblue"),
});
const line = new THREE.Line(geometry, material);

export default line;

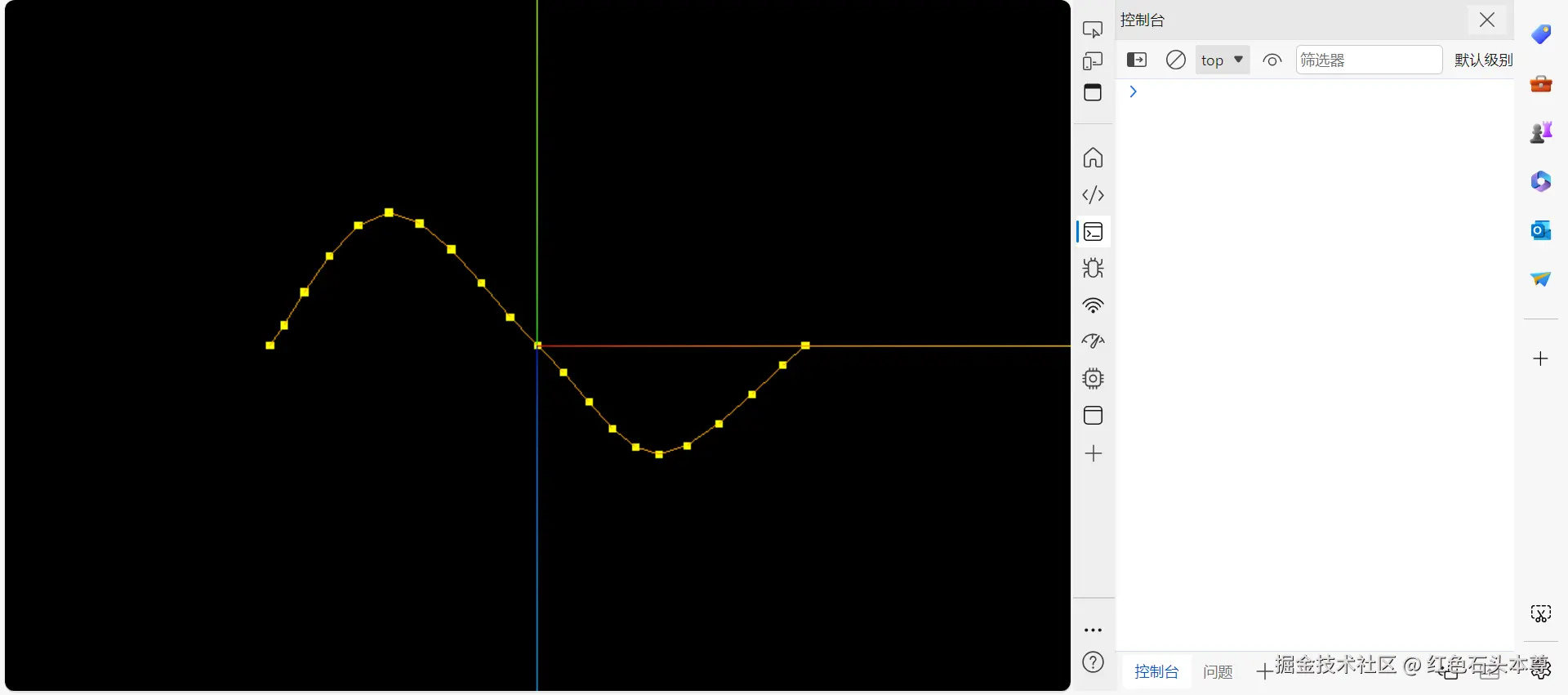

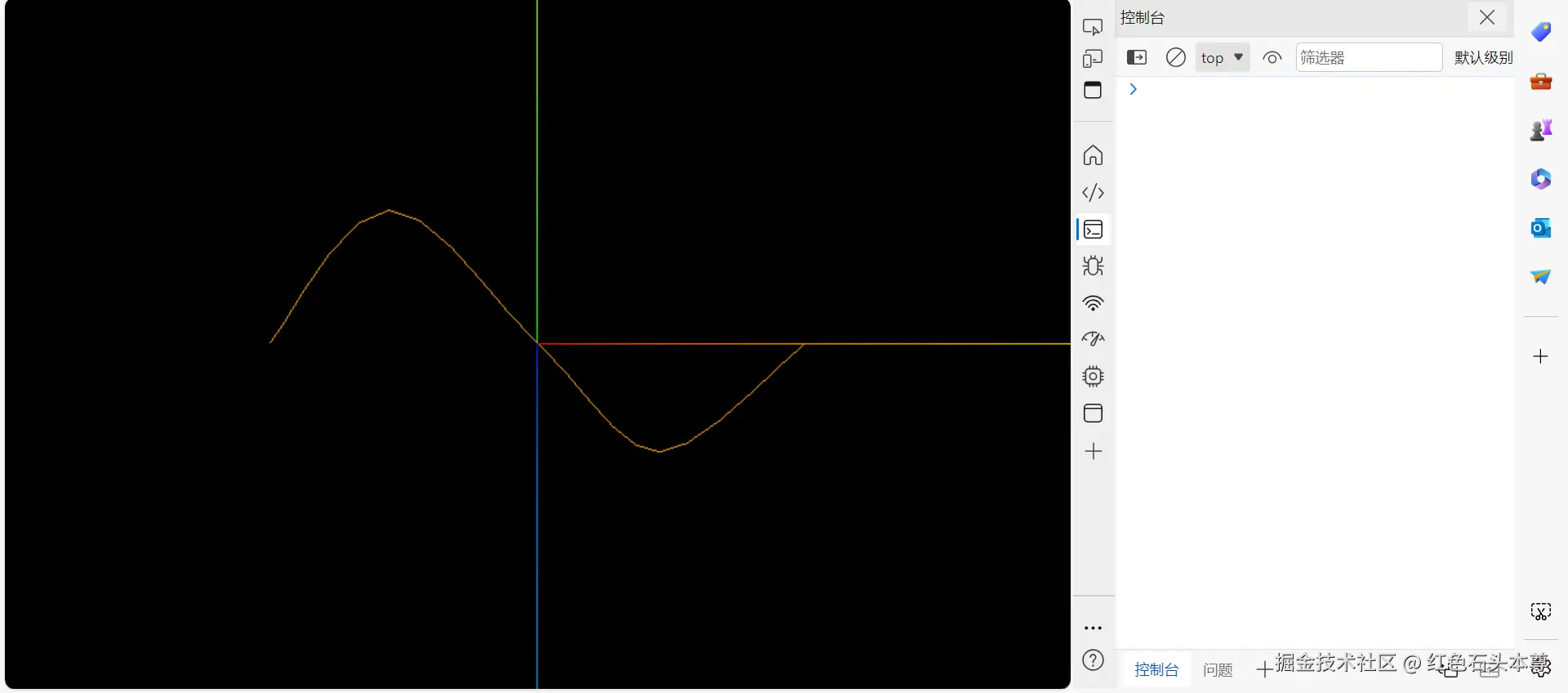

效果如下:
点线连珠的效果:
- line2.js

//增加
const pointsMaterial = new THREE.PointsMaterial({
    color: new THREE.Color('yellow'),
    size: 5
});
const points = new THREE.Points(geometry, pointsMaterial);
line.add(points);//添加到线里面去

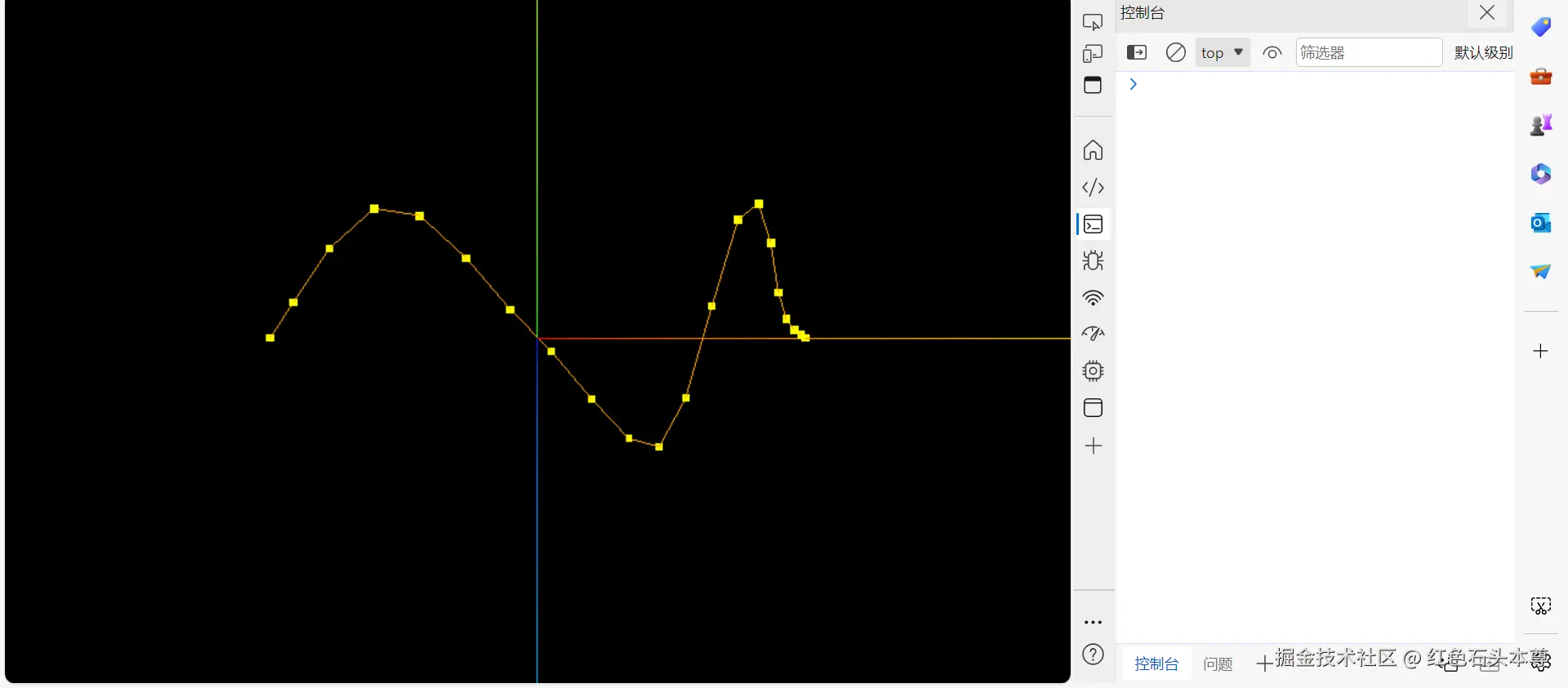

效果图如下:
根据自己的要求加点坐标
- line2.js

// 点集合
const arr = [
  new THREE.Vector2(-100, 0),
  new THREE.Vector2(-50, 50),
  new THREE.Vector2(0, 0),
  new THREE.Vector2(50, -50),
  new THREE.Vector2(70, 50),
  new THREE.Vector2(90, 10),
  new THREE.Vector2(100, 0),
];

把点直线连接

import * as THREE from "three";

const arr = [
  new THREE.Vector2(-100, 0),
  new THREE.Vector2(-50, 50),
  new THREE.Vector2(0, 0),
  new THREE.Vector2(50, -50),
  new THREE.Vector2(70, 50),
  new THREE.Vector2(90, 10),
  new THREE.Vector2(100, 0),
];

const curve = new THREE.SplineCurve(arr);
const pointsArr = curve.getPoints(20);

const geometry = new THREE.BufferGeometry();
geometry.setFromPoints(pointsArr);

const material = new THREE.LineBasicMaterial({
  color: new THREE.Color("orange"),
});

const line = new THREE.Line(geometry, material);

const pointsMaterial = new THREE.PointsMaterial({
  color: new THREE.Color("yellow"),
  size: 5,
});
const points = new THREE.Points(geometry, pointsMaterial);
line.add(points); //添加到线里面去

// 把点用直线连接
const geometry2 = new THREE.BufferGeometry();
geometry2.setFromPoints(arr);
const material2 = new THREE.PointsMaterial({
  color: new THREE.Color("green"),
  size: 10,
});
const points2 = new THREE.Points(geometry2, material2);
const line2 = new THREE.Line(geometry2, new THREE.LineBasicMaterial()); //直线连接
line.add(points2, line2);

export default line;

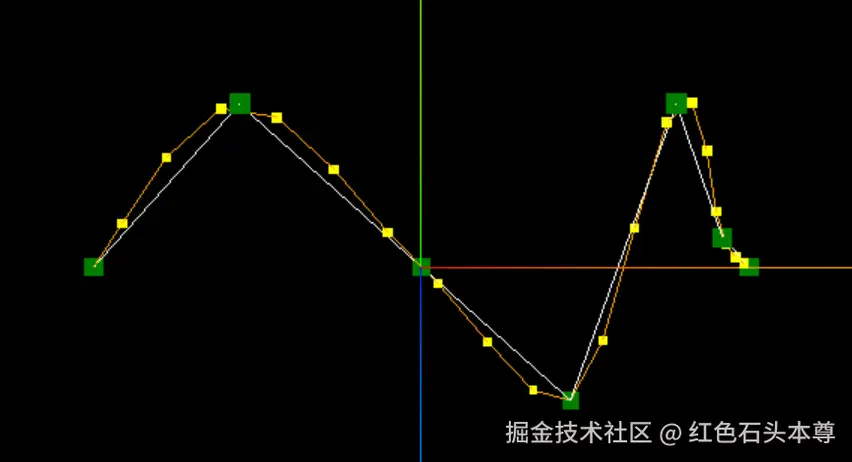

效果如下:(有没有那味了嘻嘻)

QuadraticBezierCurve

贝塞尔曲线: 控制曲率,达到自己想要的效果

就是3个点为基础,第二点作为控制点
- 三个点形成的角度越小,曲率越大

import * as THREE from "three";

const p1 = new THREE.Vector2(0, 0);
const p2 = new THREE.Vector2(50, 100);
const p3 = new THREE.Vector2(100, 0);

// 画曲线
const curve = new THREE.QuadraticBezierCurve(p1, p2, p3);
const pointsArr = curve.getPoints(20);

const geometry = new THREE.BufferGeometry();
geometry.setFromPoints(pointsArr);
const material = new THREE.LineBasicMaterial({
  color: new THREE.Color("orange"),
});
const line = new THREE.Line(geometry, material);

// 直线连接点
const geometry2 = new THREE.BufferGeometry();
geometry2.setFromPoints([p1, p2, p3]);
const material2 = new THREE.PointsMaterial({
  color: new THREE.Color("pink"),
  size: 5,
});
const points2 = new THREE.Points(geometry2, material2);
const line2 = new THREE.Line(geometry2, new THREE.LineBasicMaterial());
line.add(points2, line2);

export default line;

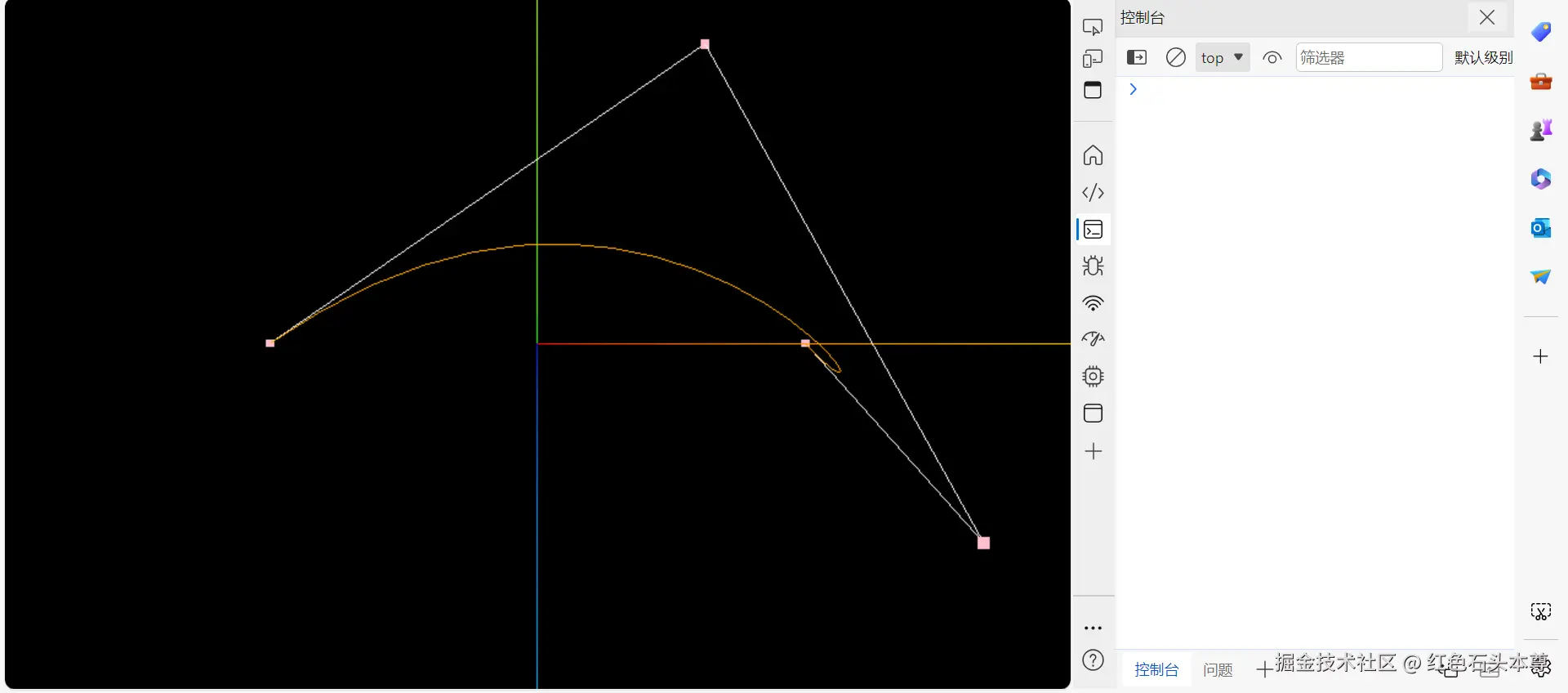

效果图如下:

CubicBezierCurve3

三次贝塞尔曲线: 在三维上的贝塞尔曲线，上面的是二维的

line4.js

import * as THREE from "three";

// 这里的是三维坐标点
const p1 = new THREE.Vector3(-100, 0, 0);
const p2 = new THREE.Vector3(50, 100, 0);
const p3 = new THREE.Vector3(100, 0, 100);
const p4 = new THREE.Vector3(100, 0, 0);

// 画三维贝塞尔曲线
const curve = new THREE.CubicBezierCurve3(p1, p2, p3, p4);
const pointsArr = curve.getPoints(20);

const geometry = new THREE.BufferGeometry();
geometry.setFromPoints(pointsArr);

const material = new THREE.LineBasicMaterial({
  color: new THREE.Color("orange"),
});
const line = new THREE.Line(geometry, material);

const geometry2 = new THREE.BufferGeometry();
geometry2.setFromPoints([p1, p2, p3, p4]);
const material2 = new THREE.PointsMaterial({
  color: new THREE.Color("pink"),
  size: 5,
});
const points2 = new THREE.Points(geometry2, material2);
const line2 = new THREE.Line(geometry2, new THREE.LineBasicMaterial());
line.add(points2, line2);

export default line;

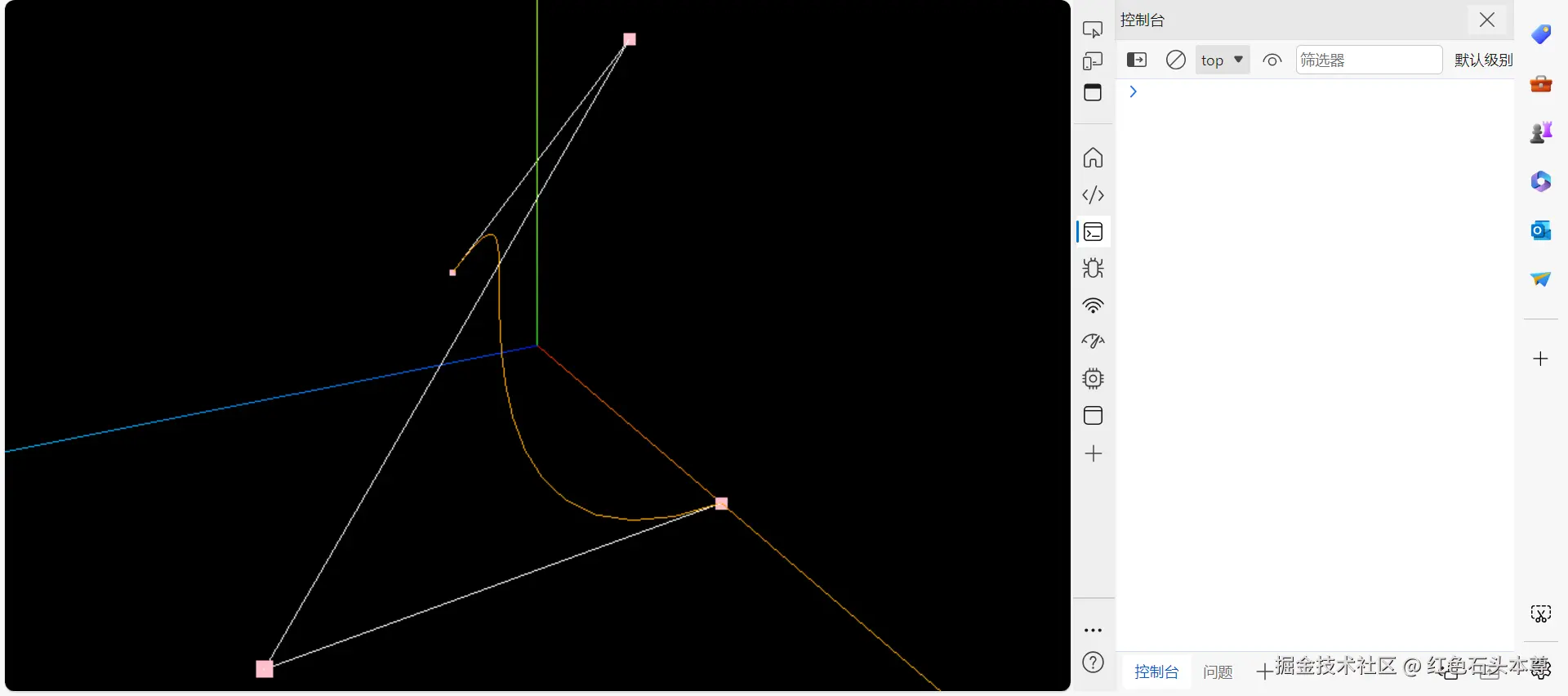

效果图如下:

CurvePath

一条曲线可能是由多条曲线复合而成的，就能用这个api组合多条曲线

import * as THREE from "three";

const p1 = new THREE.Vector2(0, 0);
const p2 = new THREE.Vector2(100, 100);
const line1 = new THREE.LineCurve(p1, p2);
const arc = new THREE.EllipseCurve(0, 100, 100, 100, 0, Math.PI);

const p3 = new THREE.Vector2(-100, 100);
const p4 = new THREE.Vector2(0, 0);
const line2 = new THREE.LineCurve(p3, p4);
const curvePath = new THREE.CurvePath();
curvePath.add(line1);
curvePath.add(arc);
curvePath.add(line2);

const pointsArr = curvePath.getPoints(20);
const geometry = new THREE.BufferGeometry();
geometry.setFromPoints(pointsArr);

const material = new THREE.LineBasicMaterial({
  color: new THREE.Color("pink"),
});

const line = new THREE.Line(geometry, material);

export default line;

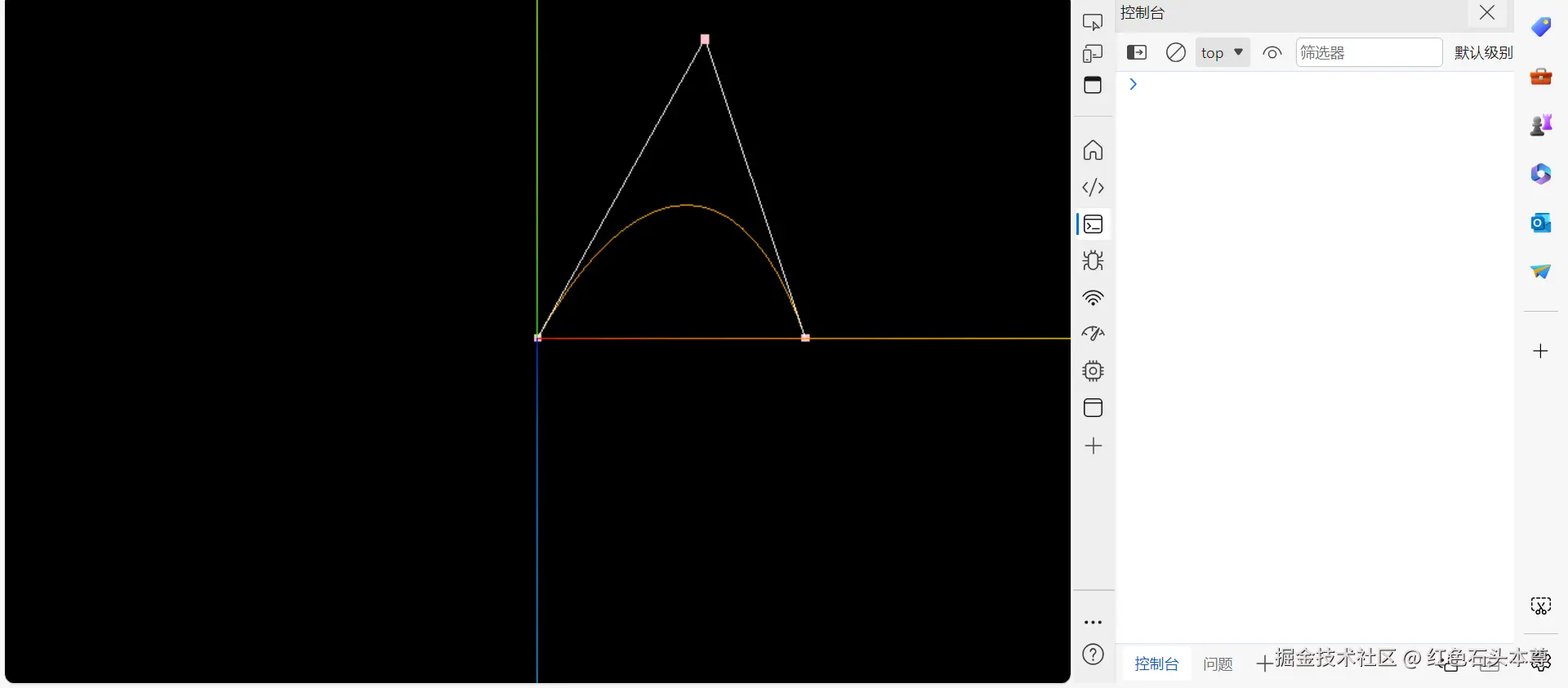

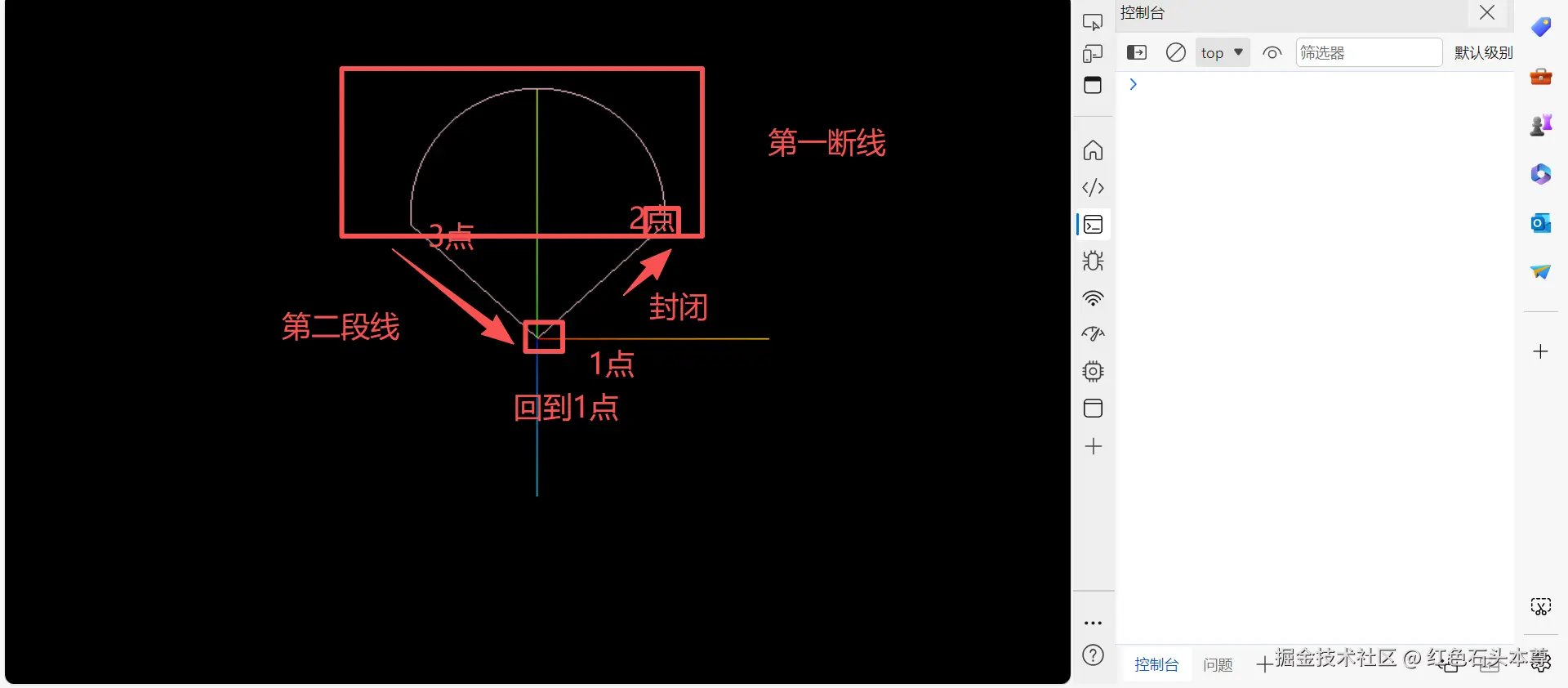

效果如下:
把点描出来

line5.js

import * as THREE from "three";

const p1 = new THREE.Vector2(0, 0);
const p2 = new THREE.Vector2(100, 100);
const line1 = new THREE.LineCurve(p1, p2);
const arc = new THREE.EllipseCurve(0, 100, 100, 100, 0, Math.PI);

const p3 = new THREE.Vector2(-100, 100);
const p4 = new THREE.Vector2(0, 0);
const line2 = new THREE.LineCurve(p3, p4);
const curvePath = new THREE.CurvePath();
curvePath.add(line1);
curvePath.add(arc);
curvePath.add(line2);

const pointsArr = curvePath.getPoints(20);
const geometry = new THREE.BufferGeometry();
geometry.setFromPoints(pointsArr);

const material = new THREE.LineBasicMaterial({
  color: new THREE.Color("pink"),
});

const line = new THREE.Line(geometry, material);

// 把点描出来
const geometry2 = new THREE.BufferGeometry();
geometry2.setFromPoints([p1, p2, p3]);
const material2 = new THREE.PointsMaterial({
  color: new THREE.Color("blue"),
  size: 5,
});
const points2 = new THREE.Points(geometry2, material2);
line.add(points2);
export default line;

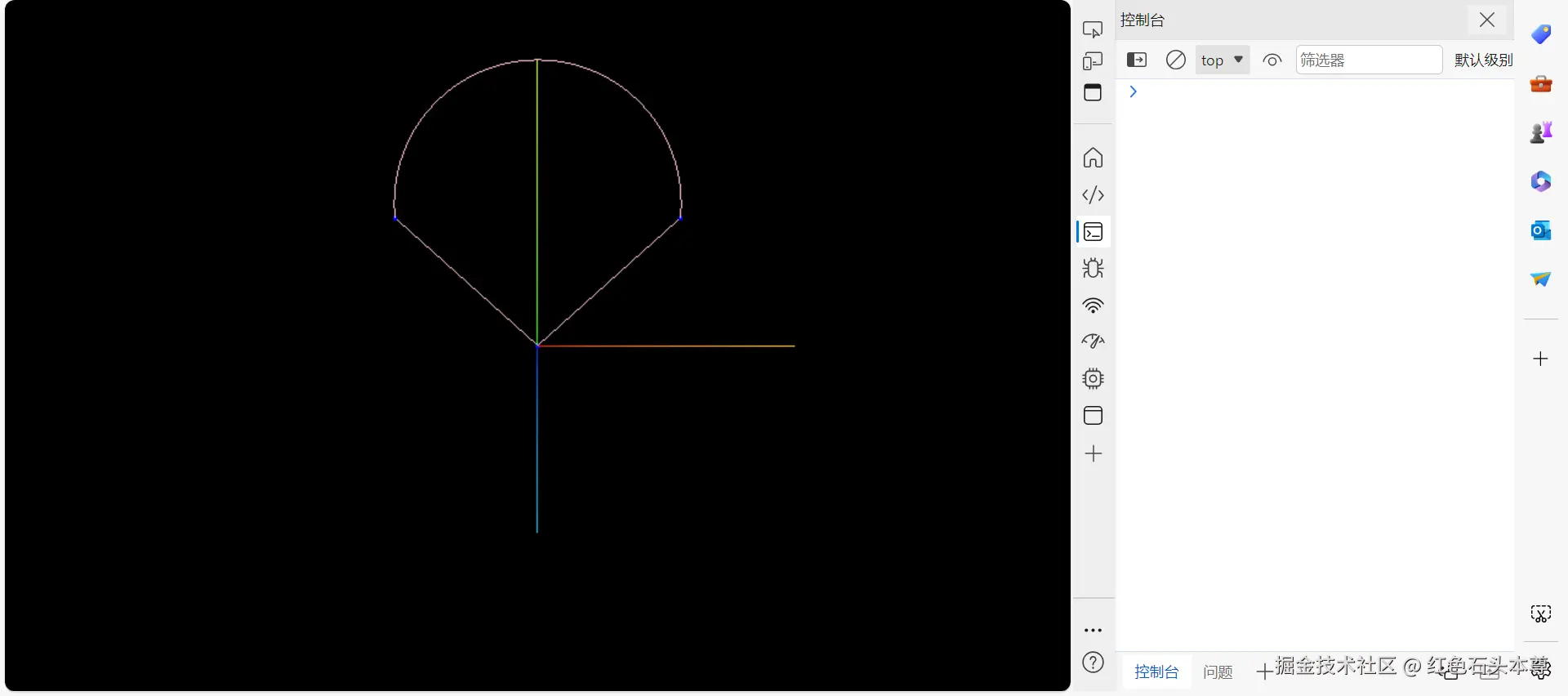

效果图如下:

学习来源神光小测和官网
