计算机毕设选题：基于大数据的网约车平台运营数据分析系统技术详解

💖💖作者：计算机编程小央姐 💙💙个人简介：曾长期从事计算机专业培训教学，本人也热爱上课教学，语言擅长Java、微信小程序、Python、Golang、安卓Android等，开发项目包括大数据、深度学习、网站、小程序、安卓、算法。平常会做一些项目定制化开发、代码讲解、答辩教学、文档编写、也懂一些降重方面的技巧。平常喜欢分享一些自己开发中遇到的问题的解决办法，也喜欢交流技术，大家有技术代码这一块的问题可以问我！ 💛💛想说的话：感谢大家的关注与支持！ 💜💜

💕💕文末获取源码

@TOC

基于大数据的网约车平台运营数据分析系统技术详解-系统功能介绍

基于大数据的网约车平台运营数据分析系统是一套专门针对网约车行业运营数据进行深度分析的综合性平台，采用Hadoop分布式存储架构和Spark大数据计算引擎作为核心技术栈，能够高效处理海量的网约车运营数据。系统通过Django后端框架构建稳定的数据处理服务，结合Vue+ElementUI+Echarts前端技术实现直观的数据可视化展示，支持对网约车平台的订单量分布、匹配效率、司机行为、城市运营等多个维度进行全面分析。系统具备时间维度分析功能，能够统计不同时间点的订单量分布和高峰时段运营效率；地域维度分析功能可以对比不同城市间的运营效率和司机工作表现；运营效率维度通过构建订单转化漏斗和匹配率分析，帮助平台识别运营瓶颈；司机行为维度则通过活跃度分析和效率分层，为司机管理提供数据支撑。整个系统基于MySQL数据库存储，利用Spark SQL进行复杂查询，通过Pandas和NumPy进行数据预处理和统计分析，为网约车平台的精细化运营决策提供可靠的数据支持。

基于大数据的网约车平台运营数据分析系统技术详解-系统技术介绍

大数据框架：Hadoop+Spark（本次没用Hive，支持定制） 开发语言：Python+Java（两个版本都支持） 后端框架：Django+Spring Boot(Spring+SpringMVC+Mybatis)（两个版本都支持） 前端：Vue+ElementUI+Echarts+HTML+CSS+JavaScript+jQuery 详细技术点：Hadoop、HDFS、Spark、Spark SQL、Pandas、NumPy 数据库：MySQL

基于大数据的网约车平台运营数据分析系统技术详解-系统背景意义

随着共享经济的快速发展，网约车行业已经成为现代城市交通体系的重要组成部分，各大平台每天都会产生数以百万计的订单数据、司机行为数据和用户行为数据。这些海量数据中蕴含着丰富的业务价值和运营规律，但传统的数据处理方式已经无法满足大规模数据分析的需求。网约车平台面临着如何从庞大的数据中挖掘有价值信息、优化运营策略、提升服务效率等挑战。当前市场上的网约车平台普遍存在供需匹配效率不高、司机资源配置不合理、高峰时段服务能力不足等问题，这些问题的根本原因在于缺乏对历史运营数据的深度分析和挖掘。传统的报表统计方式只能提供简单的数据汇总，无法揭示数据背后的深层次规律和关联关系，更无法为平台的精细化运营提供有效的决策支持。因此，构建一套基于大数据技术的网约车运营数据分析系统，利用先进的分布式计算框架处理海量数据，成为解决当前问题的必然选择。 本课题的研究意义体现在多个方面，通过构建基于大数据技术的网约车运营分析系统，能够为网约车平台提供更加科学和精准的数据支撑。从实际应用角度来看，该系统能够帮助平台管理者深入了解不同时间段和地域的订单分布规律，为运力调配和司机激励政策制定提供依据，虽然作为毕业设计项目在规模上相对有限，但其分析思路和技术架构具有一定的参考价值。该系统通过多维度数据分析，可以识别运营过程中的瓶颈环节，为提升匹配效率和降低订单取消率提供改进方向。从技术角度而言，本项目将大数据处理技术应用于具体的业务场景，展示了Hadoop和Spark等技术在实际数据分析中的应用效果，为相关技术的学习和实践提供了案例支撑。该研究也为其他共享经济平台的数据分析提供了可借鉴的方法论，尽管在深度和广度上还有提升空间，但基本的分析框架和处理流程具有一定的通用性。此外，通过对网约车运营数据的深入分析，能够更好地理解共享出行行业的运营特点和发展规律，为相关政策制定和行业研究提供数据参考

基于大数据的网约车平台运营数据分析系统技术详解-系统演示视频

演示视频

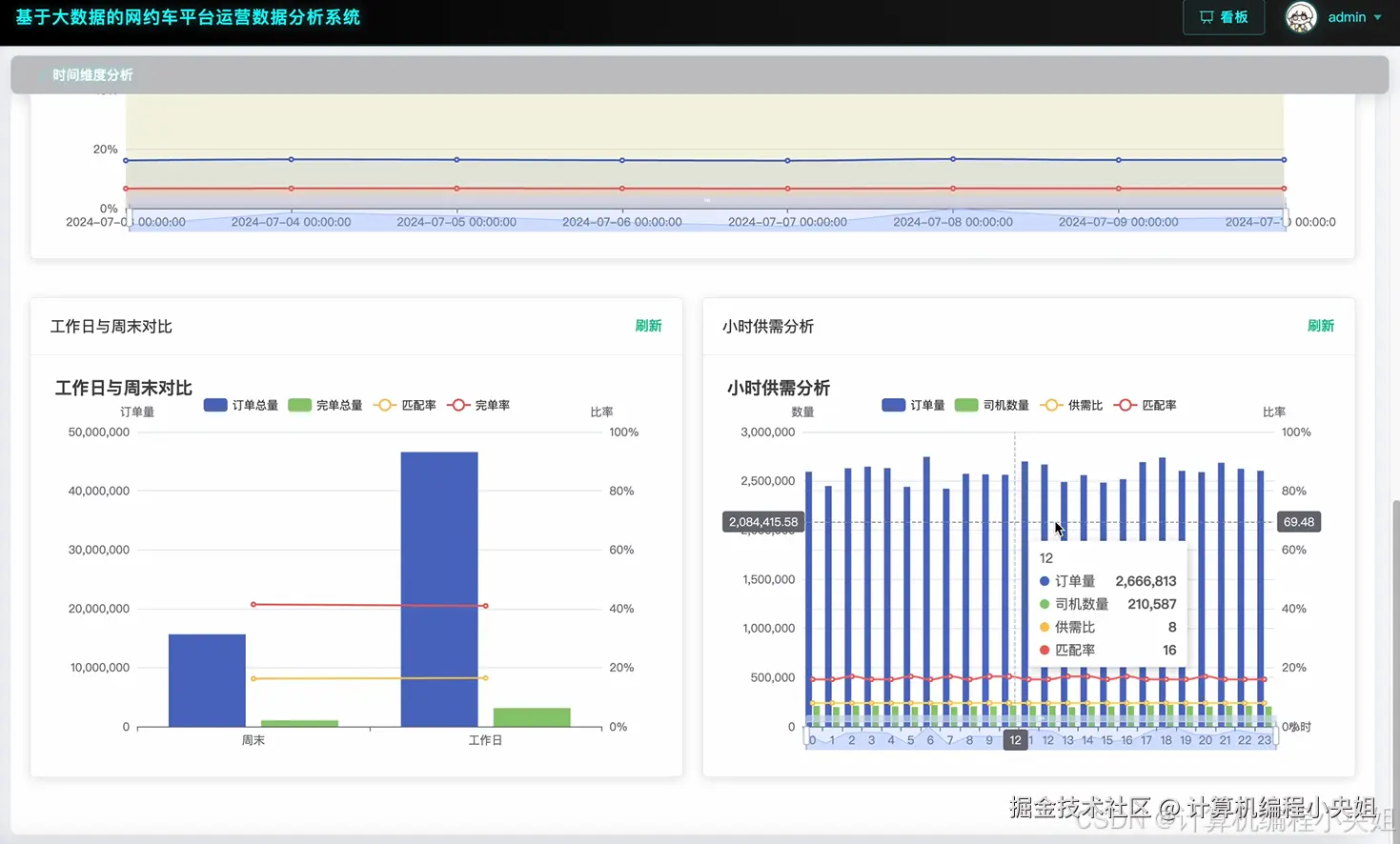

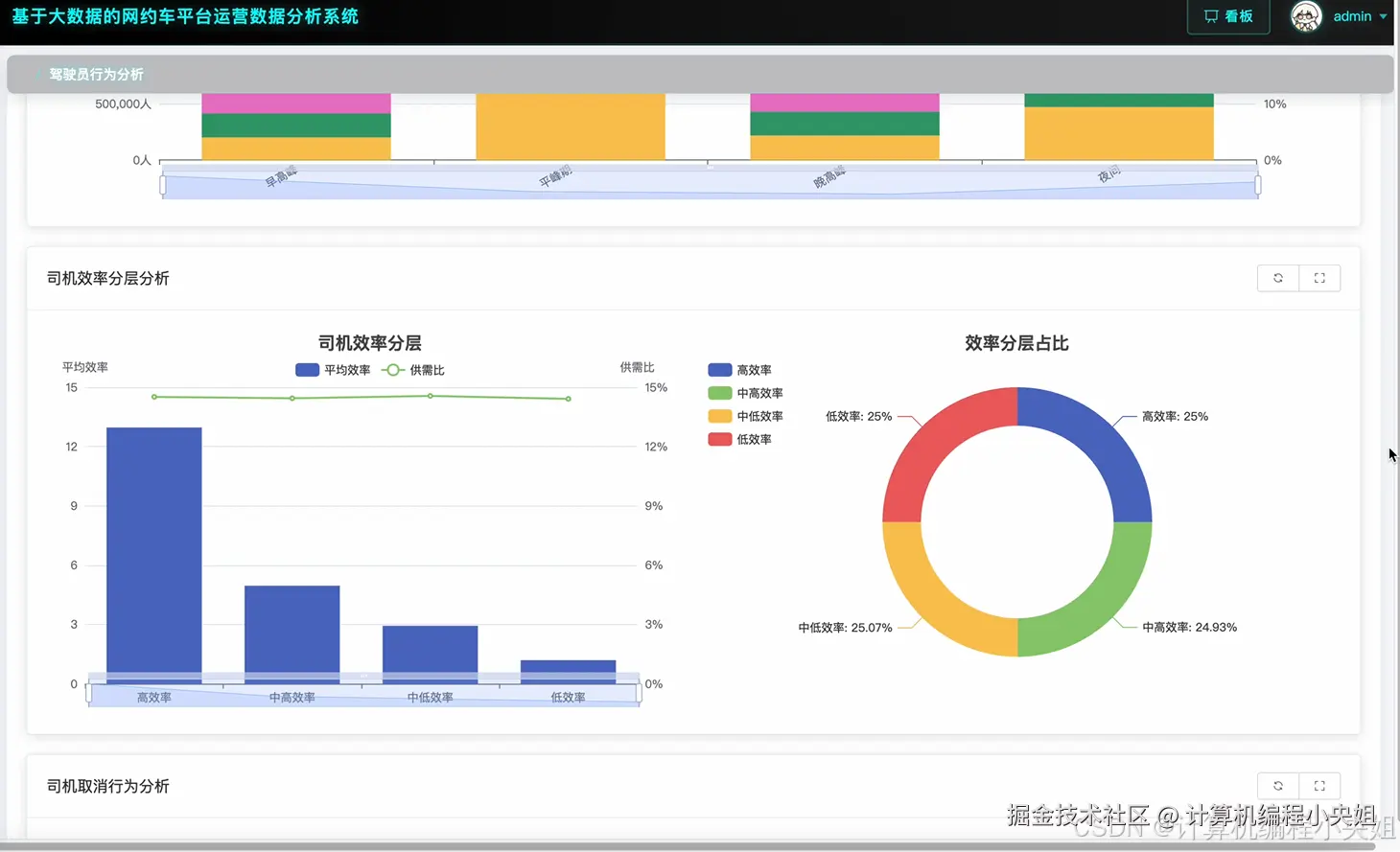

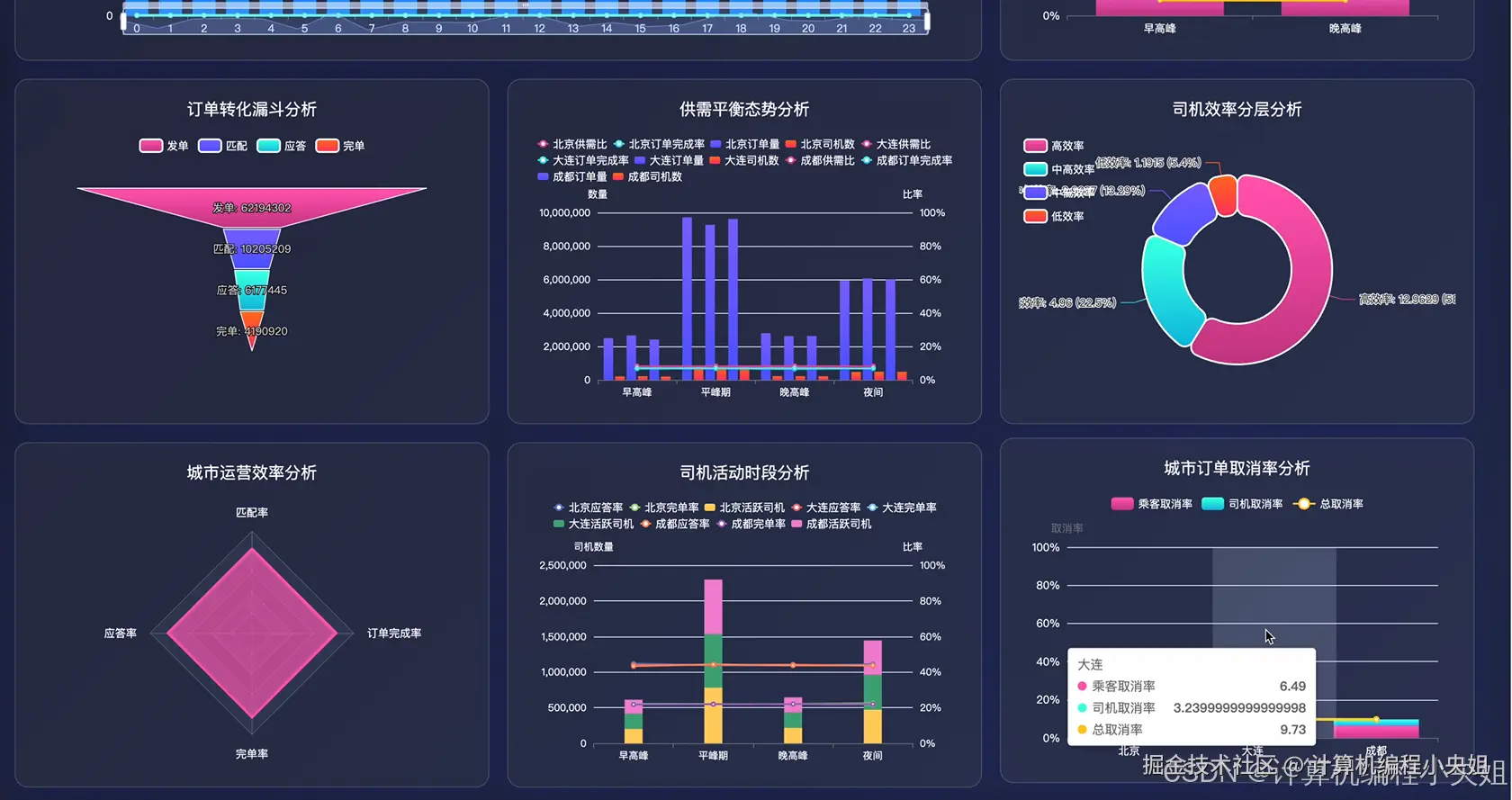

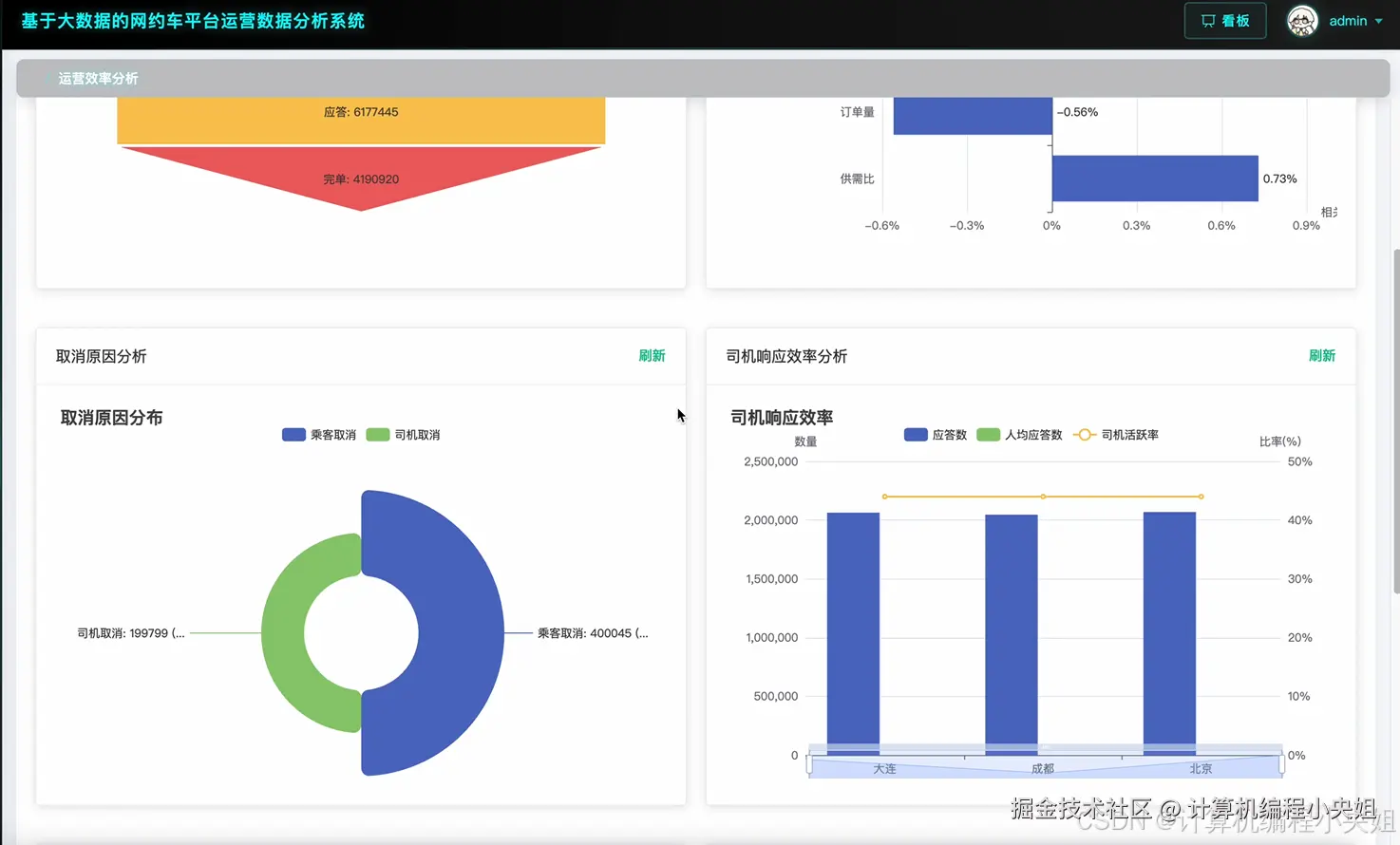

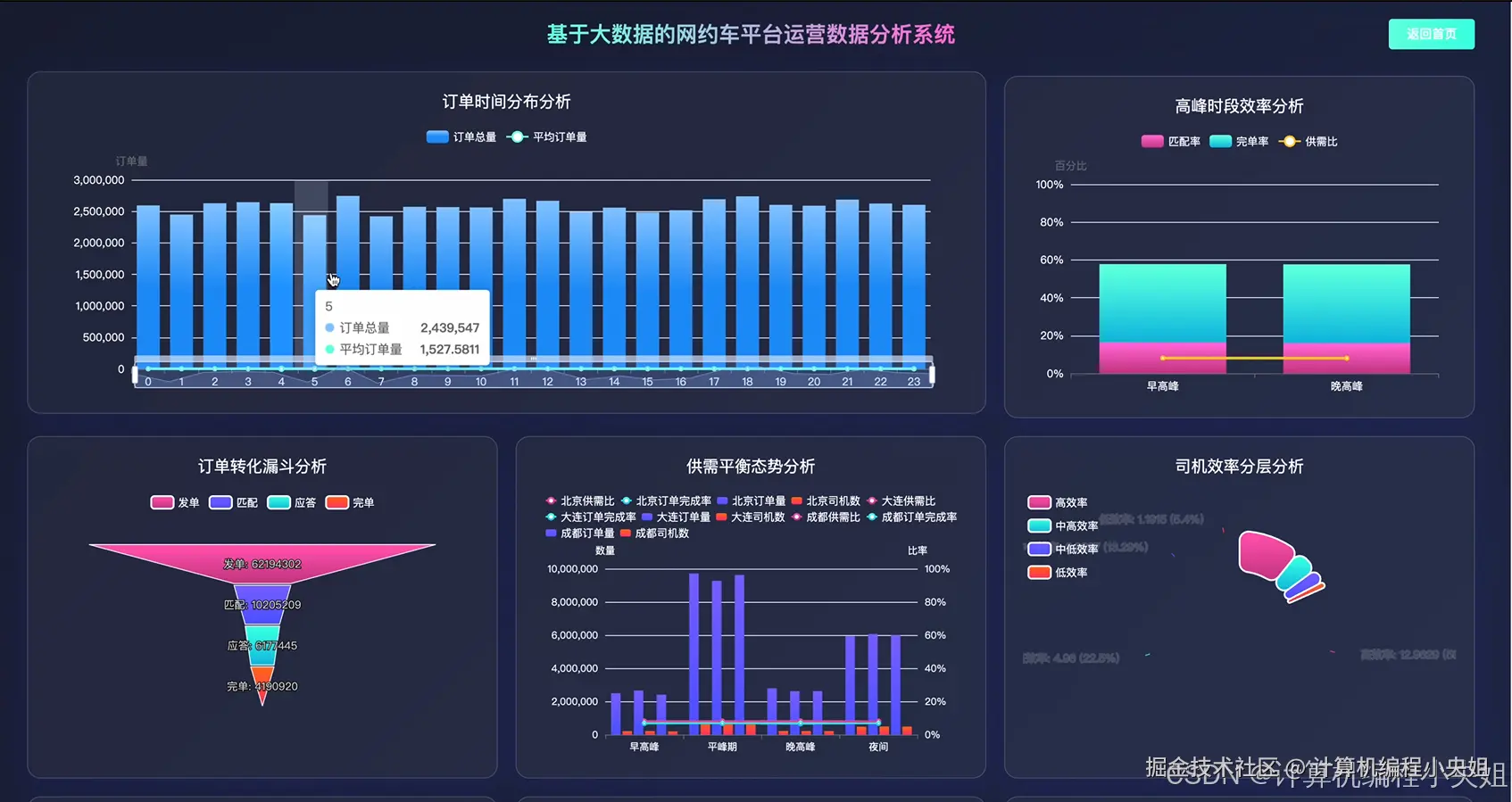

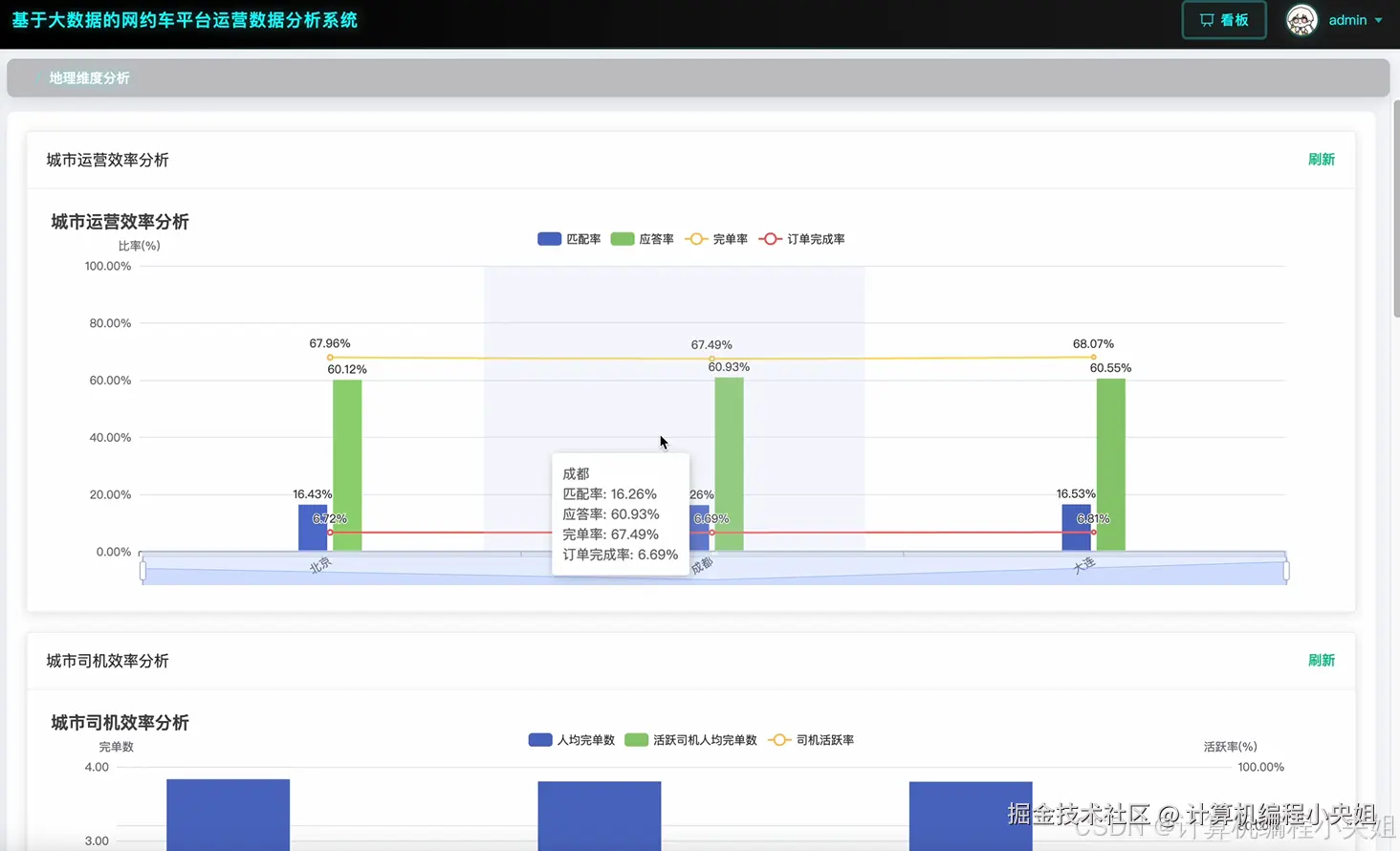

基于大数据的网约车平台运营数据分析系统技术详解-系统演示图片

基于大数据的网约车平台运营数据分析系统技术详解-系统部分代码

from pyspark.sql import SparkSession

from pyspark.sql.functions import *

from pyspark.sql.types import *

import pandas as pd

import numpy as np

from django.http import JsonResponse

from django.views.decorators.csrf import csrf_exempt

import json

spark = SparkSession.builder.appName("TaxiDataAnalysis").master("local[*]").config("spark.sql.adaptive.enabled", "true").config("spark.sql.adaptive.coalescePartitions.enabled", "true").getOrCreate()

@csrf_exempt

def time_dimension_analysis(request):

    if request.method == 'POST':

        data = json.loads(request.body)

        start_date = data.get('start_date')

        end_date = data.get('end_date')

        df = spark.sql(f"SELECT time_point, SUM(order_count) as total_orders, SUM(match_count) as total_matches, SUM(complete_count) as total_completes FROM taxi_data WHERE date BETWEEN '{start_date}' AND '{end_date}' GROUP BY time_point ORDER BY time_point")

        df_with_rate = df.withColumn("match_rate", col("total_matches") / col("total_orders") * 100)

        df_with_complete_rate = df_with_rate.withColumn("complete_rate", col("total_completes") / col("total_matches") * 100)

        peak_hours = df_with_complete_rate.filter(col("total_orders") > df_with_complete_rate.agg(avg("total_orders")).collect()[0][0])

        peak_efficiency = peak_hours.agg(avg("match_rate").alias("avg_match_rate"), avg("complete_rate").alias("avg_complete_rate")).collect()[0]

        time_distribution = df_with_complete_rate.orderBy(desc("total_orders")).limit(6)

        hourly_patterns = df_with_complete_rate.withColumn("hour_category", when(col("time_point").between(7, 9), "morning_peak").when(col("time_point").between(17, 19), "evening_peak").otherwise("normal"))

        category_stats = hourly_patterns.groupBy("hour_category").agg(avg("match_rate").alias("avg_match_rate"), avg("complete_rate").alias("avg_complete_rate"), sum("total_orders").alias("total_orders"))

        supply_demand_ratio = df.join(spark.sql(f"SELECT time_point, SUM(driver_count) as total_drivers FROM taxi_data WHERE date BETWEEN '{start_date}' AND '{end_date}' GROUP BY time_point"), "time_point").withColumn("supply_demand_ratio", col("total_drivers") / col("total_orders"))

        result_data = {"peak_efficiency": {"match_rate": float(peak_efficiency["avg_match_rate"]), "complete_rate": float(peak_efficiency["avg_complete_rate"])}, "time_distribution": [{"time_point": row["time_point"], "total_orders": row["total_orders"], "match_rate": float(row["match_rate"])} for row in time_distribution.collect()], "category_stats": [{"category": row["hour_category"], "match_rate": float(row["avg_match_rate"]), "complete_rate": float(row["avg_complete_rate"]), "orders": row["total_orders"]} for row in category_stats.collect()], "supply_demand": [{"time_point": row["time_point"], "ratio": float(row["supply_demand_ratio"])} for row in supply_demand_ratio.collect()]}

        return JsonResponse(result_data)

@csrf_exempt

def city_operation_analysis(request):

    if request.method == 'POST':

        data = json.loads(request.body)

        cities = data.get('cities', [])

        date_range = data.get('date_range', 7)

        city_filter = f"city IN ({','.join([f\"'{city}'\" for city in cities])})" if cities else "1=1"

        city_efficiency_df = spark.sql(f"SELECT city, SUM(order_count) as total_orders, SUM(match_count) as total_matches, SUM(complete_count) as total_completes, SUM(complete_driver_count) as total_drivers FROM taxi_data WHERE {city_filter} AND date >= DATE_SUB(CURRENT_DATE, {date_range}) GROUP BY city")

        city_with_rates = city_efficiency_df.withColumn("match_rate", col("total_matches") / col("total_orders") * 100).withColumn("complete_rate", col("total_completes") / col("total_matches") * 100).withColumn("driver_efficiency", col("total_completes") / col("total_drivers"))

        city_rankings = city_with_rates.withColumn("efficiency_score", col("match_rate") * 0.4 + col("complete_rate") * 0.4 + col("driver_efficiency") * 0.2).orderBy(desc("efficiency_score"))

        cancellation_df = spark.sql(f"SELECT city, SUM(passenger_cancel) as passenger_cancels, SUM(driver_cancel) as driver_cancels, SUM(response_count) as total_responses FROM taxi_data WHERE {city_filter} AND date >= DATE_SUB(CURRENT_DATE, {date_range}) GROUP BY city")

        city_cancellation = cancellation_df.withColumn("passenger_cancel_rate", col("passenger_cancels") / col("total_responses") * 100).withColumn("driver_cancel_rate", col("driver_cancels") / col("total_responses") * 100)

        peak_analysis_df = spark.sql(f"SELECT city, time_point, SUM(order_count) as orders FROM taxi_data WHERE {city_filter} AND date >= DATE_SUB(CURRENT_DATE, {date_range}) GROUP BY city, time_point")

        city_peaks = peak_analysis_df.withColumn("rank", row_number().over(Window.partitionBy("city").orderBy(desc("orders")))).filter(col("rank") <= 3)

        trend_df = spark.sql(f"SELECT city, date, SUM(match_count)/SUM(order_count)*100 as daily_match_rate FROM taxi_data WHERE {city_filter} AND date >= DATE_SUB(CURRENT_DATE, {date_range}) GROUP BY city, date ORDER BY city, date")

        city_trends = trend_df.groupBy("city").agg(collect_list("daily_match_rate").alias("match_trend"), stddev("daily_match_rate").alias("trend_stability"))

        result_data = {"city_rankings": [{"city": row["city"], "match_rate": float(row["match_rate"]), "complete_rate": float(row["complete_rate"]), "efficiency_score": float(row["efficiency_score"])} for row in city_rankings.collect()], "cancellation_analysis": [{"city": row["city"], "passenger_cancel_rate": float(row["passenger_cancel_rate"]), "driver_cancel_rate": float(row["driver_cancel_rate"])} for row in city_cancellation.collect()], "peak_hours": [{"city": row["city"], "peak_hour": row["time_point"], "orders": row["orders"]} for row in city_peaks.collect()], "trend_stability": [{"city": row["city"], "stability": float(row["trend_stability"])} for row in city_trends.collect()]}

        return JsonResponse(result_data)

@csrf_exempt

def operation_efficiency_analysis(request):

    if request.method == 'POST':

        data = json.loads(request.body)

        analysis_type = data.get('analysis_type', 'funnel')

        time_range = data.get('time_range', 30)

        base_df = spark.sql(f"SELECT * FROM taxi_data WHERE date >= DATE_SUB(CURRENT_DATE, {time_range})")

        if analysis_type == 'funnel':

            funnel_df = base_df.agg(sum("order_count").alias("total_orders"), sum("match_count").alias("total_matches"), sum("response_count").alias("total_responses"), sum("complete_count").alias("total_completes"))

            funnel_data = funnel_df.collect()[0]

            funnel_metrics = {"orders": funnel_data["total_orders"], "matches": funnel_data["total_matches"], "responses": funnel_data["total_responses"], "completes": funnel_data["total_completes"], "match_rate": (funnel_data["total_matches"] / funnel_data["total_orders"] * 100) if funnel_data["total_orders"] > 0 else 0, "response_rate": (funnel_data["total_responses"] / funnel_data["total_matches"] * 100) if funnel_data["total_matches"] > 0 else 0, "complete_rate": (funnel_data["total_completes"] / funnel_data["total_responses"] * 100) if funnel_data["total_responses"] > 0 else 0}

        correlation_df = base_df.select("time_point", "city", "order_count", "match_count", "driver_count").withColumn("match_rate", col("match_count") / col("order_count")).withColumn("supply_ratio", col("driver_count") / col("order_count"))

        correlation_pandas = correlation_df.toPandas()

        correlation_matrix = correlation_pandas[["match_rate", "supply_ratio", "time_point"]].corr()

        cancel_analysis = base_df.agg(sum("passenger_cancel").alias("total_passenger_cancel"), sum("driver_cancel").alias("total_driver_cancel"), sum("response_count").alias("total_responses"))

        cancel_data = cancel_analysis.collect()[0]

        cancel_distribution = {"passenger_cancel_rate": (cancel_data["total_passenger_cancel"] / cancel_data["total_responses"] * 100) if cancel_data["total_responses"] > 0 else 0, "driver_cancel_rate": (cancel_data["total_driver_cancel"] / cancel_data["total_responses"] * 100) if cancel_data["total_responses"] > 0 else 0}

        driver_efficiency = base_df.withColumn("response_rate", col("response_driver_count") / col("driver_count")).withColumn("completion_rate", col("complete_driver_count") / col("response_driver_count"))

        efficiency_stats = driver_efficiency.agg(avg("response_rate").alias("avg_response_rate"), avg("completion_rate").alias("avg_completion_rate"), stddev("response_rate").alias("response_std"))

        efficiency_data = efficiency_stats.collect()[0]

        anomaly_detection = base_df.withColumn("match_rate", col("match_count") / col("order_count")).withColumn("response_rate", col("response_count") / col("match_count")).withColumn("complete_rate", col("complete_count") / col("response_count"))

        anomaly_stats = anomaly_detection.select("match_rate", "response_rate", "complete_rate").toPandas()

        q1_match = anomaly_stats["match_rate"].quantile(0.25)

        q3_match = anomaly_stats["match_rate"].quantile(0.75)

        iqr_match = q3_match - q1_match

        anomaly_threshold = {"match_rate_lower": q1_match - 1.5 * iqr_match, "match_rate_upper": q3_match + 1.5 * iqr_match}

        result_data = {"funnel_analysis": funnel_metrics, "correlation_factors": correlation_matrix.to_dict(), "cancellation_distribution": cancel_distribution, "driver_efficiency": {"avg_response_rate": float(efficiency_data["avg_response_rate"]), "avg_completion_rate": float(efficiency_data["avg_completion_rate"]), "response_stability": float(efficiency_data["response_std"])}, "anomaly_thresholds": anomaly_threshold}

        return JsonResponse(result_data

基于大数据的网约车平台运营数据分析系统技术详解-结语

💟💟如果大家有任何疑虑，欢迎在下方位置详细交流。
