Matrix插桩适配 AGP8 解析

TraceCanary 适配 AGP8 解析

1. 项目背景

本文基于实际的 Matrix TraceCanary 适配 AGP8 项目，深入分析

2. MatrixTracePlugin 核心实现解析

2.1 插件架构设计

class MatrixTracePlugin : Plugin<Project> {
    override fun apply(project: Project) {
        // 1. 创建扩展配置
        val matrix = project.extensions.create("matrix", MatrixExtension::class.java)
        val traceExtension = (matrix as ExtensionAware).extensions
            .create("trace", MatrixTraceExtension::class.java)

        // 2. 验证 Android Application 插件
        if (!project.plugins.hasPlugin("com.android.application")) {
            throw GradleException("Matrix Plugin, Android Application plugin required.")
        }

        // 3. 配置日志级别
        project.afterEvaluate {
            Log.setLogLevel(matrix.logLevel)
        }

		// 4. 仅配置当前变体
        val startParameter = project.gradle.startParameter
        val taskNames = startParameter.taskNames.firstOrNull() ?: ""

        // 5. 注册 Instrumentation
        val androidComponents = project.extensions
            .getByType(AndroidComponentsExtension::class.java)
        androidComponents.onVariants { variant ->
            if (taskNames.contains(variant.name, true)) {
                configureVariant(project, variant, traceExtension)
            }
        }
    }
}

关键设计点：

• 使用 AndroidComponentsExtension 替代旧的 Transform 注册方式
• 通过 onVariants 回调为当前构建变体单独配置
• 延迟配置确保所有依赖项已就绪

2.2 变体配置核心逻辑

private fun configureVariant(
    project: Project,
    variant: Variant,
    extension: MatrixTraceExtension
) {
	if (!extension.isEnable) {
            Log.i("MatrixTracePlugin", "not enable trace!")
            return
    }
    // 1. 设置 ASM 帧计算模式 COPY_FRAMES 是默认模式,可以不设置,大值会覆盖小值
    variant.instrumentation.setAsmFramesComputationMode(
        FramesComputationMode.COPY_FRAMES
    )

    // 2. 注册字节码转换器
    variant.instrumentation.transformClassesWith(
        MatrixTraceClassVisitorFactory::class.java,
        InstrumentationScope.ALL
    ) { params ->
        configureInstrumentationParams(params, project, extension)
    }

    // 3. 设置方法映射保存任务
    setupMappingSaveTask(project, variant)
}

2.3 黑名单处理机制

// 处理黑名单文件的核心逻辑
extension.blackListFile?.let { blockFile ->
    if (File(blockFile).exists()) {
        val buildDir = project.layout.buildDirectory.get().asFile
        val mappingFile = buildDir.resolve("outputs/matrix/mapping/${variant.name}").resolve("methodMapping.txt")
		//缓存 兼容: clean后会删除 mappingFile ,此时应该重新走所有插桩流程
		// 只改变参数,不参与到具体逻辑,不会打断 增量更新逻辑!!!
		// params.cacheFlag.set(mappingFile.exists())params.blockListFilePath.set(project.file(blockFile).absolutePath)
		val useCache = mappingFile.exists()
		if (!useCache) {
                val ct = System.currentTimeMillis()
                if (ct % 2 != 0L) {
                    params.cacheStmp.set(ct - 1)
                } else {
                    params.cacheStmp.set(ct)
                }
            } else {
                params.cacheStmp.set(1L)
            }

        // 解析黑名单内容
        val blockStr = (TraceBuildConstants.DEFAULT_BLOCK_TRACE
                + FileUtil.readFileAsString(project.file(blockFile).absolutePath))

        val blockArray = blockStr.trim().replace("/", ".").replace("\r", "")
            .split("\n").dropLastWhile { it.isEmpty() }.toTypedArray()

        val processor = MappingCollector()
        val blockSet = hashSetOf<String>()

        for (block in blockArray) {
            when {
                block.startsWith("-keepclass ") -> {
                    val className = block.replace("-keepclass ", "")
                    blockSet.add(processor.proguardClassName(className, className))
                }
                block.startsWith("-keeppackage ") -> {
                    val packageName = block.replace("-keeppackage ", "")
                    blockSet.add(processor.proguardPackageName(packageName, packageName))
                }
            }
        }
        params.blockSet.set(blockSet)
		//设置本地旧mapping
        loadMethodMapping(mappingFile)
    }
}

实现特点：

• 支持 ProGuard 风格的配置语法
• 区分类级别和包级别的过滤规则
• 使用 MappingCollector 处理混淆映射

2.4 方法映射保存任务

private fun setupMappingSaveTask(project: Project, variant: Variant) {
    val variantName = variant.name.capitalize()
    val saveMappingTask = project.tasks.register("saveMapping$variantName") { task ->
        task.group = "matrix"
        task.description = "Save method mapping for $variantName"
        task.doLast {
            // 检查当前是否正在构建该变体
            val isCurrentVariantBuilding = project.gradle.startParameter.taskNames
                .any { taskName ->
                    taskName.contains(variant.name, ignoreCase = true) ||
                    taskName.contains("assemble${variantName}", ignoreCase = true)
                }

            if (!isCurrentVariantBuilding) return@doLast

            // 保存方法映射文件
            val buildDir = project.layout.buildDirectory.get().asFile
            val mappingOutDir = buildDir.resolve("outputs/matrix/mapping/${variant.name}")
            mappingOutDir.mkdirs()

            val mappingFile = mappingOutDir.resolve("methodMapping.txt")
            if (mappingFile.exists()) {
                    mappingFile.delete() // 如果文件存在就删除
            }
            mappingFile.createNewFile()
            saveMethodMapping(mappingFile)
        }
    }

    // 配置任务依赖关系
    project.afterEvaluate {
        val mappingTask = saveMappingTask.get()

        // Transform 任务完成后执行
        project.tasks.matching { task ->
            task.name.contains("transform")
        }.configureEach { transformTask ->
            transformTask.finalizedBy(mappingTask)
        }

        // Assemble 任务依赖映射保存
        project.tasks.matching { task ->
            task.name.contains("assemble") &&
            task.name.contains(variant.name, ignoreCase = true)
        }.forEach { assembleTask ->
            assembleTask.dependsOn(saveMappingTask)
        }
    }
}

关键优化：

• 智能检测当前构建变体，避免不必要的任务执行
• 使用新的 Gradle API project.layout.buildDirectory
• 合理的任务依赖关系确保映射文件及时生成

3. MatrixTraceClassVisitorFactory 深度解析

3.1 参数接口设计

interface Params : InstrumentationParameters {
	// 缓存占位: 有参数变更会触发全量插桩操作
    @get:Input
    val cacheStmp: Property<Long>

    @get:Input
    val packageName: Property<String>

    @get:Input
    val blockListFilePath: Property<String>

    @get:Input
    val skipCheckClass: Property<Boolean>

    @get:Input
    val blockSet: SetProperty<String>
}

注意：

• 使用 Gradle Property API 确保类型安全和缓存支持
• @Input 注解支持增量构建
• SetProperty<String> 高效处理黑名单集合

3.2 类过滤机制

override fun isInstrumentable(classData: ClassData): Boolean {
    var isNeed = true

    // 检查类是否在黑名单中
    if (parameters.get().blockSet.get().contains(classData.className)) {
        isNeed = false
    } else {
        // 检查包名是否在黑名单中
        for (packageName in parameters.get().blockSet.get()) {
            if (classData.className.startsWith(packageName.replace("/", "."))) {
                isNeed = false
                break
            }
        }
    }
	// cacheStmp 参与到判断中,用于打断固有的增量 逻辑
	 if (isNeed && parameters.get().cacheStmp.get() % 2 == 0L) {
            insertClassSize.getAndIncrement()
        }
    return isNeed
}

过滤策略：

• 精确类名匹配优先级最高
• 包名前缀匹配作为补充
• 早期过滤减少后续处理开销

3.3 方法 ID 生成与管理

companion object {
    private val methodIdGenerator = AtomicInteger(1)
    private val methodMap = ConcurrentHashMap<String, Int>()

    fun getOrCreateMethodId(className: String, methodName: String, desc: String): Long {
            val signature = "$className.$methodName$desc".replace("/", ".")
            return methodMap.computeIfAbsent(signature) {
                methodIdGenerator.getAndIncrement()
            }
        }

    fun saveMethodMapping(outputFile: File) {
            outputFile.bufferedWriter().use { writer ->
                val sortedByValue = methodMap.entries.sortedWith(compareBy { it.value })
                sortedByValue.forEach { (signature, id) ->
                    writer.write("$id,${signature}\n")
                }
                if (methodMap["message_dispatch_start"] == null) {
                    // 写入最后一行，标识消息分发开始
                    writer.write("${0xFFFFF - 1},message_dispatch_start\n")
                    Log.e(TAG, "saveMethodMapping: ${methodMap.entries.size + 1}")
                } else {
                    Log.e(TAG, "saveMethodMapping: ${methodMap.entries.size}")
                }
            }
        }
		//加载本地文件
        fun loadMethodMapping(inputFile: File) {
			insertClassSize.set(0L)
            if (!inputFile.exists()) {
                Log.i(TAG, "oldMethodMapping: file not exists!")
                return
            }
            inputFile.bufferedReader().use { reader ->
                reader.forEachLine { line ->
                    val list = line.split(",")
                    if (list.isNotEmpty()) {
                        val (id, signature) = list
                        methodMap[signature] = id.toLong()
                    }
                }
            }
            methodIdGenerator.set(methodMap.size.toLong() + 1)
            Log.i(TAG, "loadMethodMapping: ${methodIdGenerator.get() - 1}")
        }
}

3.4 类访问器核心实现

class MatrixTraceClassVisitor(
    nextClassVisitor: ClassVisitor,
    private val ps: Params
) : ClassVisitor(Opcodes.ASM9, nextClassVisitor) {

    private var className: String = ""
    private var isActivityOrSubClass = false
    private var hasWindowFocusMethod = false
    private var isNeedTrace = false

    override fun visit(version: Int, access: Int, name: String,
                      signature: String?, superName: String,
                      interfaces: Array<String?>?) {
        super.visit(version, access, name, signature, superName, interfaces)

        this.className = name
        this.isActivityOrSubClass = isActivityOrSubClass(className, superName)
        this.isNeedTrace = isNeedTrace(ps, className, null)

        // 过滤抽象类和接口
        if ((access and Opcodes.ACC_ABSTRACT) > 0 ||
            (access and Opcodes.ACC_INTERFACE) > 0) {
            this.isABSClass = true
        }
    }
}

3.5 方法插桩核心逻辑

private class TraceMethodVisitor(
    private val api: Int,
    private val mv: MethodVisitor,
    private val access: Int,
    private val name: String,
    private val desc: String,
    private val className: String,
    // ... 其他参数
) : MethodVisitor(api, mv) {

    private val traceMethod = TraceMethod.create(
        getOrCreateMethodId(className, name, desc),
        access, className, name, desc
    )

    override fun visitCode() {
        super.visitCode()
        insertMethodEnterTrace()
    }

    override fun visitInsn(opcode: Int) {
        // 在所有返回指令前插入退出追踪
        if ((opcode >= Opcodes.IRETURN && opcode <= Opcodes.RETURN) ||
            opcode == Opcodes.ATHROW) {
            insertMethodExitTrace()
        }
        super.visitInsn(opcode)
    }

    private fun insertMethodEnterTrace() {
        mv.visitLdcInsn(traceMethod.id)
        mv.visitMethodInsn(
            Opcodes.INVOKESTATIC,
            TraceBuildConstants.MATRIX_TRACE_CLASS,
            "i", "(I)V", false
        )
    }

    private fun insertMethodExitTrace() {
        mv.visitLdcInsn(traceMethod.id)
        mv.visitMethodInsn(
            Opcodes.INVOKESTATIC,
            TraceBuildConstants.MATRIX_TRACE_CLASS,
            "o", "(I)V", false
        )
    }
}

插桩策略：

• 方法入口统一插入 i(methodId) 调用
• 所有退出点（包括异常）插入 o(methodId) 调用
• 使用方法 ID 而非字符串减少运行时开销

3.6 Activity 特殊处理

private fun isActivityOrSubClass(cN: String, sN: String): Boolean {
    return cN == TraceBuildConstants.MATRIX_TRACE_ACTIVITY_CLASS ||
           cN == TraceBuildConstants.MATRIX_TRACE_V4_ACTIVITY_CLASS ||
           cN == TraceBuildConstants.MATRIX_TRACE_V7_ACTIVITY_CLASS ||
           cN == TraceBuildConstants.MATRIX_TRACE_ANDROIDX_ACTIVITY_CLASS ||
		   cN == TraceBuildConstants.MATRIX_TRACE_ANDROIDX_F_ACTIVITY_CLASS ||
           sN == TraceBuildConstants.MATRIX_TRACE_ACTIVITY_CLASS ||
           sN == TraceBuildConstants.MATRIX_TRACE_V4_ACTIVITY_CLASS ||
           sN == TraceBuildConstants.MATRIX_TRACE_V7_ACTIVITY_CLASS ||
           sN == TraceBuildConstants.MATRIX_TRACE_ANDROIDX_ACTIVITY_CLASS ||
		   sN == TraceBuildConstants.MATRIX_TRACE_ANDROIDX_F_ACTIVITY_CLASS
}

// 插入 onWindowFocusChanged 方法
private fun insertWindowFocusChangeMethod(
    cv: ClassVisitor, classname: String, superClassName: String
) {
    val methodVisitor = cv.visitMethod(
        Opcodes.ACC_PUBLIC,
        TraceBuildConstants.MATRIX_TRACE_ON_WINDOW_FOCUS_METHOD,
        TraceBuildConstants.MATRIX_TRACE_ON_WINDOW_FOCUS_METHOD_ARGS,
        null, null
    )

    methodVisitor.visitCode()
    // 调用父类方法
    methodVisitor.visitVarInsn(Opcodes.ALOAD, 0)
    methodVisitor.visitVarInsn(Opcodes.ILOAD, 1)
    methodVisitor.visitMethodInsn(
        Opcodes.INVOKESPECIAL, superClassName,
        TraceBuildConstants.MATRIX_TRACE_ON_WINDOW_FOCUS_METHOD,
        TraceBuildConstants.MATRIX_TRACE_ON_WINDOW_FOCUS_METHOD_ARGS, false
    )

    // 插入追踪代码
    traceWindowFocusChangeMethod(methodVisitor, classname)
    methodVisitor.visitInsn(Opcodes.RETURN)
    methodVisitor.visitMaxs(2, 2)
    methodVisitor.visitEnd()
}

Activity 优化：

• 兼容多个版本的 Activity 基类
• 自动注入 onWindowFocusChanged 方法用于启动耗时统计
• 保持原有方法调用链的完整性

4. AGP8 适配关键技术点

4.1 API 迁移对比

特性	Transform API (旧)	Instrumentation API (新)
注册方式	registerTransform()	transformClassesWith()
参数传递	Transform 构造函数	InstrumentationParameters
类过滤	isIncremental()	isInstrumentable()
处理粒度	文件级别	类级别
缓存支持	基础支持	强化增量构建

4.2 性能优化措施

override fun isInstrumentable(classData: ClassData): Boolean {
    // 在字节码解析前就过滤掉不需要的类
    return !isSystemClass(classData.className)
}

private val methodMap = ConcurrentHashMap<String, Int>()
private val methodIdGenerator = AtomicInteger(1)

override fun visitMaxs(maxStack: Int, maxLocals: Int) {
    // 确保栈大小足够容纳插入的指令
    super.visitMaxs(maxStack + 4, maxLocals)
}

4.3 构建配置最佳实践

// build.gradle 推荐配置
matrix {
    logLevel "D"
    trace {
        enable = true
        blackListFile = "${project.projectDir}/matrixTrace/blackMethodList.txt"
    }
}

5. 实际应用效果

5.1 编译时输出

> Task :app:transformClassesWithMatrixTraceForDebug
Matrix.TraceClassVisitorFactory: 实例化.
MatrixTracePlugin: variant:debug
MatrixTraceClassVisitor: 处理类 com/example/MainActivity
MatrixTraceClassVisitor: 插桩方法 onCreate()V
MatrixTraceClassVisitor: 插桩方法 onResume()V
...
> Task :app:mergeAppTestReleaseGeneratedProguardFiles
> Task :app:saveMappingAppDevDebug
> Task :app:saveMappingAppDevRelease
> Task :app:saveMappingAppProDebug
> Task :app:saveMappingAppProRelease
> Task :app:saveMappingAppTestDebug

> Task :app:saveMappingAppTestRelease
[D][MatrixTracePlugin] 开始存储mapping

5.2 方法映射文件示例

...
271272,com.lagos.emobility.driver.ui.underway.google.GoogleNavigationController$initializeNavigationApi$2$1.onError(I)V
271273,com.lagos.emobility.driver.ui.underway.google.GoogleNavigationController.initializeNavigationApi$lambda$1(Lcom.lagos.emobility.driver.ui.underway.google.GoogleNavigationController;Lkotlin.jvm.functions.Function2;)V
271274,com.lagos.emobility.driver.ui.underway.google.GoogleNavigationController.withMapAsync$lambda$2(Lkotlin.jvm.functions.Function1;Lcom.google.android.gms.maps.GoogleMap;)V
1048574,message_dispatch_start
...

5.3 运行时监控数据

// 生成的字节码调用示例
public void onCreate(Bundle savedInstanceState) {
    MethodBeat.i(1);  // 方法进入
    try {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        // ... 业务逻辑
    } finally {
        MethodBeat.o(1);  // 方法退出
    }
}

6 堆栈解析

6.1堆栈数据格式解析:

原始数据结构

{
  "nameValuePairs": {
    "machine": "HIGH",
    "cpu_app": 0,
    "mem": 8055660544,
    "mem_free": 3264324,
    "detail": "NORMAL",
    "cost": 905,
    "scene": "com.lagos.emobility.driver.ui.underway.OrderUnderwayActivity",
    "stack": "0,1048574,1,905\n1,258336,1,903\n2,20604,1,897\n3,22106,1,186\n4,35700,1,186\n5,21656,1,186\n6,26128,1,181\n7,81196,1,137\n8,23665,1,137\n3,24006,1,603\n4,58165,1,503\n5,22284,1,338\n6,64326,1,338\n7,60162,1,322\n8,60154,1,322\n9,35700,1,162\n10,35723,1,162\n11,35700,1,162\n12,64378,1,162\n13,63526,1,121\n14,65534,1,110\n15,81196,1,110\n16,63398,1,110\n17,35700,1,99\n18,35723,1,99\n19,35700,1,99\n20,64365,1,99\n21,17766,1,84\n9,63491,1,160\n10,63497,1,160\n",
    "stackKey": "60154|",
    "tag": "Trace_EvilMethod",
    "process": "com.lagos.emobility.driver",
    "time": 1750662360918
  }
}

堆栈格式说明

格式: depth,methodId,count,cost
- depth: 调用深度（0为根调用）
- methodId: 方法唯一标识符
- count: 调用次数
- cost: 耗时（毫秒）
特殊方法ID:
- 1048574 (0xFFFFF-1): message_dispatch_start 消息分发起始点
- 其他ID: 对应 methodMapping.txt 中的方法映射

Js解析脚本

完整解析工具

const fs = require('fs');

function parseStackTrace(mappingFilePath, stackInput) {
try {
  // 读取mapping文件
  let mapping = {};
  if (fs.existsSync(mappingFilePath)) {
    const mappingContent = fs.readFileSync(mappingFilePath, 'utf8');

    // 解析mapping文件格式: methodId,methodSignature
    const lines = mappingContent.trim().split('\n');
    lines.forEach(line => {
      if (line.trim()) {
        const commaIndex = line.indexOf(',');
        if (commaIndex > 0) {
          const id = parseInt(line.substring(0, commaIndex).trim());
          const signature = line.substring(commaIndex + 1).trim();

          // 简化方法签名显示
          const simplifiedName = simplifyMethodSignature(signature);
          mapping[id] = {
            full: signature,
            simple: simplifiedName
          };
        }
      }
    });

    console.log(`成功加载 ${Object.keys(mapping).length} 个方法映射`);
  } else {
    console.log(`Warning: Mapping file ${mappingFilePath} not found`);
  }

  // 读取堆栈数据（支持文件或字符串）
  let stackString;
  if (fs.existsSync(stackInput)) {
    stackString = fs.readFileSync(stackInput, 'utf8');
    console.log(`从文件读取堆栈数据: ${stackInput}`);
  } else {
    stackString = stackInput;
    console.log(`使用传入的堆栈字符串`);
  }

  // 解析堆栈数据
  const lines = stackString.trim().split('\\n');
  console.log("lines----->",lines);
  const parsedStack = [];

  console.log('\n堆栈调用信息:');
  console.log('='.repeat(100));

  lines.forEach((line, index) => {
if (line.trim()) {
  const parts = line.split(',');
  if (parts.length >= 4) {
    const level = parseInt(parts[0]);
    const methodId = parseInt(parts[1]);
    const callCount = parseInt(parts[2]);
    const duration = parseInt(parts[3]);

    const methodInfo = mapping[methodId];
    const methodName = methodInfo ? methodInfo.full : `Unknown_${methodId}`;

    // 简单的层级缩进
    const indent = '│ '.repeat(level) + (level > 0 ? '├─ ' : '');

    // 简洁的单行显示
    console.log(`${indent}${methodName} (${duration}ms)`);

    parsedStack.push({
      level,
      methodId,
      methodName,
      fullSignature: methodInfo ? methodInfo.full : `Method_${methodId}`,
      callCount,
      duration
    });
  }
}
});

  // 统计信息
  const totalDuration = parsedStack.reduce((sum, item) => sum + item.duration, 0);
  const maxLevel = Math.max(...parsedStack.map(item => item.level));
  const totalCalls = parsedStack.reduce((sum, item) => sum + item.callCount, 0);

  console.log('='.repeat(100));

  // 按层级统计
  const levelStats = {};
  parsedStack.forEach(item => {
    if (!levelStats[item.level]) {
      levelStats[item.level] = { count: 0, totalDuration: 0, totalCalls: 0 };
    }
    levelStats[item.level].count++;
    levelStats[item.level].totalDuration += item.duration;
    levelStats[item.level].totalCalls += item.callCount;
  });

  // 耗时最长的方法
  const sortedByDuration = [...parsedStack].sort((a, b) => b.duration - a.duration);
  console.log('\n🔥 耗时最长的前10个方法:');
  sortedByDuration.slice(0, 10).forEach((item, index) => {
    console.log(`   ${index + 1}. ${item.methodName} - ${item.duration}ms (${item.callCount}次调用)`);
  });

  return parsedStack;

} catch (error) {
  console.error('❌ 解析错误:', error.message);
  return null;
}
}

// 简化方法签名显示
function simplifyMethodSignature(signature) {
try {
  // 提取类名和方法名
  const lastSlash = signature.lastIndexOf('/');
  const firstDot = signature.indexOf('.', lastSlash);
  const firstParen = signature.indexOf('(');

  if (lastSlash >= 0 && firstDot > lastSlash && firstParen > firstDot) {
    const className = signature.substring(lastSlash + 1, firstDot);
    const methodName = signature.substring(firstDot + 1, firstParen);

    // 提取参数类型（简化显示）
    const paramsPart = signature.substring(firstParen + 1, signature.indexOf(')'));
    const simplifiedParams = simplifyParams(paramsPart);

    return `${className}.${methodName}(${simplifiedParams})`;
  }

  return signature;
} catch (e) {
  return signature;
}
}

// 简化参数类型显示
function simplifyParams(params) {
if (!params) return '';

const typeMap = {
  'Z': 'boolean',
  'B': 'byte',
  'C': 'char',
  'S': 'short',
  'I': 'int',
  'J': 'long',
  'F': 'float',
  'D': 'double',
  'V': 'void'
};

let result = '';
let i = 0;

while (i < params.length) {
  if (params[i] === 'L') {
    // 对象类型
    const semicolon = params.indexOf(';', i);
    if (semicolon > i) {
      const className = params.substring(i + 1, semicolon);
      const simpleName = className.substring(className.lastIndexOf('/') + 1);
      result += simpleName;
      i = semicolon + 1;
    } else {
      i++;
    }
  } else if (params[i] === '[') {
    // 数组类型
    result += '[]';
    i++;
  } else if (typeMap[params[i]]) {
    result += typeMap[params[i]];
    i++;
  } else {
    i++;
  }

  if (i < params.length && result && !result.endsWith('[]')) {
    result += ', ';
  }
}

return result;
}

// 主函数
function main() {
const args = process.argv.slice(2);

if (args.length < 2) {
  console.log('🚀 使用方法: node stack-parser.js <mapping文件路径> <堆栈文件路径或字符串>');
  console.log('📝 示例1 (文件): node stack-parser.js mapping.txt stack.txt');
  console.log('📝 示例2 (字符串): node stack-parser.js mapping.txt "0,1048574,1,710"');
  console.log('📋 Mapping文件格式: methodId,methodSignature');
  return;
}

const mappingFile = args[0];
const stackInput = args[1];

console.log(`📁 Mapping文件: ${mappingFile}`);
console.log(`🔍 解析堆栈数据...\n`);

parseStackTrace(mappingFile, stackInput);
}

// 如果直接运行此脚本
if (require.main === module) {
main();
}

// 导出函数供其他模块使用
module.exports = { parseStackTrace };

使用方式 node trace_parser.js ~/code/methodMapping.txt "0,1048574,1,905\n1,258336,1...."

 Mapping文件: /Users/heyufei/code/methodMapping.txt
🔍 解析堆栈数据...

成功加载 270940 个方法映射
使用传入的堆栈字符串
lines-----> [
  '0,1048574,1,905', '1,258336,1,903',
  '2,20604,1,897',   '3,22106,1,186',
  '4,35700,1,186',   '5,21656,1,186',
  '6,26128,1,181',   '7,81196,1,137',
  '8,23665,1,137',   '3,24006,1,603',
  '4,58165,1,503',   '5,22284,1,338',
  '6,64326,1,338',   '7,60162,1,322',
  '8,60154,1,322',   '9,35700,1,162',
  '10,35723,1,162',  '11,35700,1,162',
  '12,64378,1,162',  '13,63526,1,121',
  '14,65534,1,110',  '15,81196,1,110',
  '16,63398,1,110',  '17,35700,1,99',
  '18,35723,1,99',   '19,35700,1,99',
  '20,64365,1,99',   '21,17766,1,84',
  '9,63491,1,160',   '10,63497,1,160',
  ''
]

堆栈调用信息:
====================================================================================================
message_dispatch_start (905ms)
│ ├─ com.lagos.emobility.driver.ui.underway.OrderUnderwayActivity$4.run()V (903ms)
│ │ ├─ com.google.android.libraries.navigation.NavigationView.onCreate(Landroid.os.Bundle;)V (897ms)
│ │ │ ├─ com.google.android.libraries.navigation.environment.l.bl()Lcom.google.android.libraries.navigation.internal.aal.n; (186ms)
│ │ │ │ ├─ com.google.android.libraries.navigation.internal.aes.e.a()Ljava.lang.Object; (186ms)
│ │ │ │ │ ├─ com.google.android.libraries.navigation.environment.ay.a()Ljava.lang.Object; (186ms)
│ │ │ │ │ │ ├─ com.google.android.libraries.navigation.internal.aal.n.c(Landroid.content.Context;Lcom.google.android.libraries.navigation.internal.aal.ih;Lcom.google.android.libraries.navigation.internal.aal.gf;Lcom.google.android.libraries.navigation.internal.aal.j;Lcom.google.android.libraries.navigation.internal.vi.e;)Lcom.google.android.libraries.navigation.internal.aal.n; (181ms)
│ │ │ │ │ │ │ ├─ com.google.android.libraries.navigation.internal.yg.bv.a()Ljava.lang.Object; (137ms)
│ │ │ │ │ │ │ │ ├─ com.google.android.libraries.navigation.internal.aal.ay.a()Ljava.lang.Object; (137ms)
│ │ │ ├─ com.google.android.libraries.navigation.internal.aal.co.aB(Lcom.google.android.gms.maps.GoogleMapOptions;ZLcom.google.android.libraries.navigation.internal.aal.bf;Lcom.google.android.libraries.navigation.internal.aal.n;Lcom.google.android.libraries.navigation.internal.aal.cp;Lcom.google.android.libraries.navigation.internal.aal.gf;)Lcom.google.android.libraries.navigation.internal.aal.co; (603ms)
│ │ │ │ ├─ com.google.android.libraries.navigation.internal.lv.ct.a(Ljava.lang.String;Lcom.google.android.libraries.navigation.internal.aal.bf;Lcom.google.android.libraries.navigation.internal.aal.n;Ljava.lang.String;Ljava.lang.Integer;ILandroid.view.View;Lcom.google.android.libraries.navigation.internal.aal.ab;ZLandroid.widget.TextView;Lcom.google.android.libraries.navigation.internal.aal.ec;Lcom.google.android.libraries.navigation.internal.aal.cb;Lcom.google.android.libraries.navigation.internal.aal.hy;ZLcom.google.android.libraries.navigation.internal.aal.d;Lcom.google.android.libraries.navigation.internal.aal.ag;ZLcom.google.android.libraries.navigation.internal.aal.da;Lcom.google.android.libraries.navigation.internal.aal.bo;)Lcom.google.android.libraries.navigation.internal.aal.ed; (503ms)
│ │ │ │ │ ├─ com.google.android.libraries.navigation.environment.u.run()V (338ms)
│ │ │ │ │ │ ├─ com.google.android.libraries.navigation.internal.ph.c.h()V (338ms)
│ │ │ │ │ │ │ ├─ com.google.android.libraries.navigation.internal.nt.h.h()V (322ms)
│ │ │ │ │ │ │ │ ├─ com.google.android.libraries.navigation.internal.nt.h.b()Lcom.google.android.libraries.navigation.internal.nt.d; (322ms)
│ │ │ │ │ │ │ │ │ ├─ com.google.android.libraries.navigation.internal.aes.e.a()Ljava.lang.Object; (162ms)
│ │ │ │ │ │ │ │ │ │ ├─ com.google.android.libraries.navigation.internal.aes.m.a()Ljava.lang.Object; (162ms)
│ │ │ │ │ │ │ │ │ │ │ ├─ com.google.android.libraries.navigation.internal.aes.e.a()Ljava.lang.Object; (162ms)
│ │ │ │ │ │ │ │ │ │ │ │ ├─ com.google.android.libraries.navigation.internal.ph.q.a()Ljava.lang.Object; (162ms)
│ │ │ │ │ │ │ │ │ │ │ │ │ ├─ com.google.android.libraries.navigation.internal.pb.gi.<init>(Ljava.lang.String;Ljava.lang.Integer;Landroid.content.res.Resources;Lcom.google.android.libraries.navigation.internal.px.x;Lcom.google.android.libraries.navigation.internal.nu.m;Landroid.content.Context;Lcom.google.android.libraries.navigation.internal.pf.y;Lcom.google.android.libraries.navigation.internal.acm.an;Lcom.google.android.libraries.navigation.internal.aep.a;Lcom.google.android.libraries.navigation.internal.pb.gn;Lcom.google.android.libraries.navigation.internal.aep.a;Lcom.google.android.libraries.navigation.internal.aep.a;Lcom.google.android.libraries.navigation.internal.pq.k;Landroid.content.Context;Lcom.google.android.libraries.navigation.internal.gb.f;Lcom.google.android.libraries.navigation.internal.kh.b;Lcom.google.android.libraries.navigation.internal.oa.p;Lcom.google.android.libraries.navigation.internal.oz.c;Lcom.google.android.libraries.navigation.internal.mg.b;Lcom.google.android.libraries.navigation.internal.gn.p;Lcom.google.android.libraries.navigation.internal.nd.a;Lcom.google.android.libraries.navigation.internal.ov.s;Lcom.google.android.libraries.navigation.internal.ja.e;Lcom.google.android.libraries.navigation.internal.kc.c;Lcom.google.android.libraries.navigation.internal.ps.d;Lcom.google.android.libraries.navigation.internal.hr.f;Lcom.google.android.libraries.navigation.internal.do.c;Lcom.google.android.libraries.navigation.internal.qm.h;Lcom.google.android.libraries.navigation.internal.oz.a;Lcom.google.android.libraries.navigation.internal.qo.a;Lcom.google.android.libraries.navigation.internal.hu.v;Lcom.google.android.libraries.navigation.internal.zk.bl;Lcom.google.android.libraries.navigation.internal.zk.bl;Ljava.util.concurrent.Executor;Ljava.util.concurrent.Executor;Lcom.google.android.libraries.navigation.internal.zk.bl;Lcom.google.android.libraries.navigation.internal.qi.ce;Lcom.google.android.libraries.navigation.internal.ot.e;Lcom.google.android.libraries.navigation.internal.px.cm;Lcom.google.android.libraries.navigation.internal.pa.g;Lcom.google.android.libraries.navigation.internal.yg.bs;Lcom.google.android.libraries.navigation.internal.nu.r;Lcom.google.android.libraries.navigation.internal.qg.a;Lcom.google.android.libraries.navigation.internal.qq.c;Lcom.google.android.libraries.geo.mapcore.api.model.ba;Z)V (121ms)
│ │ │ │ │ │ │ │ │ │ │ │ │ │ ├─ com.google.android.libraries.navigation.internal.pk.cv.<init>(Lcom.google.android.libraries.navigation.internal.zk.bl;Lcom.google.android.libraries.navigation.internal.yg.bs;)V (110ms)
│ │ │ │ │ │ │ │ │ │ │ │ │ │ │ ├─ com.google.android.libraries.navigation.internal.yg.bv.a()Ljava.lang.Object; (110ms)
│ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ ├─ com.google.android.libraries.navigation.internal.pb.fw.a()Ljava.lang.Object; (110ms)
│ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ ├─ com.google.android.libraries.navigation.internal.aes.e.a()Ljava.lang.Object; (99ms)
│ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ ├─ com.google.android.libraries.navigation.internal.aes.m.a()Ljava.lang.Object; (99ms)
│ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ ├─ com.google.android.libraries.navigation.internal.aes.e.a()Ljava.lang.Object; (99ms)
│ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ ├─ com.google.android.libraries.navigation.internal.ph.m.a()Ljava.lang.Object; (99ms)
│ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ │ ├─ com.google.android.libraries.geo.mapcore.renderer.ax.<init>(Landroid.content.Context;Lcom.google.android.libraries.navigation.internal.kh.b;Lcom.google.android.libraries.navigation.internal.nd.a;Lcom.google.android.libraries.navigation.internal.afp.a;Landroid.content.res.Resources;)V (84ms)
│ │ │ │ │ │ │ │ │ ├─ com.google.android.libraries.navigation.internal.pb.gi.a()Lcom.google.android.libraries.navigation.internal.nt.d; (160ms)
│ │ │ │ │ │ │ │ │ │ ├─ com.google.android.libraries.navigation.internal.pb.gi.i()Lcom.google.android.libraries.navigation.internal.nt.d; (160ms)
====================================================================================================

🔥 耗时最长的前10个方法:
   1. message_dispatch_start - 905ms (1次调用)
   2. com.lagos.emobility.driver.ui.underway.OrderUnderwayActivity$4.run()V - 903ms (1次调用)
   3. com.google.android.libraries.navigation.NavigationView.onCreate(Landroid.os.Bundle;)V - 897ms (1次调用)
   4. com.google.android.libraries.navigation.internal.aal.co.aB(Lcom.google.android.gms.maps.GoogleMapOptions;ZLcom.google.android.libraries.navigation.internal.aal.bf;Lcom.google.android.libraries.navigation.internal.aal.n;Lcom.google.android.libraries.navigation.internal.aal.cp;Lcom.google.android.libraries.navigation.internal.aal.gf;)Lcom.google.android.libraries.navigation.internal.aal.co; - 603ms (1次调用)
   5. com.google.android.libraries.navigation.internal.lv.ct.a(Ljava.lang.String;Lcom.google.android.libraries.navigation.internal.aal.bf;Lcom.google.android.libraries.navigation.internal.aal.n;Ljava.lang.String;Ljava.lang.Integer;ILandroid.view.View;Lcom.google.android.libraries.navigation.internal.aal.ab;ZLandroid.widget.TextView;Lcom.google.android.libraries.navigation.internal.aal.ec;Lcom.google.android.libraries.navigation.internal.aal.cb;Lcom.google.android.libraries.navigation.internal.aal.hy;ZLcom.google.android.libraries.navigation.internal.aal.d;Lcom.google.android.libraries.navigation.internal.aal.ag;ZLcom.google.android.libraries.navigation.internal.aal.da;Lcom.google.android.libraries.navigation.internal.aal.bo;)Lcom.google.android.libraries.navigation.internal.aal.ed; - 503ms (1次调用)
   6. com.google.android.libraries.navigation.environment.u.run()V - 338ms (1次调用)
   7. com.google.android.libraries.navigation.internal.ph.c.h()V - 338ms (1次调用)
   8. com.google.android.libraries.navigation.internal.nt.h.h()V - 322ms (1次调用)
   9. com.google.android.libraries.navigation.internal.nt.h.b()Lcom.google.android.libraries.navigation.internal.nt.d; - 322ms (1次调用)
   10. com.google.android.libraries.navigation.environment.l.bl()Lcom.google.android.libraries.navigation.internal.aal.n; - 186ms (1次调用)

7. 问题排查指南

7.1 常见编译错误

错误 1：ASM 版本冲突

java.lang.NoSuchMethodError: org.objectweb.asm.ClassVisitor.<init>

解决方案：

configurations.all {
    resolutionStrategy {
        force 'org.ow2.asm:asm:9.6'
        force 'org.ow2.asm:asm-commons:9.6'
    }
}

错误 2：方法映射文件未生成

检查任务依赖关系是否正确配置

解决方案：

// 确保 saveMapping 任务在正确的时机执行
project.tasks.matching { task ->
    task.name.contains("transform")
}.configureEach { transformTask ->
    transformTask.finalizedBy(mappingTask)
}

7.2 运行时问题

问题1：方法找不到

java.lang.NoSuchMethodError: MethodBeat.i(I)V

解决方案：

# proguard-rules.pro
-keep class com.tencent.matrix.trace.core.MethodBeat {
    public static *** i(int);
    public static *** o(int);
}

问题2:插桩无效,未启动trace ,trace task 空

tag[Trace_EvilMethod]type[0];key[null];content[{"machine":"HIGH","cpu_app":0,"mem":8055660544,"mem_free":3377132,"detail":"NORMAL","cost":1740,"scene":"com.lagos.emobility.driver.ui.underway.OrderUnderwayActivity","stack":"","stackKey":"","tag":"Trace_EvilMethod","process":"com.lagos.emobility.driver","time":1750319930441}]

解决方案

private TracePlugin configTracePlugin(DynamicConfigImplDemo dynamicConfig) {
		//1. 配置设置TracePlugin
        TraceConfig config = new TraceConfig.Builder()
                .dynamicConfig(dynamicConfig)
                .enableAnrTrace(true)
                .enableAppMethodBeat(dynamicConfig.isTraceEnable())
                .enableEvilMethodTrace(dynamicConfig.isTraceEnable())
                .enableTouchEventTrace(true)
                .build();

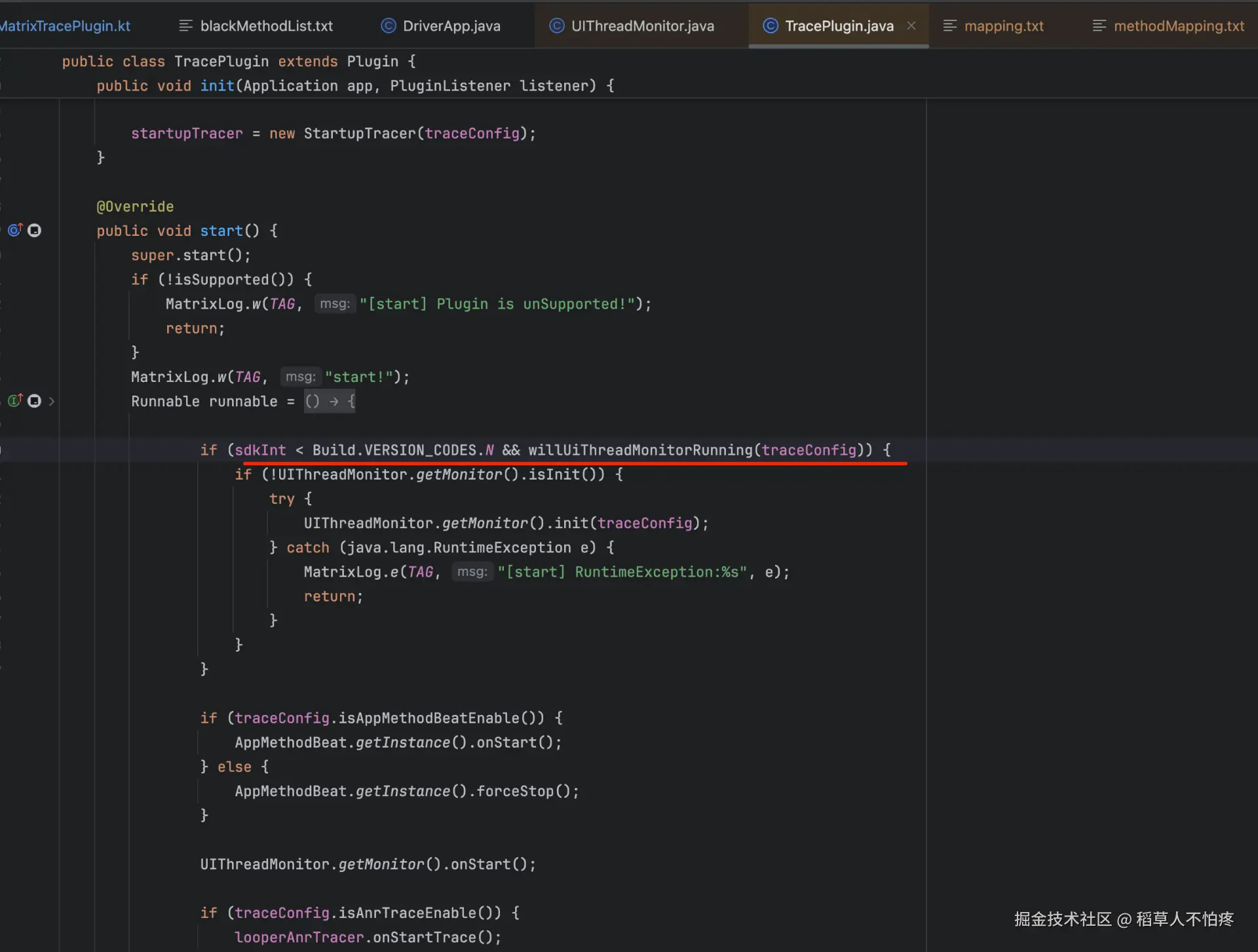

        //fix matrix sdk 版本限制
		//2. 手动调用 UIThreadMonitor.getMonitor().init(config);
        if (!UIThreadMonitor.getMonitor().isInit()) {
            try {
                UIThreadMonitor.getMonitor().init(config);
            } catch (java.lang.RuntimeException e) {
                MatrixLog.e(TAG, "[start] RuntimeException:%s", e);
            }
        }

        return new TracePlugin(config);
    }

分析

UIThreadMonitor.getMonitor().init(traceConfig); ->> LooperMonitor.registe(xxxx) ->dispatchStart() -->插桩AppMethodBeat.i(AppMethodBeat.METHOD_ID_DISPATCH); ... EvilMethodTracer.AnalyseTask.analyse() -->check AppMethodBeat.METHOD_ID_DISPATCH

慢方法检测 入口必须是这个接入点(消息分发起始点)

8. 总结与展望

8.1 适配成果

1. 完全兼容 AGP8：成功迁移到新的 Instrumentation API
2. 功能保持完整：所有原有监控功能正常工作
3. 解析堆栈：可以正常解析采集到的堆栈数据,用于后续分析

8.2 技术收获

• 深入理解 AGP8 新架构和 API 设计
• 掌握 ASM 字节码操作的最佳实践
• 学会 Gradle 插件开发的现代化模式

8.3 后续优化方向

1. 智能采样策略：根据设备性能动态调整采样率
2. 增量插桩优化：进一步利用 AGP8 的增量构建能力
3. 多模块支持：扩展到 Android Library 项目
4. 云端分析集成：与监控后台深度集成

通过这次 TraceCanary 适配 AGP8 的实践，我们不仅解决了兼容性问题，还获得了显著的性能提升。这为后续的 Matrix 其他模块适配提供了宝贵的经验和技术基础。
