Gitlab CI/CD（一）CI/CD 的说明 CI/CD is a continuous method of sof

CI/CD 的说明

CI/CD is a continuous method of software development, where you continuously build, test, deploy, and monitor iterative code changes.

实践记录

创建Project gitlabcicdstudy
在项目根目录添加.gitlab-ci.yml文件
安装Gitlab-runner到本地机器(如果使用gitlab.com，则不需要进行安装)

下载gitlab-runner

Intel

sudo curl --output /usr/local/bin/gitlab-runner "https://s3.dualstack.us-east-1.amazonaws.com/gitlab-runner-downloads/latest/binaries/gitlab-runner-darwin-amd64"

Apple Silicon

sudo curl --output /usr/local/bin/gitlab-runner "https://s3.dualstack.us-east-1.amazonaws.com/gitlab-runner-downloads/latest/binaries/gitlab-runner-darwin-arm64"

授予执行权限

sudo chmod +x /usr/local/bin/gitlab-runner

安装gitlab-runner 作为一个服务，并启动

gitlab-runner install
gitlab-runner start

注册runner到项目，选择「shell」executor

gitlab-runner register

Enter the GitLab instance URL (for example, gitlab.com/):

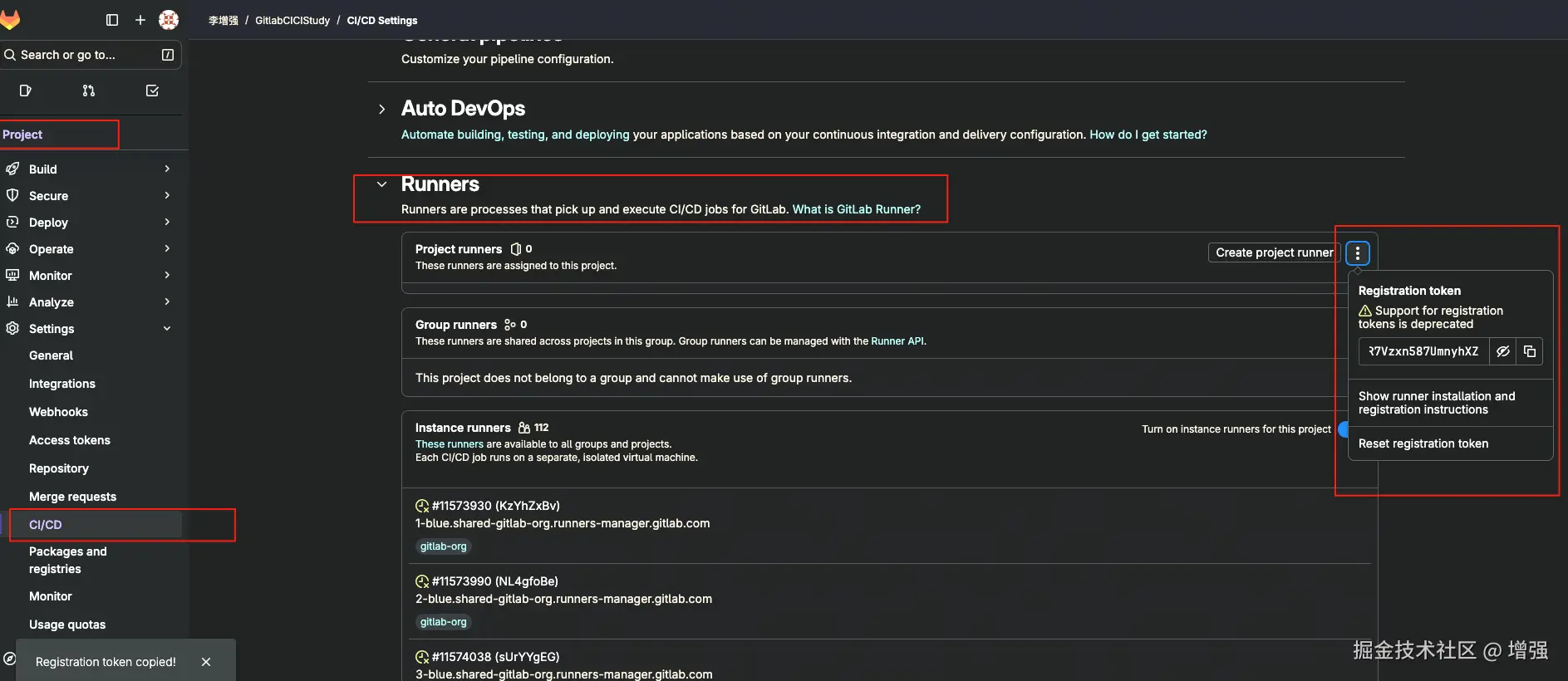

Enter the registration token:

3. Enter a description for the runner: CICDStudy Project Build Script(自定义的一段文字)

Enter tags for the runner (comma-separated): macos(自定义的标签，不会影响构建行为，只是在构建脚本里任务可以派发给指定标签的runner 进行执行)
Enter optional maintenance note for the runner: macos for build Android Project（不影响构建行为，只是当前runner 的描述）

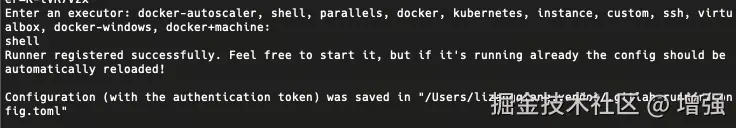

完成以上输入后会看到

6. Enter an executor: docker-autoscaler, shell, parallels, docker, kubernetes, instance, custom, ssh, virtualbox, docker-windows, docker+machine: shell

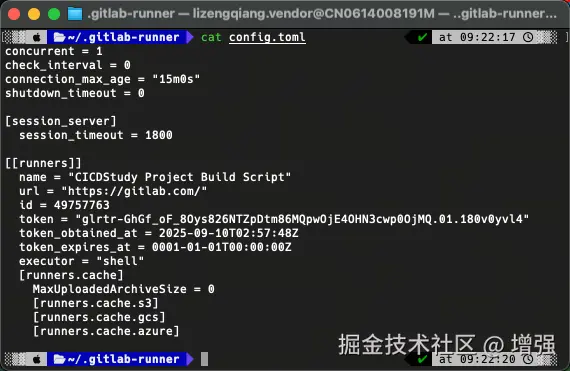

完成后，配置保存目录（/Users/lizengqiang.vendor/.gitlab-runner/config.toml）

内容如下：

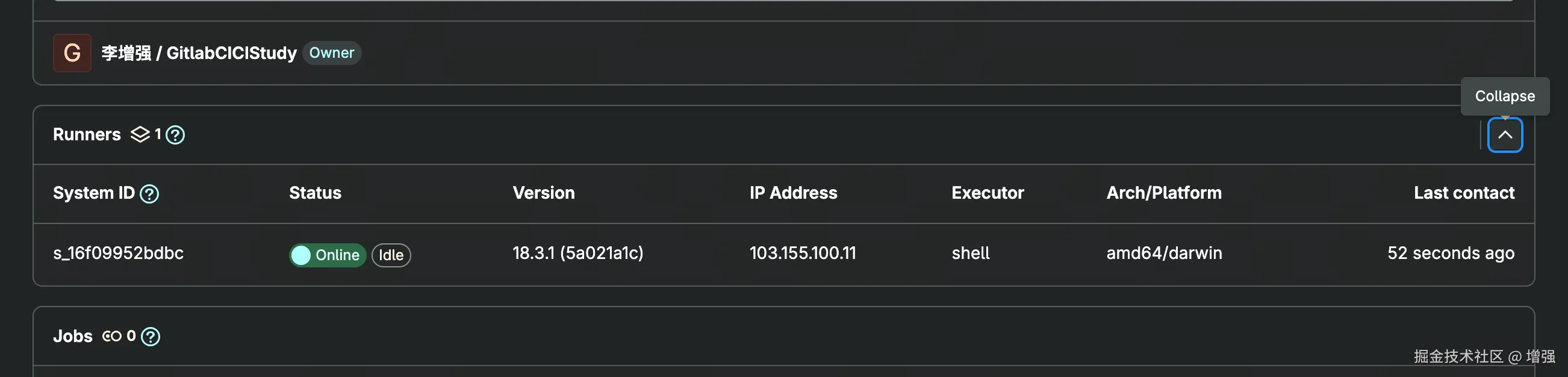

注册完成后，可以在项目的CI/CD 看到一个Runner Online

编写gitlab-ci.yml

# .gitlab-ci.yml
image: cimg/android:2025.04.1

stages:
  - build

#before_script:
#  # 打印确认环境变量
#  - echo "ANDROID_HOME=$ANDROID_HOME"
#  - echo "PATH=$PATH"
#
#  # 接受所有 SDK licenses
#  - yes | sdkmanager --licenses
#
#  # 安装必须的 SDK & Build Tools（根据项目 targetSdkVersion 修改）
#  - sdkmanager "platform-tools" "platforms;android-34" "build-tools;34.0.0"

build:
  stage: build
  script:
    # 使用 Gradle Wrapper 构建 APK
    - ./gradlew clean assembleRelease --stacktrace
  tags:
    - macos

  # 构建产物上传
  artifacts:
    paths:
      - app/build/outputs/apk/
    expire_in: 1 week

注意项

上面这种方式没有考虑SDK是否存在，需要在本地的.bash_profile 里声明ANDROID_HOME 变量，.zshrc 中声明 gitlab-runner (默认使用的shell 是bash)找不到，在gitlab-ci.yml 中指定PATH 变量，会导致mkdir 命令都找不到
