安装jenkins
构建jenkins基础镜像
FROM swr.cn-north-4.myhuaweicloud.com/ddn-k8s/docker.io/jenkins/jenkins:lts-jdk17
USER root
USER root
# 设置环境变量，定义APT镜像源（使用清华大学源）
ENV DEBIAN_FRONTEND=noninteractive \
APT_SOURCE="deb https://mirrors.tuna.tsinghua.edu.cn/debian/ bookworm main contrib non-free non-free-firmware\n\
deb https://mirrors.tuna.tsinghua.edu.cn/debian/ bookworm-updates main contrib non-free non-free-firmware\n\
deb https://mirrors.tuna.tsinghua.edu.cn/debian/ bookworm-backports main contrib non-free non-free-firmware\n\
deb https://mirrors.tuna.tsinghua.edu.cn/debian-security bookworm-security main contrib non-free non-free-firmware"
# 备份原源文件，并写入新的镜像源
RUN echo "${APT_SOURCE}" > /etc/apt/sources.list
# 安装 docker.io (Docker Engine CLI) 和依赖
RUN apt-get update && \
apt-get install -y --no-install-recommends \
docker.io \
ca-certificates \
&& \
apt-get clean && \
rm -rf /var/lib/apt/lists/*
# 将jenkins用户添加到docker组，使其无需sudo即可使用docker命令
RUN usermod -aG docker jenkins
# 切换回原来的jenkins用户，保证容器以非root权限运行
USER jenkins
# 验证安装
RUN docker --version
使用docker-compose 启动jenkins
version: '3'
services:
jenkins:
image: 10.9.2.45:5000/jenkins:1.0.4
container_name: jenkins
restart: unless-stopped
ports:
- "9091:8080"
- "50000:50000"
user: root
volumes:
- jenkins_data:/var/jenkins_home
- /var/run/docker.sock:/var/run/docker.sock
# - /snap/bin/docker:/usr/bin/docker
environment:
# - JAVA_OPTS=-Djenkins.install.runSetupWizard=false # 跳过初始设置(可选)
- DOCKER_HOST=unix:///var/run/docker.sock
volumes:
jenkins_data:
jenkins 设置
- 安装插件
- gitlab仓库设置 Credentials 添加仓库凭证
- k8s 配置 Credentials 添加集群配置
pipeline 脚本
pipeline {
agent any
environment {
// GitOps (Argo CD) 仓库配置
// 使用 SSH 地址以配合 sshagent
ARGO_REPO_URL = '仓库地址'
// 你要更新的 GitOps 仓库分支
ARGO_REPO_BRANCH = 'gitops' // 或者 'dev', 'master' 等
// Kustomize 环境路径 (根据你的描述)
ARGO_ENV_PATH = 'overlays/dev'
}
parameters {
gitParameter name: 'branch',
type: 'PT_BRANCH',
branchFilter: 'origin/(.*)',
defaultValue: 'zmz-0827',
selectedValue: 'DEFAULT',
sortMode: 'ASCENDING_SMART',
description: '选择需要构建的分支'
}
stages {
stage('服务信息') {
steps {
sh 'echo 分支：$branch'
sh 'echo 构建服务类型：${JOB_NAME}-$type'
}
}
stage('拉取代码') {
steps {
checkout([$class: 'GitSCM',
branches: [[name: "${params.branch}"]],
doGenerateSubmoduleConfigurations: false,
extensions: [],
submoduleCfg: [],
userRemoteConfigs: [[credentialsId: 'gitlab-secret', url: 'http://git.landspace.com/chenxi/integrated_services.git']]])
}
}
stage('获取commit_id') {
steps {
echo '获取commit_id'
git branch: "${params.branch}", // 指定分支
credentialsId: 'gitlab-secret',
url: '仓库地址'
script {
env.commit_id = sh(returnStdout: true, script: 'git rev-parse --short HEAD').trim()
}
}
}
stage('goctl版本检测') {
steps{
sh '/usr/local/bin/goctl -v'
}
}
stage('Dockerfile Build') {
steps{
script{
env.image = sh(returnStdout: true, script: 'echo ${servicename}:${commit_id} | tr "[:upper:]" "[:lower:]"').trim()
}
sh 'echo 镜像名称：${image} && ls -l '
sh '''
docker build -f docker/prod/${servicename}.Dockerfile -t ${image} .
'''
}
}
stage('上传到镜像仓库') {
steps {
script {
// 将 servicename 转为小写
def lowerServiceName = params.servicename.toLowerCase()
// 使用转换后的名称
sh "docker tag ${image} ${DOCKER_REGISTRY}/${lowerServiceName}/${image}"
sh "docker push ${DOCKER_REGISTRY}/${lowerServiceName}/${image}"
}
}
}
stage('Kubernetes 部署') {
steps {
script {
def fullImageName = "${DOCKER_REGISTRY}/${params.servicename.toLowerCase()}/${image}"
def deploymentFile = "docker/prod/${params.servicename}.deploy.yaml"
withKubeConfig([credentialsId: 'k8s_config', serverUrl: 'https://10.9.2.45:6443']) {
sh """
# 备份文件
# 替换镜像
sed -i 's|image:.*|image: ${fullImageName}|g' ${deploymentFile}
# 应用部署
kubectl apply -f ${deploymentFile}
# 检查状态
kubectl rollout status deployment/${params.servicename.toLowerCase()} -n zq-3-test --timeout=300s
"""
}
}
}
}
stage('更新GitOps配置') {
steps {
// 同样使用 withCredentials 块
withCredentials([usernamePassword(
credentialsId: 'gitlab-secret',
usernameVariable: 'GIT_USERNAME',
passwordVariable: 'GIT_PASSWORD'
)]) {
script {
// 构造带有认证信息的 GitOps 仓库 URL
def argoRepoUrlWithCreds = "https://${GIT_USERNAME}:${GIT_PASSWORD}@demo.git"
echo "开始更新 GitOps 仓库"
sh 'rm -rf gitops-repo'
// 1. 克隆 GitOps 仓库
sh """
# 克隆时在 URL 中嵌入凭证
git clone --branch ${env.ARGO_REPO_BRANCH} ${argoRepoUrlWithCreds} gitops-repo
cd gitops-repo
git config user.name "Jenkins CI Bot"
git config user.email "jenkins-bot@your-company.com"
"""
// 2. 修改 kustomization.yaml (这部分逻辑不变)
def kustomizeFilePath = "${env.ARGO_ENV_PATH}/kustomization.yaml"
def newImageName = "${env.DOCKER_REGISTRY}/${params.servicename.toLowerCase()}"
def fullImageName = "${DOCKER_REGISTRY}/${params.servicename.toLowerCase()}/${image}"
sh """
cd gitops-repo
echo ${env.ARGO_ENV_PATH}
cd ${env.ARGO_ENV_PATH}
kustomize edit set image ${params.servicename.toLowerCase()}=${fullImageName}
"""
// 3. 提交并推送变更
sh """
cd gitops-repo
git add ${kustomizeFilePath}
git commit -m "ci: Update ${params.servicename} to version ${env.commit_id}"
# 推送时不再需要额外认证，因为 clone 时已经包含了凭证信息
git push origin ${env.ARGO_REPO_BRANCH}
"""
}
}
}
}
// stage('Clean') {
// steps{
// sh 'docker rmi -f ${image}'
// sh 'docker rmi -f ${docker_repo}/${image}'
// cleanWs notFailBuild: true
// }
// }
}
}
argocd 安装
kubectl apply -n argocd -f https://raw.githubusercontent.com/argoproj/argo-cd/stable/manifests/install.yaml
暴露服务:
kubectl port-forward svc/argocd-server -n argocd 8080:443

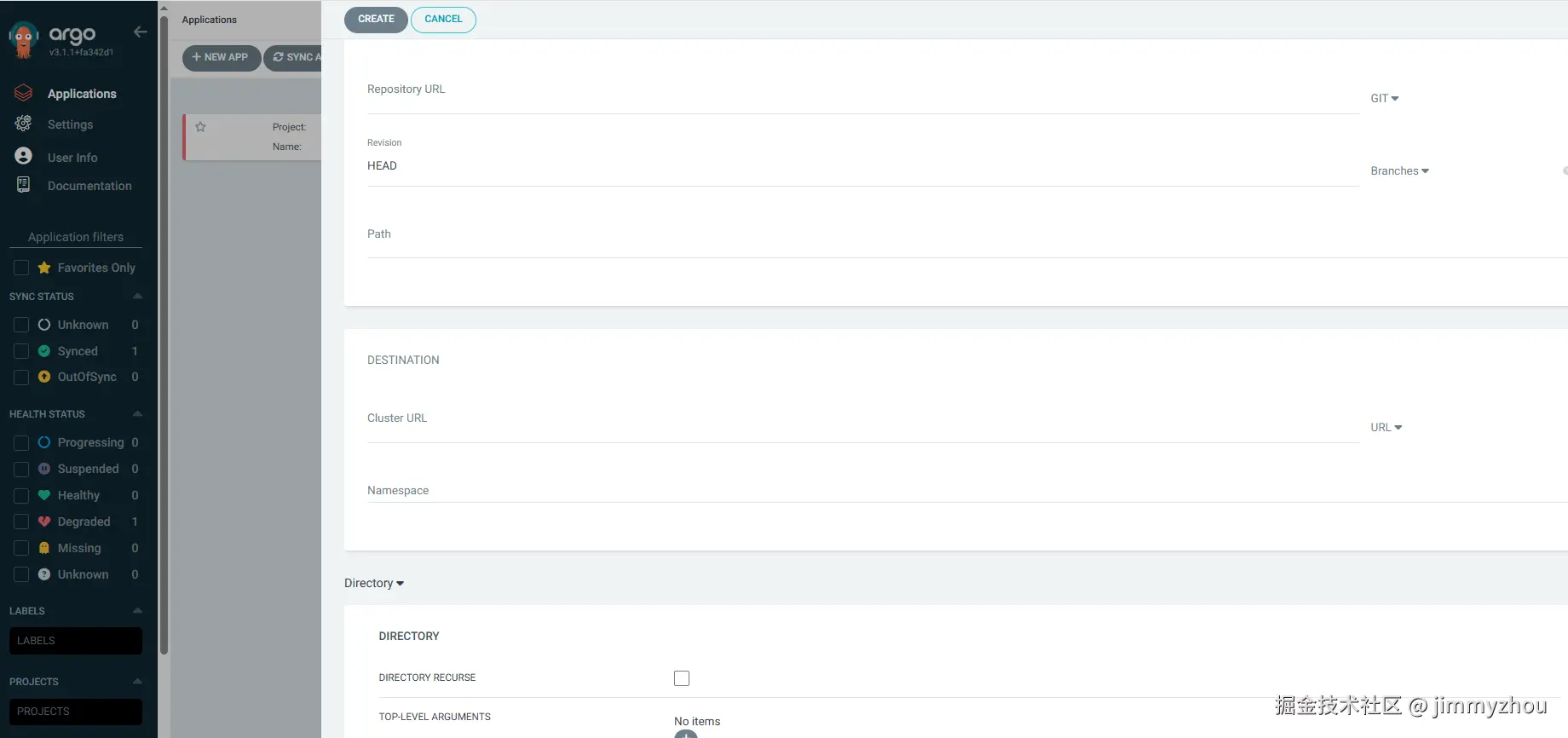

argo 创建项目

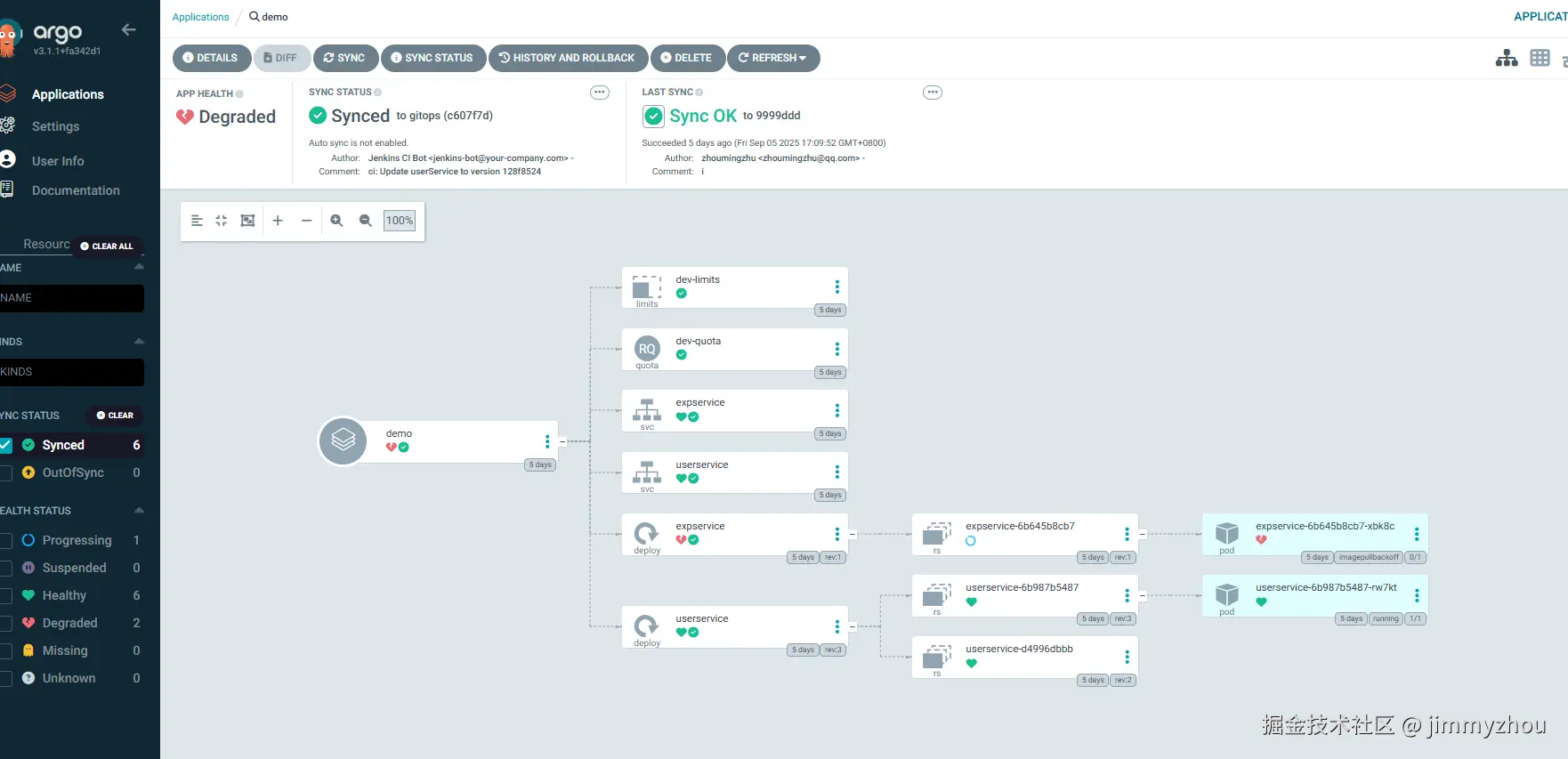

jenkins流水线执行完之后,将image更新完 提交到运维仓库 ,argo自动sync变更 发布服务
