海洋气象数据可视化平台设计与实现介绍
海洋气象数据可视化平台设计与实现是一套基于大数据技术的综合性数据处理与展示系统，主要面向海洋气象数据的采集、存储、分析和可视化需求。该系统采用Hadoop分布式文件系统作为底层数据存储架构，利用Spark大数据处理引擎实现海量气象数据的高效计算和分析，通过Django框架构建稳定的后端服务体系，前端采用Vue.js结合ElementUI组件库和Echarts可视化库打造直观友好的用户交互界面。系统核心功能涵盖系统首页展示、个人中心管理、海洋数据录入与查询、预测信息分析以及管理员后台管理等模块，能够有效处理温度、湿度、风速、气压等多维度海洋气象参数，通过Spark SQL进行数据清洗和统计分析，结合NumPy和Pandas进行数据科学计算，最终以多样化的图表形式呈现数据趋势和分析结果，为海洋气象研究和决策提供数据支撑，同时也为大数据技术在气象领域的应用实践提供了较为完整的解决方案。
海洋气象数据可视化平台设计与实现演示视频

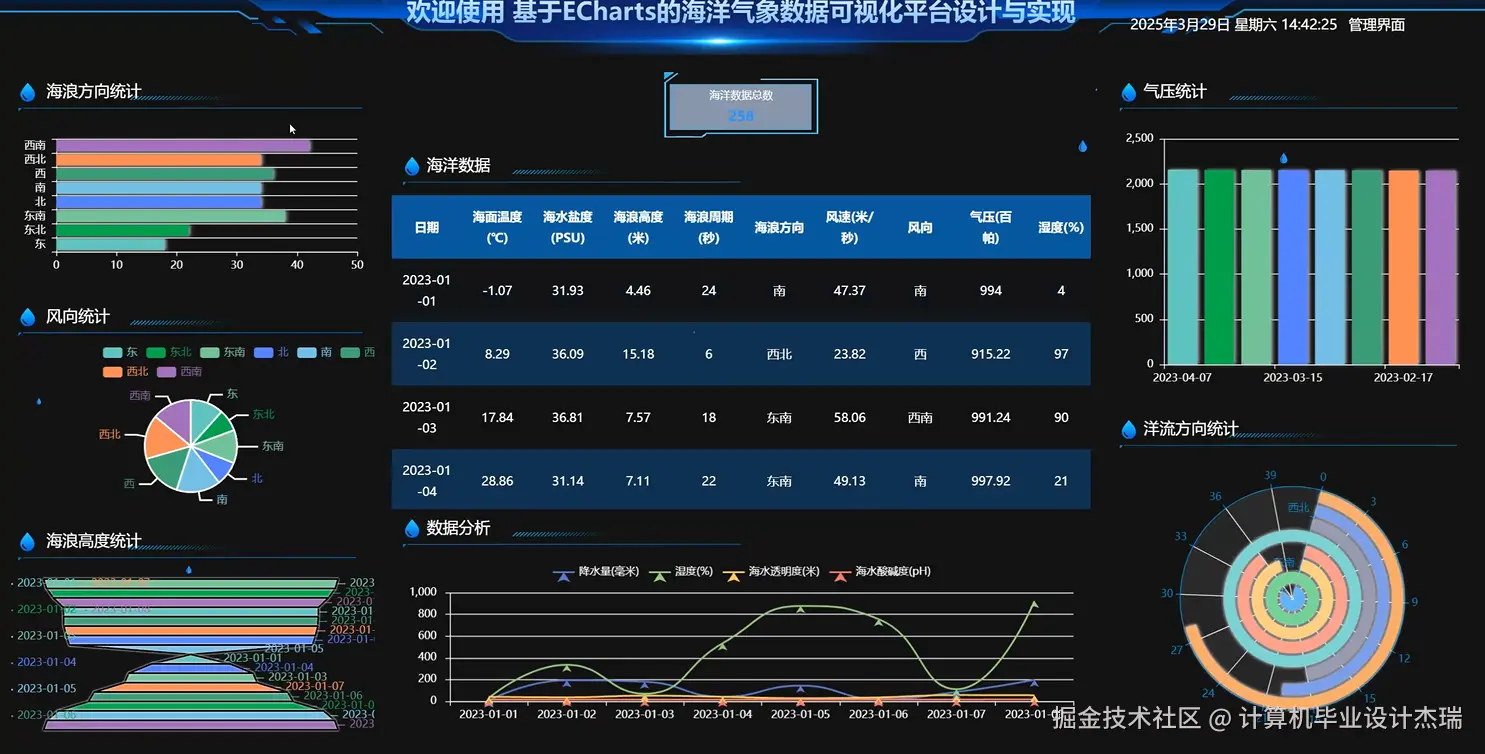

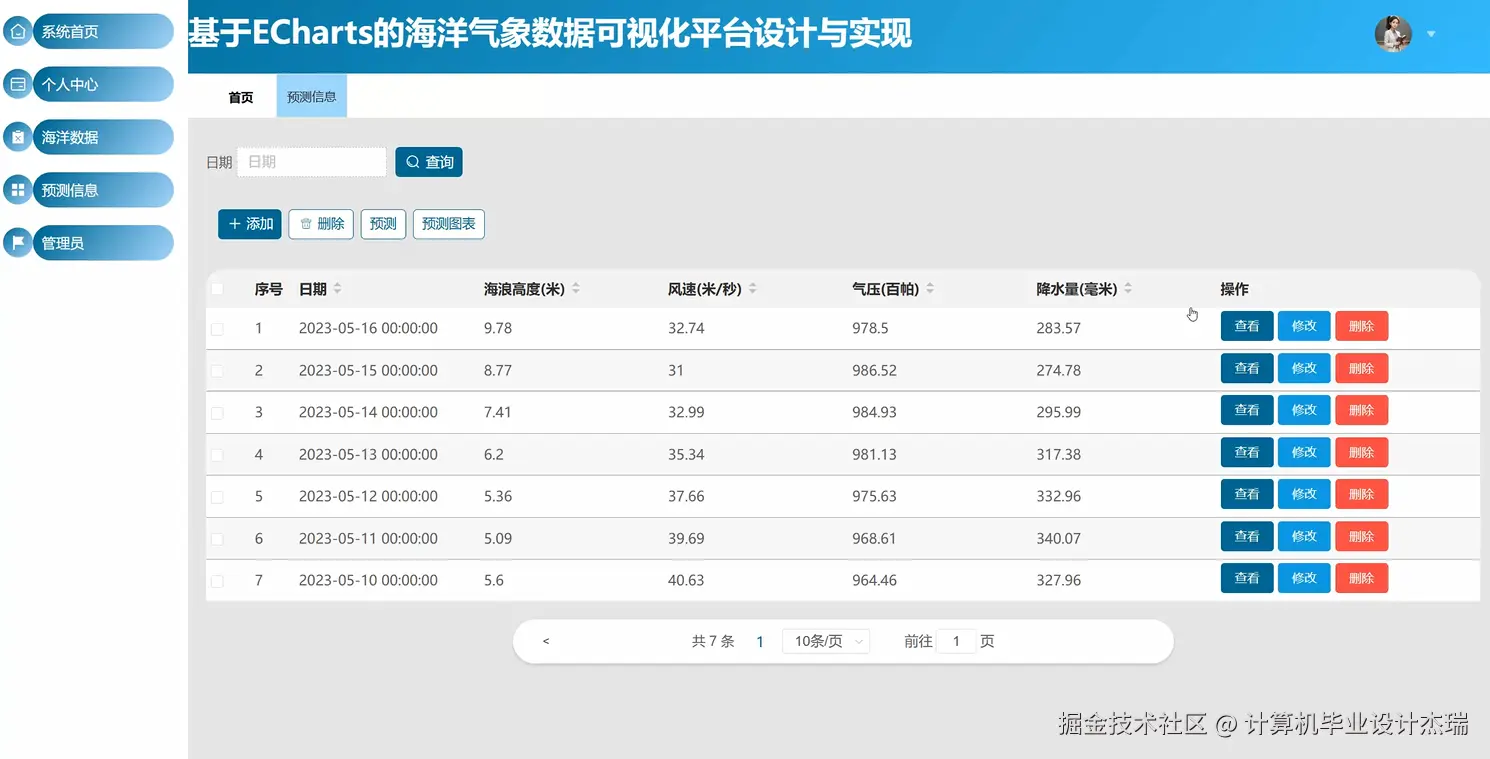

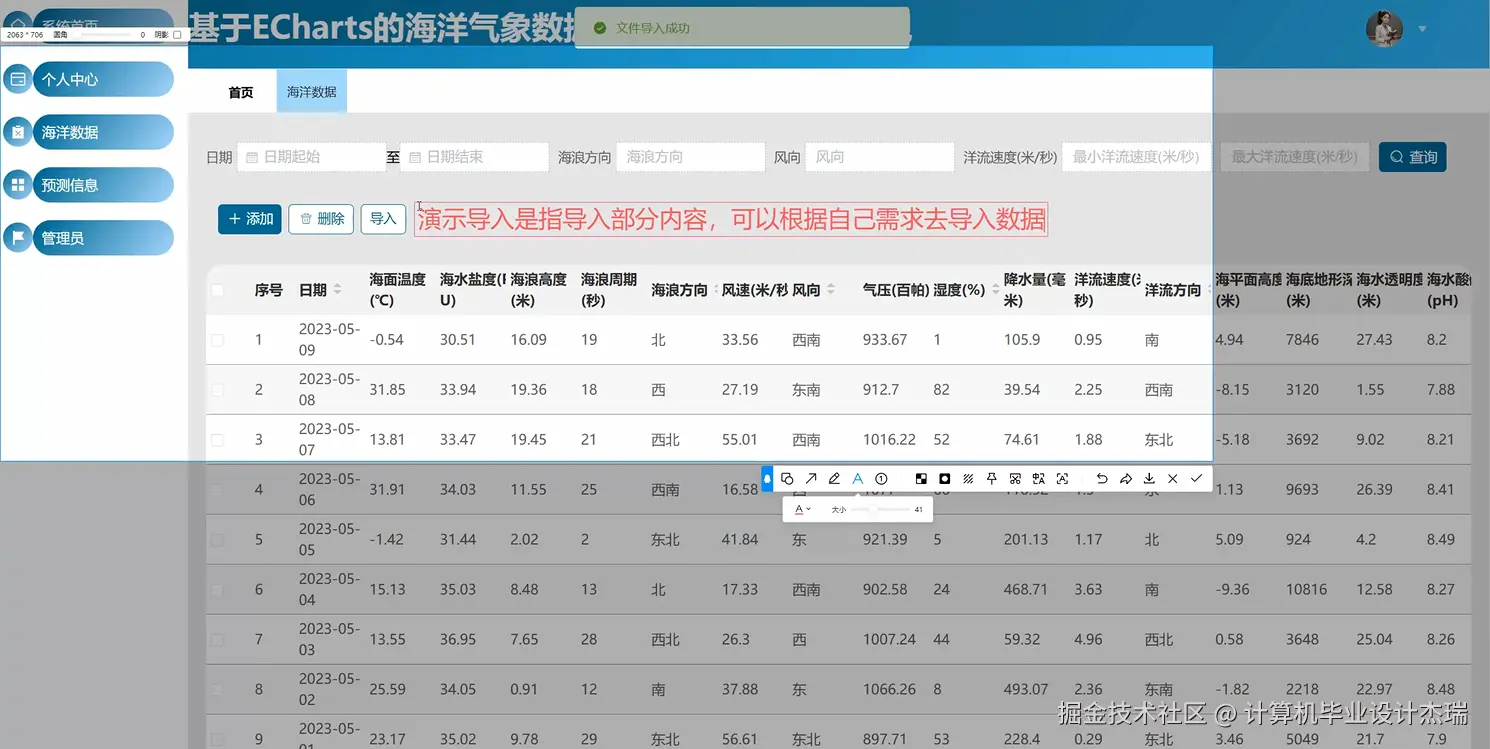

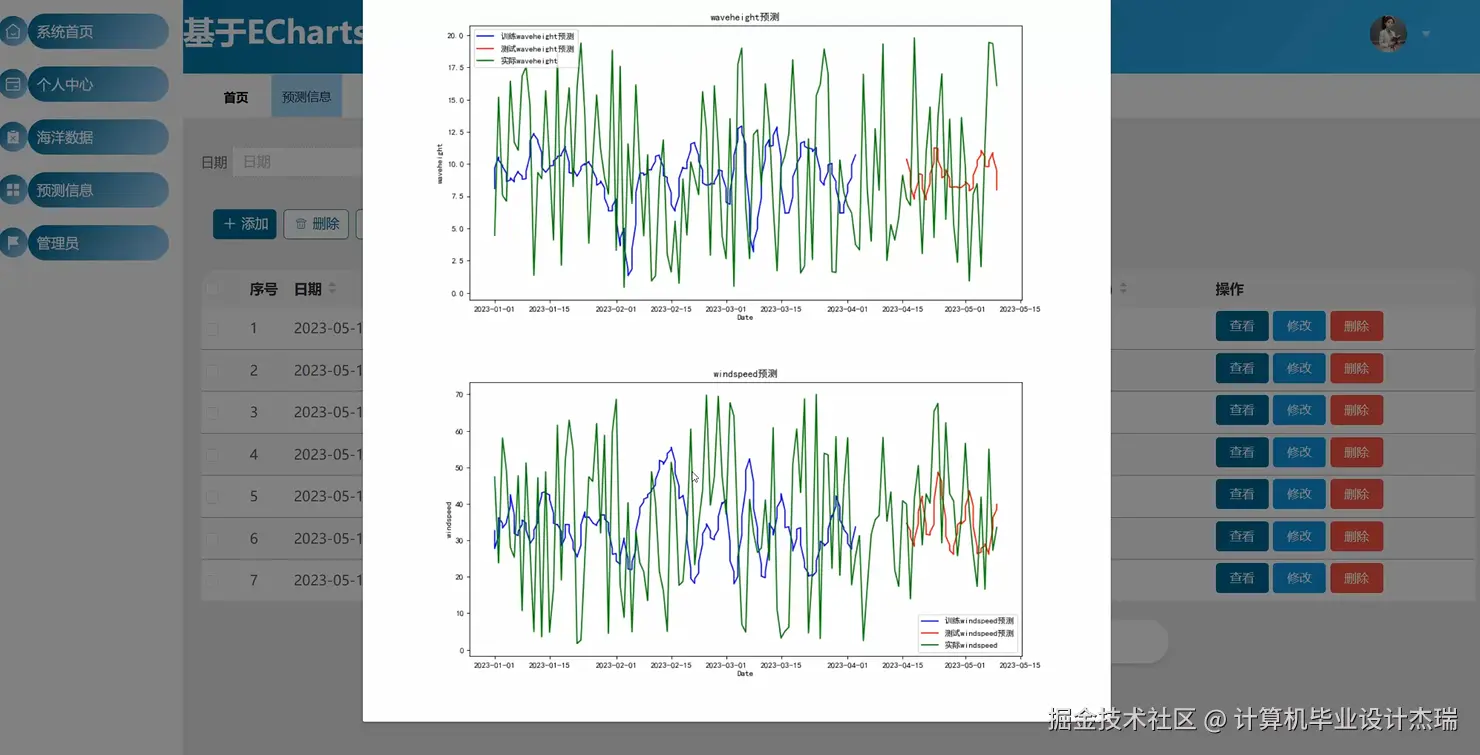

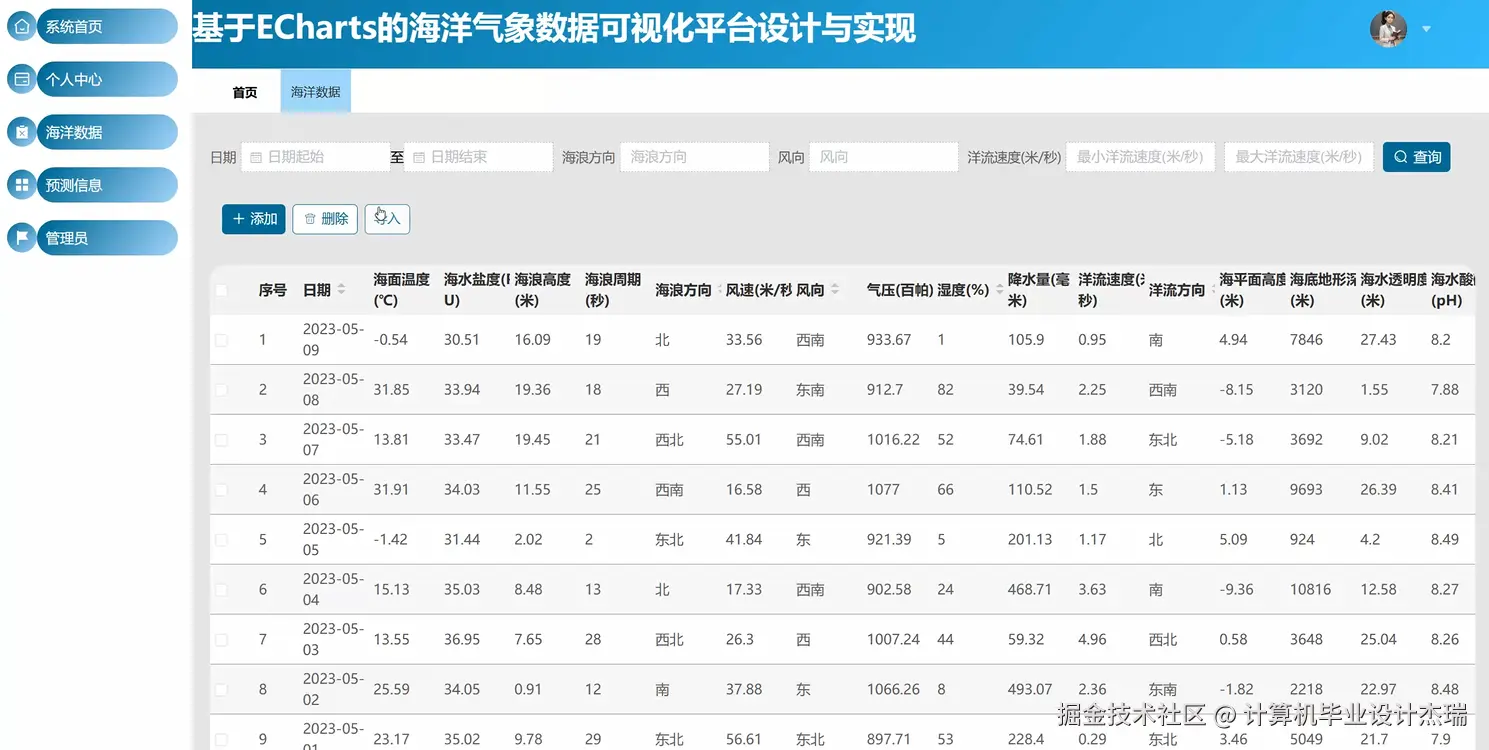

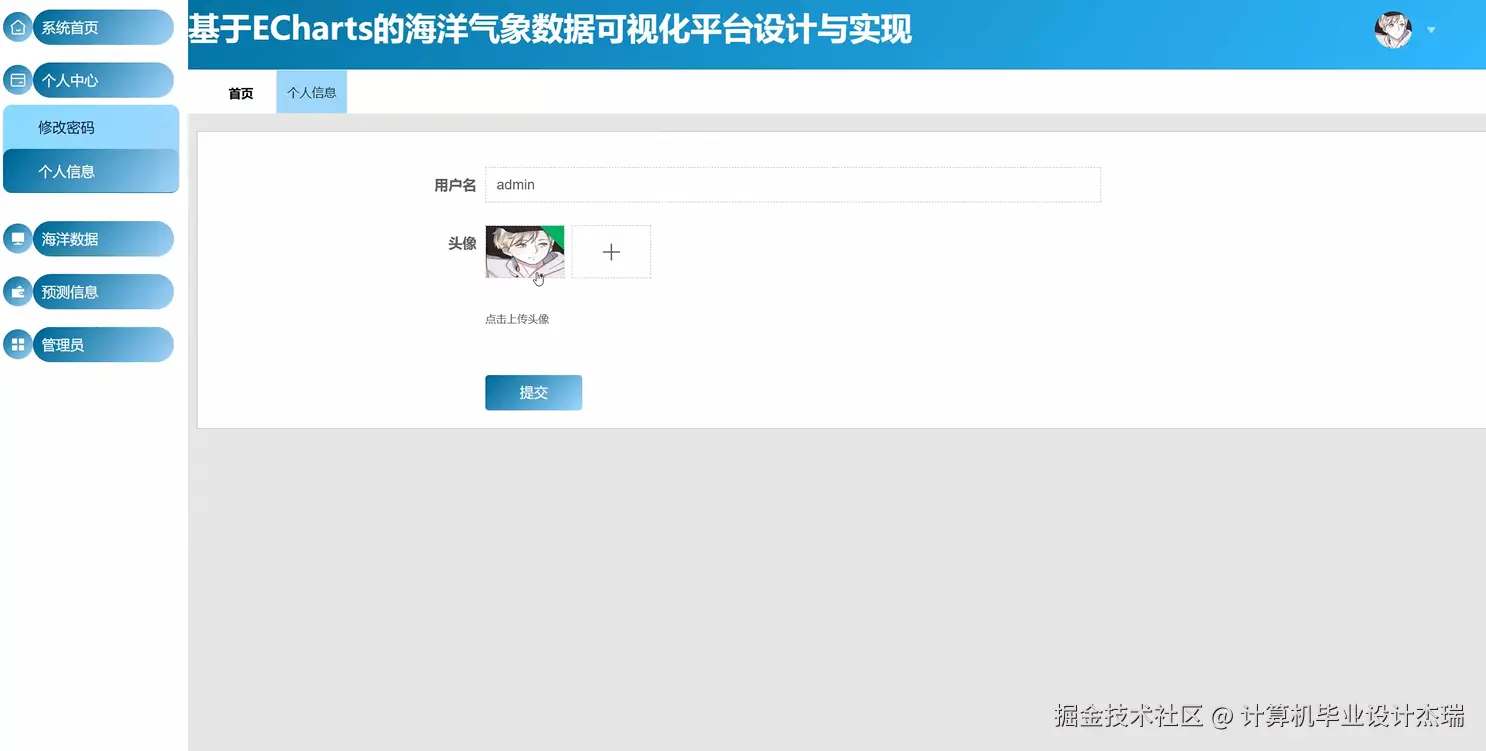

海洋气象数据可视化平台设计与实现演示图片
海洋气象数据可视化平台设计与实现代码展示
from pyspark.sql import SparkSession
from django.http import JsonResponse
from django.views.decorators.csrf import csrf_exempt
import json
import pandas as pd
import numpy as np
from datetime import datetime, timedelta
spark = SparkSession.builder.appName("OceanWeatherDataPlatform").config("spark.sql.adaptive.enabled", "true").getOrCreate()
@csrf_exempt
def ocean_data_management(request):
if request.method == 'POST':
data = json.loads(request.body)
temperature = float(data.get('temperature', 0))
humidity = float(data.get('humidity', 0))
wind_speed = float(data.get('wind_speed', 0))
pressure = float(data.get('pressure', 0))
location = data.get('location', '')
record_time = datetime.now().strftime('%Y-%m-%d %H:%M:%S')
ocean_df = spark.createDataFrame([(temperature, humidity, wind_speed, pressure, location, record_time)],
['temperature', 'humidity', 'wind_speed', 'pressure', 'location', 'record_time'])
ocean_df.write.mode('append').option('header', 'true').csv('hdfs://localhost:9000/ocean_data/')
ocean_df.createOrReplaceTempView('current_ocean_data')
validation_result = spark.sql("SELECT * FROM current_ocean_data WHERE temperature BETWEEN -50 AND 60 AND humidity BETWEEN 0 AND 100")
if validation_result.count() > 0:
processed_data = spark.sql("SELECT temperature, humidity, wind_speed, pressure, location, record_time, " +
"CASE WHEN temperature > 25 THEN 'HIGH' WHEN temperature < 10 THEN 'LOW' ELSE 'NORMAL' END as temp_level " +
"FROM current_ocean_data")
result_data = processed_data.toPandas().to_dict('records')
return JsonResponse({'status': 'success', 'data': result_data, 'message': '海洋数据录入成功'})
else:
return JsonResponse({'status': 'error', 'message': '数据验证失败，请检查输入值'})
elif request.method == 'GET':
location_filter = request.GET.get('location', '')
date_filter = request.GET.get('date', '')
hdfs_data = spark.read.option('header', 'true').csv('hdfs://localhost:9000/ocean_data/')
hdfs_data.createOrReplaceTempView('ocean_history')
query_conditions = []
if location_filter:
query_conditions.append(f"location = '{location_filter}'")
if date_filter:
query_conditions.append(f"DATE(record_time) = '{date_filter}'")
where_clause = " AND ".join(query_conditions) if query_conditions else "1=1"
query_result = spark.sql(f"SELECT * FROM ocean_history WHERE {where_clause} ORDER BY record_time DESC LIMIT 1000")
ocean_data_list = query_result.toPandas().to_dict('records')
return JsonResponse({'status': 'success', 'data': ocean_data_list, 'total': len(ocean_data_list)})
@csrf_exempt
def prediction_analysis(request):
if request.method == 'POST':
data = json.loads(request.body)
location = data.get('location', '')
prediction_days = int(data.get('days', 7))
historical_data = spark.read.option('header', 'true').csv('hdfs://localhost:9000/ocean_data/')
historical_data.createOrReplaceTempView('historical_ocean')
location_data = spark.sql(f"SELECT temperature, humidity, wind_speed, pressure, record_time FROM historical_ocean " +
f"WHERE location = '{location}' ORDER BY record_time DESC LIMIT 100")
if location_data.count() < 10:
return JsonResponse({'status': 'error', 'message': '历史数据不足，无法进行预测分析'})
pandas_data = location_data.toPandas()
pandas_data['record_time'] = pd.to_datetime(pandas_data['record_time'])
pandas_data = pandas_data.sort_values('record_time')
temperature_avg = pandas_data['temperature'].rolling(window=7).mean().iloc[-1]
humidity_trend = pandas_data['humidity'].diff().mean()
wind_speed_std = pandas_data['wind_speed'].std()
pressure_seasonal = pandas_data['pressure'].rolling(window=30).mean().iloc[-1] if len(pandas_data) >= 30 else pandas_data['pressure'].mean()
prediction_results = []
for day in range(1, prediction_days + 1):
future_date = datetime.now() + timedelta(days=day)
pred_temperature = temperature_avg + np.random.normal(0, 2) * day * 0.1
pred_humidity = pandas_data['humidity'].iloc[-1] + humidity_trend * day + np.random.normal(0, 5)
pred_wind_speed = pandas_data['wind_speed'].mean() + np.random.normal(0, wind_speed_std * 0.5)
pred_pressure = pressure_seasonal + np.random.normal(0, 10)
pred_humidity = max(0, min(100, pred_humidity))
pred_wind_speed = max(0, pred_wind_speed)
confidence_level = max(0.5, 1 - (day * 0.05))
prediction_results.append({
'date': future_date.strftime('%Y-%m-%d'),
'temperature': round(pred_temperature, 2),
'humidity': round(pred_humidity, 2),
'wind_speed': round(pred_wind_speed, 2),
'pressure': round(pred_pressure, 2),
'confidence': round(confidence_level, 2)
})
return JsonResponse({'status': 'success', 'predictions': prediction_results, 'location': location})
@csrf_exempt
def data_visualization(request):
if request.method == 'GET':
chart_type = request.GET.get('type', 'trend')
location = request.GET.get('location', '')
time_range = request.GET.get('range', '30')
visualization_data = spark.read.option('header', 'true').csv('hdfs://localhost:9000/ocean_data/')
visualization_data.createOrReplaceTempView('viz_data')
end_date = datetime.now()
start_date = end_date - timedelta(days=int(time_range))
base_query = f"SELECT * FROM viz_data WHERE record_time >= '{start_date}' AND record_time <= '{end_date}'"
if location:
base_query += f" AND location = '{location}'"
filtered_data = spark.sql(base_query + " ORDER BY record_time")
if chart_type == 'trend':
trend_query = spark.sql("SELECT DATE(record_time) as date, AVG(temperature) as avg_temp, " +
"AVG(humidity) as avg_humidity, AVG(wind_speed) as avg_wind, AVG(pressure) as avg_pressure " +
"FROM viz_data GROUP BY DATE(record_time) ORDER BY date")
trend_data = trend_query.toPandas().to_dict('records')
return JsonResponse({'status': 'success', 'chart_data': trend_data, 'type': 'line_chart'})
elif chart_type == 'distribution':
distribution_query = spark.sql("SELECT " +
"CASE WHEN temperature < 10 THEN 'Cold' WHEN temperature > 25 THEN 'Hot' ELSE 'Normal' END as temp_range, " +
"COUNT(*) as count FROM viz_data GROUP BY " +
"CASE WHEN temperature < 10 THEN 'Cold' WHEN temperature > 25 THEN 'Hot' ELSE 'Normal' END")
distribution_data = distribution_query.toPandas().to_dict('records')
return JsonResponse({'status': 'success', 'chart_data': distribution_data, 'type': 'pie_chart'})
elif chart_type == 'correlation':
correlation_data = filtered_data.select('temperature', 'humidity', 'wind_speed', 'pressure').toPandas()
correlation_matrix = correlation_data.corr().round(3).to_dict()
heatmap_data = []
for i, row_name in enumerate(correlation_matrix.keys()):
for j, col_name in enumerate(correlation_matrix.keys()):
heatmap_data.append([i, j, correlation_matrix[row_name][col_name]])
return JsonResponse({'status': 'success', 'chart_data': heatmap_data, 'type': 'heatmap'})
else:
statistical_summary = spark.sql("SELECT COUNT(*) as total_records, AVG(temperature) as avg_temp, " +
"MIN(temperature) as min_temp, MAX(temperature) as max_temp, " +
"STDDEV(temperature) as std_temp FROM viz_data")
summary_data = statistical_summary.toPandas().to_dict('records')[0]
return JsonResponse({'status': 'success', 'chart_data': summary_data, 'type': 'summary'})

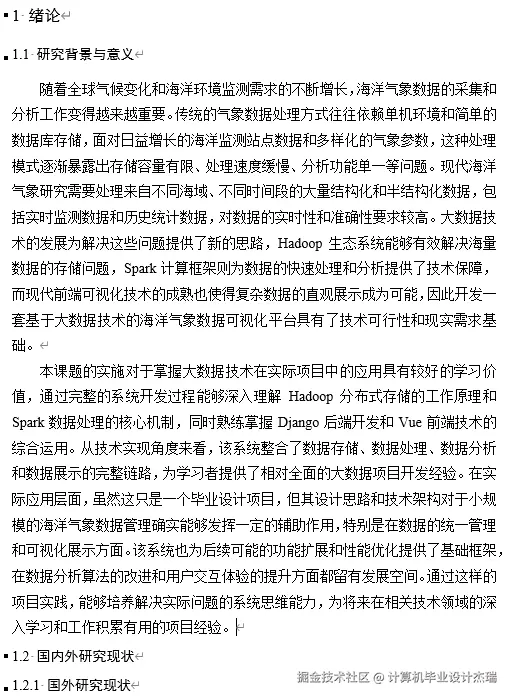

海洋气象数据可视化平台设计与实现文档展示
