基于大数据的中国火车站站点地理数据分析系统介绍
《中国火车站站点地理数据分析系统》是一个基于大数据技术栈构建的综合性地理信息分析平台，采用Hadoop分布式存储架构和Spark大数据处理引擎作为核心技术支撑。系统运用Python语言结合Django框架搭建后端服务，前端采用Vue.js配合ElementUI组件库和Echarts可视化工具构建用户交互界面。在数据处理层面，系统深度整合Spark SQL进行结构化数据查询分析，利用Pandas和NumPy进行数据清洗和统计计算，通过HDFS实现海量地理数据的可靠存储。系统核心功能涵盖火车站站点信息管理、多维度数据可视化分析、大屏展示、站点宏观特征分析、空间分布分析、铁路局管辖范围分析、站点等级划分分析以及核心站点聚集区域识别等模块。整个系统架构采用前后端分离设计模式，后端提供RESTful API接口服务，前端通过Ajax异步请求获取数据并进行动态渲染，实现了从数据采集、存储、处理到可视化展示的完整数据分析流程，为铁路交通地理信息的深度挖掘和智能决策提供了有力的技术支撑平台。
基于大数据的中国火车站站点地理数据分析系统演示视频

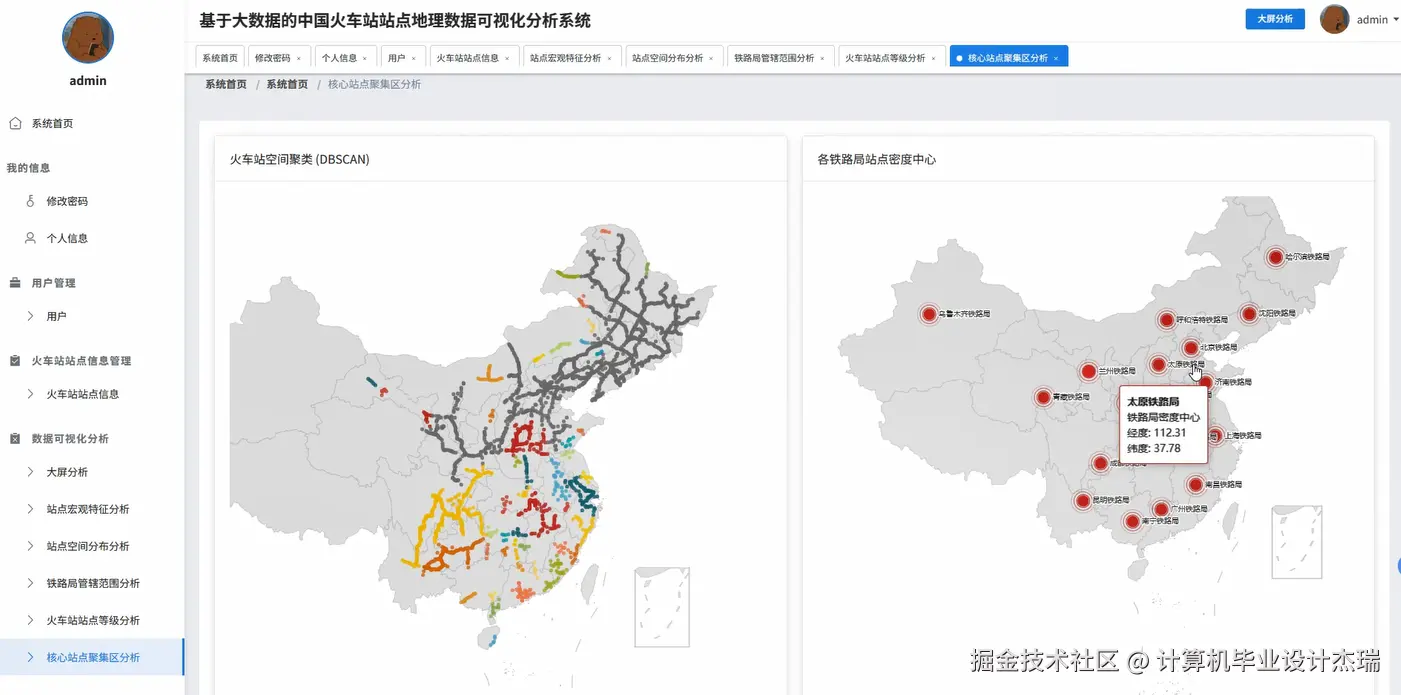

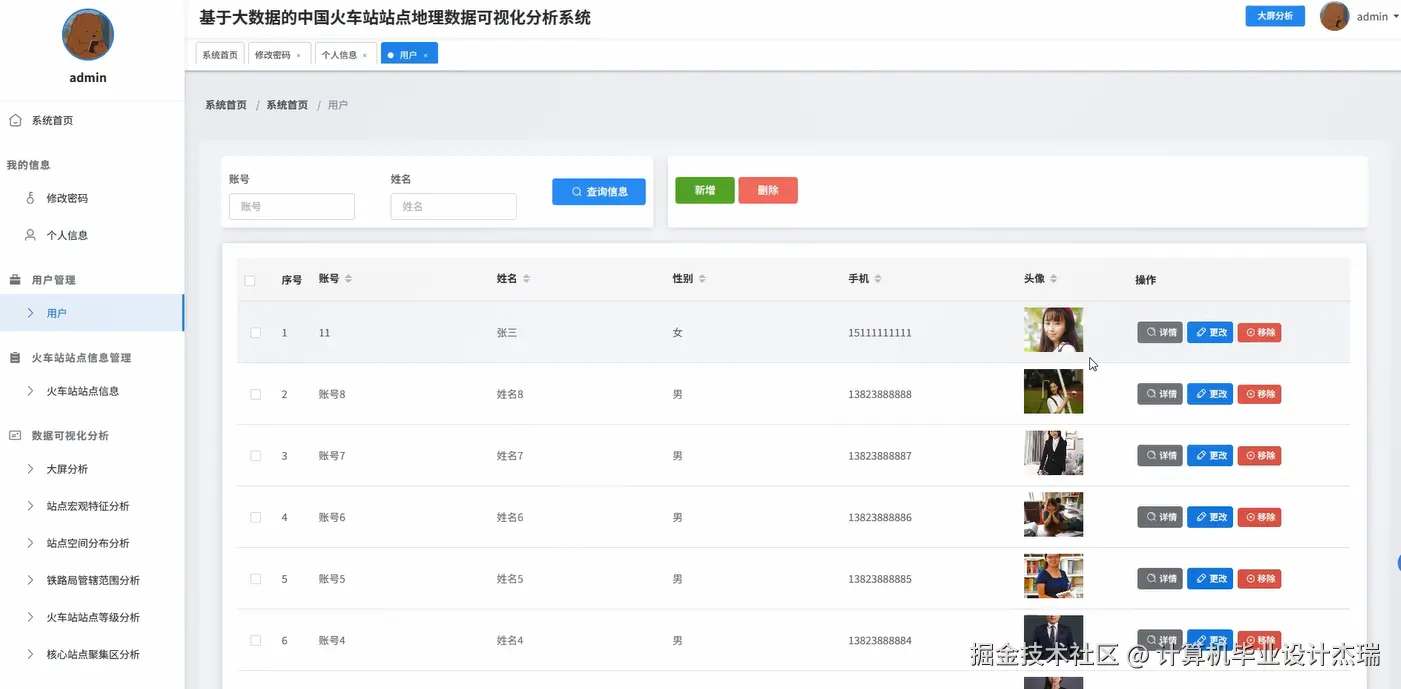

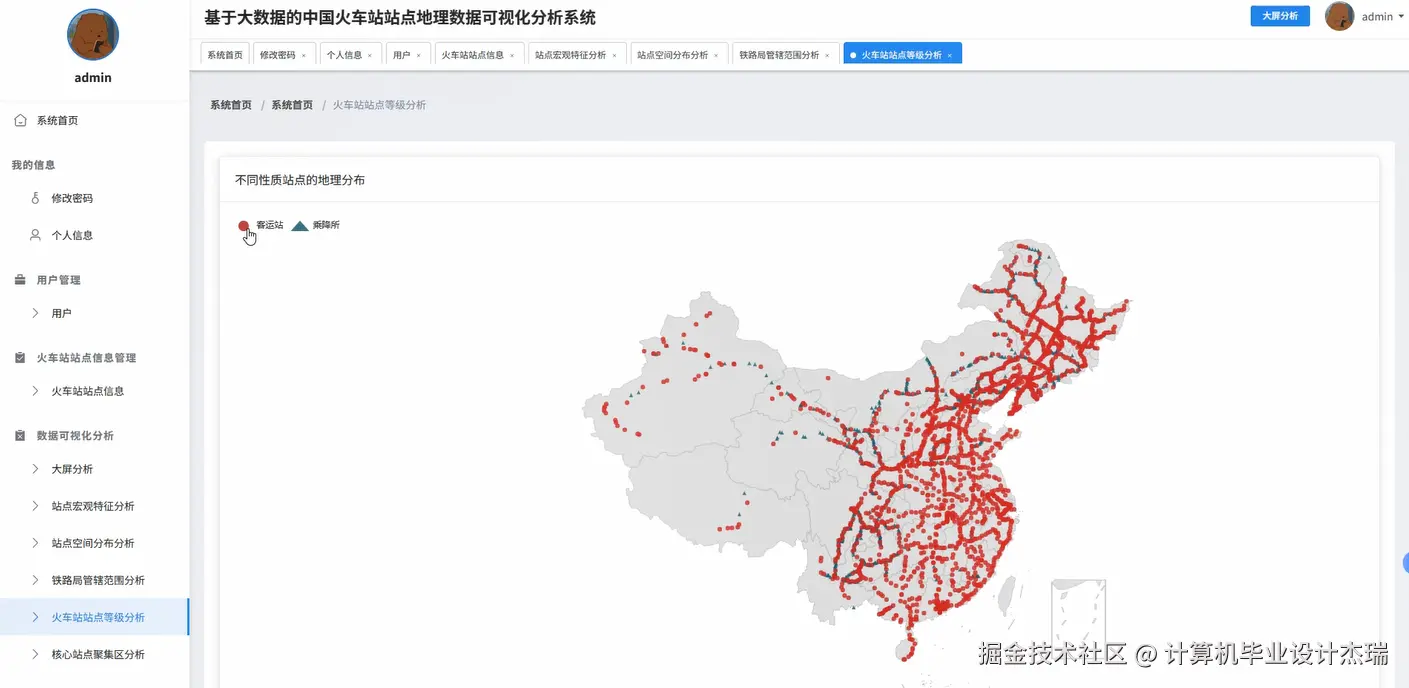

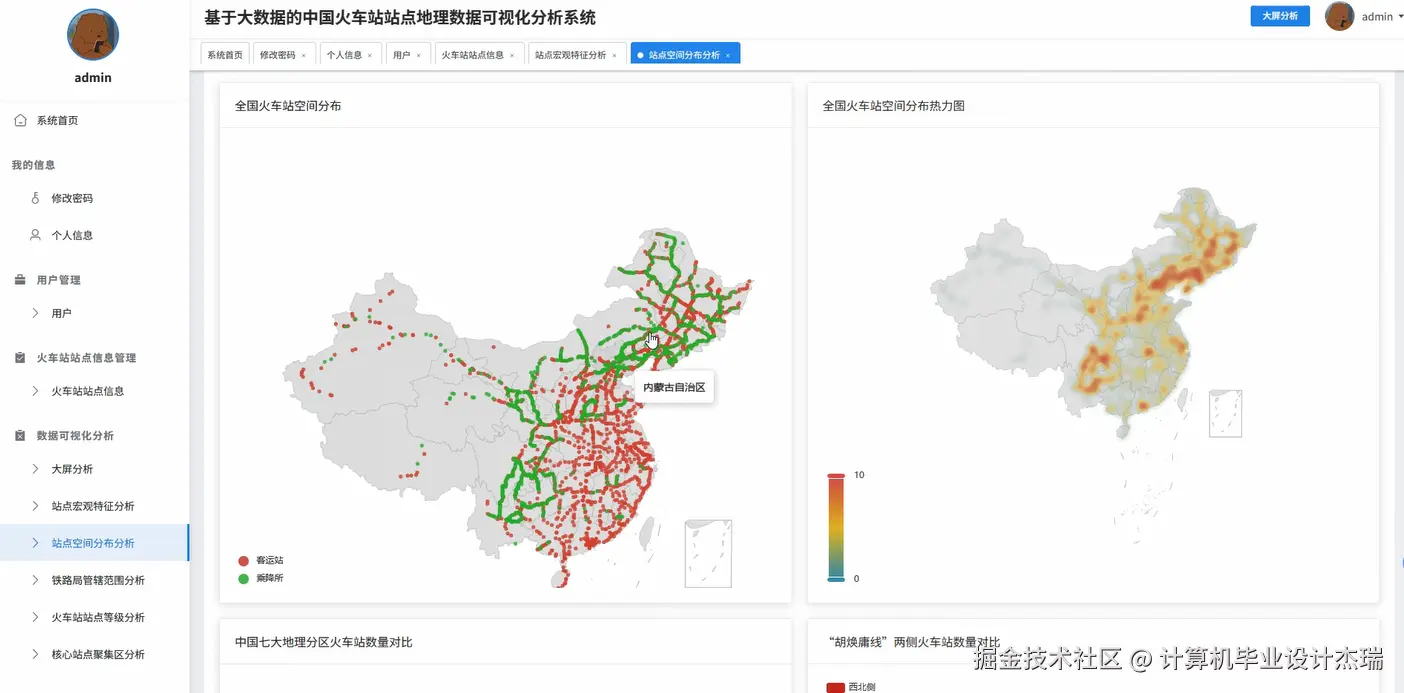

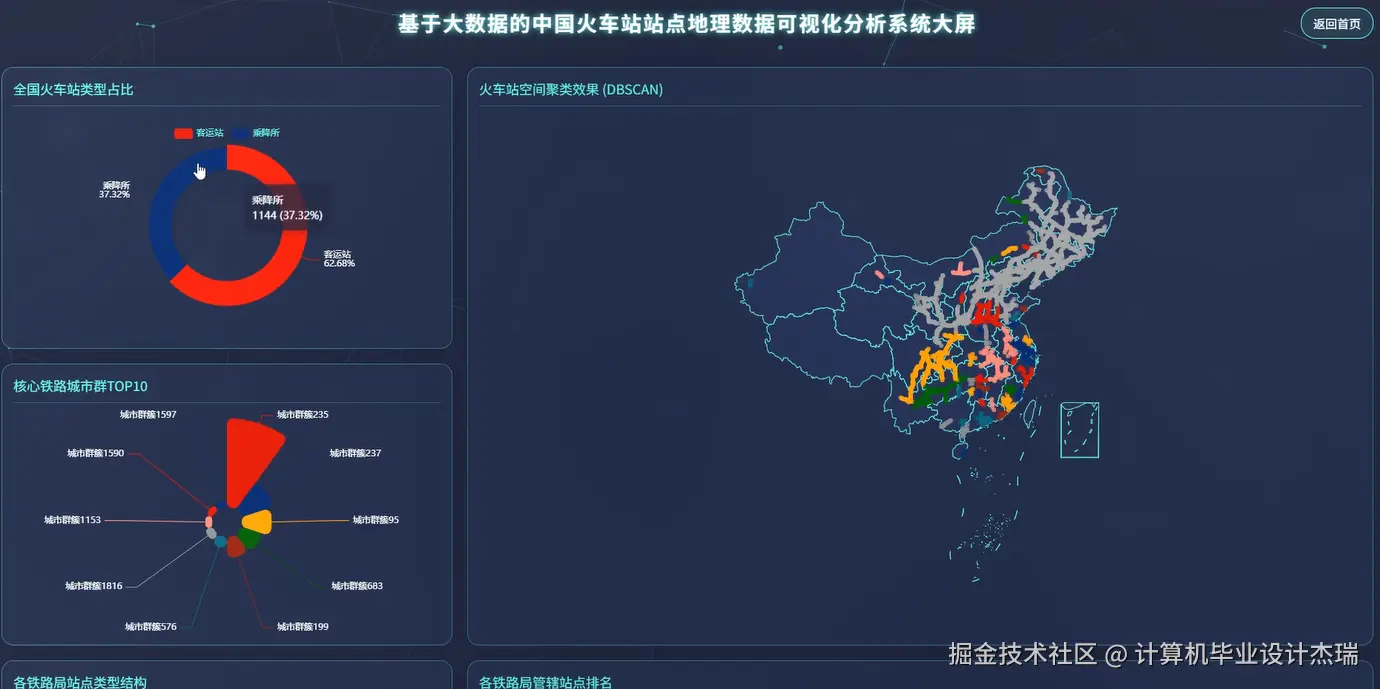

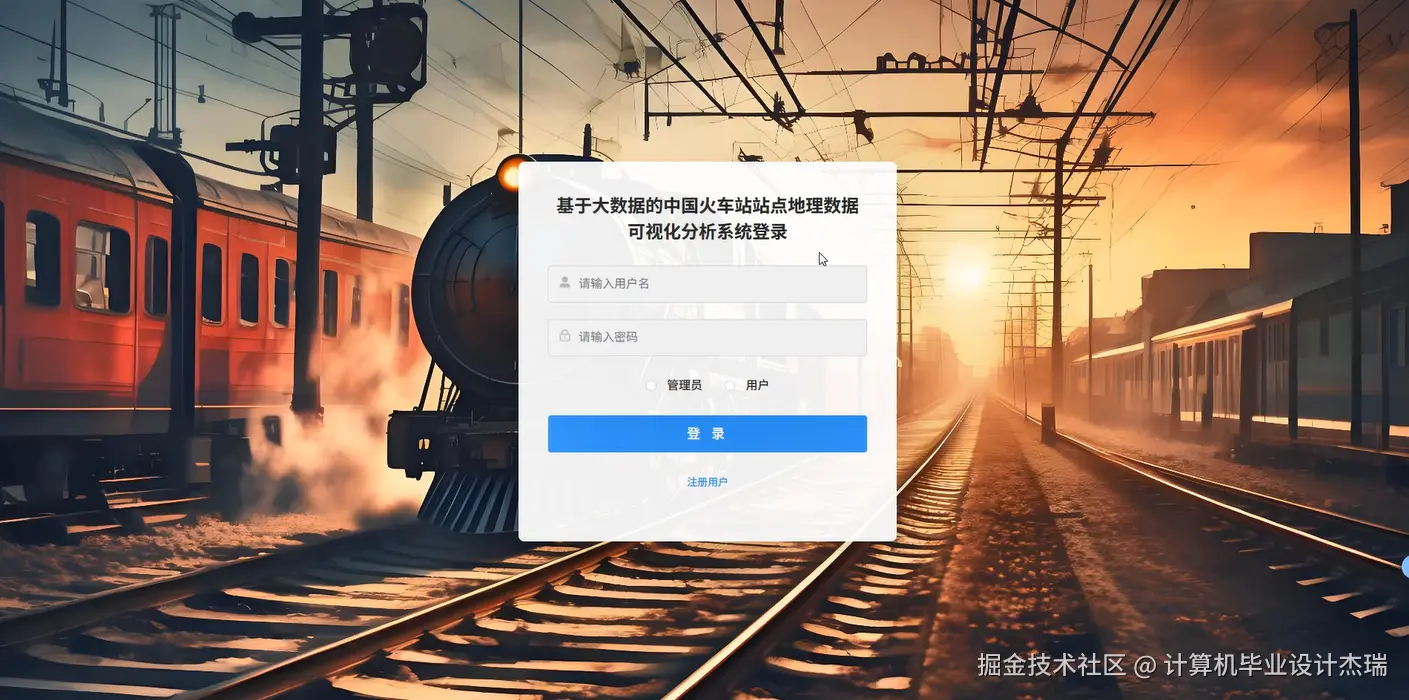

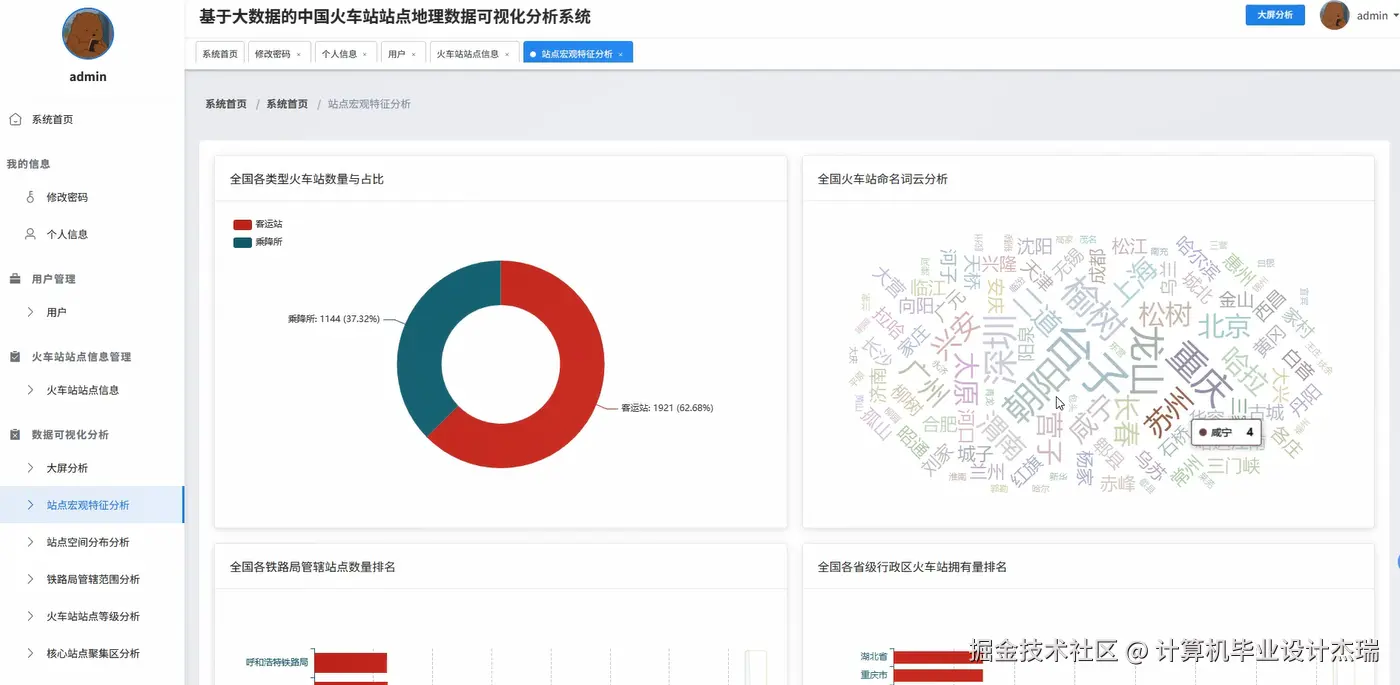

基于大数据的中国火车站站点地理数据分析系统演示图片
基于大数据的中国火车站站点地理数据分析系统代码展示
from pyspark.sql import SparkSession
from pyspark.sql.functions import col, count, avg, sum, max, min, desc, asc, when
from pyspark.sql.types import StructType, StructField, StringType, IntegerType, DoubleType
import pandas as pd
import numpy as np
from django.http import JsonResponse
from django.views.decorators.csrf import csrf_exempt
import json
spark = SparkSession.builder.appName("TrainStationAnalysis").config("spark.sql.adaptive.enabled", "true").config("spark.sql.adaptive.coalescePartitions.enabled", "true").getOrCreate()
def station_spatial_distribution_analysis(request):
station_df = spark.read.option("header", "true").csv("hdfs://localhost:9000/train_stations/station_data.csv")
station_df = station_df.withColumn("longitude", col("longitude").cast(DoubleType()))
station_df = station_df.withColumn("latitude", col("latitude").cast(DoubleType()))
station_df = station_df.withColumn("station_level", col("station_level").cast(IntegerType()))
province_distribution = station_df.groupBy("province").agg(count("station_id").alias("station_count"), avg("longitude").alias("avg_longitude"), avg("latitude").alias("avg_latitude")).orderBy(desc("station_count"))
city_distribution = station_df.groupBy("province", "city").agg(count("station_id").alias("station_count")).orderBy(desc("station_count"))
level_distribution = station_df.groupBy("station_level").agg(count("station_id").alias("count")).orderBy("station_level")
longitude_stats = station_df.agg(min("longitude").alias("min_lng"), max("longitude").alias("max_lng"), avg("longitude").alias("avg_lng")).collect()[0]
latitude_stats = station_df.agg(min("latitude").alias("min_lat"), max("latitude").alias("max_lat"), avg("latitude").alias("avg_lat")).collect()[0]
density_analysis = station_df.withColumn("lng_zone", (col("longitude") / 2).cast(IntegerType()) * 2).withColumn("lat_zone", (col("latitude") / 2).cast(IntegerType()) * 2).groupBy("lng_zone", "lat_zone").agg(count("station_id").alias("density_count")).orderBy(desc("density_count"))
high_density_zones = density_analysis.filter(col("density_count") > 10).select("lng_zone", "lat_zone", "density_count")
regional_distribution = station_df.withColumn("region", when(col("longitude") < 110, "西部").when(col("longitude") < 120, "中部").otherwise("东部")).groupBy("region").agg(count("station_id").alias("region_count"), avg("station_level").alias("avg_level"))
province_pandas = province_distribution.toPandas()
city_pandas = city_distribution.toPandas()
level_pandas = level_distribution.toPandas()
density_pandas = high_density_zones.toPandas()
regional_pandas = regional_distribution.toPandas()
result_data = {"province_distribution": province_pandas.to_dict('records'), "city_distribution": city_pandas.to_dict('records'), "level_distribution": level_pandas.to_dict('records'), "coordinate_stats": {"longitude": {"min": longitude_stats["min_lng"], "max": longitude_stats["max_lng"], "avg": longitude_stats["avg_lng"]}, "latitude": {"min": latitude_stats["min_lat"], "max": latitude_stats["max_lat"], "avg": latitude_stats["avg_lat"]}}, "high_density_zones": density_pandas.to_dict('records'), "regional_distribution": regional_pandas.to_dict('records')}
return JsonResponse({"status": "success", "data": result_data})
def railway_bureau_jurisdiction_analysis(request):
bureau_df = spark.read.option("header", "true").csv("hdfs://localhost:9000/train_stations/bureau_data.csv")
station_df = spark.read.option("header", "true").csv("hdfs://localhost:9000/train_stations/station_data.csv")
joined_df = station_df.join(bureau_df, station_df.bureau_code == bureau_df.bureau_code, "left")
bureau_stats = joined_df.groupBy("bureau_name", "bureau_code").agg(count("station_id").alias("total_stations"), sum(when(col("station_level") == 1, 1).otherwise(0)).alias("level1_count"), sum(when(col("station_level") == 2, 1).otherwise(0)).alias("level2_count"), sum(when(col("station_level") == 3, 1).otherwise(0)).alias("level3_count"), sum(when(col("station_level") == 4, 1).otherwise(0)).alias("level4_count"), avg("longitude").alias("center_longitude"), avg("latitude").alias("center_latitude")).orderBy(desc("total_stations"))
coverage_analysis = joined_df.groupBy("bureau_name").agg(count("province").alias("province_coverage"), count("city").alias("city_coverage"), min("longitude").alias("west_boundary"), max("longitude").alias("east_boundary"), min("latitude").alias("south_boundary"), max("latitude").alias("north_boundary"))
bureau_efficiency = bureau_stats.withColumn("high_level_ratio", (col("level1_count") + col("level2_count")) / col("total_stations")).withColumn("coverage_area", (col("center_longitude") * col("center_latitude")) / 100).select("bureau_name", "total_stations", "high_level_ratio", "coverage_area").orderBy(desc("high_level_ratio"))
province_bureau_mapping = joined_df.groupBy("province", "bureau_name").agg(count("station_id").alias("station_count")).orderBy("province", desc("station_count"))
major_bureaus = bureau_stats.filter(col("total_stations") > 100).select("bureau_name", "total_stations", "level1_count", "level2_count")
geographic_span = coverage_analysis.withColumn("longitude_span", col("east_boundary") - col("west_boundary")).withColumn("latitude_span", col("north_boundary") - col("south_boundary")).select("bureau_name", "longitude_span", "latitude_span", "province_coverage", "city_coverage").orderBy(desc("longitude_span"))
bureau_pandas = bureau_stats.toPandas()
coverage_pandas = coverage_analysis.toPandas()
efficiency_pandas = bureau_efficiency.toPandas()
mapping_pandas = province_bureau_mapping.toPandas()
major_pandas = major_bureaus.toPandas()
span_pandas = geographic_span.toPandas()
result_data = {"bureau_statistics": bureau_pandas.to_dict('records'), "coverage_analysis": coverage_pandas.to_dict('records'), "efficiency_ranking": efficiency_pandas.to_dict('records'), "province_bureau_mapping": mapping_pandas.to_dict('records'), "major_bureaus": major_pandas.to_dict('records'), "geographic_span": span_pandas.to_dict('records')}
return JsonResponse({"status": "success", "data": result_data})
def core_station_cluster_analysis(request):
station_df = spark.read.option("header", "true").csv("hdfs://localhost:9000/train_stations/station_data.csv")
traffic_df = spark.read.option("header", "true").csv("hdfs://localhost:9000/train_stations/traffic_data.csv")
station_df = station_df.withColumn("longitude", col("longitude").cast(DoubleType()))
station_df = station_df.withColumn("latitude", col("latitude").cast(DoubleType()))
station_df = station_df.withColumn("station_level", col("station_level").cast(IntegerType()))
traffic_df = traffic_df.withColumn("daily_passengers", col("daily_passengers").cast(IntegerType()))
traffic_df = traffic_df.withColumn("train_frequency", col("train_frequency").cast(IntegerType()))
enriched_df = station_df.join(traffic_df, "station_id", "left")
core_stations = enriched_df.filter((col("station_level") <= 2) | (col("daily_passengers") > 10000) | (col("train_frequency") > 50))
cluster_grid = core_stations.withColumn("grid_x", (col("longitude") / 0.5).cast(IntegerType())).withColumn("grid_y", (col("latitude") / 0.5).cast(IntegerType()))
cluster_stats = cluster_grid.groupBy("grid_x", "grid_y").agg(count("station_id").alias("cluster_size"), avg("longitude").alias("cluster_center_lng"), avg("latitude").alias("cluster_center_lat"), sum("daily_passengers").alias("total_passengers"), avg("train_frequency").alias("avg_frequency"), min("station_level").alias("highest_level")).filter(col("cluster_size") >= 3).orderBy(desc("cluster_size"))
major_clusters = cluster_stats.filter(col("cluster_size") >= 5).withColumn("importance_score", col("total_passengers") * col("avg_frequency") / col("highest_level")).orderBy(desc("importance_score"))
city_clusters = enriched_df.groupBy("city").agg(count("station_id").alias("city_station_count"), sum("daily_passengers").alias("city_total_passengers"), avg("longitude").alias("city_center_lng"), avg("latitude").alias("city_center_lat")).filter(col("city_station_count") >= 2).orderBy(desc("city_total_passengers"))
hub_analysis = core_stations.withColumn("hub_score", when(col("station_level") == 1, 100).when(col("station_level") == 2, 80).otherwise(60) + (col("daily_passengers") / 1000) + (col("train_frequency") / 10)).select("station_name", "city", "province", "longitude", "latitude", "hub_score", "station_level", "daily_passengers").orderBy(desc("hub_score"))
top_hubs = hub_analysis.limit(20)
regional_clusters = enriched_df.withColumn("region", when(col("longitude") < 110, "西部").when(col("longitude") < 120, "中部").otherwise("东部")).groupBy("region").agg(count("station_id").alias("region_stations"), sum("daily_passengers").alias("region_passengers"), avg("train_frequency").alias("region_avg_frequency")).orderBy(desc("region_passengers"))
cluster_pandas = cluster_stats.toPandas()
major_pandas = major_clusters.toPandas()
city_pandas = city_clusters.toPandas()
hub_pandas = top_hubs.toPandas()
regional_pandas = regional_clusters.toPandas()
result_data = {"cluster_analysis": cluster_pandas.to_dict('records'), "major_clusters": major_pandas.to_dict('records'), "city_clusters": city_pandas.to_dict('records'), "top_hub_stations": hub_pandas.to_dict('records'), "regional_distribution": regional_pandas.to_dict('records')}
return JsonResponse({"status": "success", "data": result_data})

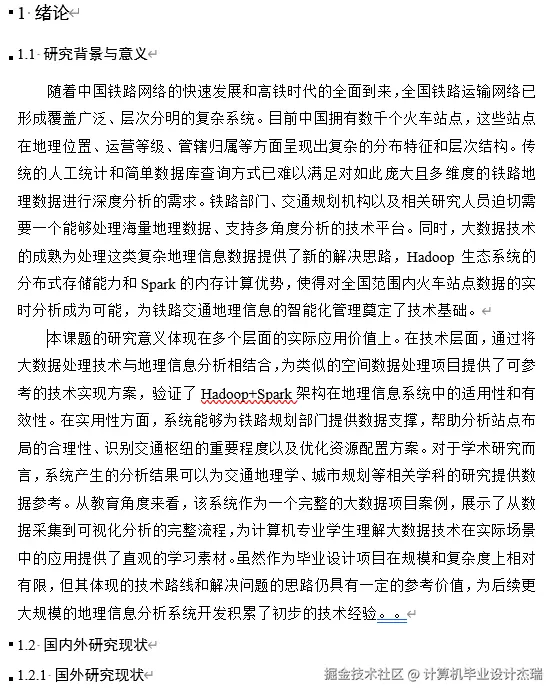

基于大数据的中国火车站站点地理数据分析系统文档展示
