基于大数据的电商物流数据分析与可视化系统-功能介绍
基于大数据的电商物流数据分析与可视化系统是一套完整的物流数据智能分析解决方案，采用Hadoop分布式存储架构结合Spark大数据计算引擎，实现对海量电商物流数据的高效处理与深度挖掘。系统通过Django/Spring Boot后端框架构建稳定的数据服务接口，运用Python/Java双语言支持进行复杂的数据清洗、转换与统计分析工作。前端采用Vue+ElementUI框架搭配Echarts图表库，为用户提供直观友好的数据可视化界面，支持多维度的物流效率分析、成本优化分析、客户满意度评估等核心业务场景。整个系统基于MySQL数据库进行结构化数据存储，通过Spark SQL实现高性能的数据查询与聚合计算，利用Pandas、NumPy等科学计算库完成精确的统计分析，最终通过丰富的图表展示帮助电商企业洞察物流运营规律，识别效率瓶颈，优化运输策略，提升客户体验，为电商物流决策提供科学的数据支撑。
基于大数据的电商物流数据分析与可视化系统-选题背景意义
选题背景 随着电子商务行业的蓬勃发展，物流配送已成为影响用户购物体验和企业竞争力的关键环节。电商平台每日产生的物流数据呈现海量化、多样化的特点，涵盖订单信息、运输方式、仓储分布、配送时效、客户反馈等多个维度。传统的数据分析方法面对这种规模的数据往往显得力不从心，处理速度慢且分析深度有限。同时，电商企业对物流效率的要求日益提高，需要通过数据驱动的方式识别配送瓶颈、优化运输路径、提升准时送达率。大数据技术的成熟为解决这一问题提供了新的思路，Hadoop生态系统能够实现海量数据的分布式存储，Spark计算引擎则可以完成复杂的实时数据处理与分析任务，为电商物流优化决策提供了强有力的技术支撑。 选题意义 本课题具有重要的实际应用价值和技术探索意义。从实际应用角度来看，该系统能够帮助电商企业深入了解物流运营现状，通过数据可视化直观展现准时送达率、运输方式效率、仓库处理能力等关键指标，为管理层制定物流策略提供科学依据。系统还能够识别影响物流时效的关键因素，帮助企业精准定位问题环节，优化资源配置，降低运营成本。从技术角度而言，本课题将大数据处理技术与实际业务场景相结合，展现了Hadoop+Spark技术栈在解决实际问题中的应用价值，为相关技术的推广应用提供了参考案例。对于计算机专业学生来说，通过完成这一项目可以深入理解大数据技术的核心原理和实际运用，掌握从数据采集、存储、处理到可视化展示的完整技术链路，提升解决复杂数据问题的综合能力，为今后从事大数据相关工作奠定扎实的技术基础。
基于大数据的电商物流数据分析与可视化系统-技术选型
大数据框架：Hadoop+Spark（本次没用Hive，支持定制） 开发语言：Python+Java（两个版本都支持） 后端框架：Django+Spring Boot(Spring+SpringMVC+Mybatis)（两个版本都支持） 前端：Vue+ElementUI+Echarts+HTML+CSS+JavaScript+jQuery 详细技术点：Hadoop、HDFS、Spark、Spark SQL、Pandas、NumPy 数据库：MySQL
基于大数据的电商物流数据分析与可视化系统-视频展示

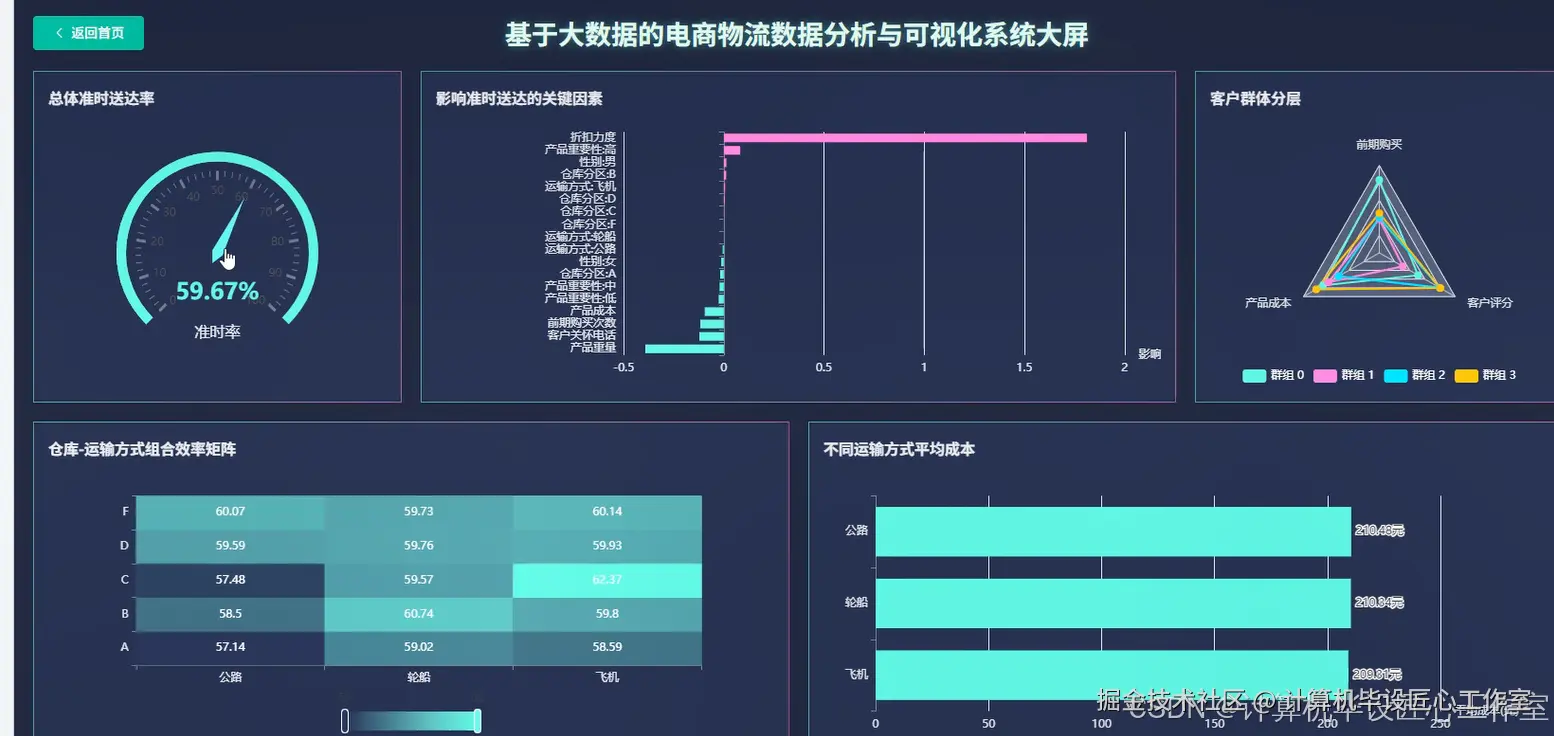

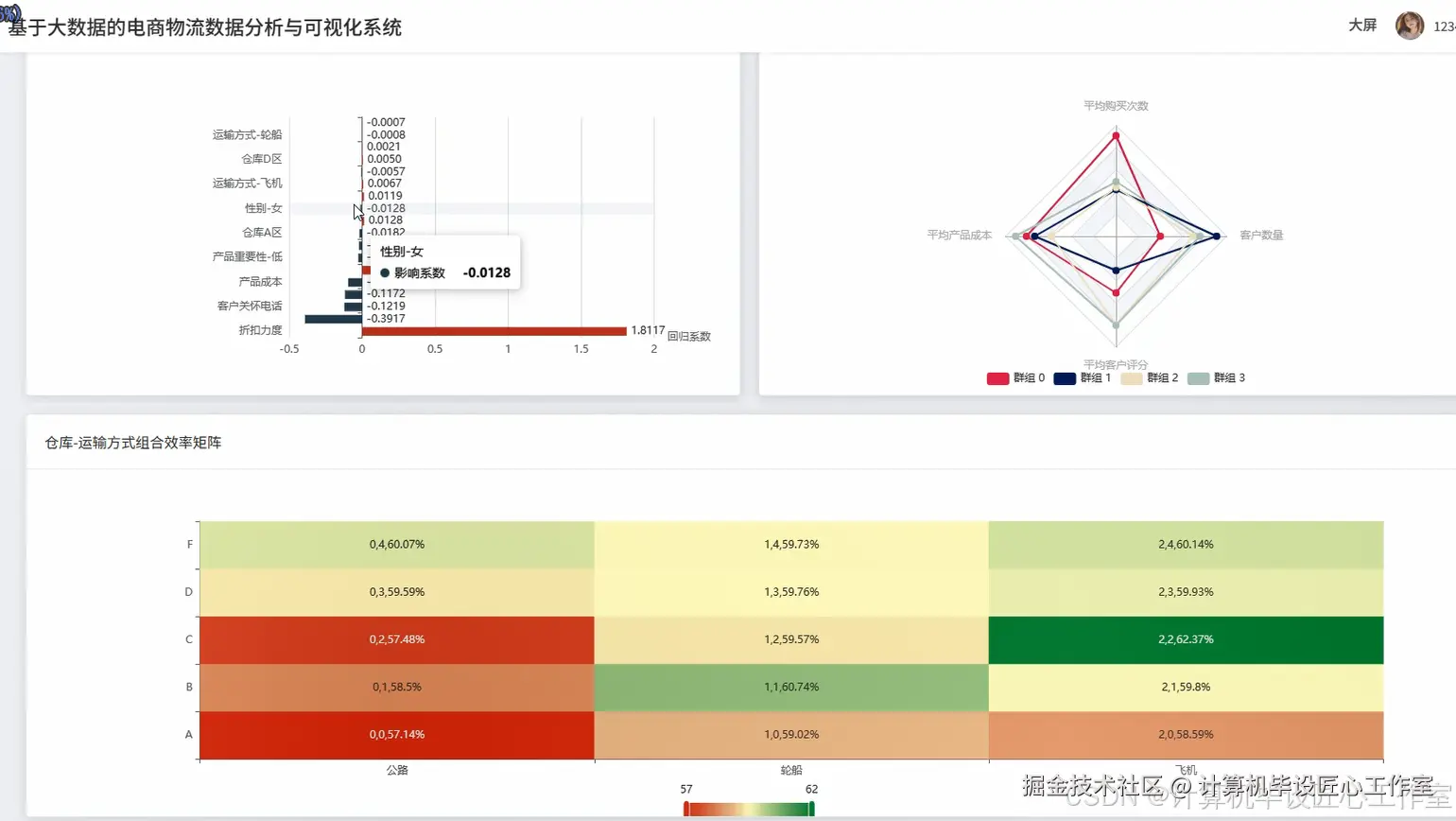

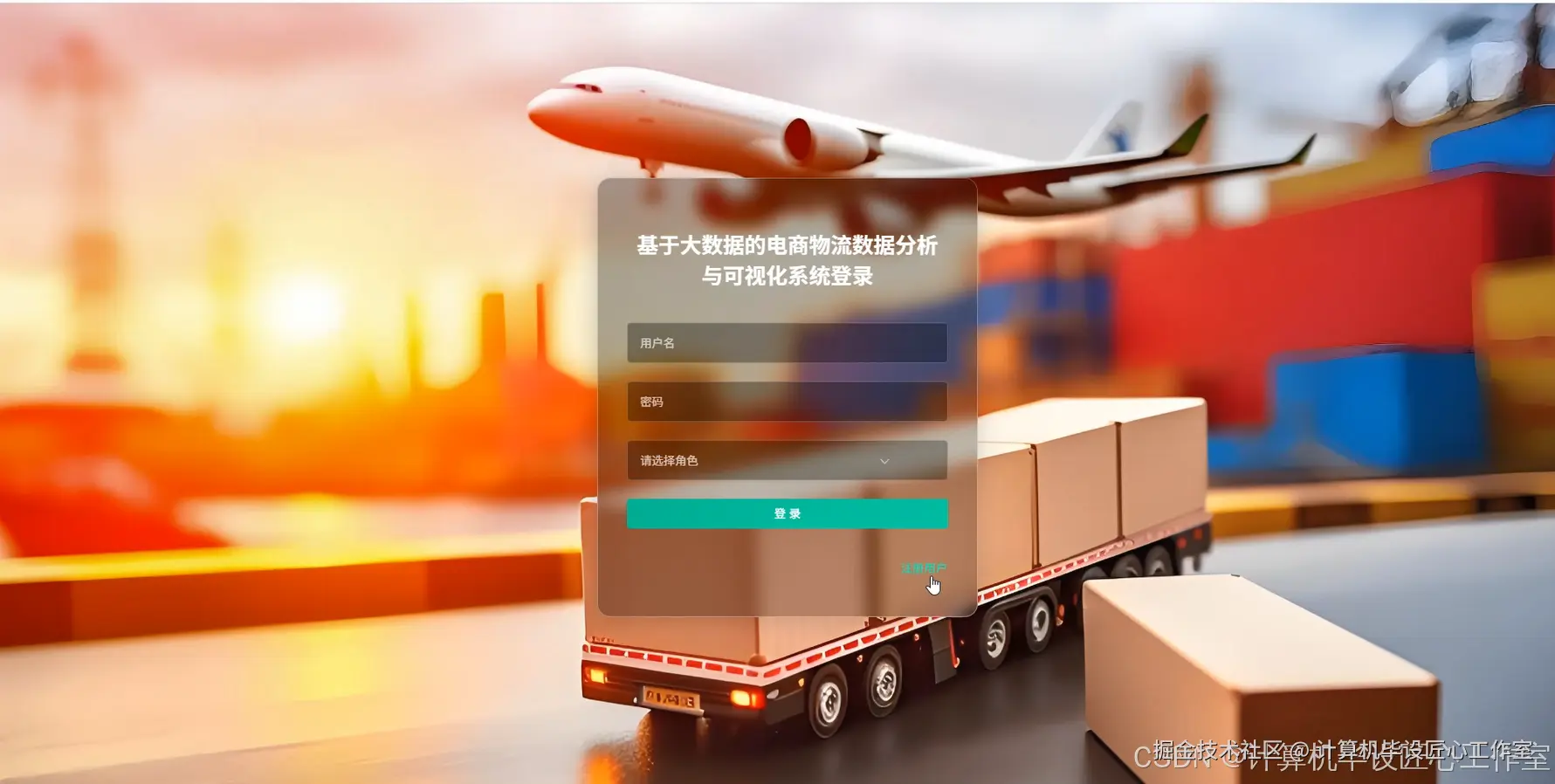

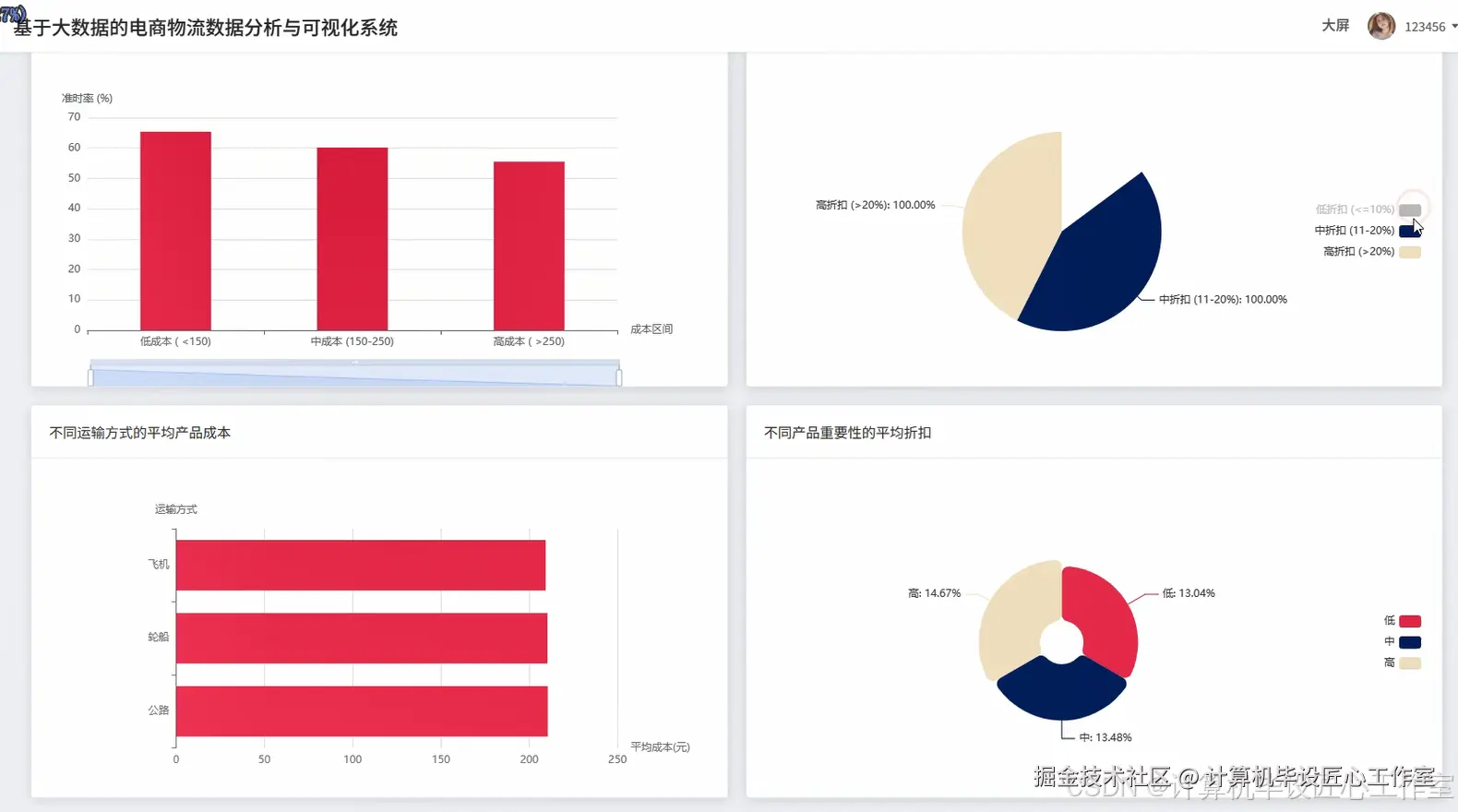

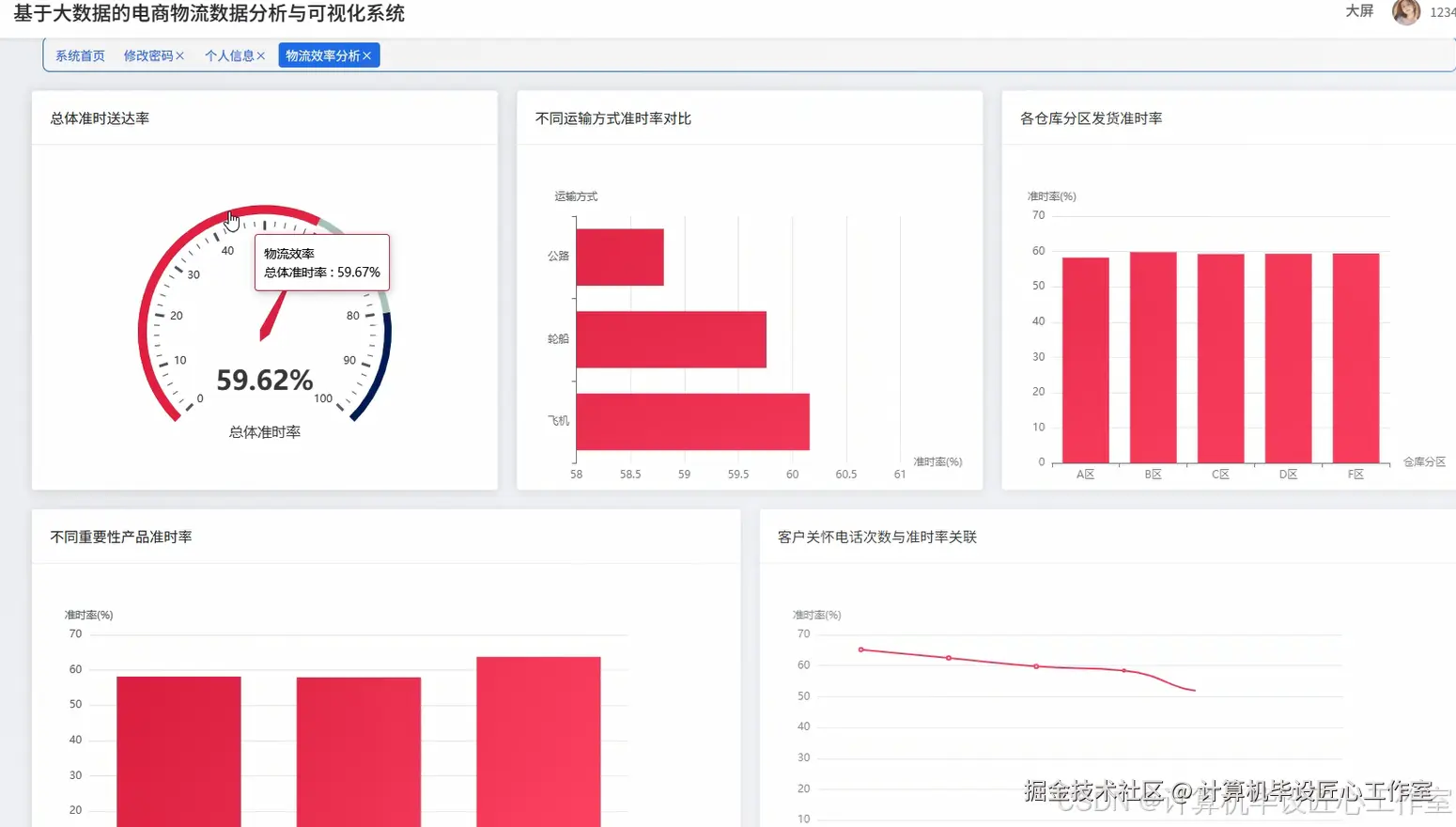

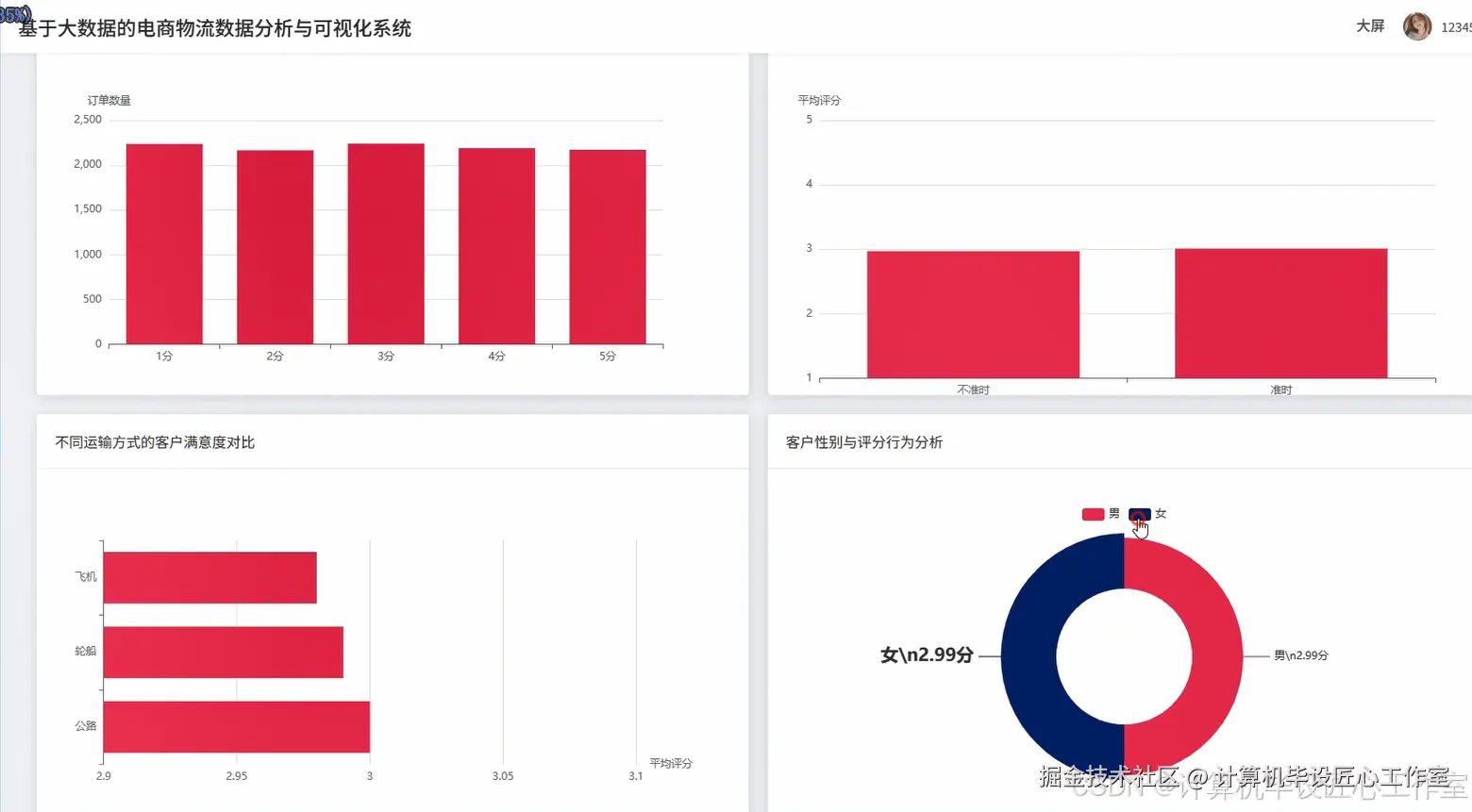

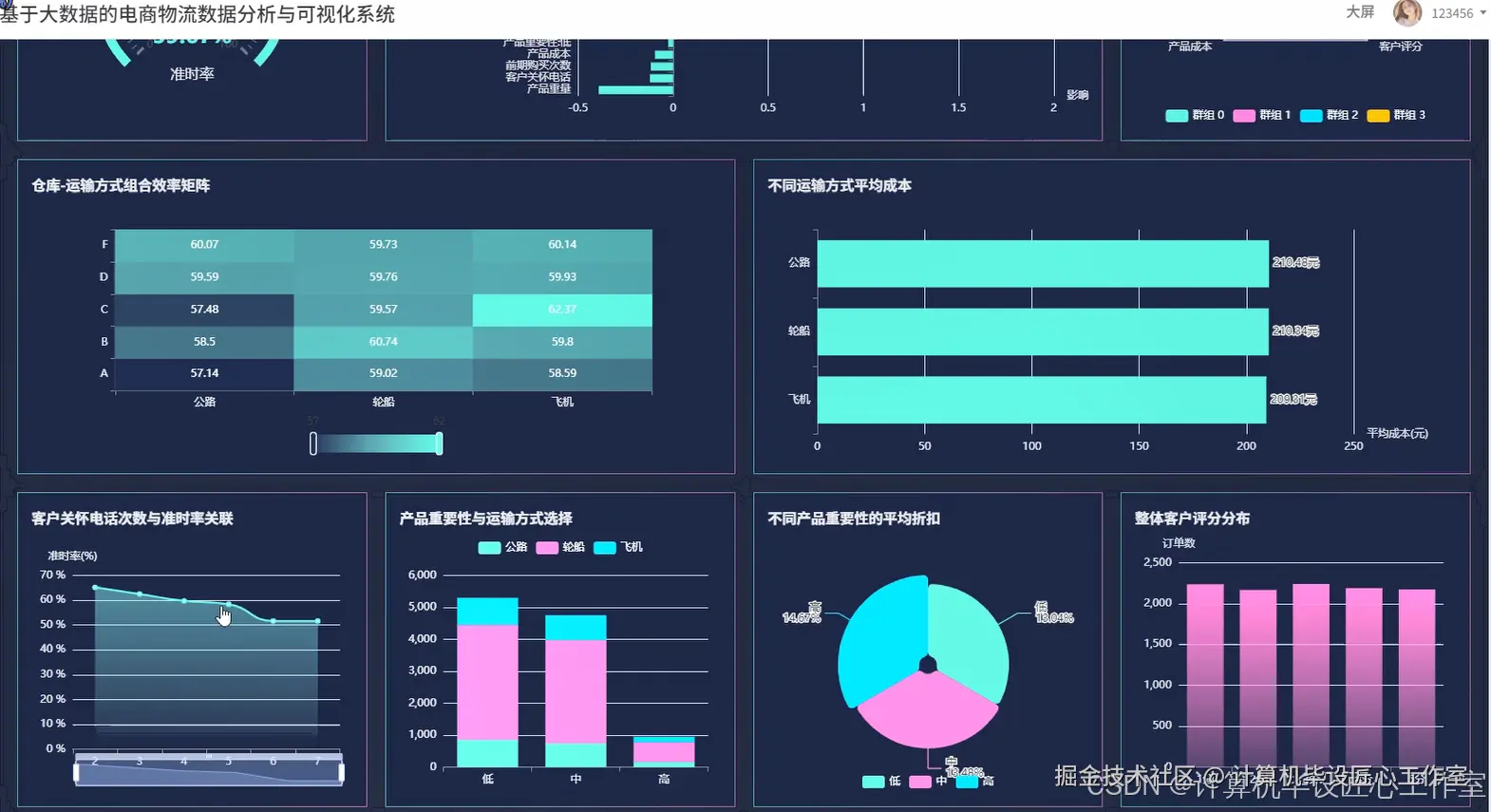

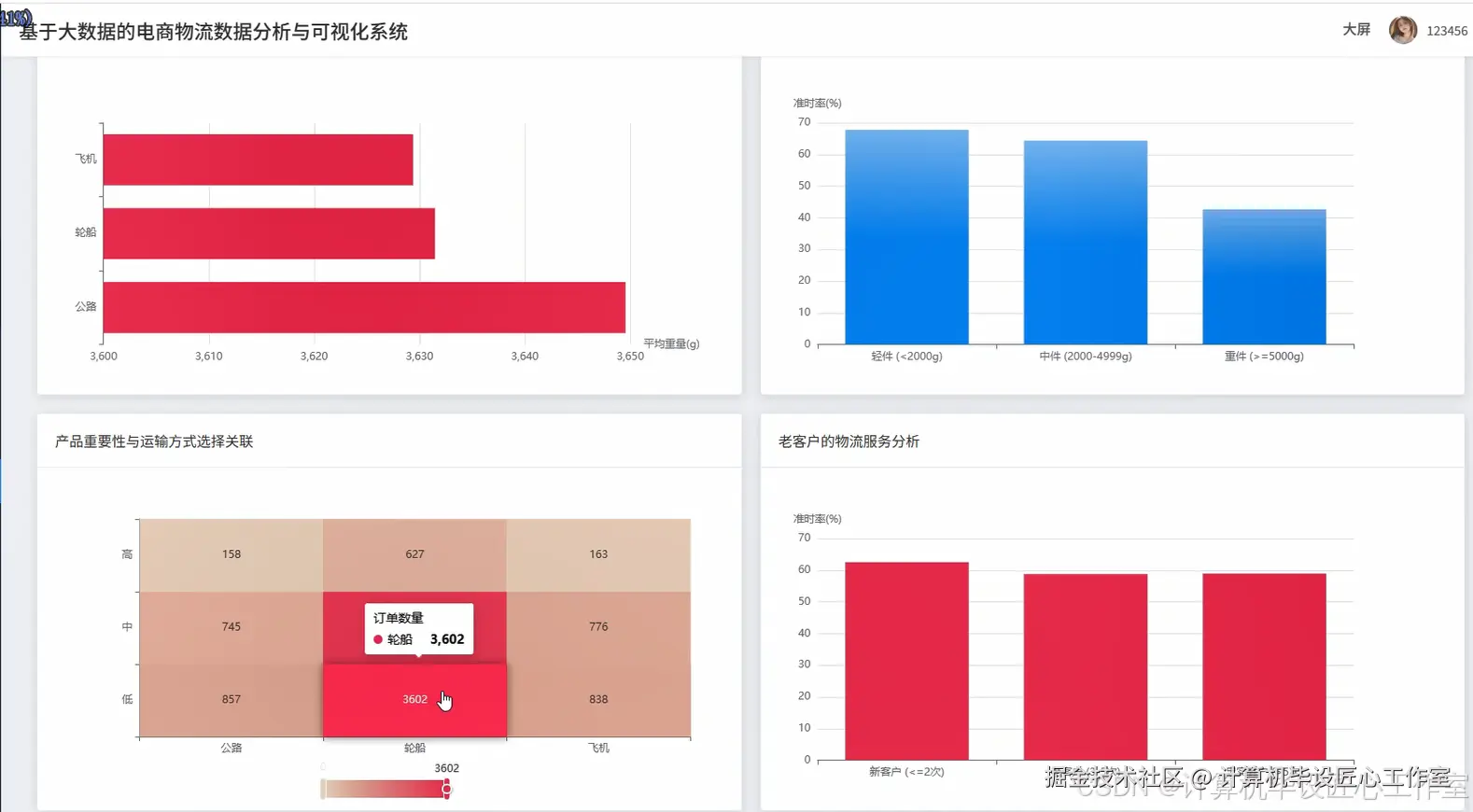

基于大数据的电商物流数据分析与可视化系统-图片展示
基于大数据的电商物流数据分析与可视化系统-代码展示
from pyspark.sql import SparkSession
from pyspark.sql.functions import *
from pyspark.sql.types import *
import pandas as pd
import numpy as np
from django.http import JsonResponse
from django.views.decorators.csrf import csrf_exempt
import json
spark = SparkSession.builder.appName("ElectronicCommerceLogisticsAnalysis").config("spark.sql.adaptive.enabled", "true").config("spark.sql.adaptive.coalescePartitions.enabled", "true").getOrCreate()
@csrf_exempt
def logistics_efficiency_analysis(request):
df = spark.read.option("header", "true").option("inferSchema", "true").csv("hdfs://localhost:9000/logistics_data/supply_chain_data.csv")
df.createOrReplaceTempView("logistics_data")
overall_ontime_rate = spark.sql("SELECT COUNT(*) as total_orders, SUM(CASE WHEN `Reached.on.Time_Y.N` = 1 THEN 1 ELSE 0 END) as ontime_orders FROM logistics_data").collect()[0]
ontime_percentage = (overall_ontime_rate['ontime_orders'] / overall_ontime_rate['total_orders']) * 100
shipment_mode_analysis = spark.sql("SELECT Mode_of_Shipment, COUNT(*) as order_count, AVG(CASE WHEN `Reached.on.Time_Y.N` = 1 THEN 1.0 ELSE 0.0 END) * 100 as ontime_rate FROM logistics_data GROUP BY Mode_of_Shipment ORDER BY ontime_rate DESC").toPandas()
warehouse_performance = spark.sql("SELECT Warehouse_block, COUNT(*) as total_shipments, AVG(CASE WHEN `Reached.on.Time_Y.N` = 1 THEN 1.0 ELSE 0.0 END) * 100 as success_rate FROM logistics_data GROUP BY Warehouse_block ORDER BY success_rate DESC").toPandas()
product_importance_analysis = spark.sql("SELECT Product_importance, AVG(CASE WHEN `Reached.on.Time_Y.N` = 1 THEN 1.0 ELSE 0.0 END) * 100 as delivery_success_rate, AVG(Customer_rating) as avg_rating FROM logistics_data GROUP BY Product_importance ORDER BY delivery_success_rate DESC").toPandas()
customer_care_correlation = spark.sql("SELECT Customer_care_calls, AVG(CASE WHEN `Reached.on.Time_Y.N` = 1 THEN 1.0 ELSE 0.0 END) * 100 as ontime_rate, COUNT(*) as call_frequency FROM logistics_data GROUP BY Customer_care_calls ORDER BY Customer_care_calls").toPandas()
results = {
'overall_ontime_percentage': round(ontime_percentage, 2),
'total_analyzed_orders': overall_ontime_rate['total_orders'],
'shipment_mode_performance': shipment_mode_analysis.to_dict('records'),
'warehouse_efficiency_ranking': warehouse_performance.to_dict('records'),
'product_importance_delivery': product_importance_analysis.to_dict('records'),
'customer_care_impact': customer_care_correlation.to_dict('records')
}
return JsonResponse(results)
@csrf_exempt
def cost_discount_impact_analysis(request):
df = spark.read.option("header", "true").option("inferSchema", "true").csv("hdfs://localhost:9000/logistics_data/supply_chain_data.csv")
df.createOrReplaceTempView("cost_analysis_data")
cost_brackets = spark.sql("SELECT CASE WHEN Cost_of_the_Product <= 200 THEN 'Low Cost' WHEN Cost_of_the_Product <= 400 THEN 'Medium Cost' ELSE 'High Cost' END as cost_category, AVG(CASE WHEN `Reached.on.Time_Y.N` = 1 THEN 1.0 ELSE 0.0 END) * 100 as ontime_rate, COUNT(*) as order_volume FROM logistics_data GROUP BY CASE WHEN Cost_of_the_Product <= 200 THEN 'Low Cost' WHEN Cost_of_the_Product <= 400 THEN 'Medium Cost' ELSE 'High Cost' END ORDER BY ontime_rate DESC").toPandas()
discount_impact = spark.sql("SELECT CASE WHEN Discount_offered <= 5 THEN 'Low Discount' WHEN Discount_offered <= 15 THEN 'Medium Discount' ELSE 'High Discount' END as discount_level, AVG(CASE WHEN `Reached.on.Time_Y.N` = 1 THEN 1.0 ELSE 0.0 END) * 100 as delivery_performance, AVG(Customer_rating) as satisfaction_score FROM logistics_data GROUP BY CASE WHEN Discount_offered <= 5 THEN 'Low Discount' WHEN Discount_offered <= 15 THEN 'Medium Discount' ELSE 'High Discount' END ORDER BY delivery_performance DESC").toPandas()
shipment_cost_correlation = spark.sql("SELECT Mode_of_Shipment, AVG(Cost_of_the_Product) as avg_product_cost, AVG(Discount_offered) as avg_discount_rate, COUNT(*) as shipment_count FROM logistics_data GROUP BY Mode_of_Shipment ORDER BY avg_product_cost DESC").toPandas()
importance_discount_strategy = spark.sql("SELECT Product_importance, AVG(Discount_offered) as average_discount, AVG(Cost_of_the_Product) as average_cost, COUNT(*) as product_count FROM logistics_data GROUP BY Product_importance ORDER BY average_discount DESC").toPandas()
price_sensitivity_analysis = spark.sql("SELECT CASE WHEN Cost_of_the_Product > 300 AND Discount_offered > 10 THEN 'High Value High Discount' WHEN Cost_of_the_Product > 300 AND Discount_offered <= 10 THEN 'High Value Low Discount' WHEN Cost_of_the_Product <= 300 AND Discount_offered > 10 THEN 'Low Value High Discount' ELSE 'Low Value Low Discount' END as pricing_strategy, AVG(Customer_rating) as customer_satisfaction, AVG(CASE WHEN `Reached.on.Time_Y.N` = 1 THEN 1.0 ELSE 0.0 END) * 100 as logistics_performance FROM logistics_data GROUP BY CASE WHEN Cost_of_the_Product > 300 AND Discount_offered > 10 THEN 'High Value High Discount' WHEN Cost_of_the_Product > 300 AND Discount_offered <= 10 THEN 'High Value Low Discount' WHEN Cost_of_the_Product <= 300 AND Discount_offered > 10 THEN 'Low Value High Discount' ELSE 'Low Value Low Discount' END").toPandas()
analysis_results = {
'cost_category_performance': cost_brackets.to_dict('records'),
'discount_level_impact': discount_impact.to_dict('records'),
'shipment_cost_insights': shipment_cost_correlation.to_dict('records'),
'product_importance_pricing': importance_discount_strategy.to_dict('records'),
'pricing_strategy_effectiveness': price_sensitivity_analysis.to_dict('records')
}
return JsonResponse(analysis_results)
@csrf_exempt
def customer_satisfaction_behavior_analysis(request):
df = spark.read.option("header", "true").option("inferSchema", "true").csv("hdfs://localhost:9000/logistics_data/supply_chain_data.csv")
df.createOrReplaceTempView("customer_behavior_data")
rating_distribution = spark.sql("SELECT Customer_rating, COUNT(*) as rating_count, ROUND(COUNT(*) * 100.0 / (SELECT COUNT(*) FROM logistics_data), 2) as percentage FROM logistics_data GROUP BY Customer_rating ORDER BY Customer_rating DESC").toPandas()
ontime_rating_impact = spark.sql("SELECT `Reached.on.Time_Y.N` as delivery_status, AVG(Customer_rating) as average_rating, COUNT(*) as order_count, STDDEV(Customer_rating) as rating_variance FROM logistics_data GROUP BY `Reached.on.Time_Y.N`").toPandas()
shipment_satisfaction = spark.sql("SELECT Mode_of_Shipment, AVG(Customer_rating) as avg_customer_rating, COUNT(*) as total_orders, AVG(CASE WHEN `Reached.on.Time_Y.N` = 1 THEN 1.0 ELSE 0.0 END) * 100 as ontime_delivery_rate FROM logistics_data GROUP BY Mode_of_Shipment ORDER BY avg_customer_rating DESC").toPandas()
gender_rating_behavior = spark.sql("SELECT Gender, AVG(Customer_rating) as mean_rating, COUNT(*) as review_count, AVG(Customer_care_calls) as avg_care_calls FROM logistics_data GROUP BY Gender").toPandas()
care_calls_satisfaction = spark.sql("SELECT Customer_care_calls, AVG(Customer_rating) as satisfaction_level, COUNT(*) as occurrence_frequency, AVG(CASE WHEN `Reached.on.Time_Y.N` = 1 THEN 1.0 ELSE 0.0 END) * 100 as delivery_success_rate FROM logistics_data GROUP BY Customer_care_calls ORDER BY Customer_care_calls").toPandas()
customer_loyalty_analysis = spark.sql("SELECT Prior_purchases, AVG(Customer_rating) as loyalty_rating, AVG(CASE WHEN `Reached.on.Time_Y.N` = 1 THEN 1.0 ELSE 0.0 END) * 100 as preferential_delivery_rate, COUNT(*) as customer_segment_size FROM logistics_data GROUP BY Prior_purchases ORDER BY Prior_purchases DESC").toPandas()
comprehensive_results = {
'rating_distribution_overview': rating_distribution.to_dict('records'),
'delivery_timing_rating_correlation': ontime_rating_impact.to_dict('records'),
'transportation_mode_satisfaction': shipment_satisfaction.to_dict('records'),
'gender_based_rating_patterns': gender_rating_behavior.to_dict('records'),
'customer_service_interaction_impact': care_calls_satisfaction.to_dict('records'),
'purchase_history_loyalty_insights': customer_loyalty_analysis.to_dict('records')
}
return JsonResponse(comprehensive_results)
基于大数据的电商物流数据分析与可视化系统-结语
