这一次，我们深入探讨：交互系统设计、动画控制理论、第一人称视角数学模型，以及3D 标签架构！
在前两篇中，我们构建了基础的三维场景框架。但现代数字孪生系统的核心价值在于数据驱动的交互能力和实时业务逻辑处理。
本篇将从计算机图形学理论、人机交互设计、实时渲染优化等多个维度，结合具体的隧道监控场景，深入剖析交互系统的设计与实现。

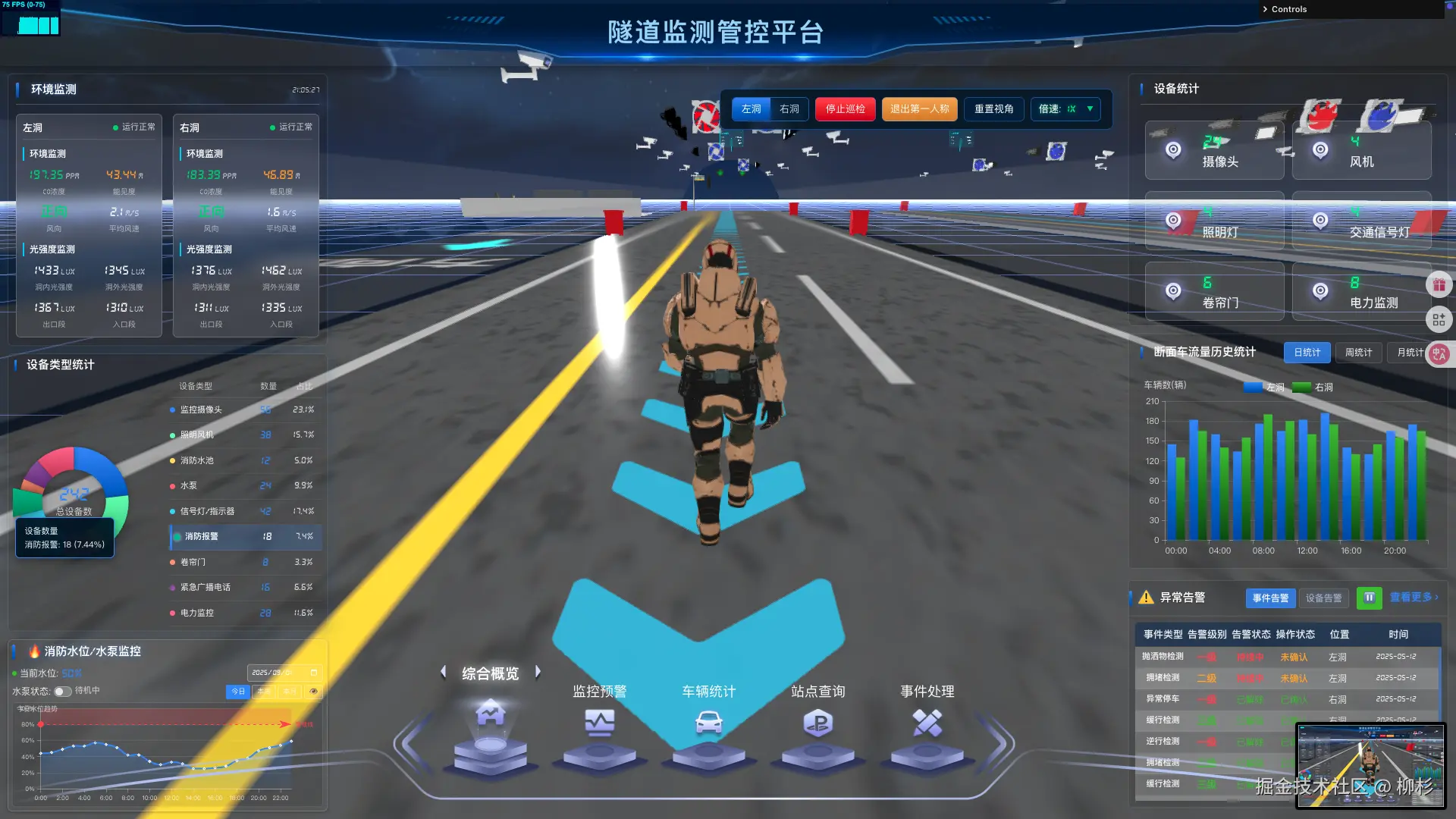

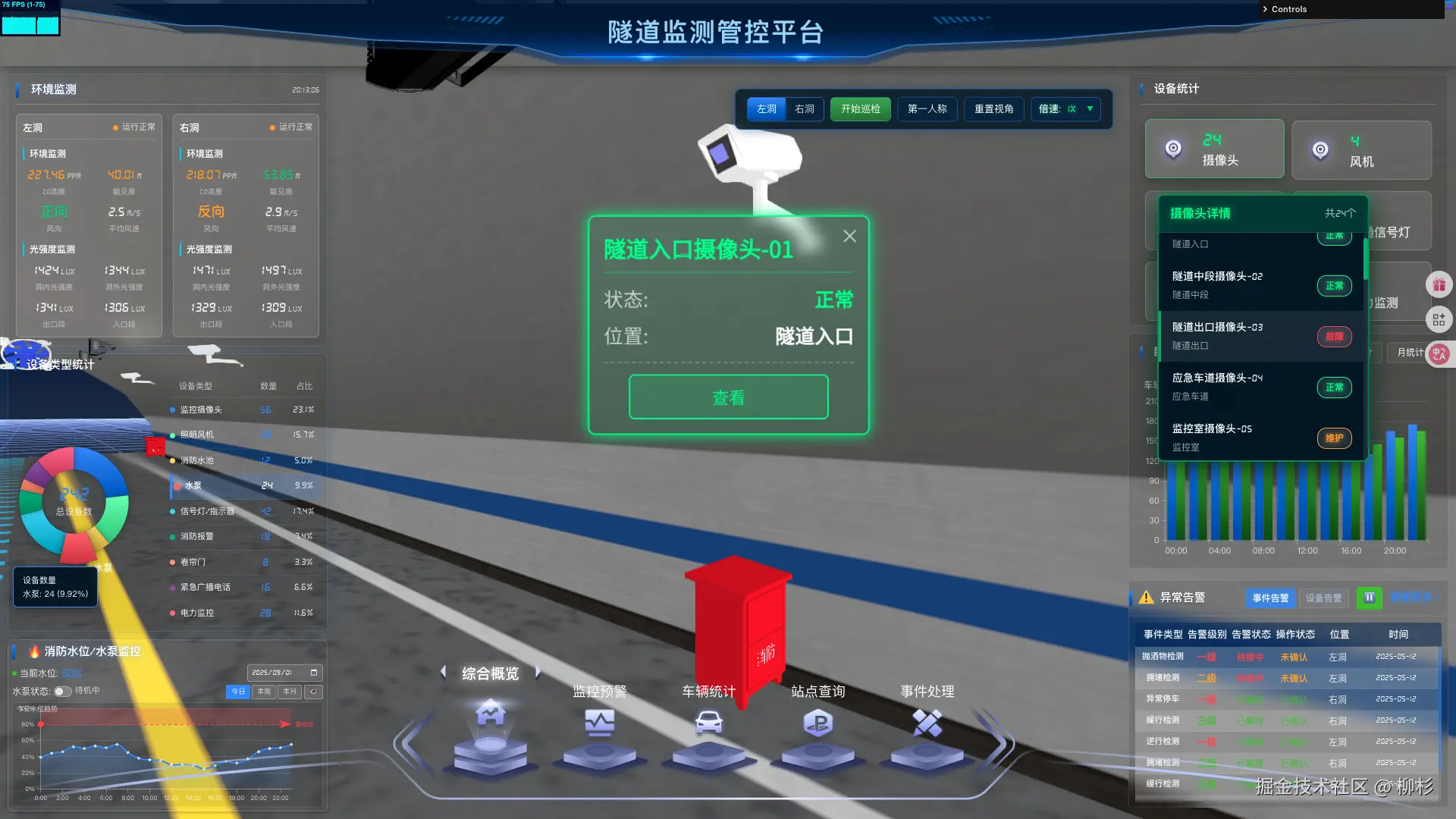

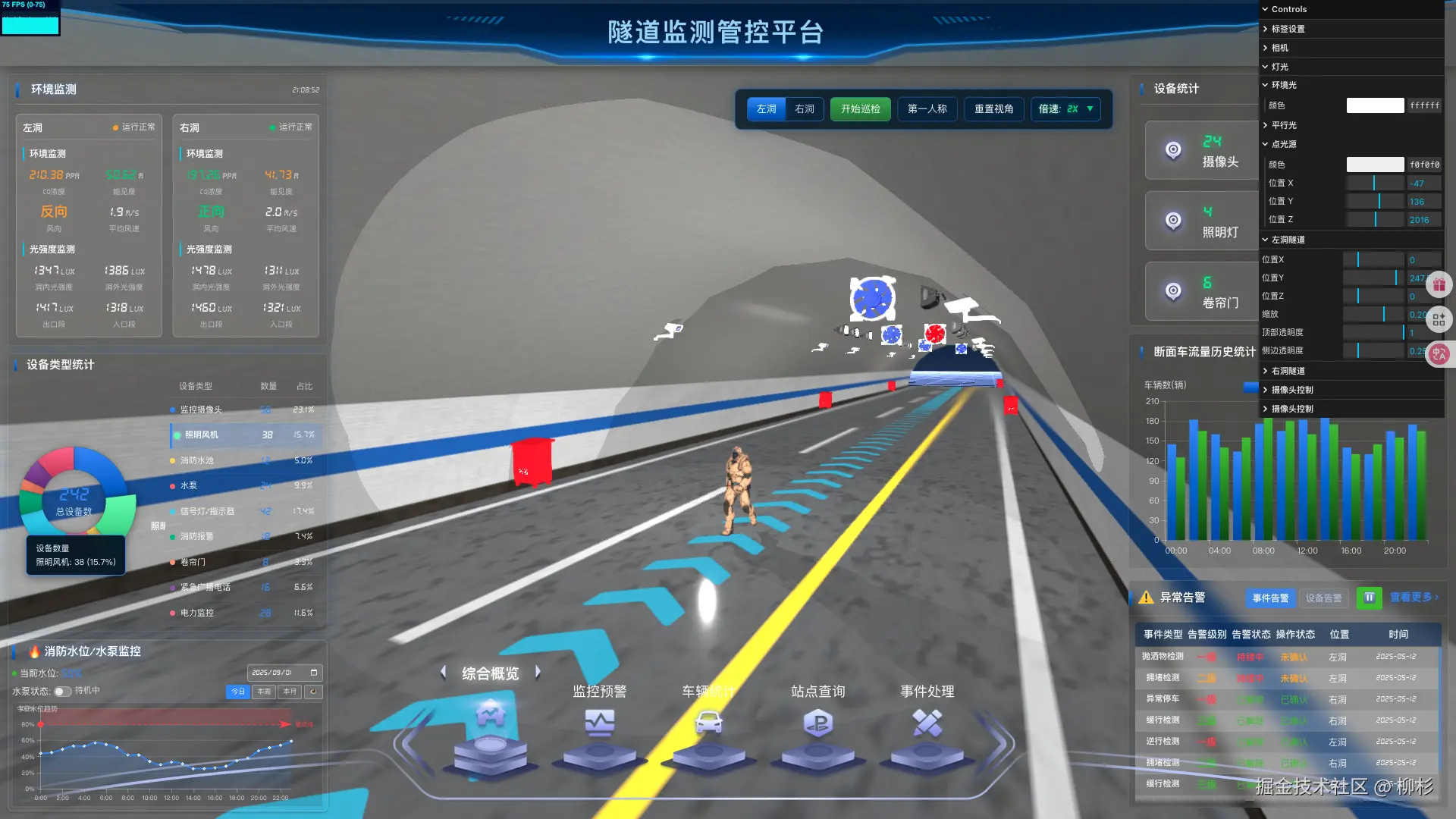

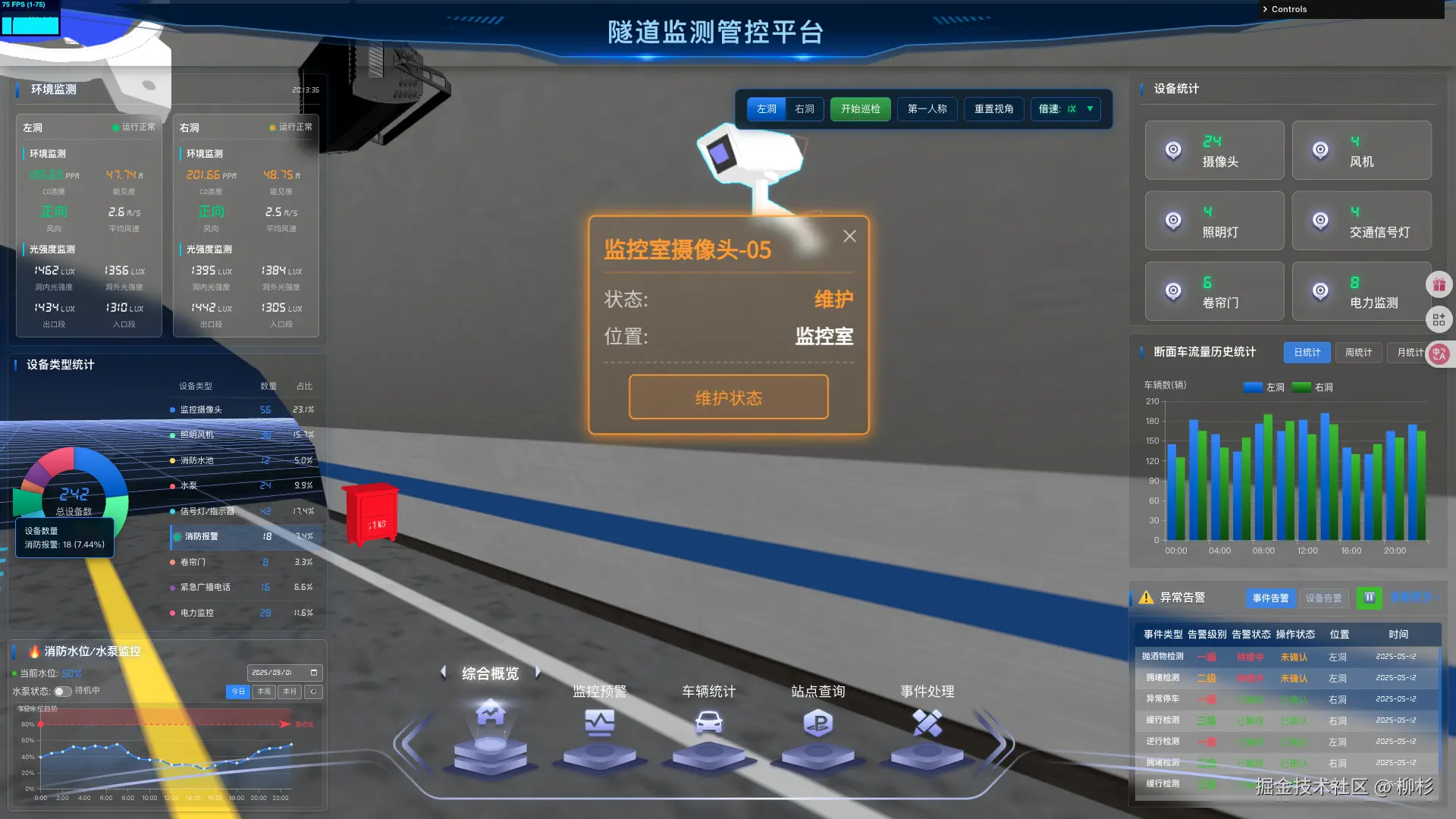

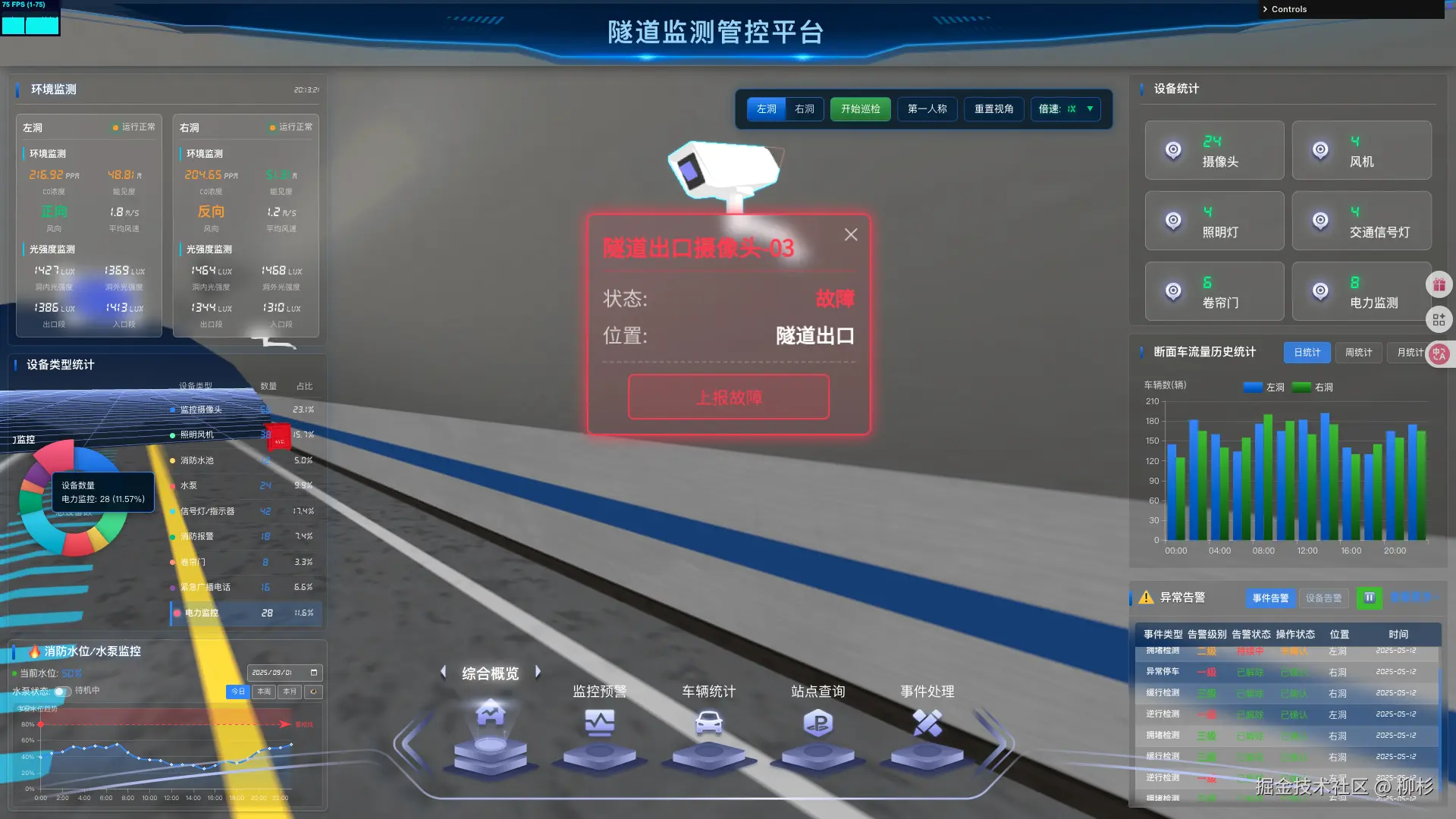

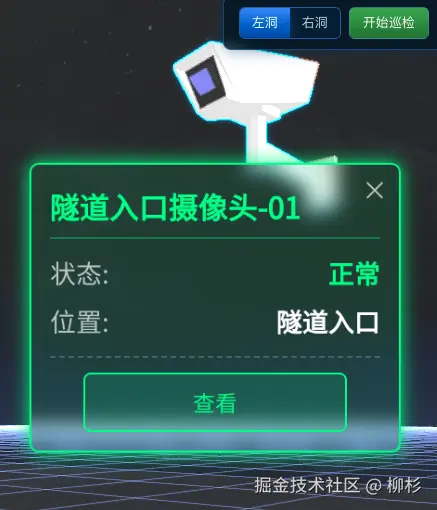

01 CSS3D 标签系统：让隧道设备"开口说话"
1.1 业务场景分析
在实际的隧道监控系统中，我们需要在 3D 场景中展示各种设备的实时状态：
- 摄像机：在线状态、视频流地址、分辨率信息
- 传感器：温度、湿度、CO浓度等环境数据
- 照明设备：功率、亮度、故障状态
- 通风设备：转速、风量、运行时间
1.2 技术方案选择与原理
在 Three.js 中，有三种主要的文本渲染方案：
| 方案 | 渲染原理 | 性能特征 | 适用场景 |
|---|---|---|---|
| Canvas2D 纹理 | 将文本绘制到 Canvas，作为纹理贴到 Plane | 高性能，GPU 渲染 | 静态文本，大量简单标签 |
| WebGL 文字渲染 | SDF 字体，GPU Shader 渲染 | 中等性能，可缩放 | 游戏 UI，实时文字效果 |
| CSS3D 混合渲染 | DOM 元素通过 CSS Transform 定位 | 低性能，高灵活性 | 复杂 UI，丰富交互 |
对于隧道监控这种需要显示复杂业务数据、支持按钮交互的场景，我们选择 CSS3DSprite：
// 设备标签管理器
class DeviceLabelManager {
constructor(scene, camera, renderer) {
this.scene = scene;
this.camera = camera;
this.renderer = renderer;
this.labels = new Map(); // deviceId -> labelInfo
this.css3DRenderer = new CSS3DRenderer();
this.css3DScene = new THREE.Scene();
// 设置 CSS3D 渲染器
this.css3DRenderer.setSize(window.innerWidth, window.innerHeight);
this.css3DRenderer.domElement.style.position = 'absolute';
this.css3DRenderer.domElement.style.top = '0';
this.css3DRenderer.domElement.style.pointerEvents = 'none';
document.body.appendChild(this.css3DRenderer.domElement);
}
// 创建设备标签
createDeviceLabel(deviceData, position) {
const { id, type, name, status, data } = deviceData;
// 创建 DOM 元素
const labelElement = document.createElement('div');
labelElement.className = 'device-label';
labelElement.style.pointerEvents = 'auto'; // 允许交互
// 根据设备状态设置样式
const statusColor = this.getStatusColor(status);
labelElement.innerHTML = `
<div class="label-header" style="border-color: ${statusColor}">
<div class="device-icon ${type}"></div>
<div class="device-name">${name}</div>
<div class="device-status" style="color: ${statusColor}">
${this.getStatusText(status)}
</div>
</div>
<div class="label-content">
${this.renderDeviceData(type, data)}
</div>
<div class="label-actions">
<button onclick="this.handleDeviceAction('${id}', 'detail')">详情</button>
${status === 'error' ?
`<button onclick="this.handleDeviceAction('${id}', 'repair')">报修</button>` :
''}
</div>
`;
// 创建 CSS3D 对象
const labelObject = new CSS3DSprite(labelElement);
labelObject.position.copy(position);
labelObject.position.y += 50; // 标签显示在设备上方
// 添加到场景
this.css3DScene.add(labelObject);
// 存储引用
this.labels.set(id, {
element: labelElement,
object: labelObject,
deviceData,
lastUpdate: Date.now()
});
return labelObject;
}
// 根据设备类型渲染数据
renderDeviceData(type, data) {
switch (type) {
case 'camera':
return `
<div class="data-item">分辨率: ${data.resolution}</div>
<div class="data-item">帧率: ${data.fps}fps</div>
<div class="data-item">码率: ${data.bitrate}kbps</div>
`;
case 'sensor':
return `
<div class="data-item">温度: ${data.temperature}°C</div>
<div class="data-item">湿度: ${data.humidity}%</div>
<div class="data-item">CO浓度: ${data.co}ppm</div>
`;
case 'light':
return `
<div class="data-item">功率: ${data.power}W</div>
<div class="data-item">亮度: ${data.brightness}%</div>
<div class="data-item">运行时间: ${data.runtime}h</div>
`;
default:
return '<div class="data-item">暂无数据</div>';
}
}
// 批量更新标签（性能优化）
updateLabels(deltaTime) {
const now = Date.now();
this.labels.forEach((labelInfo, deviceId) => {
// 节流更新：每500ms更新一次
if (now - labelInfo.lastUpdate > 500) {
this.updateLabelContent(labelInfo);
labelInfo.lastUpdate = now;
}
});
}
// 渲染标签
render() {
this.css3DRenderer.render(this.css3DScene, this.camera);
}
}
1.3 坐标变换的数学原理
CSS3DRenderer 的核心是将 3D 世界坐标转换为屏幕上的 DOM 元素位置。这个过程涉及完整的图形学变换管线：
// Three.js 内部的坐标变换过程
function worldToScreen(worldPosition, camera) {
// 1. 世界坐标 → 相机坐标（视图变换）
const viewMatrix = camera.matrixWorldInverse;
const cameraPosition = worldPosition.clone().applyMatrix4(viewMatrix);
// 2. 相机坐标 → 裁剪坐标（投影变换）
const projectionMatrix = camera.projectionMatrix;
const clipPosition = cameraPosition.clone().applyMatrix4(projectionMatrix);
// 3. 透视除法：裁剪坐标 → 标准化设备坐标 (NDC)
const ndc = new THREE.Vector3(
clipPosition.x / clipPosition.w,
clipPosition.y / clipPosition.w,
clipPosition.z / clipPosition.w
);
// 4. NDC → 屏幕坐标
const screenX = (ndc.x + 1) * 0.5 * window.innerWidth;
const screenY = (1 - ndc.y) * 0.5 * window.innerHeight;
return { x: screenX, y: screenY, z: ndc.z };
}
关键概念解析：
- 齐次坐标：使用 4D 向量 (x, y, z, w) 表示 3D 点，支持透视投影
- 透视除法：通过 w 分量实现近大远小的视觉效果
- NDC 空间：标准化的 [-1, 1] 立方体，便于后续屏幕映射
1.4 实际应用示例
在隧道场景中，我们为不同类型的设备创建标签：
// 在隧道初始化时创建设备标签
function initTunnelDevices() {
const labelManager = new DeviceLabelManager(scene, camera, renderer);
// 摄像机设备
const cameraDevices = [
{
id: 'cam_001',
type: 'camera',
name: '入口监控',
status: 'online',
position: new THREE.Vector3(-100, 200, 1 resolution: '1920x1080', fps: 25, bitrate: 2048 }
},
{
id: 'cam_002',
type: 'camera',
name: '出口监控',
status: 'offline',
position: new THREE.Vector3(100, 200, - resolution: '1920x1080', fps: 0, bitrate: 0 }
}
];
// 环境传感器
const sensorDevices = [
{
id: 'sensor_001',
type: 'sensor',
name: '环境监测点1',
status: 'online',
position: new THREE.Vector3(-50, 150, 500 23.5, humidity: 65, co: 12 }
}
];
// 创建标签
[...cameraDevices, ...sensorDevices].forEach(device => {
labelManager.createDeviceLabel(device, device.position);
});
// 在渲染循环中更新
function animate() {
labelManager.updateLabels();
labelManager.render();
requestAnimationFrame(animate);
}
}
02 射线投射交互：精确的设备点击检测
2.1 隧道监控的交互需求
在隧道监控场景中，用户需要能够：
- 点击摄像机查看实时视频流
- 点击传感器查看历史数据趋势
- 点击故障设备进行报修操作
- 支持多选设备进行批量操作
这就需要一个精确、高效的 3D 对象选择系统。
2.2 射线投射的数学原理与实现
射线投射（Ray Casting）是解决"鼠标点击了哪个 3D 对象"问题的标准算法：
class TunnelInteractionManager {
constructor(scene, camera, renderer) {
this.scene = scene;
this.camera = camera;
this.renderer = renderer;
this.raycaster = new THREE.Raycaster();
this.mouse = new THREE.Vector2();
// 分层管理可交互对象
this.interactableObjects = {
cameras: new Map(), // 摄像机对象
sensors: new Map(), // 传感器对象
lights: new Map(), // 照明设备
infrastructure: new Map() // 基础设施
};
this.selectedObjects = new Set();
this.hoveredObject = null;
this.initEventListeners();
}
initEventListeners() {
const canvas = this.renderer.domElement;
canvas.addEventListener('click', (event) => this.onMouseClick(event));
canvas.addEventListener('mousemove', (event) => this.onMouseMove(event));
canvas.addEventListener('dblclick', (event) => this.onMouseDoubleClick(event));
}
// 更新鼠标位置（屏幕坐标 → NDC）
updateMousePosition(event) {
const rect = this.renderer.domElement.getBoundingClientRect();
this.mouse.x = ((event.clientX - rect.left) / rect.width) * 2 - 1;
this.mouse.y = -((event.clientY - rect.top) / rect.height) * 2 + 1;
}
// 鼠标点击处理
onMouseClick(event) {
this.updateMousePosition(event);
this.raycaster.setFromCamera(this.mouse, this.camera);
// 按优先级检测交互对象
const intersectionResult = this.detectIntersections();
if (intersectionResult) {
const { object, deviceType, deviceData } = intersectionResult;
if (event.ctrlKey) {
// Ctrl+点击：多选模式
this.toggleSelection(object);
} else {
// 单击：选择单个对象
this.selectObject(object);
this.handleDeviceInteraction(deviceType, deviceData);
}
} else {
// 点击空白区域：清除选择
this.clearSelection();
}
}
// 检测射线与对象的交集
detectIntersections() {
// 按优先级顺序检测不同类型的设备
const layerPriority = ['cameras', 'sensors', 'lights', 'infrastructure'];
for (const layerName of layerPriority) {
const objects = Array.from(this.interactableObjects[layerName].keys());
const intersects = this.raycaster.intersectObjects(objects, true);
if (intersects.length > 0) {
const intersectedObject = intersects[0].object;
const deviceData = this.interactableObjects[layerName].get(intersectedObject);
return {
object: intersectedObject,
deviceType: layerName,
deviceData: deviceData,
intersection: intersects[0]
};
}
}
return null;
}
// 处理不同类型设备的交互
handleDeviceInteraction(deviceType, deviceData) {
switch (deviceType) {
case 'cameras':
this.handleCameraInteraction(deviceData);
break;
case 'sensors':
this.handleSensorInteraction(deviceData);
break;
case 'lights':
this.handleLightInteraction(deviceData);
break;
default:
this.handleGenericInteraction(deviceData);
}
}
// 摄像机交互：显示视频流
handleCameraInteraction(cameraData) {
if (cameraData.status === 'online') {
this.showVideoModal(cameraData);
} else {
this.showDeviceErrorDialog(cameraData);
}
// 添加视觉反馈
this.highlightObject(cameraData.object, '#00ff00');
}
// 显示视频弹窗
showVideoModal(cameraData) {
const modal = document.createElement('div');
modal.className = 'video-modal';
modal.innerHTML = `
<div class="modal-content">
<div class="modal-header">
<h3>${cameraData.name} - 实时视频</h3>
<button class="close-btn" onclick="this.closeModal()">×</button>
</div>
<div class="modal-body">
<video controls autoplay>
<source src="${cameraData.streamUrl}" type="video/mp4">
您的浏览器不支持视频播放
</video>
<div class="video-info">
<p>分辨率: ${cameraData.data.resolution}</p>
<p>帧率: ${cameraData.data.fps} fps</p>
<p>码率: ${cameraData.data.bitrate} kbps</p>
</div>
</div>
</div>
`;
document.body.appendChild(modal);
}
// 对象高亮效果
highlightObject(object, color = '#ffff00') {
// 使用 OutlinePass 或修改材质实现高亮
if (this.outlinePass) {
this.outlinePass.selectedObjects = [object];
} else {
// 备用方案：修改材质颜色
const originalMaterial = object.material;
object.material = originalMaterial.clone();
object.material.emissive.setHex(color);
// 3秒后恢复原始材质
setTimeout(() => {
object.material = originalMaterial;
}, 3000);
}
}
}
2.3 射线-三角形相交检测算法
Three.js 内部使用高效的 Möller-Trumbore 算法 进行射线与三角形的相交检测：
// Möller-Trumbore 射线-三角形相交算法
function rayTriangleIntersect(rayOrigin, rayDirection, triangle) {
const { a, b, c } = triangle; // 三角形三个顶点
const EPSILON = 0.0000001;
// 计算三角形的两条边
const edge1 = b.clone().sub(a);
const edge2 = c.clone().sub(a);
// 计算射线方向与 edge2 的叉积
const h = rayDirection.clone().cross(edge2);
const det = edge1.dot(h);
// 如果行列式接近0，射线与三角形平行
if (det > -EPSILON && det < EPSILON) {
return null;
}
const invDet = 1.0 / det;
const s = rayOrigin.clone().sub(a);
const u = invDet * s.dot(h);
// 检查重心坐标 u
if (u < 0.0 || u > 1.0) {
return null;
}
const q = s.cross(edge1);
const v = invDet * rayDirection.dot(q);
// 检查重心坐标 v
if (v < 0.0 || u + v > 1.0) {
return null;
}
// 计算交点参数 t
const t = invDet * edge2.dot(q);
if (t > EPSILON) {
// 射线与三角形相交
const intersectionPoint = rayOrigin.clone().add(
rayDirection.clone().multiplyScalar(t)
);
return {
point: intersectionPoint,
distance: t,
u: u,
v: v
};
}
return null; // 线段相交，但射线不相交
}
2.4 性能优化策略
对于复杂的隧道场景，我们需要优化射线检测性能：
// 使用 BVH 加速结构优化射线检测
import { MeshBVH, acceleratedRaycast } from 'three-mesh-bvh';
class OptimizedInteractionManager extends TunnelInteractionManager {
constructor(scene, camera, renderer) {
super(scene, camera, renderer);
this.setupBVHAcceleration();
}
// 为复杂模型设置 BVH 加速结构
setupBVHAcceleration() {
this.scene.traverse((object) => {
if (object.isMesh && object.geometry.attributes.position.count > 1000) {
// 为顶点数较多的模型构建 BVH
object.geometry.boundsTree = new MeshBVH(object.geometry);
object.raycast = acceleratedRaycast;
}
});
}
// 使用空间分割优化大场景检测
detectIntersections() {
// 首先进行粗略的包围盒检测
const candidates = this.getCandidateObjects();
if (candidates.length === 0) return null;
// 对候选对象进行精确的射线检测
const intersects = this.raycaster.intersectObjects(candidates, true);
if (intersects.length > 0) {
return this.processIntersection(intersects[0]);
}
return null;
}
// 获取候选对象（空间裁剪）
getCandidateObjects() {
const candidates = [];
const frustum = new THREE.Frustum();
const cameraMatrix = new THREE.Matrix4().multiplyMatrices(
this.camera.projectionMatrix,
this.camera.matrixWorldInverse
);
frustum.setFromProjectionMatrix(cameraMatrix);
// 只检测在视锥体内的对象
for (const [layerName, objectMap] of Object.entries(this.interactableObjects)) {
for (const [object, data] of objectMap) {
if (frustum.intersectsObject(object)) {
candidates.push(object);
}
}
}
return candidates;
}
}
03 机器人巡检动画：基于样条曲线的智能路径规划
3.1 隧道巡检的实际需求
在真实的隧道监控系统中，巡检机器人需要：
- 沿着预定路径自动巡检
- 在关键节点停留检测
- 遇到障碍物时自动避让
- 支持远程控制和路径调整
- 实时回传巡检数据
3.2 路径规划的数学建模
我们使用 Catmull-Rom 样条曲线 来构建平滑的巡检路径：
class TunnelPatrolSystem {
constructor(scene) {
this.scene = scene;
this.robot = null;
this.patrolPath = null;
this.currentProgress = 0;
this.patrolSpeed = 0.001; // 巡检速度
this.isPatrolling = false;
this.patrolDirection = 1; // 1: 正向, -1: 反向
// 巡检关键点
this.waypoints = [
new THREE.Vector3(-1500, 20, 0), // 起点
new THREE.Vector3(-1000, 20, 0), // 检查点1
new THREE.Vector3(-500, 20, 0), // 检查点2
new THREE.Vector3(0, 20, 0), // 中心点
new THREE.Vector3(500, 20, 0), // 检查点3
new THREE.Vector3(1000, 20, 0), // 检查点4
new THREE.Vector3(1500, 20, 0) // 终点
];
this.initPatrolPath();
this.loadRobotModel();
}
// 初始化巡检路径
initPatrolPath() {
// 创建 Catmull-Rom 曲线
this.patrolPath = new THREE.CatmullRomCurve3(this.waypoints);
this.patrolPath.closed = false; // 非闭合路径
this.patrolPath.curveType = 'catmullrom';
this.patrolPath.tension = 0.5; // 曲线张力
// 可视化路径（调试用）
this.visualizePath();
}
// 可视化巡检路径
visualizePath() {
const points = this.patrolPath.getPoints(100);
const geometry = new THREE.BufferGeometry().setFromPoints(points);
const material = new THREE.LineBasicMaterial({
color: 0x00ff00,
transparent: true,
opacity: 0.6
});
const pathLine = new THREE.Line(geometry, material);
this.scene.add(pathLine);
// 添加路径点标记
this.waypoints.forEach((point, index) => {
const markerGeometry = new THREE.SphereGeometry(10, 8, 8);
const markerMaterial = new THREE.MeshBasicMaterial({ color: 0xff0000 });
const marker = new THREE.Mesh(markerGeometry, markerMaterial);
marker.position.copy(point);
this.scene.add(marker);
});
}
// 加载机器人模型
async loadRobotModel() {
const loader = new GLTFLoader();
try {
const gltf = await loader.loadAsync('/models/patrol_robot.gltf');
this.robot = gltf.scene;
this.robot.scale.setScalar(10);
// 设置初始位置
const startPosition = this.patrolPath.getPoint(0);
this.robot.position.copy(startPosition);
// 初始化动画混合器
if (gltf.animations.length > 0) {
this.animationMixer = new THREE.AnimationMixer(this.robot);
this.walkAction = this.animationMixer.clipAction(gltf.animations[0]);
this.walkAction.play();
}
this.scene.add(this.robot);
console.log('巡检机器人加载完成');
} catch (error) {
console.error('机器人模型加载失败:', error);
this.createFallbackRobot();
}
}
// 创建备用机器人模型
createFallbackRobot() {
const robotGroup = new THREE.Group();
// 机器人主体
const bodyGeometry = new THREE.BoxGeometry(30, 40, 60);
const bodyMaterial = new THREE.MeshLambertMaterial({ color: 0x4169E1 });
const body = new THREE.Mesh(bodyGeometry, bodyMaterial);
body.position.y = 20;
```javascript
// 机器人头部（传感器）
const headGeometry = new THREE.SphereGeometry(15);
const headMaterial = new THREE.MeshLambertMaterial({ color: 0x00ff00 });
const head = new THREE.Mesh(headGeometry, headMaterial);
head.position.y = 50;
// 机器人轮子
const wheelGeometry = new THREE.CylinderGeometry(8, 8, 5);
const wheelMaterial = new THREE.MeshLambertMaterial({ color: 0x333333 });
const wheels = [];
const wheelPositions = [
{ x: -15, y: -10, z: 20 },
{ x: 15, y: -10, z: 20 },
{ x: -15, y: -10, z: -20 },
{ x: 15, y: -10, z: -20 }
];
wheelPositions.forEach(pos => {
const wheel = new THREE.Mesh(wheelGeometry, wheelMaterial);
wheel.position.set(pos.x, pos.y, pos.z);
wheel.rotation.z = Math.PI / 2;
wheels.push(wheel);
robotGroup.add(wheel);
});
robotGroup.add(body);
robotGroup.add(head);
this.robot = robotGroup;
this.robot.wheels = wheels; // 保存轮子引用用于动画
const startPosition = this.patrolPath.getPoint(0);
this.robot.position.copy(startPosition);
this.scene.add(this.robot);
}
// 开始巡检
startPatrol() {
this.isPatrolling = true;
console.log('开始自动巡检');
}
// 停止巡检
stopPatrol() {
this.isPatrolling = false;
console.log('停止巡检');
}
// 更新巡检动画
updatePatrol(deltaTime) {
if (!this.isPatrolling || !this.robot) return;
// 更新进度
this.currentProgress += this.patrolSpeed * this.patrolDirection * deltaTime;
// 检查边界并反向
if (this.currentProgress >= 1) {
this.currentProgress = 1;
this.patrolDirection = -1;
this.onReachWaypoint('end');
} else if (this.currentProgress <= 0) {
this.currentProgress = 0;
this.patrolDirection = 1;
this.onReachWaypoint('start');
}
// 获取当前位置和切线方向
const currentPosition = this.patrolPath.getPoint(this.currentProgress);
const tangent = this.patrolPath.getTangent(this.currentProgress);
// 更新机器人位置
this.robot.position.copy(currentPosition);
// 更新机器人朝向
const lookAtPosition = currentPosition.clone().add(tangent);
this.robot.lookAt(lookAtPosition);
// 轮子旋转动画
if (this.robot.wheels) {
const rotationSpeed = this.patrolSpeed * deltaTime * 100;
this.robot.wheels.forEach(wheel => {
wheel.rotation.x += rotationSpeed * this.patrolDirection;
});
}
// 更新骨骼动画
if (this.animationMixer) {
this.animationMixer.update(deltaTime);
}
// 检查是否到达关键检测点
this.checkWaypoints();
}
// 检查关键点
checkWaypoints() {
const tolerance = 0.05; // 容差范围
this.waypoints.forEach((waypoint, index) => {
const waypointProgress = index / (this.waypoints.length - 1);
if (Math.abs(this.currentProgress - waypointProgress) < tolerance) {
this.onReachWaypoint(index);
}
});
}
// 到达关键点的处理
onReachWaypoint(waypointIndex) {
console.log(`机器人到达检查点: ${waypointIndex}`);
// 模拟数据采集
this.collectSensorData(waypointIndex);
// 可以在这里添加暂停逻辑
// this.pauseAtWaypoint(waypointIndex);
}
// 模拟传感器数据采集
collectSensorData(waypointIndex) {
const sensorData = {
timestamp: new Date().toISOString(),
position: this.robot.position.clone(),
waypoint: waypointIndex,
temperature: 20 + Math.random() * 10,
humidity: 50 + Math.random() * 30,
airQuality: Math.random() * 100
};
console.log('采集传感器数据:', sensorData);
// 发送数据到服务器
this.sendPatrolData(sensorData);
}
// 发送巡检数据
async sendPatrolData(data) {
try {
// 模拟 WebSocket 或 HTTP 请求
// await fetch('/api/patrol-data', {
// method: 'POST',
// headers: { 'Content-Type': 'application/json' },
// body: JSON.stringify(data)
// });
console.log('巡检数据已上传');
} catch (error) {
console.error('数据上传失败:', error);
}
}
}
3.3 样条曲线的数学原理
Catmull-Rom 样条曲线的数学表达式为：
// Catmull-Rom 样条插值公式
function catmullRomInterpolation(p0, p1, p2, p3, t) {
const t2 = t * t;
const t3 = t2 * t;
// Catmull-Rom 基函数
const v0 = -0.5 * t3 + t2 - 0.5 * t;
const v1 = 1.5 * t3 - 2.5 * t2 + 1;
const v2 = -1.5 * t3 + 2 * t2 + 0.5 * t;
const v3 = 0.5 * t3 - 0.5 * t2;
return p0.clone().multiplyScalar(v0)
.add(p1.clone().multiplyScalar(v1))
.add(p2.clone().multiplyScalar(v2))
.add(p3.clone().multiplyScalar(v3));
}
优势：
- C1 连续性：曲线在连接点处切线连续
- 局部控制：修改一个控制点只影响附近的曲线段
- 插值特性：曲线通过所有控制点
04 第一人称视角系统：沉浸式巡检体验
4.1 多视角切换的设计理念
现代数字孪生系统需要支持多种视角模式：
- 自由视角：全局观察，适合总体监控
- 跟随视角：第三人称跟随机器人
- 第一人称：机器人视角，沉浸式体验
- 固定监控点：模拟真实摄像机视角
4.2 第一人称视角的数学模型
class CameraControlSystem {
constructor(camera, controls) {
this.camera = camera;
this.orbitControls = controls;
this.viewMode = 'free'; // 'free', 'follow', 'firstPerson', 'fixed'
this.target = null;
// 第一人称参数
this.fpvOffset = new THREE.Vector3(0, 40, 10); // 相对于机器人的偏移
this.fpvLookAhead = 100; // 前视距离
// 跟随视角参数
this.followOffset = new THREE.Vector3(0, 100, 200);
this.followSmoothing = 0.1;
// 固定监控点
this.monitoringPoints = [
{ position: new THREE.Vector3(-1000, 200, 0), target: new THREE.Vector3(-500, 0, 0) },
{ position: new THREE.Vector3(0, 200, 500), target: new THREE.Vector3(0, 0, 0) },
{ position: new THREE.Vector3(1000, 200, 0), target: new THREE.Vector3(500, 0, 0) }
];
this.currentMonitorIndex = 0;
}
// 设置视角模式
setViewMode(mode, target = null) {
this.viewMode = mode;
this.target = target;
switch (mode) {
case 'free':
this.enableOrbitControls();
break;
case 'follow':
this.disableOrbitControls();
break;
case 'firstPerson':
this.disableOrbitControls();
break;
case 'fixed':
this.disableOrbitControls();
this.setFixedView();
break;
}
console.log(`切换到${mode}视角模式`);
}
// 更新相机
update(deltaTime) {
switch (this.viewMode) {
case 'follow':
this.updateFollowCamera(deltaTime);
break;
case 'firstPerson':
this.updateFirstPersonCamera(deltaTime);
break;
case 'fixed':
this.updateFixedCamera(deltaTime);
break;
}
}
// 更新第一人称视角
updateFirstPersonCamera(deltaTime) {
if (!this.target) return;
// 获取机器人的世界坐标和旋转
const robotWorldPos = this.target.getWorldPosition(new THREE.Vector3());
const robotWorldQuat = this.target.getWorldQuaternion(new THREE.Quaternion());
// 计算相机位置（机器人眼睛位置）
const eyePosition = this.fpvOffset.clone()
.applyQuaternion(robotWorldQuat)
.add(robotWorldPos);
// 计算前视方向
const forwardDirection = new THREE.Vector3(0, 0, -1)
.applyQuaternion(robotWorldQuat);
const lookAtPosition = eyePosition.clone()
.add(forwardDirection.multiplyScalar(this.fpvLookAhead));
// 平滑插值更新相机
this.camera.position.lerp(eyePosition, 0.2);
// 使用 lookAt 而不是直接设置旋转，避免万向锁
this.camera.lookAt(lookAtPosition);
// 可选：添加轻微的摇摆效果模拟行走
const walkSway = Math.sin(Date.now() * 0.01) * 0.5;
this.camera.rotation.z = walkSway * 0.01;
}
// 更新跟随视角
updateFollowCamera(deltaTime) {
if (!this.target) return;
const targetPos = this.target.getWorldPosition(new THREE.Vector3());
const targetQuat = this.target.getWorldQuaternion(new THREE.Quaternion());
// 计算跟随位置
const followPos = this.followOffset.clone()
.applyQuaternion(targetQuat)
.add(targetPos);
// 平滑跟随
this.camera.position.lerp(followPos, this.followSmoothing);
this.camera.lookAt(targetPos);
}
// 更新固定监控视角
updateFixedCamera(deltaTime) {
const currentPoint = this.monitoringPoints[this.currentMonitorIndex];
if (currentPoint) {
this.camera.position.lerp(currentPoint.position, 0.05);
// 如果有目标，跟踪目标；否则看向预设点
const lookTarget = this.target ?
this.target.getWorldPosition(new THREE.Vector3()) :
currentPoint.target;
this.camera.lookAt(lookTarget);
}
}
// 切换监控点
switchMonitoringPoint(index) {
if (index >= 0 && index < this.monitoringPoints.length) {
this.currentMonitorIndex = index;
console.log(`切换到监控点 ${index + 1}`);
}
}
// 启用轨道控制
enableOrbitControls() {
if (this.orbitControls) {
this.orbitControls.enabled = true;
}
}
// 禁用轨道控制
disableOrbitControls() {
if (this.orbitControls) {
this.orbitControls.enabled = false;
}
}
// 设置固定视角
setFixedView() {
const currentPoint = this.monitoringPoints[this.currentMonitorIndex];
if (currentPoint) {
this.camera.position.copy(currentPoint.position);
this.camera.lookAt(currentPoint.target);
}
}
}
4.3 视角切换的用户界面
// 创建视角控制面板
class ViewControlPanel {
constructor(cameraSystem) {
this.cameraSystem = cameraSystem;
this.createUI();
}
createUI() {
const panel = document.createElement('div');
panel.className = 'view-control-panel';
panel.innerHTML = `
<div class="panel-header">视角控制</div>
<div class="view-buttons">
<button data-mode="free" class="view-btn active">自由视角</button>
<button data-mode="follow" class="view-btn">跟随视角</button>
<button data-mode="firstPerson" class="view-btn">第一人称</button>
<button data-mode="fixed" class="view-btn">监控视角</button>
</div>
<div class="monitor-points" style="display: none;">
<label>监控点:</label>
<select id="monitorSelect">
<option value="0">入口监控</option>
<option value="1">中段监控</option>
<option value="2">出口监控</option>
</select>
</div>
<div class="view-info">
<div class="info-item">
<span>当前模式:</span>
<span id="currentMode">自由视角</span>
</div>
<div class="info-item">
<span>目标:</span>
<span id="currentTarget">无</span>
</div>
</div>
`;
// 添加事件监听
panel.querySelectorAll('.view-btn').forEach(btn => {
btn.addEventListener('click', (e) => {
const mode = e.target.dataset.mode;
this.switchViewMode(mode);
});
});
document.getElementById('monitorSelect').addEventListener('change', (e) => {
const index = parseInt(e.target.value);
this.cameraSystem.switchMonitoringPoint(index);
});
document.body.appendChild(panel);
}
switchViewMode(mode) {
// 更新按钮状态
document.querySelectorAll('.view-btn').forEach(btn => {
btn.classList.remove('active');
});
document.querySelector(`[data-mode="${mode}"]`).classList.add('active');
// 显示/隐藏监控点选择
const monitorPoints = document.querySelector('.monitor-points');
monitorPoints.style.display = mode === 'fixed' ? 'block' : 'none';
// 切换视角
const target = ['follow', 'firstPerson'].includes(mode) ?
window.patrolSystem?.robot : null;
this.cameraSystem.setViewMode(mode, target);
// 更新信息显示
document.getElementById('currentMode').textContent = this.getModeDisplayName(mode);
document.getElementById('currentTarget').textContent = target ? '巡检机器人' : '无';
}
getModeDisplayName(mode) {
const names = {
'free': '自由视角',
'follow': '跟随视角',
'firstPerson': '第一人称',
'fixed': '监控视角'
};
return names[mode] || mode;
}
}
4.4 视角切换的数学原理
四元数旋转避免万向锁：
// 使用四元数进行平滑旋转插值
function smoothRotation(currentQuat, targetQuat, factor) {
return currentQuat.slerp(targetQuat, factor);
}
// 从方向向量计算四元数
function directionToQuaternion(direction, up = new THREE.Vector3(0, 1, 0)) {
const matrix = new THREE.Matrix4();
matrix.lookAt(new THREE.Vector3(), direction, up);
return new THREE.Quaternion().setFromRotationMatrix(matrix);
}
位置插值的数学表达：
// 线性插值 (LERP)
P(t) = (1-t) * P0 + t * P1
// 球面线性插值 (SLERP) - 用于旋转
Q(t) = Q0 * (Q0^-1 * Q1)^t
05 资源管理与性能优化：企业级系统的稳定性保障
5.1 内存泄漏的根本原因
WebGL 应用中的内存泄漏主要来源于：
- GPU 资源未释放：几何体、纹理、着色器程序
- JavaScript 引用循环：对象间的相互引用
- 事件监听器残留：DOM 事件、动画回调
- 定时器未清理：setInterval、setTimeout
5.2 系统级资源管理器
class ResourceManager {
constructor() {
this.resources = {
geometries: new Set(),
materials: new Set(),
textures: new Set(),
animations: new Set(),
eventListeners: new Map(),
timers: new Set()
};
this.disposed = false;
}
// 注册资源
registerGeometry(geometry) {
this.resources.geometries.add(geometry);
return geometry;
}
registerMaterial(material) {
this.resources.materials.add(material);
return material;
}
registerTexture(texture) {
this.resources.textures.add(texture);
return texture;
}
registerAnimation(mixer, action) {
this.resources.animations.add({ mixer, action });
return action;
}
// 注册事件监听器
registerEventListener(element, event, handler) {
const key = `${element.constructor.name}_${event}`;
if (!this.resources.eventListeners.has(key)) {
this.resources.eventListeners.set(key, []);
}
this.resources.eventListeners.get(key).push({ element, event, handler });
element.addEventListener(event, handler);
}
// 注册定时器
registerTimer(timerId) {
this.resources.timers.add(timerId);
return timerId;
}
// 深度清理对象
disposeObject(object) {
if (!object) return;
// 递归清理子对象
if (object.children) {
while (object.children.length > 0) {
this.disposeObject(object.children[0]);
object.remove(object.children[0]);
}
}
// 清理几何体
if (object.geometry) {
object.geometry.dispose();
this.resources.geometries.delete(object.geometry);
}
// 清理材质
if (object.material) {
const materials = Array.isArray(object.material) ?
object.material : [object.material];
materials.forEach(material => {
// 清理材质中的纹理
Object.keys(material).forEach(key => {
const value = material[key];
if (value && value.isTexture) {
value.dispose();
this.resources.textures.delete(value);
}
});
material.dispose();
this.resources.materials.delete(material);
});
}
// 清理纹理
if (object.texture) {
object.texture.dispose();
this.resources.textures.delete(object.texture);
}
// 从父对象移除
if (object.parent) {
object.parent.remove(object);
}
}
// 清理所有资源
disposeAll() {
if (this.disposed) return;
console.log('开始清理所有资源...');
// 清理几何体
this.resources.geometries.forEach(geometry => {
try {
geometry.dispose();
} catch (error) {
console.warn('几何体清理失败:', error);
}
});
// 清理材质
this.resources.materials.forEach(material => {
try {
material.dispose();
} catch (error) {
console.warn('材质清理失败:', error);
}
});
// 清理纹理
this.resources.textures.forEach(texture => {
try {
texture.dispose();
} catch (error) {
console.warn('纹理清理失败:', error);
}
});
// 停止动画
this.resources.animations.forEach(({ mixer, action }) => {
try {
action.stop();
mixer.uncacheAction(action);
} catch (error) {
console.warn('动画清理失败:', error);
}
});
// 移除事件监听器
this.resources.eventListeners.forEach((listeners, key) => {
listeners.forEach(({ element, event, handler }) => {
try {
element.removeEventListener(event, handler);
} catch (error) {
console.warn('事件监听器清理失败:', error);
}
});
});
// 清理定时器
this.resources.timers.forEach(timerId => {
try {
clearInterval(timerId);
clearTimeout(timerId);
} catch (error) {
console.warn('定时器清理失败:', error);
}
});
// 清空资源集合
Object.values(this.resources).forEach(collection => {
if (collection.clear) collection.clear();
});
this.disposed = true;
console.log('资源清理完成');
}
// 获取资源使用情况
getResourceStats() {
return {
geometries: this.resources.geometries.size,
materials: this.resources.materials.size,
textures: this.resources.textures.size,
animations: this.resources.animations.size,
eventListeners: Array.from(this.resources.eventListeners.values())
.reduce((sum, arr) => sum + arr.length, 0),
timers: this.resources.timers.size
};
}
}
5.3 隧道监控系统的完整生命周期管理
class TunnelMonitoringSystem {
constructor(container) {
this.container = container;
this.resourceManager = new ResourceManager();
this.scene = null;
this.camera = null;
this.renderer = null;
this.animationId = null;
this.init();
}
async init() {
try {
// 初始化基础组件
this.initScene();
this.initCamera();
this.initRenderer();
this.initLights();
// 初始化业务组件
await this.initTunnel();
this.initDeviceLabels();
this.initInteraction();
this.initPatrolSystem();
this.initCameraControl();
// 开始渲染循环
this.startRenderLoop();
console.log('隧道监控系统初始化完成');
} catch (error) {
console.error('系统初始化失败:', error);
this.dispose();
}
}
initScene() {
this.scene = new THREE.Scene();
this.scene.background = new THREE.Color(0x000011);
}
initCamera() {
this.camera = new THREE.PerspectiveCamera(
75,
window.innerWidth / window.innerHeight,
1,
10000
);
this.camera.position.set(0, 500, 1000);
}
initRenderer() {
this.renderer = new THREE.WebGLRenderer({
antialias: true,
logarithmicDepthBuffer: true
});
this.renderer.setSize(window.innerWidth, window.innerHeight);
this.renderer.shadowMap.enabled = true;
this.renderer.shadowMap.type = THREE.PCFSoftShadowMap;
this.container.appendChild(this.renderer.domElement);
// 注册窗口大小变化事件
this.resourceManager.registerEventListener(
window,
'resize',
() => this.onWindowResize()
);
}
startRenderLoop() {
const animate = (time) => {
this.animationId = requestAnimationFrame(animate);
const deltaTime = this.clock.getDelta();
// 更新各个系统
if (this.patrolSystem) {
this.patrolSystem.updatePatrol(deltaTime);
}
if (this.cameraSystem) {
this.cameraSystem.update(deltaTime);
}
if (this.labelManager) {
this.labelManager.updateLabels(deltaTime);
}
// 渲染
this.renderer.render(this.scene, this.camera);
if (this.labelManager) {
this.labelManager.render();
}
};
this.clock = new THREE.Clock();
animate();
}
onWindowResize() {
this.camera.aspect = window.innerWidth / window.innerHeight;
this.camera.updateProjectionMatrix();
this.renderer.setSize(window.innerWidth, window.innerHeight);
}
// 系统销毁
dispose() {
console.log('开始销毁隧道监控系统...');
// 停止渲染循环
if (this.animationId) {
cancelAnimationFrame(this.animationId);
}
// 停止巡检
if (this.patrolSystem) {
this.patrolSystem.stopPatrol();
}
// 清理场景对象
if (this.scene) {
this.resourceManager.disposeObject(this.scene);
}
// 清理渲染器
if (this.renderer) {
this.renderer.dispose();
if (this.renderer.domElement.parentNode) {
this.renderer.domElement.parentNode.removeChild(this.renderer.domElement);
}
}
// 清理所有资源
this.resourceManager.disposeAll();
console.log('隧道监控系统销毁完成');
}
}
// 使用示例
let tunnelSystem = null;
// 初始化系统
function initTunnelSystem() {
const container = document.getElementById('tunnel-container');
tunnelSystem = new TunnelMonitoringSystem(container);
}
// 页面卸载时清理
window.addEventListener('beforeunload', () => {
if (tunnelSystem) {
tunnelSystem.dispose();
}
});
// React/Vue 组件卸载时清理
// useEffect(() => {
// return () => {
// if (tunnelSystem) {
// tunnelSystem.dispose();
// }
// };
// }, []);
5.4 性能监控与优化
class PerformanceMonitor {
constructor() {
this.stats = {
fps: 0,
frameTime: 0,
memoryUsage: 0,
drawCalls: 0,
triangles: 0
};
this.frameCount = 0;
this.lastTime = performance.now();
}
update(renderer) {
const currentTime = performance.now();
const deltaTime = currentTime - this.lastTime;
this.frameCount++;
// 每秒更新一次统计
if (deltaTime >= 1000) {
this.stats.fps = Math.round((this.frameCount * 1000) / deltaTime);
this.stats.frameTime = deltaTime / this.frameCount;
// WebGL 渲染信息
const info = renderer.info;
this.stats.drawCalls = info.render.calls;
this.stats.triangles = info.render.triangles;
// 内存使用情况
if (performance.memory) {
this.stats.memoryUsage = Math.round(
performance.memory.usedJSHeapSize / 1048576
);
}
this.frameCount = 0;
this.lastTime = currentTime;
// 输出性能信息
console.log('性能统计:', this.stats);
// 性能警告
if (this.stats.fps < 30) {
console.warn('帧率过低，建议优化渲染性能');
}
if (this.stats.memoryUsage > 500) {
console.warn('内存使用过高，建议检查资源泄漏');
}
if (this.stats.drawCalls > 1000) {
console.warn('绘制调用过多，建议使用实例化渲染或合并几何体');
}
}
}
// 创建性能监控面板
createMonitorPanel() {
const panel = document.createElement('div');
panel.className = 'performance-monitor';
panel.innerHTML = `
<div class="monitor-header">性能监控</div>
<div class="monitor-stats">
<div class="stat-item">
<span class="stat-label">FPS:</span>
<span class="stat-value" id="fps-value">0</span>
</div>
<div class="stat-item">
<span class="stat-label">帧时间:</span>
<span class="stat-value" id="frametime-value">0ms</span>
</div>
<div class="stat-item">
<span class="stat-label">内存:</span>
<span class="stat-value" id="memory-value">0MB</span>
</div>
<div class="stat-item">
<span class="stat-label">绘制调用:</span>
<span class="stat-value" id="drawcalls-value">0</span>
</div>
<div class="stat-item">
<span class="stat-label">三角形:</span>
<span class="stat-value" id="triangles-value">0</span>
</div>
</div>
`;
document.body.appendChild(panel);
// 定期更新显示
setInterval(() => {
document.getElementById('fps-value').textContent = this.stats.fps;
document.getElementById('frametime-value').textContent =
`${this.stats.frameTime.toFixed(2)}ms`;
document.getElementById('memory-value').textContent =
`${this.stats.memoryUsage}MB`;
document.getElementById('drawcalls-value').textContent = this.stats.drawCalls;
document.getElementById('triangles-value').textContent = this.stats.triangles;
}, 1000);
}
}
5.5 LOD（细节层次）优化策略
class LODManager {
constructor(camera) {
this.camera = camera;
this.lodObjects = new Map(); // object -> {high, medium, low}
this.updateInterval = 100; // 100ms 更新一次 LOD
this.lastUpdate = 0;
}
// 注册 LOD 对象
registerLODObject(object, lodLevels) {
this.lodObjects.set(object, {
high: lodLevels.high, // 高精度模型（近距离）
medium: lodLevels.medium, // 中精度模型（中距离）
low: lodLevels.low, // 低精度模型（远距离）
current: 'high',
distances: {
medium: 500, // 切换到中精度的距离
low: 1000 // 切换到低精度的距离
}
});
}
// 更新 LOD
update(currentTime) {
if (currentTime - this.lastUpdate < this.updateInterval) return;
const cameraPosition = this.camera.position;
this.lodObjects.forEach((lodData, object) => {
const distance = cameraPosition.distanceTo(object.position);
let targetLOD = 'high';
if (distance > lodData.distances.low) {
targetLOD = 'low';
} else if (distance > lodData.distances.medium) {
targetLOD = 'medium';
}
// 切换 LOD
if (targetLOD !== lodData.current) {
this.switchLOD(object, lodData, targetLOD);
lodData.current = targetLOD;
}
});
this.lastUpdate = currentTime;
}
// 切换 LOD 级别
switchLOD(object, lodData, targetLOD) {
// 隐藏当前模型
const currentModel = lodData[lodData.current];
if (currentModel) {
currentModel.visible = false;
}
// 显示目标模型
const targetModel = lodData[targetLOD];
if (targetModel) {
targetModel.visible = true;
}
console.log(`对象 LOD 切换: ${lodData.current} -> ${targetLOD}`);
}
}
5.6 实例化渲染优化
对于隧道中的重复元素（如路灯、标识牌等），使用实例化渲染可以大幅提升性能：
class InstancedRenderingManager {
constructor(scene) {
this.scene = scene;
this.instancedMeshes = new Map();
}
// 创建实例化网格
createInstancedMesh(geometry, material, count, name) {
const instancedMesh = new THREE.InstancedMesh(geometry, material, count);
instancedMesh.name = name;
// 设置实例变换矩阵
const matrix = new THREE.Matrix4();
const position = new THREE.Vector3();
const rotation = new THREE.Euler();
const scale = new THREE.Vector3(1, 1, 1);
for (let i = 0; i < count; i++) {
// 根据业务逻辑设置每个实例的位置
position.set(
(i - count / 2) * 200, // 沿隧道分布
0,
Math.random() * 100 - 50
);
rotation.set(0, Math.random() * Math.PI * 2, 0);
matrix.compose(position, new THREE.Quaternion().setFromEuler(rotation), scale);
instancedMesh.setMatrixAt(i, matrix);
}
instancedMesh.instanceMatrix.needsUpdate = true;
this.scene.add(instancedMesh);
this.instancedMeshes.set(name, instancedMesh);
return instancedMesh;
}
// 更新实例
updateInstance(meshName, instanceId, position, rotation, scale) {
const mesh = this.instancedMeshes.get(meshName);
if (!mesh) return;
const matrix = new THREE.Matrix4();
const quaternion = new THREE.Quaternion().setFromEuler(rotation);
matrix.compose(position, quaternion, scale);
mesh.setMatrixAt(instanceId, matrix);
mesh.instanceMatrix.needsUpdate = true;
}
// 批量更新实例（性能优化）
batchUpdateInstances(meshName, updates) {
const mesh = this.instancedMeshes.get(meshName);
if (!mesh) return;
updates.forEach(({ instanceId, position, rotation, scale }) => {
const matrix = new THREE.Matrix4();
const quaternion = new THREE.Quaternion().setFromEuler(rotation);
matrix.compose(position, quaternion, scale);
mesh.setMatrixAt(instanceId, matrix);
});
mesh.instanceMatrix.needsUpdate = true;
}
}
// 使用示例：创建隧道路灯
function createTunnelLights(scene) {
const instanceManager = new InstancedRenderingManager(scene);
// 路灯几何体和材质
const lightGeometry = new THREE.CylinderGeometry(5, 5, 100);
const lightMaterial = new THREE.MeshLambertMaterial({ color: 0xcccccc });
// 创建100个路灯实例
const lightCount = 100;
instanceManager.createInstancedMesh(
lightGeometry,
lightMaterial,
lightCount,
'tunnelLights'
);
return instanceManager;
}
📌 本篇总结
通过本篇文章，我们深入探讨了隧道监控系统中的核心交互技术：
技术成果
- CSS3D 标签系统：实现了业务数据与 3D 模型的无缝融合，支持复杂的 UI 交互
- 精确射线投射：基于 Möller-Trumbore 算法的高效 3D 对象选择系统
- 智能路径动画：使用 Catmull-Rom 样条曲线实现平滑的机器人巡检路径
- 多视角相机系统：支持自由、跟随、第一人称、固定监控等多种视角模式
- 企业级资源管理：完整的生命周期管理，确保系统长期稳定运行
性能优化策略
- LOD 细节层次：根据距离动态调整模型精度
- 实例化渲染：大幅提升重复元素的渲染性能
- 视锥体裁剪：只处理可见区域的对象
- 批量更新：减少 DOM 操作和 GPU 状态切换
数学理论应用
- 坐标变换管线：世界坐标 → 相机坐标 → 裁剪坐标 → 屏幕坐标
- 四元数旋转：避免万向锁，实现平滑的相机旋转
- 样条曲线插值：保证路径的 C1 连续性和局部控制特性
