ArcGIS技术总结与开发实践

ArcGIS平台概述

ArcGIS是由Esri开发的地理信息系统(GIS)平台，提供从数据采集、空间分析到可视化呈现的全套解决方案。其核心优势在于：

全球覆盖的地理数据资源
强大的空间分析能力
多平台支持（桌面端、Web端、移动端）
丰富的API和开发工具

学习资源

官方文档：www.esri.com/zh-cn/home
示例地图库：livingatlas.arcgis.com/en/browse/
在线地图查看器：www.arcgis.com/apps/mapvie…

Vue项目集成实践

1. 基础集成方案

依赖安装

npm install leaflet
npm install esri-leaflet

基础实现

<script setup>
    import 'leaflet/dist/leaflet.css'
    import L from 'leaflet'
    import basemapLayer from 'esri-leaflet/src/Layers/BasemapLayer'
</script>

2. 进阶应用

底图组合使用

<template>
  <div class="portal">
    <div class="map-content" id="mapId"></div>
  </div>
</template>
<script setup>
    import 'leaflet/dist/leaflet.css'
    import L from 'leaflet'
    import basemapLayer from 'esri-leaflet/src/Layers/BasemapLayer'
    import { onMounted, reactive, ref, watch } from 'vue'

    let map = null
    onMounted(() => {
      initMap()
    })
    const initMap = async () => {
        const myMap = basemapLayer('Imagery')
        map = L.map('mapId', {
            preferCanvas: true,
            attributionControl: false,
            renderer: L.canvas(),
            center: [34.22088, 121.14048],
            zoom: 4,
            layers: [myMap],
            zoomControl: false,
            worldCopyJump: true,
            zoomSnap: 1,
            zoomDelta: 1,
            wheelPxPerZoomLevel: 120,
            crs: L.CRS.EPSG3857,
        })
        L.control.layers(baseLayers).addTo(map)
    }
</script>
<style lang="scss" scoped>
.portal {
  width: 100%;
  height: calc(100vh - 91px);
  box-sizing: border-box;
  position: relative;
}
.map-content {
  width: 100%;
  height: 100%;
}
</style>

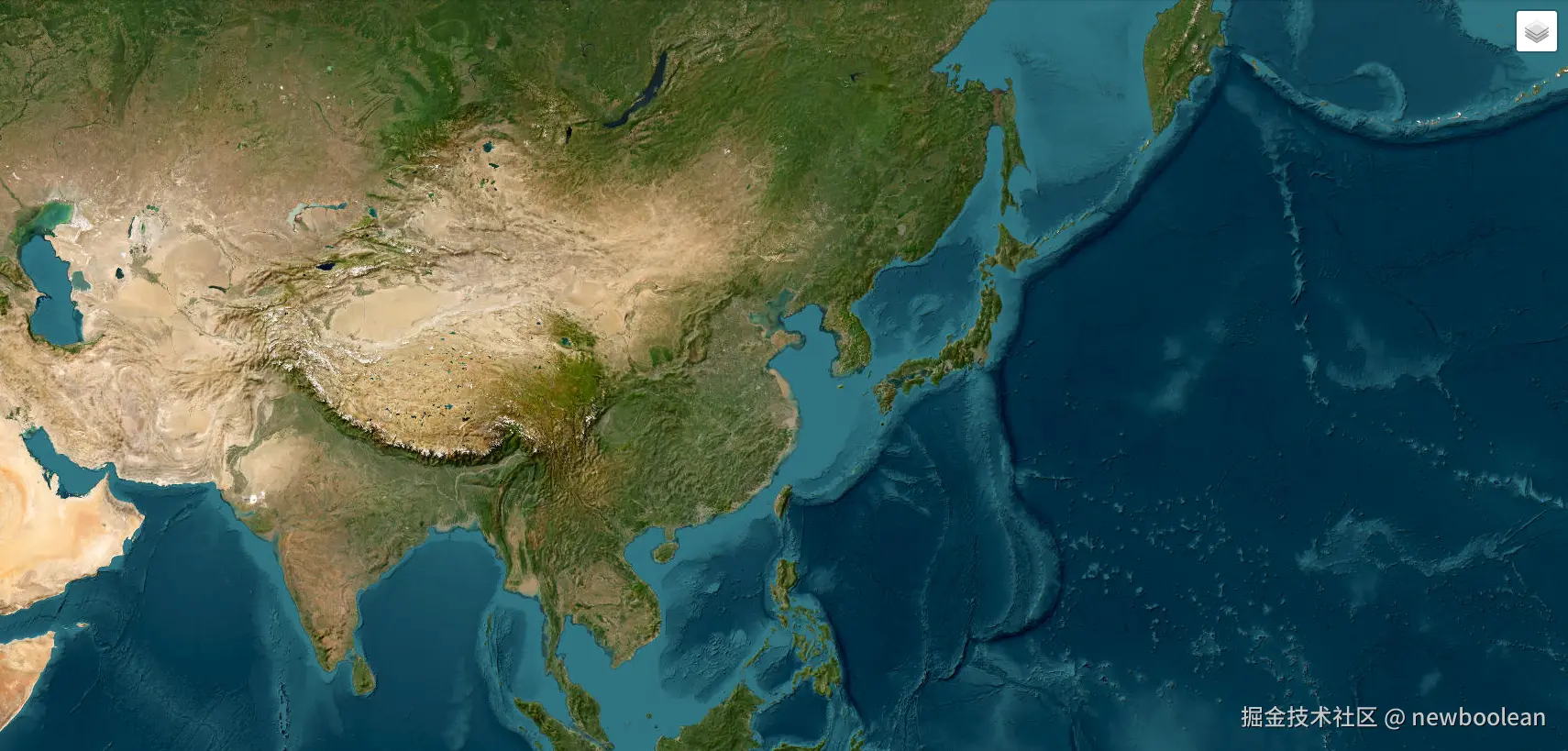

然后我们看效果

通过查看源码可知，basemapLayer内置了20种不同的底图

"Streets", "Topographic", "Oceans", "OceansLabels", "NationalGeographic", "Physical", "Gray", "GrayLabels", "DarkGray", "DarkGrayLabels", "Imagery", "ImageryLabels", "ImageryTransportation", "ImageryClarity", "ImageryFirefly", ShadedRelief", "ShadedReliefLabels", "Terrain", "TerrainLabels" or "USATopo"

我们在尝试一下别的底图

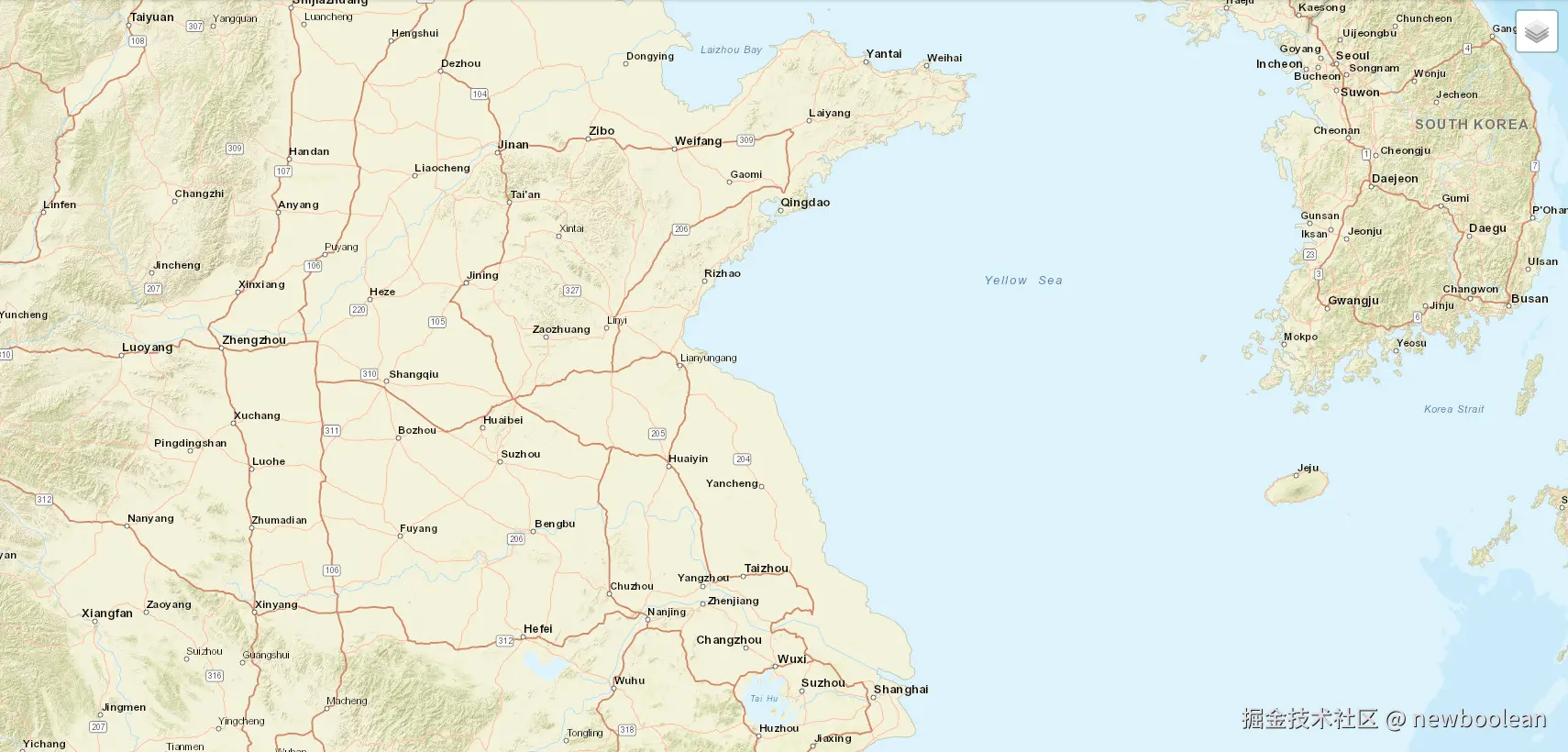

const myMap = basemapLayer('Streets')

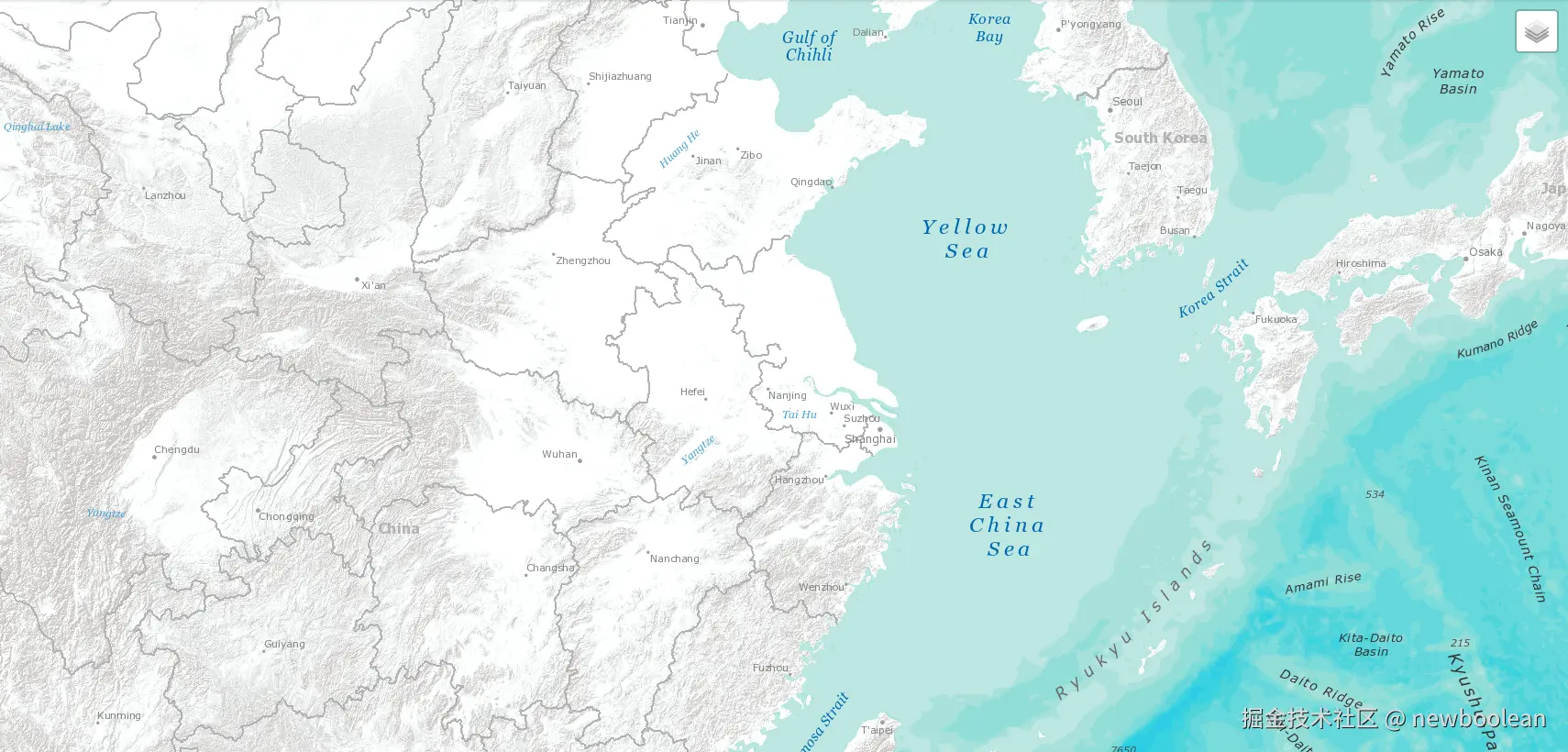

const myMap = basemapLayer('Terrain')

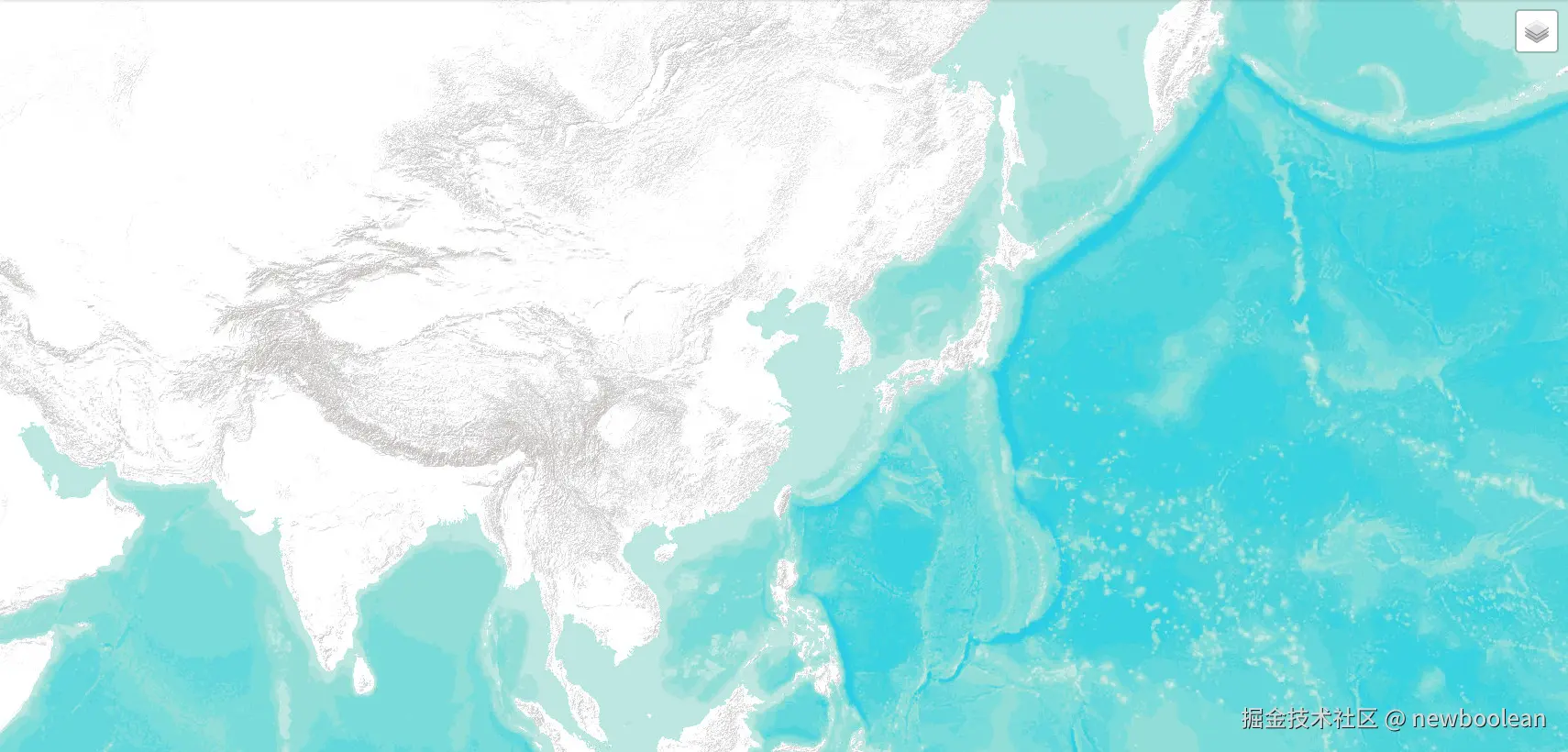

也可以将两种底图组合使用

const myMap = basemapLayer('Oceans')
const myMapLabel = basemapLayer('OceansLabels')
const arcgisLayer = L.layerGroup([myMap, myMapLabel])
 map = L.map('mapId', {
    preferCanvas: true,
    attributionControl: false,
    renderer: L.canvas(),
    center: [34.22088, 121.14048],
    zoom: 4,
    layers: [arcgisLayer],
    zoomControl: false,
    worldCopyJump: true,
    zoomSnap: 1,
    zoomDelta: 1,
    wheelPxPerZoomLevel: 120,
    crs: L.CRS.EPSG3857,
})

dynamicMapLayer核心特性

动态地图层(dynamicMapLayer)是ArcGIS平台提供的实时数据可视化方案，与静态basemapLayer相比具有以下优势：

‌实时数据更新‌：支持动态加载服务器端渲染的地图服务
‌灵活样式控制‌：可通过参数动态调整图层样式
‌多层数据叠加‌：支持多个动态图层的叠加显示
‌按需加载‌：可根据视图范围动态请求数据

基础实现方案

1. 基础配置

const dynamicLayer = L.esri.dynamicMapLayer({
  url: 'https://services.arcgisonline.com/ArcGIS/rest/services/World_Imagery/MapServer',
  opacity: 0.8,
  minZoom: 1,
  maxZoom: 18,
  attribution: 'Esri & Contributors'
});

2. 高级参数配置

const earthquakeLayer = L.esri.dynamicMapLayer({
  url: 'https://services.arcgis.com/v01gqwM5QqNysAAi/arcgis/rest/services/Recent_Earthquakes/FeatureServer/1',
  zoom: true,
  zoomInterval: true,
  minZoom: 1,
  maxZoom: 18,
  layers: [0], // 指定显示的子图层
  opacity: 0.7,
  useCanvas: true,
  tiled: true,
  renderer: {
    type: 'simple',
    symbol: {
      type: 'esriSMS',
      style: 'esriSMSSquare',
      color: [255, 0, 0, 127],
      size: 8
    }
  }
});

性能优化策略

‌瓦片缓存机制‌：
```
tiled: true,
tileCacheSize: 50
```
‌视图范围限制‌：
```
minZoom: 6,
maxZoom: 15
```
‌渲染优化‌：
```
preferCanvas: true,
useCanvas: true
```

常见问题解决方案

‌跨域问题‌：
- 配置代理服务器
- 使用CORS兼容服务
‌数据加载慢‌：
- 启用tiled参数
- 设置合理的minZoom/maxZoom
‌样式定制‌：
- 使用renderer参数
- 通过query设置过滤条件
