NBA美国职业篮球联赛数据分析可视化系统-功能介绍
本系统是一个综合运用大数据技术对NBA美国职业篮球联赛数据进行深度挖掘与可视化展示的分析平台。系统采用Hadoop+Spark的大数据架构，对2009-2024年间包含数万条球员比赛记录的海量数据进行分布式存储和并行计算处理。通过HDFS实现数据的可靠存储，利用Spark的内存计算能力对球员技术统计、球队实力对比、赛季发展趋势等多维度数据进行高效分析。后端采用Django框架构建RESTful API接口，配合MySQL数据库进行结果数据的持久化存储，前端运用Vue+ElementUI搭建响应式界面，结合Echarts图表库实现数据的动态可视化呈现。系统涵盖了球员基本统计分析、身体素质与表现关系研究、三分时代演进追踪、防守贡献度评估等15项核心分析功能，通过热力图、散点图、雷达图、时间轴等多种可视化形式，将复杂的篮球数据转化为直观的图表展示。
NBA美国职业篮球联赛数据分析可视化系统-选题背景意义
研究背景
NBA作为顶级的篮球职业联赛，每个赛季都会产生海量的比赛数据和球员统计信息，这些数据蕴含着丰富的信息价值。随着篮球运动的职业化程度不断提高，数据分析在球队管理、战术制定、球员评估等方面扮演着越来越重要的角色。传统的数据分析方法在面对如此庞大的数据量时显得力不从心，处理效率低下且难以发现深层次的数据关联。大数据技术的成熟为篮球数据分析带来了新的可能，分布式计算框架能够快速处理历年累积的比赛数据，机器学习算法可以识别球员类型和预测表现趋势。当前篮球分析领域正在经历从经验判断向数据驱动决策的转变，各支球队都在建立自己的数据分析体系，这种背景下开发一个功能完善的NBA数据分析可视化系统具有很强的现实需求。
研究意义
本系统的开发对于推动篮球数据分析的普及化具有积极作用。在实践层面，系统为篮球爱好者提供了一个便捷的数据查询和分析工具，让普通球迷也能通过数据更深入地了解比赛和球员。对于高校体育专业的教学而言，系统可以作为体育统计学课程的辅助工具，帮助学生理解数据在体育领域的应用价值。在技术探索方面，项目将大数据处理技术与体育数据分析相结合，验证了Hadoop+Spark架构在处理结构化体育数据时的可行性和效率优势。系统通过可视化手段降低了数据分析的门槛，让非专业人士也能快速理解复杂的统计结果。虽然这只是一个毕业设计项目，但它在一定程度上展示了数据科学在体育领域的应用潜力，为后续更深入的研究提供了基础框架和实现思路。
NBA美国职业篮球联赛数据分析可视化系统-技术选型
大数据框架：Hadoop+Spark（本次没用Hive，支持定制） 开发语言：Python+Java（两个版本都支持） 后端框架：Django+Spring Boot(Spring+SpringMVC+Mybatis)（两个版本都支持） 前端：Vue+ElementUI+Echarts+HTML+CSS+JavaScript+jQuery 详细技术点：Hadoop、HDFS、Spark、Spark SQL、Pandas、NumPy 数据库：MySQL
NBA美国职业篮球联赛数据分析可视化系统-视频展示

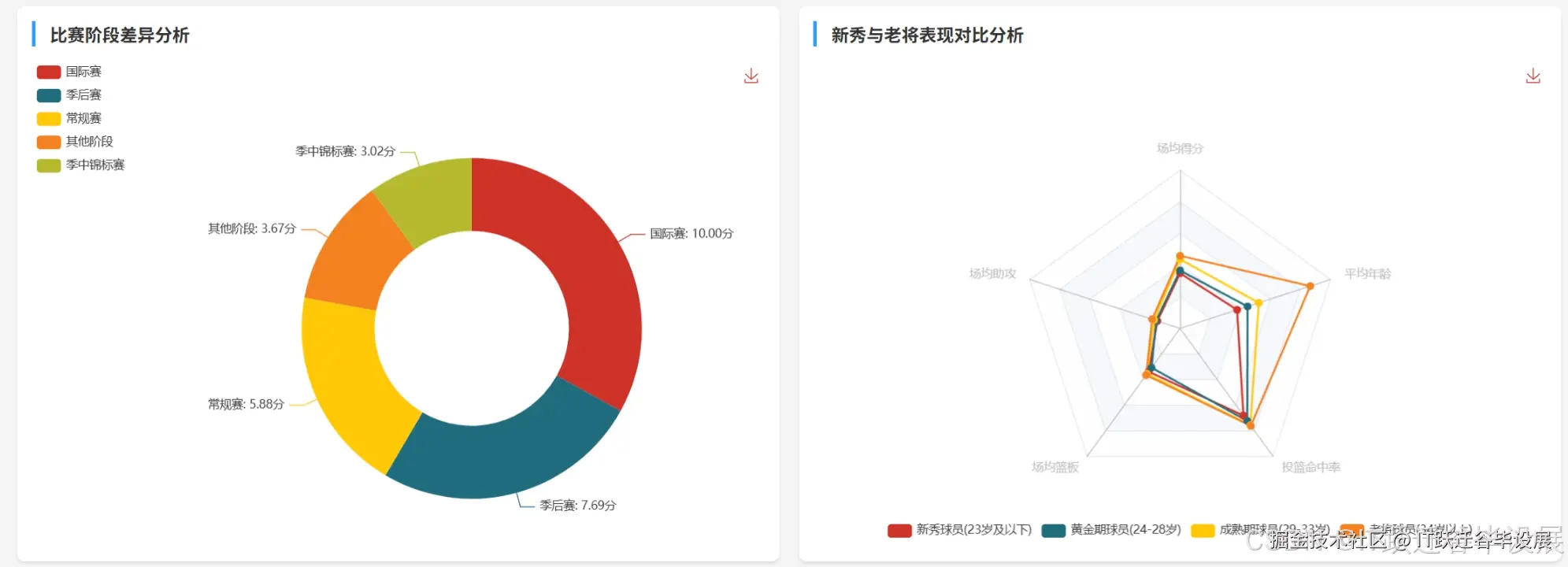

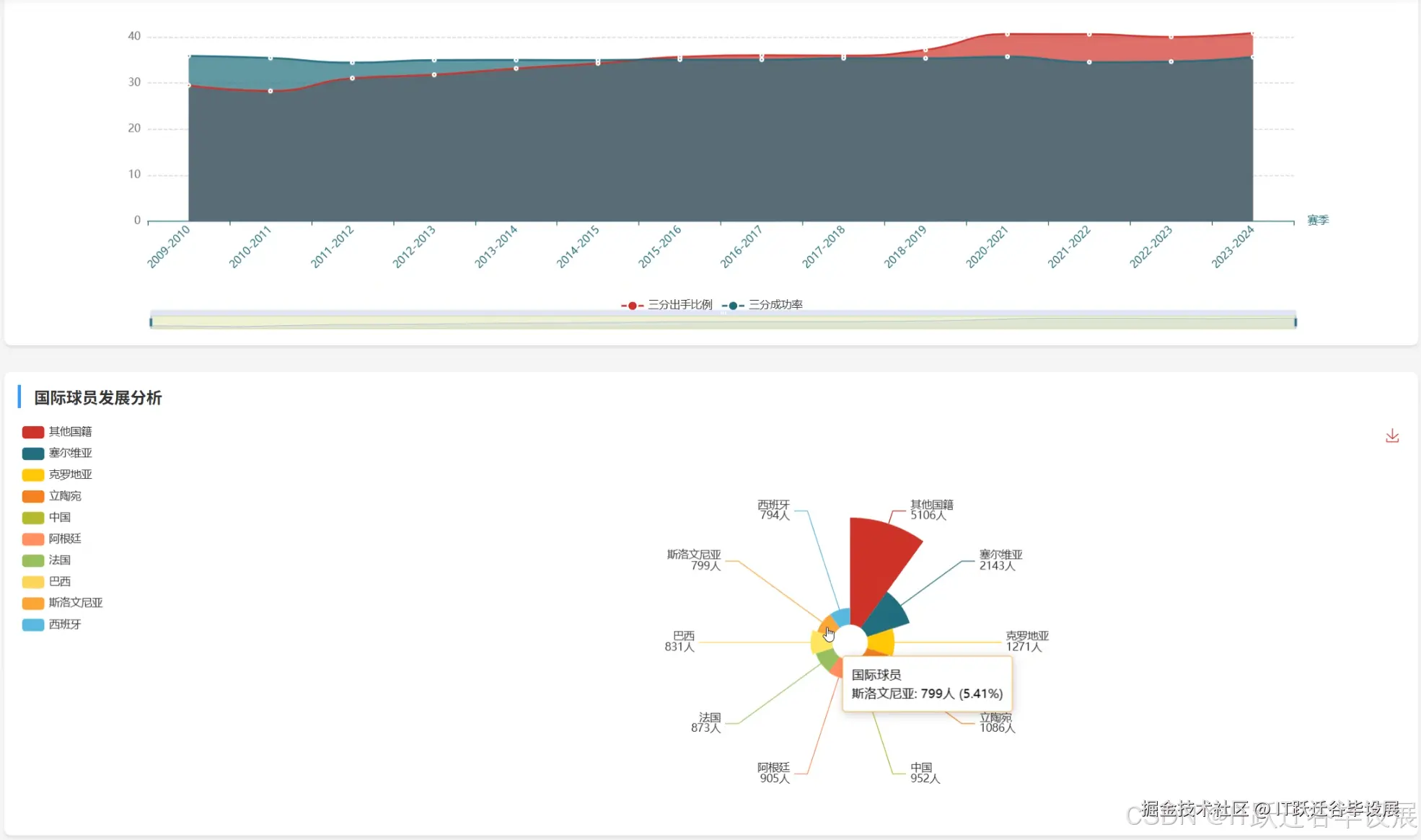

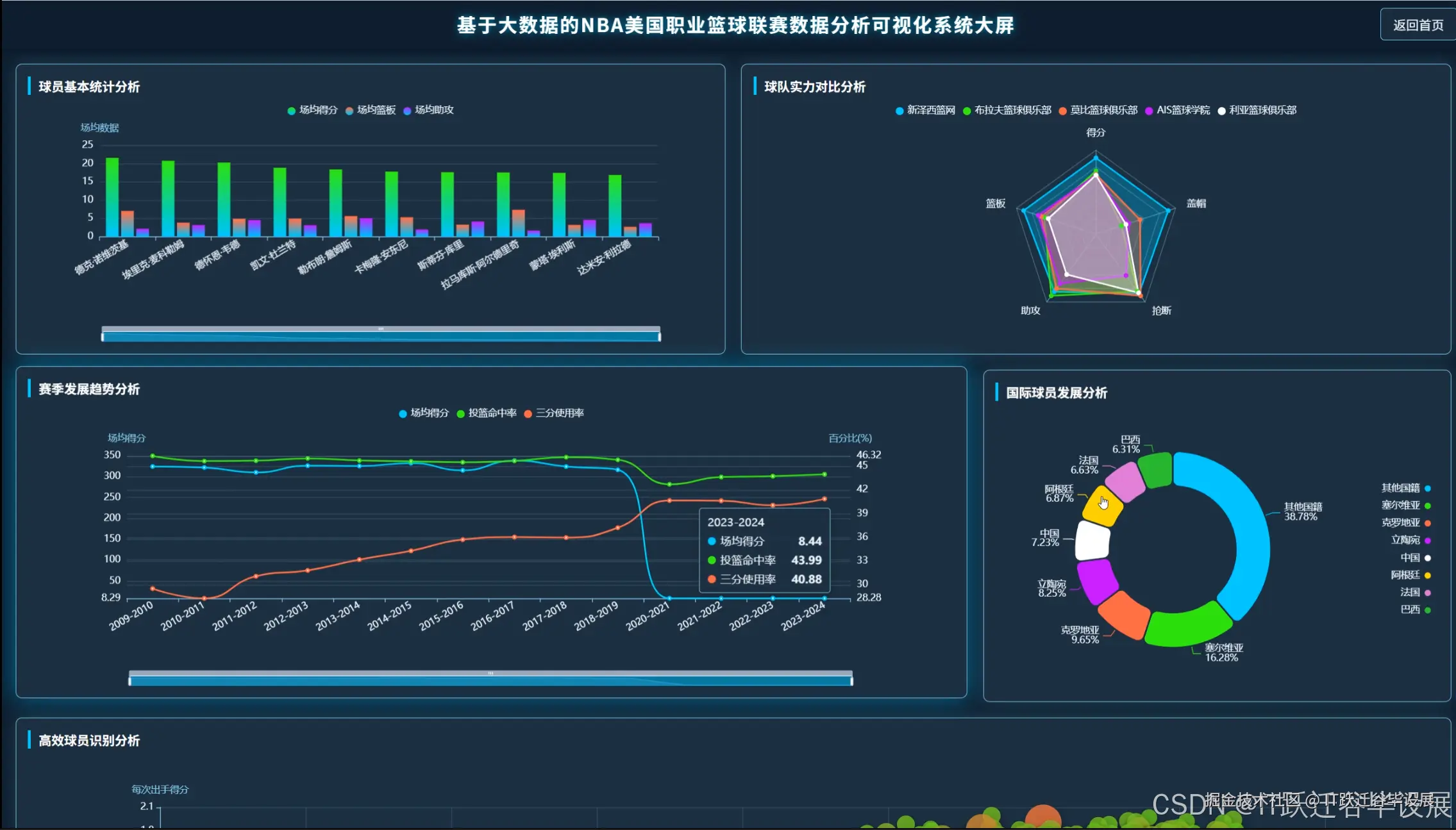

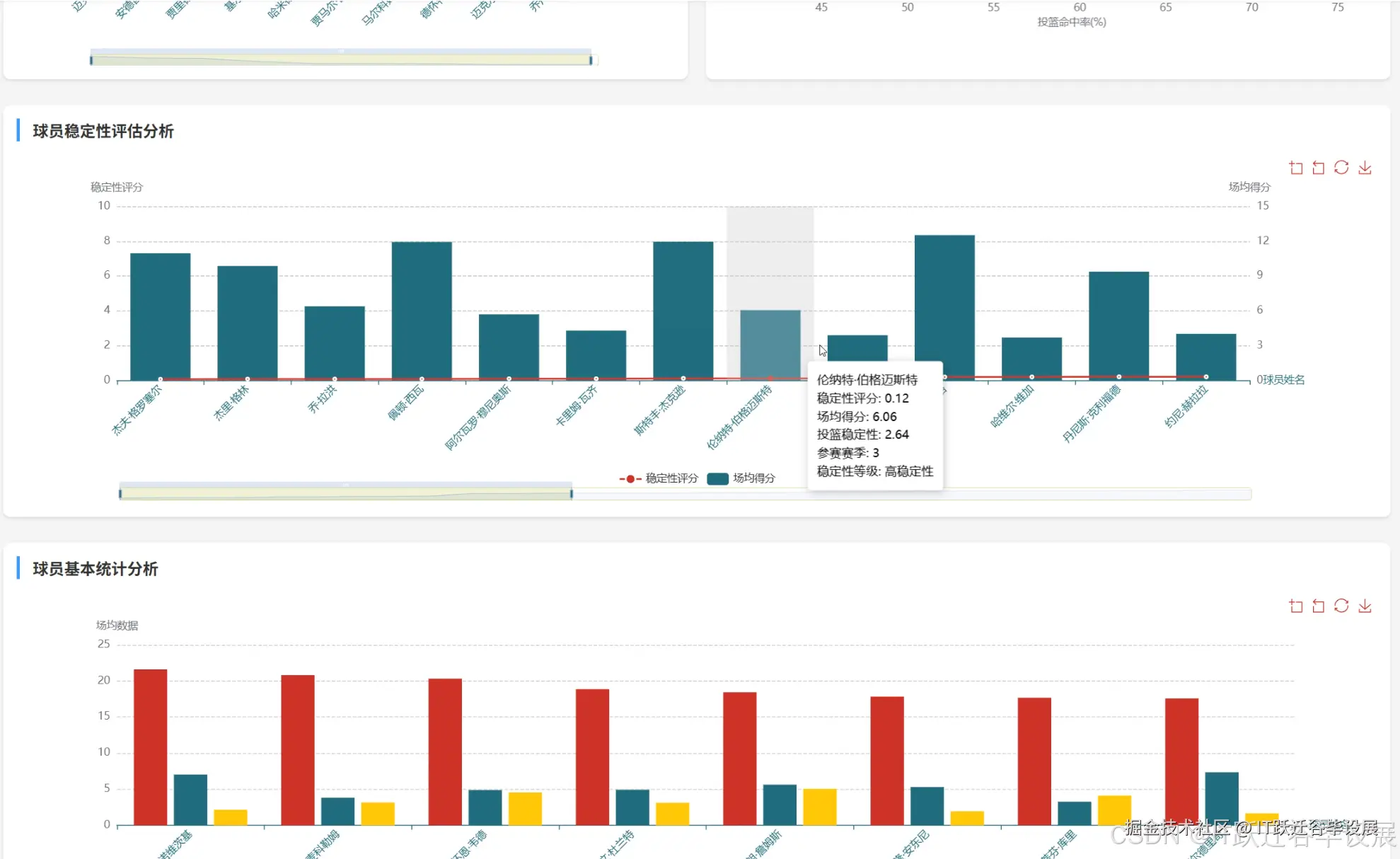

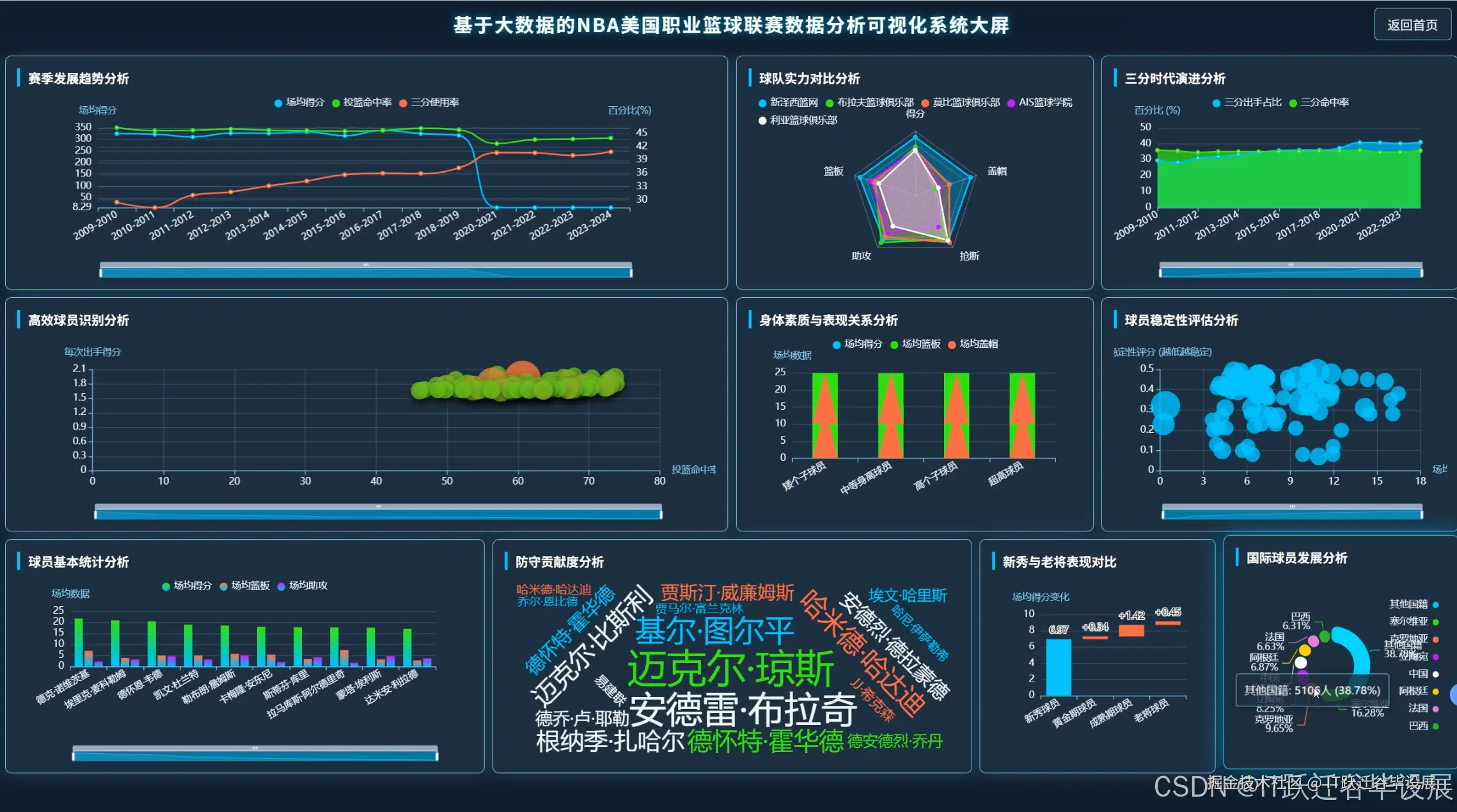

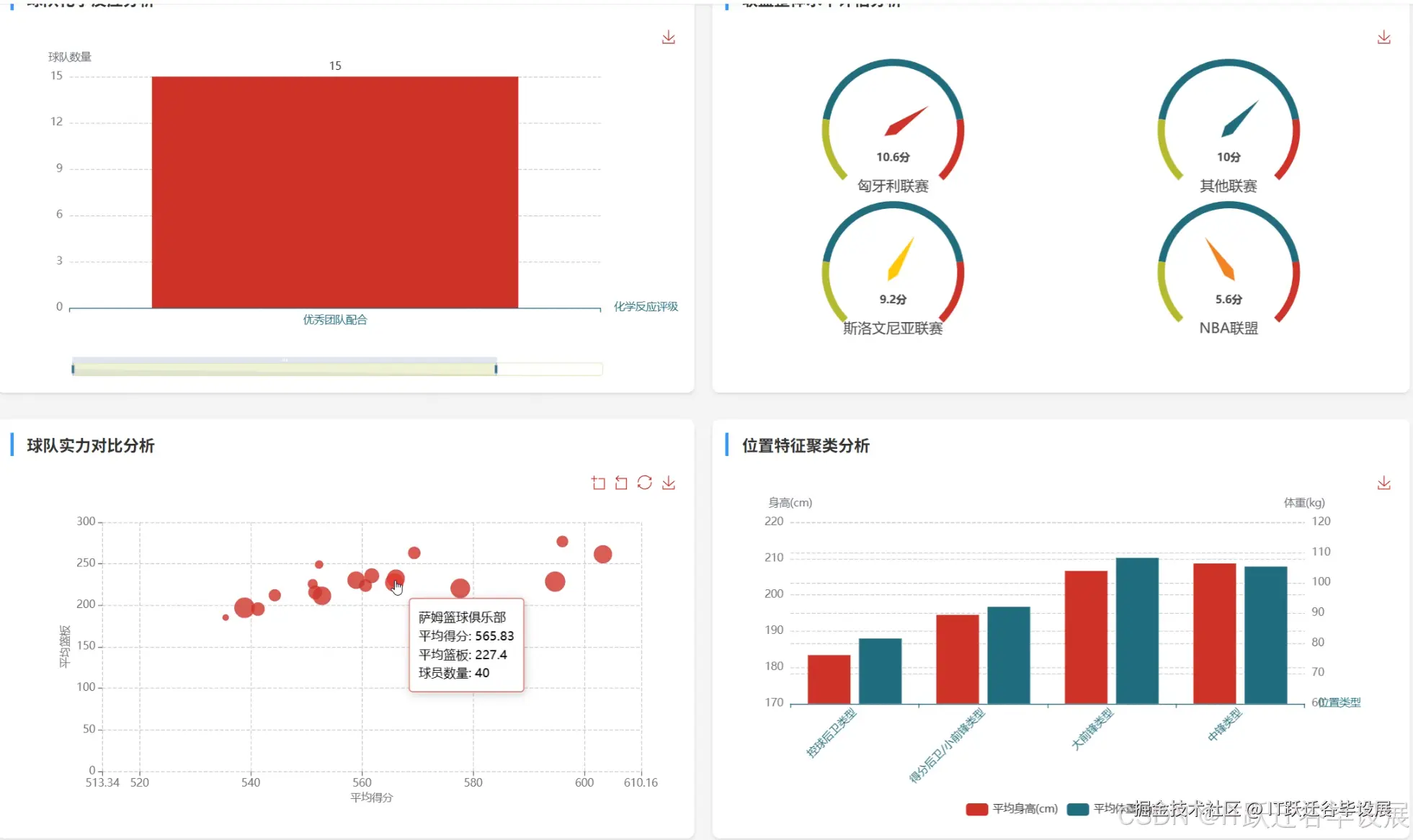

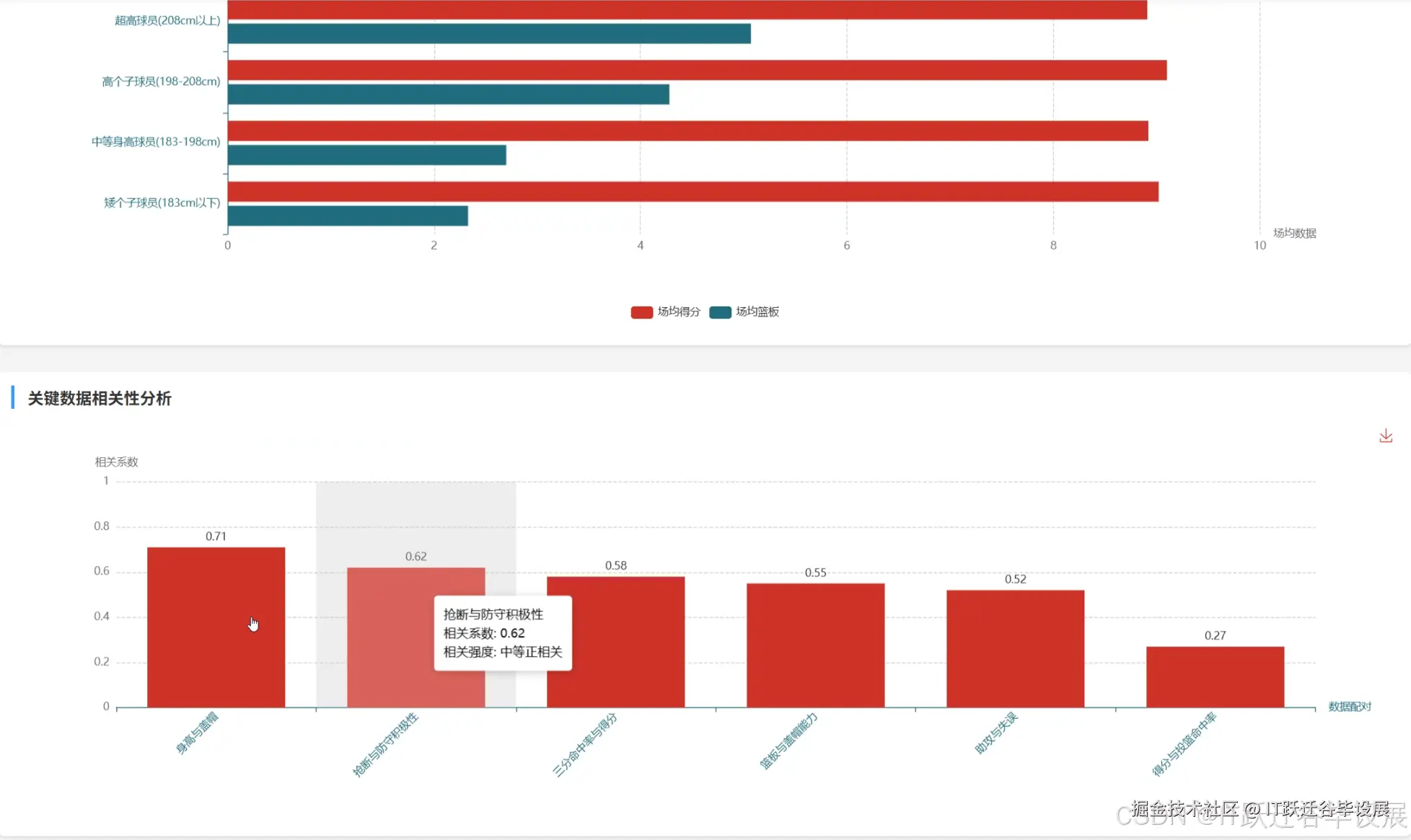

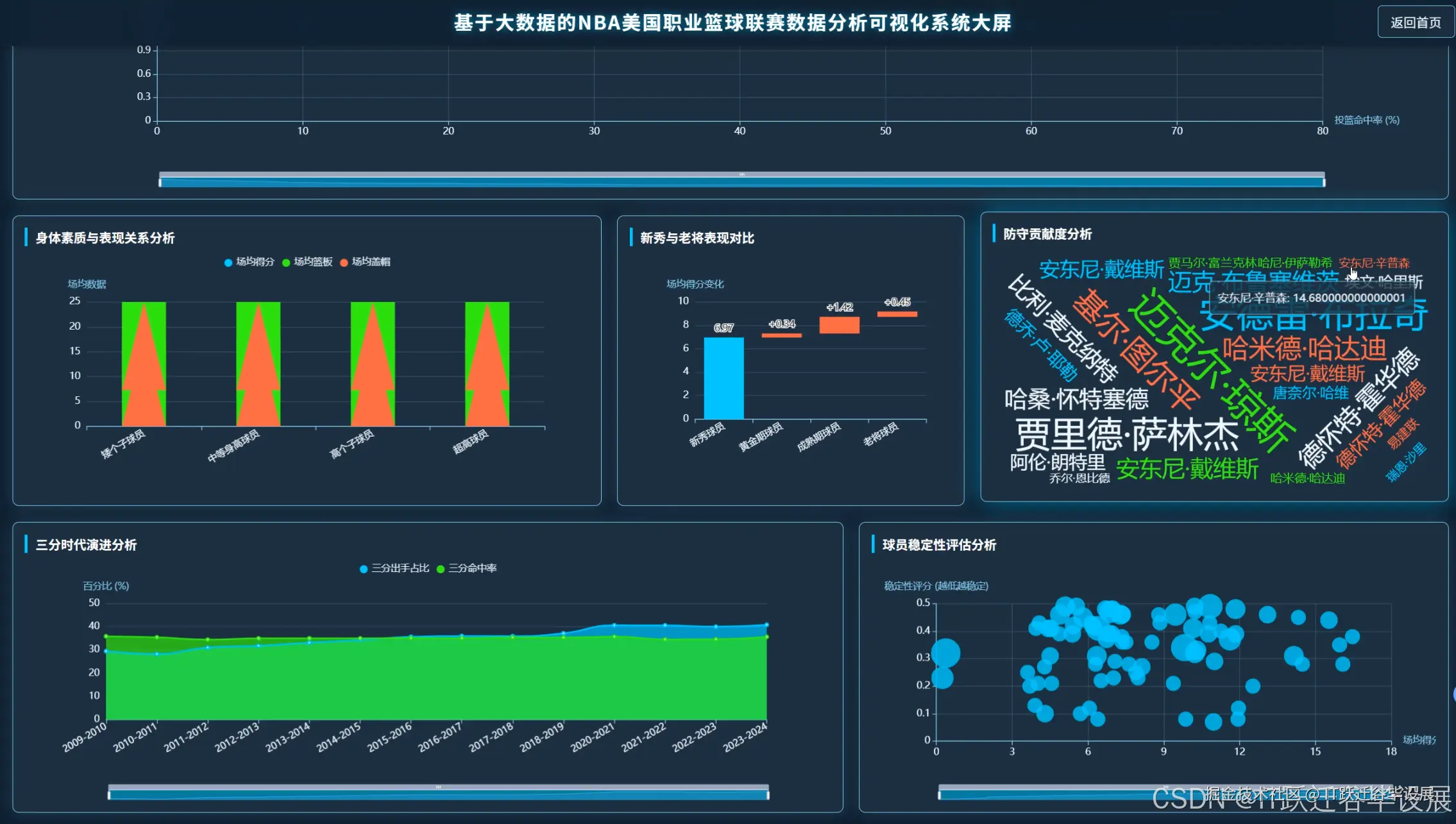

NBA美国职业篮球联赛数据分析可视化系统-图片展示
NBA美国职业篮球联赛数据分析可视化系统-代码展示
from pyspark.sql import SparkSession
from pyspark.sql.functions import col, avg, count, sum, round, when, isnan, isnull, max, min, stddev
from pyspark.ml.feature import VectorAssembler, StandardScaler
from pyspark.ml.clustering import KMeans
import pandas as pd
import numpy as np
# 球员综合表现评分与排名分析
def player_performance_ranking_analysis(spark, df):
performance_df = df.filter((col("GP") > 20) & (col("MIN") > 15))
performance_df = performance_df.withColumn("shooting_efficiency",
when(col("FGA") > 0, col("FGM") / col("FGA") * 100).otherwise(0))
performance_df = performance_df.withColumn("three_point_efficiency",
when(col("3PA") > 0, col("3PM") / col("3PA") * 100).otherwise(0))
performance_df = performance_df.withColumn("free_throw_efficiency",
when(col("FTA") > 0, col("FTM") / col("FTA") * 100).otherwise(0))
performance_df = performance_df.withColumn("efficiency_rating",
(col("PTS") + col("REB") + col("AST") + col("STL") + col("BLK") -
(col("FGA") - col("FGM")) - (col("FTA") - col("FTM")) - col("TOV")) / col("GP"))
performance_df = performance_df.withColumn("offensive_rating",
(col("PTS") * 1.0 + col("AST") * 0.7 + col("ORB") * 0.3) / col("MIN") * 48)
performance_df = performance_df.withColumn("defensive_rating",
(col("STL") * 2.0 + col("BLK") * 2.0 + col("DRB") * 0.5) / col("MIN") * 48)
performance_df = performance_df.withColumn("usage_rate",
((col("FGA") + 0.44 * col("FTA") + col("TOV")) * 48 / col("MIN")) / 5)
performance_df = performance_df.withColumn("true_shooting_percentage",
when((2 * (col("FGA") + 0.44 * col("FTA"))) > 0,
col("PTS") / (2 * (col("FGA") + 0.44 * col("FTA"))) * 100).otherwise(0))
aggregated_df = performance_df.groupBy("Player", "Season").agg(
round(avg("PTS"), 2).alias("avg_points"),
round(avg("REB"), 2).alias("avg_rebounds"),
round(avg("AST"), 2).alias("avg_assists"),
round(avg("efficiency_rating"), 2).alias("avg_efficiency"),
round(avg("offensive_rating"), 2).alias("avg_offensive"),
round(avg("defensive_rating"), 2).alias("avg_defensive"),
round(avg("true_shooting_percentage"), 2).alias("avg_ts_percentage"))
window_spec = Window.partitionBy("Season").orderBy(col("avg_efficiency").desc())
ranked_df = aggregated_df.withColumn("season_rank", row_number().over(window_spec))
final_df = ranked_df.filter(col("season_rank") <= 50)
return final_df.select("Player", "Season", "avg_points", "avg_rebounds",
"avg_assists", "avg_efficiency", "season_rank")
# 球队战术风格聚类分析
def team_tactical_style_clustering(spark, df):
team_stats = df.groupBy("Team", "Season").agg(
avg("PTS").alias("avg_points"),
avg("3PA").alias("avg_three_attempts"),
avg("AST").alias("avg_assists"),
avg("STL").alias("avg_steals"),
avg("BLK").alias("avg_blocks"),
avg("TOV").alias("avg_turnovers"),
avg("ORB").alias("avg_offensive_rebounds"),
avg("DRB").alias("avg_defensive_rebounds"),
sum("3PM").alias("total_three_made"),
sum("FGA").alias("total_field_attempts"))
team_stats = team_stats.withColumn("three_point_rate",
col("avg_three_attempts") / when(col("total_field_attempts") > 0,
col("total_field_attempts")).otherwise(1) * 100)
team_stats = team_stats.withColumn("pace_factor",
col("avg_points") + col("avg_assists") * 2 - col("avg_turnovers"))
team_stats = team_stats.withColumn("defensive_intensity",
col("avg_steals") * 2 + col("avg_blocks") * 2 + col("avg_defensive_rebounds"))
feature_columns = ["avg_points", "three_point_rate", "avg_assists",
"pace_factor", "defensive_intensity"]
assembler = VectorAssembler(inputCols=feature_columns, outputCol="features")
featured_df = assembler.transform(team_stats)
scaler = StandardScaler(inputCol="features", outputCol="scaled_features")
scaler_model = scaler.fit(featured_df)
scaled_df = scaler_model.transform(featured_df)
kmeans = KMeans(k=5, seed=42, featuresCol="scaled_features", predictionCol="cluster")
model = kmeans.fit(scaled_df)
clustered_df = model.transform(scaled_df)
cluster_centers = model.clusterCenters()
cluster_labels = ["快攻型", "三分型", "防守型", "均衡型", "内线型"]
clustered_df = clustered_df.withColumn("style_label",
when(col("cluster") == 0, cluster_labels[0])
.when(col("cluster") == 1, cluster_labels[1])
.when(col("cluster") == 2, cluster_labels[2])
.when(col("cluster") == 3, cluster_labels[3])
.otherwise(cluster_labels[4]))
result_df = clustered_df.select("Team", "Season", "avg_points", "three_point_rate",
"pace_factor", "defensive_intensity", "style_label")
style_summary = clustered_df.groupBy("style_label").agg(
count("Team").alias("team_count"),
round(avg("avg_points"), 2).alias("avg_style_points"),
round(avg("three_point_rate"), 2).alias("avg_style_three_rate"))
return result_df, style_summary
# 赛季趋势预测与异常检测分析
def season_trend_prediction_analysis(spark, df):
season_trends = df.groupBy("Season").agg(
avg("PTS").alias("league_avg_points"),
avg("3PA").alias("league_avg_three_attempts"),
avg("AST").alias("league_avg_assists"),
avg("TOV").alias("league_avg_turnovers"),
stddev("PTS").alias("points_std_dev"),
count("Player").alias("total_players"))
season_trends = season_trends.withColumn("season_numeric",
regexp_extract(col("Season"), r"(\d{4})", 1).cast("int"))
season_trends = season_trends.orderBy("season_numeric")
window_spec = Window.orderBy("season_numeric").rowsBetween(-2, 0)
season_trends = season_trends.withColumn("points_moving_avg",
avg("league_avg_points").over(window_spec))
season_trends = season_trends.withColumn("three_moving_avg",
avg("league_avg_three_attempts").over(window_spec))
season_trends = season_trends.withColumn("points_trend",
when(col("league_avg_points") > col("points_moving_avg"), "上升")
.when(col("league_avg_points") < col("points_moving_avg"), "下降")
.otherwise("稳定"))
season_trends = season_trends.withColumn("three_point_evolution_rate",
(col("league_avg_three_attempts") - lag("league_avg_three_attempts", 1)
.over(Window.orderBy("season_numeric"))) /
lag("league_avg_three_attempts", 1).over(Window.orderBy("season_numeric")) * 100)
player_anomalies = df.withColumn("z_score_points",
(col("PTS") - avg("PTS").over(Window.partitionBy("Season"))) /
stddev("PTS").over(Window.partitionBy("Season")))
player_anomalies = player_anomalies.withColumn("is_anomaly",
when(abs(col("z_score_points")) > 3, 1).otherwise(0))
anomaly_summary = player_anomalies.filter(col("is_anomaly") == 1).groupBy("Season").agg(
count("Player").alias("anomaly_players"),
collect_list("Player").alias("anomaly_player_list"))
final_trends = season_trends.join(anomaly_summary, on="Season", how="left")
final_trends = final_trends.withColumn("predicted_next_points",
col("league_avg_points") + (col("league_avg_points") - col("points_moving_avg")) * 0.3)
final_trends = final_trends.withColumn("predicted_next_three",
col("league_avg_three_attempts") * (1 + col("three_point_evolution_rate") / 100 * 0.5))
return final_trends.select("Season", "league_avg_points", "league_avg_three_attempts",
"points_trend", "three_point_evolution_rate",
"predicted_next_points", "predicted_next_three", "anomaly_players")
NBA美国职业篮球联赛数据分析可视化系统-结语
