基于大数据的牛油果数据可视化分析系统-功能介绍
基于Hadoop+Spark的牛油果数据可视化分析系统是一套专门针对牛油果品质评估与成熟度分析的大数据处理平台。系统采用Hadoop分布式文件系统HDFS作为底层存储架构，结合Spark计算引擎进行海量牛油果数据的快速处理与分析。通过集成Spark SQL组件，系统能够高效处理牛油果的物理特性数据（硬度、重量、体积、密度）、颜色特征数据（色相、饱和度、亮度、颜色分类）以及声学特性数据，并运用Pandas和NumPy进行精确的数值计算与统计分析。系统前端采用Vue+ElementUI+Echarts技术栈构建直观的数据可视化界面，支持多维度的牛油果品质分析图表展示，包括成熟度分布统计、物理特性关联分析、颜色特征深度挖掘以及基于机器学习算法的特征重要性排序。后端基于Django框架或Spring Boot框架构建RESTful API服务，与MySQL数据库深度集成，为农业从业者、研究人员以及食品质量检测机构提供科学的牛油果品质评估解决方案。
基于大数据的牛油果数据可视化分析系统-选题背景意义
选题背景 随着现代农业向精准化、智能化方向发展，果蔬品质的科学评估已成为农产品产业链中的关键环节。牛油果作为营养价值极高的热带水果，其成熟度判断直接影响到市场销售、消费体验以及商业价值。传统的牛油果品质评估主要依靠人工经验判断，通过触摸硬度、观察外观颜色等方式进行主观评价，这种方法不仅效率低下，而且标准不统一，容易产生误判。近年来，大数据技术在农业领域的应用逐渐深入，为解决传统品质评估中的痛点提供了新的技术路径。Hadoop分布式计算框架和Spark内存计算引擎的成熟，使得处理大规模农产品特征数据变得可行，而机器学习算法的广泛应用也为建立科学的品质评估模型奠定了基础。基于此背景，开发一套能够综合分析牛油果多维特征数据的可视化分析系统，对提升果蔬品质评估的科学性和准确性具有重要价值。 选题意义 本课题的研究意义主要体现在技术实践和应用价值两个层面。从技术角度来看，系统的开发过程涉及大数据技术栈的综合运用，包括Hadoop分布式存储、Spark分布式计算、机器学习算法集成等核心技术的实际应用，为深入理解大数据处理流程和分析方法提供了完整的实践平台。通过构建牛油果多维特征分析模型，能够加深对数据挖掘、特征工程、可视化展示等技术环节的理解和掌握。从应用价值角度分析，系统能够为农业生产者提供相对科学的牛油果品质评估工具，帮助建立基于数据驱动的品质判断标准，在一定程度上减少人工判断的主观性和不确定性。对于食品零售行业而言，系统提供的多维度品质分析结果可以作为采购决策的参考依据，有助于提升产品品质管理水平。同时，系统的数据可视化功能能够直观展示牛油果各项指标的分布规律和关联关系，为相关研究人员开展进一步的品质评估研究提供数据支撑和分析工具。
基于大数据的牛油果数据可视化分析系统-技术选型
大数据框架：Hadoop+Spark（本次没用Hive，支持定制） 开发语言：Python+Java（两个版本都支持） 后端框架：Django+Spring Boot(Spring+SpringMVC+Mybatis)（两个版本都支持） 前端：Vue+ElementUI+Echarts+HTML+CSS+JavaScript+jQuery 详细技术点：Hadoop、HDFS、Spark、Spark SQL、Pandas、NumPy 数据库：MySQL
基于大数据的牛油果数据可视化分析系统-视频展示

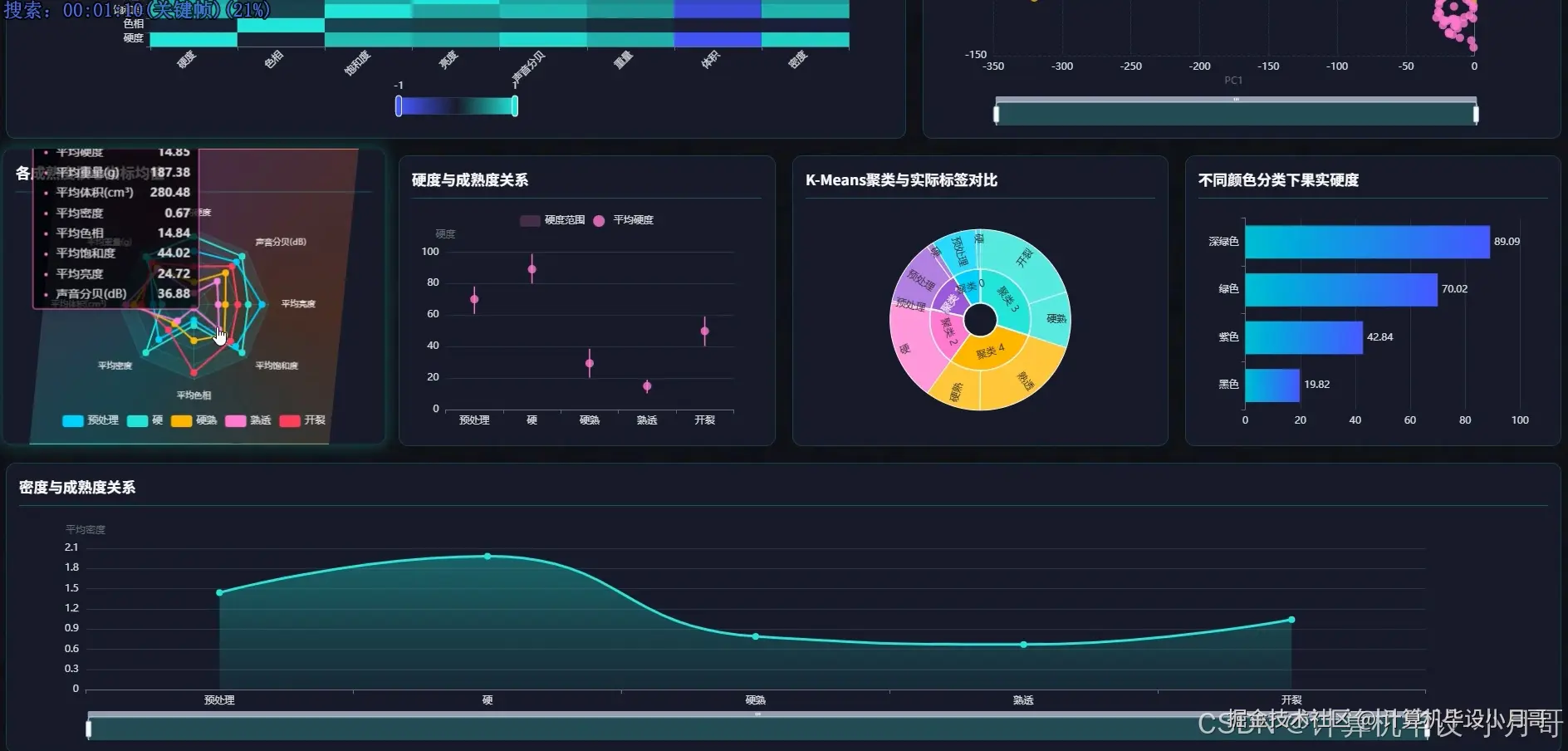

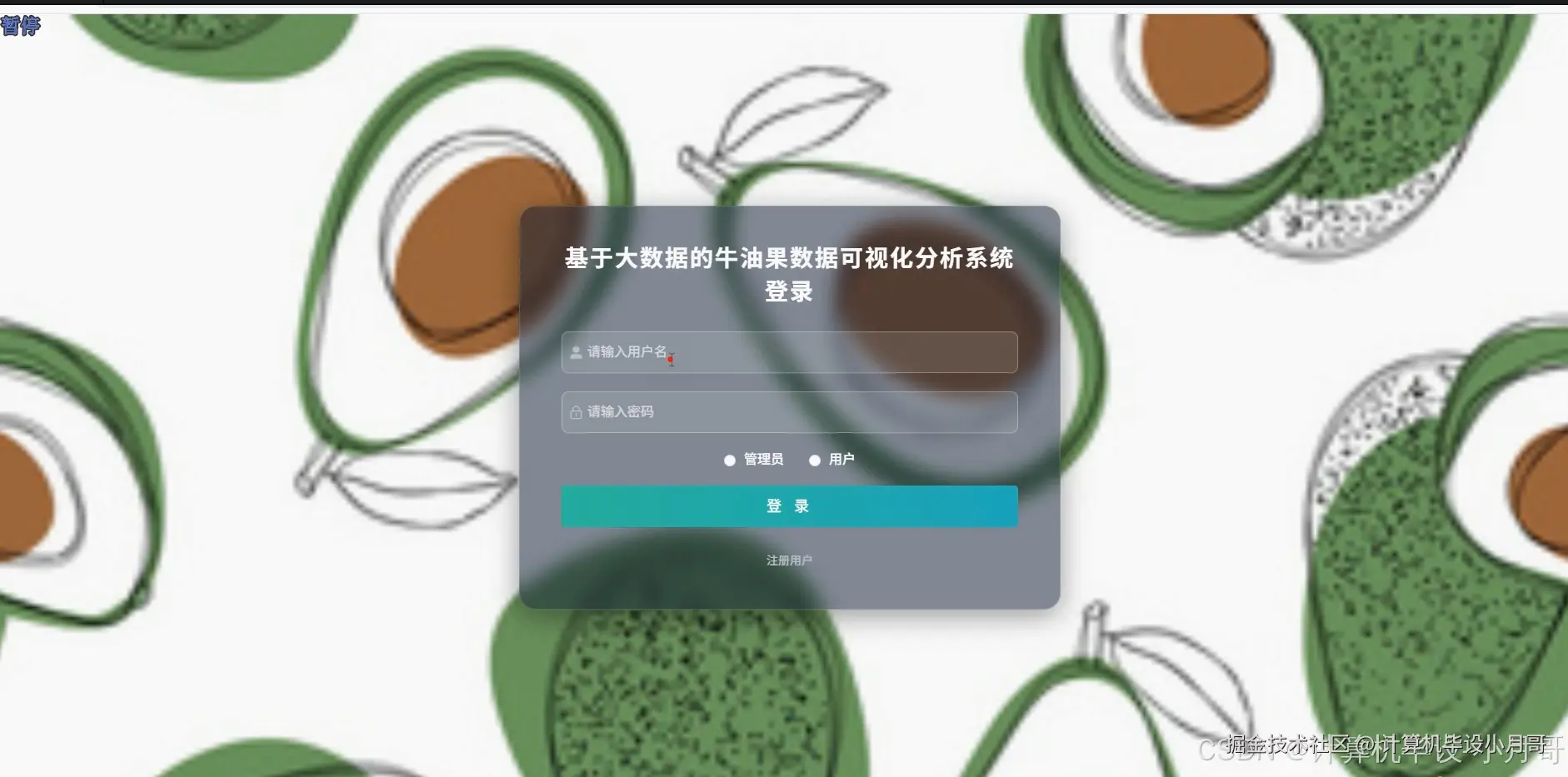

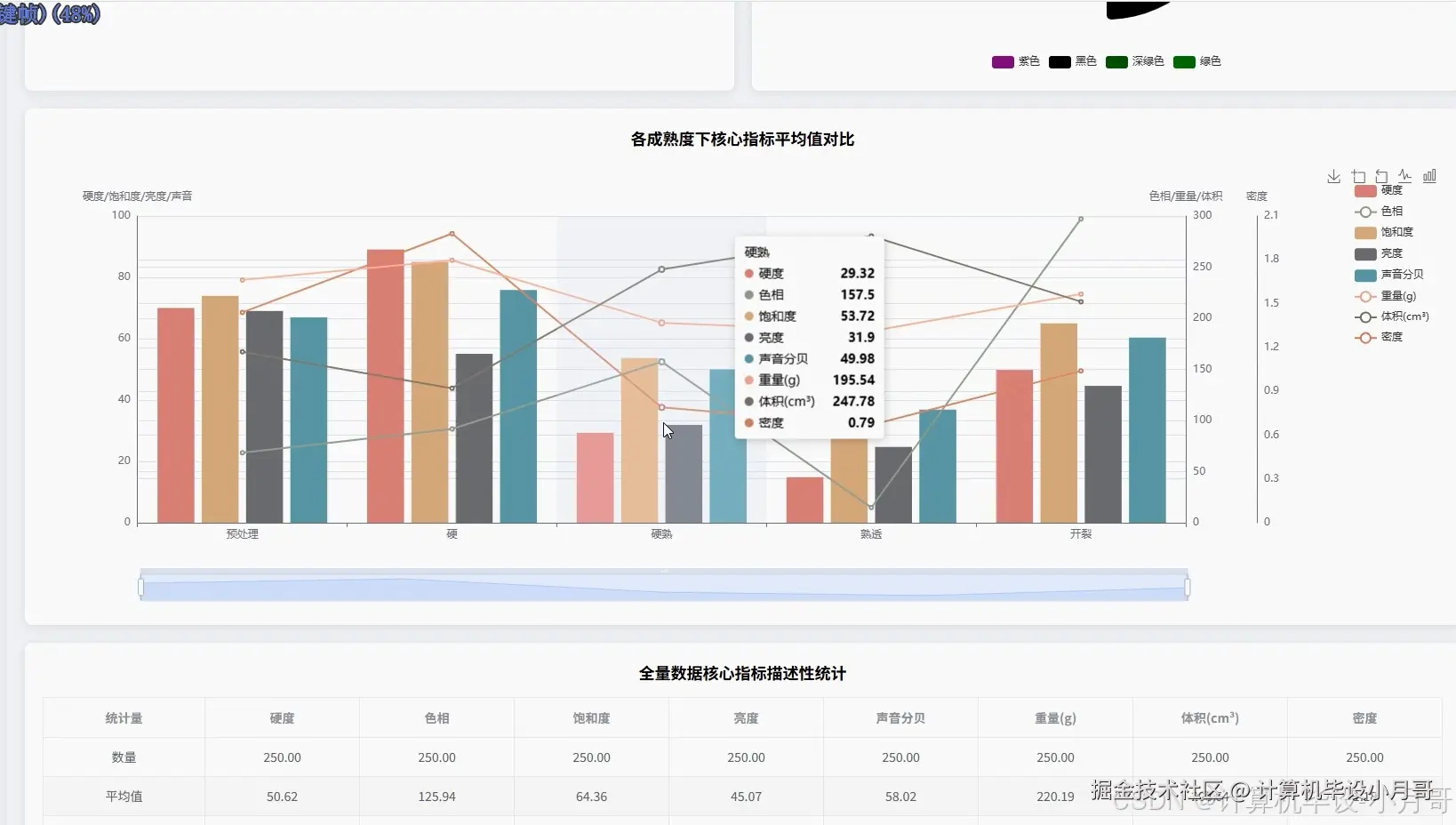

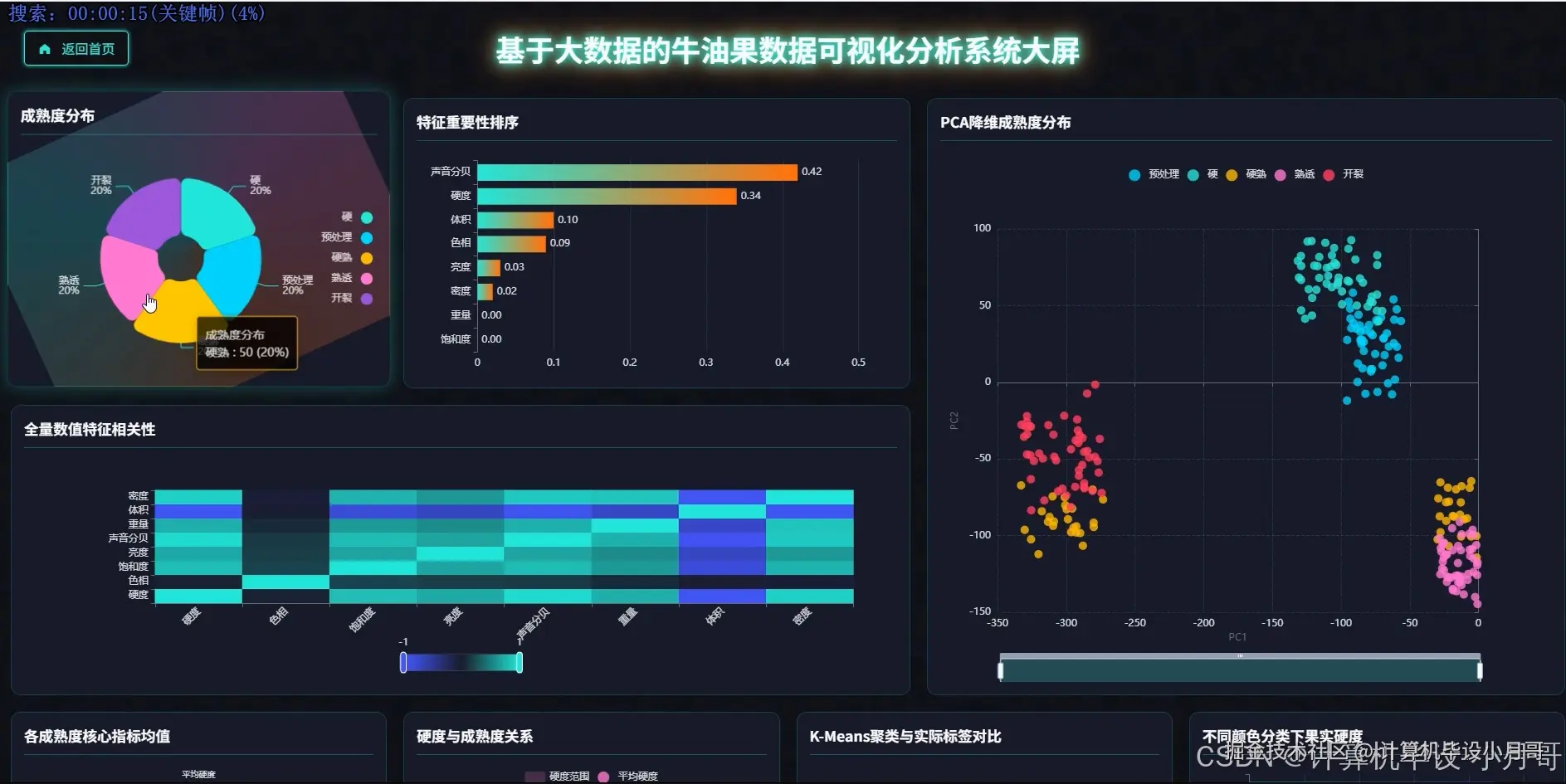

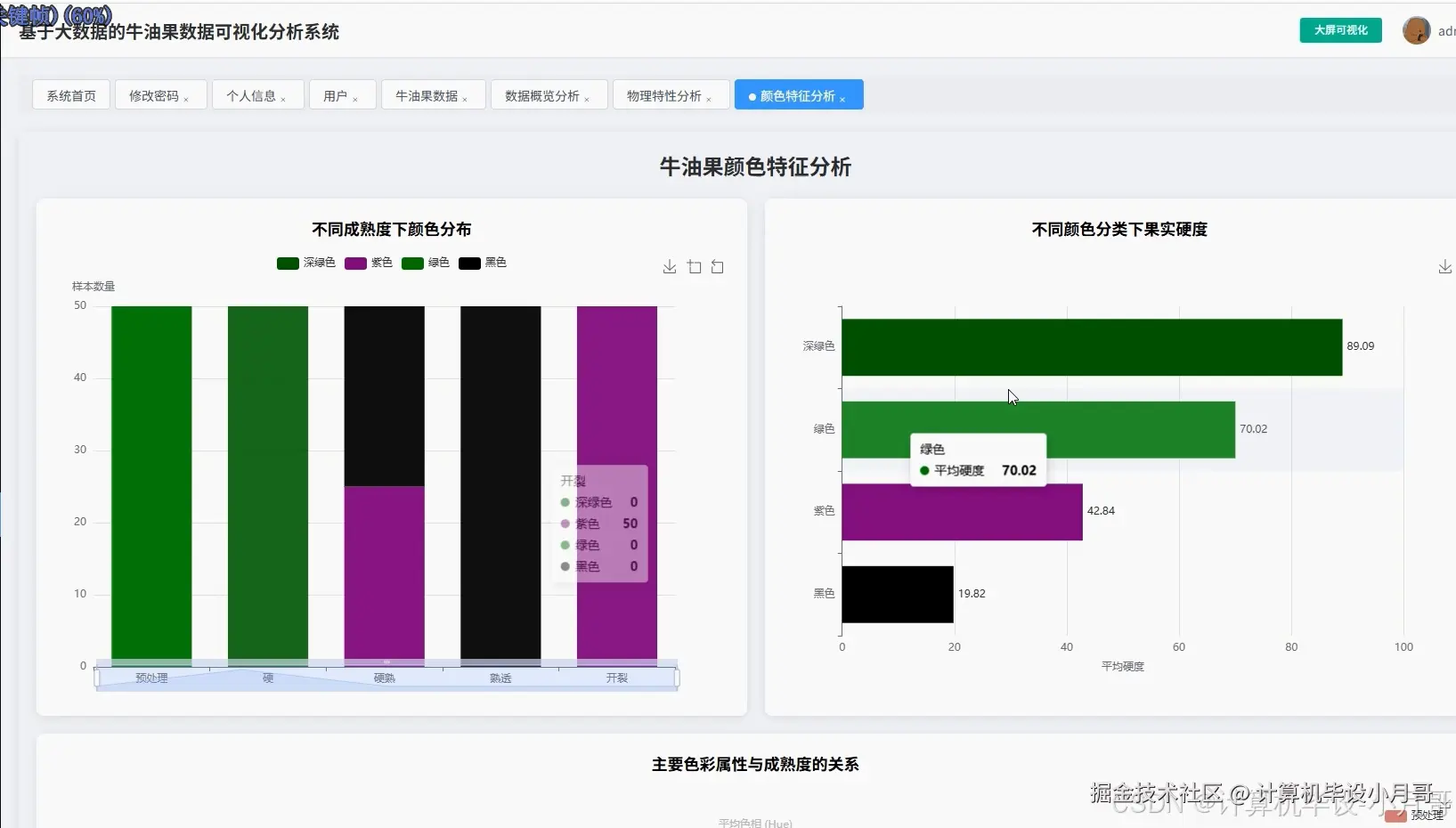

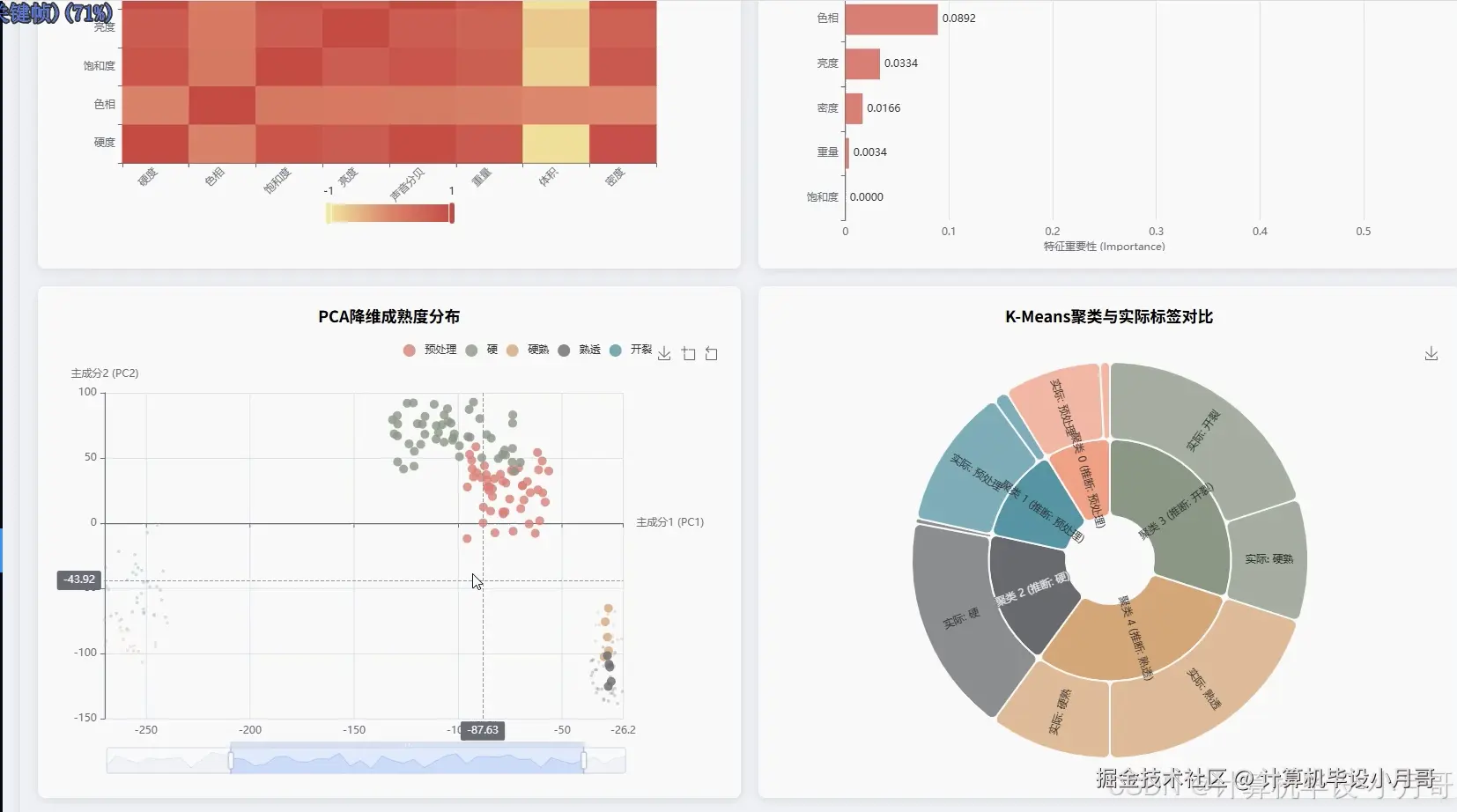

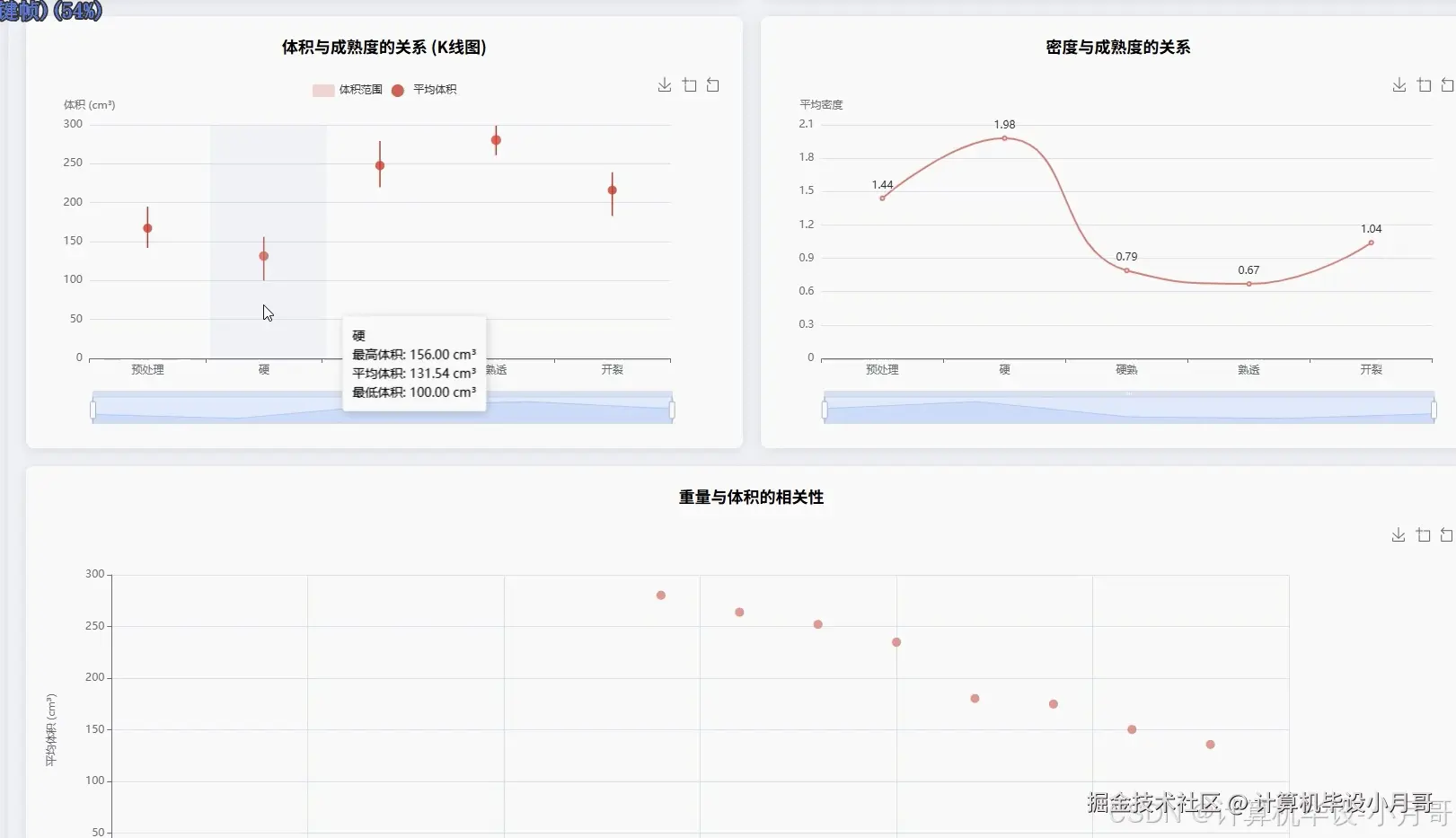

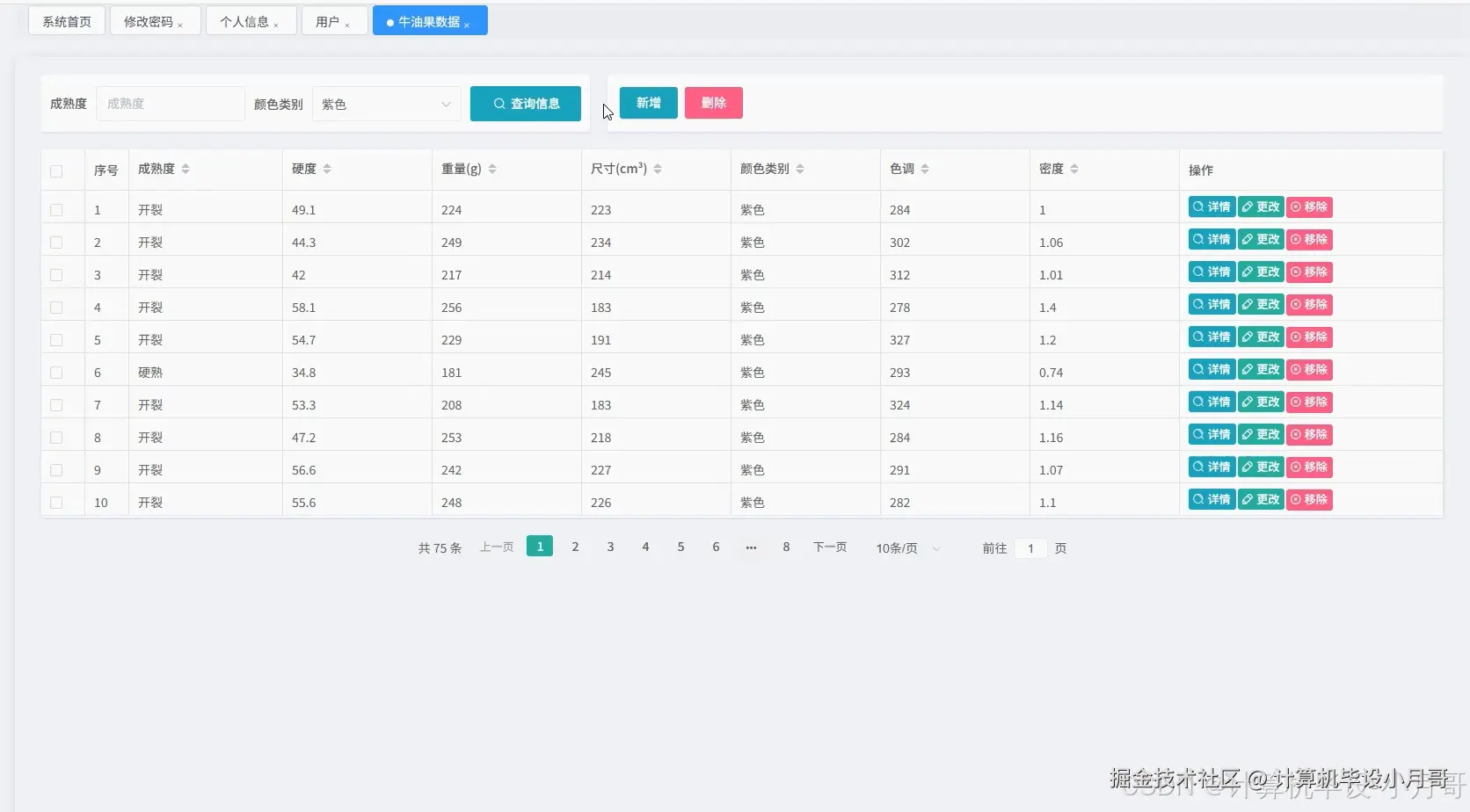

基于大数据的牛油果数据可视化分析系统-图片展示
基于大数据的牛油果数据可视化分析系统-代码展示
from pyspark.sql import SparkSession
from pyspark.sql.functions import col, avg, max as max_func, min as min_func, count, corr
from pyspark.sql.types import StructType, StructField, DoubleType, StringType, IntegerType
from pyspark.ml.feature import VectorAssembler, StandardScaler
from pyspark.ml.classification import RandomForestClassifier
from pyspark.ml.evaluation import MulticlassClassificationEvaluator
import pandas as pd
import numpy as np
from sklearn.cluster import KMeans
from sklearn.decomposition import PCA
def create_spark_session():
spark = SparkSession.builder.appName("AvocadoAnalysisSystem").config("spark.sql.adaptive.enabled", "true").config("spark.sql.adaptive.coalescePartitions.enabled", "true").getOrCreate()
return spark
def analyze_ripeness_distribution(spark, data_path):
df = spark.read.option("header", "true").option("inferSchema", "true").csv(data_path)
ripeness_stats = df.groupBy("ripeness").agg(count("*").alias("sample_count"), avg("firmness").alias("avg_firmness"), avg("weight_g").alias("avg_weight"), avg("size_cm3").alias("avg_size"), avg("hue").alias("avg_hue"), avg("saturation").alias("avg_saturation"), avg("brightness").alias("avg_brightness")).orderBy("ripeness")
overall_stats = df.select(avg("firmness").alias("overall_avg_firmness"), max_func("firmness").alias("max_firmness"), min_func("firmness").alias("min_firmness"), avg("weight_g").alias("overall_avg_weight"), max_func("weight_g").alias("max_weight"), min_func("weight_g").alias("min_weight"), avg("sound_db").alias("overall_avg_sound"), max_func("sound_db").alias("max_sound"), min_func("sound_db").alias("min_sound"))
color_distribution = df.groupBy("color_category").agg(count("*").alias("color_count")).orderBy(col("color_count").desc())
cross_analysis = df.groupBy("ripeness", "color_category").agg(count("*").alias("cross_count")).orderBy("ripeness", col("cross_count").desc())
density_df = df.withColumn("density", col("weight_g") / col("size_cm3"))
density_stats = density_df.groupBy("ripeness").agg(avg("density").alias("avg_density"), max_func("density").alias("max_density"), min_func("density").alias("min_density")).orderBy("ripeness")
firmness_color_relation = df.groupBy("color_category").agg(avg("firmness").alias("avg_firmness_by_color"), count("*").alias("sample_count")).orderBy(col("avg_firmness_by_color").desc())
weight_size_correlation = df.select(corr("weight_g", "size_cm3").alias("weight_size_correlation")).collect()[0]["weight_size_correlation"]
result_dict = {"ripeness_distribution": ripeness_stats.toPandas().to_dict("records"), "overall_statistics": overall_stats.collect()[0].asDict(), "color_distribution": color_distribution.toPandas().to_dict("records"), "cross_analysis": cross_analysis.toPandas().to_dict("records"), "density_analysis": density_stats.toPandas().to_dict("records"), "firmness_color_relation": firmness_color_relation.toPandas().to_dict("records"), "weight_size_correlation": weight_size_correlation}
return result_dict
def perform_feature_importance_analysis(spark, data_path):
df = spark.read.option("header", "true").option("inferSchema", "true").csv(data_path)
feature_columns = ["firmness", "hue", "saturation", "brightness", "sound_db", "weight_g", "size_cm3"]
assembler = VectorAssembler(inputCols=feature_columns, outputCol="features")
feature_df = assembler.transform(df)
scaler = StandardScaler(inputCol="features", outputCol="scaled_features", withStd=True, withMean=True)
scaler_model = scaler.fit(feature_df)
scaled_df = scaler_model.transform(feature_df)
rf_classifier = RandomForestClassifier(featuresCol="scaled_features", labelCol="ripeness", numTrees=100, maxDepth=10, seed=42)
train_df, test_df = scaled_df.randomSplit([0.8, 0.2], seed=42)
rf_model = rf_classifier.fit(train_df)
feature_importance = rf_model.featureImportances.toArray()
importance_dict = {}
for i, feature in enumerate(feature_columns):
importance_dict[feature] = float(feature_importance[i])
sorted_importance = sorted(importance_dict.items(), key=lambda x: x[1], reverse=True)
predictions = rf_model.transform(test_df)
evaluator = MulticlassClassificationEvaluator(labelCol="ripeness", predictionCol="prediction", metricName="accuracy")
accuracy = evaluator.evaluate(predictions)
correlation_matrix = {}
for i, feature1 in enumerate(feature_columns):
correlation_matrix[feature1] = {}
for j, feature2 in enumerate(feature_columns):
if i != j:
corr_value = df.select(corr(feature1, feature2).alias("correlation")).collect()[0]["correlation"]
correlation_matrix[feature1][feature2] = corr_value if corr_value is not None else 0.0
else:
correlation_matrix[feature1][feature2] = 1.0
result_dict = {"feature_importance_ranking": sorted_importance, "model_accuracy": accuracy, "correlation_matrix": correlation_matrix, "top_3_features": sorted_importance[:3]}
return result_dict
def execute_clustering_and_pca_analysis(spark, data_path):
df = spark.read.option("header", "true").option("inferSchema", "true").csv(data_path)
feature_columns = ["firmness", "hue", "saturation", "brightness", "sound_db", "weight_g", "size_cm3"]
pandas_df = df.select(*feature_columns, "ripeness").toPandas()
feature_data = pandas_df[feature_columns].fillna(pandas_df[feature_columns].mean())
feature_array = feature_data.values
normalized_features = (feature_array - feature_array.mean(axis=0)) / feature_array.std(axis=0)
kmeans = KMeans(n_clusters=5, random_state=42, n_init=10)
cluster_labels = kmeans.fit_predict(normalized_features)
pandas_df['cluster_label'] = cluster_labels
cluster_analysis = pandas_df.groupby('cluster_label')['ripeness'].value_counts().unstack(fill_value=0)
cluster_purity = {}
for cluster_id in range(5):
cluster_data = pandas_df[pandas_df['cluster_label'] == cluster_id]
if len(cluster_data) > 0:
dominant_ripeness = cluster_data['ripeness'].mode().iloc[0] if not cluster_data['ripeness'].mode().empty else 'unknown'
purity_score = (cluster_data['ripeness'] == dominant_ripeness).sum() / len(cluster_data)
cluster_purity[f'cluster_{cluster_id}'] = {'dominant_ripeness': dominant_ripeness, 'purity_score': purity_score, 'sample_count': len(cluster_data)}
pca = PCA(n_components=2, random_state=42)
pca_result = pca.fit_transform(normalized_features)
pandas_df['pca_component_1'] = pca_result[:, 0]
pandas_df['pca_component_2'] = pca_result[:, 1]
explained_variance = pca.explained_variance_ratio_
pca_visualization_data = pandas_df[['pca_component_1', 'pca_component_2', 'ripeness', 'cluster_label']].to_dict('records')
feature_contribution = {}
for i, feature in enumerate(feature_columns):
feature_contribution[feature] = {'pc1_contribution': float(pca.components_[0][i]), 'pc2_contribution': float(pca.components_[1][i])}
result_dict = {"clustering_analysis": cluster_analysis.to_dict(), "cluster_purity_metrics": cluster_purity, "pca_visualization_data": pca_visualization_data[:100], "explained_variance_ratio": explained_variance.tolist(), "feature_pca_contributions": feature_contribution, "total_explained_variance": float(explained_variance.sum())}
return result_dict
