一.开发工具简介
大数据框架：Hadoop+Spark（本次没用Hive，支持定制） 开发语言：Python+Java（两个版本都支持） 后端框架：Django+Spring Boot(Spring+SpringMVC+Mybatis)（两个版本都支持） 前端：Vue+ElementUI+Echarts+HTML+CSS+JavaScript+jQuery 详细技术点：Hadoop、HDFS、Spark、Spark SQL、Pandas、NumPy 数据库：MySQL
二.系统内容简介
基于Hadoop+Spark的农作物产量数据分析与可视化系统是一个专门针对农业大数据处理和分析的综合性平台，该系统运用Hadoop分布式存储框架和Spark内存计算引擎，实现对大规模农作物产量数据的高效处理和深度分析。系统采用Python+Django或Java+SpringBoot双技术栈架构，前端使用Vue+ElementUI+Echarts构建现代化交互界面，后端通过MySQL数据库存储结构化数据，利用HDFS进行海量数据分布式存储。系统核心功能涵盖用户管理、农作物产量数据管理、产量多维综合分析、气候影响关联分析、作物周期产量分析、地理环境影响分析和生产措施效果分析等模块，通过Spark SQL进行复杂查询优化，结合Pandas和NumPy进行数据预处理和统计分析，最终通过可视化图表直观展现分析结果，为农业生产决策提供科学的数据支撑，是一个集数据采集、存储、处理、分析和可视化于一体的完整大数据解决方案。
三.系统功能演示
大数据毕业设计选题推荐：基于Hadoop+Spark的农作物产量数据分析与可视化系统完整实现

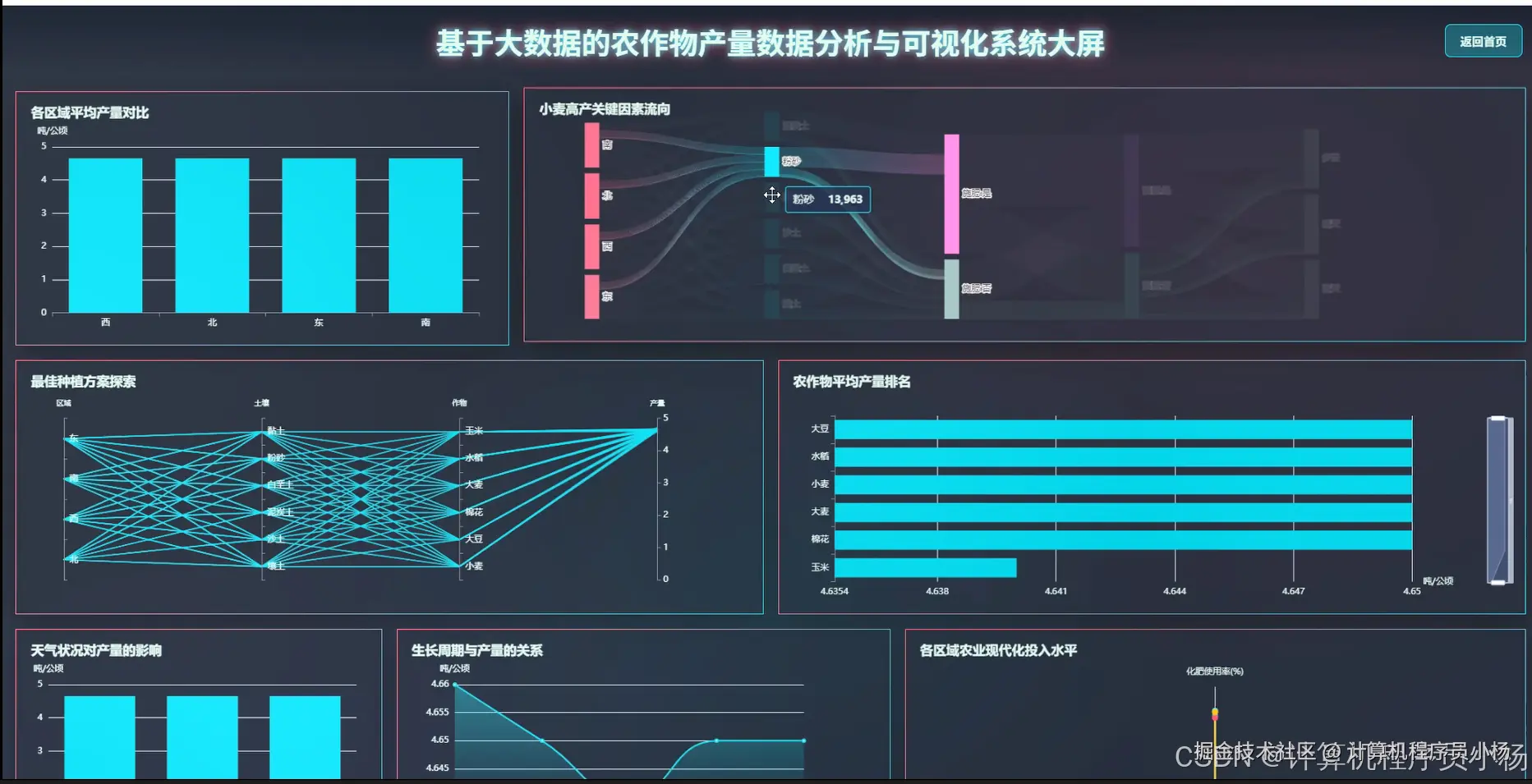

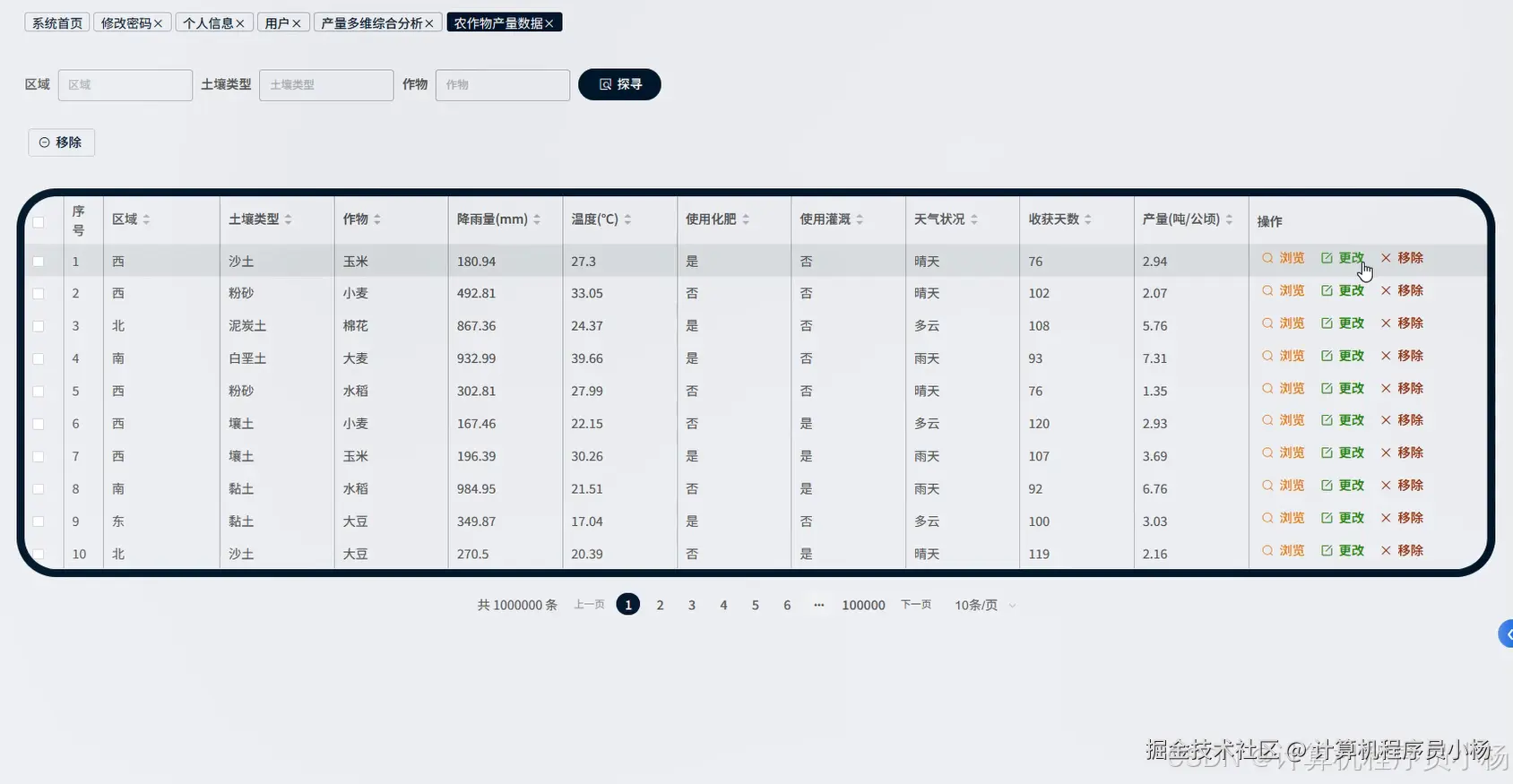

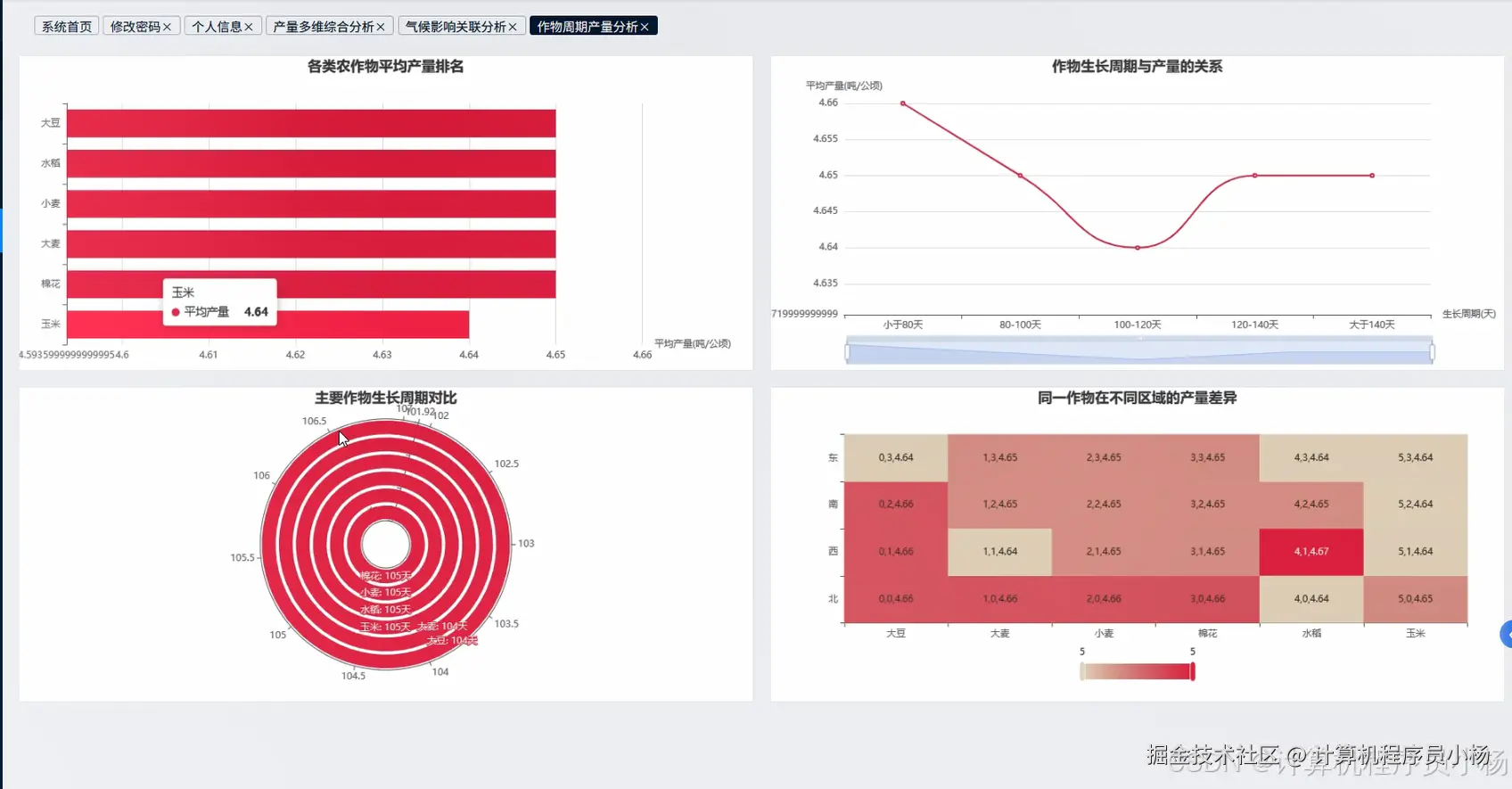

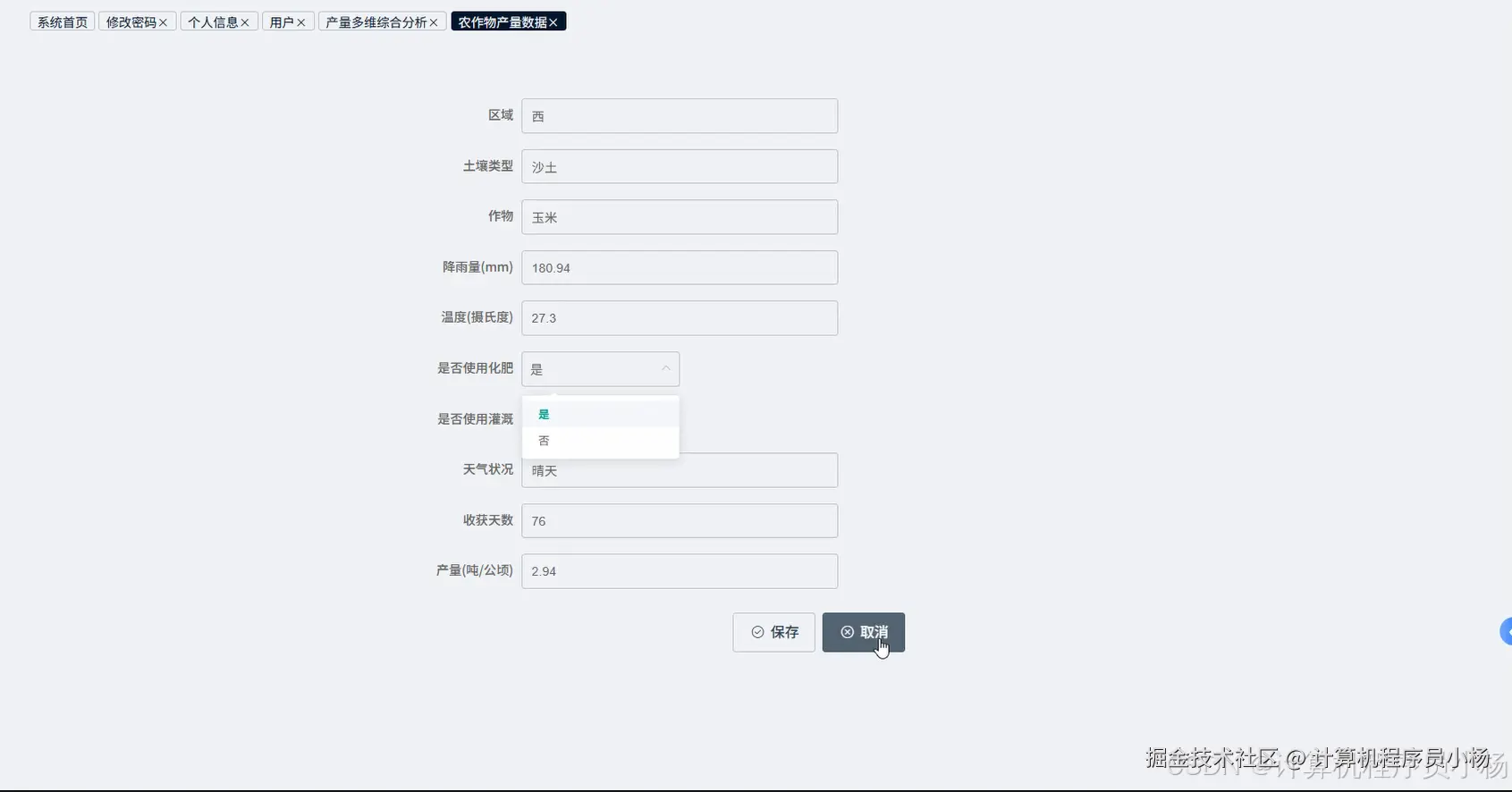

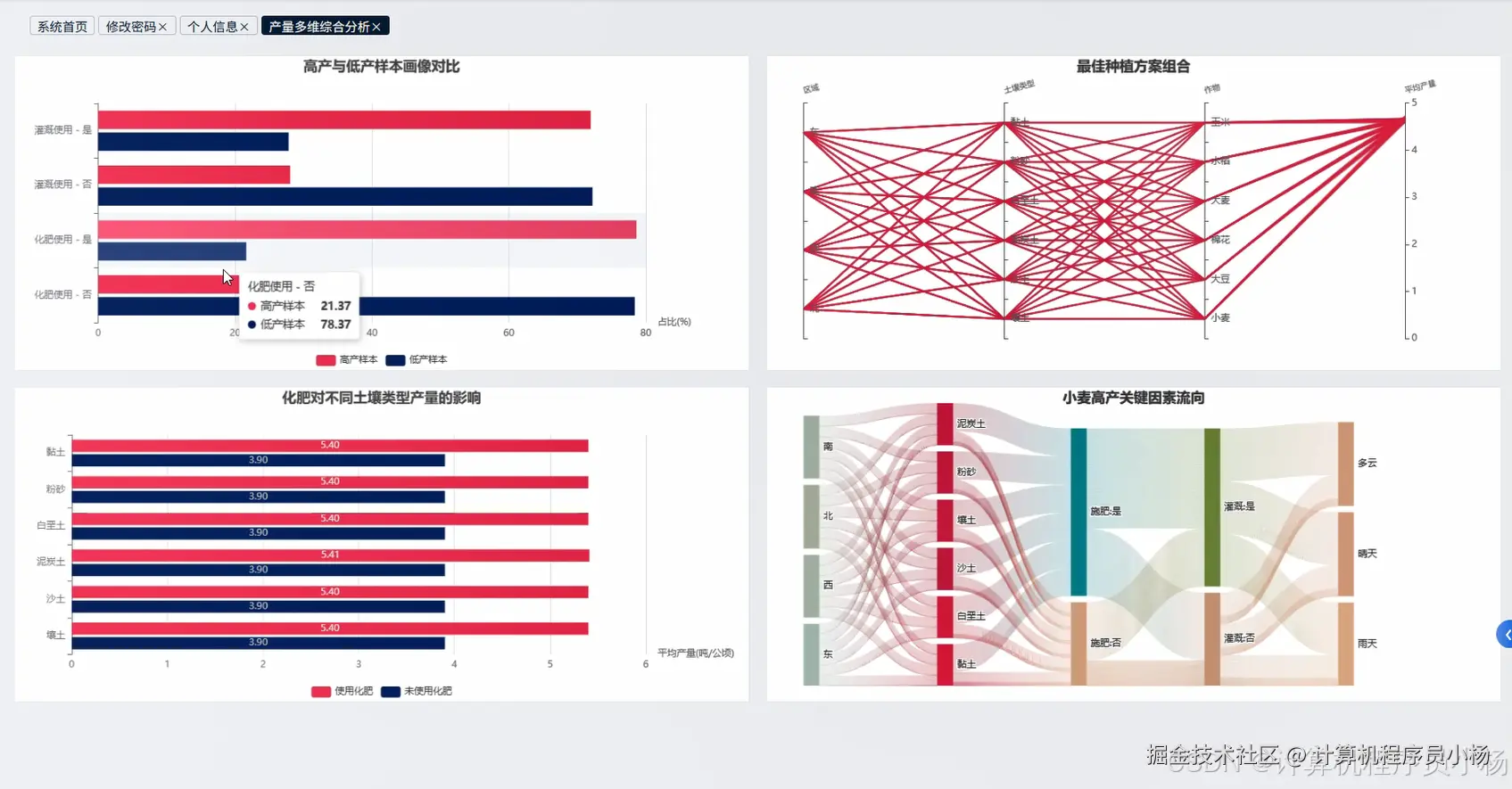

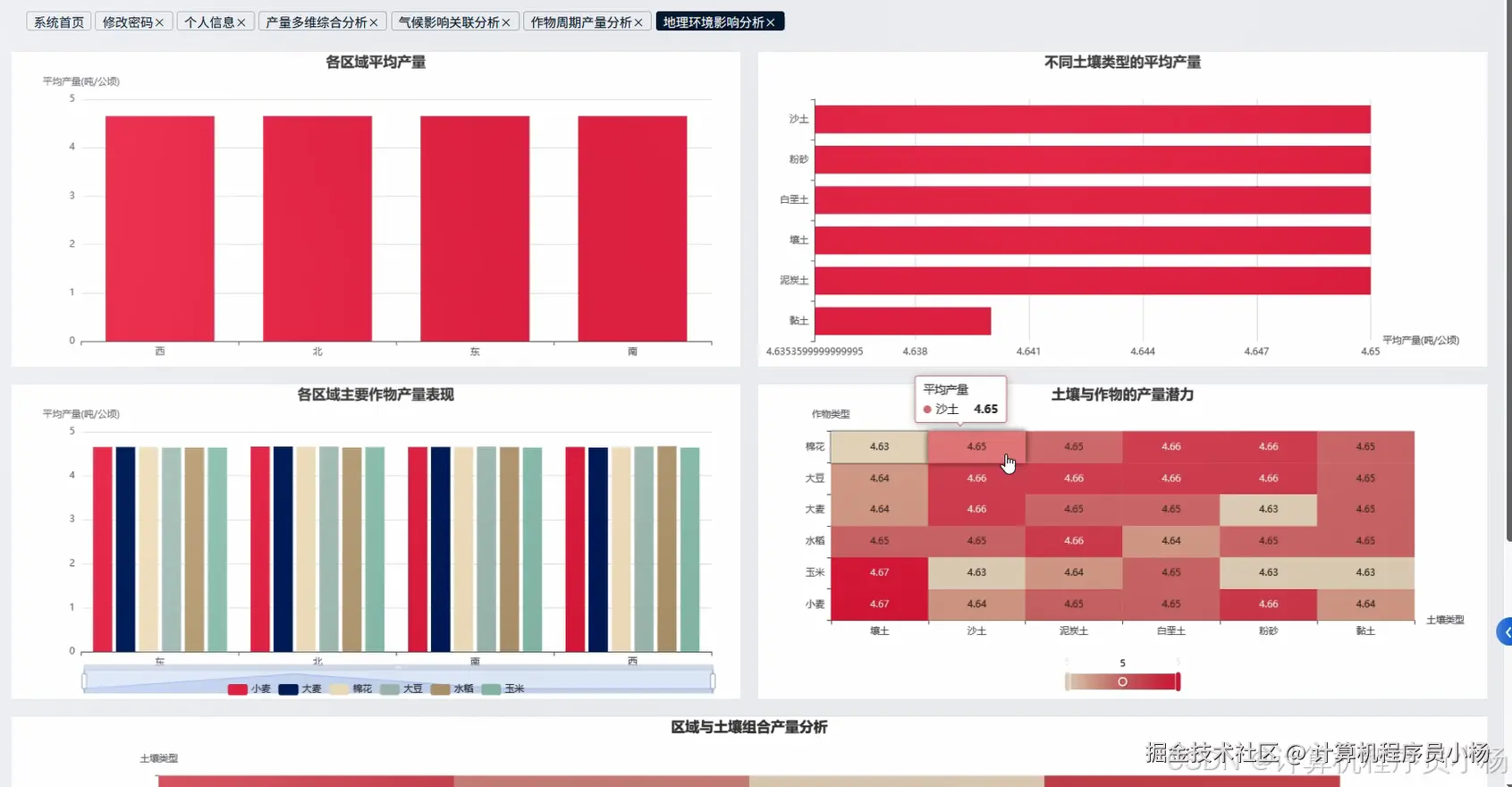

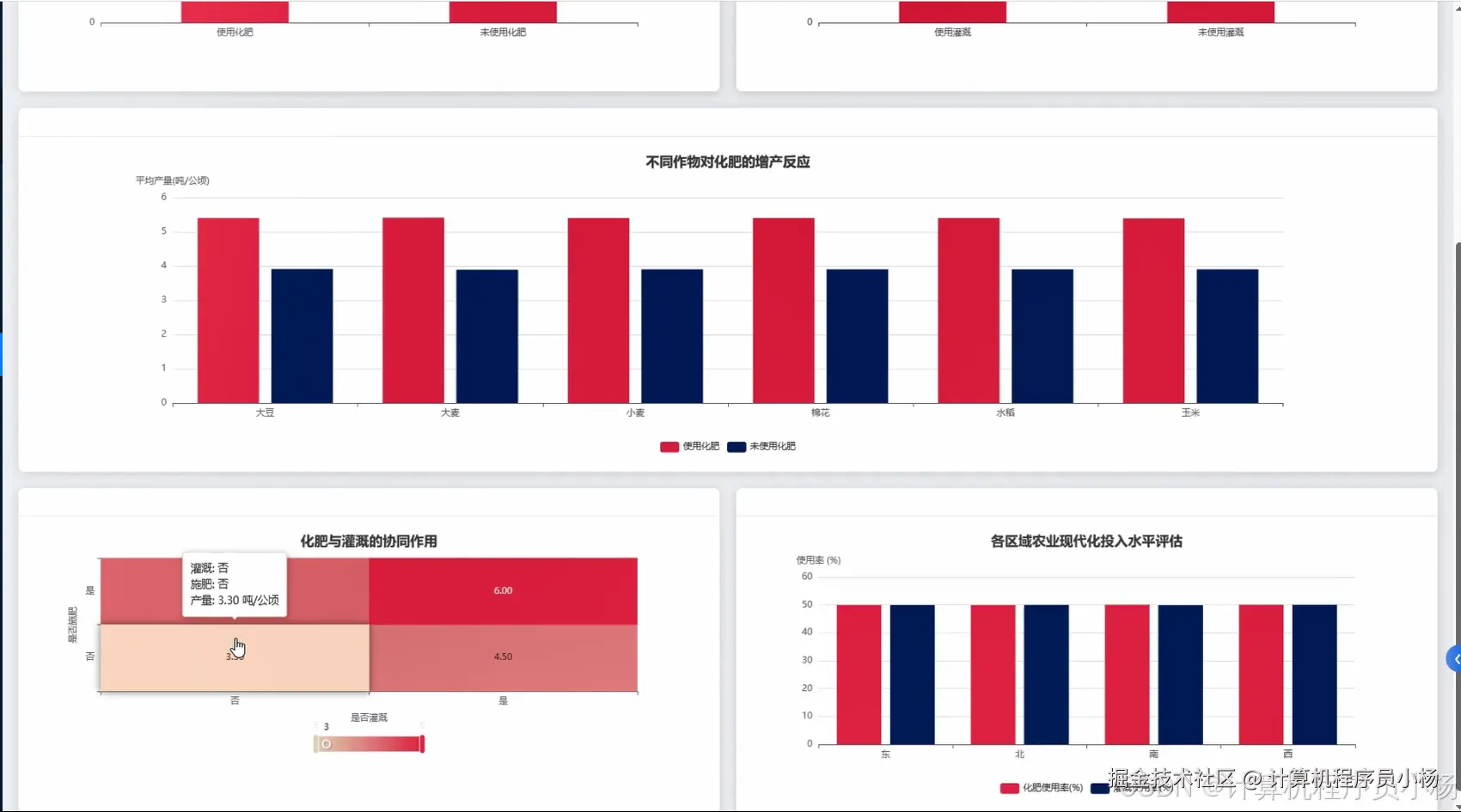

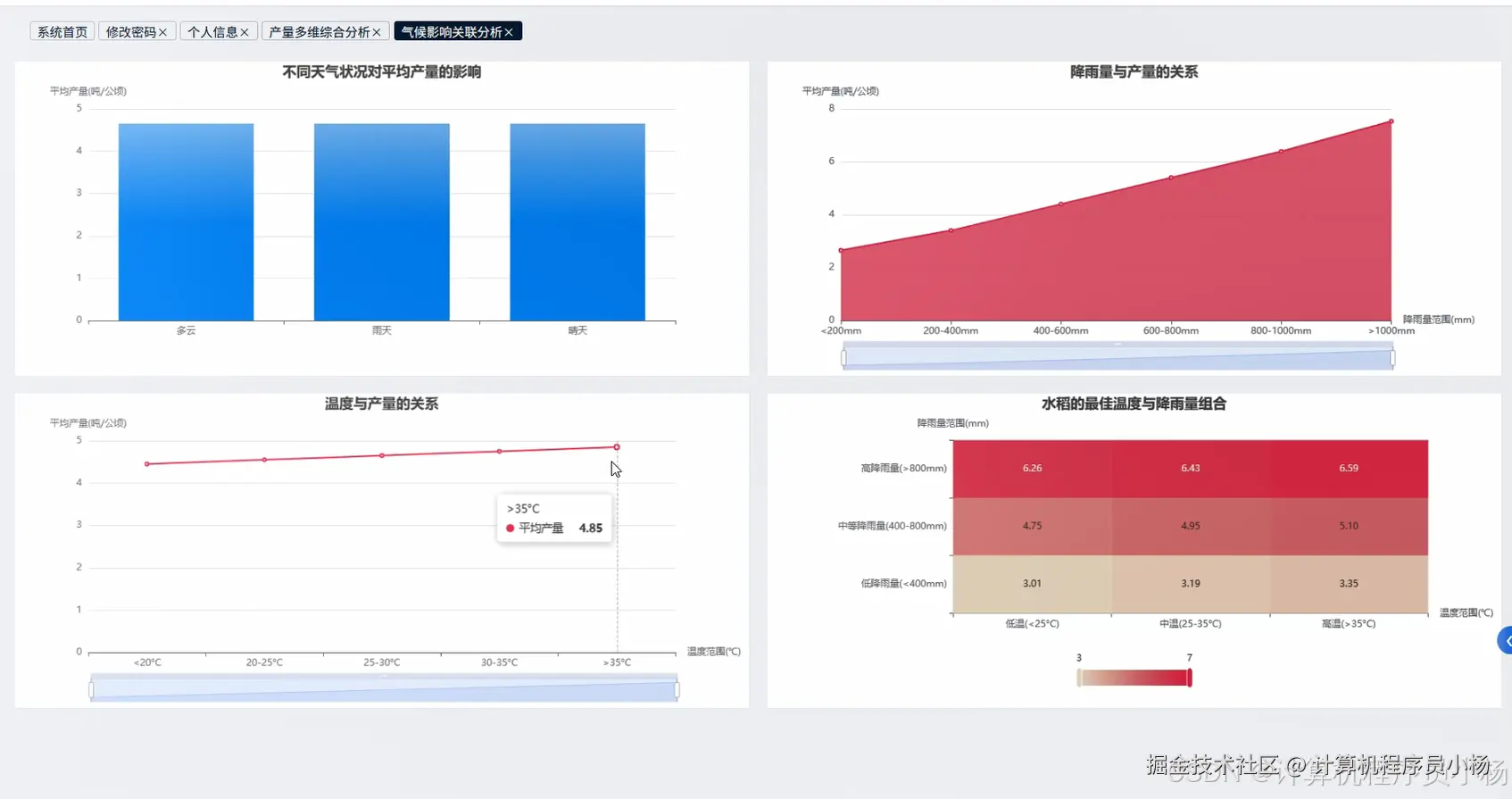

四.系统界面展示
五.系统源码展示
from pyspark.sql import SparkSession
from pyspark.sql.functions import col, sum, avg, count, when, desc, asc
from pyspark.sql.types import StructType, StructField, StringType, IntegerType, FloatType
import pandas as pd
import numpy as np
from datetime import datetime
spark = SparkSession.builder.appName("CropYieldAnalysis").config("spark.sql.adaptive.enabled", "true").getOrCreate()
def comprehensive_yield_analysis(data_path, crop_type=None, year_range=None):
yield_df = spark.read.option("header", "true").csv(data_path)
if crop_type:
yield_df = yield_df.filter(col("crop_type") == crop_type)
if year_range:
yield_df = yield_df.filter((col("year") >= year_range[0]) & (col("year") <= year_range[1]))
yield_df = yield_df.withColumn("yield_per_hectare", col("total_yield").cast("float") / col("planted_area").cast("float"))
monthly_analysis = yield_df.groupBy("year", "month", "crop_type").agg(
sum("total_yield").alias("monthly_total_yield"),
avg("yield_per_hectare").alias("avg_yield_per_hectare"),
count("*").alias("record_count")
)
regional_analysis = yield_df.groupBy("province", "city", "crop_type").agg(
sum("total_yield").alias("regional_total_yield"),
avg("yield_per_hectare").alias("regional_avg_yield"),
sum("planted_area").alias("total_planted_area")
)
trend_analysis = yield_df.groupBy("year", "crop_type").agg(
sum("total_yield").alias("yearly_total_yield"),
avg("yield_per_hectare").alias("yearly_avg_yield")
).orderBy("year", "crop_type")
quality_analysis = yield_df.withColumn("yield_grade",
when(col("yield_per_hectare") >= 8000, "高产")
.when(col("yield_per_hectare") >= 6000, "中产")
.otherwise("低产")
).groupBy("yield_grade", "crop_type").count()
seasonal_pattern = yield_df.groupBy("season", "crop_type").agg(
sum("total_yield").alias("seasonal_yield"),
avg("yield_per_hectare").alias("seasonal_avg_yield"),
avg("temperature").alias("avg_temperature"),
avg("rainfall").alias("avg_rainfall")
)
correlation_data = yield_df.select("yield_per_hectare", "temperature", "rainfall", "humidity", "sunshine_hours").toPandas()
correlation_matrix = correlation_data.corr()
yield_stability = yield_df.groupBy("province", "crop_type").agg(
avg("yield_per_hectare").alias("avg_yield"),
(sum((col("yield_per_hectare") - avg("yield_per_hectare")) ** 2) / count("*")).alias("variance")
)
return {
"monthly_analysis": monthly_analysis.collect(),
"regional_analysis": regional_analysis.collect(),
"trend_analysis": trend_analysis.collect(),
"quality_analysis": quality_analysis.collect(),
"seasonal_pattern": seasonal_pattern.collect(),
"correlation_matrix": correlation_matrix.to_dict(),
"yield_stability": yield_stability.collect()
}
def climate_impact_correlation_analysis(yield_data_path, climate_data_path):
yield_df = spark.read.option("header", "true").csv(yield_data_path)
climate_df = spark.read.option("header", "true").csv(climate_data_path)
merged_df = yield_df.join(climate_df, ["region", "year", "month"], "inner")
merged_df = merged_df.withColumn("temperature_category",
when(col("temperature") >= 25, "高温")
.when(col("temperature") >= 15, "适温")
.otherwise("低温")
)
merged_df = merged_df.withColumn("rainfall_category",
when(col("rainfall") >= 100, "多雨")
.when(col("rainfall") >= 50, "适雨")
.otherwise("少雨")
)
temperature_impact = merged_df.groupBy("temperature_category", "crop_type").agg(
avg("yield_per_hectare").alias("avg_yield_by_temp"),
count("*").alias("sample_count"),
sum("total_yield").alias("total_yield_by_temp")
)
rainfall_impact = merged_df.groupBy("rainfall_category", "crop_type").agg(
avg("yield_per_hectare").alias("avg_yield_by_rainfall"),
count("*").alias("sample_count"),
sum("total_yield").alias("total_yield_by_rainfall")
)
extreme_weather_analysis = merged_df.filter(
(col("temperature") > 35) | (col("temperature") < 5) |
(col("rainfall") > 200) | (col("rainfall") < 10)
).groupBy("crop_type", "region").agg(
avg("yield_per_hectare").alias("extreme_weather_yield"),
count("*").alias("extreme_events_count")
)
climate_yield_correlation = merged_df.groupBy("crop_type").agg(
avg("temperature").alias("avg_temperature"),
avg("rainfall").alias("avg_rainfall"),
avg("humidity").alias("avg_humidity"),
avg("yield_per_hectare").alias("avg_yield")
)
optimal_climate_conditions = merged_df.filter(
col("yield_per_hectare") > merged_df.select(avg("yield_per_hectare")).collect()[0][0] * 1.2
).groupBy("crop_type").agg(
avg("temperature").alias("optimal_temperature"),
avg("rainfall").alias("optimal_rainfall"),
avg("humidity").alias("optimal_humidity"),
avg("sunshine_hours").alias("optimal_sunshine")
)
monthly_climate_yield = merged_df.groupBy("month", "crop_type").agg(
avg("temperature").alias("monthly_avg_temp"),
avg("rainfall").alias("monthly_avg_rainfall"),
avg("yield_per_hectare").alias("monthly_avg_yield")
).orderBy("month")
climate_risk_assessment = merged_df.withColumn("risk_score",
when((col("temperature") > 30) & (col("rainfall") < 30), 3)
.when((col("temperature") < 10) | (col("rainfall") > 150), 2)
.otherwise(1)
).groupBy("risk_score", "crop_type").agg(
avg("yield_per_hectare").alias("risk_level_yield"),
count("*").alias("risk_occurrence_count")
)
return {
"temperature_impact": temperature_impact.collect(),
"rainfall_impact": rainfall_impact.collect(),
"extreme_weather_analysis": extreme_weather_analysis.collect(),
"climate_yield_correlation": climate_yield_correlation.collect(),
"optimal_climate_conditions": optimal_climate_conditions.collect(),
"monthly_climate_yield": monthly_climate_yield.collect(),
"climate_risk_assessment": climate_risk_assessment.collect()
}
def crop_cycle_yield_analysis(data_path, crop_type_filter=None):
cycle_df = spark.read.option("header", "true").csv(data_path)
if crop_type_filter:
cycle_df = cycle_df.filter(col("crop_type").isin(crop_type_filter))
cycle_df = cycle_df.withColumn("growth_days",
(col("harvest_date").cast("timestamp").cast("long") - col("planting_date").cast("timestamp").cast("long")) / 86400
)
cycle_df = cycle_df.withColumn("cycle_category",
when(col("growth_days") <= 90, "短周期")
.when(col("growth_days") <= 150, "中周期")
.otherwise("长周期")
)
cycle_yield_analysis = cycle_df.groupBy("cycle_category", "crop_type").agg(
avg("yield_per_hectare").alias("avg_cycle_yield"),
avg("growth_days").alias("avg_growth_days"),
count("*").alias("cycle_sample_count"),
sum("total_yield").alias("cycle_total_yield")
)
growth_stage_analysis = cycle_df.withColumn("seedling_yield", col("yield_per_hectare") * 0.1) \
.withColumn("vegetative_yield", col("yield_per_hectare") * 0.3) \
.withColumn("reproductive_yield", col("yield_per_hectare") * 0.6) \
.groupBy("crop_type").agg(
avg("seedling_yield").alias("avg_seedling_contribution"),
avg("vegetative_yield").alias("avg_vegetative_contribution"),
avg("reproductive_yield").alias("avg_reproductive_contribution")
)
seasonal_planting_analysis = cycle_df.withColumn("planting_season",
when(col("planting_month").between(3, 5), "春播")
.when(col("planting_month").between(6, 8), "夏播")
.when(col("planting_month").between(9, 11), "秋播")
.otherwise("冬播")
).groupBy("planting_season", "crop_type").agg(
avg("yield_per_hectare").alias("seasonal_avg_yield"),
avg("growth_days").alias("seasonal_avg_growth_days"),
count("*").alias("seasonal_planting_count")
)
yield_efficiency_analysis = cycle_df.withColumn("daily_yield_rate",
col("yield_per_hectare") / col("growth_days")
).groupBy("crop_type", "cycle_category").agg(
avg("daily_yield_rate").alias("avg_daily_yield_rate"),
sum("daily_yield_rate").alias("total_daily_yield_rate")
)
harvest_timing_analysis = cycle_df.withColumn("harvest_month", col("harvest_date").substr(6, 2).cast("int")) \
.groupBy("harvest_month", "crop_type").agg(
avg("yield_per_hectare").alias("harvest_month_avg_yield"),
count("*").alias("harvest_month_count")
).orderBy("harvest_month")
cycle_stability_analysis = cycle_df.groupBy("crop_type").agg(
avg("growth_days").alias("avg_cycle_length"),
(sum((col("growth_days") - avg("growth_days")) ** 2) / count("*")).alias("cycle_variance"),
avg("yield_per_hectare").alias("avg_yield"),
(sum((col("yield_per_hectare") - avg("yield_per_hectare")) ** 2) / count("*")).alias("yield_variance")
)
optimal_cycle_identification = cycle_df.filter(
col("yield_per_hectare") > cycle_df.select(avg("yield_per_hectare")).collect()[0][0] * 1.15
).groupBy("crop_type").agg(
avg("growth_days").alias("optimal_cycle_days"),
avg("yield_per_hectare").alias("optimal_cycle_yield"),
count("*").alias("optimal_cases_count")
)
return {
"cycle_yield_analysis": cycle_yield_analysis.collect(),
"growth_stage_analysis": growth_stage_analysis.collect(),
"seasonal_planting_analysis": seasonal_planting_analysis.collect(),
"yield_efficiency_analysis": yield_efficiency_analysis.collect(),
"harvest_timing_analysis": harvest_timing_analysis.collect(),
"cycle_stability_analysis": cycle_stability_analysis.collect(),
"optimal_cycle_identification": optimal_cycle_identification.collect()
}

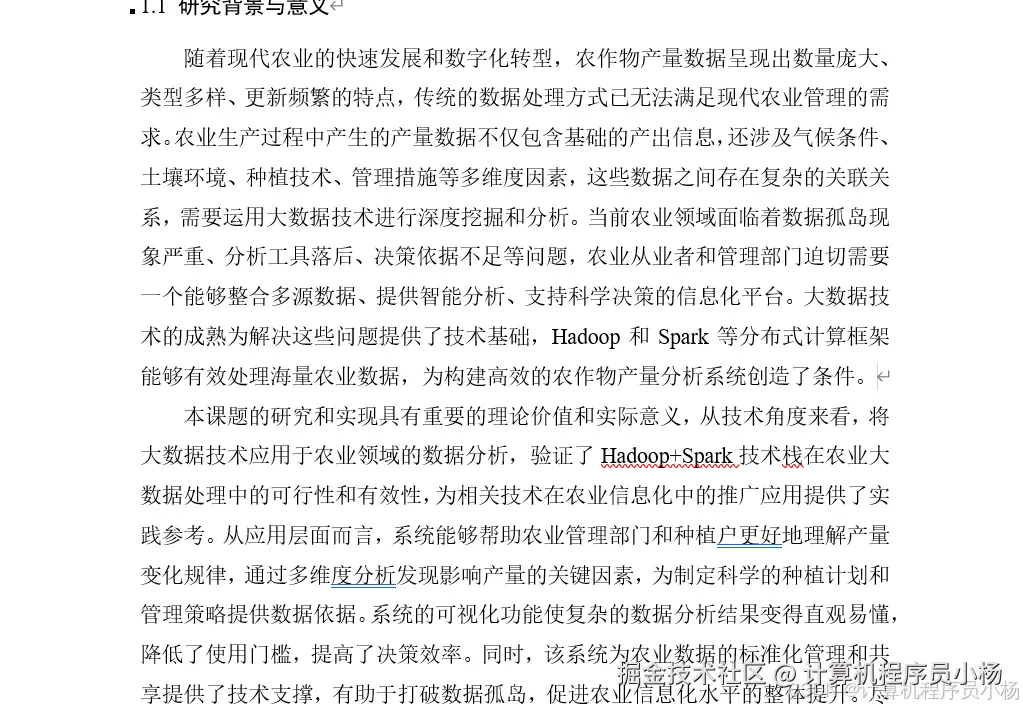

六.系统文档展示
