xwiki livedata
1、xwiki支持livedata加载数据
extensions.xwiki.org/xwiki/bin/v…

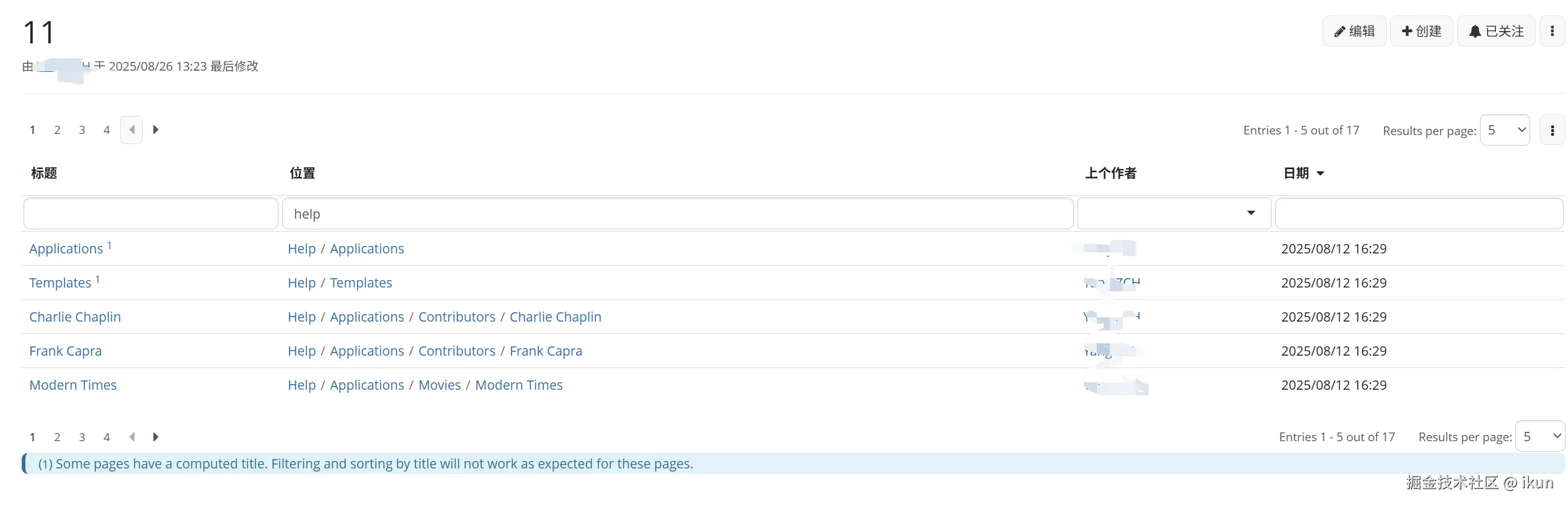

安装官方实例很容易渲染出来表格了。
{{liveData
id="recentPages"
properties="doc.title,doc.location,doc.author,doc.date"
source="liveTable"
sourceParameters="translationPrefix=platform.index."
filters="doc.location=help"
sort="doc.date:desc"
limit="5"
/}}

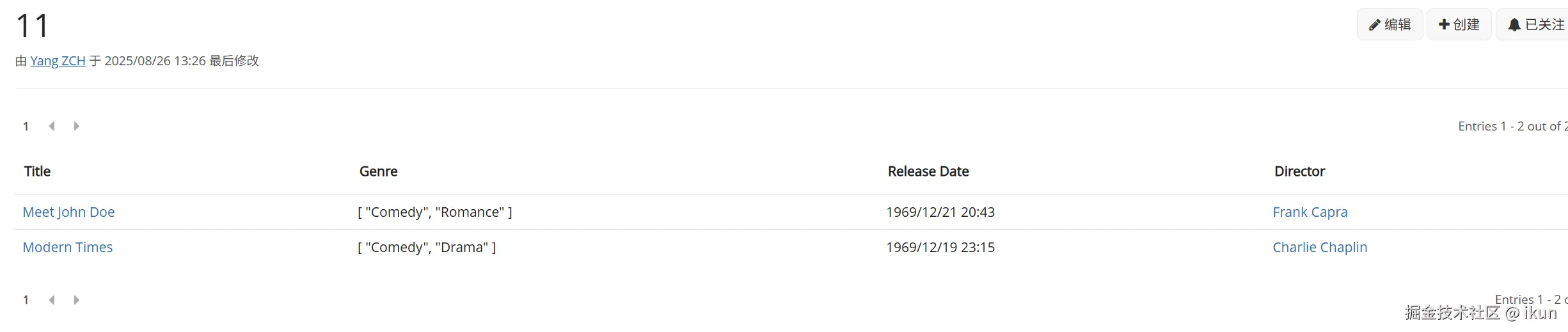

2、livedata还支持静态json
{{liveData
id="movies"
properties="title,genre,releaseDate,director"
}}{
"data": {
"count": 2,
"entries": [
{
"title": "Meet John Doe",
"url": "https://www.imdb.com/title/tt0033891/",
"genre": ["Comedy", "Romance"],
"releaseDate": -904615200,
"director": "Frank Capra",
"directorURL": "https://www.imdb.com/name/nm0001008/"
},
{
"title": "Modern Times",
"url": "https://www.imdb.com/title/tt0027977/",
"genre": ["Comedy", "Drama"],
"releaseDate": -1068256800,
"director": "Charlie Chaplin",
"directorURL": "https://www.imdb.com/name/nm0000122/"
}
]
},
"meta": {
"propertyDescriptors": [
{
"id": "title",
"name": "Title",
"visible": true,
"displayer": {"id": "link", "propertyHref": "url"}
},
{
"id": "genre",
"name": "Genre",
"visible": true
},
{
"id": "releaseDate",
"name": "Release Date",
"visible": true,
"displayer": "date"
},
{
"id": "director",
"name": "Director",
"visible": true,
"displayer": {"id": "link", "propertyHref": "directorURL"}
}
]
}
}{{/liveData}}

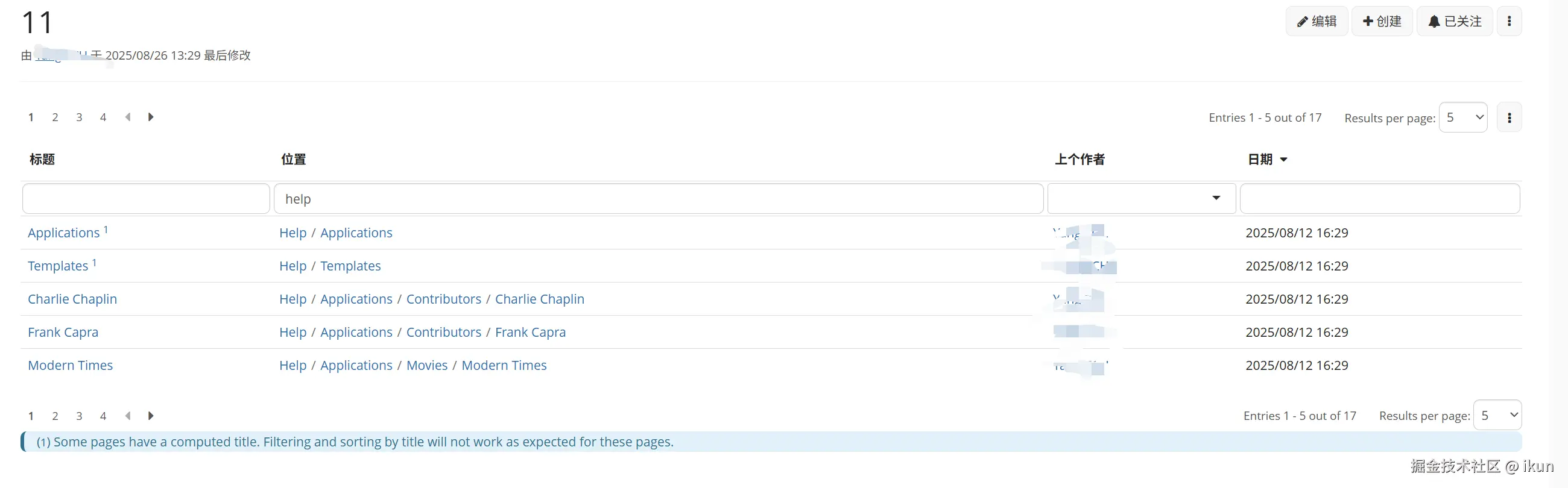

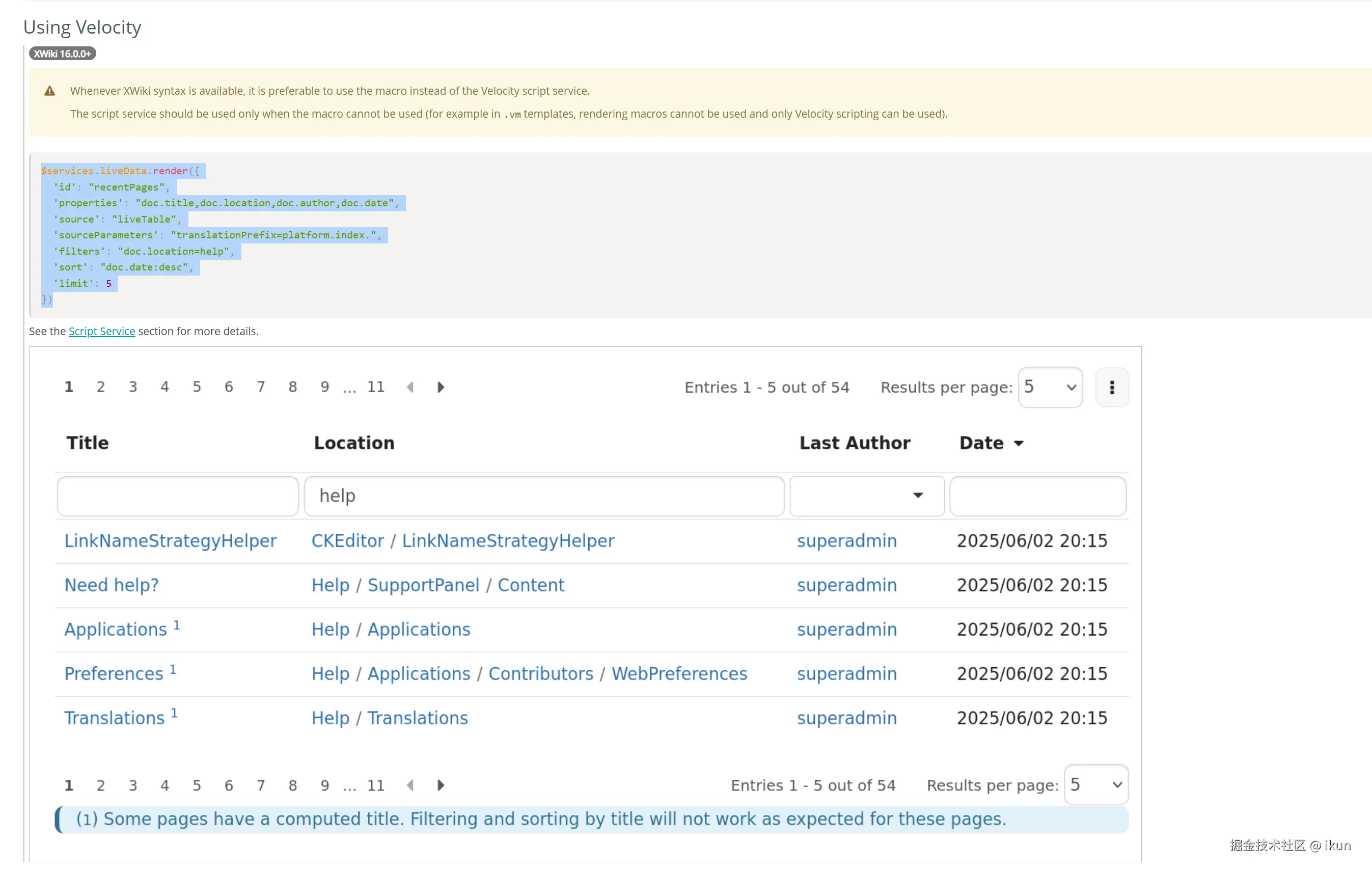

3、xwiki还支持velocity去编译livedata（官方文档中写的不太详细）
{{velocity}}
$services.liveData.render({
'id': "recentPages",
'properties': "doc.title,doc.location,doc.author,doc.date",
'source': "liveTable",
'sourceParameters': "translationPrefix=platform.index.",
'filters': "doc.location=help",
'sort': "doc.date:desc",
'limit': 5
})
{{/velocity}}
页面上渲染出来是html语句，需要使用下面语法才可以
{{velocity}}
{{html}}
$services.liveData.render({
'id': "recentPages",
'properties': "doc.title,doc.location,doc.author,doc.date",
'source': "liveTable",
'sourceParameters': "translationPrefix=platform.index.",
'filters': "doc.location=help",
'sort': "doc.date:desc",
'limit': 5
})
{{/html}}
{{/velocity}}
4、 xwiki 加载其他页面

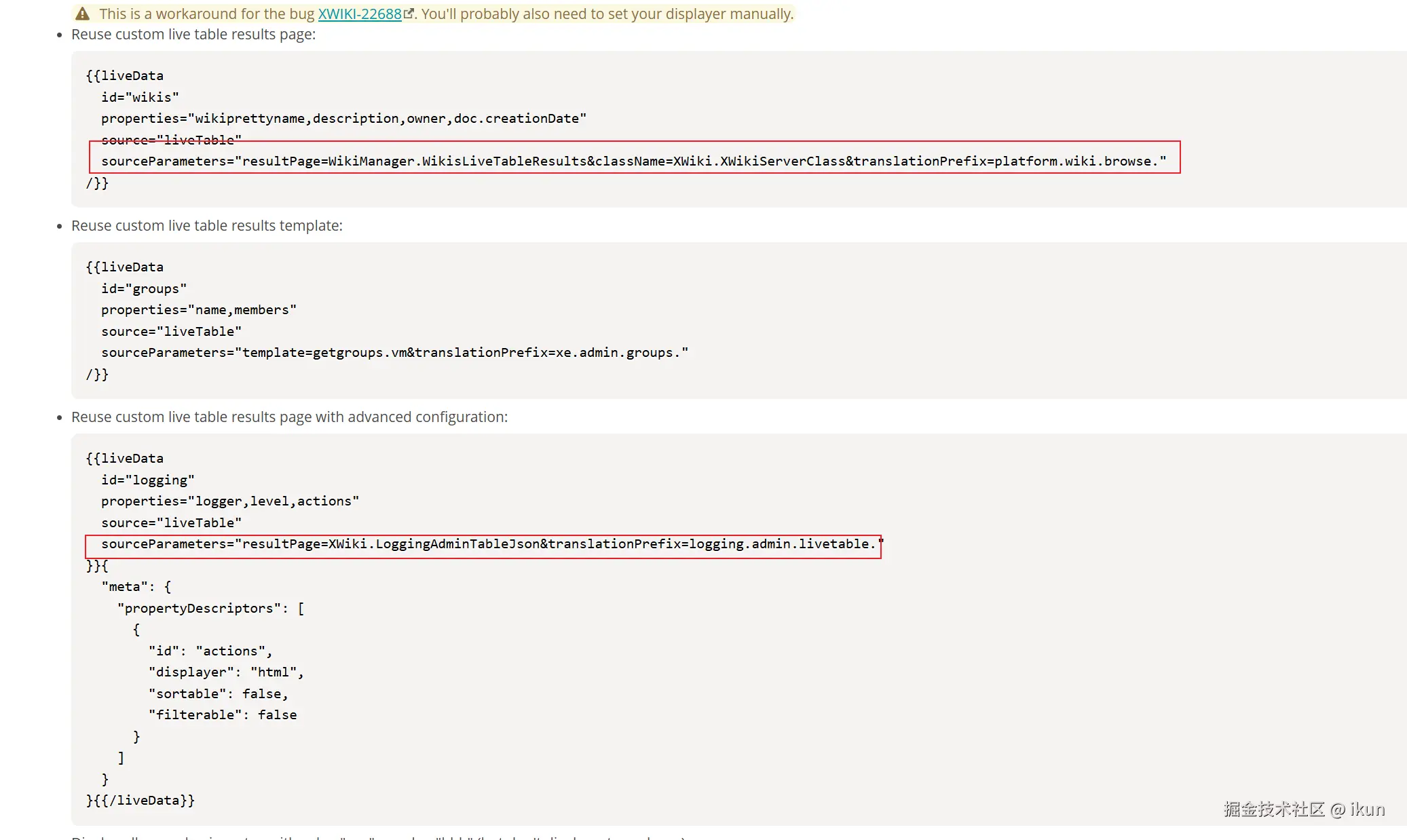

官方实例中看到在 sourceParameters="resultPage=XWiki.LoggingAdminTableJson"指定页面即可

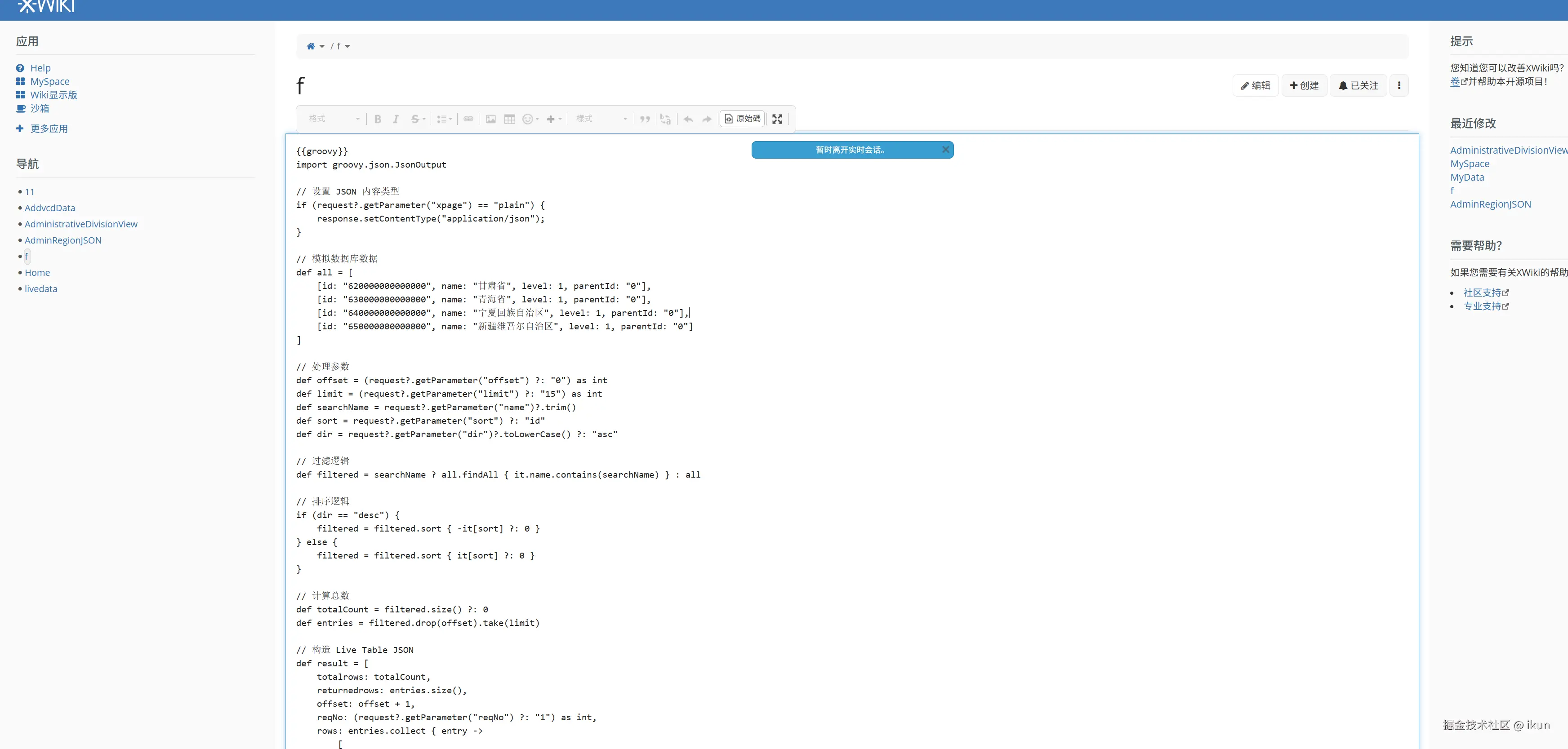

于是我定义了一个页面，叫f的页面
{{groovy}}
import groovy.json.JsonOutput
// 设置 JSON 内容类型
if (request?.getParameter("xpage") == "plain") {
response.setContentType("application/json");
}
// 模拟数据库数据
def all = [
[id: "620000000000000", name: "甘肃省", level: 1, parentId: "0"],
[id: "630000000000000", name: "青海省", level: 1, parentId: "0"],
[id: "640000000000000", name: "宁夏回族自治区", level: 1, parentId: "0"],
[id: "650000000000000", name: "新疆维吾尔自治区", level: 1, parentId: "0"]
]
// 处理参数
def offset = (request?.getParameter("offset") ?: "0") as int
def limit = (request?.getParameter("limit") ?: "15") as int
def searchName = request?.getParameter("name")?.trim()
def sort = request?.getParameter("sort") ?: "id"
def dir = request?.getParameter("dir")?.toLowerCase() ?: "asc"
// 过滤逻辑
def filtered = searchName ? all.findAll { it.name.contains(searchName) } : all
// 排序逻辑
if (dir == "desc") {
filtered = filtered.sort { -it[sort] ?: 0 }
} else {
filtered = filtered.sort { it[sort] ?: 0 }
}
// 计算总数
def totalCount = filtered.size() ?: 0
def entries = filtered.drop(offset).take(limit)
// 构造 Live Table JSON
def result = [
totalrows: totalCount,
returnedrows: entries.size(),
offset: offset + 1,
reqNo: (request?.getParameter("reqNo") ?: "1") as int,
rows: entries.collect { entry ->
[
id: entry.id,
name: entry.name,
level: entry.level,
parentId: entry.parentId,
doc_viewable: true
]
}
]
// 输出 JSON
print JsonOutput.toJson(result)
{{/groovy}}

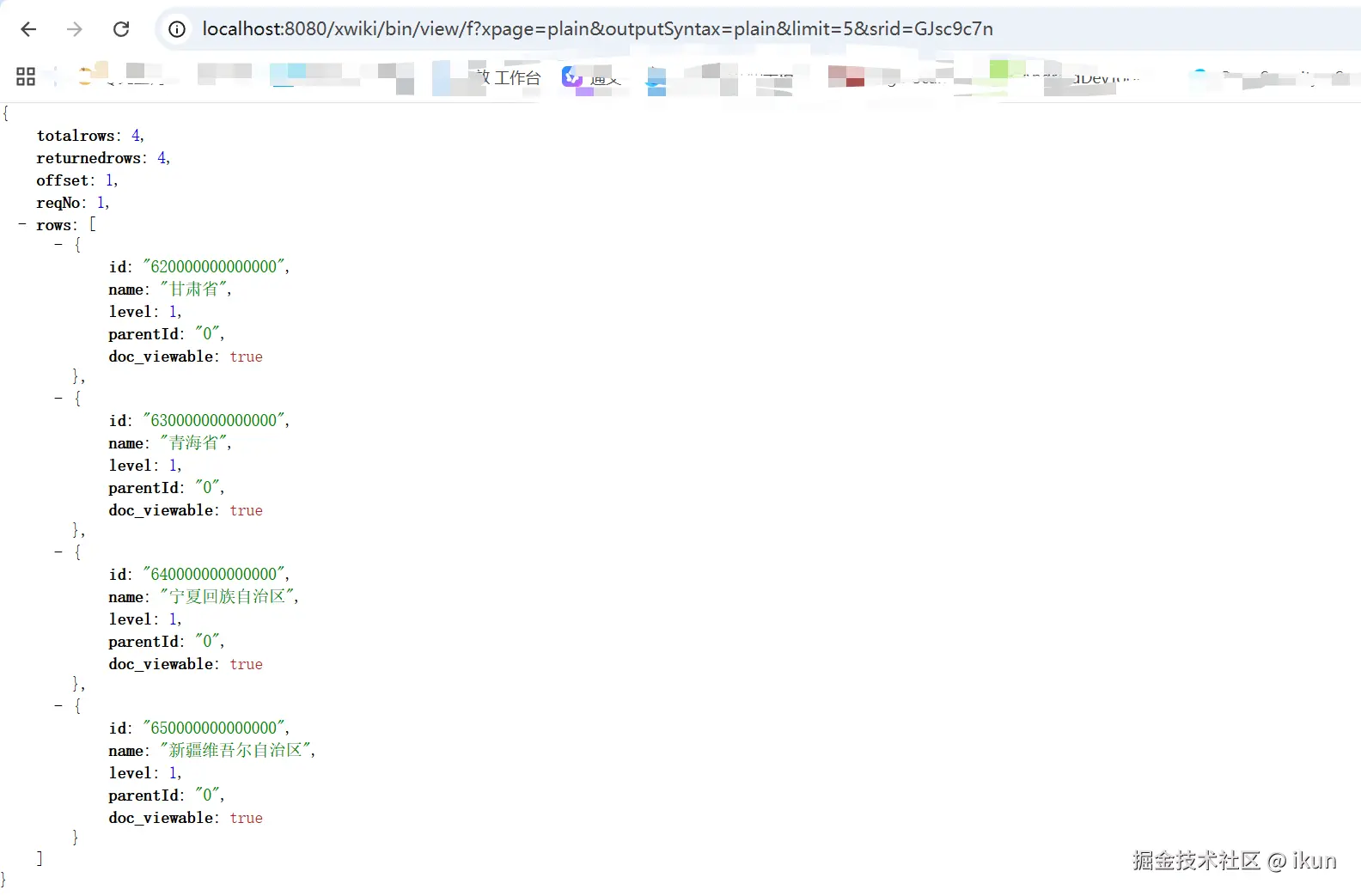

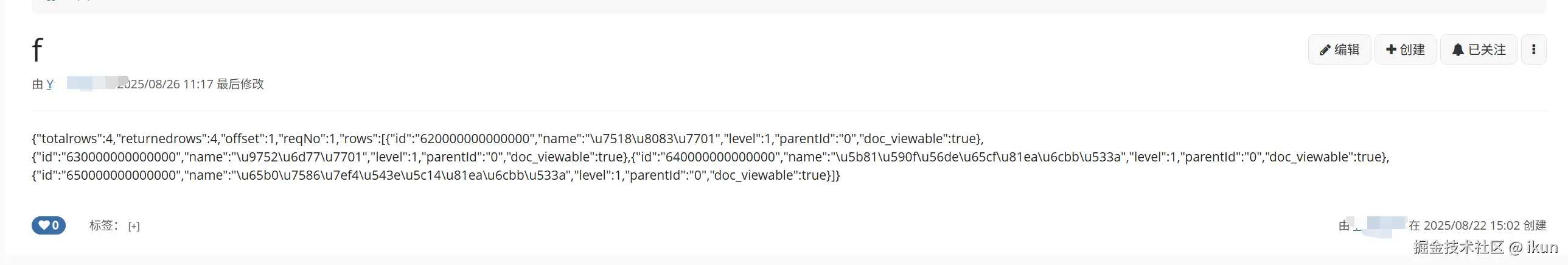

通过接口，可以查询到json数据 http://localhost:8080/xwiki/bin/view/f?xpage=plain&outputSyntax=plain&limit=5&srid=GJsc9c7n

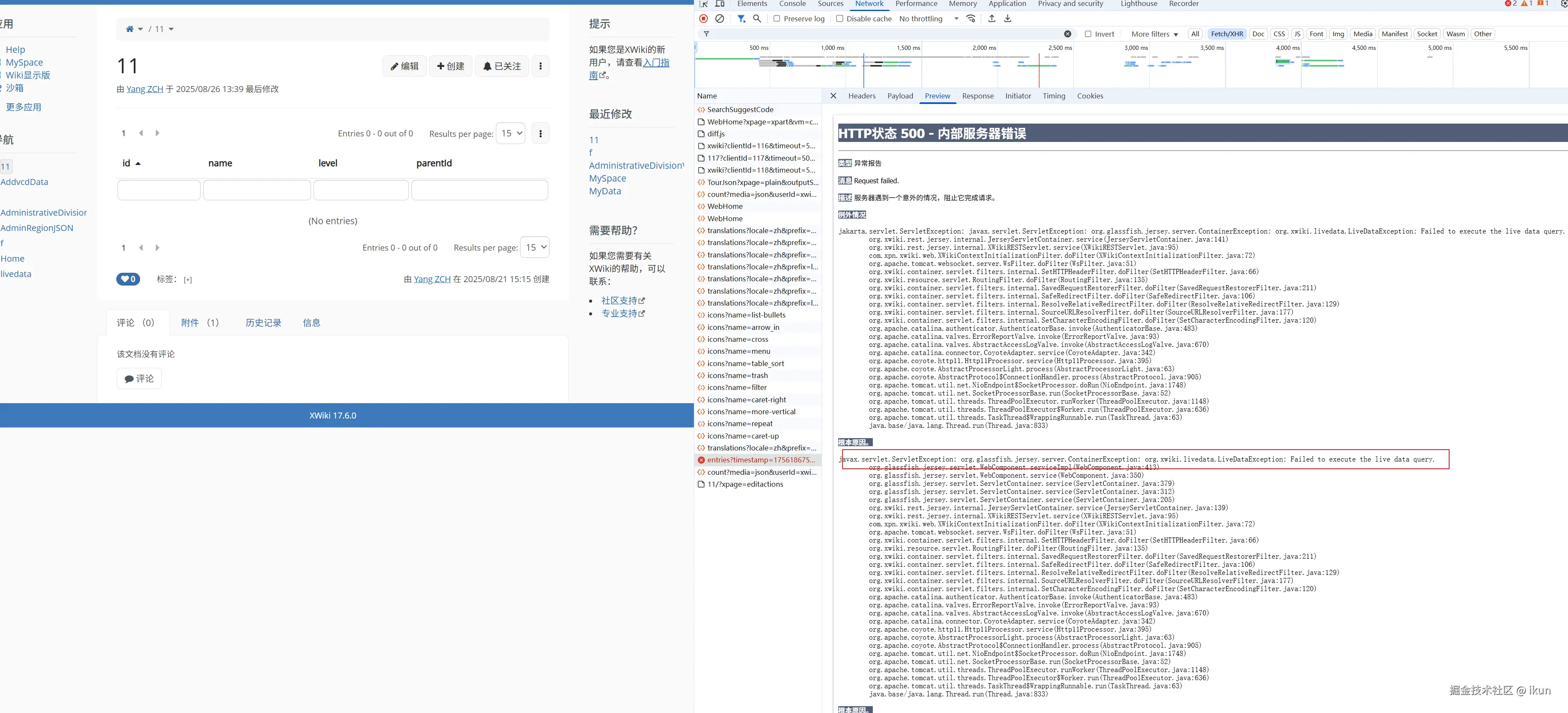

4.1 遇到500错误 org.xwiki.livedata.LiveDataException: Failed to execute the live data query.
在livedata中指定加载f页面
{{liveData
id="adminDataGroovy"
source="liveTable"
sourceParameters="resultsPage=Main.f"
layouts="table"
showPageSizeDropdown="true"
pageSizes="5,10,20"
properties="id,name,level,parentId"
propertyDescriptors='[{"id":"id","name":"政区编码","sortable":true},{"id":"name","name":"政区名字","sortable":true,"filterable":true},{"id":"level","name":"政区等级","sortable":true},{"id":"parentId","name":"父级编码","sortable":true}]'
{{/liveData}}
会导致接口500
jakarta.servlet.ServletException: javax.servlet.ServletException: org.glassfish.jersey.server.ContainerException: org.xwiki.livedata.LiveDataException: Failed to execute the live data query.
org.xwiki.rest.jersey.internal.JerseyServletContainer.service(JerseyServletContainer.java:141)
org.xwiki.rest.jersey.internal.XWikiRESTServlet.service(XWikiRESTServlet.java:95)
com.xpn.xwiki.web.XWikiContextInitializationFilter.doFilter(XWikiContextInitializationFilter.java:72)
org.apache.tomcat.websocket.server.WsFilter.doFilter(WsFilter.java:51)
org.xwiki.container.servlet.filters.internal.SetHTTPHeaderFilter.doFilter(SetHTTPHeaderFilter.java:66)
org.xwiki.resource.servlet.RoutingFilter.doFilter(RoutingFilter.java:135)
org.xwiki.container.servlet.filters.internal.SavedRequestRestorerFilter.doFilter(SavedRequestRestorerFilter.java:211)
org.xwiki.container.servlet.filters.internal.SafeRedirectFilter.doFilter(SafeRedirectFilter.java:106)
org.xwiki.container.servlet.filters.internal.ResolveRelativeRedirectFilter.doFilter(ResolveRelativeRedirectFilter.java:129)
org.xwiki.container.servlet.filters.internal.SourceURLResolverFilter.doFilter(SourceURLResolverFilter.java:177)
org.xwiki.container.servlet.filters.internal.SetCharacterEncodingFilter.doFilter(SetCharacterEncodingFilter.java:120)
org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:483)
org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:93)
org.apache.catalina.valves.AbstractAccessLogValve.invoke(AbstractAccessLogValve.java:670)
org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:342)
org.apache.coyote.http11.Http11Processor.service(Http11Processor.java:395)
org.apache.coyote.AbstractProcessorLight.process(AbstractProcessorLight.java:63)
org.apache.coyote.AbstractProtocol$ConnectionHandler.process(AbstractProtocol.java:905)
org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1748)
org.apache.tomcat.util.net.SocketProcessorBase.run(SocketProcessorBase.java:52)
org.apache.tomcat.util.threads.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1148)
org.apache.tomcat.util.threads.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:636)
org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:63)
java.base/java.lang.Thread.run(Thread.java:833)
根本原因。
javax.servlet.ServletException: org.glassfish.jersey.server.ContainerException: org.xwiki.livedata.LiveDataException: Failed to execute the live data query.
org.glassfish.jersey.servlet.WebComponent.serviceImpl(WebComponent.java:413)
org.glassfish.jersey.servlet.WebComponent.service(WebComponent.java:350)
org.glassfish.jersey.servlet.ServletContainer.service(ServletContainer.java:379)
org.glassfish.jersey.servlet.ServletContainer.service(ServletContainer.java:312)
org.glassfish.jersey.servlet.ServletContainer.service(ServletContainer.java:205)
org.xwiki.rest.jersey.internal.JerseyServletContainer.service(JerseyServletContainer.java:139)
org.xwiki.rest.jersey.internal.XWikiRESTServlet.service(XWikiRESTServlet.java:95)
com.xpn.xwiki.web.XWikiContextInitializationFilter.doFilter(XWikiContextInitializationFilter.java:72)
org.apache.tomcat.websocket.server.WsFilter.doFilter(WsFilter.java:51)
org.xwiki.container.servlet.filters.internal.SetHTTPHeaderFilter.doFilter(SetHTTPHeaderFilter.java:66)
org.xwiki.resource.servlet.RoutingFilter.doFilter(RoutingFilter.java:135)
org.xwiki.container.servlet.filters.internal.SavedRequestRestorerFilter.doFilter(SavedRequestRestorerFilter.java:211)
org.xwiki.container.servlet.filters.internal.SafeRedirectFilter.doFilter(SafeRedirectFilter.java:106)
org.xwiki.container.servlet.filters.internal.ResolveRelativeRedirectFilter.doFilter(ResolveRelativeRedirectFilter.java:129)
org.xwiki.container.servlet.filters.internal.SourceURLResolverFilter.doFilter(SourceURLResolverFilter.java:177)
org.xwiki.container.servlet.filters.internal.SetCharacterEncodingFilter.doFilter(SetCharacterEncodingFilter.java:120)
org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:483)
org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:93)
org.apache.catalina.valves.AbstractAccessLogValve.invoke(AbstractAccessLogValve.java:670)
org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:342)
org.apache.coyote.http11.Http11Processor.service(Http11Processor.java:395)
org.apache.coyote.AbstractProcessorLight.process(AbstractProcessorLight.java:63)
org.apache.coyote.AbstractProtocol$ConnectionHandler.process(AbstractProtocol.java:905)
org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1748)
org.apache.tomcat.util.net.SocketProcessorBase.run(SocketProcessorBase.java:52)
org.apache.tomcat.util.threads.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1148)
org.apache.tomcat.util.threads.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:636)
org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:63)
java.base/java.lang.Thread.run(Thread.java:833)
根本原因。
org.glassfish.jersey.server.ContainerException: org.xwiki.livedata.LiveDataException: Failed to execute the live data query.
org.glassfish.jersey.servlet.internal.ResponseWriter.rethrow(ResponseWriter.java:260)
org.glassfish.jersey.servlet.internal.ResponseWriter.failure(ResponseWriter.java:242)
org.glassfish.jersey.server.ServerRuntime$Responder.process(ServerRuntime.java:445)
org.glassfish.jersey.server.ServerRuntime$1.run(ServerRuntime.java:264)
org.glassfish.jersey.internal.Errors$1.call(Errors.java:248)
org.glassfish.jersey.internal.Errors$1.call(Errors.java:244)
org.glassfish.jersey.internal.Errors.process(Errors.java:292)
org.glassfish.jersey.internal.Errors.process(Errors.java:274)
org.glassfish.jersey.internal.Errors.process(Errors.java:244)
org.glassfish.jersey.process.internal.RequestScope.runInScope(RequestScope.java:265)
org.glassfish.jersey.server.ServerRuntime.process(ServerRuntime.java:235)
org.glassfish.jersey.server.ApplicationHandler.handle(ApplicationHandler.java:684)
org.glassfish.jersey.servlet.WebComponent.serviceImpl(WebComponent.java:398)
org.glassfish.jersey.servlet.WebComponent.service(WebComponent.java:350)
org.glassfish.jersey.servlet.ServletContainer.service(ServletContainer.java:379)
org.glassfish.jersey.servlet.ServletContainer.service(ServletContainer.java:312)
org.glassfish.jersey.servlet.ServletContainer.service(ServletContainer.java:205)
org.xwiki.rest.jersey.internal.JerseyServletContainer.service(JerseyServletContainer.java:139)
org.xwiki.rest.jersey.internal.XWikiRESTServlet.service(XWikiRESTServlet.java:95)
com.xpn.xwiki.web.XWikiContextInitializationFilter.doFilter(XWikiContextInitializationFilter.java:72)
org.apache.tomcat.websocket.server.WsFilter.doFilter(WsFilter.java:51)
org.xwiki.container.servlet.filters.internal.SetHTTPHeaderFilter.doFilter(SetHTTPHeaderFilter.java:66)
org.xwiki.resource.servlet.RoutingFilter.doFilter(RoutingFilter.java:135)
org.xwiki.container.servlet.filters.internal.SavedRequestRestorerFilter.doFilter(SavedRequestRestorerFilter.java:211)
org.xwiki.container.servlet.filters.internal.SafeRedirectFilter.doFilter(SafeRedirectFilter.java:106)
org.xwiki.container.servlet.filters.internal.ResolveRelativeRedirectFilter.doFilter(ResolveRelativeRedirectFilter.java:129)
org.xwiki.container.servlet.filters.internal.SourceURLResolverFilter.doFilter(SourceURLResolverFilter.java:177)
org.xwiki.container.servlet.filters.internal.SetCharacterEncodingFilter.doFilter(SetCharacterEncodingFilter.java:120)
org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:483)
org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:93)
org.apache.catalina.valves.AbstractAccessLogValve.invoke(AbstractAccessLogValve.java:670)
org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:342)
org.apache.coyote.http11.Http11Processor.service(Http11Processor.java:395)
org.apache.coyote.AbstractProcessorLight.process(AbstractProcessorLight.java:63)
org.apache.coyote.AbstractProtocol$ConnectionHandler.process(AbstractProtocol.java:905)
org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1748)
org.apache.tomcat.util.net.SocketProcessorBase.run(SocketProcessorBase.java:52)
org.apache.tomcat.util.threads.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1148)
org.apache.tomcat.util.threads.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:636)
org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:63)
java.base/java.lang.Thread.run(Thread.java:833)

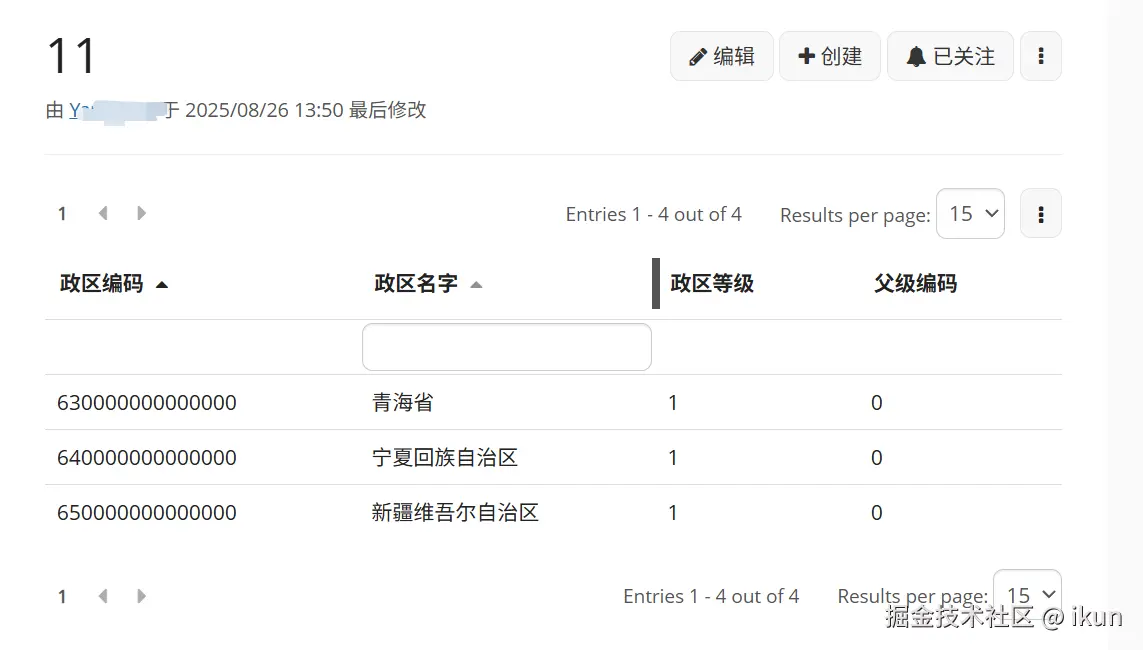

4.2 解决方法
然后查看官方文档给出列子，通过f12去查看接口请求，最后一步一步测试出正确的设置 sourceParameters="resultPage=xwiki:f.WebHome
{{liveData id="adminDataGroovy" properties="id,name,level,parentId" source="liveTable" sourceParameters="resultPage=xwiki:f.WebHome&translationPrefix=admin.livetable." layouts="table" showPageSizeDropdown="true" pageSizes="5,10,20" sort="id:asc" limit="15"}}
{
"meta": {
"propertyDescriptors": [
{
"id": "id",
"name": "政区编码",
"description": "政区编码",
"sortable": true,
"filterable": false
},
{
"id": "name",
"name": "政区名字",
"description": "政区名字",
"sortable": true,
"filterable": true
},
{
"id": "level",
"name": "政区等级",
"description": "政区等级",
"sortable": true,
"filterable": false
},
{
"id": "parentId",
"name": "父级编码",
"description": "父级编码",
"sortable": true,
"filterable": false
}
]
}
}}
{{/liveData}}
后边会xwiki实现自定义表查询
