基于大数据的高级大豆农业数据分析与可视化系统-功能介绍
本项目《基于Hadoop分布式存储的大豆数据可视化系统》是一套集成了现代大数据技术栈的农业数据分析平台。系统采用Hadoop+Spark作为核心大数据处理框架，通过HDFS实现海量农业数据的分布式存储，利用Spark SQL和Pandas进行高效的数据清洗与分析计算。后端基于Django框架构建RESTful API服务，前端采用Vue.js结合ElementUI组件库和ECharts可视化库，为用户提供直观友好的数据展示界面。系统主要面向大豆种植领域的数据分析需求，能够处理包括不同基因型大豆在各种环境条件下的产量数据、蛋白质含量、抗逆性指标等多维度农业数据。通过五大核心分析维度，即基因性能分析、环境胁迫适应分析、产量性状关联分析、综合性能优选分析以及数据集整体特征探查，系统能够为农业研究人员和种植户提供科学的数据支撑和决策参考。
基于大数据的高级大豆农业数据分析与可视化系统-选题背景意义
选题背景 随着现代农业向精准农业和智慧农业转型，农业数据的采集和分析变得愈发重要。大豆作为全球重要的经济作物和蛋白质来源，其产量和品质直接关系到食品安全和农业经济发展。传统的农业数据处理方式往往依赖于小规模的统计分析工具，面对日益增长的多源异构农业数据时显得力不从心。现代农业试验产生的数据不仅量大，而且结构复杂，包含基因型信息、环境因子、生理生化指标等多个维度，这些数据的有效整合和深度挖掘需要借助大数据技术手段。Hadoop和Spark等分布式计算框架为处理这类大规模农业数据提供了技术基础，能够实现数据的分布式存储、并行计算和实时分析。当前农业科研和生产实践中，迫切需要一套能够整合多维度大豆数据、提供直观可视化展示、支持科学决策的数据分析平台。 选题意义 本系统的开发具有多重实际意义和价值。从技术角度来看，系统整合了大数据处理、Web开发、数据可视化等多项现代信息技术，为农业信息化建设提供了技术示范，验证了大数据技术在农业领域应用的可行性和有效性。从农业科研角度来看，系统能够帮助研究人员更高效地处理和分析大豆试验数据，通过多维度的数据挖掘发现不同基因型大豆的性状规律，为育种工作和品种选育提供数据支撑。从农业生产角度来看，系统的分析结果可以为种植户提供品种选择建议，帮助他们根据当地环境条件选择适宜的大豆品种，提高种植效益和抗风险能力。从教育意义来看，作为一个综合性的毕业设计项目，系统涵盖了大数据处理、后端开发、前端展示等完整的技术链条，为计算机专业学生提供了很好的实践平台。虽然系统规模相对有限，但其设计理念和技术路线为后续更大规模的农业大数据平台建设奠定了基础。
基于大数据的高级大豆农业数据分析与可视化系统-技术选型
大数据框架：Hadoop+Spark（本次没用Hive，支持定制） 开发语言：Python+Java（两个版本都支持） 后端框架：Django+Spring Boot(Spring+SpringMVC+Mybatis)（两个版本都支持） 前端：Vue+ElementUI+Echarts+HTML+CSS+JavaScript+jQuery 详细技术点：Hadoop、HDFS、Spark、Spark SQL、Pandas、NumPy 数据库：MySQL
基于大数据的高级大豆农业数据分析与可视化系统-视频展示

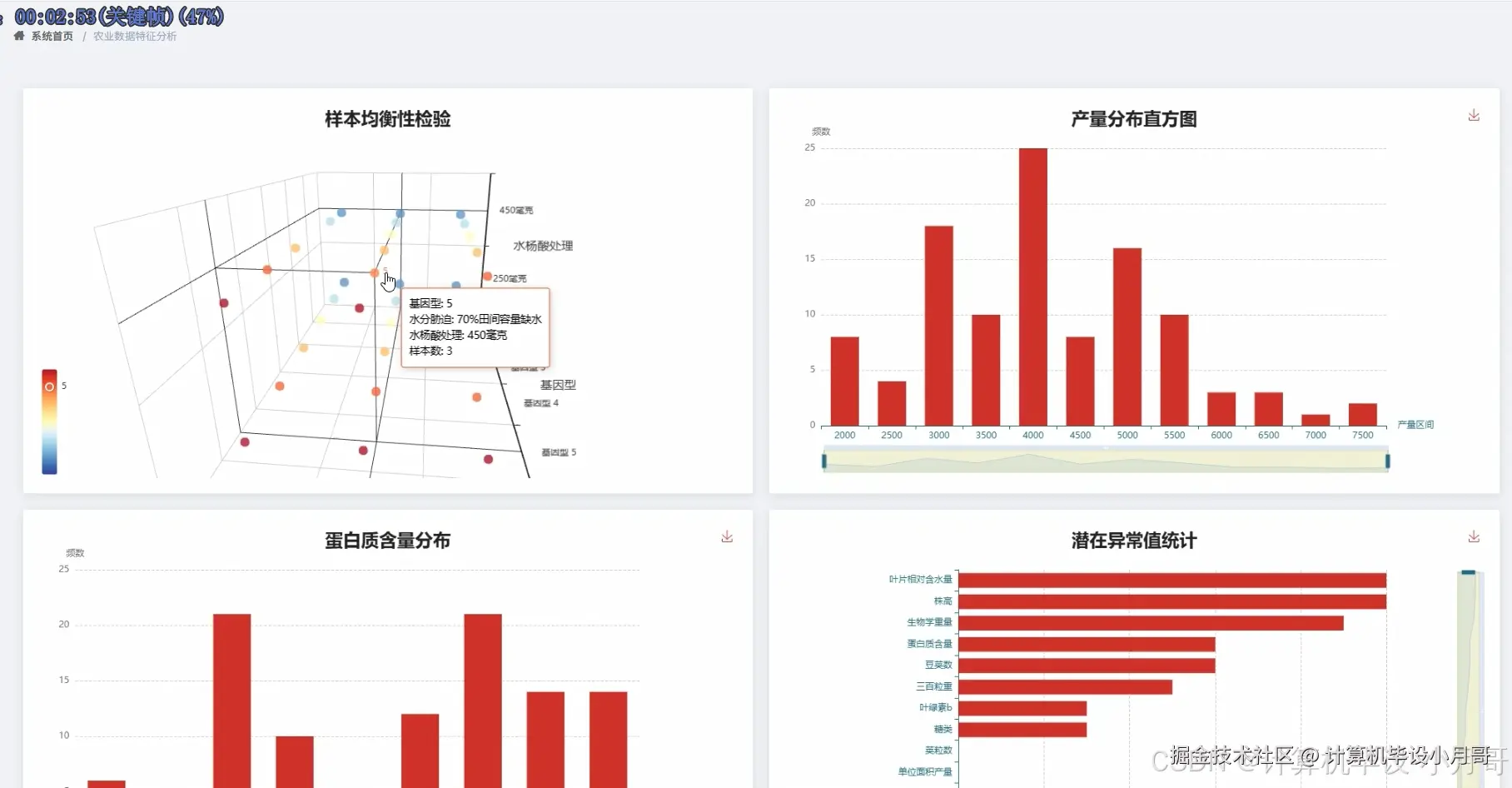

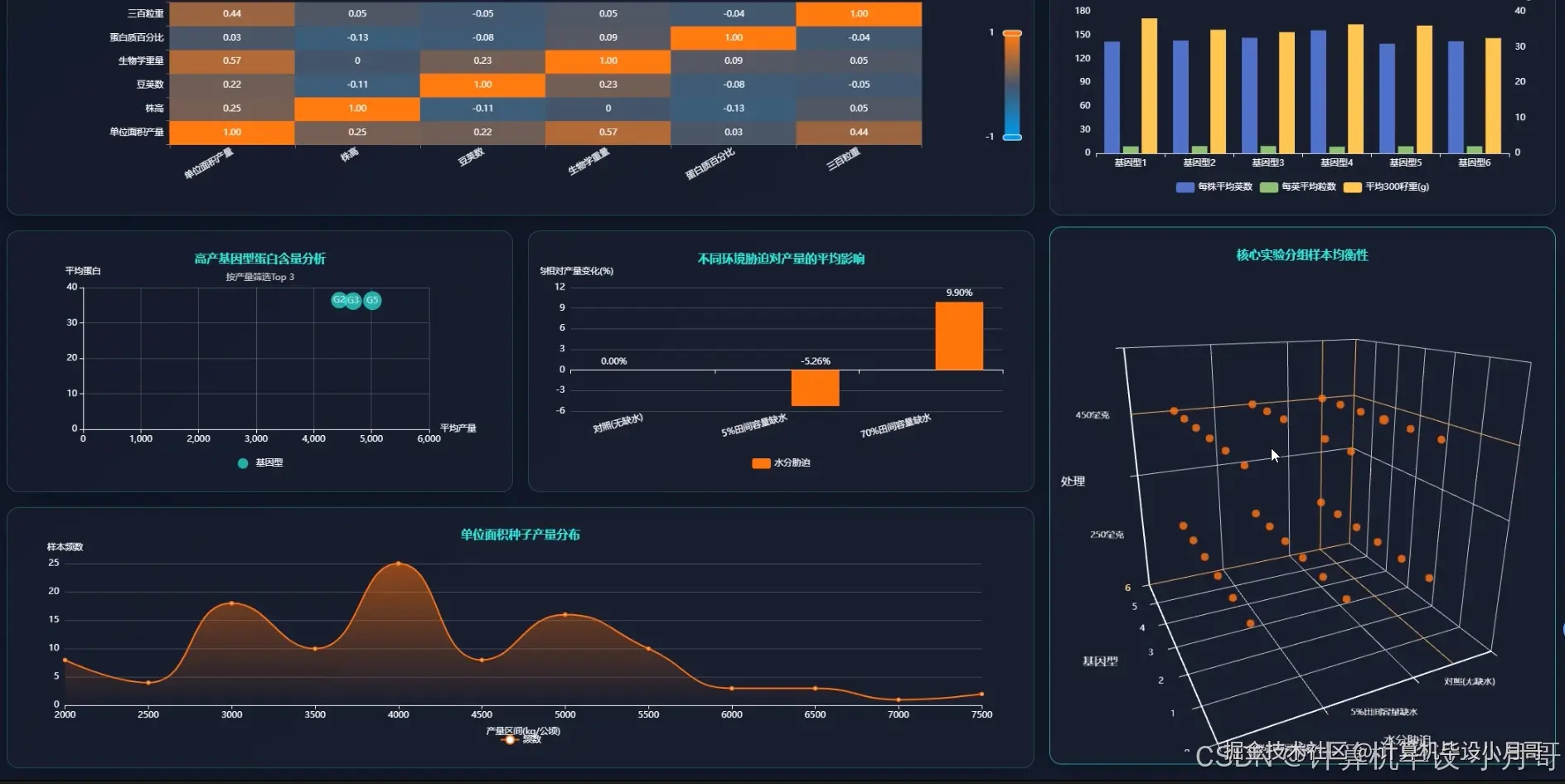

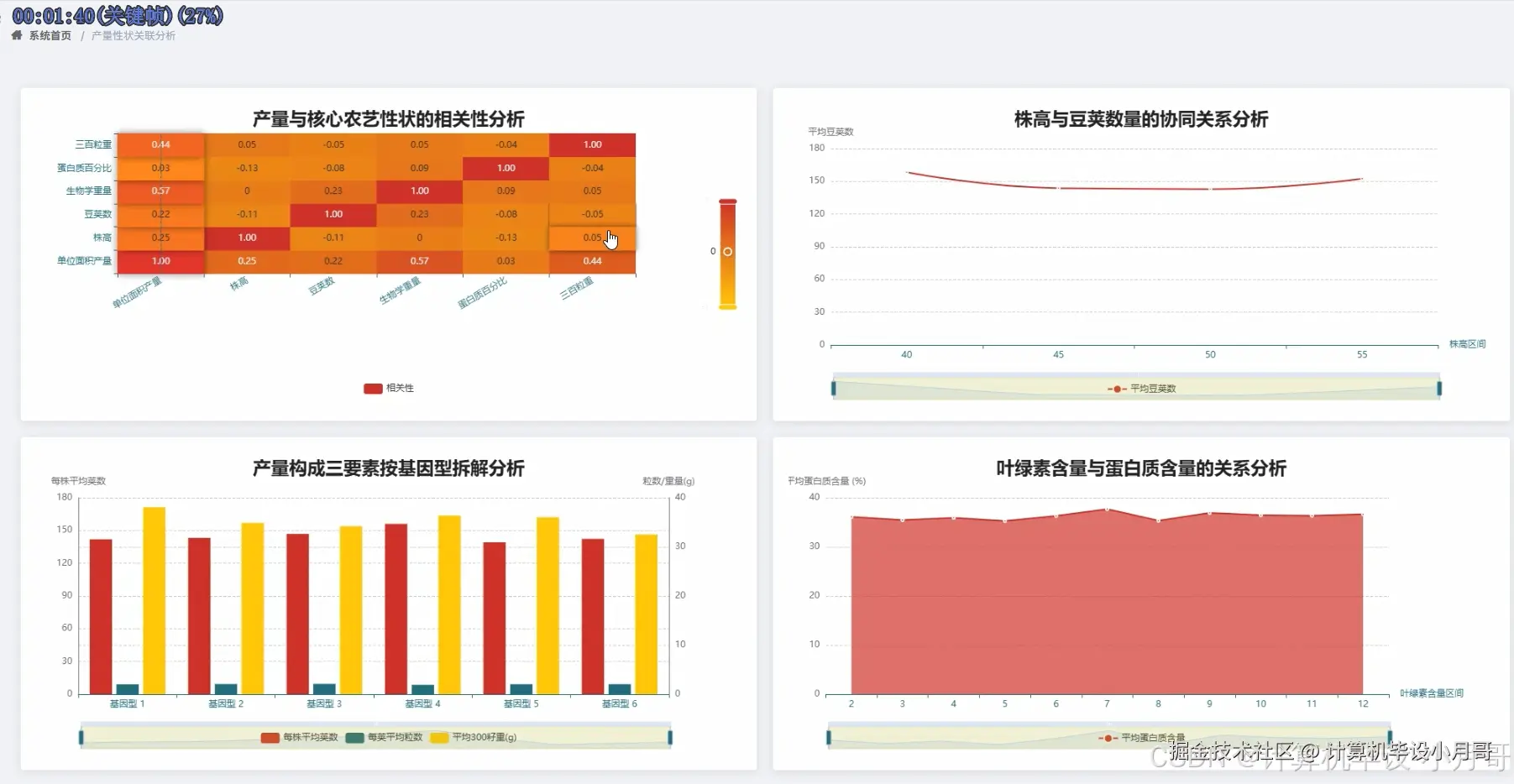

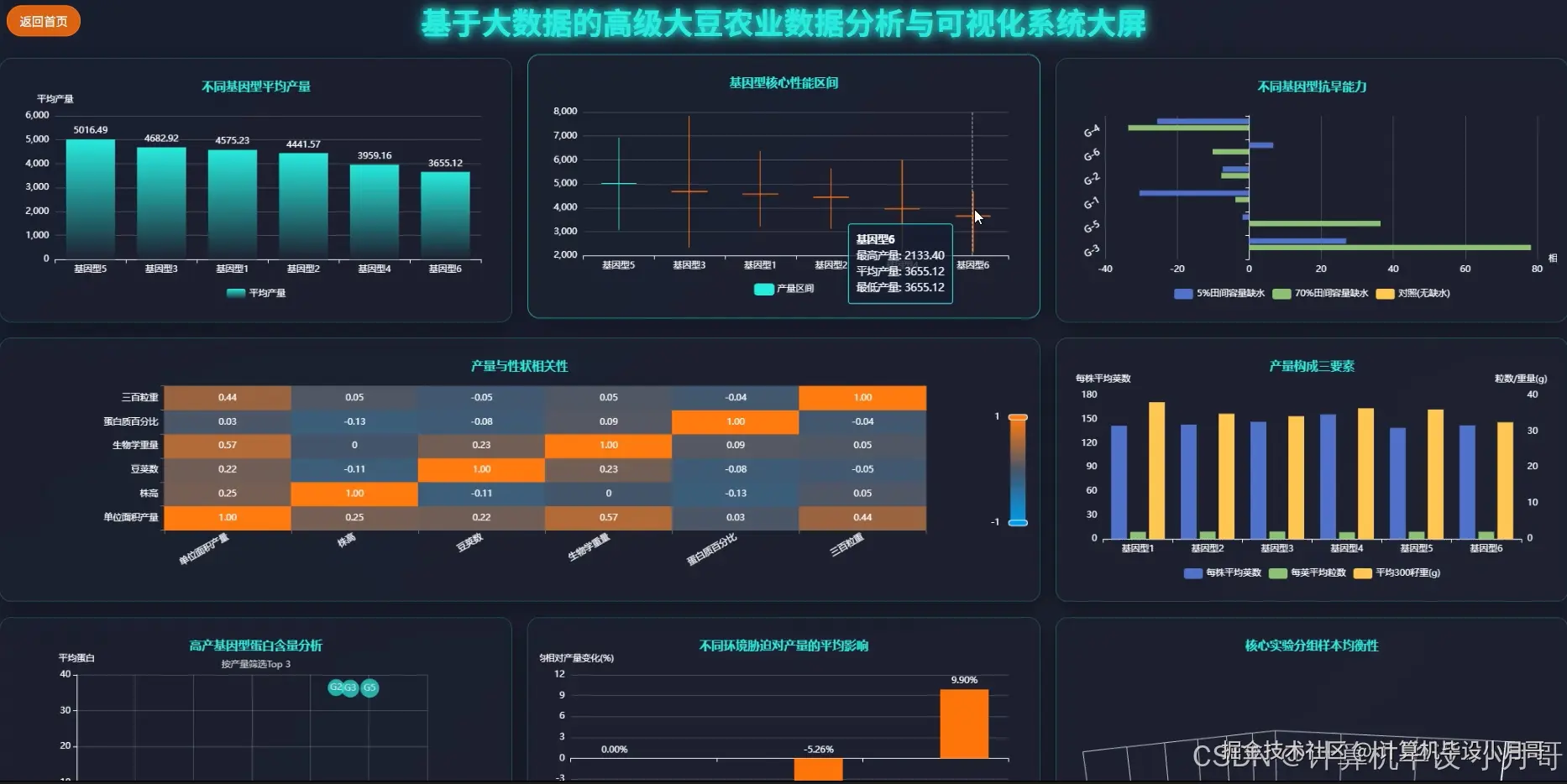

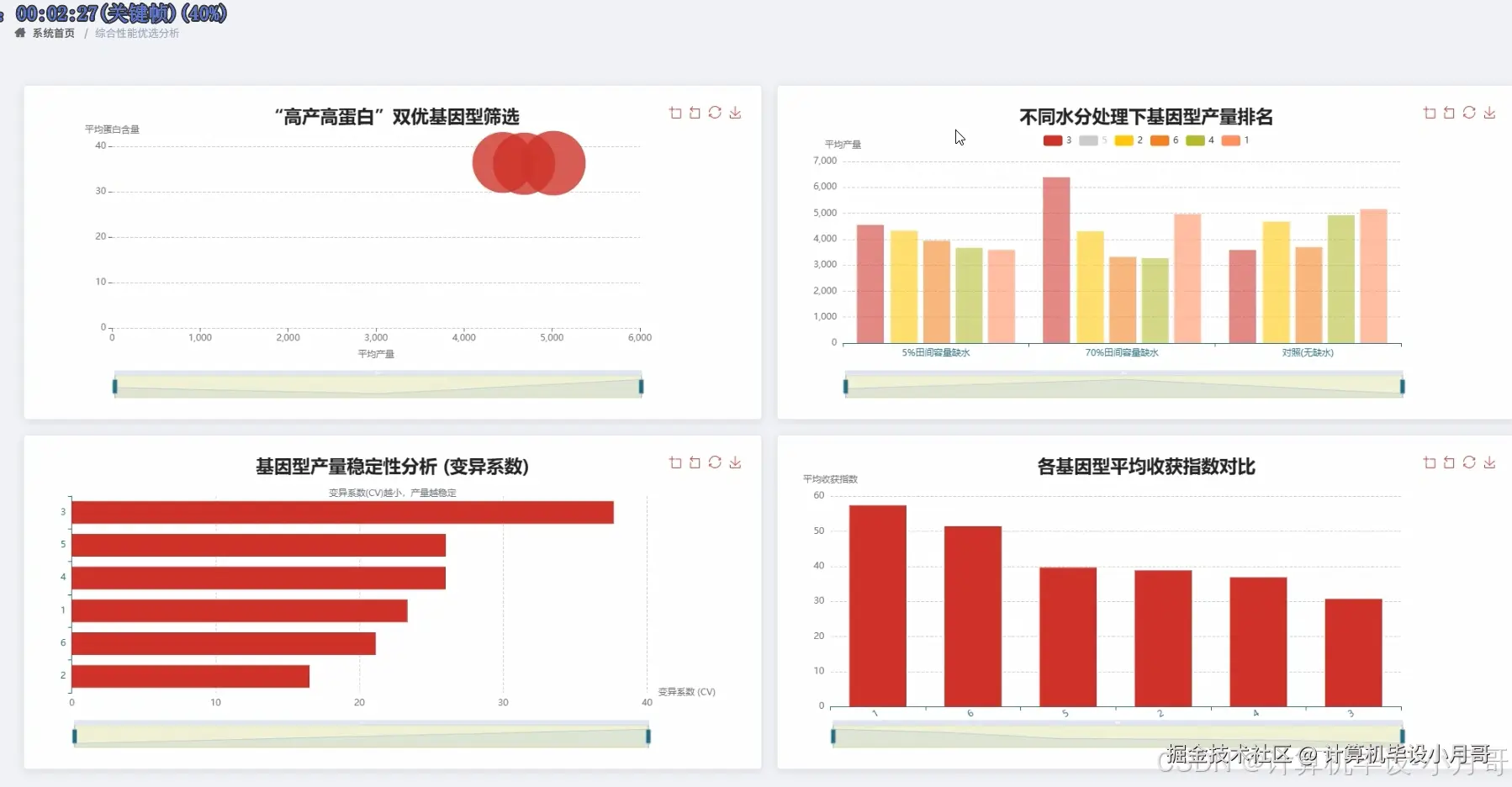

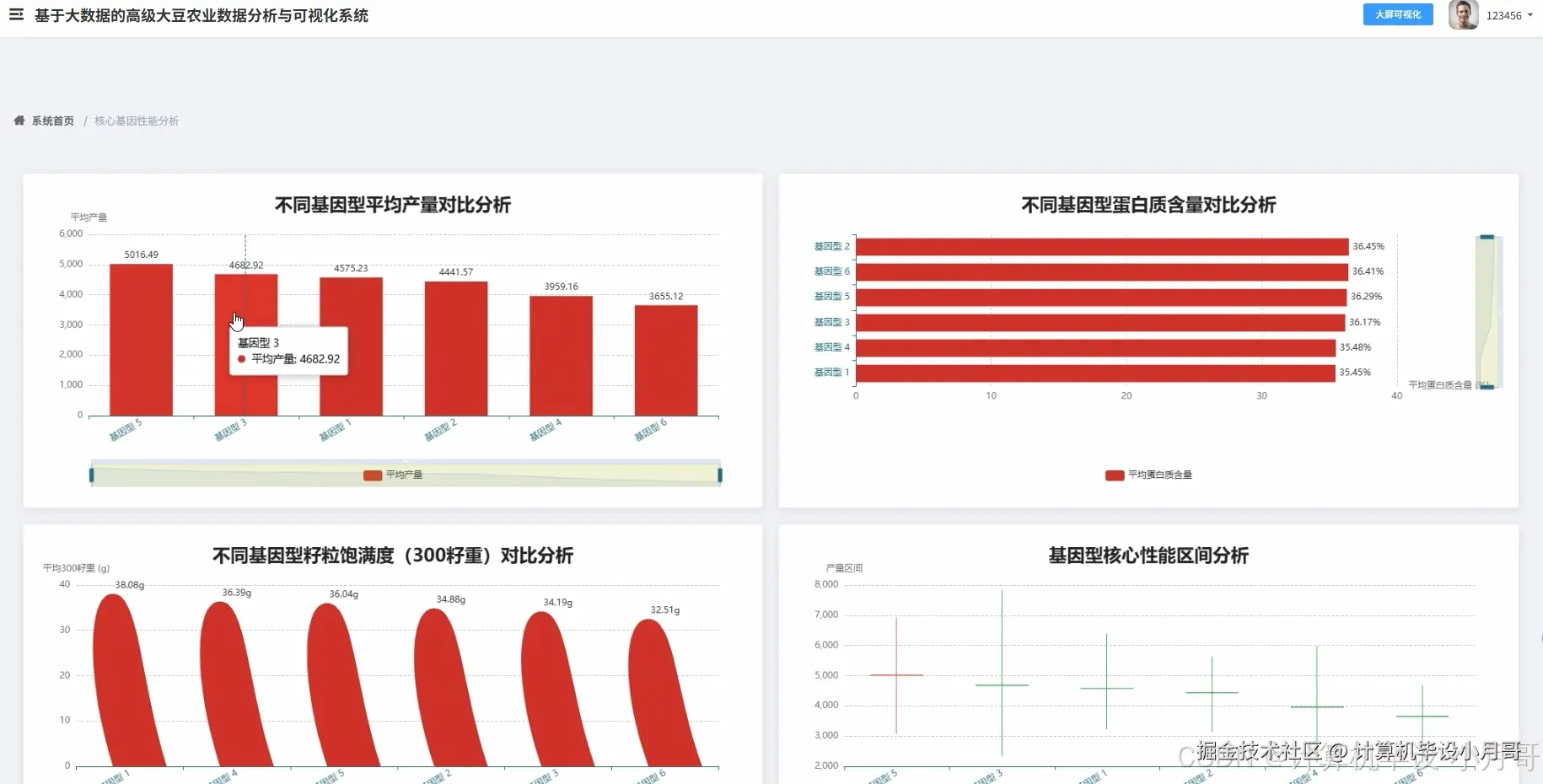

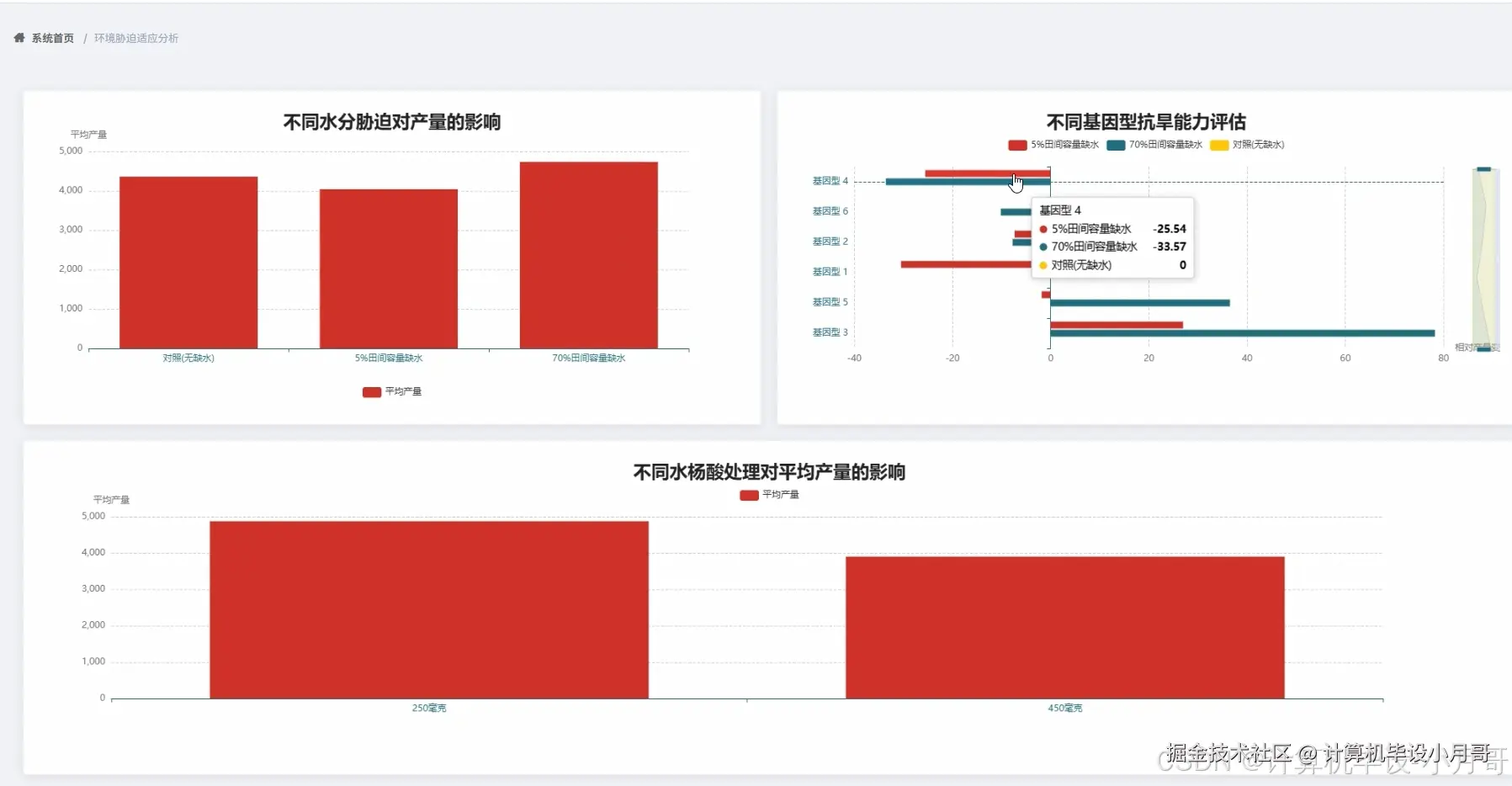

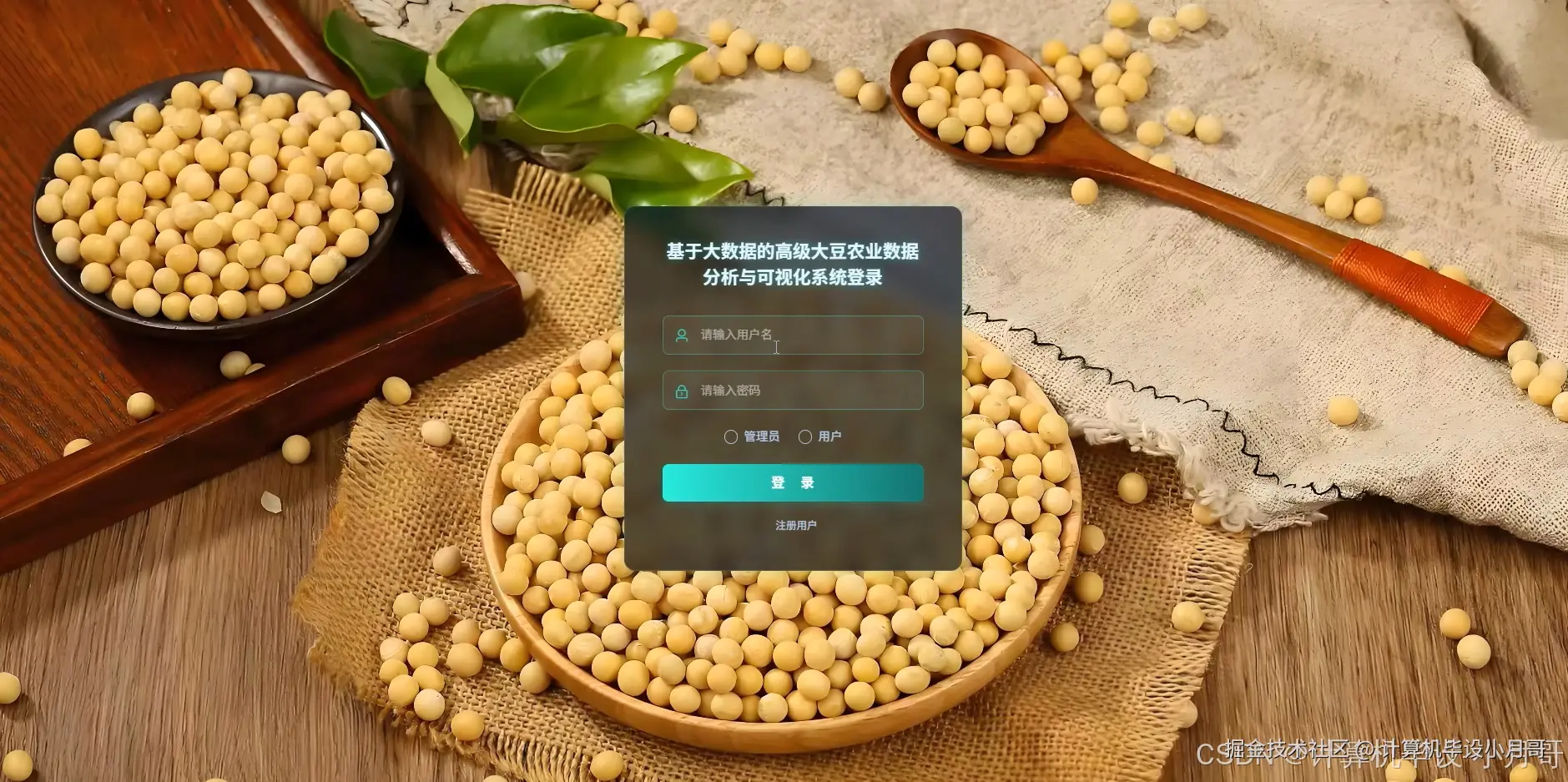

基于大数据的高级大豆农业数据分析与可视化系统-图片展示
基于大数据的高级大豆农业数据分析与可视化系统-代码展示
from pyspark.sql import SparkSession
from pyspark.sql.functions import col, avg, stddev, corr, when, count
import pandas as pd
import numpy as np
from django.http import JsonResponse
from django.views.decorators.http import require_http_methods
import json
spark = SparkSession.builder.appName("SoybeanDataAnalysis").config("spark.sql.adaptive.enabled", "true").config("spark.sql.adaptive.coalescePartitions.enabled", "true").getOrCreate()
@require_http_methods(["GET"])
def genotype_yield_analysis(request):
try:
soybean_df = spark.read.csv("/hdfs/path/featured_soybean_data.csv", header=True, inferSchema=True)
soybean_df.createOrReplaceTempView("soybean_data")
yield_analysis = spark.sql("""
SELECT genotype,
ROUND(AVG(seed_yield_per_unit_area), 2) as avg_yield,
ROUND(STDDEV(seed_yield_per_unit_area), 2) as yield_stddev,
COUNT(*) as sample_count,
ROUND(MIN(seed_yield_per_unit_area), 2) as min_yield,
ROUND(MAX(seed_yield_per_unit_area), 2) as max_yield
FROM soybean_data
WHERE genotype IS NOT NULL AND seed_yield_per_unit_area IS NOT NULL
GROUP BY genotype
ORDER BY avg_yield DESC
""")
result_data = yield_analysis.collect()
analysis_results = []
for row in result_data:
cv = (row['yield_stddev'] / row['avg_yield']) * 100 if row['avg_yield'] > 0 else 0
stability_level = "高稳定" if cv < 10 else "中稳定" if cv < 20 else "低稳定"
analysis_results.append({
'genotype': row['genotype'],
'avg_yield': row['avg_yield'],
'yield_stddev': row['yield_stddev'],
'sample_count': row['sample_count'],
'min_yield': row['min_yield'],
'max_yield': row['max_yield'],
'cv': round(cv, 2),
'stability': stability_level
})
yield_df = pd.DataFrame(analysis_results)
yield_df.to_csv('/output/genotype_yield_analysis.csv', index=False, encoding='utf-8')
top_performers = analysis_results[:5]
avg_overall_yield = sum([item['avg_yield'] for item in analysis_results]) / len(analysis_results)
high_yield_count = len([item for item in analysis_results if item['avg_yield'] > avg_overall_yield])
return JsonResponse({
'status': 'success',
'data': analysis_results,
'summary': {
'total_genotypes': len(analysis_results),
'avg_overall_yield': round(avg_overall_yield, 2),
'high_yield_count': high_yield_count,
'top_performers': top_performers
}
})
except Exception as e:
return JsonResponse({'status': 'error', 'message': str(e)})
@require_http_methods(["GET"])
def water_stress_impact_analysis(request):
try:
soybean_df = spark.read.csv("/hdfs/path/featured_soybean_data.csv", header=True, inferSchema=True)
soybean_df.createOrReplaceTempView("soybean_data")
stress_analysis = spark.sql("""
SELECT water_stress,
ROUND(AVG(seed_yield_per_unit_area), 2) as avg_yield,
ROUND(STDDEV(seed_yield_per_unit_area), 2) as yield_stddev,
COUNT(*) as sample_count,
ROUND(AVG(relative_water_content_in_leaves_rwcl), 2) as avg_leaf_water,
ROUND(AVG(protein_percentage_ppe), 2) as avg_protein
FROM soybean_data
WHERE water_stress IS NOT NULL AND seed_yield_per_unit_area IS NOT NULL
GROUP BY water_stress
ORDER BY water_stress
""")
genotype_drought_analysis = spark.sql("""
SELECT genotype, water_stress,
ROUND(AVG(seed_yield_per_unit_area), 2) as avg_yield,
COUNT(*) as sample_count
FROM soybean_data
WHERE genotype IS NOT NULL AND water_stress IS NOT NULL AND seed_yield_per_unit_area IS NOT NULL
GROUP BY genotype, water_stress
""")
stress_results = stress_analysis.collect()
genotype_results = genotype_drought_analysis.collect()
stress_impact_data = []
for row in stress_results:
water_stress_level = "充足水分" if row['water_stress'] == 0 else "轻度胁迫" if row['water_stress'] == 1 else "重度胁迫"
stress_impact_data.append({
'water_stress': row['water_stress'],
'stress_level': water_stress_level,
'avg_yield': row['avg_yield'],
'yield_stddev': row['yield_stddev'],
'sample_count': row['sample_count'],
'avg_leaf_water': row['avg_leaf_water'],
'avg_protein': row['avg_protein']
})
genotype_drought_resistance = {}
for row in genotype_results:
genotype = row['genotype']
if genotype not in genotype_drought_resistance:
genotype_drought_resistance[genotype] = {}
genotype_drought_resistance[genotype][row['water_stress']] = row['avg_yield']
drought_resistance_ranking = []
for genotype, yields in genotype_drought_resistance.items():
if 0 in yields and 2 in yields:
yield_retention = (yields[2] / yields[0]) * 100 if yields[0] > 0 else 0
drought_resistance_ranking.append({
'genotype': genotype,
'normal_yield': yields.get(0, 0),
'drought_yield': yields.get(2, 0),
'yield_retention': round(yield_retention, 2)
})
drought_resistance_ranking.sort(key=lambda x: x['yield_retention'], reverse=True)
stress_df = pd.DataFrame(stress_impact_data)
stress_df.to_csv('/output/water_stress_impact_analysis.csv', index=False, encoding='utf-8')
resistance_df = pd.DataFrame(drought_resistance_ranking)
resistance_df.to_csv('/output/genotype_drought_resistance.csv', index=False, encoding='utf-8')
return JsonResponse({
'status': 'success',
'stress_impact': stress_impact_data,
'drought_resistance': drought_resistance_ranking[:10],
'summary': {
'total_samples': sum([item['sample_count'] for item in stress_impact_data]),
'yield_decline_rate': round(((stress_impact_data[0]['avg_yield'] - stress_impact_data[-1]['avg_yield']) / stress_impact_data[0]['avg_yield']) * 100, 2) if len(stress_impact_data) >= 2 else 0
}
})
except Exception as e:
return JsonResponse({'status': 'error', 'message': str(e)})
@require_http_methods(["GET"])
def yield_correlation_analysis(request):
try:
soybean_df = spark.read.csv("/hdfs/path/featured_soybean_data.csv", header=True, inferSchema=True)
correlation_fields = ['seed_yield_per_unit_area', 'plant_height_ph', 'number_of_pods_np',
'biological_weight_bw', 'weight_of_300_seeds_w3s', 'protein_percentage_ppe',
'chlorophylla663', 'chlorophyllb649', 'number_of_seeds_per_pod_nsp']
filtered_df = soybean_df.select(*correlation_fields).filter(
col('seed_yield_per_unit_area').isNotNull() &
col('plant_height_ph').isNotNull() &
col('number_of_pods_np').isNotNull() &
col('biological_weight_bw').isNotNull()
)
correlation_matrix = {}
correlation_results = []
for i, field1 in enumerate(correlation_fields):
correlation_matrix[field1] = {}
for j, field2 in enumerate(correlation_fields):
if i <= j:
corr_value = filtered_df.select(corr(col(field1), col(field2))).collect()[0][0]
correlation_matrix[field1][field2] = round(corr_value if corr_value else 0, 3)
if field1 != field2 and corr_value:
correlation_results.append({
'field1': field1,
'field2': field2,
'correlation': round(corr_value, 3),
'strength': '强相关' if abs(corr_value) > 0.7 else '中等相关' if abs(corr_value) > 0.4 else '弱相关',
'direction': '正相关' if corr_value > 0 else '负相关'
})
else:
correlation_matrix[field1][field2] = correlation_matrix[field2][field1]
yield_related_factors = [item for item in correlation_results if 'seed_yield_per_unit_area' in [item['field1'], item['field2']]]
yield_related_factors.sort(key=lambda x: abs(x['correlation']), reverse=True)
soybean_df.createOrReplaceTempView("soybean_data")
yield_components_analysis = spark.sql("""
SELECT
ROUND(AVG(number_of_pods_np), 2) as avg_pods,
ROUND(AVG(number_of_seeds_per_pod_nsp), 2) as avg_seeds_per_pod,
ROUND(AVG(weight_of_300_seeds_w3s), 2) as avg_seed_weight,
ROUND(AVG(seed_yield_per_unit_area), 2) as avg_yield,
ROUND(corr(number_of_pods_np, seed_yield_per_unit_area), 3) as pods_yield_corr,
ROUND(corr(number_of_seeds_per_pod_nsp, seed_yield_per_unit_area), 3) as seeds_yield_corr,
ROUND(corr(weight_of_300_seeds_w3s, seed_yield_per_unit_area), 3) as weight_yield_corr
FROM soybean_data
WHERE number_of_pods_np IS NOT NULL
AND number_of_seeds_per_pod_nsp IS NOT NULL
AND weight_of_300_seeds_w3s IS NOT NULL
AND seed_yield_per_unit_area IS NOT NULL
""")
components_result = yield_components_analysis.collect()[0]
components_data = {
'avg_pods': components_result['avg_pods'],
'avg_seeds_per_pod': components_result['avg_seeds_per_pod'],
'avg_seed_weight': components_result['avg_seed_weight'],
'avg_yield': components_result['avg_yield'],
'correlations': {
'pods_yield': components_result['pods_yield_corr'],
'seeds_yield': components_result['seeds_yield_corr'],
'weight_yield': components_result['weight_yield_corr']
}
}
correlation_df = pd.DataFrame(correlation_results)
correlation_df.to_csv('/output/yield_correlation_analysis.csv', index=False, encoding='utf-8')
matrix_df = pd.DataFrame(correlation_matrix)
matrix_df.to_csv('/output/correlation_matrix.csv', index=True, encoding='utf-8')
return JsonResponse({
'status': 'success',
'correlation_matrix': correlation_matrix,
'yield_factors': yield_related_factors[:10],
'components_analysis': components_data,
'summary': {
'total_correlations': len(correlation_results),
'strong_correlations': len([x for x in correlation_results if abs(x['correlation']) > 0.7]),
'yield_top_factor': yield_related_factors[0]['field2'] if yield_related_factors[0]['field1'] == 'seed_yield_per_unit_area' else yield_related_factors[0]['field1']
}
})
except Exception as e:
return JsonResponse({'status': 'error', 'message': str(e)})
基于大数据的高级大豆农业数据分析与可视化系统-结语
