基于大数据的金融数据分析与可视化系统-功能介绍
基于大数据的金融数据分析与可视化系统是一个综合运用现代大数据处理技术的金融数据智能分析平台。该系统采用Hadoop分布式文件存储体系作为数据基础架构，结合Spark大数据计算引擎实现海量金融数据的高效处理与分析。系统前端采用Vue框架配合ElementUI组件库构建用户交互界面，通过Echarts图表库实现金融数据的多维度可视化展示。后端基于Python语言的Django框架或Java语言的SpringBoot框架开发，提供稳定的数据处理服务接口。系统核心功能涵盖客户基本画像维度分析、营销活动成效评估、客户通话行为与心理状态分析以及宏观经济环境与市场景气度分析四大模块，能够对金融机构的客户数据进行深度挖掘和智能分析。通过Spark SQL进行复杂查询操作，运用Pandas和NumPy进行数据预处理和统计计算，最终将分析结果以直观的图表形式呈现给用户，为金融机构的决策制定提供数据支持。
基于大数据的金融数据分析与可视化系统-选题背景意义
选题背景 随着金融科技的快速发展和数字化转型的深入推进，金融机构每日产生的数据量呈指数级增长，传统的数据处理方式已难以满足海量数据的实时分析需求。金融行业作为数据密集型行业，其业务决策越来越依赖于对历史数据的深度挖掘和趋势预测，包括客户行为分析、风险评估、市场趋势判断等多个方面。现有的金融数据分析工具大多基于传统的关系型数据库和单机处理模式，在面对TB级甚至PB级的数据处理时显得力不从心。与此同时，金融监管部门对数据安全性和分析准确性的要求日益严格，需要更加专业化的数据处理平台来确保合规性。大数据技术的成熟为解决这些挑战提供了新的思路，Hadoop生态系统的分布式存储和Spark的内存计算优势，使得大规模金融数据的实时处理成为可能，为构建高效的金融数据分析系统奠定了技术基础。 选题意义 本课题的实际意义主要体现在技术实践和应用价值两个层面。从技术角度来看，通过整合Hadoop、Spark、Python等主流大数据技术栈，能够深入理解分布式计算的核心原理和实际应用场景，掌握大数据处理的完整工作流程，包括数据采集、存储、处理、分析和可视化的全链路技术实现。该系统的开发过程有助于提升对现代数据架构设计的认知，培养解决复杂数据问题的能力。从应用价值角度分析，金融数据分析系统能够为金融机构提供客户画像构建、营销效果评估、风险预警等实用功能，虽然作为毕业设计项目在规模和复杂度上相对有限，但其核心思路和技术方案具备一定的参考价值。系统通过对多维度金融数据的关联分析，可以帮助理解数据挖掘在金融领域的具体应用方式，为后续从事相关技术工作积累经验。此外，可视化模块的设计和实现过程能够提升数据展示和用户体验设计的能力，这些技能在当前数据驱动的商业环境中具有广泛的适用性。
基于大数据的金融数据分析与可视化系统-技术选型
大数据框架：Hadoop+Spark（本次没用Hive，支持定制） 开发语言：Python+Java（两个版本都支持） 后端框架：Django+Spring Boot(Spring+SpringMVC+Mybatis)（两个版本都支持） 前端：Vue+ElementUI+Echarts+HTML+CSS+JavaScript+jQuery 详细技术点：Hadoop、HDFS、Spark、Spark SQL、Pandas、NumPy 数据库：MySQL
基于大数据的金融数据分析与可视化系统-视频展示

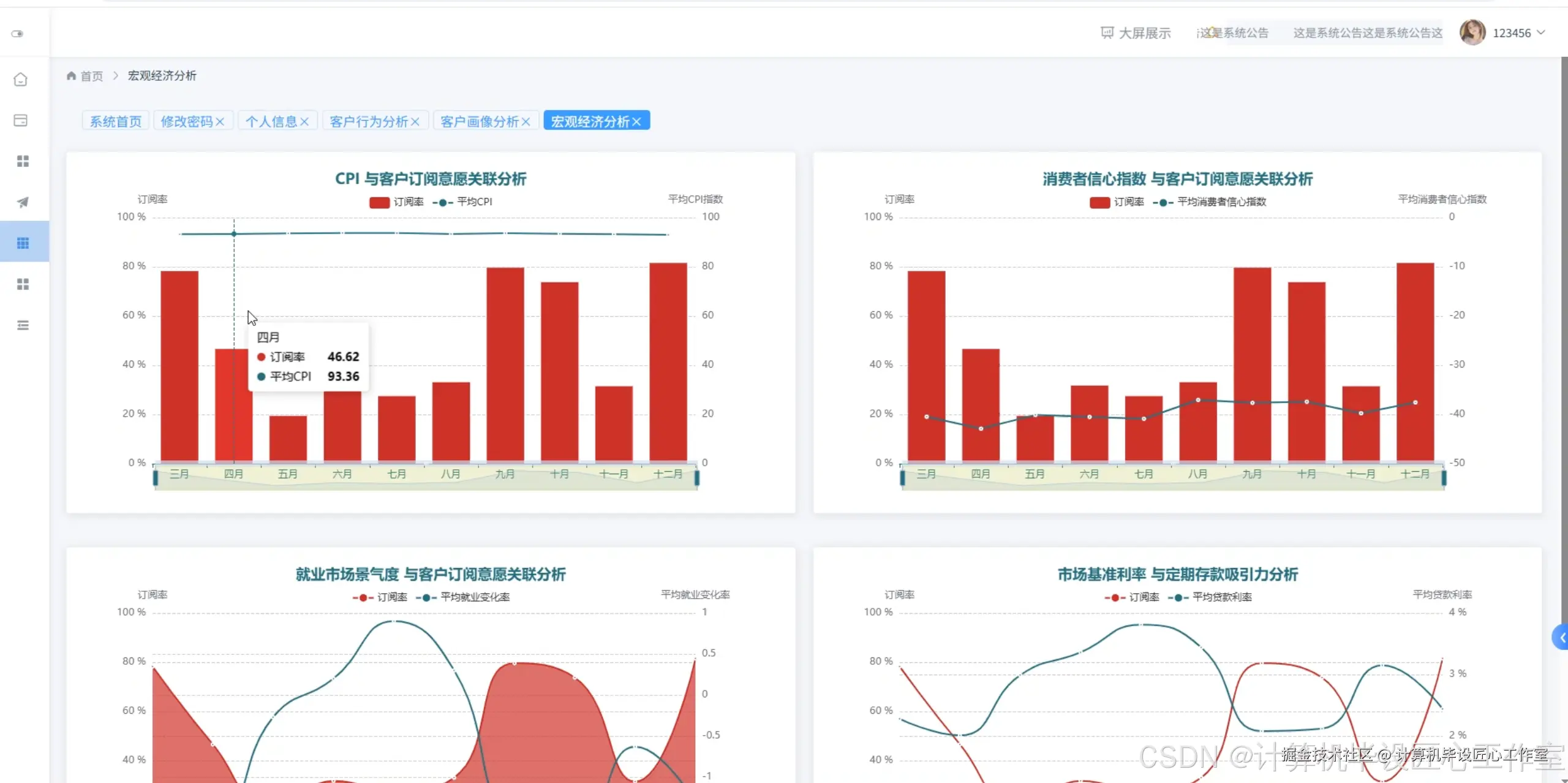

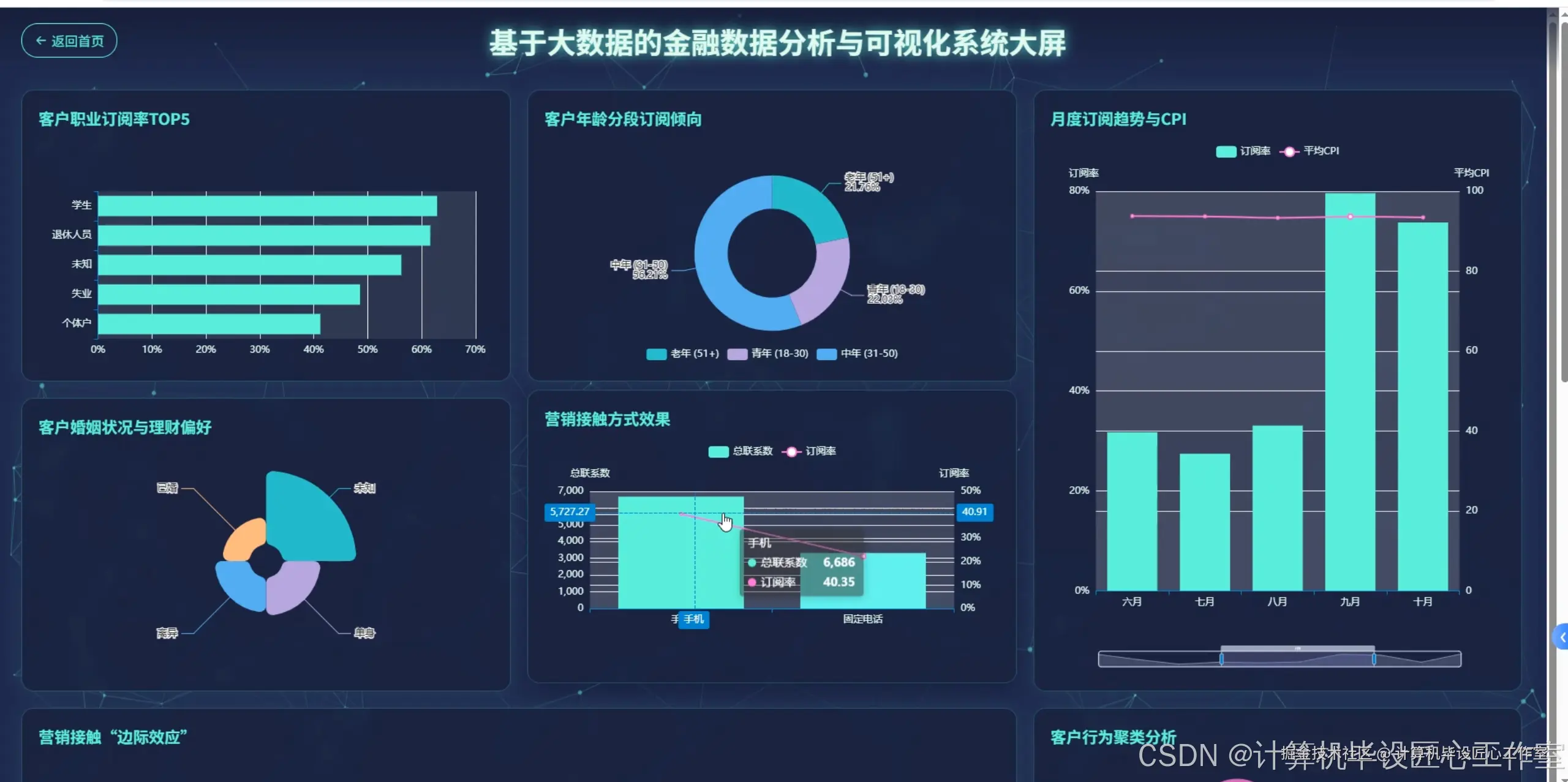

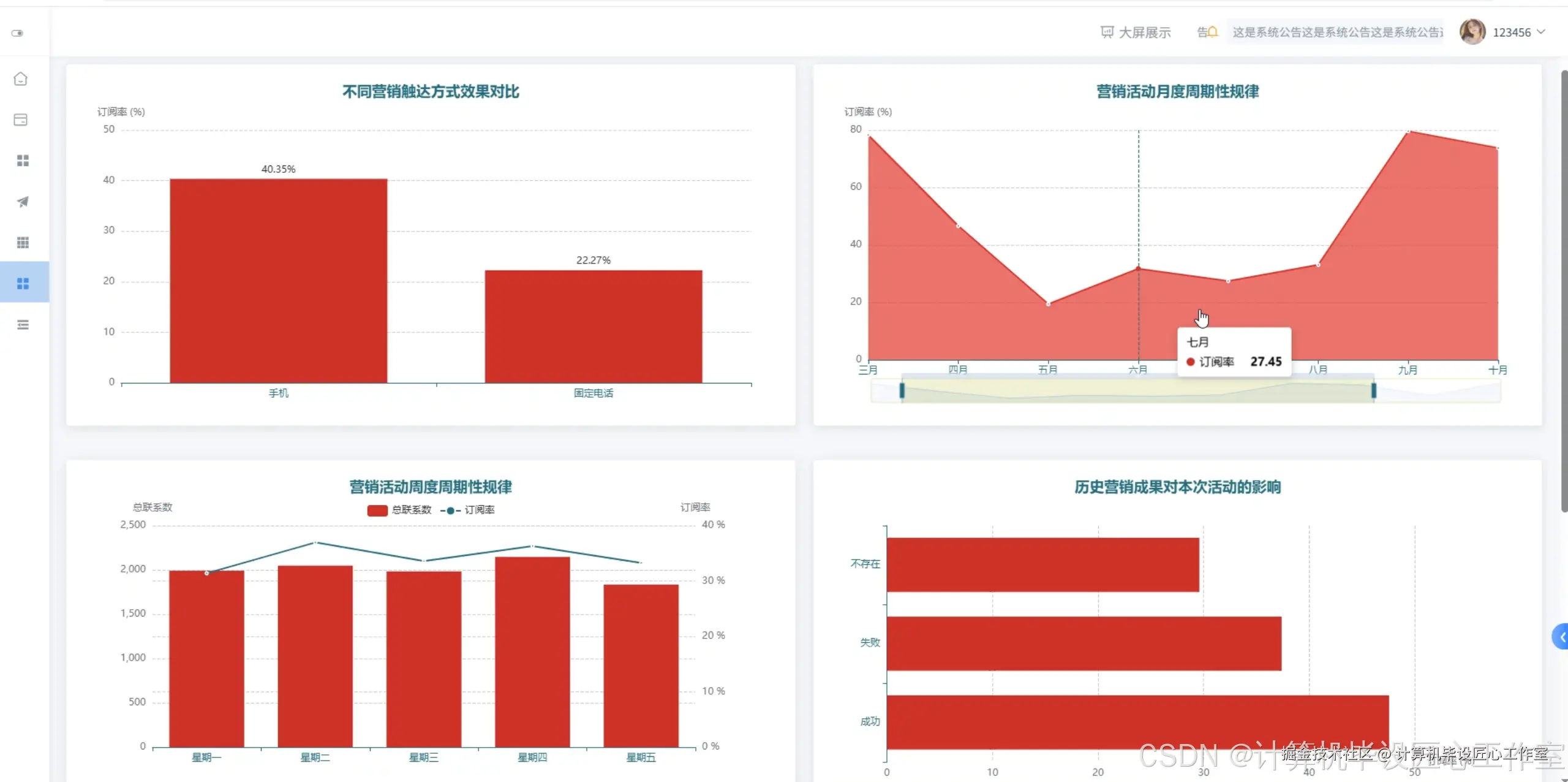

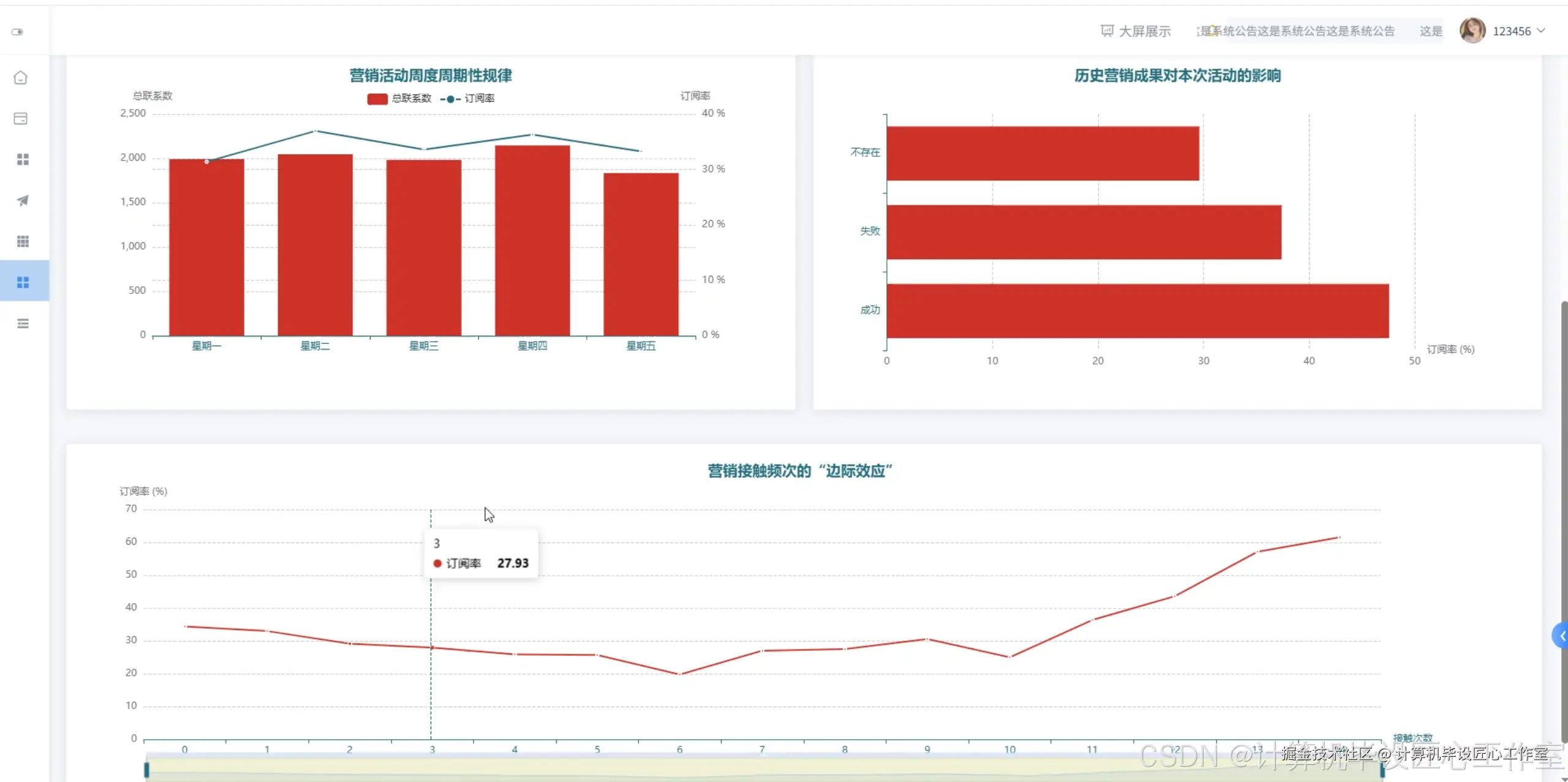

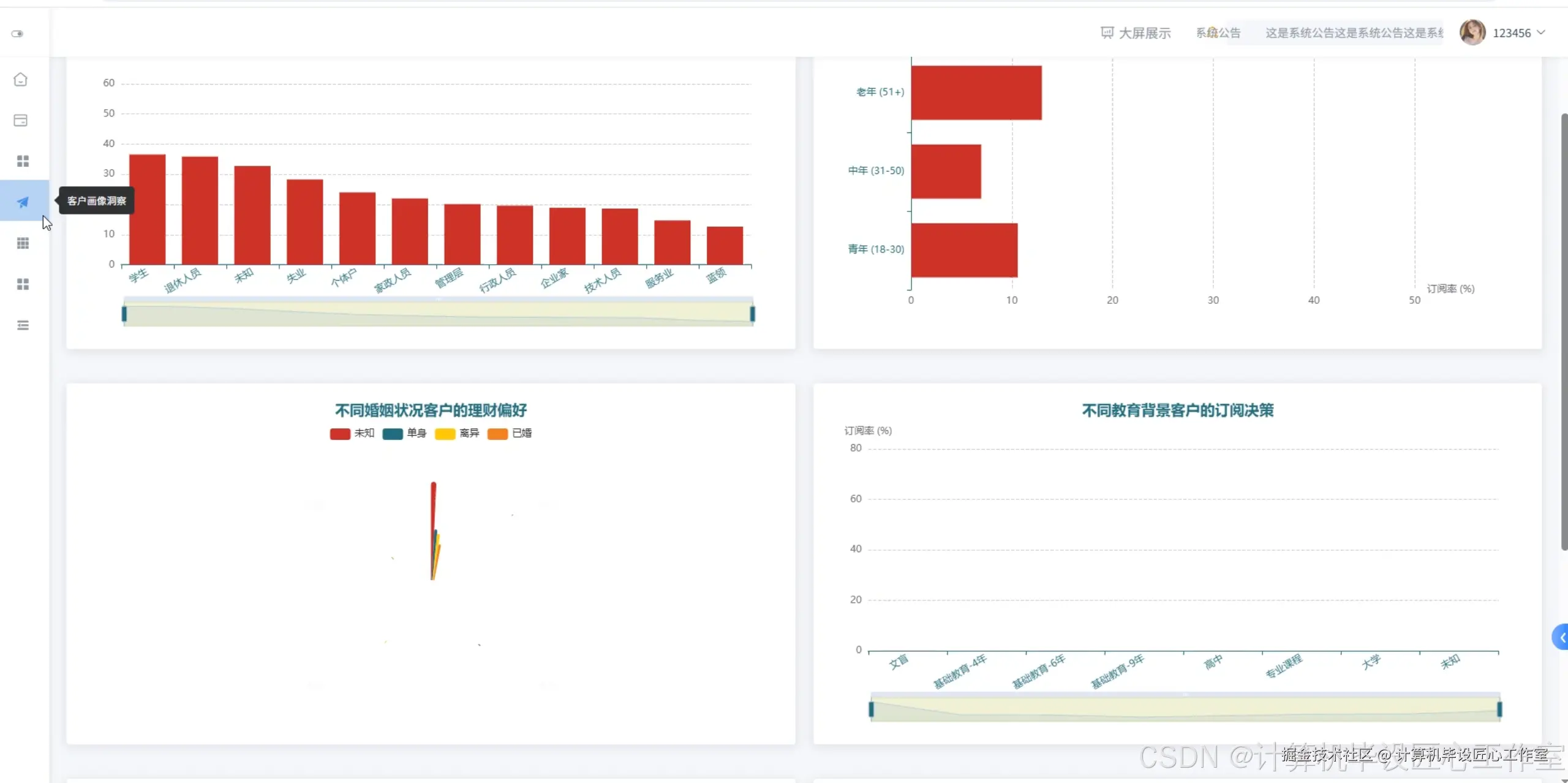

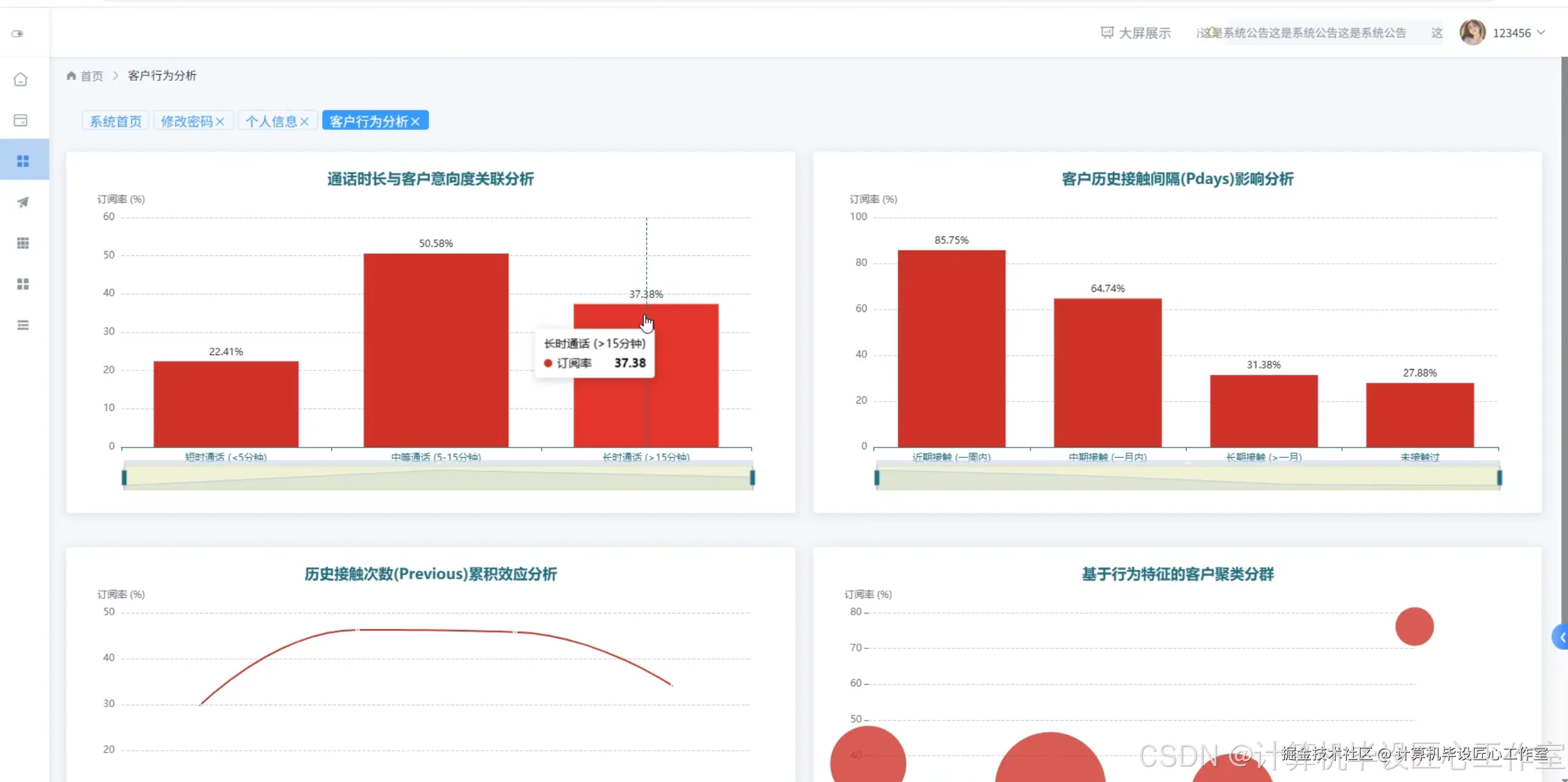

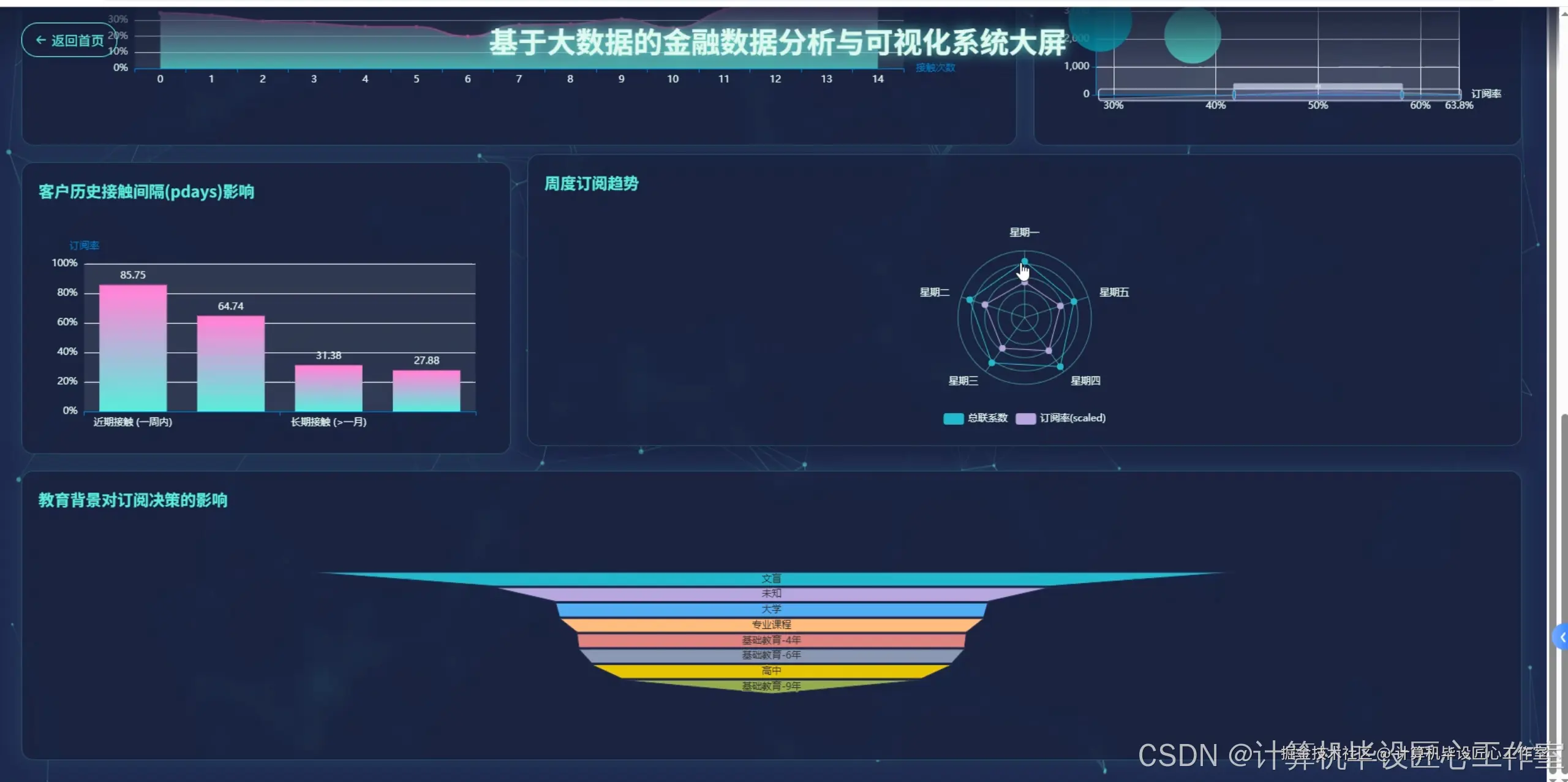

基于大数据的金融数据分析与可视化系统-图片展示
基于大数据的金融数据分析与可视化系统-代码展示
from pyspark.sql import SparkSession
from pyspark.sql.functions import col, count, avg, when, sum as spark_sum, round as spark_round
from pyspark.ml.clustering import KMeans
from pyspark.ml.feature import VectorAssembler
import pandas as pd
import numpy as np
from django.http import JsonResponse
from django.views.decorators.http import require_http_methods
import json
def customer_profile_analysis(request):
spark = SparkSession.builder.appName("CustomerProfileAnalysis").config("spark.sql.adaptive.enabled", "true").config("spark.sql.adaptive.coalescePartitions.enabled", "true").getOrCreate()
df = spark.read.format("csv").option("header", "true").option("inferSchema", "true").load("hdfs://localhost:9000/financial_data/customer_data.csv")
job_analysis = df.groupBy("job").agg(count("*").alias("total_count"), spark_sum(when(col("subscribe") == "yes", 1).otherwise(0)).alias("subscribe_count")).withColumn("subscribe_rate", spark_round((col("subscribe_count") / col("total_count")) * 100, 2)).orderBy(col("subscribe_rate").desc())
age_bins = [18, 30, 45, 60, 100]
age_labels = ["18-30", "31-45", "46-60", "60+"]
df_with_age_group = df.withColumn("age_group", when((col("age") >= 18) & (col("age") <= 30), "18-30").when((col("age") >= 31) & (col("age") <= 45), "31-45").when((col("age") >= 46) & (col("age") <= 60), "46-60").otherwise("60+"))
age_analysis = df_with_age_group.groupBy("age_group").agg(count("*").alias("total_count"), spark_sum(when(col("subscribe") == "yes", 1).otherwise(0)).alias("subscribe_count")).withColumn("subscribe_rate", spark_round((col("subscribe_count") / col("total_count")) * 100, 2))
marital_analysis = df.groupBy("marital").agg(count("*").alias("total_count"), spark_sum(when(col("subscribe") == "yes", 1).otherwise(0)).alias("subscribe_count")).withColumn("subscribe_rate", spark_round((col("subscribe_count") / col("total_count")) * 100, 2))
education_analysis = df.groupBy("education").agg(count("*").alias("total_count"), spark_sum(when(col("subscribe") == "yes", 1).otherwise(0)).alias("subscribe_count")).withColumn("subscribe_rate", spark_round((col("subscribe_count") / col("total_count")) * 100, 2))
asset_analysis = df.groupBy("housing", "loan").agg(count("*").alias("total_count"), spark_sum(when(col("subscribe") == "yes", 1).otherwise(0)).alias("subscribe_count")).withColumn("subscribe_rate", spark_round((col("subscribe_count") / col("total_count")) * 100, 2))
job_result = job_analysis.collect()
age_result = age_analysis.collect()
marital_result = marital_analysis.collect()
education_result = education_analysis.collect()
asset_result = asset_analysis.collect()
result_data = {"job_analysis": [{"job": row["job"], "total_count": row["total_count"], "subscribe_rate": float(row["subscribe_rate"])} for row in job_result], "age_analysis": [{"age_group": row["age_group"], "total_count": row["total_count"], "subscribe_rate": float(row["subscribe_rate"])} for row in age_result], "marital_analysis": [{"marital": row["marital"], "total_count": row["total_count"], "subscribe_rate": float(row["subscribe_rate"])} for row in marital_result], "education_analysis": [{"education": row["education"], "total_count": row["total_count"], "subscribe_rate": float(row["subscribe_rate"])} for row in education_result], "asset_analysis": [{"housing": row["housing"], "loan": row["loan"], "total_count": row["total_count"], "subscribe_rate": float(row["subscribe_rate"])} for row in asset_result]}
spark.stop()
return JsonResponse(result_data)
def marketing_effectiveness_analysis(request):
spark = SparkSession.builder.appName("MarketingEffectivenessAnalysis").config("spark.sql.adaptive.enabled", "true").config("spark.sql.adaptive.coalescePartitions.enabled", "true").getOrCreate()
df = spark.read.format("csv").option("header", "true").option("inferSchema", "true").load("hdfs://localhost:9000/financial_data/marketing_data.csv")
contact_analysis = df.groupBy("contact").agg(count("*").alias("total_contacts"), spark_sum(when(col("subscribe") == "yes", 1).otherwise(0)).alias("success_count")).withColumn("success_rate", spark_round((col("success_count") / col("total_contacts")) * 100, 2)).orderBy(col("success_rate").desc())
month_analysis = df.groupBy("month").agg(count("*").alias("total_campaigns"), spark_sum(when(col("subscribe") == "yes", 1).otherwise(0)).alias("success_count")).withColumn("success_rate", spark_round((col("success_count") / col("total_campaigns")) * 100, 2))
month_order = ["jan", "feb", "mar", "apr", "may", "jun", "jul", "aug", "sep", "oct", "nov", "dec"]
month_analysis_ordered = month_analysis.orderBy([when(col("month") == month, index).otherwise(999) for index, month in enumerate(month_order)])
weekday_analysis = df.groupBy("day_of_week").agg(count("*").alias("total_contacts"), spark_sum(when(col("subscribe") == "yes", 1).otherwise(0)).alias("success_count")).withColumn("success_rate", spark_round((col("success_count") / col("total_contacts")) * 100, 2))
weekday_order = ["mon", "tue", "wed", "thu", "fri"]
weekday_analysis_ordered = weekday_analysis.orderBy([when(col("day_of_week") == day, index).otherwise(999) for index, day in enumerate(weekday_order)])
campaign_frequency_analysis = df.groupBy("campaign").agg(count("*").alias("contact_count"), spark_sum(when(col("subscribe") == "yes", 1).otherwise(0)).alias("success_count")).withColumn("success_rate", spark_round((col("success_count") / col("contact_count")) * 100, 2)).orderBy("campaign")
previous_outcome_analysis = df.groupBy("poutcome").agg(count("*").alias("total_count"), spark_sum(when(col("subscribe") == "yes", 1).otherwise(0)).alias("current_success")).withColumn("conversion_rate", spark_round((col("current_success") / col("total_count")) * 100, 2))
contact_result = contact_analysis.collect()
month_result = month_analysis_ordered.collect()
weekday_result = weekday_analysis_ordered.collect()
campaign_result = campaign_frequency_analysis.collect()
outcome_result = previous_outcome_analysis.collect()
marketing_data = {"contact_effectiveness": [{"contact_method": row["contact"], "total_contacts": row["total_contacts"], "success_rate": float(row["success_rate"])} for row in contact_result], "monthly_trends": [{"month": row["month"], "total_campaigns": row["total_campaigns"], "success_rate": float(row["success_rate"])} for row in month_result], "weekday_patterns": [{"day": row["day_of_week"], "total_contacts": row["total_contacts"], "success_rate": float(row["success_rate"])} for row in weekday_result], "campaign_frequency": [{"frequency": row["campaign"], "contact_count": row["contact_count"], "success_rate": float(row["success_rate"])} for row in campaign_result], "historical_impact": [{"previous_outcome": row["poutcome"], "total_count": row["total_count"], "conversion_rate": float(row["conversion_rate"])} for row in outcome_result]}
spark.stop()
return JsonResponse(marketing_data)
def customer_behavior_clustering(request):
spark = SparkSession.builder.appName("CustomerBehaviorClustering").config("spark.sql.adaptive.enabled", "true").config("spark.sql.adaptive.coalescePartitions.enabled", "true").getOrCreate()
df = spark.read.format("csv").option("header", "true").option("inferSchema", "true").load("hdfs://localhost:9000/financial_data/behavior_data.csv")
numeric_df = df.select("age", "duration", "campaign", "previous", col("subscribe"))
feature_columns = ["age", "duration", "campaign", "previous"]
assembler = VectorAssembler(inputCols=feature_columns, outputCol="features")
feature_df = assembler.transform(numeric_df)
kmeans = KMeans(k=4, seed=42, featuresCol="features", predictionCol="cluster")
model = kmeans.fit(feature_df)
clustered_df = model.transform(feature_df)
cluster_summary = clustered_df.groupBy("cluster").agg(count("*").alias("customer_count"), avg("age").alias("avg_age"), avg("duration").alias("avg_duration"), avg("campaign").alias("avg_campaign"), avg("previous").alias("avg_previous"), spark_sum(when(col("subscribe") == "yes", 1).otherwise(0)).alias("subscribed_count")).withColumn("subscription_rate", spark_round((col("subscribed_count") / col("customer_count")) * 100, 2))
duration_analysis = clustered_df.groupBy("cluster").agg(avg("duration").alias("avg_call_duration"), count("*").alias("total_customers")).withColumn("avg_duration_minutes", spark_round(col("avg_call_duration") / 60, 2))
pdays_filtered_df = clustered_df.filter(col("pdays") != 999)
contact_interval_analysis = pdays_filtered_df.groupBy("cluster").agg(avg("pdays").alias("avg_contact_interval"), count("*").alias("customers_with_history")).withColumn("avg_interval_days", spark_round(col("avg_contact_interval"), 1))
behavioral_patterns = clustered_df.groupBy("cluster", "subscribe").count().orderBy("cluster", "subscribe")
cluster_results = cluster_summary.collect()
duration_results = duration_analysis.collect()
interval_results = contact_interval_analysis.collect()
pattern_results = behavioral_patterns.collect()
clustering_data = {"cluster_profiles": [{"cluster_id": row["cluster"], "customer_count": row["customer_count"], "avg_age": round(float(row["avg_age"]), 1), "avg_duration": round(float(row["avg_duration"]), 1), "avg_campaign": round(float(row["avg_campaign"]), 1), "subscription_rate": float(row["subscription_rate"])} for row in cluster_results], "duration_insights": [{"cluster_id": row["cluster"], "avg_call_minutes": float(row["avg_duration_minutes"]), "total_customers": row["total_customers"]} for row in duration_results], "contact_intervals": [{"cluster_id": row["cluster"], "avg_interval_days": float(row["avg_interval_days"]), "customers_with_history": row["customers_with_history"]} for row in interval_results], "behavioral_distribution": [{"cluster_id": row["cluster"], "subscribe_status": row["subscribe"], "count": row["count"]} for row in pattern_results]}
spark.stop()
return JsonResponse(clustering_data)
基于大数据的金融数据分析与可视化系统-结语
