增删改查后join都可以。用的flink14版本 对应CDC版本要注意
<!--
Licensed to the Apache Software Foundation (ASF) under one
or more contributor license agreements. See the NOTICE file
distributed with this work for additional information
regarding copyright ownership. The ASF licenses this file
to you under the Apache License, Version 2.0 (the
"License"); you may not use this file except in compliance
with the License. You may obtain a copy of the License at
http://www.apache.org/licenses/LICENSE-2.0
Unless required by applicable law or agreed to in writing,
software distributed under the License is distributed on an
"AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY
KIND, either express or implied. See the License for the
specific language governing permissions and limitations
under the License.
-->
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>org.example</groupId>
<artifactId>FlinkDoris</artifactId>
<version>1.0-SNAPSHOT</version>
<packaging>jar</packaging>
<name>Flink Quickstart Job</name>
<properties>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<flink.version>1.14.5</flink.version>
<target.java.version>1.8</target.java.version>
<scala.binary.version>2.12</scala.binary.version>
<maven.compiler.source>${target.java.version}</maven.compiler.source>
<maven.compiler.target>${target.java.version}</maven.compiler.target>
<log4j.version>2.17.1</log4j.version>
</properties>
<repositories>
<repository>
<id>apache.snapshots</id>
<name>Apache Development Snapshot Repository</name>
<url>https://repository.apache.org/content/repositories/snapshots/</url>
<releases>
<enabled>false</enabled>
</releases>
<snapshots>
<enabled>true</enabled>
</snapshots>
</repository>
</repositories>
<dependencies>
<!-- Apache Flink dependencies -->
<!-- These dependencies are provided, because they should not be packaged into the JAR file. -->
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-java</artifactId>
<version>${flink.version}</version>
<!--<scope>provided</scope>-->
</dependency>
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-streaming-java_${scala.binary.version}</artifactId>
<version>${flink.version}</version>
<!--<scope>provided</scope>-->
</dependency>
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-clients_${scala.binary.version}</artifactId>
<version>${flink.version}</version>
<!--<scope>provided</scope>-->
</dependency>
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-table-planner_2.12</artifactId>
<version>${flink.version}</version>
<!-- <scope>provided</scope>-->
</dependency>
<!--new planner-->
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-table-api-java-bridge_2.11</artifactId>
<version>${flink.version}</version>
<!-- <scope>provided</scope>-->
</dependency>
<!--连接mysql的cdc-->
<dependency>
<groupId>com.ververica</groupId>
<artifactId>flink-sql-connector-mysql-cdc</artifactId>
<!-- 14得用 flink-sql-connector-mysql-cdc-->
<version>2.2.0</version>
</dependency>
<dependency>
<groupId>org.apache.doris</groupId>
<artifactId>flink-doris-connector-1.14_2.12</artifactId>
<!--
<artifactId>flink-doris-connector-1.13_2.12</artifactId>
-->
<!--artifactId>flink-doris-connector-1.12_2.12</artifactId-->
<!--artifactId>flink-doris-connector-1.11_2.12</artifactId-->
<!-- <version>1.0.3</version>-->
<version>1.1.0</version>
</dependency>
<!-- jdbc连mysql-->
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-connector-jdbc_${scala.binary.version}</artifactId>
<version>${flink.version}</version>
<!-- <scope>provided</scope>-->
</dependency>
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>8.0.18</version>
</dependency>
</dependencies>
<build>
<plugins>
<!-- Java Compiler -->
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<version>3.1</version>
<configuration>
<source>${target.java.version}</source>
<target>${target.java.version}</target>
</configuration>
</plugin>
<!-- We use the maven-shade plugin to create a fat jar that contains all necessary dependencies. -->
<!-- Change the value of <mainClass>...</mainClass> if your program entry point changes. -->
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-shade-plugin</artifactId>
<version>3.1.1</version>
<executions>
<!-- Run shade goal on package phase -->
<execution>
<phase>package</phase>
<goals>
<goal>shade</goal>
</goals>
<configuration>
<artifactSet>
<excludes>
<exclude>org.apache.flink:flink-shaded-force-shading</exclude>
<exclude>com.google.code.findbugs:jsr305</exclude>
<exclude>org.slf4j:*</exclude>
<exclude>org.apache.logging.log4j:*</exclude>
</excludes>
</artifactSet>
<filters>
<filter>
<!-- Do not copy the signatures in the META-INF folder.
Otherwise, this might cause SecurityExceptions when using the JAR. -->
<artifact>*:*</artifact>
<excludes>
<exclude>META-INF/*.SF</exclude>
<exclude>META-INF/*.DSA</exclude>
<exclude>META-INF/*.RSA</exclude>
</excludes>
</filter>
</filters>
<transformers>
<transformer
implementation="org.apache.maven.plugins.shade.resource.ManifestResourceTransformer">
<mainClass>org.example.StreamingJob</mainClass>
</transformer>
</transformers>
</configuration>
</execution>
</executions>
</plugin>
</plugins>
<pluginManagement>
<plugins>
<!-- This improves the out-of-the-box experience in Eclipse by resolving some warnings. -->
<plugin>
<groupId>org.eclipse.m2e</groupId>
<artifactId>lifecycle-mapping</artifactId>
<version>1.0.0</version>
<configuration>
<lifecycleMappingMetadata>
<pluginExecutions>
<pluginExecution>
<pluginExecutionFilter>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-shade-plugin</artifactId>
<versionRange>[3.1.1,)</versionRange>
<goals>
<goal>shade</goal>
</goals>
</pluginExecutionFilter>
<action>
<ignore/>
</action>
</pluginExecution>
<pluginExecution>
<pluginExecutionFilter>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<versionRange>[3.1,)</versionRange>
<goals>
<goal>testCompile</goal>
<goal>compile</goal>
</goals>
</pluginExecutionFilter>
<action>
<ignore/>
</action>
</pluginExecution>
</pluginExecutions>
</lifecycleMappingMetadata>
</configuration>
</plugin>
</plugins>
</pluginManagement>
</build>
</project>
代码
package mysqlcdc;
import org.apache.flink.api.common.restartstrategy.RestartStrategies;
import org.apache.flink.api.common.time.Time;
import org.apache.flink.api.java.ExecutionEnvironment;
import org.apache.flink.configuration.Configuration;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.table.api.EnvironmentSettings;
import org.apache.flink.table.api.Table;
import org.apache.flink.table.api.TableEnvironment;
import org.apache.flink.table.api.TableResult;
import java.util.concurrent.TimeUnit;
public class LocalMysql2Dors {
public static void main(String[] args) {
// 可以正常启动：使用useBlinkPlanner,但是会报错:MiniCluster is not yet running or has already been shut down.
//获取执行环节
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
// 设置并发
// env.setParallelism(6);
// //设置checkpoint
// env.enableCheckpointing(60000);
// env.getConfig().setAutoWatermarkInterval(200);
env.setRestartStrategy(RestartStrategies.fixedDelayRestart(
3, // 尝试重启的次数
Time.of(10, TimeUnit.SECONDS) // 间隔
));
EnvironmentSettings bsSettings = EnvironmentSettings.newInstance().inStreamingMode().build();
TableEnvironment tEnv = TableEnvironment.create(bsSettings);
Configuration configuration = tEnv.getConfig().getConfiguration();
configuration.setString("parallelism.default", "1");
//设置jobname
configuration.setString("pipeline.name", "mysqlcdctest");
// tEnv.setRestartStrategy(RestartStrategies.failureRateRestart(
// 3, // 一个时间段内的最大失败次数
// Time.of(5, TimeUnit.MINUTES), // 衡量失败次数的是时间段
// Time.of(10, TimeUnit.SECONDS) // 间隔
// ));
String sourceSql = "CREATE TABLE customer (" +
" user_name varchar(100)," +
" cust_id int," +
" sex varchar(100)," +
" addr varchar(1222), " +
" PRIMARY KEY (cust_id) NOT ENFORCED" +
") WITH (" +
" 'connector' = 'mysql-cdc'," +
" 'hostname' = 'localhost'," +
" 'port' = '3306'," +
" 'username' = 'root'," +
" 'password' = '123456'," +
" 'database-name' = 'flinkcdctest'," +
" 'table-name' = 'customer'" +
")";
tEnv.executeSql(sourceSql);
String sourceSql1 = "CREATE TABLE deal_detail (" +
" cust_id int," +
" amount double" +
") WITH (" +
" 'connector' = 'mysql-cdc'," +
" 'hostname' = 'localhost'," +
" 'port' = '3306'," +
" 'username' = 'root'," +
" 'password' = '123456'," +
" 'database-name' = 'flinkcdctest'," +
"'scan.incremental.snapshot.enabled' = 'false',"+
" 'table-name' = 'deal_detail'" +
")";
tEnv.executeSql(sourceSql1);
System.out.println("链接mysql==================>");
String finalSql = "CREATE TABLE final_result1( " +
" user_name varchar(100)," +
" cust_id int," +
" sex varchar(100)," +
" addr varchar(1222), " +
" amount double," +
" PRIMARY KEY (cust_id) NOT ENFORCED" +
") " +
"WITH ( " +
"'connector' = 'jdbc',"+
"'url' = 'jdbc:mysql://172.16.150.76:3306/flinksink?characterEncoding=UTF-8&useUnicode=true&useSSL=false&tinyInt1isBit=false&allowPublicKeyRetrieval=true&serverTimezone=Asia/Shanghai'," +
"'username' = 'root', " +
"'password' = '123456', " +
"'table-name' = 'final_result', " +
"'driver' = 'com.mysql.cj.jdbc.Driver'," +
"'connector.write.flush.max-rows'='1'" +
")";
tEnv.executeSql(finalSql);
/*
executeResult.print();
*/
String insertSql =
// " insert into final_result1" +
"insert into final_result1 select s.user_name,s.cust_id,s.sex,s.addr,sum(b.amount) from customer as s left join deal_detail as b on s.cust_id=b.cust_id group by s.user_name,s.cust_id,s.sex,s.addr"
// "s.user_name," +
// "s.cust_id," +
// "s.sex," +
// "s.addr," +
// "b.amount " +
;
tEnv.executeSql(insertSql);
// String taegetTableSql = "CREATE TABLE first ( " +
// "id int " +
// ") " +
// "WITH ( " +
// "'connector' = 'doris', " +
// "'fenodes' = '172.16.150.76:8030', " +
// "'table.identifier' = 'testdoris.first'," +
// "'sink.batch.size'='2', " +
// "'username' = 'root', " +
// "'password'='Jmkx2022'" +
// ")";
// tEnv.executeSql(taegetTableSql);
//
//
// Table first = tEnv.sqlQuery("SELECT * FROM first");
// // 查询的结果
// TableResult firstresult = first.execute();
// // 输出 (执行print或者下面的 Consumer之后，数据就被消费了。两个只能留下一个)
//
//
// firstresult.print();
}
}

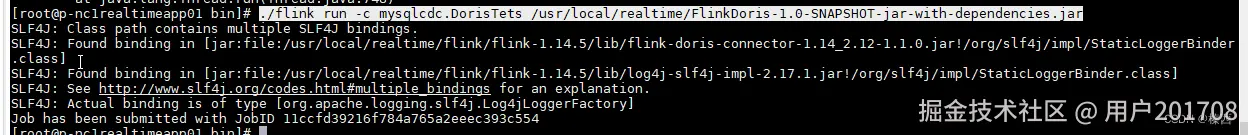

上线运行
要在flink运行环境增加jar包
因为无论本地jar包，包含多少jar，最后都需要在$Flink/lib目录下，放下面二个包：
flink-sql-connector-mysql-cdc-2.2.1.jar
flink-doris-connector-1.14_2.12-1.1.0.jar
注意上线要注释掉一些jar包。connector的全都留下。基础的包全部provided掉
上线的时候，新的pom如下
<!--
Licensed to the Apache Software Foundation (ASF) under one
or more contributor license agreements. See the NOTICE file
distributed with this work for additional information
regarding copyright ownership. The ASF licenses this file
to you under the Apache License, Version 2.0 (the
"License"); you may not use this file except in compliance
with the License. You may obtain a copy of the License at
http://www.apache.org/licenses/LICENSE-2.0
Unless required by applicable law or agreed to in writing,
software distributed under the License is distributed on an
"AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY
KIND, either express or implied. See the License for the
specific language governing permissions and limitations
under the License.
-->
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>org.example</groupId>
<artifactId>FlinkDoris</artifactId>
<version>1.0-SNAPSHOT</version>
<packaging>jar</packaging>
<name>Flink Quickstart Job</name>
<properties>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<flink.version>1.14.5</flink.version>
<target.java.version>1.8</target.java.version>
<scala.binary.version>2.12</scala.binary.version>
<maven.compiler.source>${target.java.version}</maven.compiler.source>
<maven.compiler.target>${target.java.version}</maven.compiler.target>
<log4j.version>2.17.1</log4j.version>
</properties>
<repositories>
<repository>
<id>apache.snapshots</id>
<name>Apache Development Snapshot Repository</name>
<url>https://repository.apache.org/content/repositories/snapshots/</url>
<releases>
<enabled>false</enabled>
</releases>
<snapshots>
<enabled>true</enabled>
</snapshots>
</repository>
</repositories>
<dependencies>
<!-- Apache Flink dependencies -->
<!-- These dependencies are provided, because they should not be packaged into the JAR file. -->
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-java</artifactId>
<version>${flink.version}</version>
<!--上线的时候需要provided-->
<!--
<scope>provided</scope>
-->
</dependency>
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-streaming-java_${scala.binary.version}</artifactId>
<version>${flink.version}</version>
<!--上线的时候需要provided-->
<!--
<scope>provided</scope>
-->
</dependency>
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-clients_${scala.binary.version}</artifactId>
<version>${flink.version}</version>
<!--上线的时候需要provided-->
<!--
<scope>provided</scope>
-->
</dependency>
<dependency>
<groupId>org.apache.logging.log4j</groupId>
<artifactId>log4j-slf4j-impl</artifactId>
<version>${log4j.version}</version>
<!--
<scope>runtime</scope>
-->
<scope>provided</scope>
</dependency>
<dependency>
<groupId>org.apache.logging.log4j</groupId>
<artifactId>log4j-api</artifactId>
<version>${log4j.version}</version>
<!-- <scope>runtime</scope>-->
<scope>provided</scope>
</dependency>
<dependency>
<groupId>org.apache.logging.log4j</groupId>
<artifactId>log4j-core</artifactId>
<version>${log4j.version}</version>
<!-- <scope>runtime</scope>-->
<scope>provided</scope>
</dependency>
<dependency>
<groupId>org.jetbrains</groupId>
<artifactId>annotations</artifactId>
<version>RELEASE</version>
<scope>compile</scope>
</dependency>
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-table-planner_2.12</artifactId>
<version>${flink.version}</version>
<!--上线的时候需要provided 20220922-->
<scope>provided</scope>
</dependency>
<!--new planner-->
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-table-api-java-bridge_2.12</artifactId>
<version>${flink.version}</version>
<scope>provided</scope>
</dependency>
<!--连接mysql的cdc-->
<dependency>
<groupId>com.ververica</groupId>
<artifactId>flink-sql-connector-mysql-cdc</artifactId>
<!--上线的时候需要provided-->
<version>2.2.1</version>
</dependency>
<dependency>
<groupId>org.apache.doris</groupId>
<artifactId>flink-doris-connector-1.14_2.12</artifactId>
<!-- <artifactId>flink-doris-connector-1.13_2.12</artifactId>-->
<!-- <artifactId>flink-doris-connector-1.12_2.12</artifactId>-->
<!-- <artifactId>flink-doris-connector-1.11_2.12</artifactId>-->
<!-- <version>1.0.3</version>-->
<version>1.1.0</version>
</dependency>
<!-- jdbc连mysql-->
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-connector-jdbc_${scala.binary.version}</artifactId>
<version>${flink.version}</version>
</dependency>
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>8.0.18</version>
</dependency>
<!-- Failed to load web based job submission extension. Probable reason: flink-runtime-web is not in the classpath.-->
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-runtime-web_2.12</artifactId>
<version>${flink.version}</version>
<!--上线的时候需要provided-->
<scope>provided</scope>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-assembly-plugin</artifactId>
<configuration>
<descriptorRefs>
<descriptorRef>jar-with-dependencies</descriptorRef>
</descriptorRefs>
</configuration>
</plugin>
<!-- Java Compiler -->
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<version>3.1</version>
<configuration>
<source>${target.java.version}</source>
<target>${target.java.version}</target>
</configuration>
</plugin>
<!-- We use the maven-shade plugin to create a fat jar that contains all necessary dependencies. -->
<!-- Change the value of <mainClass>...</mainClass> if your program entry point changes. -->
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-shade-plugin</artifactId>
<version>3.1.1</version>
<executions>
<!-- Run shade goal on package phase -->
<execution>
<phase>package</phase>
<goals>
<goal>shade</goal>
</goals>
<configuration>
<artifactSet>
<excludes>
<exclude>org.apache.flink:flink-shaded-force-shading</exclude>
<exclude>com.google.code.findbugs:jsr305</exclude>
<exclude>org.slf4j:*</exclude>
<exclude>org.apache.logging.log4j:*</exclude>
</excludes>
</artifactSet>
<filters>
<filter>
<!-- Do not copy the signatures in the META-INF folder.
Otherwise, this might cause SecurityExceptions when using the JAR. -->
<artifact>*:*</artifact>
<excludes>
<exclude>META-INF/*.SF</exclude>
<exclude>META-INF/*.DSA</exclude>
<exclude>META-INF/*.RSA</exclude>
</excludes>
</filter>
</filters>
<transformers>
<transformer
implementation="org.apache.maven.plugins.shade.resource.ManifestResourceTransformer">
<mainClass>org.example.StreamingJob</mainClass>
</transformer>
</transformers>
</configuration>
</execution>
</executions>
</plugin>
</plugins>
<pluginManagement>
<plugins>
<!-- This improves the out-of-the-box experience in Eclipse by resolving some warnings. -->
<plugin>
<groupId>org.eclipse.m2e</groupId>
<artifactId>lifecycle-mapping</artifactId>
<version>1.0.0</version>
<configuration>
<lifecycleMappingMetadata>
<pluginExecutions>
<pluginExecution>
<pluginExecutionFilter>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-shade-plugin</artifactId>
<versionRange>[3.1.1,)</versionRange>
<goals>
<goal>shade</goal>
</goals>
</pluginExecutionFilter>
<action>
<ignore/>
</action>
</pluginExecution>
<pluginExecution>
<pluginExecutionFilter>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<versionRange>[3.1,)</versionRange>
<goals>
<goal>testCompile</goal>
<goal>compile</goal>
</goals>
</pluginExecutionFilter>
<action>
<ignore/>
</action>
</pluginExecution>
</pluginExecutions>
</lifecycleMappingMetadata>
</configuration>
</plugin>
</plugins>
</pluginManagement>
</build>
</project>
assembly打包。上线的命令，先切换去目录/usr/local/realtime/flink/flink-1.14.5/bin ，指定 包下main类
#!/bin/env bash
flink run -c mysqlcdc.DorisTets -D taskmanager.memory.process.size=1024m
-D rest.flamegraph.enabled=true
-D env.java.opts="-XX:+PrintGCDetails -XX:+PrintGCDateStamps"
-D metrics.reporter.promgateway.groupingKey="jobname=DorisTets"
-D metrics.reporter.promgateway.jobName=DorisTets
/usr/local/realtime/FlinkDoris-1.0-SNAPSHOT-jar-with-dependencies.jar
提交成功
编辑
上线成功
编辑
