一.开发工具简介
- 大数据框架：Hadoop+Spark（本次没用Hive，支持定制）
- 开发语言：Python+Java（两个版本都支持）
- 后端框架：Django+Spring Boot(Spring+SpringMVC+Mybatis)（两个版本都支持）
- 前端：Vue+ElementUI+Echarts+HTML+CSS+JavaScript+jQuery
- 详细技术点：Hadoop、HDFS、Spark、Spark SQL、Pandas、NumPy
- 数据库：MySQL
二.系统内容简介
基于大数据的在线教育投融数据可视化分析系统是一个集数据采集、处理、分析和可视化展示于一体的综合性平台。系统采用Hadoop+Spark大数据技术栈作为核心处理引擎，能够高效处理海量的在线教育行业投融资数据，通过Spark SQL进行复杂的数据查询和统计分析。后端基于Spring Boot框架构建RESTful API接口，前端采用Vue+ElementUI+Echarts技术栈实现响应式的数据可视化界面。系统主要功能模块包括用户管理、在线教育投融数据管理、融资阶段分布分析、投资机构行为分析、行业总体趋势分析和热门细分赛道分析等核心功能。通过HDFS分布式文件系统存储原始数据，利用Spark的内存计算能力对教育投融资数据进行实时分析处理，结合Pandas和NumPy进行数据清洗和统计计算，最终通过Echarts图表库将分析结果以直观的可视化图表形式展现给用户，为教育行业从业者、投资机构和政策制定者提供数据支撑和决策参考。
三.系统功能演示
大数据专业导师推荐：Hadoop+Spark实现在线教育投融数据可视化分析系统最佳实践

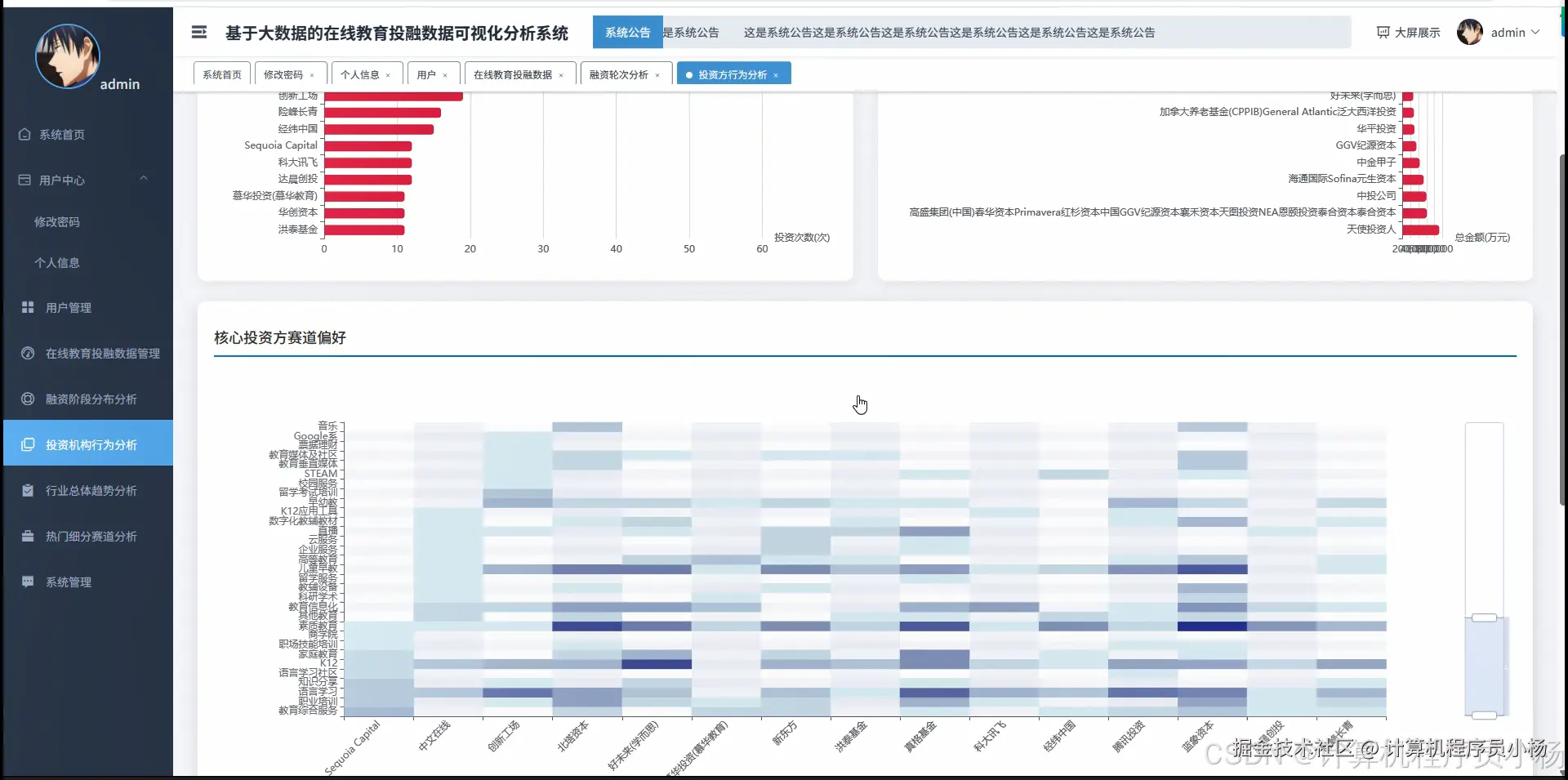

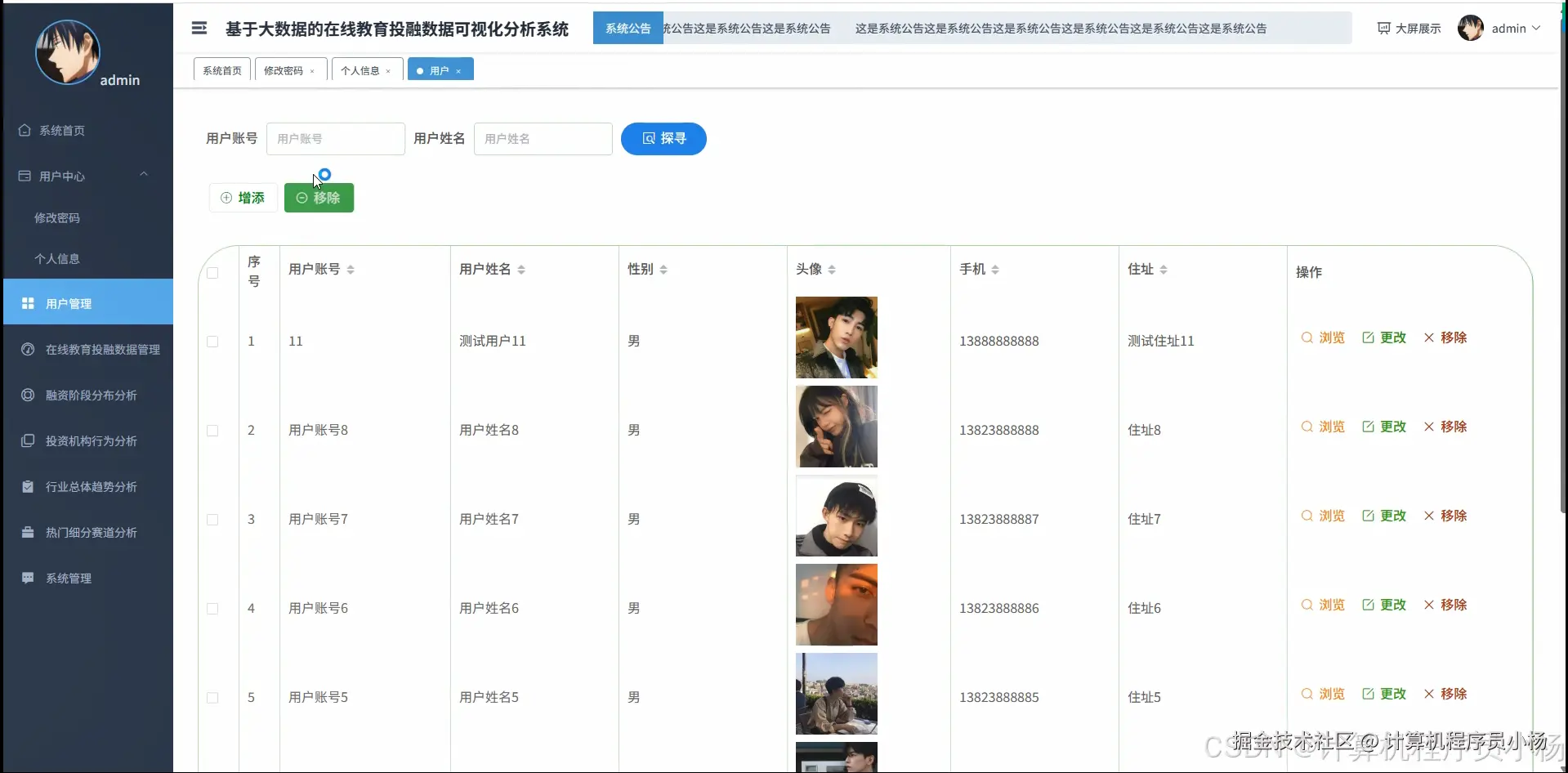

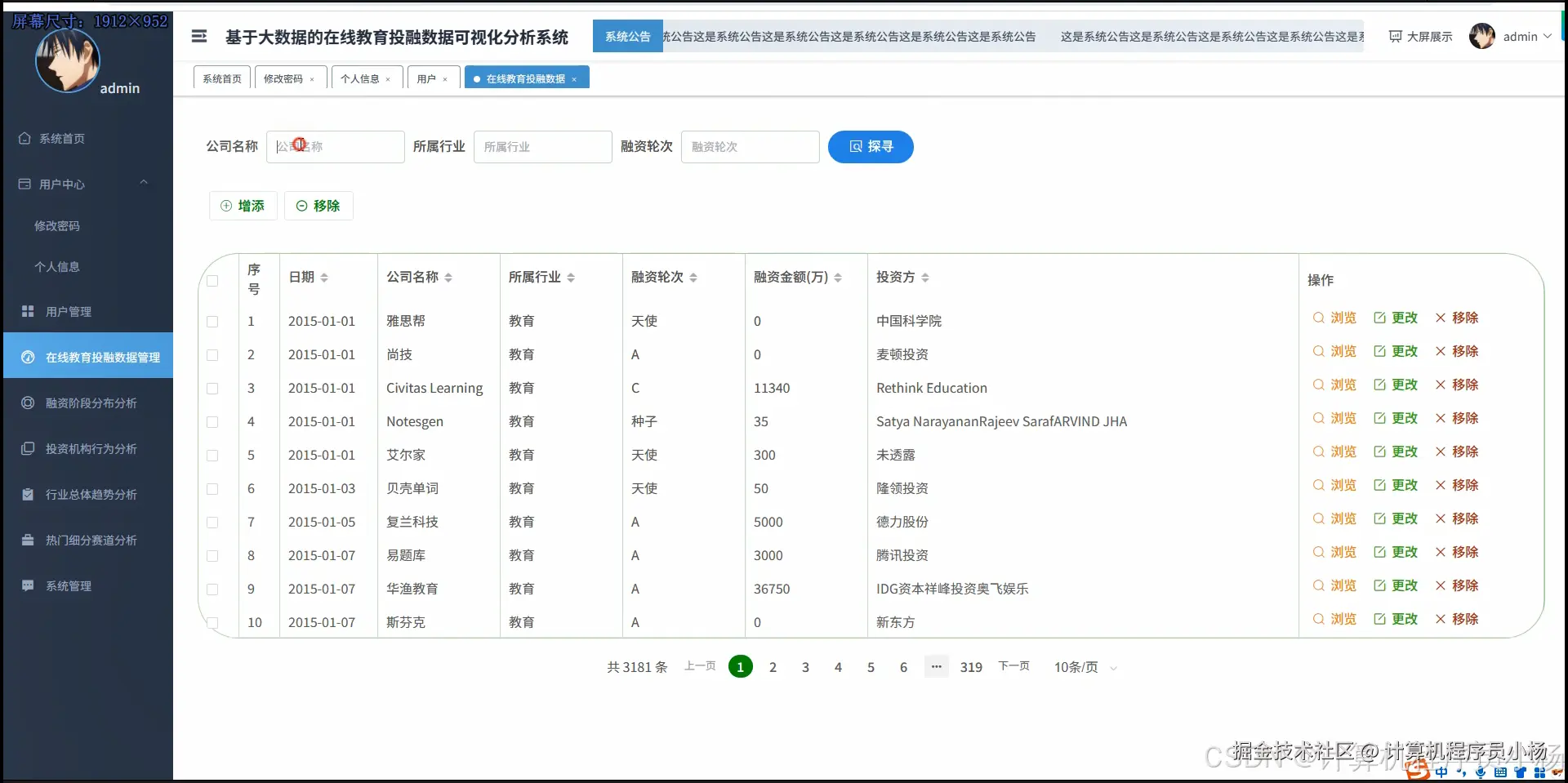

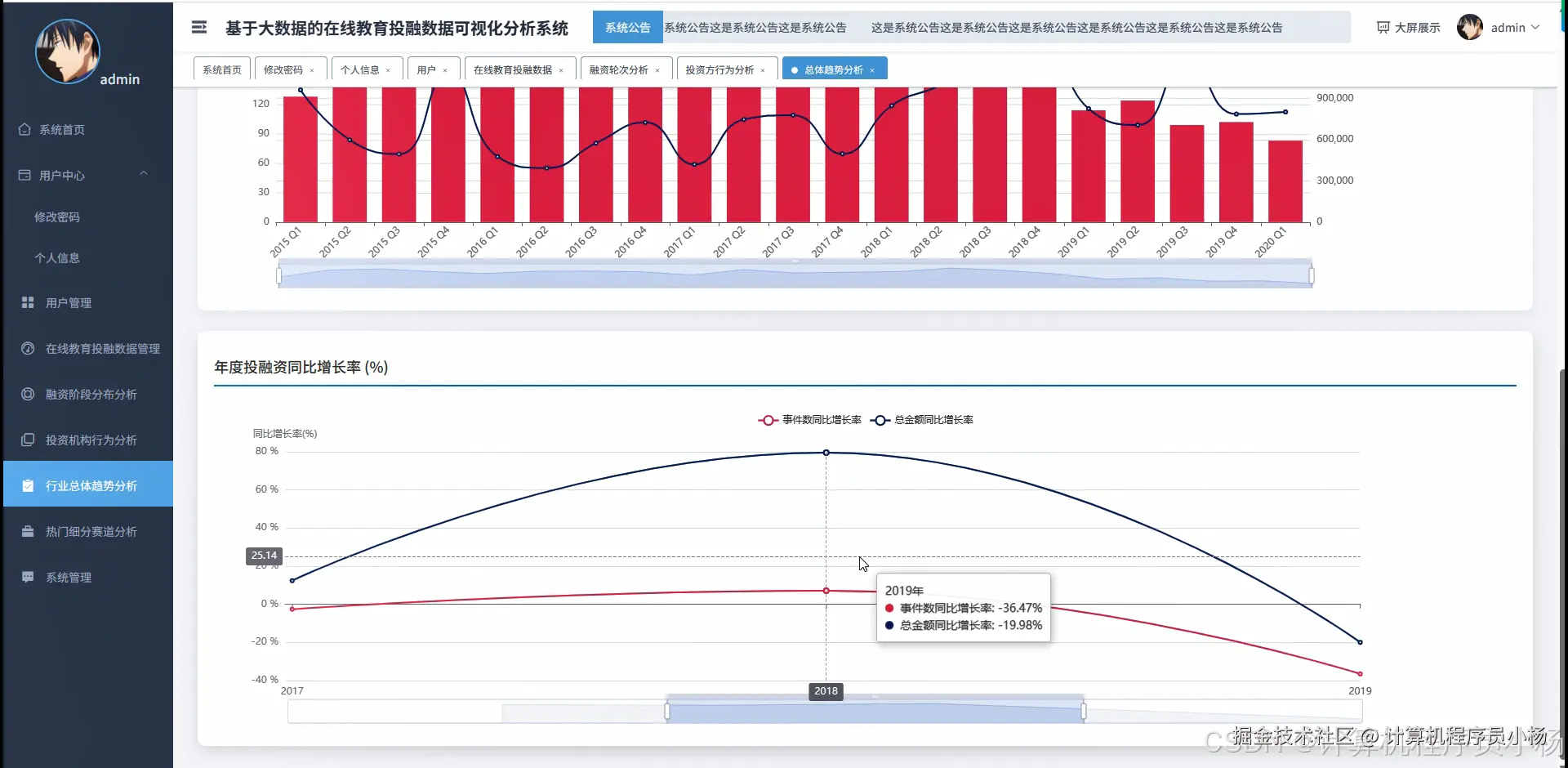

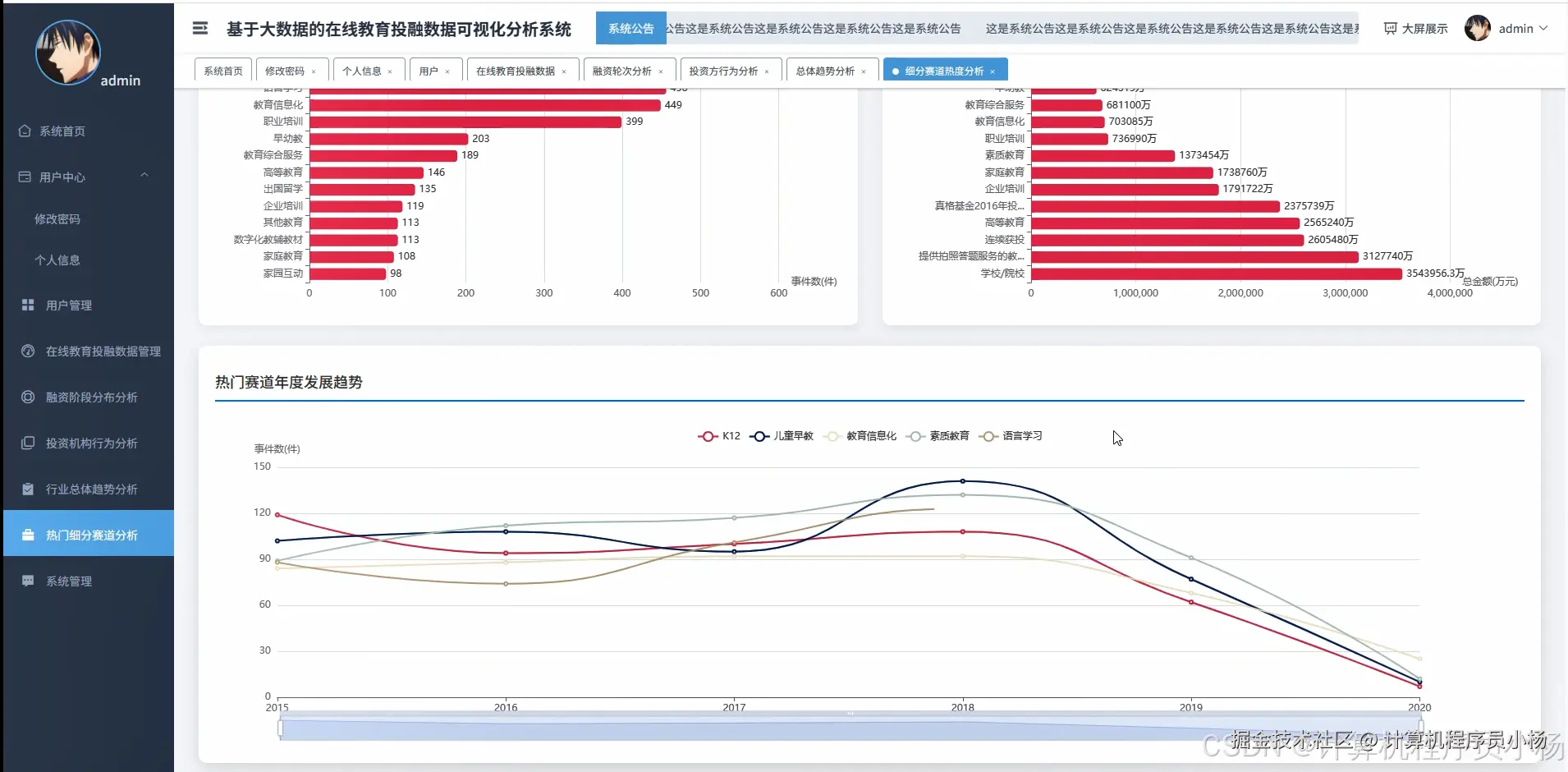

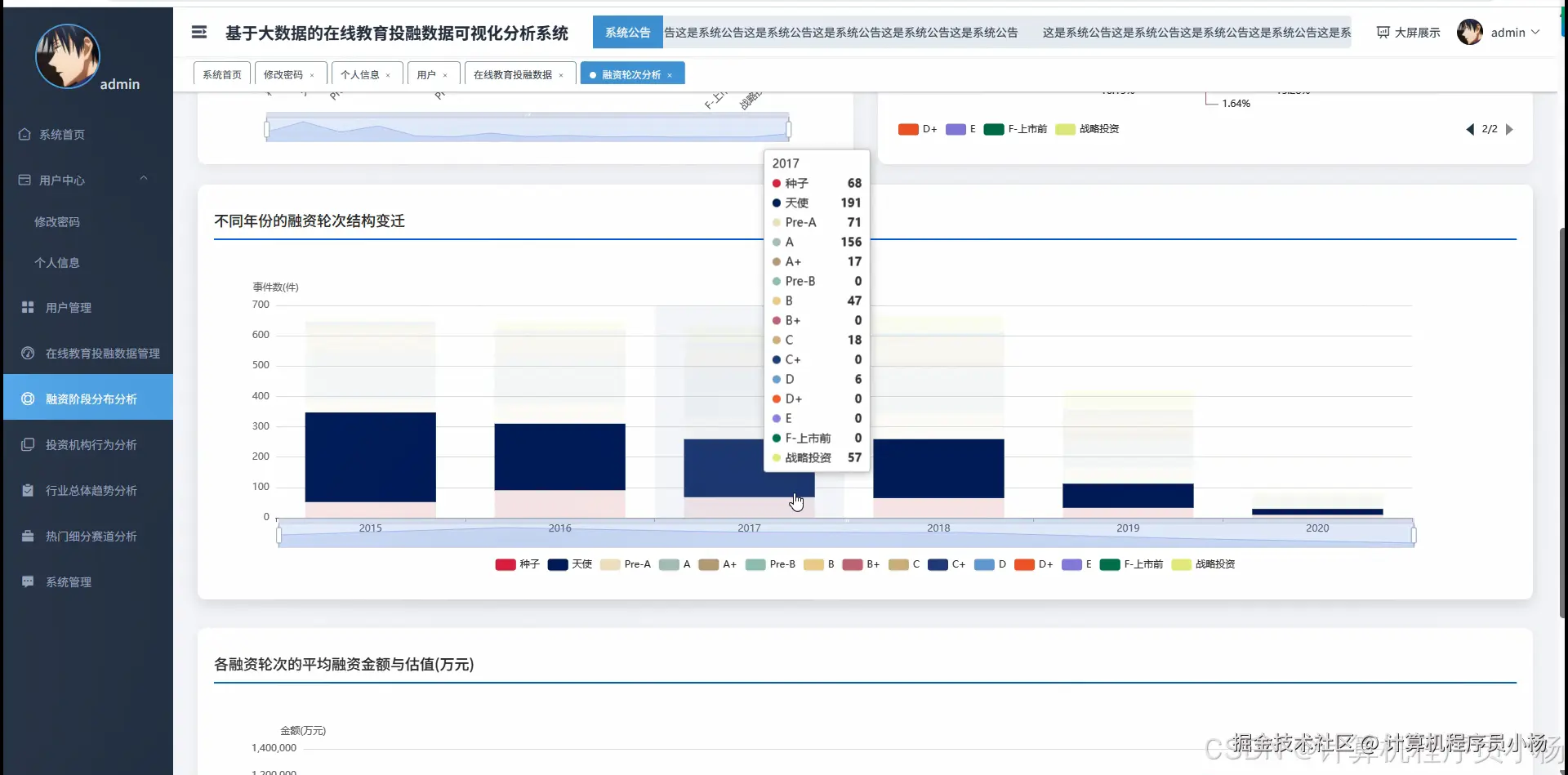

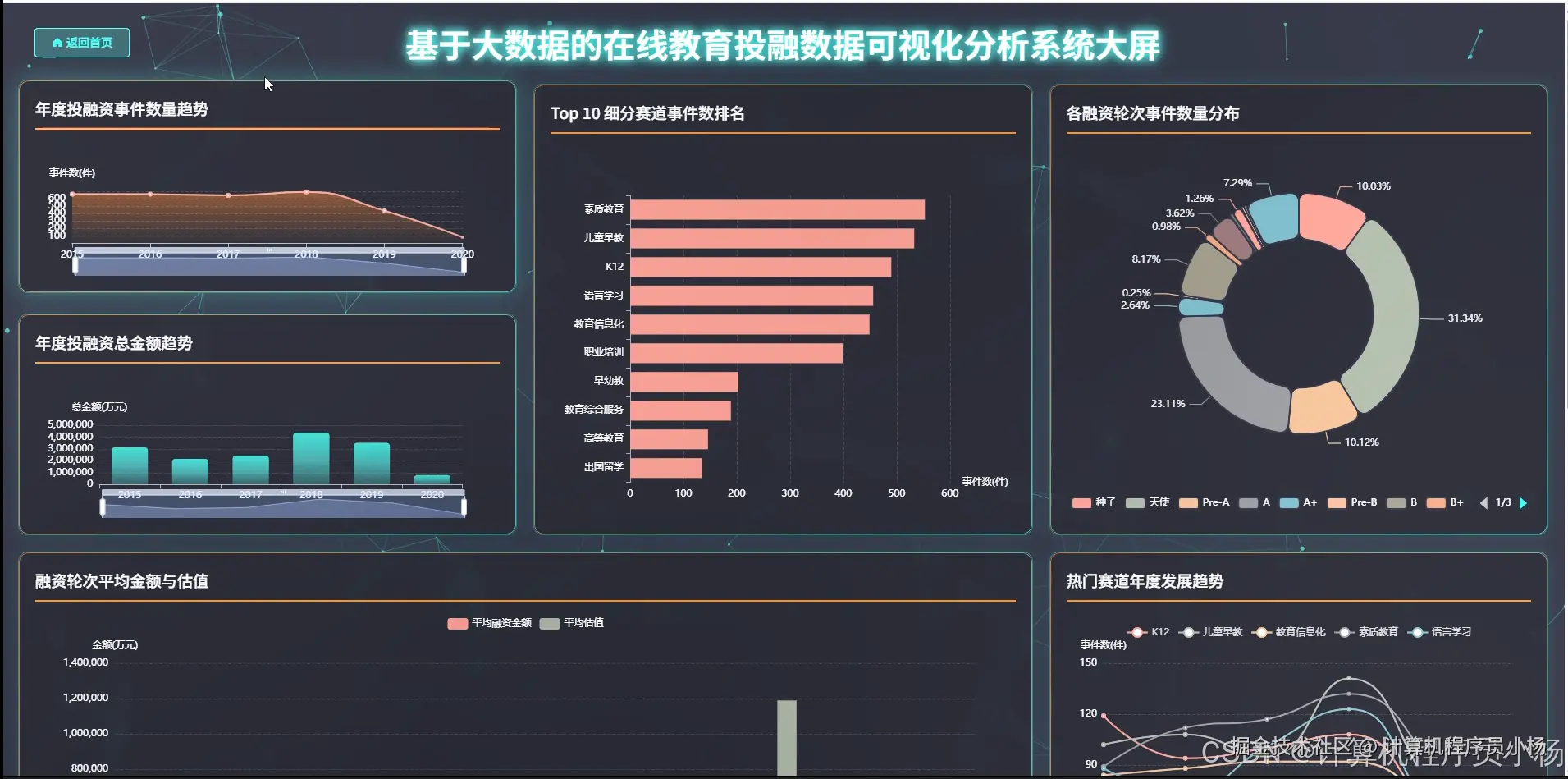

四.系统界面展示
五.系统源码展示
from pyspark.sql import SparkSession
from pyspark.sql.functions import col, count, sum, avg, desc, asc, when, year, month
from pyspark.sql.types import StructType, StructField, StringType, IntegerType, DoubleType, DateType
import pandas as pd
import numpy as np
from datetime import datetime, timedelta
import json
spark = SparkSession.builder.appName("OnlineEducationInvestmentAnalysis").config("spark.sql.adaptive.enabled", "true").config("spark.sql.adaptive.coalescePartitions.enabled", "true").getOrCreate()
def analyzeFundingStageDistribution():
df = spark.read.option("header", "true").csv("hdfs://localhost:9000/education_investment_data/*.csv")
df = df.filter(col("funding_stage").isNotNull() & col("investment_amount").isNotNull())
df = df.withColumn("investment_amount", col("investment_amount").cast(DoubleType()))
stage_stats = df.groupBy("funding_stage").agg(
count("*").alias("deal_count"),
sum("investment_amount").alias("total_amount"),
avg("investment_amount").alias("avg_amount")
).orderBy(desc("total_amount"))
total_deals = df.count()
total_amount = df.agg(sum("investment_amount")).collect()[0][0]
stage_distribution = stage_stats.withColumn("deal_percentage",
(col("deal_count") / total_deals * 100).cast("decimal(5,2)")
).withColumn("amount_percentage",
(col("total_amount") / total_amount * 100).cast("decimal(5,2)")
)
quarterly_trend = df.withColumn("year", year(col("investment_date"))).withColumn("quarter",
when(month(col("investment_date")).between(1, 3), "Q1")
.when(month(col("investment_date")).between(4, 6), "Q2")
.when(month(col("investment_date")).between(7, 9), "Q3")
.otherwise("Q4")
).groupBy("year", "quarter", "funding_stage").agg(
count("*").alias("stage_deals"),
sum("investment_amount").alias("stage_amount")
).orderBy("year", "quarter", "funding_stage")
stage_comparison = df.groupBy("funding_stage").agg(
avg("investment_amount").alias("avg_investment"),
count("*").alias("total_deals")
).withColumn("investment_efficiency",
col("avg_investment") / col("total_deals")
).orderBy(desc("investment_efficiency"))
result_data = {
"stage_distribution": stage_distribution.toPandas().to_dict('records'),
"quarterly_trend": quarterly_trend.toPandas().to_dict('records'),
"stage_comparison": stage_comparison.toPandas().to_dict('records'),
"summary": {
"total_deals": total_deals,
"total_investment": float(total_amount) if total_amount else 0,
"avg_deal_size": float(total_amount / total_deals) if total_deals > 0 else 0
}
}
return json.dumps(result_data, ensure_ascii=False, default=str)
def analyzeInvestorBehavior():
df = spark.read.option("header", "true").csv("hdfs://localhost:9000/education_investment_data/*.csv")
df = df.filter(col("investor_name").isNotNull() & col("investment_amount").isNotNull())
df = df.withColumn("investment_amount", col("investment_amount").cast(DoubleType()))
investor_stats = df.groupBy("investor_name").agg(
count("*").alias("investment_count"),
sum("investment_amount").alias("total_invested"),
avg("investment_amount").alias("avg_investment"),
countDistinct("company_name").alias("portfolio_companies")
).filter(col("investment_count") >= 3).orderBy(desc("total_invested"))
top_investors = investor_stats.limit(20)
investor_stage_preference = df.groupBy("investor_name", "funding_stage").agg(
count("*").alias("stage_investments"),
sum("investment_amount").alias("stage_amount")
).join(investor_stats.select("investor_name", "investment_count"), "investor_name").withColumn(
"stage_preference_ratio", col("stage_investments") / col("investment_count")
).filter(col("stage_preference_ratio") > 0.3).orderBy("investor_name", desc("stage_preference_ratio"))
investor_sector_focus = df.groupBy("investor_name", "education_sector").agg(
count("*").alias("sector_investments"),
sum("investment_amount").alias("sector_amount")
).join(investor_stats.select("investor_name", "investment_count"), "investor_name").withColumn(
"sector_focus_ratio", col("sector_investments") / col("investment_count")
).filter(col("sector_focus_ratio") > 0.25).orderBy("investor_name", desc("sector_focus_ratio"))
investment_frequency = df.withColumn("investment_year", year(col("investment_date"))).groupBy(
"investor_name", "investment_year"
).agg(count("*").alias("yearly_investments")).join(
investor_stats.select("investor_name", "investment_count"), "investor_name"
).filter(col("investment_count") >= 5).orderBy("investor_name", "investment_year")
co_investment_analysis = df.alias("df1").join(
df.alias("df2"),
(col("df1.company_name") == col("df2.company_name")) &
(col("df1.funding_round") == col("df2.funding_round")) &
(col("df1.investor_name") != col("df2.investor_name"))
).select(
col("df1.investor_name").alias("investor_a"),
col("df2.investor_name").alias("investor_b"),
col("df1.company_name"),
col("df1.investment_amount").alias("amount_a"),
col("df2.investment_amount").alias("amount_b")
).groupBy("investor_a", "investor_b").agg(
count("*").alias("co_investment_count"),
sum(col("amount_a") + col("amount_b")).alias("total_co_investment")
).filter(col("co_investment_count") >= 2).orderBy(desc("co_investment_count"))
result_data = {
"top_investors": top_investors.toPandas().to_dict('records'),
"stage_preferences": investor_stage_preference.toPandas().to_dict('records'),
"sector_focus": investor_sector_focus.toPandas().to_dict('records'),
"investment_frequency": investment_frequency.toPandas().to_dict('records'),
"co_investments": co_investment_analysis.toPandas().to_dict('records')
}
return json.dumps(result_data, ensure_ascii=False, default=str)
def analyzeIndustryTrends():
df = spark.read.option("header", "true").csv("hdfs://localhost:9000/education_investment_data/*.csv")
df = df.filter(col("investment_date").isNotNull() & col("investment_amount").isNotNull())
df = df.withColumn("investment_amount", col("investment_amount").cast(DoubleType()))
df = df.withColumn("investment_year", year(col("investment_date")))
df = df.withColumn("investment_month", month(col("investment_date")))
yearly_trends = df.groupBy("investment_year").agg(
count("*").alias("annual_deals"),
sum("investment_amount").alias("annual_investment"),
avg("investment_amount").alias("avg_deal_size"),
countDistinct("company_name").alias("companies_funded")
).orderBy("investment_year")
monthly_trends = df.groupBy("investment_year", "investment_month").agg(
count("*").alias("monthly_deals"),
sum("investment_amount").alias("monthly_investment")
).orderBy("investment_year", "investment_month")
sector_trends = df.groupBy("investment_year", "education_sector").agg(
count("*").alias("sector_deals"),
sum("investment_amount").alias("sector_investment")
).orderBy("investment_year", desc("sector_investment"))
growth_analysis = yearly_trends.withColumn(
"deal_growth_rate",
when(lag("annual_deals").over(Window.orderBy("investment_year")).isNull(), 0)
.otherwise((col("annual_deals") - lag("annual_deals").over(Window.orderBy("investment_year"))) /
lag("annual_deals").over(Window.orderBy("investment_year")) * 100)
).withColumn(
"investment_growth_rate",
when(lag("annual_investment").over(Window.orderBy("investment_year")).isNull(), 0)
.otherwise((col("annual_investment") - lag("annual_investment").over(Window.orderBy("investment_year"))) /
lag("annual_investment").over(Window.orderBy("investment_year")) * 100)
)
market_concentration = df.groupBy("investment_year").agg(
countDistinct("investor_name").alias("active_investors"),
countDistinct("company_name").alias("funded_companies")
).withColumn("investor_company_ratio",
col("active_investors") / col("funded_companies")
).orderBy("investment_year")
seasonal_patterns = df.groupBy("investment_month").agg(
count("*").alias("month_total_deals"),
sum("investment_amount").alias("month_total_investment"),
avg("investment_amount").alias("month_avg_deal")
).withColumn("seasonal_index",
col("month_total_deals") / avg("month_total_deals").over()
).orderBy("investment_month")
result_data = {
"yearly_trends": yearly_trends.toPandas().to_dict('records'),
"monthly_trends": monthly_trends.toPandas().to_dict('records'),
"sector_trends": sector_trends.toPandas().to_dict('records'),
"growth_analysis": growth_analysis.toPandas().to_dict('records'),
"market_concentration": market_concentration.toPandas().to_dict('records'),
"seasonal_patterns": seasonal_patterns.toPandas().to_dict('records')
}
return json.dumps(result_data, ensure_ascii=False, default=str)
