基于Hadoop+Spark的小儿阑尾炎数据可视化分析系统-功能介绍
基于Hadoop+Spark的小儿阑尾炎数据可视化分析系统是一个结合大数据技术与医疗数据分析的综合性平台，使用了大数据框架来处理和分析小儿阑尾炎相关的临床数据。系统采用Hadoop作为底层分布式存储架构，利用HDFS确保医疗数据的可靠存储，同时运用Spark及Spark SQL进行高效的数据处理和分析计算。在技术，系统提供Python+Django和Java+Spring Boot两套完整的开发框架，前端采用Vue+ElementUI构建用户界面，结合Echarts实现丰富的数据可视化效果。系统核心功能围绕四个主要维度展开分析：①对患者群体的年龄、性别、BMI等基础特征进行统计分析。②深入探究白细胞计数、C反应蛋白、中性粒细胞百分比等关键实验室指标与阑尾炎诊断结果的关联性。③分析已确诊患者中影响病情严重程度的各项因素。④研究临床治疗方案选择的决策依据。通过Pandas和NumPy进行数据预处理，系统能够有效处理患者的临床症状、实验室检查结果、超声检查数据等多维度信息，并通过可视化图表直观展示阑尾炎评分系统的有效性、不同年龄段的发病规律以及各项临床指标的分布特征。
基于Hadoop+Spark的小儿阑尾炎数据可视化分析系统-选题背景意义
小儿阑尾炎作为儿科急腹症中最常见的疾病之一，其发病率在儿童外科疾病中占据重要地位。据世界卫生组织统计数据显示，全球范围内小儿阑尾炎的发病率约为每10万儿童中有23-40例，而在我国，这一数字呈现逐年上升趋势，年发病率已达到每10万儿童约35-50例。更值得关注的是，由于儿童表达能力有限、症状不典型等因素，小儿阑尾炎的误诊率高达15-30%，远超成人阑尾炎的5-10%误诊率，传统的诊断方法主要依赖医生的临床经验和基础检查，缺乏系统性的数据分析支持。 随着医疗信息化程度的不断提升，各大医院积累了大量的患者临床数据，包括实验室检查结果、影像学资料、病历记录等，这些数据蕴含着丰富的诊断价值，但现有的数据处理能力往往无法充分挖掘其潜在规律。在大数据技术日益成熟的背景下，运用Hadoop、Spark等分布式计算框架来处理医疗数据，已经成为提升医疗诊断准确性和效率的重要途径。 本课题的研究具有多重实际意义和应用价值。从医疗实践角度来看，通过构建基于大数据技术的小儿阑尾炎分析系统，能够帮助临床医生更准确地识别关键诊断指标，降低误诊和漏诊风险，特别是对于症状不典型的低龄患儿，系统能够提供更加客观的数据支撑。对于医疗机构而言，该系统可以协助优化诊疗流程，合理配置医疗资源，减少不必要的手术干预，同时通过数据分析预测病情发展趋势，为制定个性化治疗方案提供参考依据。从社会效益角度考虑，提高小儿阑尾炎诊断的准确性直接关系到儿童健康保障，减少医疗纠纷，降低家庭医疗负担，具有积极的社会价值。所以课题还是有对应的价值的。
基于Hadoop+Spark的小儿阑尾炎数据可视化分析系统-技术选型
大数据框架：Hadoop+Spark（本次没用Hive，支持定制） 开发语言：Python+Java（两个版本都支持） 后端框架：Django+Spring Boot(Spring+SpringMVC+Mybatis)（两个版本都支持） 前端：Vue+ElementUI+Echarts+HTML+CSS+JavaScript+jQuery 详细技术点：Hadoop、HDFS、Spark、Spark SQL、Pandas、NumPy 数据库：MySQL
基于Hadoop+Spark的小儿阑尾炎数据可视化分析系统-视频展示

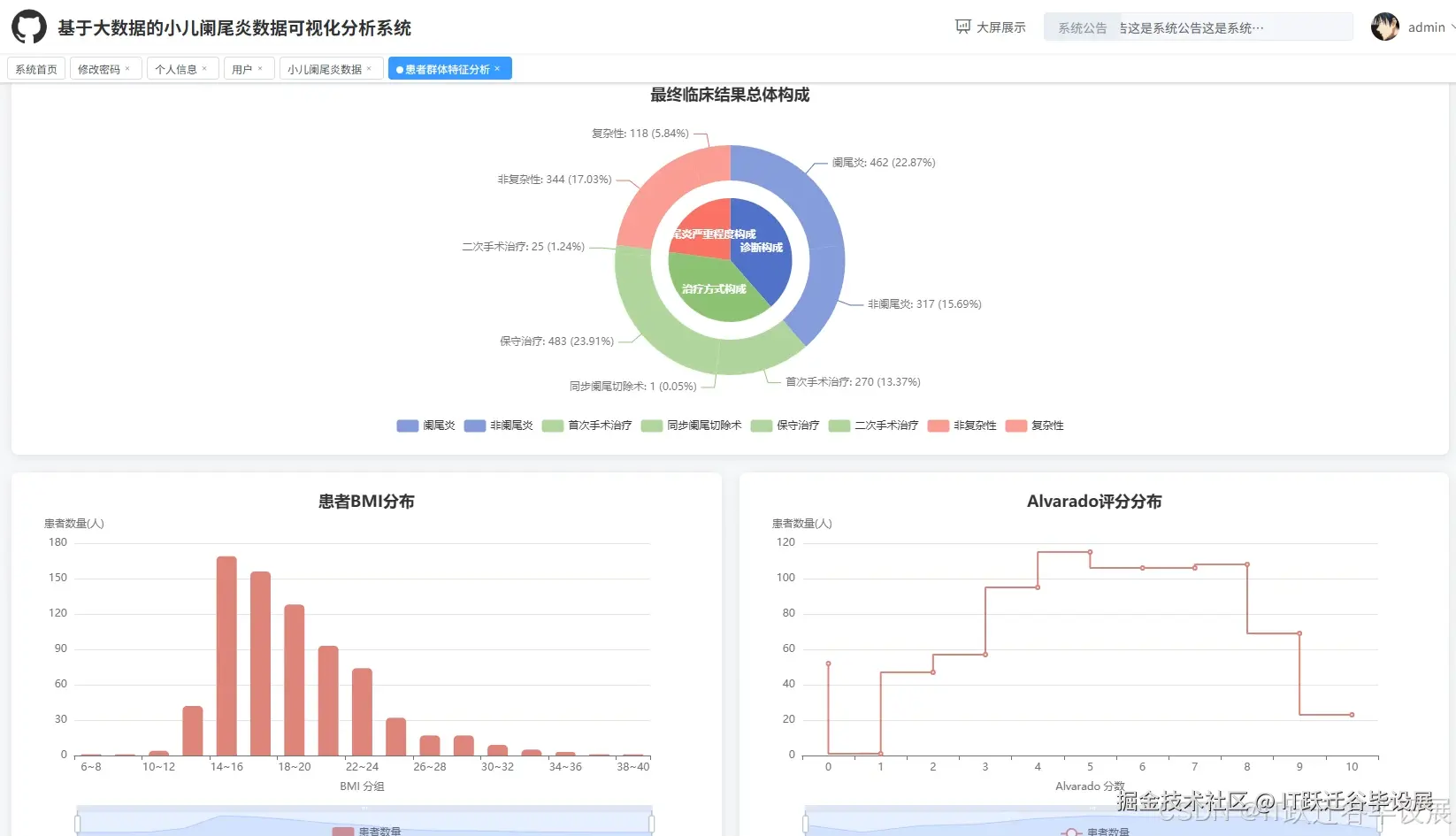

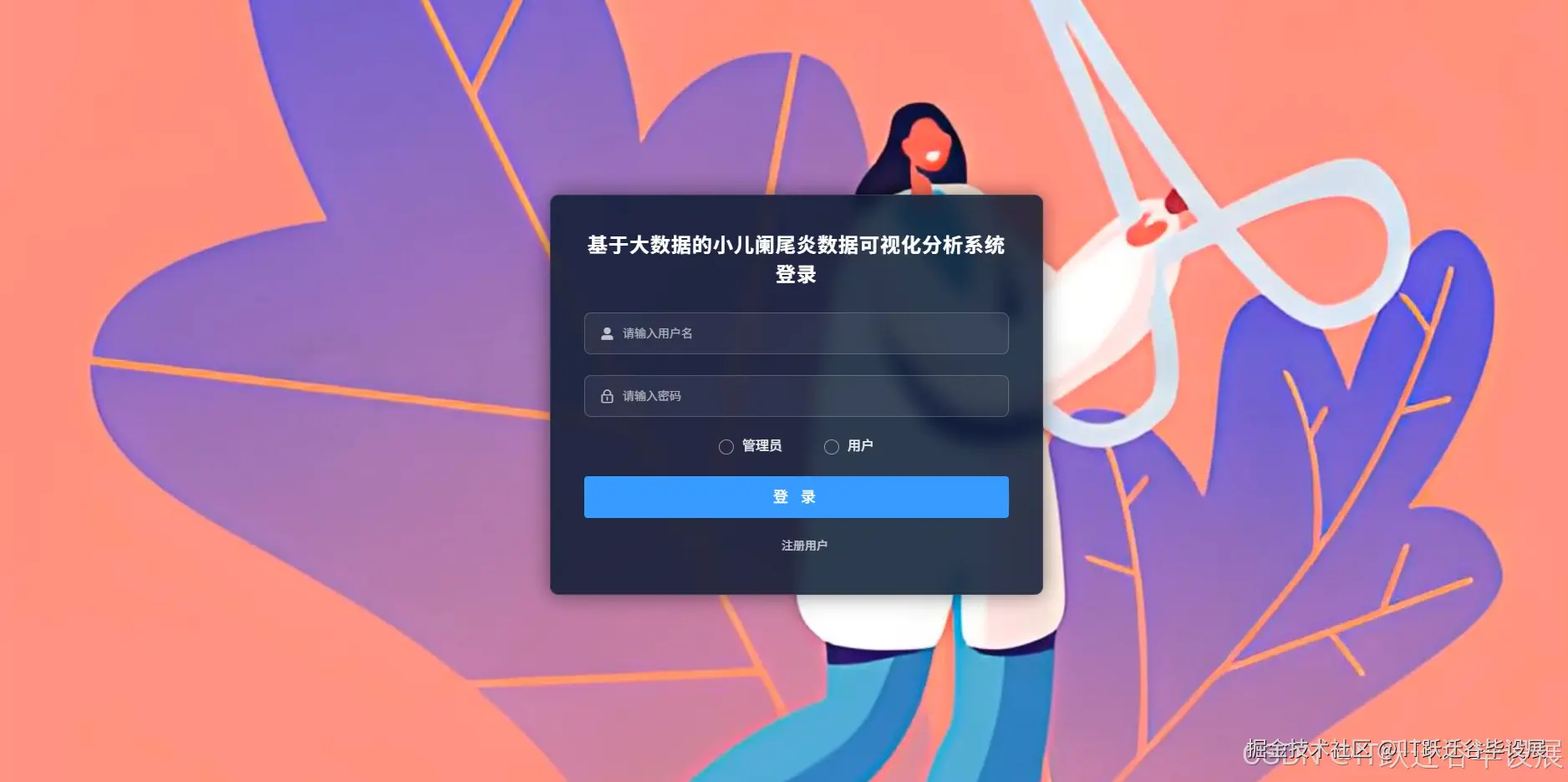

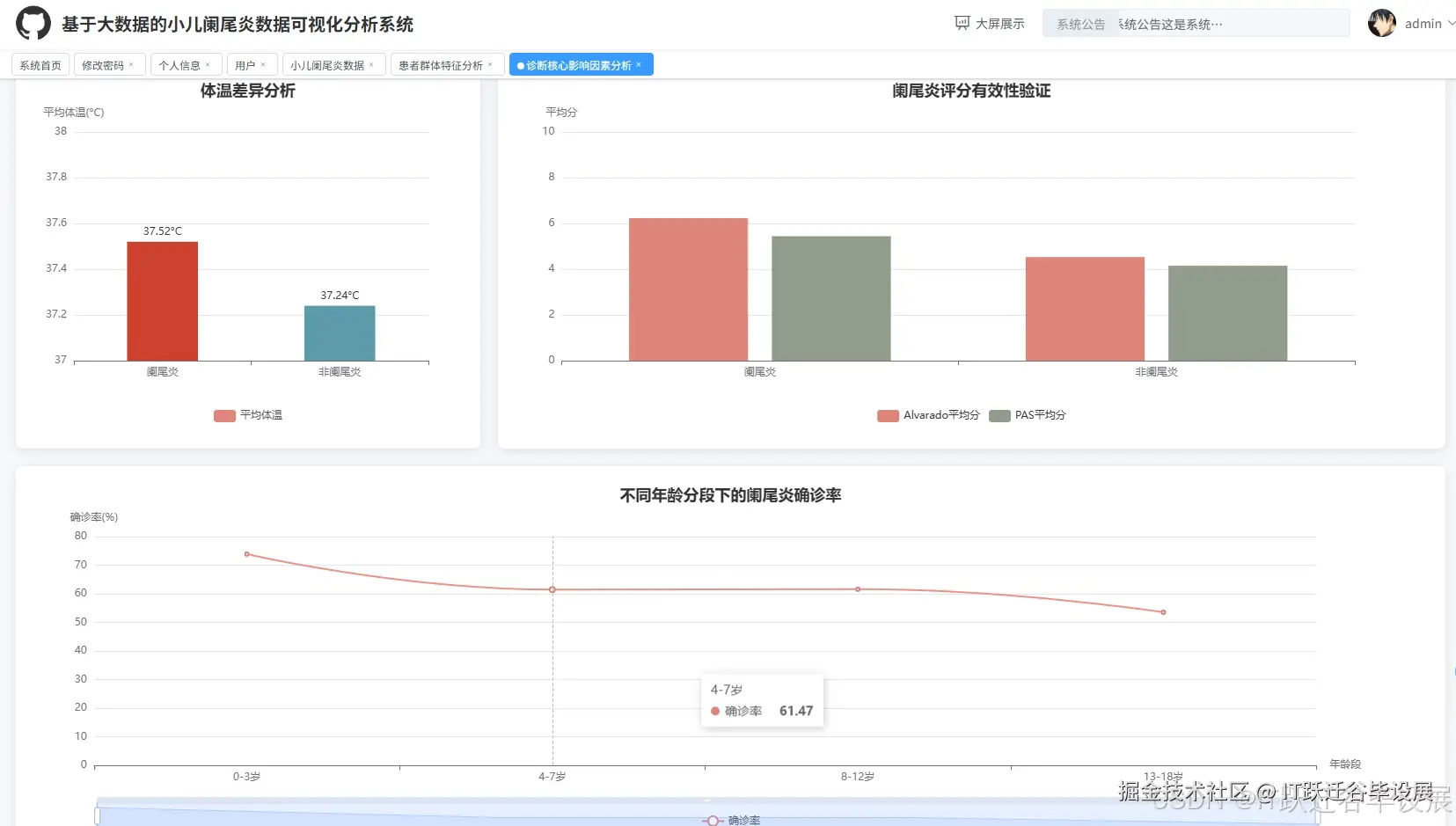

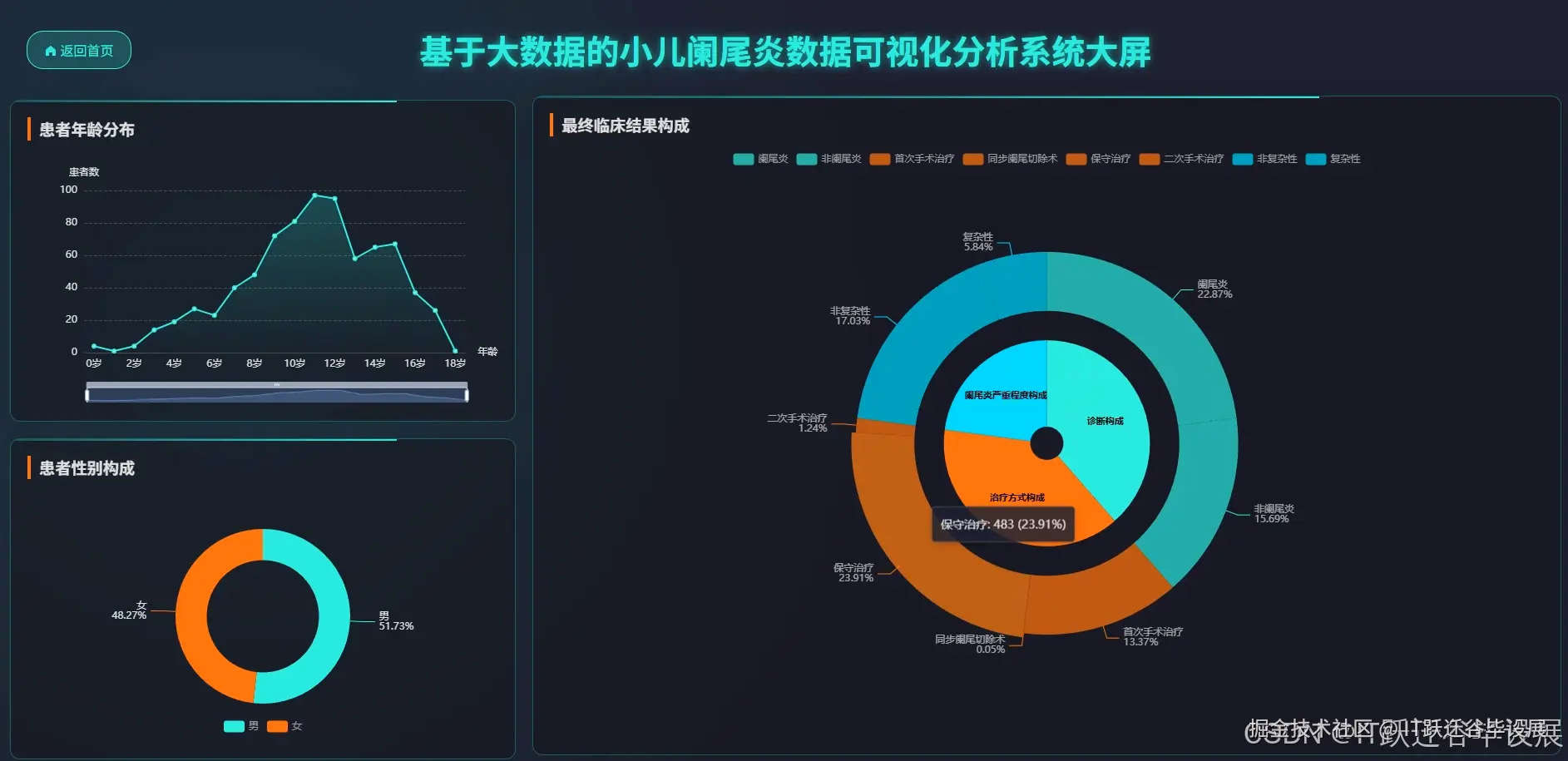

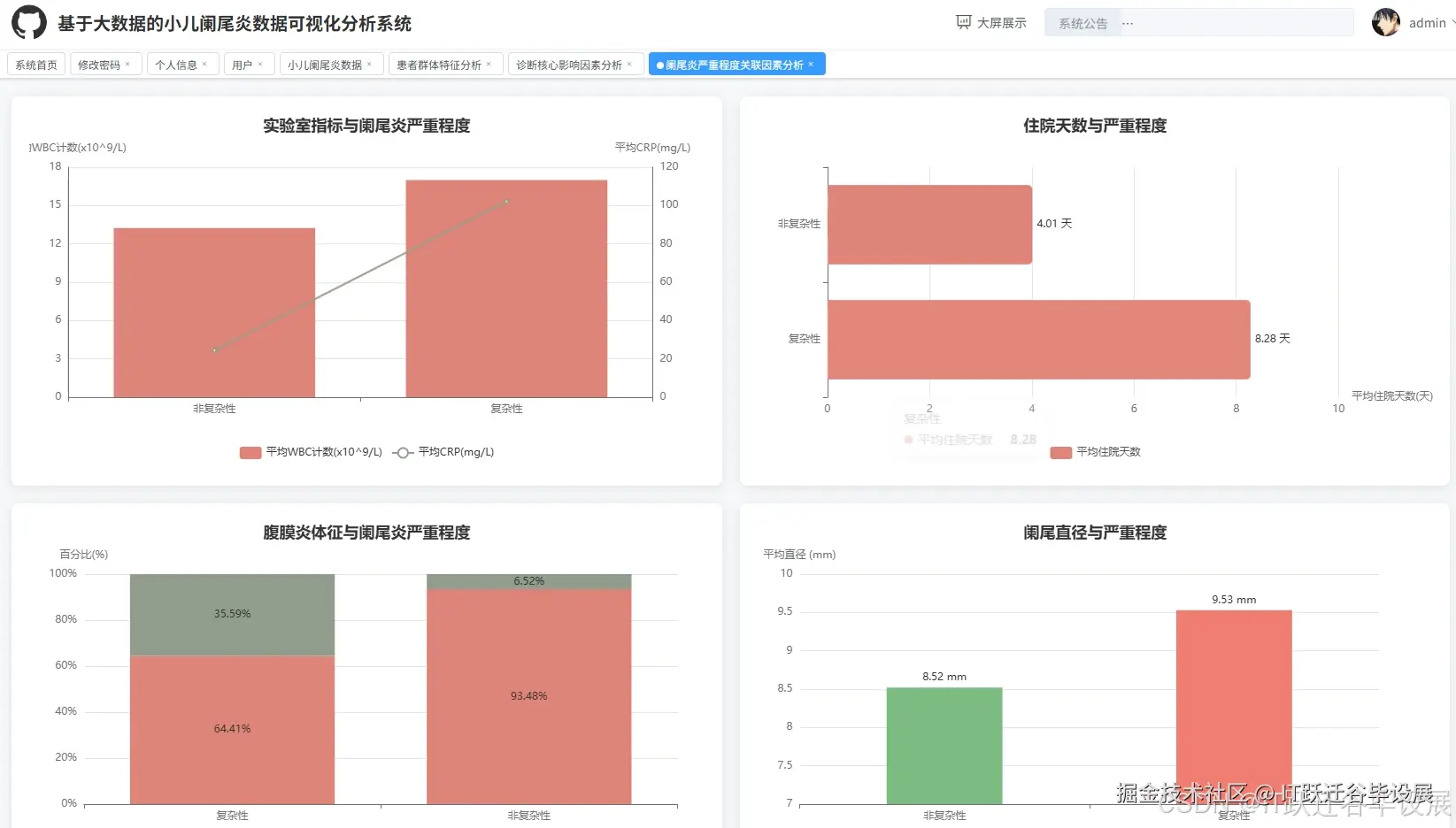

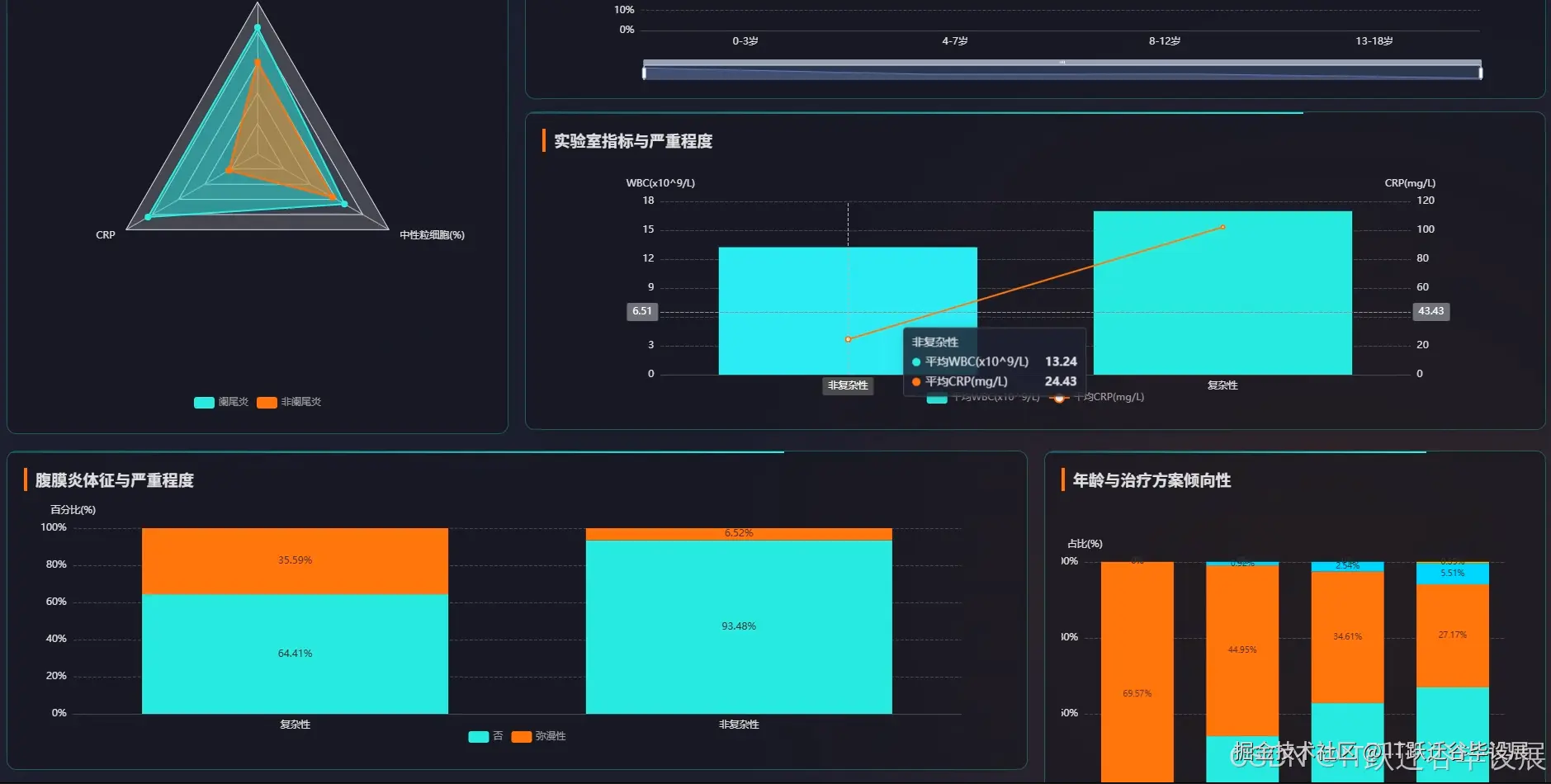

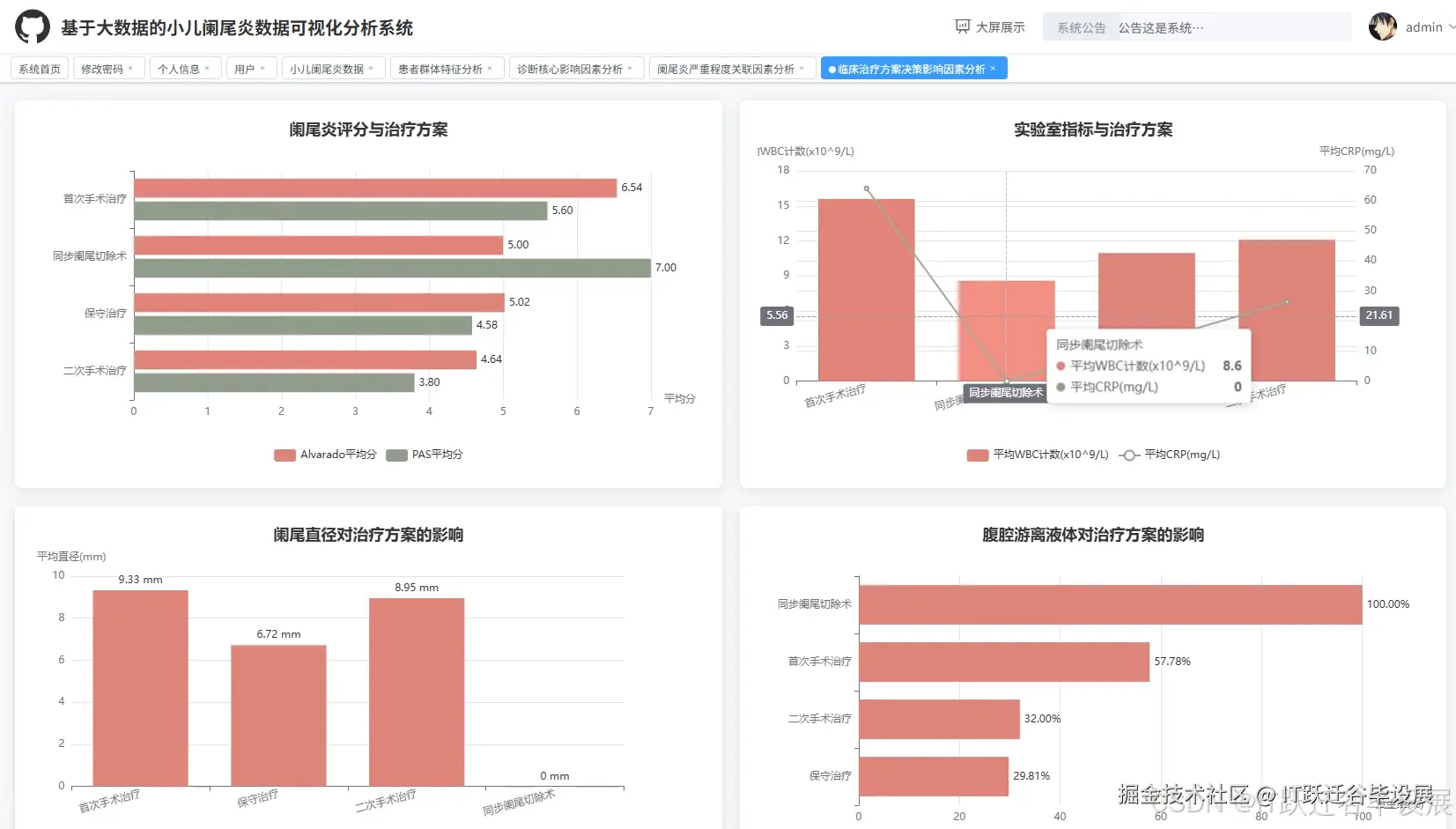

基于Hadoop+Spark的小儿阑尾炎数据可视化分析系统-图片展示
基于Hadoop+Spark的小儿阑尾炎数据可视化分析系统-代码展示
//大数据部分代码展示
def analyze_patient_demographics_and_clinical_indicators(request):
data = request.POST
age_filter = data.get('age_range', 'all')
sex_filter = data.get('sex', 'all')
spark = SparkSession.builder.appName("PatientDemographicsAnalysis").getOrCreate()
df = spark.read.format("csv").option("header", "true").load("hdfs://localhost:9000/medical_data/app_data.csv")
df = df.filter(df.Age.isNotNull() & df.Sex.isNotNull() & df.BMI.isNotNull())
if age_filter != 'all':
age_ranges = age_filter.split('-')
df = df.filter((df.Age >= int(age_ranges[0])) & (df.Age <= int(age_ranges[1])))
if sex_filter != 'all':
df = df.filter(df.Sex == sex_filter)
age_distribution = df.groupBy("Age").count().orderBy("Age").collect()
sex_distribution = df.groupBy("Sex").count().collect()
bmi_stats = df.select(mean("BMI").alias("avg_bmi"), stddev("BMI").alias("std_bmi")).collect()[0]
alvarado_stats = df.select(mean("Alvarado_Score").alias("avg_alvarado"), stddev("Alvarado_Score").alias("std_alvarado")).collect()[0]
pediatric_stats = df.select(mean("Paedriatic_Appendicitis_Score").alias("avg_pediatric"), stddev("Paedriatic_Appendicitis_Score").alias("std_pediatric")).collect()[0]
diagnosis_distribution = df.groupBy("Diagnosis").count().collect()
management_distribution = df.groupBy("Management").count().collect()
severity_distribution = df.groupBy("Severity").count().collect()
correlation_matrix = df.select("Age", "BMI", "Alvarado_Score", "Paedriatic_Appendicitis_Score").toPandas().corr()
age_severity_cross = df.groupBy("Age", "Severity").count().orderBy("Age").collect()
bmi_categories = df.withColumn("BMI_Category", when(df.BMI < 18.5, "underweight").when(df.BMI < 25, "normal").otherwise("overweight")).groupBy("BMI_Category").count().collect()
result_data = {'age_distribution': [(row.Age, row.count) for row in age_distribution], 'sex_distribution': [(row.Sex, row.count) for row in sex_distribution], 'bmi_statistics': {'mean': float(bmi_stats.avg_bmi), 'std': float(bmi_stats.std_bmi)}, 'alvarado_statistics': {'mean': float(alvarado_stats.avg_alvarado), 'std': float(alvarado_stats.std_alvarado)}, 'pediatric_statistics': {'mean': float(pediatric_stats.avg_pediatric), 'std': float(pediatric_stats.std_pediatric)}, 'diagnosis_distribution': [(row.Diagnosis, row.count) for row in diagnosis_distribution], 'management_distribution': [(row.Management, row.count) for row in management_distribution], 'severity_distribution': [(row.Severity, row.count) for row in severity_distribution], 'correlation_data': correlation_matrix.to_dict(), 'age_severity_cross': [(row.Age, row.Severity, row.count) for row in age_severity_cross], 'bmi_categories': [(row.BMI_Category, row.count) for row in bmi_categories]}
spark.stop()
return JsonResponse(result_data)
def analyze_diagnosis_influencing_factors(request):
data = request.POST
target_diagnosis = data.get('diagnosis_type', 'appendicitis')
analysis_type = data.get('analysis_type', 'laboratory')
spark = SparkSession.builder.appName("DiagnosisFactorsAnalysis").getOrCreate()
df = spark.read.format("csv").option("header", "true").load("hdfs://localhost:9000/medical_data/app_data.csv")
df = df.filter(df.Diagnosis.isNotNull() & df.WBC_Count.isNotNull() & df.CRP.isNotNull())
appendicitis_group = df.filter(df.Diagnosis == 'appendicitis')
non_appendicitis_group = df.filter(df.Diagnosis != 'appendicitis')
wbc_comparison = {'appendicitis': appendicitis_group.select(mean("WBC_Count").alias("avg_wbc"), stddev("WBC_Count").alias("std_wbc")).collect()[0], 'non_appendicitis': non_appendicitis_group.select(mean("WBC_Count").alias("avg_wbc"), stddev("WBC_Count").alias("std_wbc")).collect()[0]}
crp_comparison = {'appendicitis': appendicitis_group.select(mean("CRP").alias("avg_crp"), stddev("CRP").alias("std_crp")).collect()[0], 'non_appendicitis': non_appendicitis_group.select(mean("CRP").alias("avg_crp"), stddev("CRP").alias("std_crp")).collect()[0]}
neutrophil_comparison = {'appendicitis': appendicitis_group.select(mean("Neutrophil_Percentage").alias("avg_neutrophil"), stddev("Neutrophil_Percentage").alias("std_neutrophil")).collect()[0], 'non_appendicitis': non_appendicitis_group.select(mean("Neutrophil_Percentage").alias("avg_neutrophil"), stddev("Neutrophil_Percentage").alias("std_neutrophil")).collect()[0]}
symptom_analysis = {}
for symptom in ['Migratory_Pain', 'Nausea', 'Loss_of_Appetite']:
appendicitis_positive = appendicitis_group.filter(appendicitis_group[symptom] == 1).count()
appendicitis_total = appendicitis_group.count()
non_appendicitis_positive = non_appendicitis_group.filter(non_appendicitis_group[symptom] == 1).count()
non_appendicitis_total = non_appendicitis_group.count()
symptom_analysis[symptom] = {'appendicitis_rate': appendicitis_positive / appendicitis_total if appendicitis_total > 0 else 0, 'non_appendicitis_rate': non_appendicitis_positive / non_appendicitis_total if non_appendicitis_total > 0 else 0}
temperature_comparison = {'appendicitis': appendicitis_group.select(mean("Body_Temperature").alias("avg_temp"), stddev("Body_Temperature").alias("std_temp")).collect()[0], 'non_appendicitis': non_appendicitis_group.select(mean("Body_Temperature").alias("avg_temp"), stddev("Body_Temperature").alias("std_temp")).collect()[0]}
score_comparison = {'alvarado': {'appendicitis': appendicitis_group.select(mean("Alvarado_Score").alias("avg_score")).collect()[0].avg_score, 'non_appendicitis': non_appendicitis_group.select(mean("Alvarado_Score").alias("avg_score")).collect()[0].avg_score}, 'pediatric': {'appendicitis': appendicitis_group.select(mean("Paedriatic_Appendicitis_Score").alias("avg_score")).collect()[0].avg_score, 'non_appendicitis': non_appendicitis_group.select(mean("Paedriatic_Appendicitis_Score").alias("avg_score")).collect()[0].avg_score}}
age_diagnosis_analysis = df.withColumn("Age_Group", when(df.Age < 5, "0-4").when(df.Age < 10, "5-9").when(df.Age < 15, "10-14").otherwise("15+")).groupBy("Age_Group", "Diagnosis").count().collect()
result_data = {'wbc_comparison': {'appendicitis_mean': float(wbc_comparison['appendicitis'].avg_wbc), 'appendicitis_std': float(wbc_comparison['appendicitis'].std_wbc), 'non_appendicitis_mean': float(wbc_comparison['non_appendicitis'].avg_wbc), 'non_appendicitis_std': float(wbc_comparison['non_appendicitis'].std_wbc)}, 'crp_comparison': {'appendicitis_mean': float(crp_comparison['appendicitis'].avg_crp), 'appendicitis_std': float(crp_comparison['appendicitis'].std_crp), 'non_appendicitis_mean': float(crp_comparison['non_appendicitis'].avg_crp), 'non_appendicitis_std': float(crp_comparison['non_appendicitis'].std_crp)}, 'neutrophil_comparison': {'appendicitis_mean': float(neutrophil_comparison['appendicitis'].avg_neutrophil), 'appendicitis_std': float(neutrophil_comparison['appendicitis'].std_neutrophil), 'non_appendicitis_mean': float(neutrophil_comparison['non_appendicitis'].avg_neutrophil), 'non_appendicitis_std': float(neutrophil_comparison['non_appendicitis'].std_neutrophil)}, 'symptom_analysis': symptom_analysis, 'temperature_comparison': {'appendicitis_mean': float(temperature_comparison['appendicitis'].avg_temp), 'appendicitis_std': float(temperature_comparison['appendicitis'].std_temp), 'non_appendicitis_mean': float(temperature_comparison['non_appendicitis'].avg_temp), 'non_appendicitis_std': float(temperature_comparison['non_appendicitis'].std_temp)}, 'score_comparison': {'alvarado_appendicitis': float(score_comparison['alvarado']['appendicitis']), 'alvarado_non_appendicitis': float(score_comparison['alvarado']['non_appendicitis']), 'pediatric_appendicitis': float(score_comparison['pediatric']['appendicitis']), 'pediatric_non_appendicitis': float(score_comparison['pediatric']['non_appendicitis'])}, 'age_diagnosis_analysis': [(row.Age_Group, row.Diagnosis, row.count) for row in age_diagnosis_analysis]}
spark.stop()
return JsonResponse(result_data)
def analyze_treatment_decision_factors(request):
data = request.POST
analysis_scope = data.get('scope', 'all_patients')
treatment_type = data.get('treatment_type', 'both')
spark = SparkSession.builder.appName("TreatmentDecisionAnalysis").getOrCreate()
df = spark.read.format("csv").option("header", "true").load("hdfs://localhost:9000/medical_data/app_data.csv")
df = df.filter(df.Management.isNotNull() & df.Alvarado_Score.isNotNull() & df.Paedriatic_Appendicitis_Score.isNotNull())
if treatment_type != 'both':
df = df.filter(df.Management == treatment_type)
surgical_group = df.filter(df.Management == 'surgical')
conservative_group = df.filter(df.Management == 'conservative')
score_analysis = {'alvarado_surgical': surgical_group.select(mean("Alvarado_Score").alias("avg_score"), stddev("Alvarado_Score").alias("std_score")).collect()[0], 'alvarado_conservative': conservative_group.select(mean("Alvarado_Score").alias("avg_score"), stddev("Alvarado_Score").alias("std_score")).collect()[0], 'pediatric_surgical': surgical_group.select(mean("Paedriatic_Appendicitis_Score").alias("avg_score"), stddev("Paedriatic_Appendicitis_Score").alias("std_score")).collect()[0], 'pediatric_conservative': conservative_group.select(mean("Paedriatic_Appendicitis_Score").alias("avg_score"), stddev("Paedriatic_Appendicitis_Score").alias("std_score")).collect()[0]}
laboratory_analysis = {'wbc_surgical': surgical_group.select(mean("WBC_Count").alias("avg_wbc"), stddev("WBC_Count").alias("std_wbc")).collect()[0], 'wbc_conservative': conservative_group.select(mean("WBC_Count").alias("avg_wbc"), stddev("WBC_Count").alias("std_wbc")).collect()[0], 'crp_surgical': surgical_group.select(mean("CRP").alias("avg_crp"), stddev("CRP").alias("std_crp")).collect()[0], 'crp_conservative': conservative_group.select(mean("CRP").alias("avg_crp"), stddev("CRP").alias("std_crp")).collect()[0]}
ultrasound_analysis = {'diameter_surgical': surgical_group.select(mean("Appendix_Diameter").alias("avg_diameter"), stddev("Appendix_Diameter").alias("std_diameter")).collect()[0], 'diameter_conservative': conservative_group.select(mean("Appendix_Diameter").alias("avg_diameter"), stddev("Appendix_Diameter").alias("std_diameter")).collect()[0]}
free_fluids_surgical = surgical_group.filter(surgical_group.Free_Fluids == 1).count()
free_fluids_conservative = conservative_group.filter(conservative_group.Free_Fluids == 1).count()
surgical_total = surgical_group.count()
conservative_total = conservative_group.count()
free_fluids_rates = {'surgical_rate': free_fluids_surgical / surgical_total if surgical_total > 0 else 0, 'conservative_rate': free_fluids_conservative / conservative_total if conservative_total > 0 else 0}
age_treatment_analysis = df.withColumn("Age_Group", when(df.Age < 6, "0-5").when(df.Age < 12, "6-11").otherwise("12+")).groupBy("Age_Group", "Management").count().collect()
severity_treatment_cross = df.filter(df.Severity.isNotNull()).groupBy("Severity", "Management").count().collect()
peritonitis_treatment_analysis = {}
for treatment in ['surgical', 'conservative']:
treatment_data = df.filter(df.Management == treatment)
peritonitis_positive = treatment_data.filter(treatment_data.Peritonitis == 1).count()
treatment_total = treatment_data.count()
peritonitis_treatment_analysis[f'{treatment}_peritonitis_rate'] = peritonitis_positive / treatment_total if treatment_total > 0 else 0
length_stay_analysis = {'surgical': surgical_group.select(mean("Length_of_Stay").alias("avg_stay"), stddev("Length_of_Stay").alias("std_stay")).collect()[0], 'conservative': conservative_group.select(mean("Length_of_Stay").alias("avg_stay"), stddev("Length_of_Stay").alias("std_stay")).collect()[0]}
result_data = {'score_analysis': {'alvarado_surgical_mean': float(score_analysis['alvarado_surgical'].avg_score), 'alvarado_surgical_std': float(score_analysis['alvarado_surgical'].std_score), 'alvarado_conservative_mean': float(score_analysis['alvarado_conservative'].avg_score), 'alvarado_conservative_std': float(score_analysis['alvarado_conservative'].std_score), 'pediatric_surgical_mean': float(score_analysis['pediatric_surgical'].avg_score), 'pediatric_surgical_std': float(score_analysis['pediatric_surgical'].std_score), 'pediatric_conservative_mean': float(score_analysis['pediatric_conservative'].avg_score), 'pediatric_conservative_std': float(score_analysis['pediatric_conservative'].std_score)}, 'laboratory_analysis': {'wbc_surgical_mean': float(laboratory_analysis['wbc_surgical'].avg_wbc), 'wbc_surgical_std': float(laboratory_analysis['wbc_surgical'].std_wbc), 'wbc_conservative_mean': float(laboratory_analysis['wbc_conservative'].avg_wbc), 'wbc_conservative_std': float(laboratory_analysis['wbc_conservative'].std_wbc), 'crp_surgical_mean': float(laboratory_analysis['crp_surgical'].avg_crp), 'crp_surgical_std': float(laboratory_analysis['crp_surgical'].std_crp), 'crp_conservative_mean': float(laboratory_analysis['crp_conservative'].avg_crp), 'crp_conservative_std': float(laboratory_analysis['crp_conservative'].std_crp)}, 'ultrasound_analysis': {'diameter_surgical_mean': float(ultrasound_analysis['diameter_surgical'].avg_diameter), 'diameter_surgical_std': float(ultrasound_analysis['diameter_surgical'].std_diameter), 'diameter_conservative_mean': float(ultrasound_analysis['diameter_conservative'].avg_diameter), 'diameter_conservative_std': float(ultrasound_analysis['diameter_conservative'].std_diameter)}, 'free_fluids_rates': free_fluids_rates, 'age_treatment_analysis': [(row.Age_Group, row.Management, row.count) for row in age_treatment_analysis], 'severity_treatment_cross': [(row.Severity, row.Management, row.count) for row in severity_treatment_cross], 'peritonitis_treatment_analysis': peritonitis_treatment_analysis, 'length_stay_analysis': {'surgical_mean': float(length_stay_analysis['surgical'].avg_stay), 'surgical_std': float(length_stay_analysis['surgical'].std_stay), 'conservative_mean': float(length_stay_analysis['conservative'].avg_stay), 'conservative_std': float(length_stay_analysis['conservative'].std_stay)}}
spark.stop()
return JsonResponse(result_data)
基于Hadoop+Spark的小儿阑尾炎数据可视化分析系统-结语
💕💕
💟💟如果大家有任何疑虑，欢迎在下方位置详细交流。
