[Babylonjs]创建vite + vue3 + Babylonjs项目

参考官方文档：Vue | Babylon.js Documentation

1. 创建 vite + vue3 项目

npm create vite@latest my-vue-babylon -- --template vue-ts

2. 安装babylon.js

npm install @babylonjs/core @babylonjs/gui @babylonjs/loaders

不使用esm

npm install babylonjs babylonjs-gui babylonjs-loaders

3. 添加组件

1. 添加文件 components/Demo.vue

   <template>
     <canvas ref="canvas" class="canvas"></canvas>
   </template>
   <script lang="ts" setup>
   import {
     ArcRotateCamera,
     Color3,
     Color4,
     Engine,
     HemisphericLight,
     MeshBuilder,
     Scene,
     StandardMaterial,
     Vector3
   } from '@babylonjs/core'
   import { onMounted, ref } from 'vue'

   const canvas = ref<HTMLCanvasElement>()

   const createScene = () => {
     if (!canvas.value) return
     const engine = new Engine(canvas.value, true, { stencil: true })
     const scene = new Scene(engine)
     scene.clearColor = new Color4(0, 0, 0, 0)

     const camera = new ArcRotateCamera(
       'camera',
       -Math.PI / 2,
       Math.PI / 2.5,
       15,
       new Vector3(0, 0, 0)
     )
     camera.attachControl(canvas.value, true)

     const light = new HemisphericLight('light', new Vector3(0, 1, 0), scene)
     light.intensity = 0.7

     const box = MeshBuilder.CreateBox('box', { size: 2 }, scene)
     box.position.y = 1
     const boxMat = new StandardMaterial('boxMat', scene)
     boxMat.diffuseColor = new Color3(0.5, 0.5, 1)
     box.material = boxMat

     engine.runRenderLoop(() => {
       scene.render()
     })

     window.addEventListener('resize', () => {
       engine.resize()
     })
   }

   onMounted(() => {
     createScene()
   })
   </script>


2. 修改App.vue

   <script setup lang="ts">
   import Demo from './components/Demo.vue'
   </script>

   <template>
     <Demo />
   </template>


3. 修改style.css

   body, html, canvas, #app {
     width: 100%;
     height: 100%;
     margin: 0;
     padding: 0;
     overflow: hidden;
   }


3. 启动

npm run dev

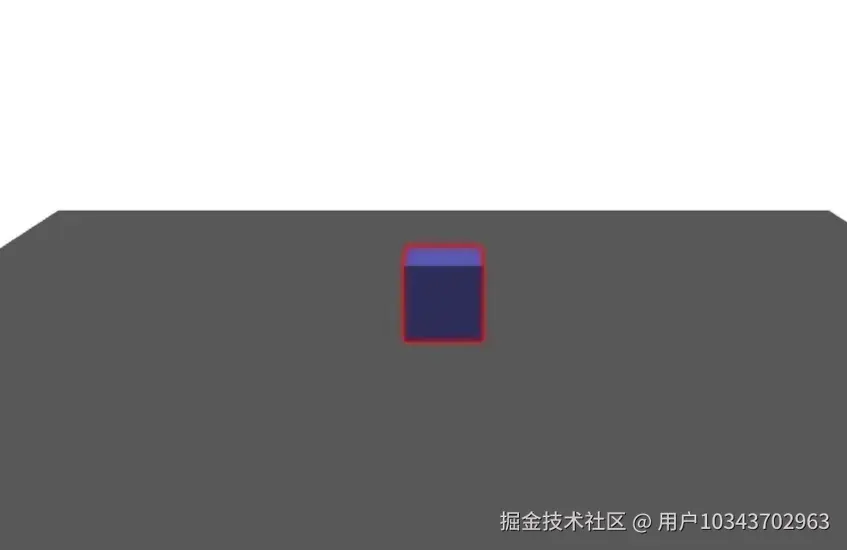

4. 高亮网格

const highlight = new HighlightLayer('highlight', scene)
highlight.addMesh(box, new Color3(1, 0, 0))
highlight.blurHorizontalSize = 0.5
highlight.blurVerticalSize = 0.5

5. 添加鼠标事件

scene.onPointerObservable.add((pointerInfo) => {
  switch (pointerInfo.type) {
    case PointerEventTypes.POINTERDOWN:
      if (pointerInfo.pickInfo?.hit && pointerInfo.pickInfo.pickedMesh === box) {
        highlight.addMesh(box, new Color3(1, 0, 0))
      } else {
        highlight.removeMesh(box)
      }
      break
    default:
      break
  }
})

6. 启用网格的鼠标移动事件

要启用鼠标移动到网格上的事件监听，需要设置属性enablePointerMoveEvents 值为 true。
