在线教育投融数据可视化分析系统-简介
基于Hadoop的在线教育投融数据可视化分析系统是一套专门针对在线教育行业投融资数据进行深度挖掘和可视化展示的大数据分析平台，该系统采用Hadoop+Spark作为核心大数据处理框架，通过HDFS分布式文件系统存储海量教育投融资数据，利用Spark SQL和Pandas、NumPy等数据处理工具对2015-2020年间的投融资事件进行全方位分析。系统后端基于Django框架构建RESTful API接口，前端采用Vue+ElementUI+Echarts技术栈实现交互式数据可视化界面，支持MySQL数据库进行结构化数据存储和查询。在功能层面，系统提供四大核心分析维度：首先是在线教育投融资总体趋势分析，包括年度和季度的投融资事件数量、金额变化趋势以及同比增长率分析；其次是细分赛道投融资热度分析，深入挖掘K12、职业培训、素质教育等不同赛道的资本流向和发展潜力；第三是融资轮次与企业发展阶段分析，从天使轮到IPO各个融资阶段的资金分布和估值变化；最后是投资机构行为与偏好分析，识别核心投资方的投资策略和赛道偏好。整个系统通过大数据技术实现了从数据采集、清洗、分析到可视化展示的完整数据处理流程，为投资者、教育企业和行业研究人员提供了全面、准确、直观的在线教育投融资市场洞察，帮助用户深入理解行业发展规律和投资机会。
在线教育投融数据可视化分析系统-技术
开发语言：
Python或Java（两个版本都支持）
大数据框架：Hadoop+Spark（本次没用Hive，支持定制）
后端框架：Django+Spring Boot(Spring+SpringMVC+Mybatis)（两个版本都支持）
前端：Vue+ElementUI+Echarts+HTML+CSS+JavaScript+jQuery
详细技术点：Hadoop、HDFS、Spark、Spark SQL、Pandas、NumPy
数据库：MySQL
在线教育投融数据可视化分析系统-背景
选题背景
近年来，在线教育行业迎来了前所未有的发展机遇和资本热潮。根据艾瑞咨询发布的《中国在线教育行业研究报告》显示，2015年至2020年期间，中国在线教育市场规模从1192亿元增长至4328亿元，年复合增长率达到29.7%。同时，投中研究院数据表明，这一时期在线教育领域共发生投融资事件超过1200起，累计融资金额突破1500亿元人民币，其中2018年和2019年成为投融资最为活跃的年份，单年融资金额分别达到350亿元和280亿元。从细分赛道来看，K12在线教育、职业培训、素质教育和语言培训成为资本追逐的重点领域，头部企业如猿辅导、作业帮、VIPKID等相继获得数十亿元规模的融资。然而，面对如此庞大且复杂的投融资数据，传统的数据分析方法已经难以满足深度挖掘和全面洞察的需求，迫切需要运用大数据技术构建专业的数据分析系统，为行业参与者提供更加精准和全面的市场洞察。
选题意义
本课题的实际意义体现在多个层面，直接关系到在线教育产业的健康发展和资本市场的理性配置。从投资决策角度来看，该系统能够帮助投资机构准确识别热门赛道和优质项目，通过对历史投融资数据的深度分析，发现不同细分领域的发展规律和投资机会，降低投资风险并提高投资回报率。对于在线教育企业而言，系统提供的融资轮次分析和估值变化趋势能够为企业制定融资策略、选择合适的融资时机提供数据支撑，同时通过竞争对手的融资情况分析，帮助企业准确定位自身在市场中的地位。从行业监管的角度来说，政府相关部门可以利用这套系统掌握在线教育行业的资本流向和发展动态，为制定相关政策法规提供科学依据。学术研究方面，该系统为教育经济学和投资学研究提供了丰富的数据资源和分析工具，推动相关理论研究的深入发展。同时，该系统在技术层面展示了Hadoop和Spark等大数据技术在垂直行业数据分析中的实际应用价值，为类似项目的开发提供了参考范例。
在线教育投融数据可视化分析系统-视频展示

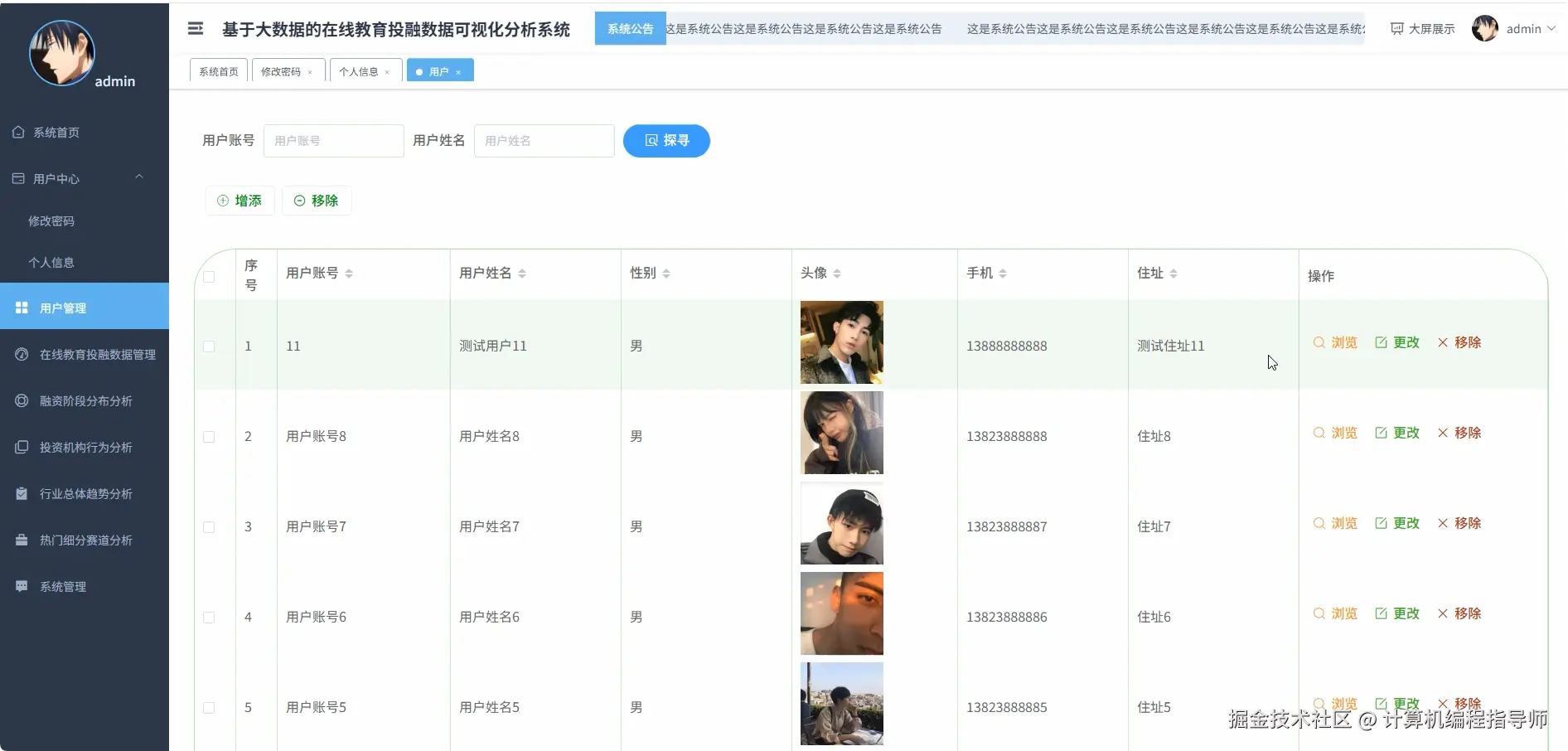

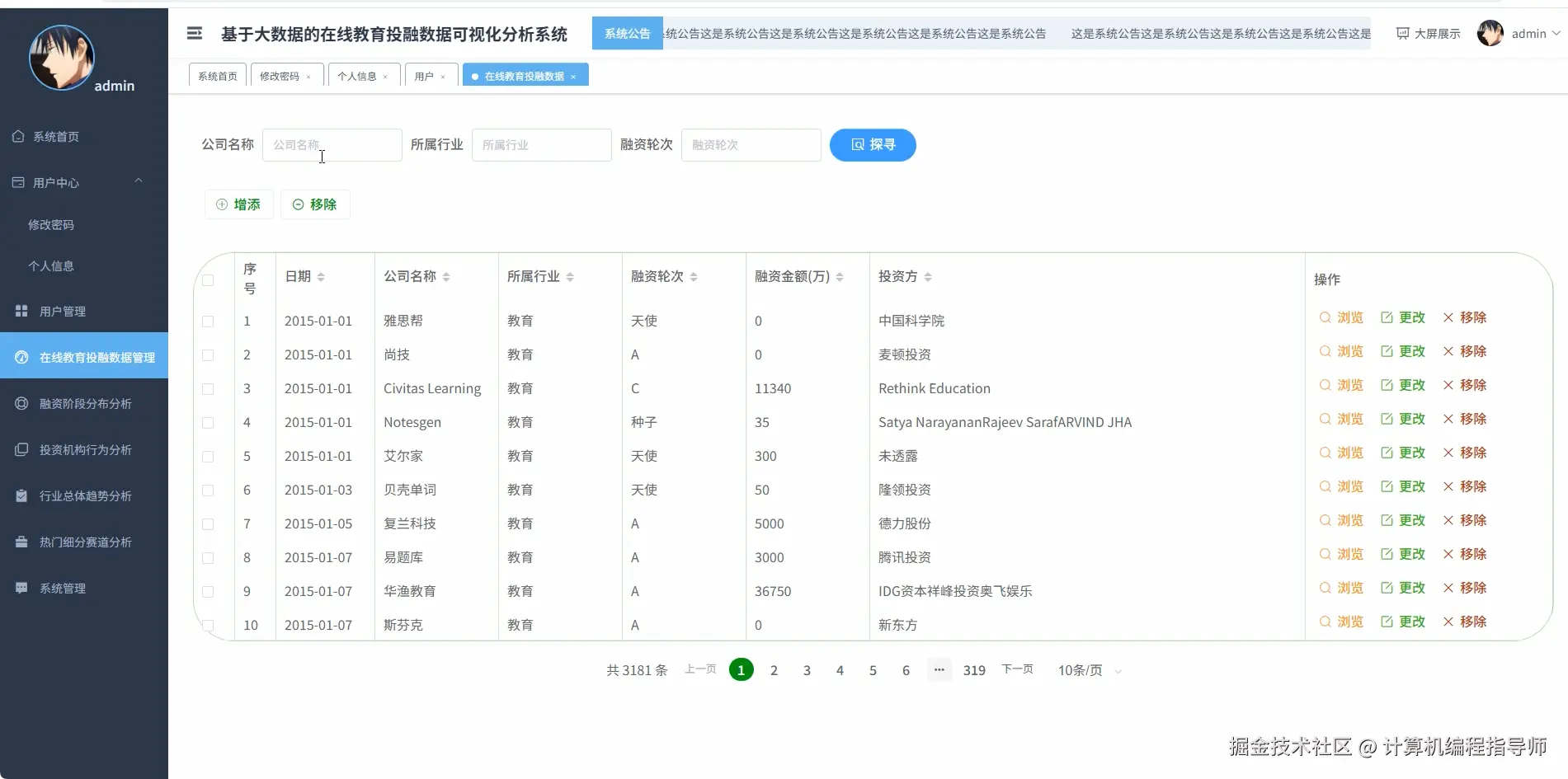

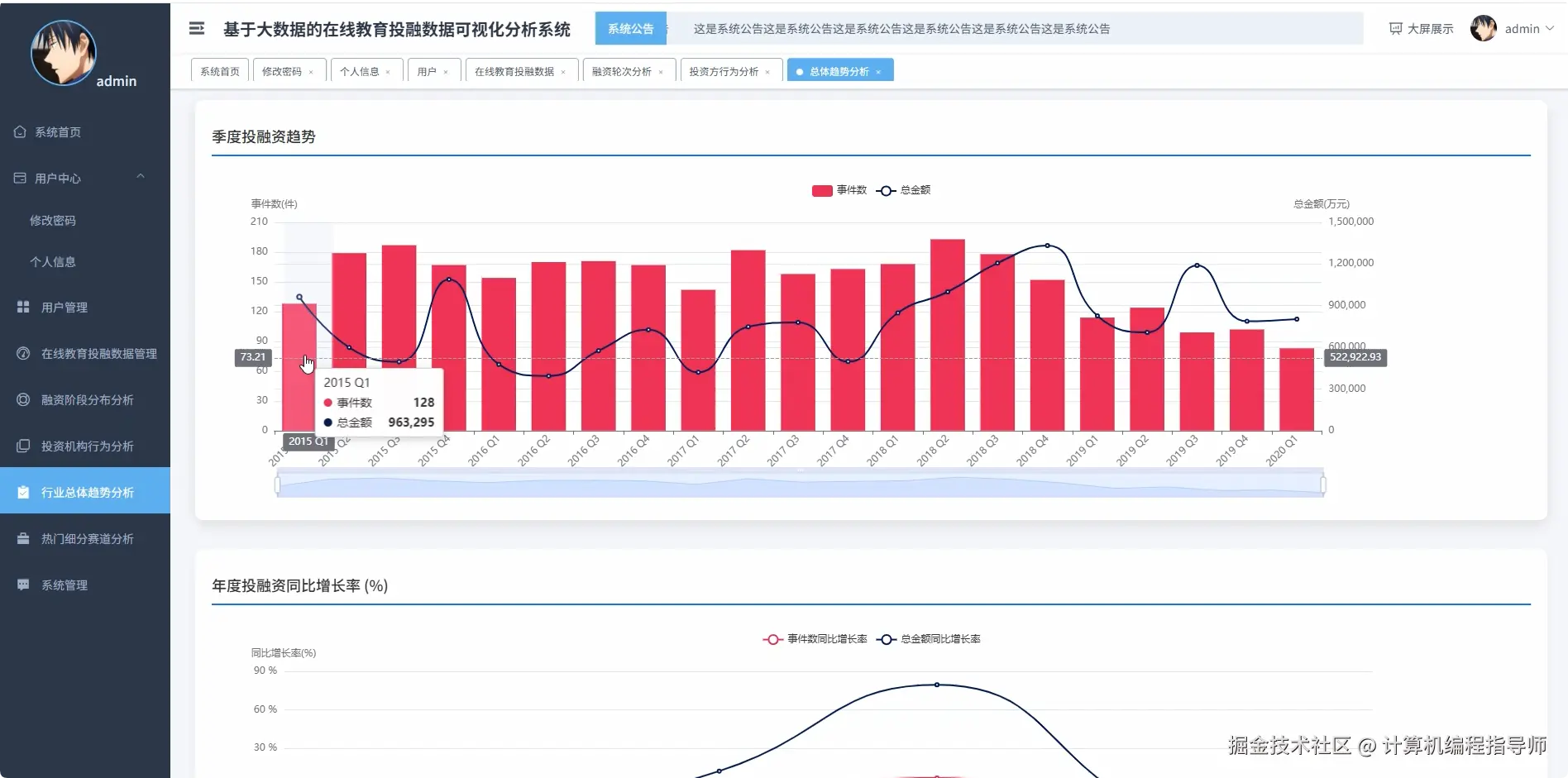

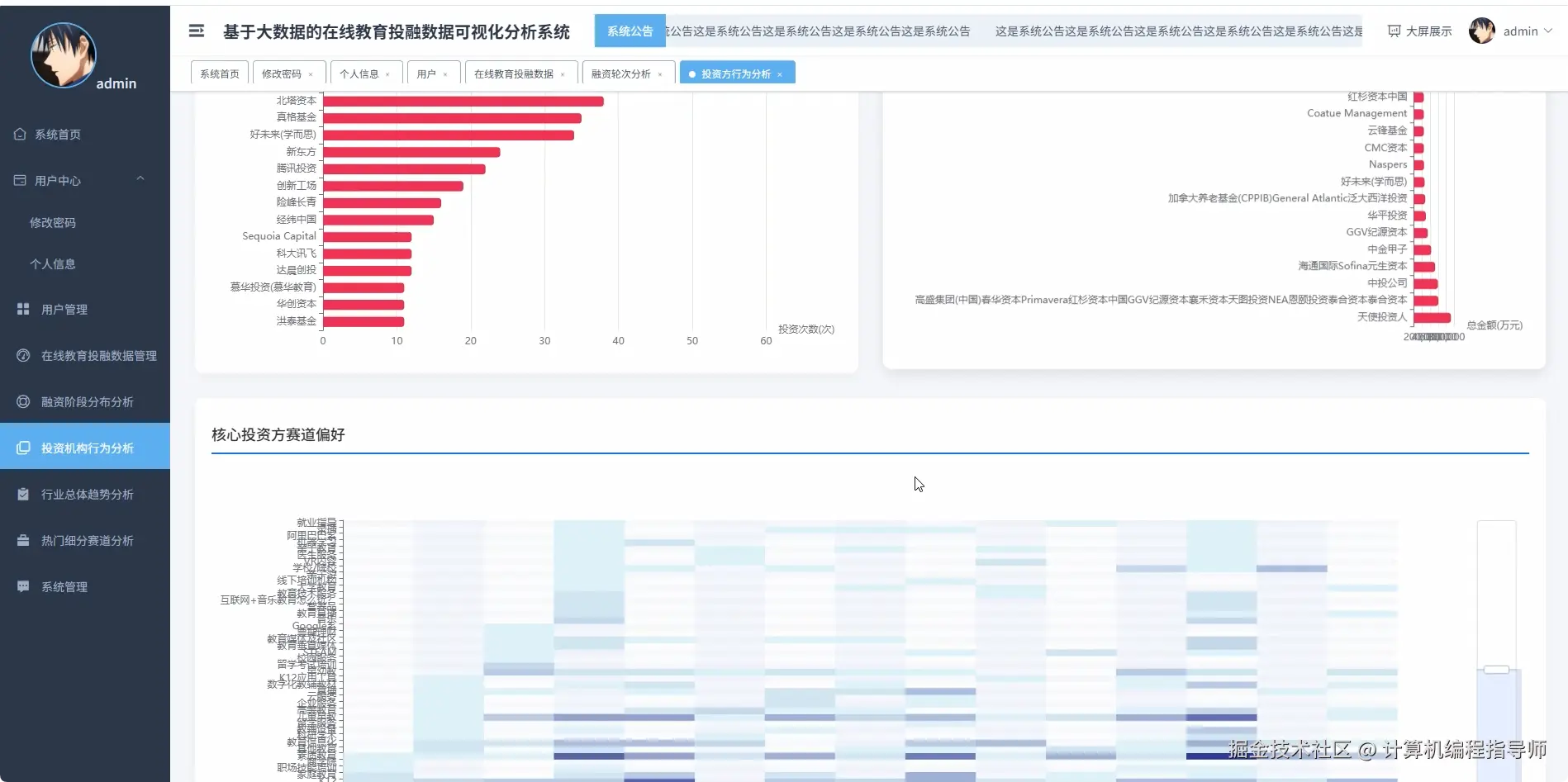

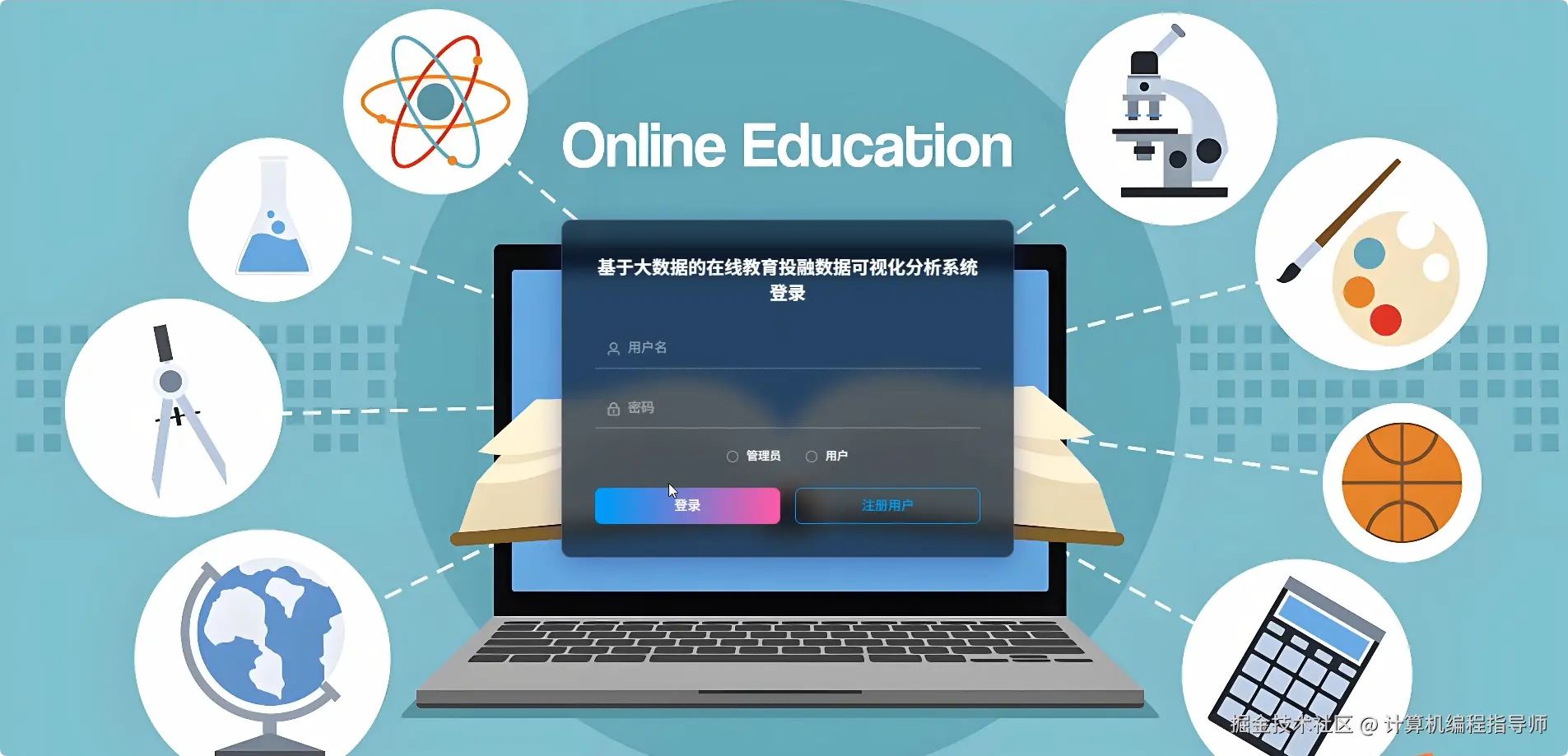

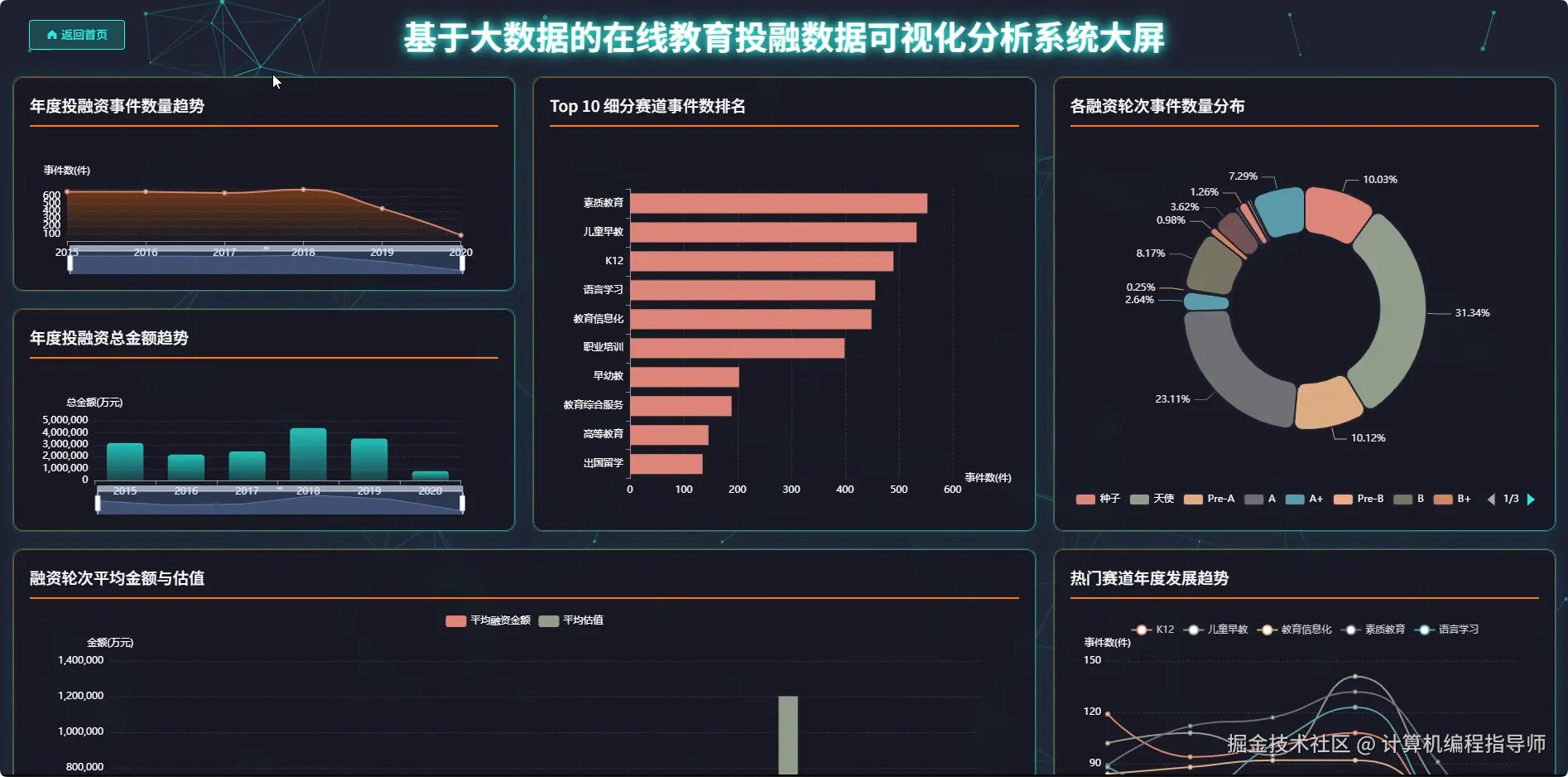

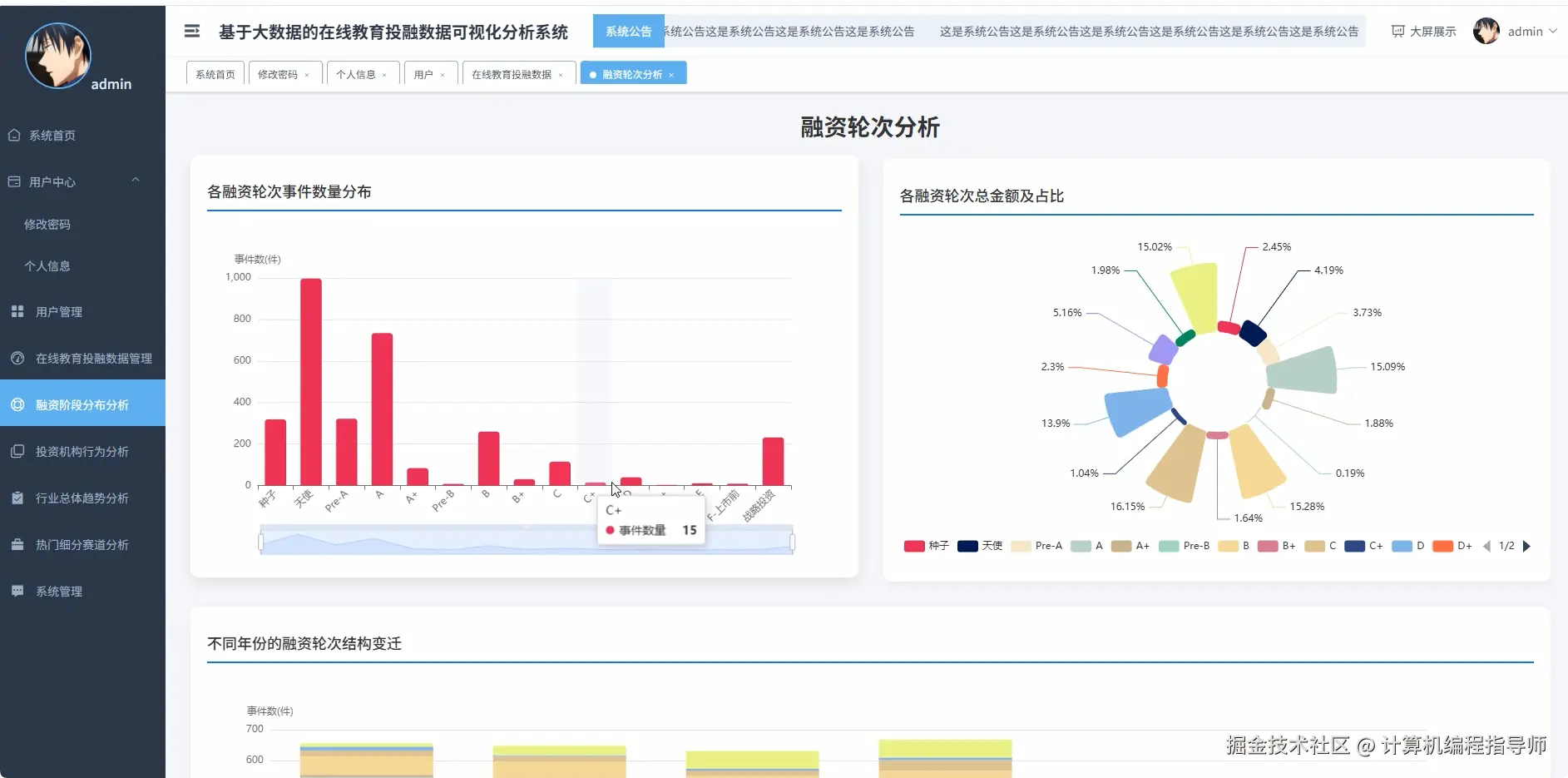

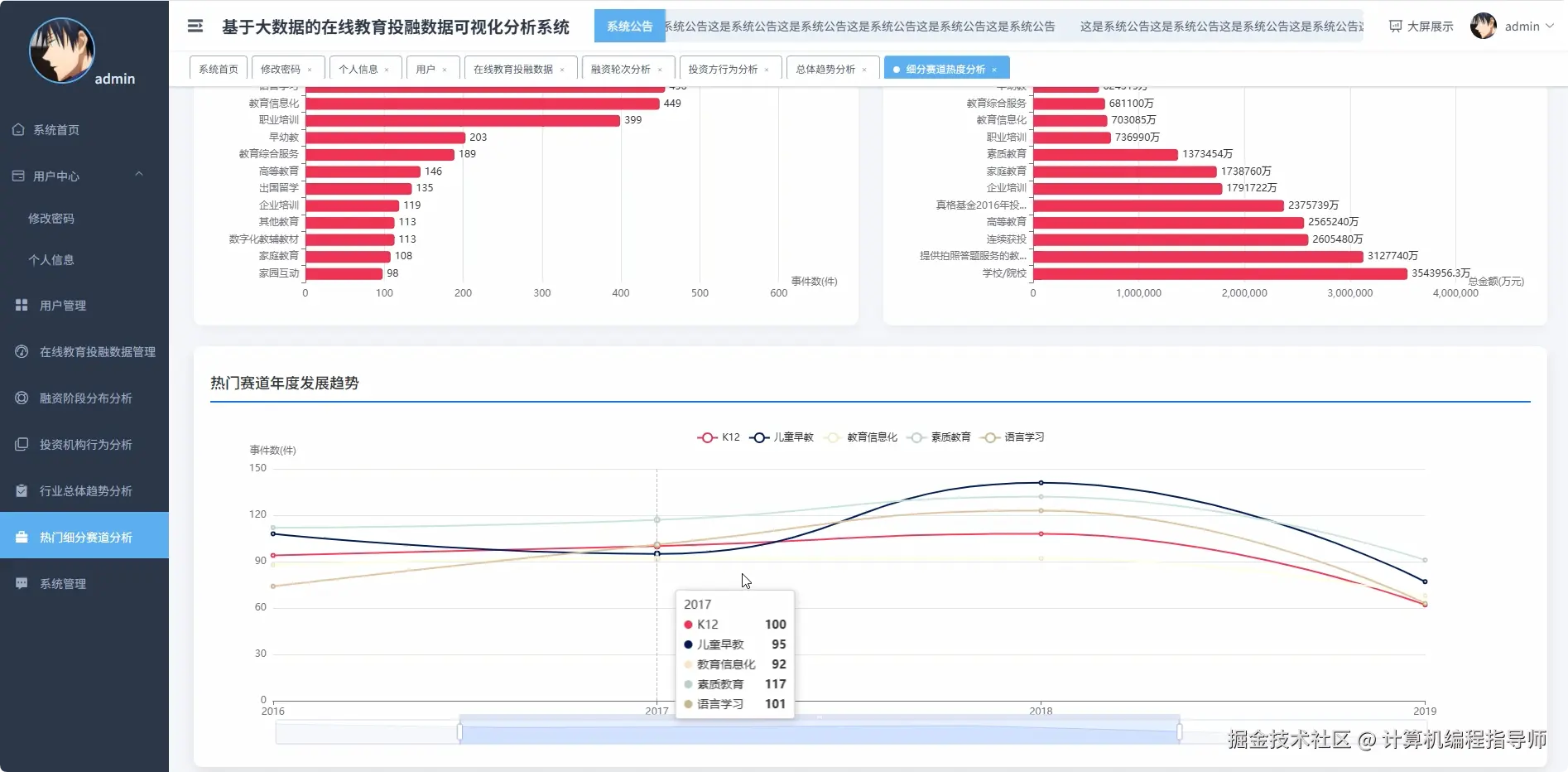

在线教育投融数据可视化分析系统-图片展示
在线教育投融数据可视化分析系统-代码展示
def analyze_annual_investment_trends(self):
"""1. 在线教育投融资总体趋势分析 - 年度投融资事件数量与金额趋势"""
# 使用Spark SQL处理大规模投融资数据
spark_df = self.spark.read.format("jdbc").options(
url="jdbc:mysql://localhost:3306/education_investment",
driver="com.mysql.cj.jdbc.Driver",
dbtable="investment_records",
user="root",
password="password"
).load()
# 注册临时视图用于SQL查询
spark_df.createOrReplaceTempView("investment_data")
# 提取年份并统计每年的投融资事件数量
annual_count_sql = """
SELECT
YEAR(date) as year,
COUNT(*) as event_count,
SUM(amount_rmb) as total_amount,
AVG(amount_rmb) as avg_amount
FROM investment_data
WHERE date BETWEEN '2015-01-01' AND '2020-12-31'
AND amount_rmb IS NOT NULL
GROUP BY YEAR(date)
ORDER BY year
"""
annual_stats = self.spark.sql(annual_count_sql).collect()
# 计算年度同比增长率
growth_rates = []
for i in range(1, len(annual_stats)):
current_year = annual_stats[i]
previous_year = annual_stats[i-1]
count_growth = ((current_year.event_count - previous_year.event_count) /
previous_year.event_count) * 100
amount_growth = ((current_year.total_amount - previous_year.total_amount) /
previous_year.total_amount) * 100
growth_rates.append({
'year': current_year.year,
'count_growth_rate': round(count_growth, 2),
'amount_growth_rate': round(amount_growth, 2)
})
# 季度数据分析
quarterly_sql = """
SELECT
YEAR(date) as year,
QUARTER(date) as quarter,
COUNT(*) as quarterly_count,
SUM(amount_rmb) as quarterly_amount
FROM investment_data
WHERE date BETWEEN '2015-01-01' AND '2020-12-31'
GROUP BY YEAR(date), QUARTER(date)
ORDER BY year, quarter
"""
quarterly_data = self.spark.sql(quarterly_sql).collect()
# 使用pandas进行进一步数据处理和统计分析
import pandas as pd
import numpy as np
df_annual = pd.DataFrame([row.asDict() for row in annual_stats])
df_quarterly = pd.DataFrame([row.asDict() for row in quarterly_data])
# 计算趋势线和相关性分析
years = df_annual['year'].values
amounts = df_annual['total_amount'].values
trend_coefficient = np.polyfit(years, amounts, 1)
result = {
'annual_trends': df_annual.to_dict('records'),
'growth_rates': growth_rates,
'quarterly_trends': df_quarterly.to_dict('records'),
'trend_analysis': {
'slope': trend_coefficient[0],
'intercept': trend_coefficient[1],
'correlation': np.corrcoef(years, amounts)[0,1]
}
}
return result
def analyze_sector_investment_distribution(self):
"""2. 细分赛道投融资热度分析 - 各赛道投融资分布与热度排名"""
# 从HDFS读取预处理的标签数据
hdfs_path = "hdfs://localhost:9000/education_data/processed_tags/"
tags_df = self.spark.read.parquet(hdfs_path)
tags_df.createOrReplaceTempView("sector_data")
# 分析各细分赛道的投融资事件总数和金额
sector_analysis_sql = """
SELECT
tags as sector,
COUNT(*) as investment_count,
SUM(amount_rmb) as total_investment,
AVG(amount_rmb) as avg_investment,
MIN(amount_rmb) as min_investment,
MAX(amount_rmb) as max_investment,
COUNT(DISTINCT investor) as unique_investors
FROM sector_data
WHERE tags IS NOT NULL
AND amount_rmb > 0
GROUP BY tags
HAVING COUNT(*) >= 5
ORDER BY total_investment DESC
"""
sector_stats = self.spark.sql(sector_analysis_sql).collect()
# 计算各赛道的市场份额和集中度
total_market_amount = sum([row.total_investment for row in sector_stats])
total_market_count = sum([row.investment_count for row in sector_stats])
sector_analysis = []
for row in sector_stats:
market_share_amount = (row.total_investment / total_market_amount) * 100
market_share_count = (row.investment_count / total_market_count) * 100
sector_analysis.append({
'sector': row.sector,
'investment_count': row.investment_count,
'total_investment': row.total_investment,
'avg_investment': round(row.avg_investment, 2),
'market_share_amount': round(market_share_amount, 2),
'market_share_count': round(market_share_count, 2),
'unique_investors': row.unique_investors,
'investment_range': {
'min': row.min_investment,
'max': row.max_investment
}
})
# 分析热门赛道的年度发展趋势
top_sectors = [item['sector'] for item in sector_analysis[:5]]
trend_analysis_sql = f"""
SELECT
tags as sector,
YEAR(date) as year,
COUNT(*) as yearly_count,
SUM(amount_rmb) as yearly_amount
FROM sector_data
WHERE tags IN ('{"','".join(top_sectors)}')
AND date BETWEEN '2015-01-01' AND '2020-12-31'
GROUP BY tags, YEAR(date)
ORDER BY tags, year
"""
sector_trends = self.spark.sql(trend_analysis_sql).collect()
# 使用numpy计算各赛道的发展趋势斜率
import pandas as pd
trend_df = pd.DataFrame([row.asDict() for row in sector_trends])
sector_growth_trends = {}
for sector in top_sectors:
sector_data = trend_df[trend_df['sector'] == sector]
if len(sector_data) > 2:
years = sector_data['year'].values
amounts = sector_data['yearly_amount'].values
slope, intercept = np.polyfit(years, amounts, 1)
sector_growth_trends[sector] = {
'growth_slope': slope,
'trend_direction': 'increasing' if slope > 0 else 'decreasing'
}
return {
'sector_rankings': sector_analysis,
'sector_trends': trend_df.to_dict('records'),
'growth_analysis': sector_growth_trends,
'market_overview': {
'total_sectors': len(sector_analysis),
'total_market_amount': total_market_amount,
'total_market_count': total_market_count
}
}
def analyze_investment_rounds_distribution(self):
"""3. 融资轮次与企业发展阶段分析 - 各轮次资金分布与估值分析"""
# 创建Spark SQL查询分析融资轮次分布
rounds_analysis_sql = """
SELECT
round,
COUNT(*) as round_count,
SUM(amount_rmb) as total_funding,
AVG(amount_rmb) as avg_funding,
AVG(valuation_rmb) as avg_valuation,
MIN(valuation_rmb) as min_valuation,
MAX(valuation_rmb) as max_valuation,
STDDEV(amount_rmb) as funding_stddev,
PERCENTILE_APPROX(amount_rmb, 0.5) as median_funding,
PERCENTILE_APPROX(valuation_rmb, 0.5) as median_valuation
FROM investment_data
WHERE round IS NOT NULL
AND amount_rmb > 0
AND valuation_rmb > 0
GROUP BY round
ORDER BY
CASE
WHEN round LIKE '%天使%' OR round LIKE '%Angel%' THEN 1
WHEN round LIKE '%Pre-A%' THEN 2
WHEN round LIKE '%A轮%' OR round LIKE '%A%' THEN 3
WHEN round LIKE '%A+%' THEN 4
WHEN round LIKE '%B轮%' OR round LIKE '%B%' THEN 5
WHEN round LIKE '%C轮%' OR round LIKE '%C%' THEN 6
WHEN round LIKE '%D轮%' OR round LIKE '%D%' THEN 7
WHEN round LIKE '%IPO%' OR round LIKE '%上市%' THEN 8
ELSE 9
END
"""
rounds_data = self.spark.sql(rounds_analysis_sql).collect()
# 计算各轮次的市场份额和资金占比
total_rounds_funding = sum([row.total_funding for row in rounds_data])
total_rounds_count = sum([row.round_count for row in rounds_data])
rounds_analysis = []
for row in rounds_data:
funding_share = (row.total_funding / total_rounds_funding) * 100
count_share = (row.round_count / total_rounds_count) * 100
# 计算估值增长倍数（相对于前一轮次的估值中位数）
valuation_multiple = 0
if len(rounds_analysis) > 0:
prev_valuation = rounds_analysis[-1]['median_valuation']
if prev_valuation > 0:
valuation_multiple = row.median_valuation / prev_valuation
rounds_analysis.append({
'round': row.round,
'count': row.round_count,
'total_funding': row.total_funding,
'avg_funding': round(row.avg_funding, 2),
'median_funding': row.median_funding,
'avg_valuation': round(row.avg_valuation, 2) if row.avg_valuation else 0,
'median_valuation': row.median_valuation if row.median_valuation else 0,
'funding_share_percent': round(funding_share, 2),
'count_share_percent': round(count_share, 2),
'funding_volatility': round(row.funding_stddev, 2) if row.funding_stddev else 0,
'valuation_range': {
'min': row.min_valuation if row.min_valuation else 0,
'max': row.max_valuation if row.max_valuation else 0
},
'valuation_growth_multiple': round(valuation_multiple, 2) if valuation_multiple else 0
})
# 分析不同年份的融资轮次结构变化
yearly_rounds_sql = """
SELECT
YEAR(date) as year,
round,
COUNT(*) as yearly_round_count,
SUM(amount_rmb) as yearly_round_funding
FROM investment_data
WHERE round IS NOT NULL
AND date BETWEEN '2015-01-01' AND '2020-12-31'
GROUP BY YEAR(date), round
ORDER BY year, round
"""
yearly_rounds = self.spark.sql(yearly_rounds_sql).collect()
# 使用pandas分析市场成熟度变化趋势
import pandas as pd
yearly_df = pd.DataFrame([row.asDict() for row in yearly_rounds])
# 计算每年后期轮次（C轮及以后）的占比变化
maturity_analysis = {}
for year in range(2015, 2021):
year_data = yearly_df[yearly_df['year'] == year]
total_year_count = year_data['yearly_round_count'].sum()
late_stage_rounds = year_data[
year_data['round'].str.contains('C轮|D轮|E轮|F轮|IPO|上市', na=False, case=False)
]
late_stage_count = late_stage_rounds['yearly_round_count'].sum()
maturity_ratio = (late_stage_count / total_year_count) * 100 if total_year_count > 0 else 0
maturity_analysis[str(year)] = {
'total_deals': int(total_year_count),
'late_stage_deals': int(late_stage_count),
'maturity_ratio': round(maturity_ratio, 2)
}
return {
'rounds_distribution': rounds_analysis,
'yearly_structure': yearly_df.to_dict('records'),
'market_maturity_trends': maturity_analysis,
'overall_statistics': {
'total_funding_all_rounds': total_rounds_funding,
'total_deals_all_rounds': total_rounds_count,
'unique_round_types': len(rounds_analysis)
}
}
在线教育投融数据可视化分析系统-结语
计算机毕设不知道选什么技术？基于Hadoop的在线教育投融数据可视化分析系统技术栈详解
