中国水污染监测数据可视化分析系统-简介
《基于大数据的中国水污染监测数据可视化分析系统》是一套利用现代大数据技术解决水环境监测难题的创新平台，核心采用Hadoop分布式存储与Spark并行计算框架，配合NumPy和Pandas进行数据科学运算，实现了对全国范围内水质监测数据的采集、存储、处理与可视化分析全流程。系统通过四大功能模块——水质时空分布特征分析、核心水污染指标深度剖析、水质污染成因与驱动力探索及综合评价与专题分析，构建了包含全国水质综合评价、污染物浓度对比、水质变化趋势、污染等级分布、地理热力图等多维度分析视图。前端采用Vue+ElementUI+Echarts技术栈，后端支持Python(Django)和Java(Spring Boot)双版本实现，通过Spark SQL高效处理结构化数据，应用K-Means聚类和主成分分析等算法挖掘水质数据背后的污染规律和成因，为水环境管理提供了科学、直观的决策支持工具。
中国水污染监测数据可视化分析系统-技术
开发语言：
大数据框架：Hadoop+Spark（本次没用Hive，支持定制）
后端框架：Django+Spring Boot(Spring+SpringMVC+Mybatis)（两个版本都支持）
前端：Vue+ElementUI+Echarts+HTML+CSS+JavaScript+jQuery
详细技术点：Hadoop、HDFS、Spark、Spark SQL、Pandas、NumPy
数据库：MySQL
中国水污染监测数据可视化分析系统-视频展示
中国水污染监测数据可视化分析系统-图片展示
封面

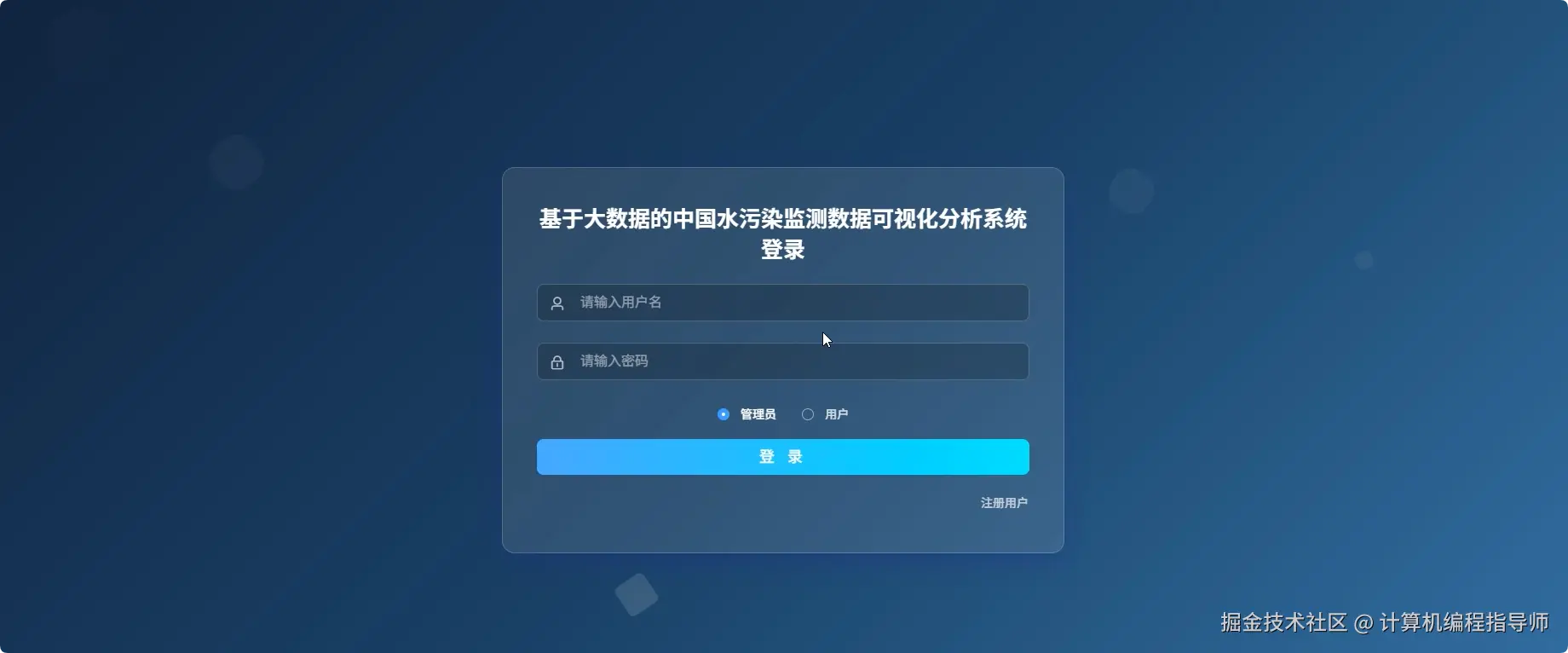

登录

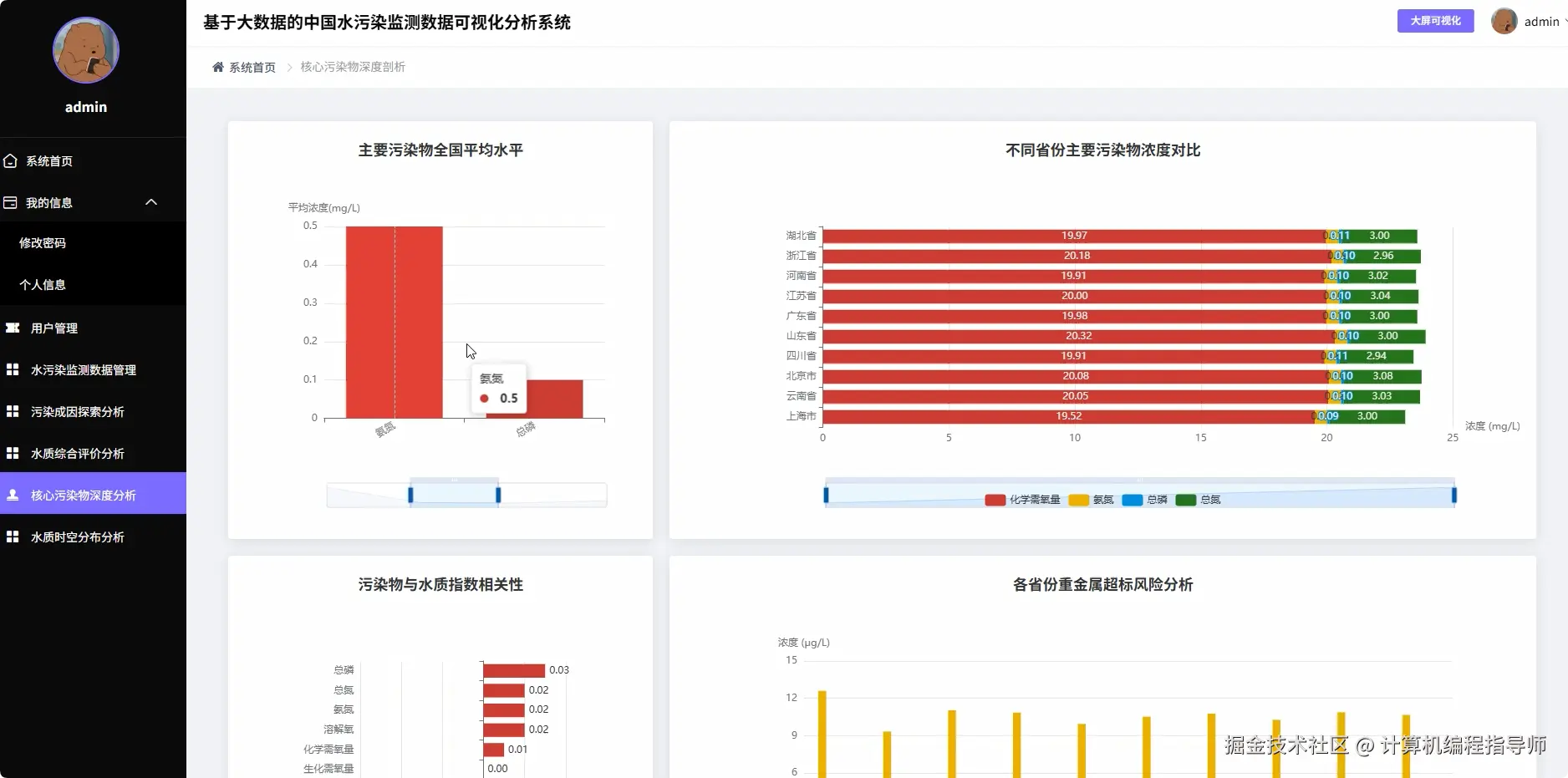

核心污染物深度分析

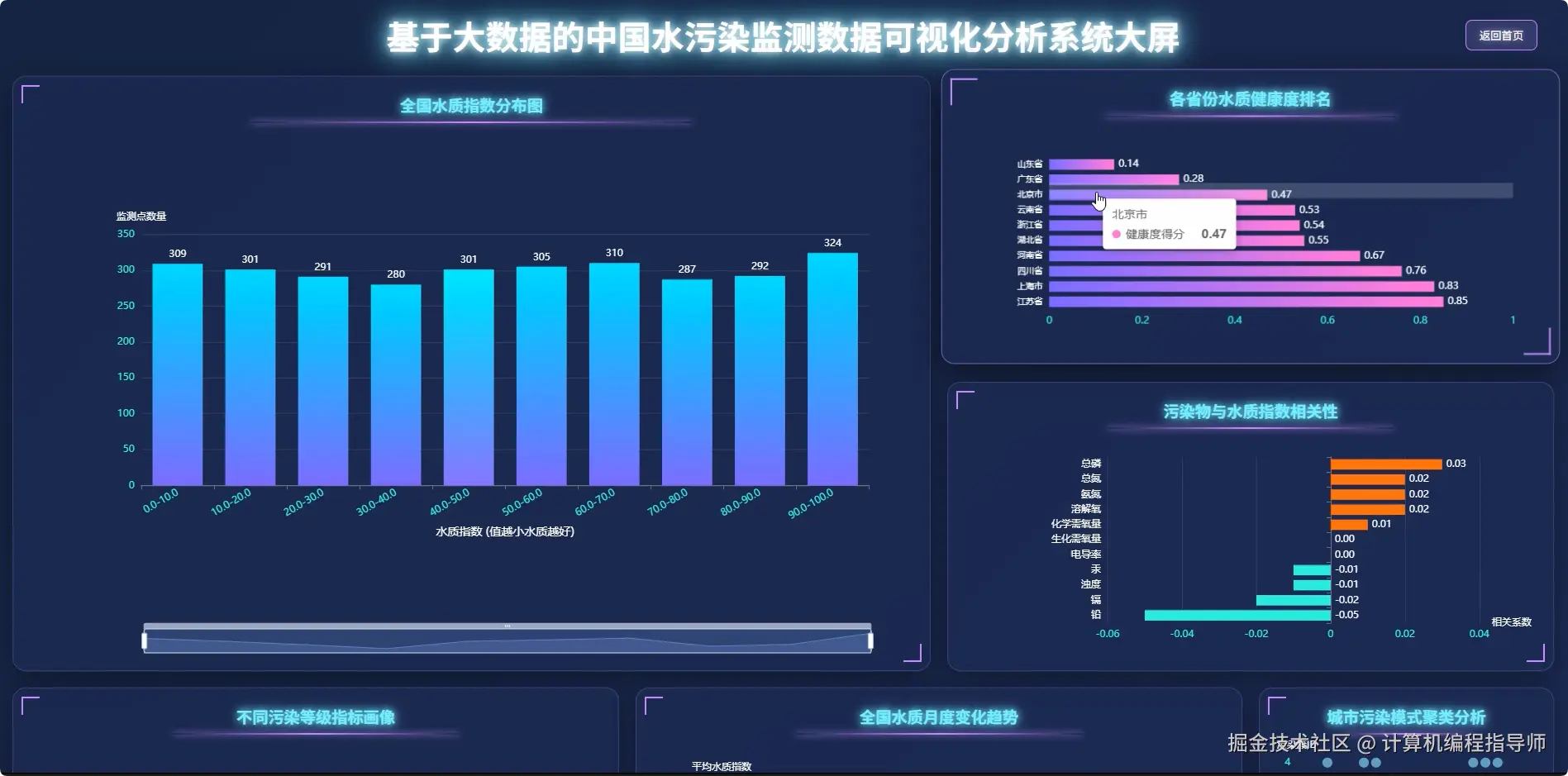

数据统计大屏分析

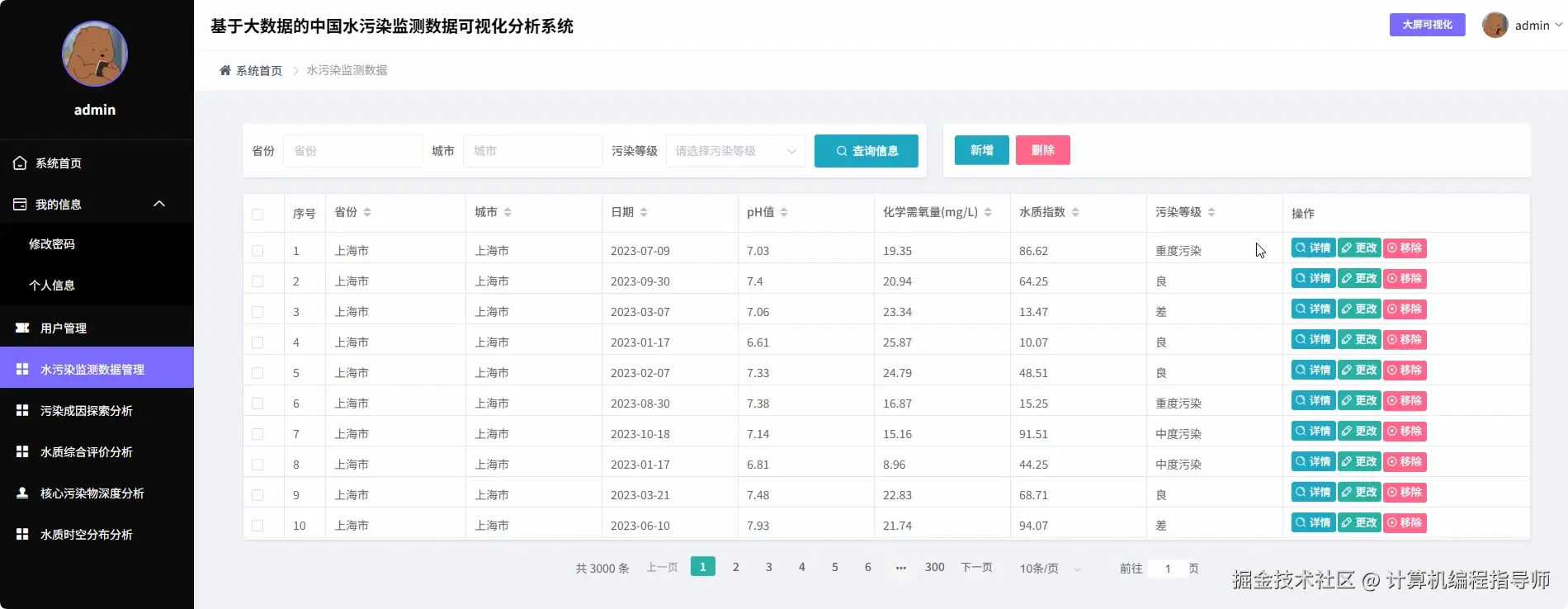

水污染监测数据

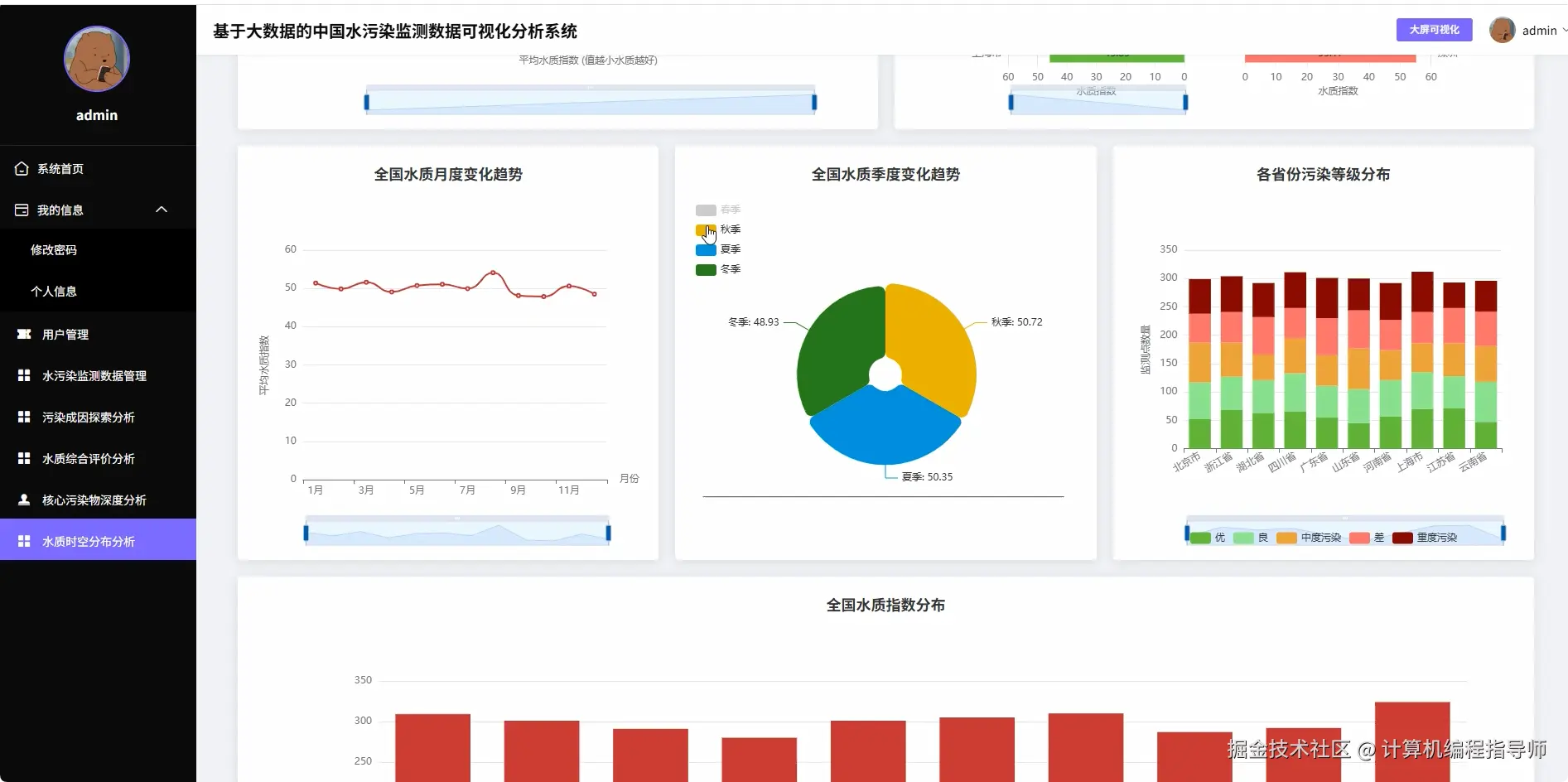

水质时空分布分析

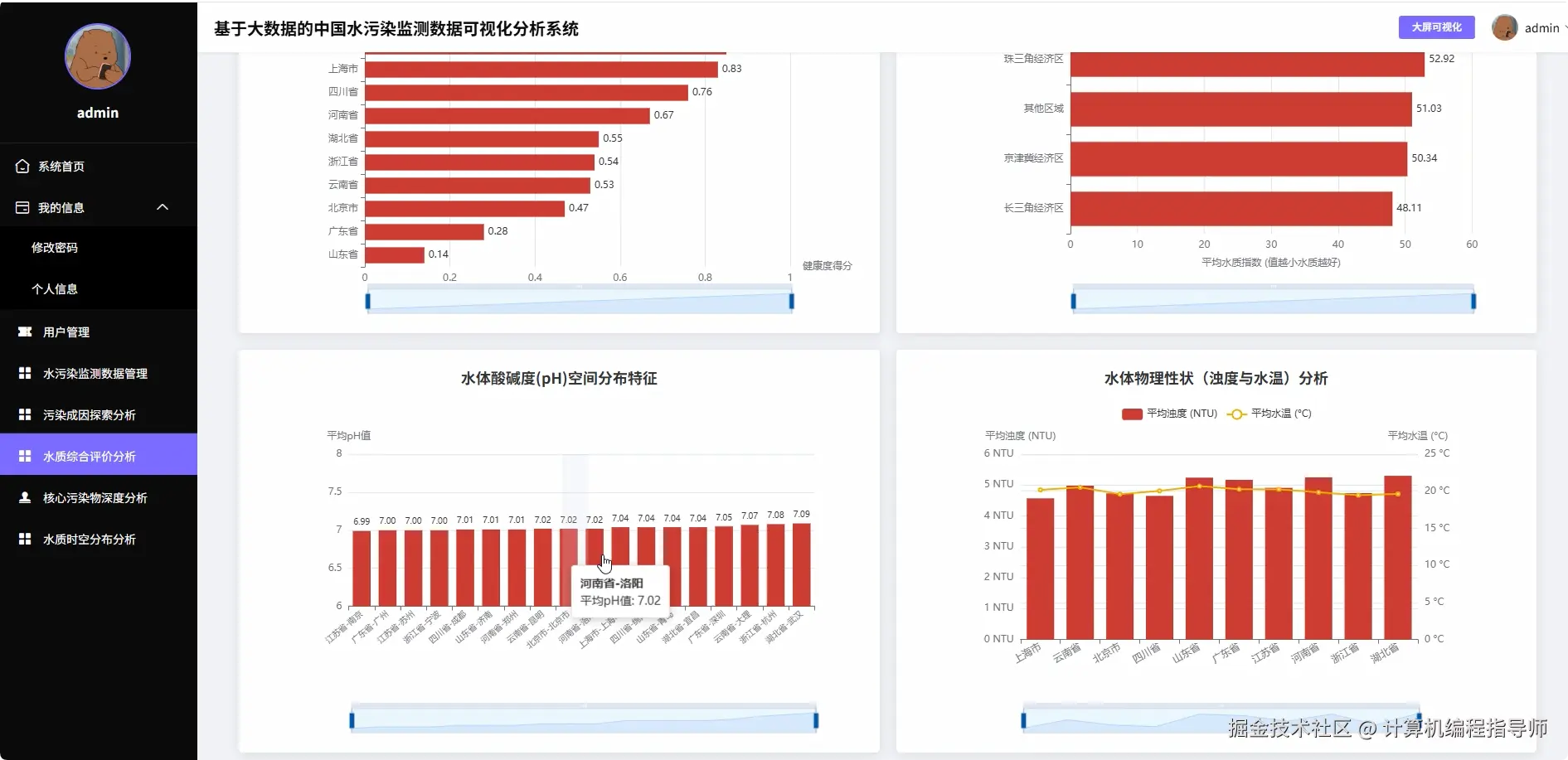

水质综合评价分析

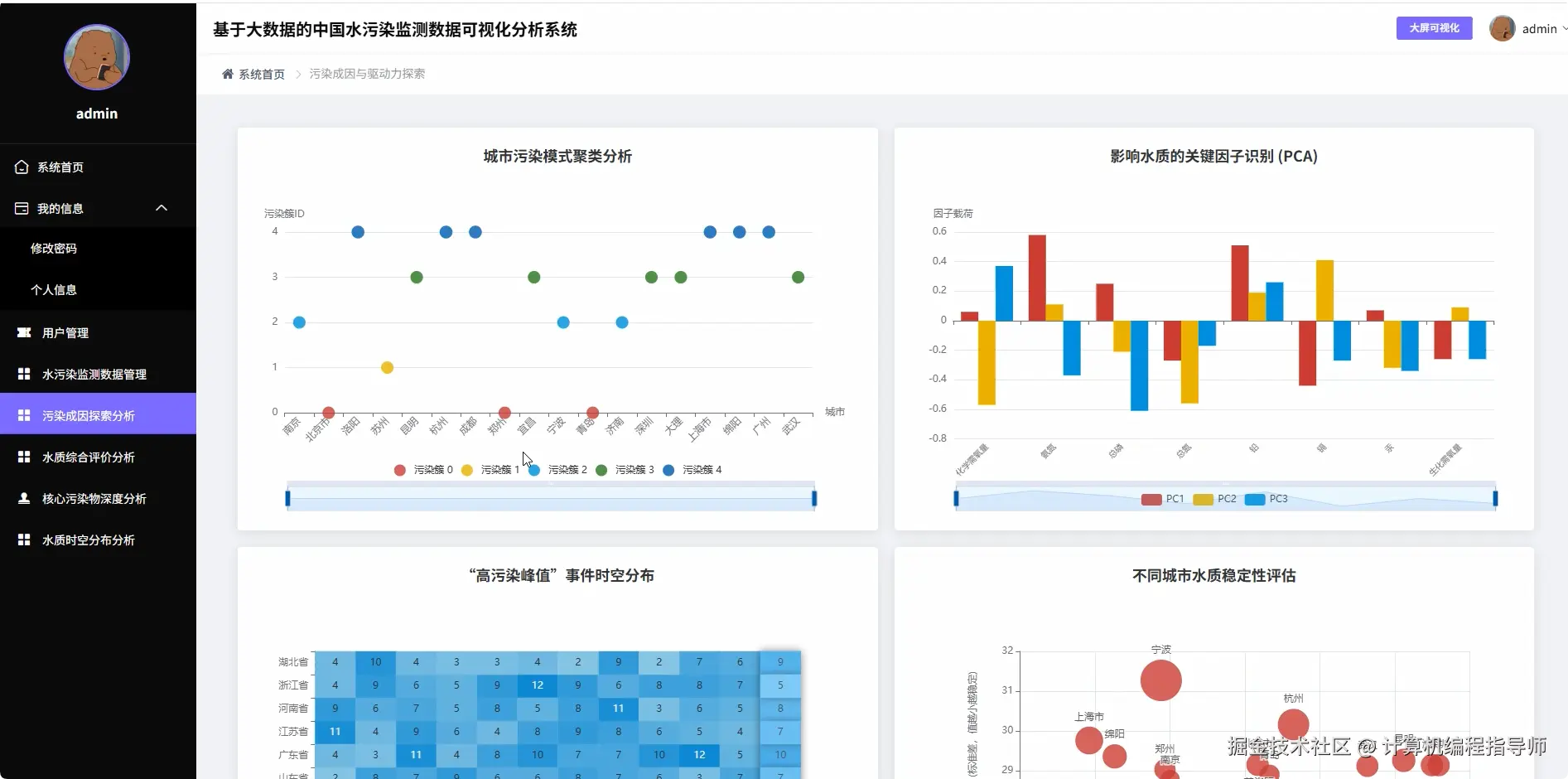

污染成因探索分析

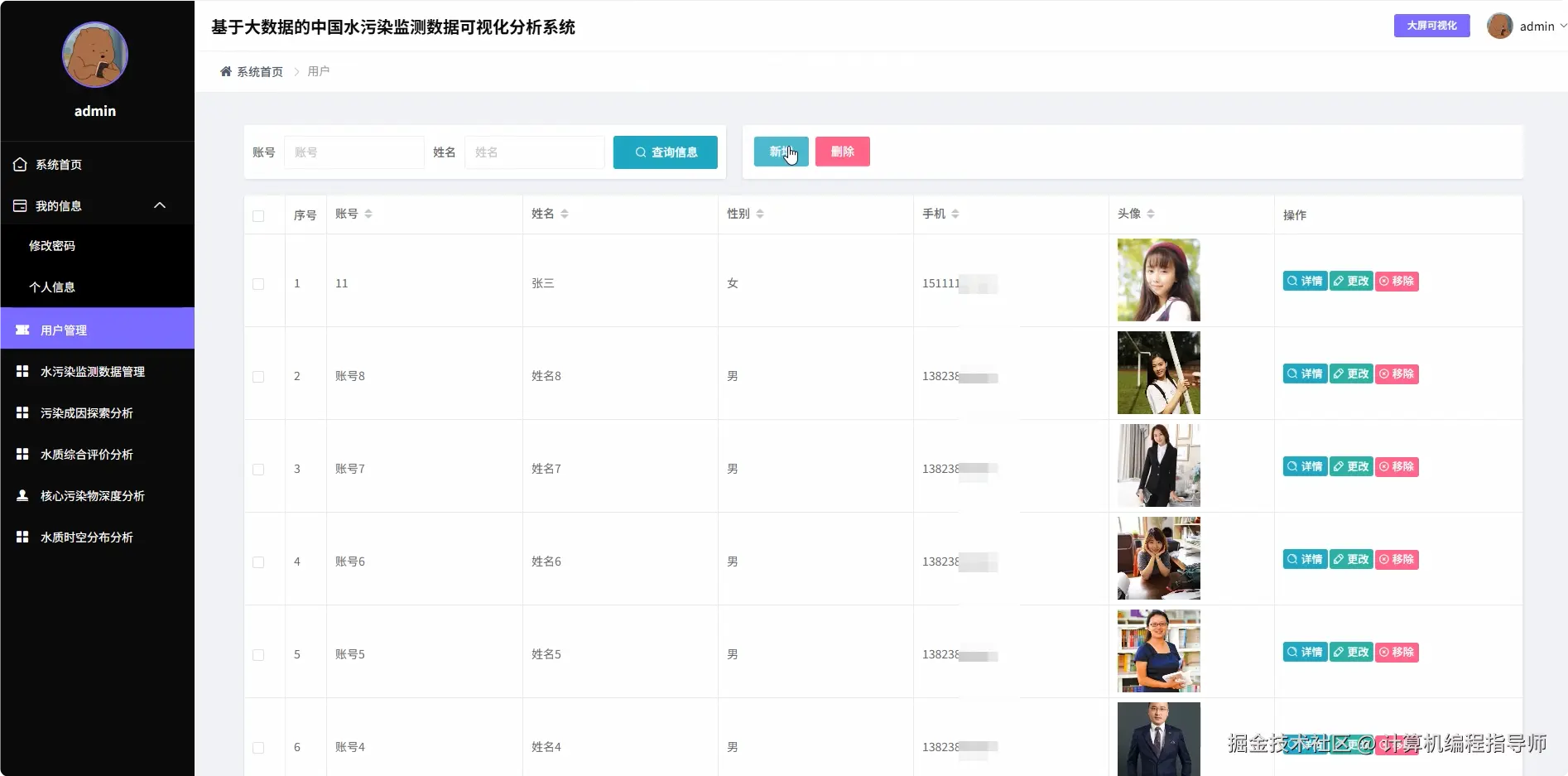

用户
中国水污染监测数据可视化分析系统-代码展示
# 功能1：全国各省份水质综合评价
def calculate_province_water_quality_index(spark_session):
# 从HDFS读取水质数据
water_quality_df = spark_session.read.parquet("hdfs://master:9000/water_data/water_quality.parquet")
# 按省份分组并计算平均水质指数
province_avg = water_quality_df.groupBy("Province").agg({"Water_Quality_Index": "avg"})
province_avg = province_avg.withColumnRenamed("avg(Water_Quality_Index)", "avg_wqi")
# 按水质指数降序排列
province_avg = province_avg.orderBy(F.desc("avg_wqi"))
# 将结果转换为Python列表
result = province_avg.collect()
province_data = []
for row in result:
province = row["Province"]
avg_wqi = float(row["avg_wqi"])
# 根据水质指数划分污染等级
if avg_wqi >= 90:
pollution_level = "优"
elif avg_wqi >= 70:
pollution_level = "良"
elif avg_wqi >= 50:
pollution_level = "中"
else:
pollution_level = "差"
province_data.append({
"province": province,
"avg_wqi": round(avg_wqi, 2),
"pollution_level": pollution_level
})
# 将结果保存到MySQL数据库
with connection.cursor() as cursor:
cursor.execute("TRUNCATE TABLE province_water_quality")
for item in province_data:
cursor.execute(
"INSERT INTO province_water_quality (province, avg_wqi, pollution_level) VALUES (%s, %s, %s)",
(item["province"], item["avg_wqi"], item["pollution_level"])
)
# 缓存结果用于提高性能
cache.set('province_water_quality', province_data, timeout=3600)
return province_data
# 功能2：水体富营养化风险评估
def evaluate_eutrophication_risk(spark_session):
# 从HDFS读取水质数据
water_quality_df = spark_session.read.parquet("hdfs://master:9000/water_data/water_quality.parquet")
# 选择相关字段并过滤掉空值
eutrophication_df = water_quality_df.select("Province", "City", "Total_Phosphorus_mg_L", "Total_Nitrogen_mg_L")
eutrophication_df = eutrophication_df.filter(
eutrophication_df.Total_Phosphorus_mg_L.isNotNull() &
eutrophication_df.Total_Nitrogen_mg_L.isNotNull()
)
# 创建富营养化风险评估UDF函数
def calculate_risk(phosphorus, nitrogen):
# 根据总磷和总氮的浓度计算富营养化风险等级
# 参考国家地表水环境质量标准(GB 3838-2002)
if phosphorus <= 0.02 and nitrogen <= 0.5:
return {"risk_level": "低", "risk_score": 1}
elif phosphorus <= 0.1 and nitrogen <= 1.0:
return {"risk_level": "中低", "risk_score": 2}
elif phosphorus <= 0.2 and nitrogen <= 1.5:
return {"risk_level": "中", "risk_score": 3}
elif phosphorus <= 0.3 and nitrogen <= 2.0:
return {"risk_level": "中高", "risk_score": 4}
else:
return {"risk_level": "高", "risk_score": 5}
# 注册UDF
risk_udf = F.udf(calculate_risk, T.MapType(T.StringType(), T.StringType()))
# 应用UDF计算风险等级
eutrophication_df = eutrophication_df.withColumn(
"risk",
risk_udf(eutrophication_df.Total_Phosphorus_mg_L, eutrophication_df.Total_Nitrogen_mg_L)
)
# 按省份分组并计算平均风险分数
province_risk = eutrophication_df.groupBy("Province").agg(
F.avg(F.col("risk.risk_score").cast("float")).alias("avg_risk_score"),
F.count("*").alias("sample_count")
)
# 将结果转换为Python列表
result = province_risk.collect()
risk_data = []
for row in result:
province = row["Province"]
avg_risk = float(row["avg_risk_score"])
sample_count = int(row["sample_count"])
# 确定风险等级
if avg_risk < 1.5:
risk_level = "低"
elif avg_risk < 2.5:
risk_level = "中低"
elif avg_risk < 3.5:
risk_level = "中"
elif avg_risk < 4.5:
risk_level = "中高"
else:
risk_level = "高"
risk_data.append({
"province": province,
"avg_risk_score": round(avg_risk, 2),
"risk_level": risk_level,
"sample_count": sample_count
})
# 将结果保存到MySQL数据库
with connection.cursor() as cursor:
cursor.execute("TRUNCATE TABLE eutrophication_risk")
for item in risk_data:
cursor.execute(
"INSERT INTO eutrophication_risk (province, avg_risk_score, risk_level, sample_count) VALUES (%s, %s, %s, %s)",
(item["province"], item["avg_risk_score"], item["risk_level"], item["sample_count"])
)
return risk_data
# 功能3：城市污染模式聚类分析
def city_pollution_clustering(spark_session):
# 从HDFS读取水质数据
water_quality_df = spark_session.read.parquet("hdfs://master:9000/water_data/water_quality.parquet")
# 选择用于聚类的特征
features = ["COD_mg_L", "Ammonia_N_mg_L", "Total_Phosphorus_mg_L",
"Total_Nitrogen_mg_L", "Heavy_Metals_Pb_ug_L", "Heavy_Metals_Cd_ug_L",
"Heavy_Metals_Hg_ug_L", "pH", "Turbidity_NTU"]
# 按城市分组并计算平均污染物浓度
city_avg_df = water_quality_df.groupBy("City", "Province").agg(
*[F.avg(col).alias(col) for col in features]
)
# 将Spark DataFrame转换为Pandas DataFrame以便使用scikit-learn
pandas_df = city_avg_df.toPandas()
# 数据预处理：填充缺失值并标准化
for feature in features:
pandas_df[feature].fillna(pandas_df[feature].mean(), inplace=True)
# 提取特征矩阵
X = pandas_df[features].values
# 标准化特征
scaler = StandardScaler()
X_scaled = scaler.fit_transform(X)
# 使用K-means聚类算法
kmeans = KMeans(n_clusters=4, random_state=42)
pandas_df['cluster'] = kmeans.fit_predict(X_scaled)
# 计算每个聚类的中心点
cluster_centers = kmeans.cluster_centers_
# 分析每个聚类的特征
cluster_profiles = []
for i in range(4):
# 获取该聚类的所有城市
cluster_cities = pandas_df[pandas_df['cluster'] == i]
# 计算该聚类的主要污染物特征
center = cluster_centers[i]
# 找出该聚类中最显著的三个污染物指标
top_features_idx = np.argsort(np.abs(center))[-3:]
top_features = [features[idx] for idx in top_features_idx]
# 确定污染类型
if "Heavy_Metals_Pb_ug_L" in top_features or "Heavy_Metals_Cd_ug_L" in top_features or "Heavy_Metals_Hg_ug_L" in top_features:
pollution_type = "重金属污染型"
elif "Total_Phosphorus_mg_L" in top_features or "Total_Nitrogen_mg_L" in top_features:
pollution_type = "农业面源污染型"
elif "COD_mg_L" in top_features or "Ammonia_N_mg_L" in top_features:
pollution_type = "工业有机污染型"
else:
pollution_type = "混合污染型"
cluster_profiles.append({
"cluster_id": i,
"pollution_type": pollution_type,
"city_count": len(cluster_cities),
"top_features": top_features,
"cities": cluster_cities[["City", "Province"]].to_dict('records')
})
# 将聚类结果保存到MySQL数据库
with connection.cursor() as cursor:
cursor.execute("TRUNCATE TABLE city_pollution_clusters")
for city_row in pandas_df.itertuples():
cursor.execute(
"INSERT INTO city_pollution_clusters (city, province, cluster_id, pollution_type) VALUES (%s, %s, %s, %s)",
(city_row.City, city_row.Province, int(city_row.cluster),
next(item["pollution_type"] for item in cluster_profiles if item["cluster_id"] == city_row.cluster))
)
return {
"cluster_profiles": cluster_profiles,
"city_clusters": pandas_df[["City", "Province", "cluster"]].to_dict('records')
}

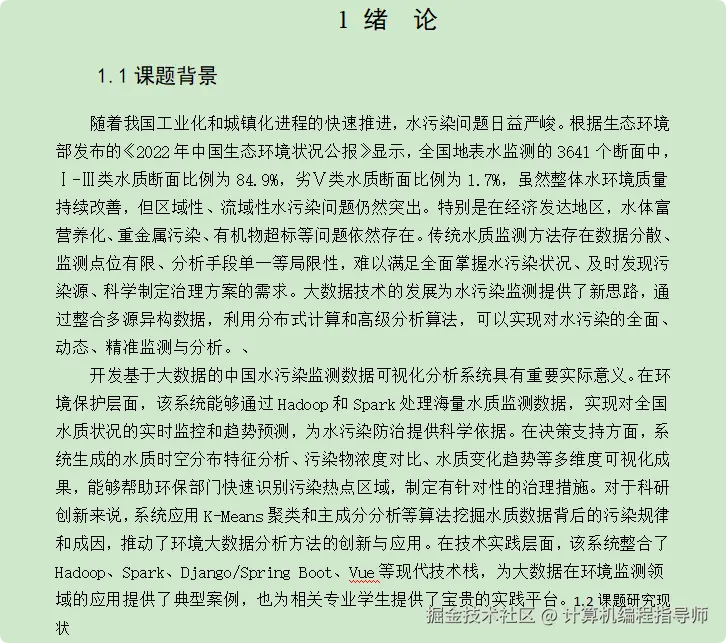

中国水污染监测数据可视化分析系统-文档展示
