基于Hadoop+Spark的学生抑郁数据可视化分析系统-功能介绍
《基于Hadoop+Spark的学生抑郁数据可视化分析系统》是一个融合大数据技术与心理健康分析的综合平台，核心采用Hadoop分布式存储和Spark计算引擎处理海量学生心理健康数据。系统通过Python/Java双语言支持，结合Django/Spring Boot后端框架，以Vue+ElementUI+Echarts构建直观的可视化界面，实现了对学生抑郁问题的多维度深入分析。功能模块涵盖学生抑郁群体基础画像分析、学业因素与抑郁情绪的关联性分析、生活方式与抑郁情绪的关联性分析以及个人及家庭背景因素的深度探查四大维度。系统利用Spark SQL进行高效数据查询，结合Pandas与NumPy实现复杂数据处理，通过HDFS确保数据安全存储，最终在MySQL数据库支持下，将抑郁率、性别分布、年龄特征、学习压力、睡眠质量、经济状况等多维因素以图表形式直观呈现，为高校心理健康工作提供数据支撑，帮助识别高风险群体并制定针对性干预措施，是一个集数据采集、处理、分析、可视化于一体的大数据应用系统。
基于Hadoop+Spark的学生抑郁数据可视化分析系统-选题背景意义
近年来，大学生心理健康问题日益凸显，尤其是抑郁症的发病率呈上升趋势。根据中国心理卫生协会发布的《2023年中国大学生心理健康状况调查报告》显示，全国高校学生抑郁症状检出率达16.8%，较五年前上升了3.7个百分点。面对如此庞大的数据量和复杂的影响因素，传统的统计分析方法已难以满足深入研究需求。大数据技术为心理健康领域带来了新的研究视角和方法，Hadoop和Spark等分布式计算框架能够高效处理海量数据，挖掘潜在规律。当前，学生抑郁问题的研究多集中在单一因素分析，缺乏多维度、多层次的综合评估系统。而可视化技术作为大数据分析的重要呈现手段，能够将复杂的数据关系转化为直观的图形，帮助教育工作者更好地理解学生抑郁问题的成因和特征。
开发基于Hadoop+Spark的学生抑郁数据可视化分析系统具有重要的实践价值。这一系统能够帮助高校心理健康中心精准识别高风险学生群体，通过对学业因素、生活方式、个人及家庭背景等多维数据的关联分析，揭示抑郁症状与各因素间的内在联系。系统生成的可视化报告为制定针对性的心理干预策略提供了数据支撑，有助于提高心理咨询的精准度和有效性。在教育管理层面，该系统能够为高校优化资源配置、改进教学环境和完善学生服务体系提供决策依据。从技术层面看，本系统将大数据技术与心理健康研究相结合，探索了一条跨学科融合的创新路径，为类似的健康数据分析系统提供了可借鉴的技术框架和实现方案。这种数据驱动的心理健康管理模式，对推动高校心理健康工作的科学化、精细化发展具有积极意义。
基于Hadoop+Spark的学生抑郁数据可视化分析系统-技术选型
大数据框架：Hadoop+Spark（本次没用Hive，支持定制） 开发语言：Python+Java（两个版本都支持） 后端框架：Django+Spring Boot(Spring+SpringMVC+Mybatis)（两个版本都支持） 前端：Vue+ElementUI+Echarts+HTML+CSS+JavaScript+jQuery 详细技术点：Hadoop、HDFS、Spark、Spark SQL、Pandas、NumPy 数据库：MySQL
基于Hadoop+Spark的学生抑郁数据可视化分析系统-视频展示

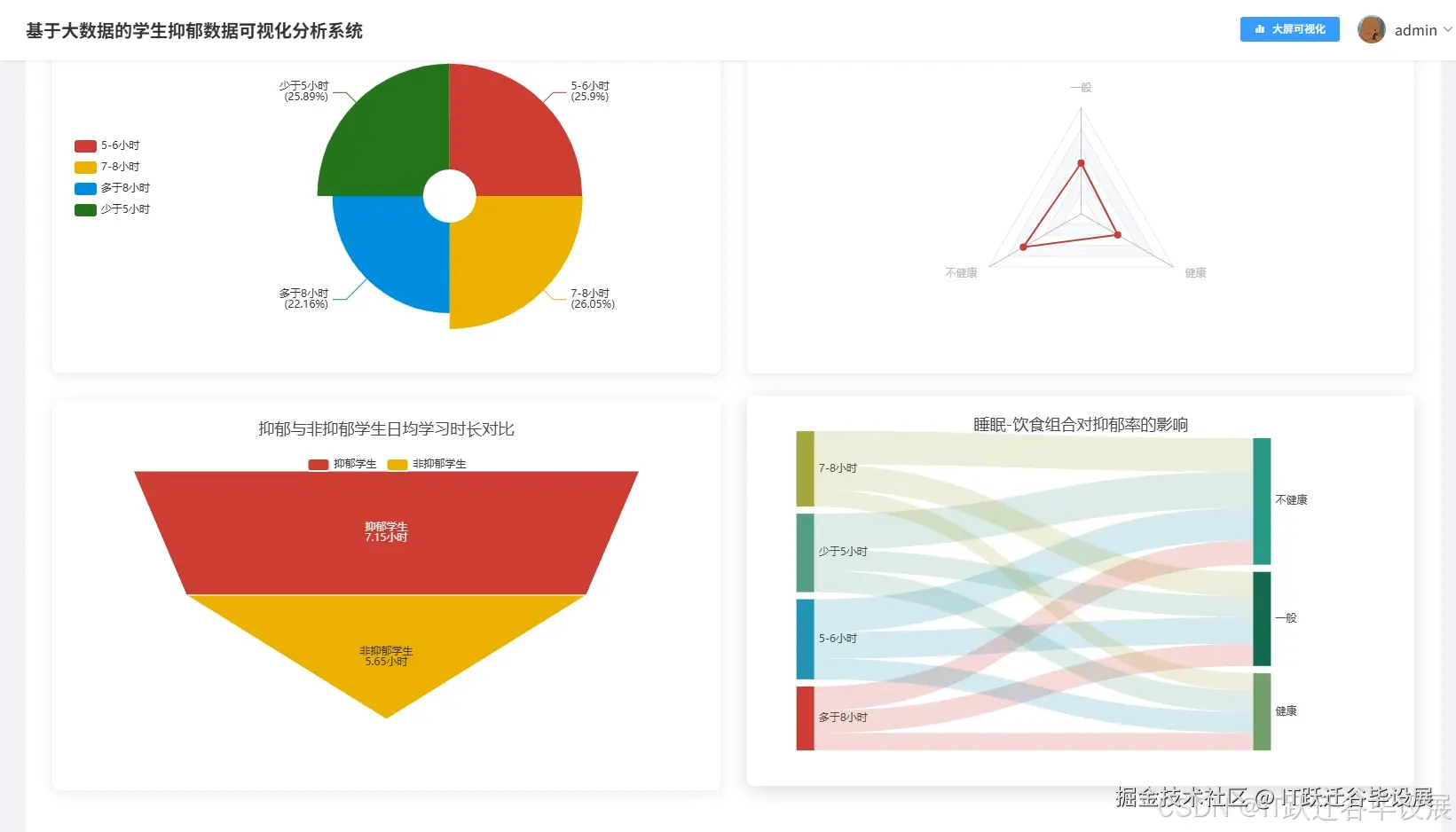

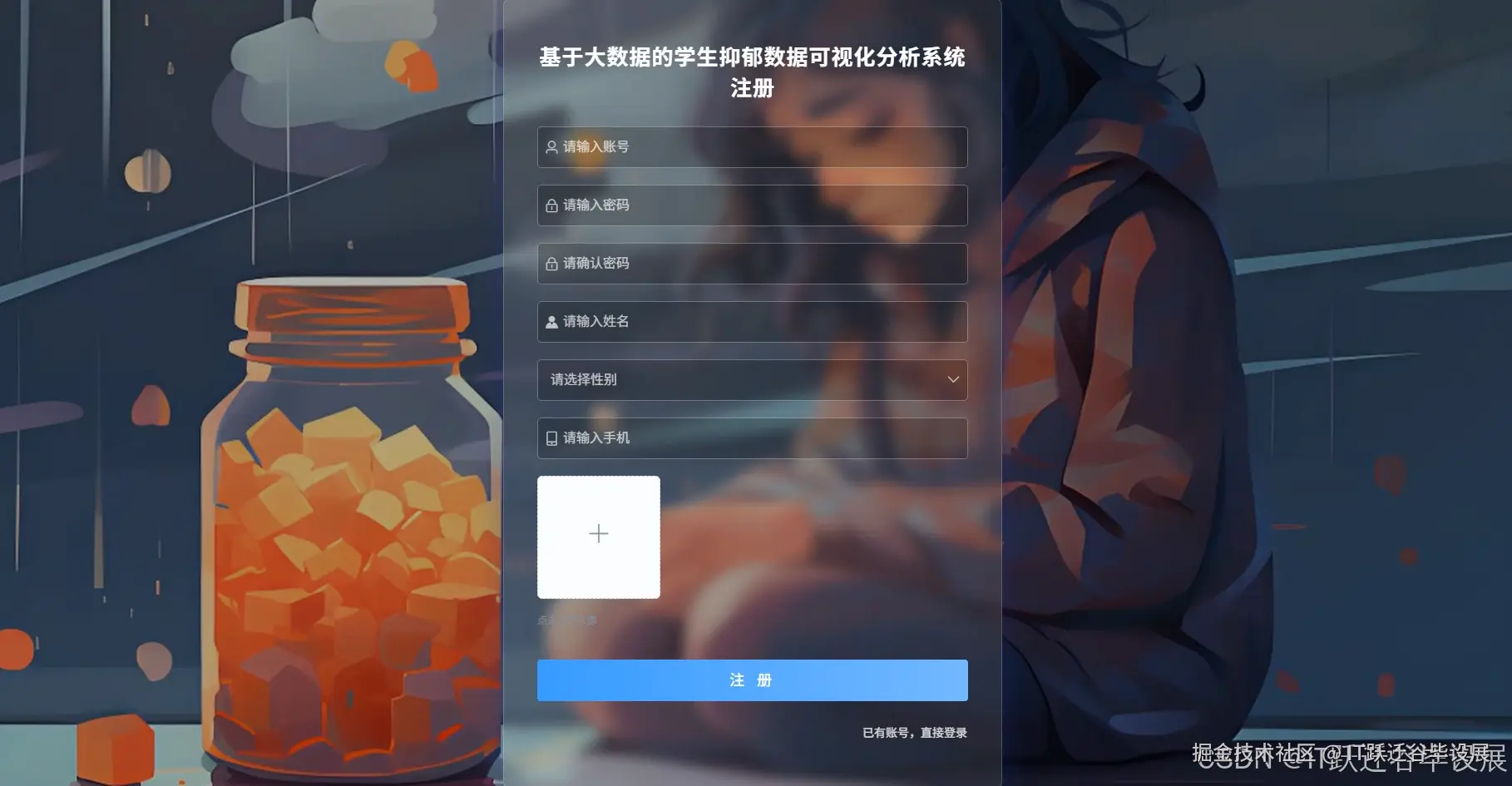

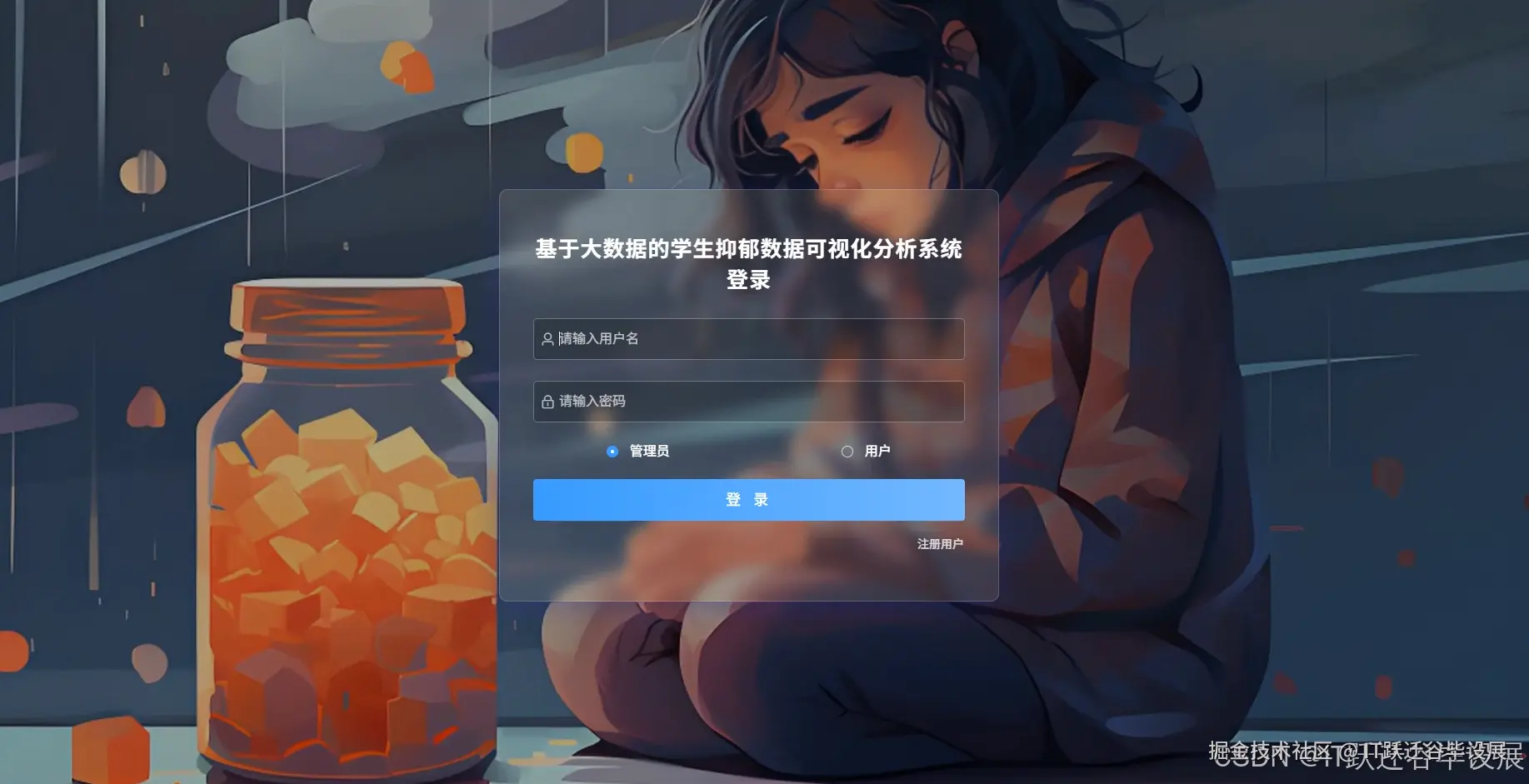

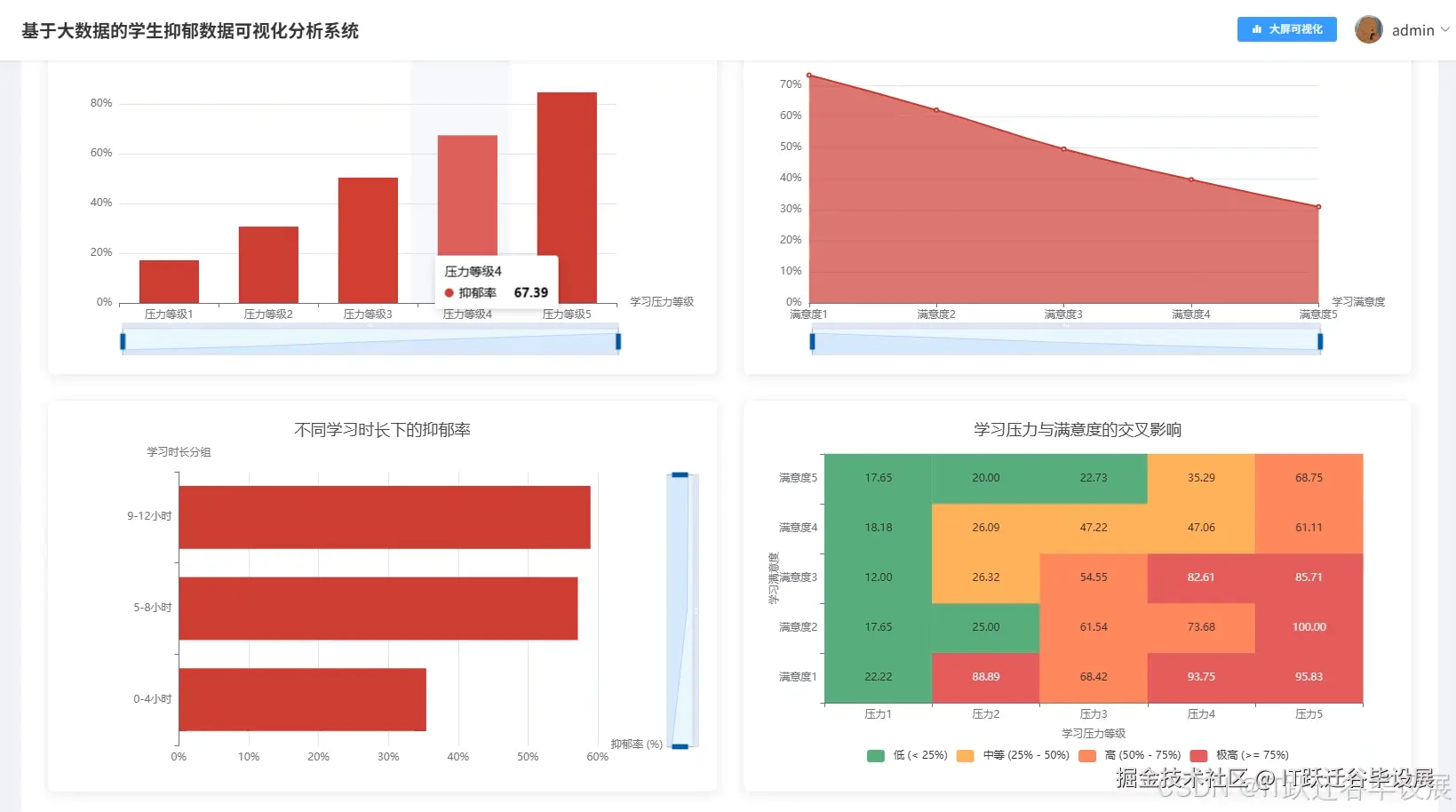

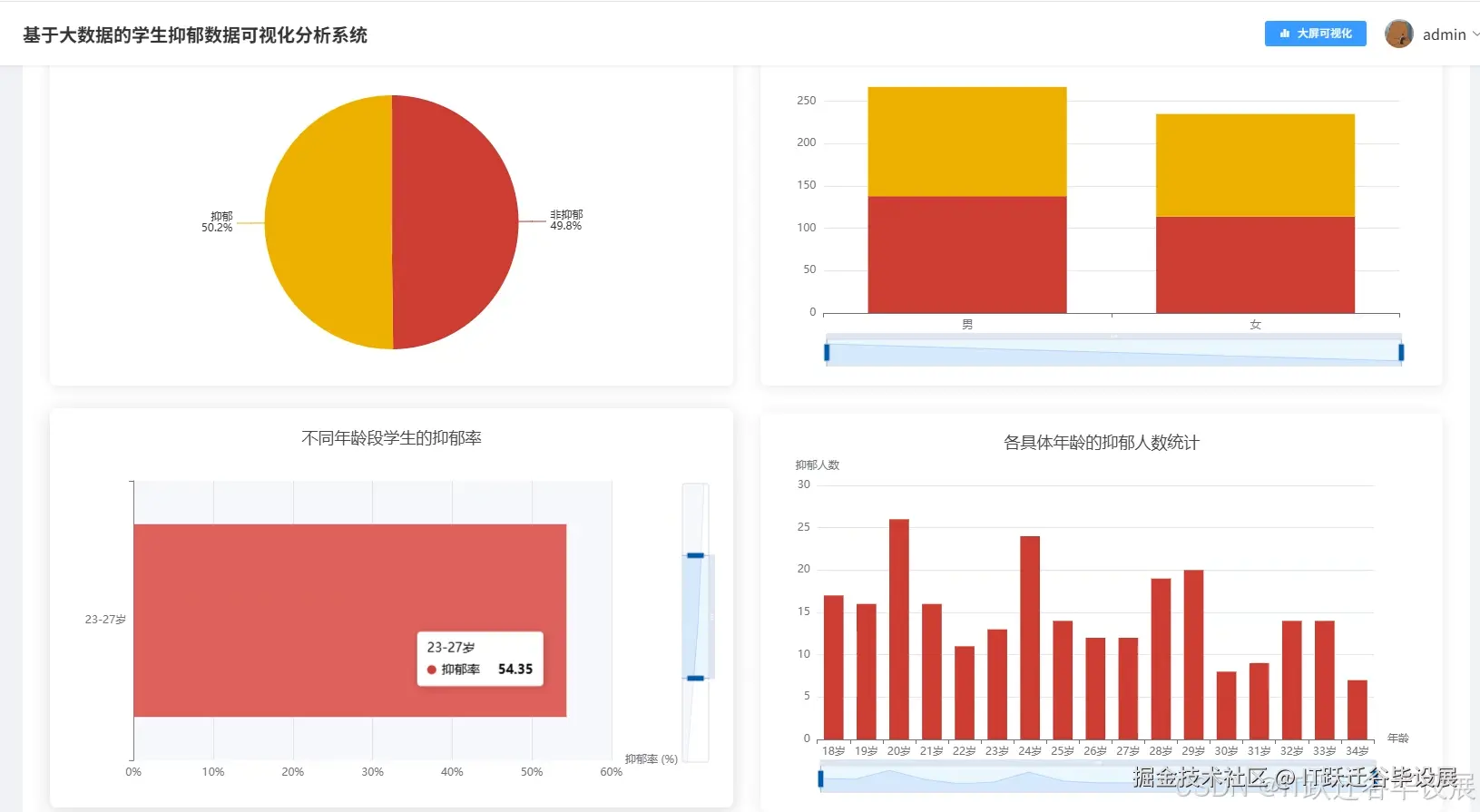

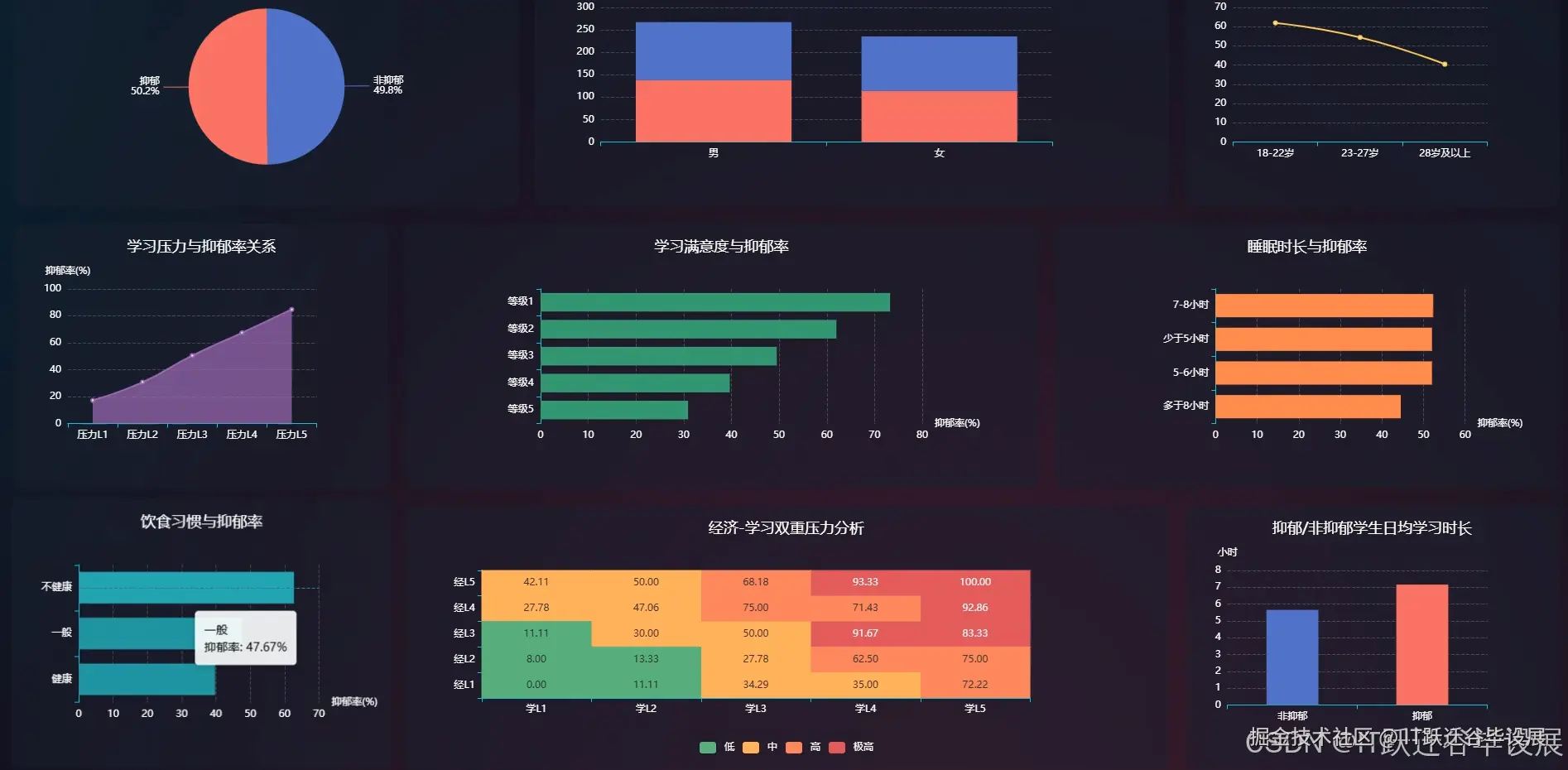

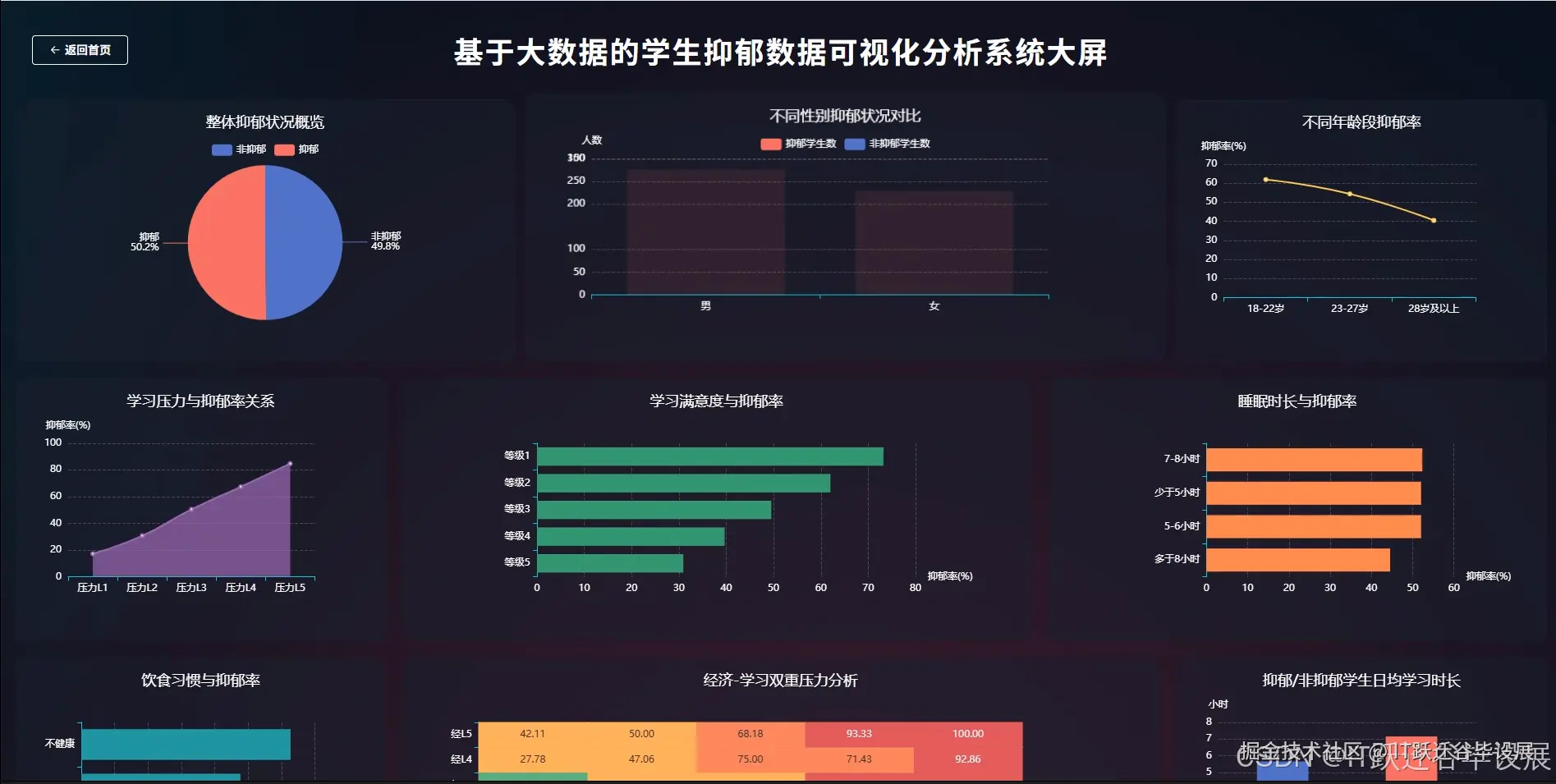

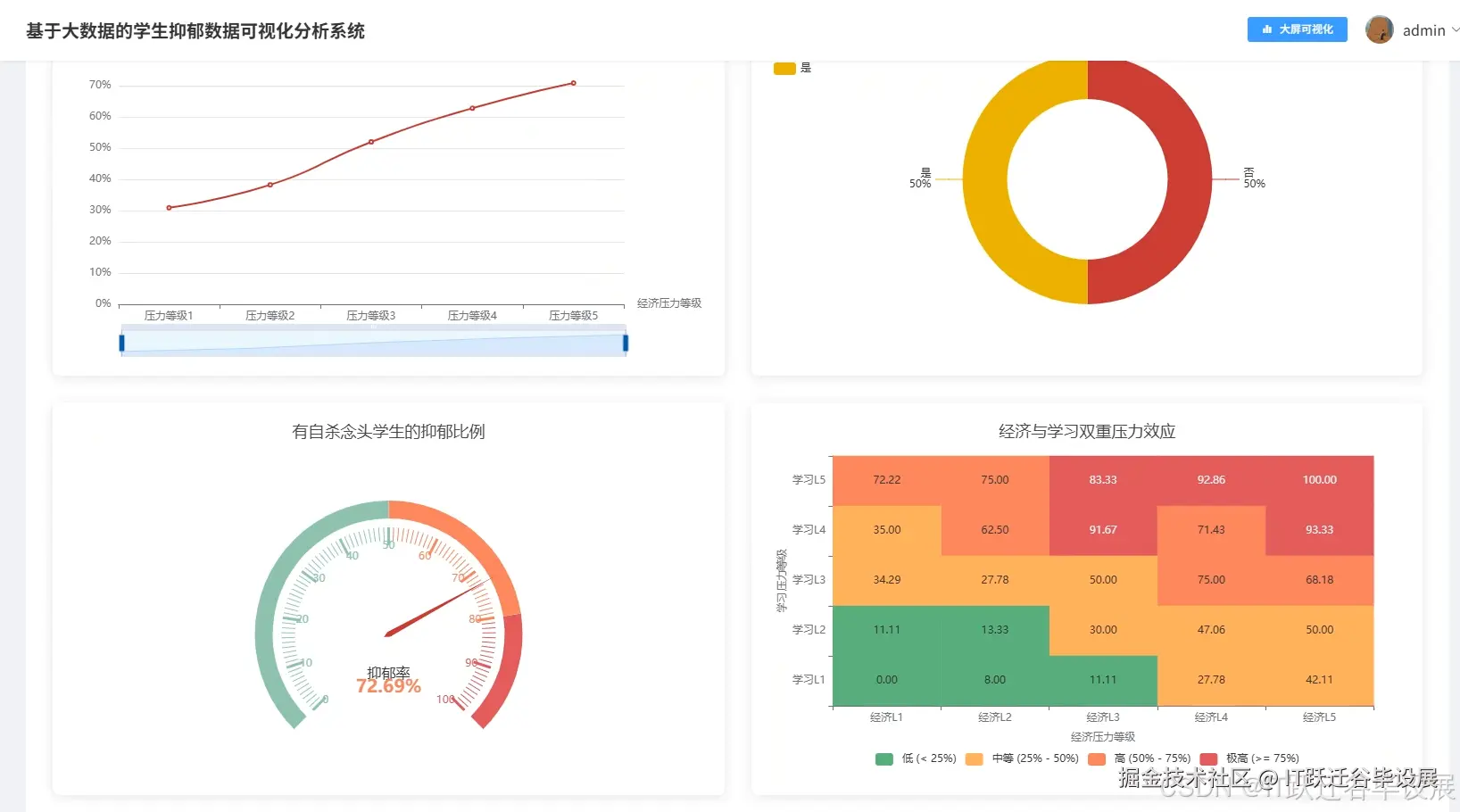

基于Hadoop+Spark的学生抑郁数据可视化分析系统-图片展示
基于Hadoop+Spark的学生抑郁数据可视化分析系统-代码展示
//大数据部分代码展示
# 核心功能1: 学生抑郁群体基础画像分析
def analyze_depression_demographics(spark_session, data_path):
# 从HDFS读取学生数据
student_df = spark_session.read.parquet(data_path)
# 注册为临时表以便使用Spark SQL
student_df.createOrReplaceTempView("student_data")
# 1.1 整体抑郁状况概览
depression_overview = spark_session.sql("""
SELECT
SUM(CASE WHEN is_depressed = 1 THEN 1 ELSE 0 END) as depressed_count,
SUM(CASE WHEN is_depressed = 0 THEN 1 ELSE 0 END) as non_depressed_count,
COUNT(*) as total_count,
ROUND(SUM(CASE WHEN is_depressed = 1 THEN 1 ELSE 0 END) / COUNT(*) * 100, 2) as depression_rate
FROM student_data
""").collect()[0]
# 1.2 不同性别学生的抑郁状况对比
gender_analysis = spark_session.sql("""
SELECT
gender,
SUM(CASE WHEN is_depressed = 1 THEN 1 ELSE 0 END) as depressed_count,
COUNT(*) as total_count,
ROUND(SUM(CASE WHEN is_depressed = 1 THEN 1 ELSE 0 END) / COUNT(*) * 100, 2) as depression_rate
FROM student_data
GROUP BY gender
ORDER BY depression_rate DESC
""").toPandas()
# 1.3 不同年龄段学生的抑郁状况分布
age_group_analysis = spark_session.sql("""
SELECT
CASE
WHEN age BETWEEN 18 AND 22 THEN '18-22岁'
WHEN age BETWEEN 23 AND 27 THEN '23-27岁'
ELSE '28岁及以上'
END as age_group,
SUM(CASE WHEN is_depressed = 1 THEN 1 ELSE 0 END) as depressed_count,
COUNT(*) as total_count,
ROUND(SUM(CASE WHEN is_depressed = 1 THEN 1 ELSE 0 END) / COUNT(*) * 100, 2) as depression_rate
FROM student_data
GROUP BY age_group
ORDER BY depression_rate DESC
""").toPandas()
# 1.4 各具体年龄学生的抑郁人数统计
age_specific_analysis = spark_session.sql("""
SELECT
age,
SUM(CASE WHEN is_depressed = 1 THEN 1 ELSE 0 END) as depressed_count,
COUNT(*) as total_count,
ROUND(SUM(CASE WHEN is_depressed = 1 THEN 1 ELSE 0 END) / COUNT(*) * 100, 2) as depression_rate
FROM student_data
GROUP BY age
ORDER BY age
""").toPandas()
# 将结果转换为可视化友好的格式
result = {
"overview": depression_overview,
"gender_analysis": gender_analysis.to_dict('records'),
"age_group_analysis": age_group_analysis.to_dict('records'),
"age_specific_analysis": age_specific_analysis.to_dict('records')
}
return result
# 核心功能2: 学业因素与抑郁情绪的关联性分析
def analyze_academic_depression_correlation(spark_session, data_path):
# 从HDFS读取数据
student_df = spark_session.read.parquet(data_path)
student_df.createOrReplaceTempView("student_data")
# 2.1 不同学习压力等级下的学生抑郁率分析
study_pressure_analysis = spark_session.sql("""
SELECT
study_pressure,
SUM(CASE WHEN is_depressed = 1 THEN 1 ELSE 0 END) as depressed_count,
COUNT(*) as total_count,
ROUND(SUM(CASE WHEN is_depressed = 1 THEN 1 ELSE 0 END) / COUNT(*) * 100, 2) as depression_rate
FROM student_data
GROUP BY study_pressure
ORDER BY study_pressure
""").toPandas()
# 2.2 不同学习满意度下的学生抑郁率分析
study_satisfaction_analysis = spark_session.sql("""
SELECT
study_satisfaction,
SUM(CASE WHEN is_depressed = 1 THEN 1 ELSE 0 END) as depressed_count,
COUNT(*) as total_count,
ROUND(SUM(CASE WHEN is_depressed = 1 THEN 1 ELSE 0 END) / COUNT(*) * 100, 2) as depression_rate
FROM student_data
GROUP BY study_satisfaction
ORDER BY study_satisfaction
""").toPandas()
# 2.3 不同学习时长的学生抑郁状况分布
study_time_analysis = spark_session.sql("""
SELECT
CASE
WHEN study_hours < 4 THEN '少于4小时'
WHEN study_hours BETWEEN 4 AND 6 THEN '4-6小时'
WHEN study_hours BETWEEN 7 AND 9 THEN '7-9小时'
ELSE '10小时以上'
END as study_time_group,
SUM(CASE WHEN is_depressed = 1 THEN 1 ELSE 0 END) as depressed_count,
COUNT(*) as total_count,
ROUND(SUM(CASE WHEN is_depressed = 1 THEN 1 ELSE 0 END) / COUNT(*) * 100, 2) as depression_rate
FROM student_data
GROUP BY study_time_group
ORDER BY depression_rate DESC
""").toPandas()
# 2.4 学习压力与学习满意度的交叉影响分析
pressure_satisfaction_analysis = spark_session.sql("""
SELECT
study_pressure,
study_satisfaction,
SUM(CASE WHEN is_depressed = 1 THEN 1 ELSE 0 END) as depressed_count,
COUNT(*) as total_count,
ROUND(SUM(CASE WHEN is_depressed = 1 THEN 1 ELSE 0 END) / COUNT(*) * 100, 2) as depression_rate
FROM student_data
GROUP BY study_pressure, study_satisfaction
ORDER BY study_pressure, study_satisfaction
""").toPandas()
# 使用Pandas进行高压力组和低压力组的对比分析
import pandas as pd
import numpy as np
# 将SparkSQL结果转换为Pandas DataFrame进行更复杂的分析
df = student_df.toPandas()
# 计算学习压力与抑郁的相关系数
pressure_correlation = np.corrcoef(df['study_pressure'], df['is_depressed'])[0,1]
# 计算学习满意度与抑郁的相关系数
satisfaction_correlation = np.corrcoef(df['study_satisfaction'], df['is_depressed'])[0,1]
# 构建学习压力和满意度的交叉热力图数据
heatmap_data = pd.pivot_table(
pressure_satisfaction_analysis,
values='depression_rate',
index='study_pressure',
columns='study_satisfaction'
).fillna(0)
result = {
"study_pressure_analysis": study_pressure_analysis.to_dict('records'),
"study_satisfaction_analysis": study_satisfaction_analysis.to_dict('records'),
"study_time_analysis": study_time_analysis.to_dict('records'),
"pressure_satisfaction_analysis": pressure_satisfaction_analysis.to_dict('records'),
"pressure_correlation": float(pressure_correlation),
"satisfaction_correlation": float(satisfaction_correlation),
"heatmap_data": heatmap_data.to_dict()
}
return result
# 核心功能3: 个人及家庭背景因素的深度探查
def analyze_personal_family_factors(spark_session, data_path):
# 从HDFS读取数据
student_df = spark_session.read.parquet(data_path)
student_df.createOrReplaceTempView("student_data")
# 4.1 不同经济压力等级下的学生抑郁率分析
economic_pressure_analysis = spark_session.sql("""
SELECT
economic_pressure,
SUM(CASE WHEN is_depressed = 1 THEN 1 ELSE 0 END) as depressed_count,
COUNT(*) as total_count,
ROUND(SUM(CASE WHEN is_depressed = 1 THEN 1 ELSE 0 END) / COUNT(*) * 100, 2) as depression_rate
FROM student_data
GROUP BY economic_pressure
ORDER BY economic_pressure
""").toPandas()
# 4.2 有无精神疾病家族史的学生抑郁率对比
family_history_analysis = spark_session.sql("""
SELECT
family_mental_history,
SUM(CASE WHEN is_depressed = 1 THEN 1 ELSE 0 END) as depressed_count,
COUNT(*) as total_count,
ROUND(SUM(CASE WHEN is_depressed = 1 THEN 1 ELSE 0 END) / COUNT(*) * 100, 2) as depression_rate
FROM student_data
GROUP BY family_mental_history
ORDER BY family_mental_history
""").toPandas()
# 4.3 有无自杀念头的学生抑郁状况高度关联分析
suicidal_thoughts_analysis = spark_session.sql("""
SELECT
has_suicidal_thoughts,
SUM(CASE WHEN is_depressed = 1 THEN 1 ELSE 0 END) as depressed_count,
COUNT(*) as total_count,
ROUND(SUM(CASE WHEN is_depressed = 1 THEN 1 ELSE 0 END) / COUNT(*) * 100, 2) as depression_rate
FROM student_data
GROUP BY has_suicidal_thoughts
ORDER BY has_suicidal_thoughts
""").toPandas()
# 4.4 经济压力与学习压力的"双重压力"效应分析
double_pressure_analysis = spark_session.sql("""
SELECT
economic_pressure,
study_pressure,
SUM(CASE WHEN is_depressed = 1 THEN 1 ELSE 0 END) as depressed_count,
COUNT(*) as total_count,
ROUND(SUM(CASE WHEN is_depressed = 1 THEN 1 ELSE 0 END) / COUNT(*) * 100, 2) as depression_rate
FROM student_data
GROUP BY economic_pressure, study_pressure
ORDER BY economic_pressure, study_pressure
""").toPandas()
# 使用Pandas和NumPy进行更深入的分析
import pandas as pd
import numpy as np
from sklearn.ensemble import RandomForestClassifier
from sklearn.model_selection import train_test_split
from sklearn.metrics import accuracy_score, precision_score, recall_score
# 将Spark DataFrame转换为Pandas DataFrame
df = student_df.toPandas()
# 识别高风险群体 - 同时有高经济压力和高学习压力的学生
high_risk_group = df[(df['economic_pressure'] >= 4) & (df['study_pressure'] >= 4)]
high_risk_depression_rate = high_risk_group['is_depressed'].mean() * 100
# 构建预测模型，评估各因素对抑郁的预测能力
features = ['economic_pressure', 'study_pressure', 'family_mental_history', 'has_suicidal_thoughts']
X = df[features]
y = df['is_depressed']
# 分割训练集和测试集
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.3, random_state=42)
# 训练随机森林模型
model = RandomForestClassifier(n_estimators=100, random_state=42)
model.fit(X_train, y_train)
# 评估模型性能
y_pred = model.predict(X_test)
accuracy = accuracy_score(y_test, y_pred)
precision = precision_score(y_test, y_pred)
recall = recall_score(y_test, y_pred)
# 计算特征重要性
feature_importance = dict(zip(features, model.feature_importances_))
result = {
"economic_pressure_analysis": economic_pressure_analysis.to_dict('records'),
"family_history_analysis": family_history_analysis.to_dict('records'),
"suicidal_thoughts_analysis": suicidal_thoughts_analysis.to_dict('records'),
"double_pressure_analysis": double_pressure_analysis.to_dict('records'),
"high_risk_depression_rate": float(high_risk_depression_rate),
"model_performance": {
"accuracy": float(accuracy),
"precision": float(precision),
"recall": float(recall)
},
"feature_importance": feature_importance
}
return result
基于Hadoop+Spark的学生抑郁数据可视化分析系统-结语
