docker中的redis与持久化一、docker的安装 1、docker版本 2、docker安装 3、docker相

一、docker的安装

1、docker版本

[root@KSSYYV181781 conf]# docker version
Client:
 Version:           24.0.6
 API version:       1.43
 Go version:        go1.20.7
 Git commit:        ed223bc
 Built:             Mon Sep  4 12:30:51 2023
 OS/Arch:           linux/amd64
 Context:           default

Server: Docker Engine - Community
 Engine:
  Version:          24.0.6
  API version:      1.43 (minimum version 1.12)
  Go version:       go1.20.7
  Git commit:       1a79695
  Built:            Mon Sep  4 12:32:17 2023
  OS/Arch:          linux/amd64
  Experimental:     false
 containerd:
  Version:          v1.7.3
  GitCommit:        7880925980b188f4c97b462f709d0db8e8962aff
 runc:
  Version:          1.1.9
  GitCommit:        v1.1.9-0-gccaecfc
 docker-init:
  Version:          0.19.0
  GitCommit:        de40ad0

2、docker安装

3、docker相关命令

二、redis架构

1、架构

哨兵模式
3节点
1master 2slave
redis5.0.9

2、资源规格

三、节点172.25.39.156

redis服务配置

1、redis的conf

####
#Redis配置文件示例。
####

##配置说明
#单位不区分大小写，因此1GB 1gb 1gB都是一样的。

##可以指定redis端口默认端口为6379
#port 6379

##后台启动
#daemonize yes

##开放注释的话只能来自同一主机的客户端连接
#注释这一行，表示Redis可以接受任意ip的连接
# bind 127.0.0.1

##关闭保护模式
protected-mode no

##主服务器认证密码，当主服务器故障，变为从节点时需要这个配置项
masterauth H3yuncom

##设定密码(可选，如果这里开启了密码要求，slave的配置里就要加这个密码)
requirepass H3yuncom

##配置日志路径，为了便于排查问题，指定redis的日志文件目录
logfile "/var/log/redis.log"

#设置pid文件路径
pidfile /var/run/redis.pid

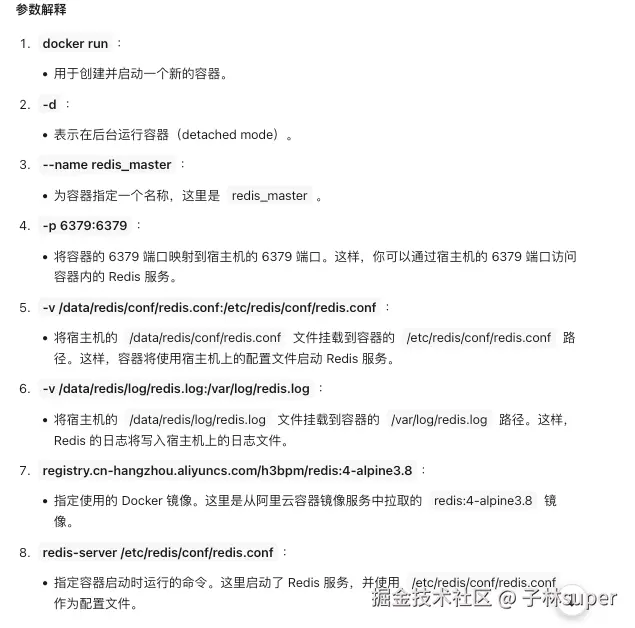

2、docker run

#
docker run -d --name redis_master \
-p 6379:6379 \
-v /data/redis/conf/redis.conf:/etc/redis/conf/redis.conf \
-v /data/redis/log/redis.log:/var/log/redis.log \
registry.cn-hangzhou.aliyuncs.com/h3bpm/redis:4-alpine3.8 \
redis-server /etc/redis/conf/redis.conf


3、docker ps


[root@KSSYYV181780 ~]# docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
ce7564cf3265 registry.cn-hangzhou.aliyuncs.com/h3bpm/redis:4-alpine3.8 "docker-entrypoint.s…" 12 months ago Up 8 months redis_sentinel
6ac05d2fb471 registry.cn-hangzhou.aliyuncs.com/h3bpm/redis:4-alpine3.8 "docker-entrypoint.s…" 12 months ago Up 8 months 0.0.0.0:6379->6379/tcp redis_master

4、docker inspect redis

[root@KSSYYV181780 ~]# docker inspect 6ac05d2fb471
[
    {
        "Id": "6ac05d2fb471ec116b628d856fc1756703a92f5e17d508d98ab53ab9843d8858",
        "Created": "2024-07-30T13:43:01.200461633Z",
        "Path": "docker-entrypoint.sh",
        "Args": [
            "redis-server",
            "/etc/redis/conf/redis.conf"
        ],
        "State": {
            "Status": "running",
            "Running": true,
            "Paused": false,
            "Restarting": false,
            "OOMKilled": false,
            "Dead": false,
            "Pid": 3403,
            "ExitCode": 0,
            "Error": "",
            "StartedAt": "2024-11-09T20:43:30.667300293Z",
            "FinishedAt": "2024-11-09T20:43:26.033585445Z"
        },
        "Image": "sha256:ae70b17240ec47003d60ff9c5081f8fa0be23a5ac985a8fcd596f990107de564",
        "ResolvConfPath": "/var/lib/docker/containers/6ac05d2fb471ec116b628d856fc1756703a92f5e17d508d98ab53ab9843d8858/resolv.conf",
        "HostnamePath": "/var/lib/docker/containers/6ac05d2fb471ec116b628d856fc1756703a92f5e17d508d98ab53ab9843d8858/hostname",
        "HostsPath": "/var/lib/docker/containers/6ac05d2fb471ec116b628d856fc1756703a92f5e17d508d98ab53ab9843d8858/hosts",
        "LogPath": "/var/lib/docker/containers/6ac05d2fb471ec116b628d856fc1756703a92f5e17d508d98ab53ab9843d8858/6ac05d2fb471ec116b628d856fc1756703a92f5e17d508d98ab53ab9843d8858-json.log",
        "Name": "/redis_master",
        "RestartCount": 0,
        "Driver": "overlay2",
        "Platform": "linux",
        "MountLabel": "",
        "ProcessLabel": "",
        "AppArmorProfile": "",
        "ExecIDs": null,
        "HostConfig": {
            "Binds": [
                "/data/redis/conf/redis.conf:/etc/redis/conf/redis.conf",
                "/data/redis/log/redis.log:/var/log/redis.log"
            ],
            "ContainerIDFile": "",
            "LogConfig": {
                "Type": "json-file",
                "Config": {}
            },
            "NetworkMode": "default",
            "PortBindings": {
                "6379/tcp": [
                    {
                        "HostIp": "",
                        "HostPort": "6379"
                    }
                ]
            },
            "RestartPolicy": {
                "Name": "always",
                "MaximumRetryCount": 0
            },
            "AutoRemove": false,
            "VolumeDriver": "",
            "VolumesFrom": null,
            "ConsoleSize": [
                30,
                167
            ],
            "CapAdd": null,
            "CapDrop": null,
            "CgroupnsMode": "host",
            "Dns": [],
            "DnsOptions": [],
            "DnsSearch": [],
            "ExtraHosts": null,
            "GroupAdd": null,
            "IpcMode": "private",
            "Cgroup": "",
            "Links": null,
            "OomScoreAdj": 0,
            "PidMode": "",
            "Privileged": false,
            "PublishAllPorts": false,
            "ReadonlyRootfs": false,
            "SecurityOpt": null,
            "UTSMode": "",
            "UsernsMode": "",
            "ShmSize": 67108864,
            "Runtime": "runc",
            "Isolation": "",
            "CpuShares": 0,
            "Memory": 0,
            "NanoCpus": 0,
            "CgroupParent": "",
            "BlkioWeight": 0,
            "BlkioWeightDevice": [],
            "BlkioDeviceReadBps": [],
            "BlkioDeviceWriteBps": [],
            "BlkioDeviceReadIOps": [],
            "BlkioDeviceWriteIOps": [],
            "CpuPeriod": 0,
            "CpuQuota": 0,
            "CpuRealtimePeriod": 0,
            "CpuRealtimeRuntime": 0,
            "CpusetCpus": "",
            "CpusetMems": "",
            "Devices": [],
            "DeviceCgroupRules": null,
            "DeviceRequests": null,
            "MemoryReservation": 0,
            "MemorySwap": 0,
            "MemorySwappiness": null,
            "OomKillDisable": false,
            "PidsLimit": null,
            "Ulimits": null,
            "CpuCount": 0,
            "CpuPercent": 0,
            "IOMaximumIOps": 0,
            "IOMaximumBandwidth": 0,
            "MaskedPaths": [
                "/proc/asound",
                "/proc/acpi",
                "/proc/kcore",
                "/proc/keys",
                "/proc/latency_stats",
                "/proc/timer_list",
                "/proc/timer_stats",
                "/proc/sched_debug",
                "/proc/scsi",
                "/sys/firmware"
            ],
            "ReadonlyPaths": [
                "/proc/bus",
                "/proc/fs",
                "/proc/irq",
                "/proc/sys",
                "/proc/sysrq-trigger"
            ]
        },
        "GraphDriver": {
            "Data": {
                "LowerDir": "/var/lib/docker/overlay2/4c959156913289cfb468f68d23302606164598a4927c710581ba8493290bcd2c-init/diff:/var/lib/docker/overlay2/b451ef0e4024a6a7a38458c87fa335ed2a6a418d806cf11762b68d1d5c54dc1f/diff:/var/lib/docker/overlay2/b497059727985177af450c71cc3497d6b9fac0f5d91ba2c6ca8e8e95e1f62387/diff:/var/lib/docker/overlay2/b8f3982609bb7e136a6d99d5612290ea7de053336151950b596999cc3f115683/diff:/var/lib/docker/overlay2/f82a1c386bb3d5f7103fdab55c58ecc677515726030ee4a17a7b02f9c0a6a542/diff:/var/lib/docker/overlay2/5c92a6e552eb8dd5a4eef74d56b49ce6b454fd4da94fc997536c9c8aa02c30bb/diff:/var/lib/docker/overlay2/018c3cbfdb413819ee126d803c6f5b2c324a5a93fdc1f623bf8c8e8e2f3c46e3/diff",
                "MergedDir": "/var/lib/docker/overlay2/4c959156913289cfb468f68d23302606164598a4927c710581ba8493290bcd2c/merged",
                "UpperDir": "/var/lib/docker/overlay2/4c959156913289cfb468f68d23302606164598a4927c710581ba8493290bcd2c/diff",
                "WorkDir": "/var/lib/docker/overlay2/4c959156913289cfb468f68d23302606164598a4927c710581ba8493290bcd2c/work"
            },
            "Name": "overlay2"
        },
        "Mounts": [
            {
                "Type": "volume",
                "Name": "049d284cc3a8c9eead664227a29782eff5b5b4c945a62ba061ebb658dcaf68b2",
                "Source": "/var/lib/docker/volumes/049d284cc3a8c9eead664227a29782eff5b5b4c945a62ba061ebb658dcaf68b2/_data",
                "Destination": "/data",
                "Driver": "local",
                "Mode": "",
                "RW": true,
                "Propagation": ""
            },
            {
                "Type": "bind",
                "Source": "/data/redis/conf/redis.conf",
                "Destination": "/etc/redis/conf/redis.conf",
                "Mode": "",
                "RW": true,
                "Propagation": "rprivate"
            },
            {
                "Type": "bind",
                "Source": "/data/redis/log/redis.log",
                "Destination": "/var/log/redis.log",
                "Mode": "",
                "RW": true,
                "Propagation": "rprivate"
            }
        ],
        "Config": {
            "Hostname": "6ac05d2fb471",
            "Domainname": "",
            "User": "",
            "AttachStdin": false,
            "AttachStdout": false,
            "AttachStderr": false,
            "ExposedPorts": {
                "6379/tcp": {}
            },
            "Tty": true,
            "OpenStdin": true,
            "StdinOnce": false,
            "Env": [
                "PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin",
                "REDIS_VERSION=4.0.12",
                "REDIS_DOWNLOAD_URL=http://download.redis.io/releases/redis-4.0.12.tar.gz",
                "REDIS_DOWNLOAD_SHA=6447259d2eed426a949c9c13f8fdb2d91fb66d9dc915dd50db13b87f46d93162"
            ],
            "Cmd": [
                "redis-server",
                "/etc/redis/conf/redis.conf"
            ],
            "Image": "registry.cn-hangzhou.aliyuncs.com/h3bpm/redis:4-alpine3.8",
            "Volumes": {
                "/data": {}
            },
            "WorkingDir": "/data",
            "Entrypoint": [
                "docker-entrypoint.sh"
            ],
            "OnBuild": null,
            "Labels": {}
        },
        "NetworkSettings": {
            "Bridge": "",
            "SandboxID": "672076852fc407ed2a640bd306d267f26119e70c1283d84032183d0267c08199",
            "HairpinMode": false,
            "LinkLocalIPv6Address": "",
            "LinkLocalIPv6PrefixLen": 0,
            "Ports": {
                "6379/tcp": [
                    {
                        "HostIp": "0.0.0.0",
                        "HostPort": "6379"
                    }
                ]
            },
            "SandboxKey": "/var/run/docker/netns/672076852fc4",
            "SecondaryIPAddresses": null,
            "SecondaryIPv6Addresses": null,
            "EndpointID": "1065380d0e6a47b2e785c4f858bca05e9fba3a7ffafd3b05b76f32cee7205e7c",
            "Gateway": "172.17.0.1",
            "GlobalIPv6Address": "",
            "GlobalIPv6PrefixLen": 0,
            "IPAddress": "172.17.0.2",
            "IPPrefixLen": 16,
            "IPv6Gateway": "",
            "MacAddress": "02:42:ac:11:00:02",
            "Networks": {
                "bridge": {
                    "IPAMConfig": null,
                    "Links": null,
                    "Aliases": null,
                    "NetworkID": "3f73dad0a38fc8f67ca5b32d402990289f86c296b74a1c07fc75726e0108fdbe",
                    "EndpointID": "1065380d0e6a47b2e785c4f858bca05e9fba3a7ffafd3b05b76f32cee7205e7c",
                    "Gateway": "172.17.0.1",
                    "IPAddress": "172.17.0.2",
                    "IPPrefixLen": 16,
                    "IPv6Gateway": "",
                    "GlobalIPv6Address": "",
                    "GlobalIPv6PrefixLen": 0,
                    "MacAddress": "02:42:ac:11:00:02",
                    "DriverOpts": null
                }
            }
        }
    }
]

哨兵配置

1、sentinel的conf

##哨兵监听端口
port 26379

##哨兵输出日志(注意创建日志权限问题，如有问题可以注释)
logfile "/var/log/redis_sentinel.log"

#工作目录
dir "/data"

#redis主节点信息(主节点名称、IP、端口)，及哨兵投票选举数量 等于2有两台哨兵投票主节点
sentinel myid c2a6e37f7e5776401fb7181696f3736e787f0922

##哨兵master节点宕机后，认定master不可用，默认30000 时间（毫秒）
sentinel deny-scripts-reconfig yes

##redis的主从节点服务的名称和密码 用于哨兵连接
sentinel monitor mymaster 172.25.39.157 6379 2

# Generated by CONFIG REWRITE
sentinel auth-pass mymaster H3yuncom
sentinel config-epoch mymaster 1
sentinel leader-epoch mymaster 0
sentinel known-slave mymaster 172.25.39.156 6379
sentinel known-slave mymaster 172.25.39.158 6379
sentinel known-sentinel mymaster 172.25.39.157 26379 84229305c284450193b0b296cdd625912f281010
sentinel known-sentinel mymaster 172.25.39.158 26379 54ce98c35cc70d70ea978e8f4ec2a3cc0cbaff46
sentinel current-epoch 1

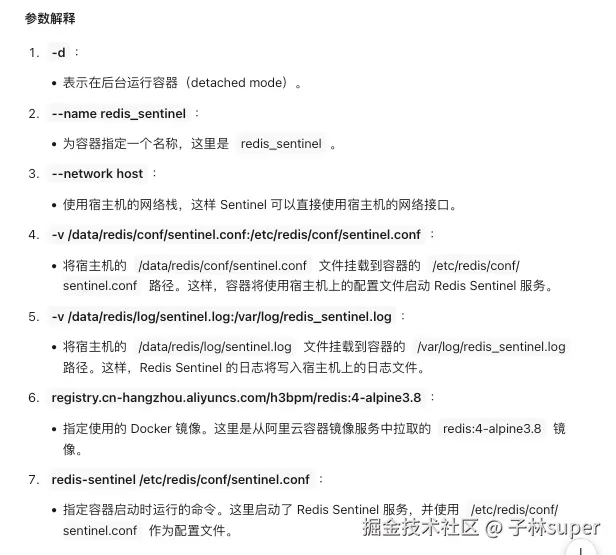

2、docker run


docker run -d --name redis_sentinel \
--network host \
-v /data/redis/conf/sentinel.conf:/etc/redis/conf/sentinel.conf \
-v /data/redis/log/sentinel.log:/var/log/redis_sentinel.log \
registry.cn-hangzhou.aliyuncs.com/h3bpm/redis:4-alpine3.8 \
redis-sentinel /etc/redis/conf/sentinel.conf


3、docker ps

略

4、docker inspect sentinel

 # sentienl
[root@KSSYYV181780 ~]# docker inspect ce7564cf3265
[
    {
        "Id": "ce7564cf3265e56c544c03058a582951476a1766562925f3cbaeedf037cdc791",
        "Created": "2024-08-02T09:56:29.602306089Z",
        "Path": "docker-entrypoint.sh",
        "Args": [
            "redis-sentinel",
            "/etc/redis/conf/sentinel.conf"
        ],
        "State": {
            "Status": "running",
            "Running": true,
            "Paused": false,
            "Restarting": false,
            "OOMKilled": false,
            "Dead": false,
            "Pid": 3402,
            "ExitCode": 0,
            "Error": "",
            "StartedAt": "2024-11-09T20:43:30.667509221Z",
            "FinishedAt": "2024-11-09T20:43:26.033588177Z"
        },
        "Image": "sha256:ae70b17240ec47003d60ff9c5081f8fa0be23a5ac985a8fcd596f990107de564",
        "ResolvConfPath": "/var/lib/docker/containers/ce7564cf3265e56c544c03058a582951476a1766562925f3cbaeedf037cdc791/resolv.conf",
        "HostnamePath": "/var/lib/docker/containers/ce7564cf3265e56c544c03058a582951476a1766562925f3cbaeedf037cdc791/hostname",
        "HostsPath": "/var/lib/docker/containers/ce7564cf3265e56c544c03058a582951476a1766562925f3cbaeedf037cdc791/hosts",
        "LogPath": "/var/lib/docker/containers/ce7564cf3265e56c544c03058a582951476a1766562925f3cbaeedf037cdc791/ce7564cf3265e56c544c03058a582951476a1766562925f3cbaeedf037cdc791-json.log",
        "Name": "/redis_sentinel",
        "RestartCount": 0,
        "Driver": "overlay2",
        "Platform": "linux",
        "MountLabel": "",
        "ProcessLabel": "",
        "AppArmorProfile": "",
        "ExecIDs": null,
        "HostConfig": {
            "Binds": [
                "/data/redis/conf/sentinel.conf:/etc/redis/conf/sentinel.conf",
                "/data/redis/log/sentinel.log:/var/log/redis_sentinel.log"
            ],
            "ContainerIDFile": "",
            "LogConfig": {
                "Type": "json-file",
                "Config": {}
            },
            "NetworkMode": "host",
            "PortBindings": {
                "26379/tcp": [
                    {
                        "HostIp": "",
                        "HostPort": "26379"
                    }
                ]
            },
            "RestartPolicy": {
                "Name": "always",
                "MaximumRetryCount": 0
            },
            "AutoRemove": false,
            "VolumeDriver": "",
            "VolumesFrom": null,
            "ConsoleSize": [
                30,
                167
            ],
            "CapAdd": null,
            "CapDrop": null,
            "CgroupnsMode": "host",
            "Dns": [],
            "DnsOptions": [],
            "DnsSearch": [],
            "ExtraHosts": null,
            "GroupAdd": null,
            "IpcMode": "private",
            "Cgroup": "",
            "Links": null,
            "OomScoreAdj": 0,
            "PidMode": "",
            "Privileged": false,
            "PublishAllPorts": false,
            "ReadonlyRootfs": false,
            "SecurityOpt": null,
            "UTSMode": "",
            "UsernsMode": "",
            "ShmSize": 67108864,
            "Runtime": "runc",
            "Isolation": "",
            "CpuShares": 0,
            "Memory": 0,
            "NanoCpus": 0,
            "CgroupParent": "",
            "BlkioWeight": 0,
            "BlkioWeightDevice": [],
            "BlkioDeviceReadBps": [],
            "BlkioDeviceWriteBps": [],
            "BlkioDeviceReadIOps": [],
            "BlkioDeviceWriteIOps": [],
            "CpuPeriod": 0,
            "CpuQuota": 0,
            "CpuRealtimePeriod": 0,
            "CpuRealtimeRuntime": 0,
            "CpusetCpus": "",
            "CpusetMems": "",
            "Devices": [],
            "DeviceCgroupRules": null,
            "DeviceRequests": null,
            "MemoryReservation": 0,
            "MemorySwap": 0,
            "MemorySwappiness": null,
            "OomKillDisable": false,
            "PidsLimit": null,
            "Ulimits": null,
            "CpuCount": 0,
            "CpuPercent": 0,
            "IOMaximumIOps": 0,
            "IOMaximumBandwidth": 0,
            "MaskedPaths": [
                "/proc/asound",
                "/proc/acpi",
                "/proc/kcore",
                "/proc/keys",
                "/proc/latency_stats",
                "/proc/timer_list",
                "/proc/timer_stats",
                "/proc/sched_debug",
                "/proc/scsi",
                "/sys/firmware"
            ],
            "ReadonlyPaths": [
                "/proc/bus",
                "/proc/fs",
                "/proc/irq",
                "/proc/sys",
                "/proc/sysrq-trigger"
            ]
        },
        "GraphDriver": {
            "Data": {
                "LowerDir": "/var/lib/docker/overlay2/ceeeacef510bcfeebdfd8282f0a5b37a8058befc0c88f8882d899a875a24db8d-init/diff:/var/lib/docker/overlay2/b451ef0e4024a6a7a38458c87fa335ed2a6a418d806cf11762b68d1d5c54dc1f/diff:/var/lib/docker/overlay2/b497059727985177af450c71cc3497d6b9fac0f5d91ba2c6ca8e8e95e1f62387/diff:/var/lib/docker/overlay2/b8f3982609bb7e136a6d99d5612290ea7de053336151950b596999cc3f115683/diff:/var/lib/docker/overlay2/f82a1c386bb3d5f7103fdab55c58ecc677515726030ee4a17a7b02f9c0a6a542/diff:/var/lib/docker/overlay2/5c92a6e552eb8dd5a4eef74d56b49ce6b454fd4da94fc997536c9c8aa02c30bb/diff:/var/lib/docker/overlay2/018c3cbfdb413819ee126d803c6f5b2c324a5a93fdc1f623bf8c8e8e2f3c46e3/diff",
                "MergedDir": "/var/lib/docker/overlay2/ceeeacef510bcfeebdfd8282f0a5b37a8058befc0c88f8882d899a875a24db8d/merged",
                "UpperDir": "/var/lib/docker/overlay2/ceeeacef510bcfeebdfd8282f0a5b37a8058befc0c88f8882d899a875a24db8d/diff",
                "WorkDir": "/var/lib/docker/overlay2/ceeeacef510bcfeebdfd8282f0a5b37a8058befc0c88f8882d899a875a24db8d/work"
            },
            "Name": "overlay2"
        },
        "Mounts": [
            {
                "Type": "volume",
                "Name": "9cb28778ae0e24b09c24c2a883fdbfb4f2ccbc27fd838e2ea4c8ef4f93bfcfc5",
                "Source": "/var/lib/docker/volumes/9cb28778ae0e24b09c24c2a883fdbfb4f2ccbc27fd838e2ea4c8ef4f93bfcfc5/_data",
                "Destination": "/data",
                "Driver": "local",
                "Mode": "",
                "RW": true,
                "Propagation": ""
            },
            {
                "Type": "bind",
                "Source": "/data/redis/conf/sentinel.conf",
                "Destination": "/etc/redis/conf/sentinel.conf",
                "Mode": "",
                "RW": true,
                "Propagation": "rprivate"
            },
            {
                "Type": "bind",
                "Source": "/data/redis/log/sentinel.log",
                "Destination": "/var/log/redis_sentinel.log",
                "Mode": "",
                "RW": true,
                "Propagation": "rprivate"
            }
        ],
        "Config": {
            "Hostname": "KSSYYV181780",
            "Domainname": "",
            "User": "",
            "AttachStdin": false,
            "AttachStdout": false,
            "AttachStderr": false,
            "ExposedPorts": {
                "26379/tcp": {},
                "6379/tcp": {}
            },
            "Tty": true,
            "OpenStdin": true,
            "StdinOnce": false,
            "Env": [
                "PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin",
                "REDIS_VERSION=4.0.12",
                "REDIS_DOWNLOAD_URL=http://download.redis.io/releases/redis-4.0.12.tar.gz",
                "REDIS_DOWNLOAD_SHA=6447259d2eed426a949c9c13f8fdb2d91fb66d9dc915dd50db13b87f46d93162"
            ],
            "Cmd": [
                "redis-sentinel",
                "/etc/redis/conf/sentinel.conf"
            ],
            "Image": "registry.cn-hangzhou.aliyuncs.com/h3bpm/redis:4-alpine3.8",
            "Volumes": {
                "/data": {}
            },
            "WorkingDir": "/data",
            "Entrypoint": [
                "docker-entrypoint.sh"
            ],
            "OnBuild": null,
            "Labels": {}
        },
        "NetworkSettings": {
            "Bridge": "",
            "SandboxID": "07a260243ef633a436e2fa801b29ad6fb278e4930315e3dbb4dbe6c597c4364e",
            "HairpinMode": false,
            "LinkLocalIPv6Address": "",
            "LinkLocalIPv6PrefixLen": 0,
            "Ports": {},
            "SandboxKey": "/var/run/docker/netns/default",
            "SecondaryIPAddresses": null,
            "SecondaryIPv6Addresses": null,
            "EndpointID": "",
            "Gateway": "",
            "GlobalIPv6Address": "",
            "GlobalIPv6PrefixLen": 0,
            "IPAddress": "",
            "IPPrefixLen": 0,
            "IPv6Gateway": "",
            "MacAddress": "",
            "Networks": {
                "host": {
                    "IPAMConfig": null,
                    "Links": null,
                    "Aliases": null,
                    "NetworkID": "bee578178d74f9be75f1f269081cb6eebce9b5769b716f02ec31a7f53de275ad",
                    "EndpointID": "8d474aeb1228c8752abea70f007391159b8dd24bee5ff0356c22b2dea4c0b9a6",
                    "Gateway": "",
                    "IPAddress": "",
                    "IPPrefixLen": 0,
                    "IPv6Gateway": "",
                    "GlobalIPv6Address": "",
                    "GlobalIPv6PrefixLen": 0,
                    "MacAddress": "",
                    "DriverOpts": null
                }
            }
        }
    }
]

四、节点172.25.39.157

redis服务配置

1、redis的conf

####

#Redis配置文件示例。

####

##配置说明
#单位不区分大小写，因此1GB 1gb 1gB都是一样的。

##可以指定redis端口默认端口为6379
#port 6379

##后台启动
#daemonize yes

##开放注释的话只能来自同一主机的客户端连接
#注释这一行，表示Redis可以接受任意ip的连接
# bind 127.0.0.1

##关闭保护模式
protected-mode no

##主服务器认证密码，当主服务器故障，变为从节点时需要这个配置项
masterauth H3yuncom

##设定密码(可选，如果这里开启了密码要求，slave的配置里就要加这个密码)
requirepass H3yuncom

##配置日志路径，为了便于排查问题，指定redis的日志文件目录
logfile "/var/log/redis.log"

#设置pid文件路径
pidfile /var/run/redis.pid

slaveof 172.25.39.156 6379

2、docker run

略

3、docker ps

略

4、docker inspect

略

哨兵配置

1、sentinel的conf

##哨兵监听端口
port 26379

##哨兵输出日志(注意创建日志权限问题，如有问题可以注释)
logfile "/var/log/redis_sentinel.log"

#工作目录
dir "/data"

#redis主节点信息(主节点名称、IP、端口)，及哨兵投票选举数量 等于2有两台哨兵投票主节点
sentinel myid 84229305c284450193b0b296cdd625912f281010


##哨兵master节点宕机后，认定master不可用，默认30000 时间（毫秒）
sentinel deny-scripts-reconfig yes



##redis的主从节点服务的名称和密码 用于哨兵连接
sentinel monitor mymaster 172.25.39.157 6379 2
# Generated by CONFIG REWRITE
sentinel auth-pass mymaster H3yuncom
sentinel config-epoch mymaster 1
sentinel leader-epoch mymaster 1
sentinel known-slave mymaster 172.25.39.158 6379
sentinel known-slave mymaster 172.25.39.156 6379
sentinel known-sentinel mymaster 172.25.39.156 26379 c2a6e37f7e5776401fb7181696f3736e787f0922
sentinel known-sentinel mymaster 172.25.39.158 26379 54ce98c35cc70d70ea978e8f4ec2a3cc0cbaff46
sentinel current-epoch 1

2、docker run

略

3、docker ps

略

4、docker inspect

略

五、节点172.25.39.158

redis服务配置

1、redis的conf

####
#Redis配置文件示例。
####


##配置说明
#单位不区分大小写，因此1GB 1gb 1gB都是一样的。


##可以指定redis端口默认端口为6379
#port 6379

##后台启动
#daemonize yes


##开放注释的话只能来自同一主机的客户端连接
#注释这一行，表示Redis可以接受任意ip的连接
# bind 127.0.0.1


##关闭保护模式
protected-mode no

##主服务器认证密码，当主服务器故障，变为从节点时需要这个配置项
masterauth H3yuncom


##设定密码(可选，如果这里开启了密码要求，slave的配置里就要加这个密码)
requirepass H3yuncom


##配置日志路径，为了便于排查问题，指定redis的日志文件目录
logfile "/var/log/redis.log"

#设置pid文件路径
pidfile /var/run/redis.pid

slaveof 172.25.39.156 6379

2、docker run

略

3、docker ps

略

4、docker inspect

略

哨兵配置

1、sentinel的conf


##哨兵监听端口
port 26379

##哨兵输出日志(注意创建日志权限问题，如有问题可以注释)
logfile "/var/log/redis_sentinel.log"

#工作目录
dir "/data"

#redis主节点信息(主节点名称、IP、端口)，及哨兵投票选举数量 等于2有两台哨兵投票主节点
sentinel myid 54ce98c35cc70d70ea978e8f4ec2a3cc0cbaff46


##哨兵master节点宕机后，认定master不可用，默认30000 时间（毫秒）
sentinel deny-scripts-reconfig yes

##redis的主从节点服务的名称和密码 用于哨兵连接
sentinel monitor mymaster 172.25.39.157 6379 2

# Generated by CONFIG REWRITE
sentinel auth-pass mymaster H3yuncom
sentinel config-epoch mymaster 1
sentinel leader-epoch mymaster 1
sentinel known-slave mymaster 172.25.39.156 6379
sentinel known-slave mymaster 172.25.39.158 6379
sentinel known-sentinel mymaster 172.25.39.157 26379 84229305c284450193b0b296cdd625912f281010
sentinel known-sentinel mymaster 172.25.39.156 26379 c2a6e37f7e5776401fb7181696f3736e787f0922
sentinel current-epoch 1

2、docker run

略

3、docker ps

略

4、docker inspect

略

六、补充

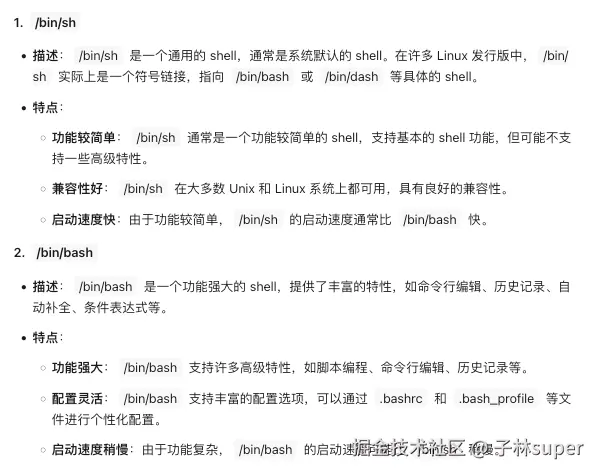

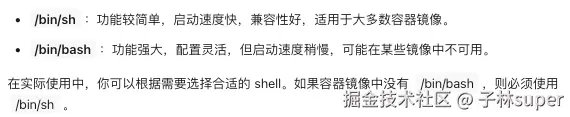

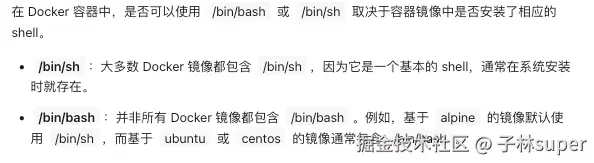

docker exec -it redis_master /bin/sh 与 docker exec -it redis_master /bin/bash 对比


七、补充

略

docker中的redis与持久化

一、docker的安装

1、docker版本

2、docker安装

3、docker相关命令

二、redis架构

1、架构

2、资源规格

三、节点172.25.39.156

redis服务配置

1、redis的conf

2、docker run

3、docker ps

4、docker inspect redis

哨兵配置

1、sentinel的conf

2、docker run

3、docker ps

4、docker inspect sentinel

四、节点172.25.39.157

redis服务配置

1、redis的conf

2、docker run

3、docker ps

4、docker inspect

哨兵配置

1、sentinel的conf

2、docker run

3、docker ps

4、docker inspect

五、节点172.25.39.158

redis服务配置

1、redis的conf

2、docker run

3、docker ps

4、docker inspect

哨兵配置

1、sentinel的conf

2、docker run

3、docker ps

4、docker inspect

六、补充

七、 补充

七、补充
