二进制部署k8s

安装前准备

服务器

名称	地址
服务器kmaster1	192.168.20.7
服务器kmaster2	192.168.20.8
服务器kmaster3	192.168.20.9
服务器knode1	192.168.20.12
负责均衡lb	192.168.20.10

关闭防火墙

systemctl disable firewalld --now

关闭selinux

getenforce
setenforce 0
sestatus
sed -i 's/^SELINUX=.*/SELINUX=disabled/' /etc/selinux/config

时间同步

timedatectl set-timezone Asia/Shanghai
systemctl enable chronyd --now

设置主机名

hostnamectl set-hostname kmaster1
hostnamectl set-hostname kmaster2
hostnamectl set-hostname kmaster3

配置dns解析

lb.k8s.cn用于nginx负责均衡kube-apiserver。

192.168.20.7  kmaster1.cluster.local kmaster1
192.168.20.8  kmaster2.cluster.local kmaster2
192.168.20.9  kmaster3.cluster.local kmaster3
192.168.20.10  lb.k8s.cn

ipvs管理工具安装以及模块加载

yum install -y ipvsadm ipset sysstat conntrack libseccomp
cat > /etc/modules-load.d/ipvs.conf <<EOF
ip_vs
ip_vs_rr
ip_vs_wrr
ip_vs_sh
nf_conntrack
EOF
systemctl restart systemd-modules-load.service
lsmod | grep -e ip_vs -e nf_conntrack

开启主机内核路由转发及网桥过滤

cat > /etc/sysctl.d/k8s.conf <<EOF
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
net.ipv4.ip_forward = 1
vm.swappiness = 0
EOF

将br_netfilter模块添加到开机加载

cat > /etc/modules-load.d/containerd.conf <<EOF
br_netfilter
EOF

关闭主机swap分区

sed -i 's/^\(.*swap.*\)$/#\1/g' /etc/fstab
swapoff -a

非对称加密

明文通信是不安全的，比如http通信，于是引入了https。而https就是典型的证书应用场景。我们在配置nginx的https的时候就会去购买一个证书。证书往往是这样cert.pem,cert-key.pem。其中cert.pem是证书，cert-key.pem是私钥。签发证书的CA机构持有CA的私钥。浏览器安装了CA机构的公钥。公钥加密的数据只有对应的私钥才能解开，反之亦然。

证书如何保证通信安全

浏览器访问 www.aaa.com 首先会验证该网站的证书。浏览器通过提前安装的CA公钥解密该证书。如果能解密说明可信。然后查看证书里面附带的信息比如hosts如果hosts里面包含www.aaa.com而且证书没有过期。浏览器会认为该网站是安全的可以进行通信。

安装CFSSL工具

wget https://pkg.cfssl.org/R1.2/cfssl_linux-amd64
wget https://pkg.cfssl.org/R1.2/cfssljson_linux-amd64
chmod +x cfssl_linux-amd64 cfssljson_linux-amd64
mv cfssl_linux-amd64 /usr/local/bin/cfssl
mv cfssljson_linux-amd64 /usr/local/bin/cfssljson
cfssl version

创建根证书目录

在kmaster1执行。

mkdir -p /etc/kubernetes/pki
cd /etc/kubernetes/pki

创建根CA

生成的根CA是这样的ca-key.pem（私钥）ca.pem（证书）。这里要说明一点证书里面是包含了公钥的。当然除了公钥还有其他的一些信息比如hosts等。

cat > ca-csr.json <<EOF
{
  "CN": "kubernetes-ca",
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "BeiJing",
      "L": "BeiJing",
      "O": "Kubernetes",
      "OU": "CA"
    }
  ],
  "expiry": "87600h"
}
EOF
cfssl gencert -initca ca-csr.json | cfssljson -bare ca

安装etcd集群

etcd简介

etcd是一个高性能、分布式的键值存储系统。采用了raft一致性算法，实现强一致性。

生成etcd证书

将生成的证书分发到etcd的其他节点，证书目录为/etc/kubernetes/pki。

cat > ca-config.json <<EOF
{
  "signing": {
    "default": {
      "expiry": "87600h"
    },
    "profiles": {
      "etcd": {
        "usages": [
          "signing",
          "key encipherment",
          "server auth",
          "client auth"
        ],
        "expiry": "87600h"
      }
    }
  }
}
EOF
cat > etcd-csr.json <<EOF
{
  "CN": "etcd",
  "hosts": [
    "127.0.0.1",
    "192.168.20.7",
    "192.168.20.8",
    "192.168.20.9"
  ],
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "BeiJing",
      "L": "BeiJing",
      "O": "Kubernetes",
      "OU": "Etcd"
    }
  ]
}
EOF
cfssl gencert \
  -ca=ca.pem \
  -ca-key=ca-key.pem \
  -config=ca-config.json \
  -profile=etcd \
  etcd-csr.json | cfssljson -bare etcd-server

创建etcd数据目录

mkdir /var/lib/etcd

下载并安装etcd

wget https://mirrors.huaweicloud.com/etcd/v3.6.0/etcd-v3.6.0-linux-amd64.tar.gz
tar xzvf etcd-v3.6.0-linux-amd64.tar.gz
mv etcd-v3.6.0-linux-amd64/etcd* /usr/local/bin/

配置文件

mkdir -p /etc/etcd
vim /etc/etcd/etcd.conf.yml
name: 'etcd1' # 替换为当前节点的名字，比如etcd1, etcd2
data-dir: /var/lib/etcd
initial-advertise-peer-urls: 'https://192.168.20.7:2380' # 当前节点IP地址
advertise-client-urls: 'https://192.168.20.7:2379' # 当前节点IP地址
listen-peer-urls: 'https://0.0.0.0:2380'
listen-client-urls: 'https://0.0.0.0:2379'
initial-cluster: 'etcd1=https://192.168.20.7:2380,etcd2=https://192.168.20.8:2380,etcd3=https://192.168.20.9:2380' # 所有节点信息
initial-cluster-state: 'new'
initial-cluster-token: 'etcd-cluster-1'

peer-transport-security:
  cert-file: /etc/kubernetes/pki/etcd-server.pem
  key-file: /etc/kubernetes/pki/etcd-server-key.pem
  trusted-ca-file: /etc/kubernetes/pki/ca.pem
  client-cert-auth: true
client-transport-security:
  cert-file: /etc/kubernetes/pki/etcd-server.pem
  key-file: /etc/kubernetes/pki/etcd-server-key.pem
  trusted-ca-file: /etc/kubernetes/pki/ca.pem
  client-cert-auth: true

通过systemd管理

cat > /etc/systemd/system/etcd.service <<EOF
[Unit]
Description=Etcd Service
After=network.target

[Service]
Type=notify
ExecStart=/usr/local/bin/etcd --config-file=/etc/etcd/etcd.conf.yml
Restart=on-failure
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target
EOF
systemctl daemon-reload
systemctl enable etcd --now
systemctl status etcd

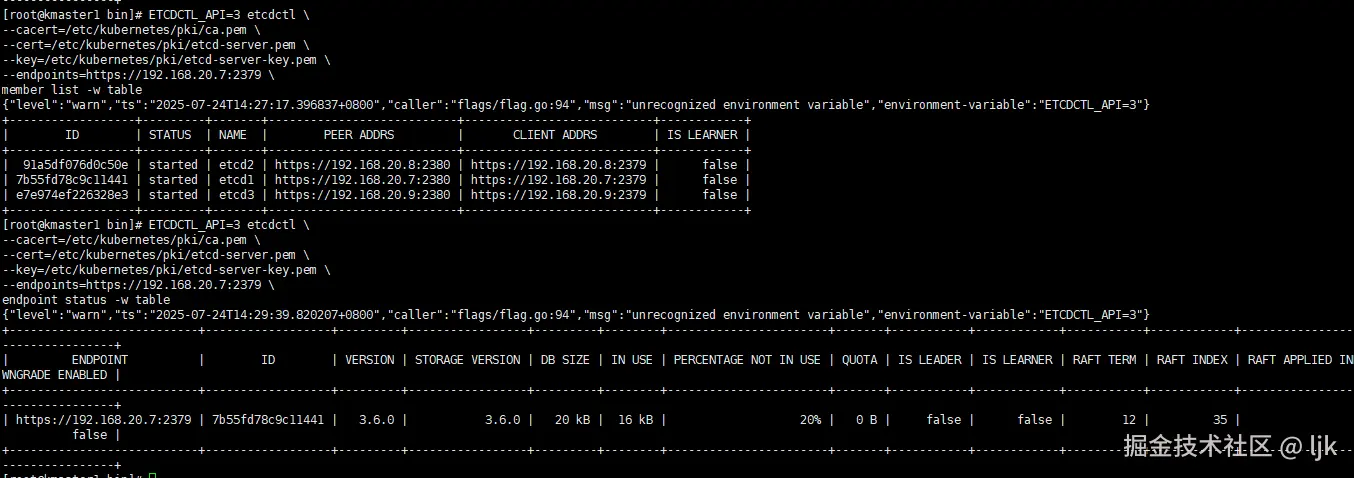

查看etcd状态

ETCDCTL_API=3 etcdctl \
--cacert=/etc/kubernetes/pki/ca.pem \
--cert=/etc/kubernetes/pki/etcd-server.pem \
--key=/etc/kubernetes/pki/etcd-server-key.pem \
--endpoints=https://192.168.20.7:2379 \
member list -w table

ETCDCTL_API=3 etcdctl \
--cacert=/etc/kubernetes/pki/ca.pem \
--cert=/etc/kubernetes/pki/etcd-server.pem \
--key=/etc/kubernetes/pki/etcd-server-key.pem \
--endpoints=https://192.168.20.7:2379 \
endpoint status -w table

部署kube-apiserver

创建ca-config.json

cd /etc/kubernetes/pki
cat > ca-config.json <<'EOF'
{
  "signing": {
    "default": {
      "expiry": "87600h"
    },
    "profiles": {
      "kubernetes": {
        "usages": [
          "signing",
          "key encipherment",
          "server auth",
          "client auth"
        ],
        "expiry": "87600h"
      }
    }
  }
}
EOF

生成证书请求apiserver-csr.json

cat > apiserver-csr.json <<'EOF'
{
  "CN": "kubernetes",
  "hosts": [
    "127.0.0.1",
    "192.168.20.7",
    "192.168.20.8",
    "192.168.20.9",
    "192.168.20.10",
    "10.96.0.1",
    "kubernetes",
    "kubernetes.default",
    "kubernetes.default.svc",
    "kubernetes.default.svc.cluster.local",
    "lb.k8s.cn"
  ],
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "Beijing",
      "L": "Beijing",
      "O": "k8s",
      "OU": "System"
    }
  ]
}
EOF

签发apiserver证书

生成apiserver.pem（证书） apiserver-key.pem（私钥）

cfssl gencert \
  -ca=ca.pem \
  -ca-key=ca-key.pem \
  -config=ca-config.json \
  -profile=kubernetes \
  apiserver-csr.json | cfssljson -bare apiserver

生成front-proxy-client证书

front-proxy-client是一个客户端认证证书。它主要用于apiserver作为客户端去请求后端服务的认证。因为apiserver是核心组件，k8s团队秉承核心组件功能专一，避免臃肿，k8s功能可扩展的原则。所以像监控、日志、网络等集群常用的但是非核心的功能通过注册到/apis/路由下。最典型的例子是metrics-server，它作为扩展功能提供给apiserver访问。在访问过程中要求证书验证。

cat > front-proxy-client-csr.json <<'EOF'
{
  "CN": "front-proxy-client",
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "Beijing",
      "L": "Beijing",
      "O": "k8s",
      "OU": "System"
    }
  ]
}
EOF
cfssl gencert \
  -ca=ca.pem \
  -ca-key=ca-key.pem \
  -config=ca-config.json \
  -profile=kubernetes \
  front-proxy-client-csr.json | cfssljson -bare front-proxy-client

生成Service Account密钥对

service account秘钥对的作用。k8s的最小管理单元是pod。如何验证pod的合法性。apiserver持有sa.pub公钥验证pod的token。controller-manager持有sa.key私钥给pod签名token。

openssl genrsa -out sa.key 2048
openssl rsa -in sa.key -pubout -out sa.pub

分发证书到所有master节点

for ip in 192.168.20.7 192.168.20.8 192.168.20.9; do
  scp ca.pem apiserver*.pem front-proxy-client*.pem sa.* root@$ip:/etc/kubernetes/pki
done

下载k8s组件

如果你想下载特定版本修改v1.32.0为你想要的版本。

wget https://dl.k8s.io/v1.32.0/kubernetes-server-linux-amd64.tar.gz

解压安装k8s组件

这里我们把kube-apiserver kube-controller-manager kube-scheduler kubectl一起放到了/usr/local/bin下。

tar -zxvf kubernetes-server-linux-amd64.tar.gz
cd kubernetes/server/bin
cp kube-apiserver kube-controller-manager kube-scheduler kubectl /usr/local/bin/

创建配置目录

/etc/kubernetes/manifests是存放kebelet管理的静态pod的。静态pod只由kubelet管理，不归kube-api-server管理，但是可以查看。

mkdir -p /etc/kubernetes/{pki,manifests}
mkdir -p /var/lib/kubernetes

创建kube-apiserver systemd服务

--advertise-address=192.168.20.7这个ip地址是本机的ip地址。

cat > /etc/systemd/system/kube-apiserver.service <<EOF
[Unit]
Description=Kubernetes API Server
After=network.target

[Service]
ExecStart=/usr/local/bin/kube-apiserver \
  --advertise-address=192.168.20.7 \
  --bind-address=0.0.0.0 \
  --secure-port=6443 \
  --etcd-servers=https://192.168.20.7:2379,https://192.168.20.8:2379,https://192.168.20.9:2379 \
  --etcd-cafile=/etc/kubernetes/pki/ca.pem \
  --etcd-certfile=/etc/kubernetes/pki/etcd-server.pem \
  --etcd-keyfile=/etc/kubernetes/pki/etcd-server-key.pem \
  --client-ca-file=/etc/kubernetes/pki/ca.pem \
  --tls-cert-file=/etc/kubernetes/pki/apiserver.pem \
  --tls-private-key-file=/etc/kubernetes/pki/apiserver-key.pem \
  --kubelet-client-certificate=/etc/kubernetes/pki/apiserver.pem \
  --kubelet-client-key=/etc/kubernetes/pki/apiserver-key.pem \
  --service-account-key-file=/etc/kubernetes/pki/sa.pub \
  --service-account-signing-key-file=/etc/kubernetes/pki/sa.key \
  --service-account-issuer=https://kubernetes.default.svc.cluster.local \
  --service-cluster-ip-range=10.96.0.0/16 \
  --service-node-port-range=30000-32767 \
  --allow-privileged=true \
  --authorization-mode=Node,RBAC \
  --enable-admission-plugins=NodeRestriction,NamespaceLifecycle,LimitRanger,ServiceAccount,DefaultStorageClass,ResourceQuota \
  --requestheader-client-ca-file=/etc/kubernetes/pki/ca.pem \
  --proxy-client-cert-file=/etc/kubernetes/pki/front-proxy-client.pem \
  --proxy-client-key-file=/etc/kubernetes/pki/front-proxy-client-key.pem \
  --enable-bootstrap-token-auth=true \
  --runtime-config=rbac.authorization.k8s.io/v1 \
  --audit-log-path=/var/log/kubernetes/audit.log \
  --audit-log-maxage=30 \
  --audit-log-maxbackup=3 \
  --audit-log-maxsize=100 \
  --v=2
Restart=always
RestartSec=5
LimitNOFILE=65536
User=root

[Install]
WantedBy=multi-user.target
EOF

systemctl daemon-reload
systemctl enable kube-apiserver --now
systemctl status kube-apiserver

部署nginx实现负载均衡

nginx配置

对于nginx的部署这里省略了，因为本文主要讲解二进制部署k8s。这里是nginx对apiserver做的四层负载均衡。

user snt;
worker_processes auto;
error_log /snt/soft/nginx/nginx-install/logs/error.log;
pid /snt/soft/nginx/nginx-install/run/nginx.pid;

events {
        worker_connections 1024;
}
stream {
        upstream klb {
                server 192.168.20.7:6443 max_fails=3 fail_timeout=30s;
                server 192.168.20.8:6443 max_fails=3 fail_timeout=30s;
                server 192.168.20.9:6443 max_fails=3 fail_timeout=30s;
        }
        server {
                listen 6443;
                proxy_pass klb;
        }
}

部署kube-controller-manager

创建controller-manager-csr.json 并生成证书

我们所有生成证书的服务器都是在kmaster1。

cd /etc/kubernetes/pki
cat > controller-manager-csr.json <<'EOF'
{
  "CN": "system:kube-controller-manager",
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "Beijing",
      "L": "Beijing",
      "O": "system:kube-controller-manager",
      "OU": "System"
    }
  ]
}
EOF
cfssl gencert \
  -ca=ca.pem \
  -ca-key=ca-key.pem \
  -config=ca-config.json \
  -profile=kubernetes \
  controller-manager-csr.json | cfssljson -bare controller-manager

创建scheduler-csr.json 并生成证书

cat > scheduler-csr.json <<'EOF'
{
  "CN": "system:kube-scheduler",
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "Beijing",
      "L": "Beijing",
      "O": "system:kube-scheduler",
      "OU": "System"
    }
  ]
}
EOF

cfssl gencert \
  -ca=ca.pem \
  -ca-key=ca-key.pem \
  -config=ca-config.json \
  -profile=kubernetes \
  scheduler-csr.json | cfssljson -bare scheduler

分发证书到所有master节点

for ip in 192.168.20.7 192.168.20.8 192.168.20.9; do
  scp controller-manager*.pem scheduler*.pem root@$ip:/etc/kubernetes/pki/
done

systemd管理controller-manager

cat > /etc/systemd/system/kube-controller-manager.service <<'EOF'
[Unit]
Description=Kubernetes Controller Manager
After=network.target

[Service]
ExecStart=/usr/local/bin/kube-controller-manager \
  --master=https://lb.k8s.cn:6443 \
  --kubeconfig=/etc/kubernetes/controller-manager.kubeconfig \
  --allocate-node-cidrs=true \
  --cluster-cidr=10.244.0.0/16 \
  --service-cluster-ip-range=10.96.0.0/16 \
  --cluster-signing-cert-file=/etc/kubernetes/pki/ca.pem \
  --cluster-signing-key-file=/etc/kubernetes/pki/ca-key.pem \
  --root-ca-file=/etc/kubernetes/pki/ca.pem \
  --service-account-private-key-file=/etc/kubernetes/pki/sa.key \
  --leader-elect=true \
  --use-service-account-credentials=true \
  --node-monitor-grace-period=40s \
  --node-monitor-period=5s \
  --requestheader-client-ca-file=/etc/kubernetes/pki/ca.pem \
  --bind-address=127.0.0.1 \
  --v=2
  --feature-gates=TTLAfterFinished=true
  --controllers=*,bootstrapsigner,tokencleaner
Restart=always
RestartSec=5
User=root

[Install]
WantedBy=multi-user.target
EOF

创建kubeconfig

kubectl config set-cluster kubernetes \
  --certificate-authority=/etc/kubernetes/pki/ca.pem \
  --embed-certs=true \
  --server=https://lb.k8s.cn:6443 \
  --kubeconfig=/etc/kubernetes/controller-manager.kubeconfig

kubectl config set-credentials system:kube-controller-manager \
  --client-certificate=/etc/kubernetes/pki/controller-manager.pem \
  --client-key=/etc/kubernetes/pki/controller-manager-key.pem \
  --embed-certs=true \
  --kubeconfig=/etc/kubernetes/controller-manager.kubeconfig

kubectl config set-context system:kube-controller-manager@kubernetes \
  --cluster=kubernetes \
  --user=system:kube-controller-manager \
  --kubeconfig=/etc/kubernetes/controller-manager.kubeconfig

kubectl config use-context system:kube-controller-manager@kubernetes \
  --kubeconfig=/etc/kubernetes/controller-manager.kubeconfig

启动服务

systemctl daemon-reload
systemctl enable kube-controller-manager --now
systemctl status kube-controller-manager

部署kube-scheduler

systemd管理kube-scheduler

cat > /etc/systemd/system/kube-scheduler.service <<'EOF'
[Unit]
Description=Kubernetes Scheduler
After=network.target

[Service]
ExecStart=/usr/local/bin/kube-scheduler \
  --master=https://lb.k8s.cn:6443 \
  --kubeconfig=/etc/kubernetes/scheduler.kubeconfig \
  --leader-elect=true \
  --bind-address=127.0.0.1 \
  --v=2
Restart=always
RestartSec=5
User=root

[Install]
WantedBy=multi-user.target
EOF

创建kubeconfig

kubectl config set-cluster kubernetes \
  --certificate-authority=/etc/kubernetes/pki/ca.pem \
  --embed-certs=true \
  --server=https://lb.k8s.cn:6443 \
  --kubeconfig=/etc/kubernetes/scheduler.kubeconfig

kubectl config set-credentials system:kube-scheduler \
  --client-certificate=/etc/kubernetes/pki/scheduler.pem \
  --client-key=/etc/kubernetes/pki/scheduler-key.pem \
  --embed-certs=true \
  --kubeconfig=/etc/kubernetes/scheduler.kubeconfig

kubectl config set-context system:kube-scheduler@kubernetes \
  --cluster=kubernetes \
  --user=system:kube-scheduler \
  --kubeconfig=/etc/kubernetes/scheduler.kubeconfig

kubectl config use-context system:kube-scheduler@kubernetes \
  --kubeconfig=/etc/kubernetes/scheduler.kubeconfig

启动服务

systemctl daemon-reload
systemctl enable kube-scheduler --now
systemctl status kube-scheduler

部署kubectl

admin用户生成证书

cd /etc/kubernetes/pki
cat > admin-csr.json <<'EOF'
{
  "CN": "admin",
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "Beijing",
      "L": "Beijing",
      "O": "system:masters",
      "OU": "System"
    }
  ]
}
EOF

cfssl gencert \
  -ca=ca.pem \
  -ca-key=ca-key.pem \
  -config=ca-config.json \
  -profile=kubernetes \
  admin-csr.json | cfssljson -bare admin

分发admin证书到各个master节点

你也可以通过上传下载工具实现。

scp admin*.pem root@ip:/etc/kubernetes/pki/

创建admin kubeconfig

kubectl config set-cluster kubernetes \
  --certificate-authority=/etc/kubernetes/pki/ca.pem \
  --embed-certs=true \
  --server=https://lb.k8s.cn:6443 \
  --kubeconfig=/etc/kubernetes/admin.conf

kubectl config set-credentials admin \
  --client-certificate=/etc/kubernetes/pki/admin.pem \
  --client-key=/etc/kubernetes/pki/admin-key.pem \
  --embed-certs=true \
  --kubeconfig=/etc/kubernetes/admin.conf

kubectl config set-context admin@kubernetes \
  --cluster=kubernetes \
  --user=admin \
  --kubeconfig=/etc/kubernetes/admin.conf

kubectl config use-context admin@kubernetes \
  --kubeconfig=/etc/kubernetes/admin.conf

#授权admin为最高权限用户。
kubectl create clusterrolebinding admin-cluster-binding \
  --clusterrole=cluster-admin \
  --user=admin

设置kubectl默认使用

mkdir -p $HOME/.kube
sudo cp /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config

将节点注册成为node

kubectl get nodes
#No resources found
#master节点默认不把自己注册成node导致

#部署containerd。
#配置yum源，根据你自己的系统，我的系统是almalinux9.3。
cd /etc/yum.repos.d
sudo tee /etc/yum.repos.d/almalinux-vault.repo <<'EOF'
[baseos]
name=AlmaLinux 9.3 - BaseOS - Vault
baseurl=https://repo.almalinux.org/vault/9.3/BaseOS/$basearch/os/
enabled=1
gpgcheck=1
gpgkey=https://repo.almalinux.org/vault/9.3/RPM-GPG-KEY-AlmaLinux-9

[appstream]
name=AlmaLinux 9.3 - AppStream - Vault
baseurl=https://repo.almalinux.org/vault/9.3/AppStream/$basearch/os/
enabled=1
gpgcheck=1
gpgkey=https://repo.almalinux.org/vault/9.3/RPM-GPG-KEY-AlmaLinux-9

[extras]
name=AlmaLinux 9.3 - Extras - Vault
baseurl=https://repo.almalinux.org/vault/9.3/extras/$basearch/os/
enabled=1
gpgcheck=1
gpgkey=https://repo.almalinux.org/vault/9.3/RPM-GPG-KEY-AlmaLinux-9
EOF
dnf clean all
dnf makecache
dnf update -y

sudo tee /etc/yum.repos.d/docker-ce.repo <<'EOF'
[docker-ce-stable]
name=Docker CE Stable - Alibaba Cloud
baseurl=https://mirrors.aliyun.com/docker-ce/linux/centos/9/$basearch/stable
enabled=1
gpgcheck=1
gpgkey=https://mirrors.aliyun.com/docker-ce/linux/centos/gpg
EOF
dnf install -y containerd.io
systemctl enable containerd --now
systemctl status containerd

#部署kubelet
cd
cp kubernetes/server/bin/kubelet /usr/local/bin

#生成token
cd
export TOKEN_ID=$(openssl rand -hex 3)
export TOKEN_SECRET=$(openssl rand -hex 8)
export BOOTSTRAP_TOKEN="${TOKEN_ID}.${TOKEN_SECRET}"
echo ${BOOTSTRAP_TOKEN} > token.txt

#创建Bootstrap Token Secret用于让新节点kubelet在首次加入集群时通过Token认证。
#完成TLS Bootstrapping（自动申请证书并注册为Node）。
cat > bootstrap-token-secret.yaml <<EOF
apiVersion: v1
kind: Secret
metadata:
  name: bootstrap-token-${TOKEN_ID}
  namespace: kube-system
type: bootstrap.kubernetes.io/token
stringData:
  token-id: "${TOKEN_ID}"
  token-secret: "${TOKEN_SECRET}"
  auth-extra-groups: "system:bootstrappers:kubeadm:default-node-token"
  usage-bootstrap-authentication: "true"
  usage-bootstrap-signing: "true"
  expiration: $(date -d '+24 hours' -u +%Y-%m-%dT%H:%M:%SZ)
  description: "Bootstrap token for new nodes"
EOF
kubectl apply -f bootstrap-token-secret.yaml
kubectl get secret -n kube-system | grep bootstrap-token

#自动批准首次bootstrap CSR。
cat > auto-approve-node-client-csr.yaml <<'EOF'
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: auto-approve-node-client-csr
subjects:
- kind: Group
  name: system:bootstrappers
  apiGroup: rbac.authorization.k8s.io
roleRef:
  kind: ClusterRole
  name: system:certificates.k8s.io:certificatesigningrequests:nodeclient
  apiGroup: rbac.authorization.k8s.io
EOF
kubectl apply -f auto-approve-node-client-csr.yaml

#自动批准后续续期CSR
cat > auto-approve-selfnode-client-csr.yaml <<'EOF'
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: auto-approve-selfnode-client-csr
subjects:
- kind: Group
  name: system:nodes
  apiGroup: rbac.authorization.k8s.io
roleRef:
  kind: ClusterRole
  name: system:certificates.k8s.io:certificatesigningrequests:selfnodeclient
  apiGroup: rbac.authorization.k8s.io
EOF
kubectl apply -f auto-approve-selfnode-client-csr.yaml

#创建bootstrap-kubeconfig。
#查看之前生成的token.txt。
export BOOTSTRAP_TOKEN="bad6fd.aefc8929b8e16f4c"
#这里是apiserver的负载均衡代理地址。
export APISERVER="https://lb.k8s.cn:6443"
#ca.pem的地址。
export CA_CERT="/etc/kubernetes/pki/ca.pem"

kubectl config set-cluster kubernetes \
  --certificate-authority=${CA_CERT} \
  --embed-certs=true \
  --server=${APISERVER} \
  --kubeconfig=/etc/kubernetes/bootstrap-kubeconfig

kubectl config set-credentials system:bootstrap:$(echo ${BOOTSTRAP_TOKEN} | cut -d. -f1) \
  --token=${BOOTSTRAP_TOKEN} \
  --kubeconfig=/etc/kubernetes/bootstrap-kubeconfig

kubectl config set-context system:bootstrap:$(echo ${BOOTSTRAP_TOKEN} | cut -d. -f1)@kubernetes \
  --cluster=kubernetes \
  --user=system:bootstrap:$(echo ${BOOTSTRAP_TOKEN} | cut -d. -f1) \
  --kubeconfig=/etc/kubernetes/bootstrap-kubeconfig

kubectl config use-context system:bootstrap:$(echo ${BOOTSTRAP_TOKEN} | cut -d. -f1)@kubernetes \
  --kubeconfig=/etc/kubernetes/bootstrap-kubeconfig

#查看/etc/kubernetes/bootstrap-kubeconfig文件是否生成。
ls -l /etc/kubernetes/bootstrap-kubeconfig

#如果bootstrap-kubeconfig已经创建，后面的节点添加只需要复制bootstrap-kubeconfig到/etc/kubernetes。
#然后直接跳过生成bootstrap-kubeconfig相关的步骤。
#kubelet配置文件。
cat > /etc/kubernetes/kubelet.yml <<'EOF'
apiVersion: kubelet.config.k8s.io/v1beta1
kind: KubeletConfiguration
address: 0.0.0.0
port: 10250
cgroupDriver: systemd
clusterDNS: ["10.96.0.10"]
clusterDomain: cluster.local
failSwapOn: false
authentication:
  anonymous:
    enabled: false
  webhook:
    enabled: true
authorization:
  mode: Webhook
EOF

#systemd管理kubelet。
cat > /etc/systemd/system/kubelet.service <<EOF
[Unit]
Description=Kubernetes Kubelet
After=containerd.service
Requires=containerd.service

[Service]
ExecStart=/usr/local/bin/kubelet \
  --hostname-override=$(hostname -s) \
  --bootstrap-kubeconfig=/etc/kubernetes/bootstrap-kubeconfig \
  --cert-dir=/etc/kubernetes/pki \
  --client-ca-file=/etc/kubernetes/pki/ca.pem \
  --kubeconfig=/etc/kubernetes/kubelet.kubeconfig \
  --config=/etc/kubernetes/kubelet.yml \
  --container-runtime-endpoint=unix:///var/run/containerd/containerd.sock \
  --v=2
Restart=on-failure
RestartSec=5

[Install]
WantedBy=multi-user.target
EOF
systemctl daemon-reload
systemctl enable --now kubelet

#kubectl get node
#这里的NotReady是因为没有部署网络插件。
#NAME       STATUS     ROLES    AGE     VERSION
#kmaster1   NotReady   <none>   2m50s   v1.32.0

部署kube-proxy

#在work节点。
cd
cp kubernetes/server/bin/kube-proxy /usr/local/bin/

#创建证书。
#在kmaster1执行，因为这里面已经生成了ca.pem和一些配置参数。
cd /etc/kubernetes/pki
cat > kube-proxy-csr.json <<EOF
{
  "CN": "system:kube-proxy",
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "US",
      "L": "Portland",
      "O": "system:node-proxier",
      "OU": "Kubernetes The Hard Way",
      "ST": "Oregon"
    }
  ]
}
EOF
cfssl gencert \
  -ca=ca.pem \
  -ca-key=ca-key.pem \
  -config=ca-config.json \
  -profile=kubernetes \
  kube-proxy-csr.json | cfssljson -bare kube-proxy
#证书创建完成后上传证书到work节点和其他master节点 /etc/kubernetes/pki。

#创建kubeconfig文件。
kubectl config set-cluster kubernetes \
  --certificate-authority=/etc/kubernetes/pki/ca.pem \
  --embed-certs=true \
  --server=https://lb.k8s.cn:6443 \
  --kubeconfig=/var/lib/kube-proxy/kubeconfig.conf

kubectl config set-credentials system:kube-proxy \
  --client-certificate=/etc/kubernetes/pki/kube-proxy.pem \
  --client-key=/etc/kubernetes/pki/kube-proxy-key.pem \
  --embed-certs=true \
  --kubeconfig=/var/lib/kube-proxy/kubeconfig.conf

kubectl config set-context kube-proxy \
  --cluster=kubernetes \
  --user=system:kube-proxy \
  --kubeconfig=/var/lib/kube-proxy/kubeconfig.conf

kubectl config use-context kube-proxy --kubeconfig=/var/lib/kube-proxy/kubeconfig.conf

#创建 kube-proxy 的配置文件 /etc/kubernetes/kube-proxy-config.yaml
cat > /etc/kubernetes/kube-proxy-config.yaml <<EOF
apiVersion: kubeproxy.config.k8s.io/v1alpha1
kind: KubeProxyConfiguration
clientConnection:
  kubeconfig: "/var/lib/kube-proxy/kubeconfig.conf"
mode: "ipvs"
EOF

#systemd管理。
cat > /etc/systemd/system/kube-proxy.service <<EOF
[Unit]
Description=Kubernetes Kube-Proxy
Documentation=https://github.com/kubernetes/kubernetes
After=network.target

[Service]
ExecStart=/usr/local/bin/kube-proxy \
  --config=/etc/kubernetes/kube-proxy-config.yaml
Restart=on-failure
RestartSec=5

[Install]
WantedBy=multi-user.target
EOF

sudo systemctl daemon-reload
sudo systemctl enable kube-proxy --now
sudo systemctl status kube-proxy

部署网络flannel

wget https://gitee.com/longjiangkai/k8s/raw/master/kube-flannel.yml
kubectl apply -f kube-flannel.yml
#查看状态
kubectl get pod -n kube-flannel
NAME                    READY   STATUS      RESTARTS   AGE
kube-flannel-ds-497cq   0/1     Completed   5          24m
kube-flannel-ds-6qxg8   0/1     Completed   6          24m
kube-flannel-ds-7sk5h   0/1     Completed   5          24m
kube-flannel-ds-g9jjk   0/1     Completed   5          23m

部署CoreDNS

#下载官方YAML（已替换为国内镜像）
wget https://gitee.com/longjiangkai/k8s/raw/master/coredns.yml
kubectl apply -f coredns.yml
#查看状态
kubectl get pod -n kube-system
NAME                      READY   STATUS    RESTARTS        AGE
coredns-66d689954-kwl25   1/1     Running   12 (3m8s ago)   67m
coredns-66d689954-lrtbk   1/1     Running   10 (10m ago)    67m

总结

二进制部署k8s确实是有些复杂，但是它可以让你更加的了解k8s的各个组件的作用和他们之间是如何配合的。大型项目必定采用分布式微服务，这是趋势。而分布式微服务必然会用到服务编排。所以学好k8s是必要的。
