一、背景

cpos KS ES集群增加xpack 安全认证。

1、集群信息

ES版本：7.10.2

节点数:5个

数据量：349G

分片数:6

副本数：1

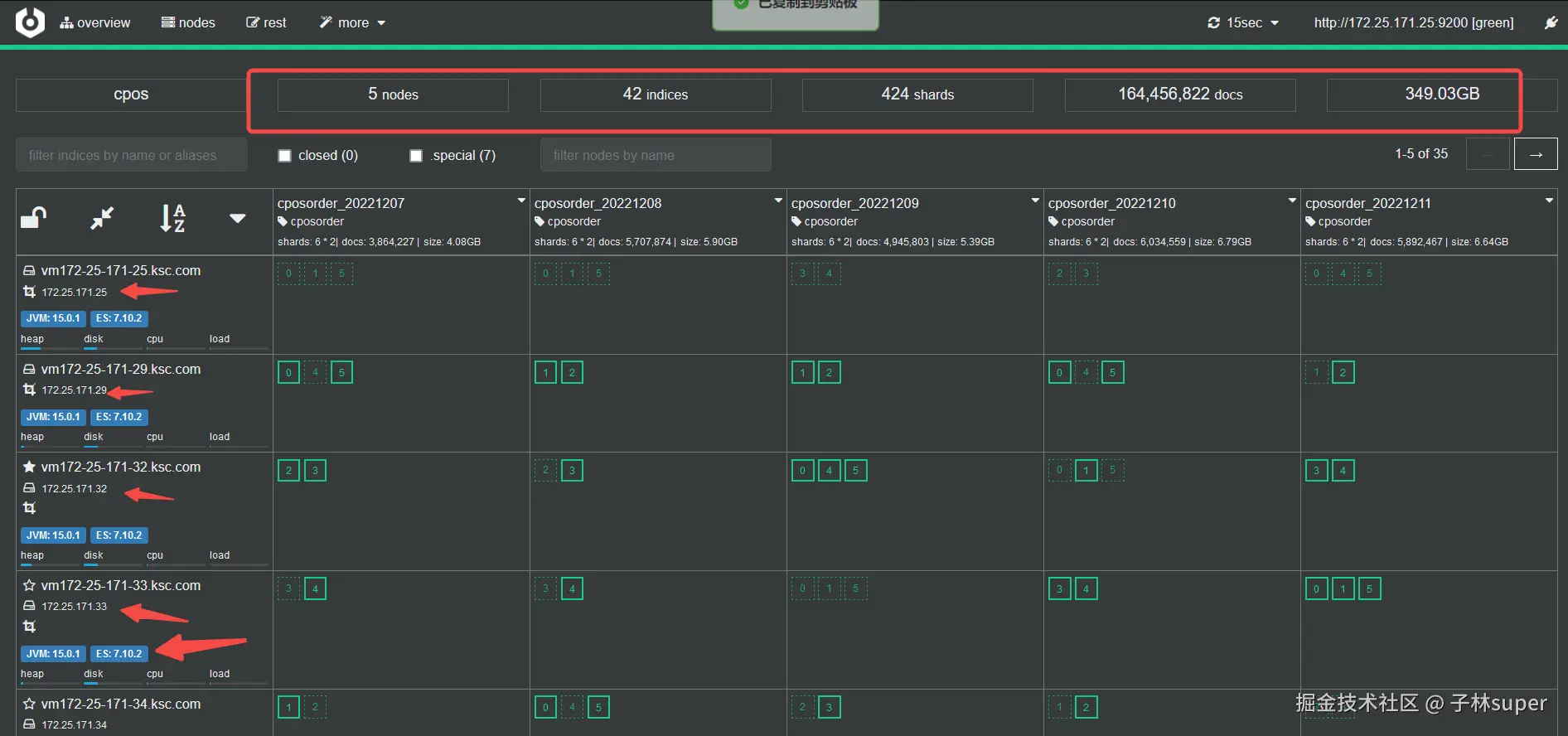

2、集群截图信息




二、操作

0、步骤说明：

  1. es yml 配置中增加 xpack

  2. 配置cert，然后将cert文件复制到其他节点上

  3. 配置ES集群之间tcp 9300 相互通讯的密码

  4. 重启ES服务

  5. 创建es 管理员密码

  6. kibana配置文件中添加用户后重启kibana服务

  7. 创建yumdbuser账号

  8. 应用连接ES

1、es配置文件中增加xpack参数（5个节点都要）

vim /etc/elasticsearch/elasticsearch.yml

追加如下参数

xpack.security.enabled: true
xpack.security.transport.ssl.enabled: true
xpack.security.transport.ssl.verification_mode: certificate
xpack.security.transport.ssl.client_authentication: required
xpack.security.transport.ssl.keystore.path: certs/elastic-certificates.p12
xpack.security.transport.ssl.truststore.path: certs/elastic-certificates.p12

2、创建cert（5个节点都要）

mkdir /etc/elasticsearch/certs

3、在主节点上创建elastic-certificates.p12文件

# 用于生成elastic-certificates.p12 文件，有了cert，就不需要ca。
/usr/share/elasticsearch/bin/elasticsearch-certutil cert

#创建后的文件在如下路径：
/usr/share/elasticsearch/elastic-certificates.p12
# 放到 /etc/elasticsearch/certs

cp /usr/share/elasticsearch/elastic-certificates.p12 /etc/elasticsearch/certs
# 文件权限
chown -R elasticsearch:elasticsearch /etc/elasticsearch/certs

说明：

· 主节点上创建的elastic-certificates.p12传到其他节点的/etc/elasticsearch/certs 路径下

· 如果修改权限，在重启es服务的时候会出现权限不够

4、配置ES集群之间的通讯密码（5个节点都要）

# 配置的为ES集群之间tcp 9300 相互通讯的密码
/usr/share/elasticsearch/bin/elasticsearch-keystore add xpack.security.transport.ssl.keystore.secure_password

/usr/share/elasticsearch/bin/elasticsearch-keystore add xpack.security.transport.ssl.truststore.secure_password

说明：

配置完后立即重启es服务，否则ES启动失败。

systemctl restart elasticsearch

5、创建ES 管理员密码

# 指定密码：  a3b9ymeERz
/usr/share/elasticsearch/bin/elasticsearch-setup-passwords interactive
# 另一种方式，指定IP
/usr/share/elasticsearch/bin/elasticsearch-setup-passwords interactive -u "http://172.21.52.95:9200"

6、kibana中添加xpack

vim /etc/kibana/kibana.yml

追加如下配置

elasticsearch.username: "elastic"
elasticsearch.password: "1234567"

xpack.reporting.csv.maxSizeBytes: 809715200
xpack.reporting.queue.timeout: 1800000

7、验证

# 查询集群settings
curl  -X GET --user yumdbuser:Stz8H6SY23 http://172.25.171.33:9200/_cluster/settings?pretty

# 查询index
curl  -X GET --user yumdbuser:Stz8H6SY23 http://172.25.171.33:9200/_cat/indices?v



三、问题

1、xpack等配置完成后，重启ES报错

[2023-01-09T21:00:38,731][ERROR][o.e.b.ElasticsearchUncaughtExceptionHandler] [vm172-25-171-29.ksc.com] uncaught exception in thread [main]
org.elasticsearch.bootstrap.StartupException: ElasticsearchSecurityException[failed to load SSL configuration [xpack.security.transport.ssl]]; nested: ElasticsearchException[failed to initialize SSL TrustManager]; nested: IOException[keystore password was incorrect]; nested: UnrecoverableKeyException[failed to decrypt safe contents entry: javax.crypto.BadPaddingException: Given final block not properly padded. Such issues can arise if a bad key is used during decryption.];
        at org.elasticsearch.bootstrap.Elasticsearch.init(Elasticsearch.java:174) ~[elasticsearch-7.10.2.jar:7.10.2]
        at org.elasticsearch.bootstrap.Elasticsearch.execute(Elasticsearch.java:161) ~[elasticsearch-7.10.2.jar:7.10.2]
        at org.elasticsearch.cli.EnvironmentAwareCommand.execute(EnvironmentAwareCommand.java:86) ~[elasticsearch-7.10.2.jar:7.10.2]
        at org.elasticsearch.cli.Command.mainWithoutErrorHandling(Command.java:127) ~[elasticsearch-cli-7.10.2.jar:7.10.2]
        at org.elasticsearch.cli.Command.main(Command.java:90) ~[elasticsearch-cli-7.10.2.jar:7.10.2]
        at org.elasticsearch.bootstrap.Elasticsearch.main(Elasticsearch.java:126) ~[elasticsearch-7.10.2.jar:7.10.2]
        at org.elasticsearch.bootstrap.Elasticsearch.main(Elasticsearch.java:92) ~[elasticsearch-7.10.2.jar:7.10.2]
Caused by: org.elasticsearch.ElasticsearchSecurityException: failed to load SSL configuration [xpack.security.transport.ssl]

分析：缺少配置ES集群之间的通讯密码

解决：

# 配置的为ES集群之间tcp 9300 相互通讯的密码
/usr/share/elasticsearch/bin/elasticsearch-keystore add xpack.security.transport.ssl.keystore.secure_password

/usr/share/elasticsearch/bin/elasticsearch-keystore add xpack.security.transport.ssl.truststore.secure_password

然后立马重启ES服务，即可解决问题。

2、停止分片重分配功能

# 关闭分片，关闭重分配
curl -X PUT -H "Content-Type: application/json" -d '{ "persistent": { "cluster.routing.allocation.enable": "primaries" } }'  "http://172.25.171.33:9200/_cluster/settings"

# 刷新执行同步刷新
curl -X POST  "http://172.25.171.33:9200/_flush/synced?pretty"

# 检查集群settings
curl  -X GET http://172.25.171.33:9200/_cluster/settings?pretty

3、开启集群重分配

# 启动elastic后 启动分片
curl -X PUT -H "Content-Type: application/json" -d '{"persistent": { "cluster.routing.allocation.enable": null } }' --user elastic:a3b9ymeERz  "http://172.25.171.33:9200/_cluster/settings"

# 检查集群settings
curl  -X GET --user elastic:a3b9ymeERz http://172.25.171.33:9200/_cluster/settings?pretty

# 刷新执行同步刷新
curl -X POST --user elastic:a3b9ymeERz "http://172.25.171.33:9200/_flush/synced?pretty"
