云上topic自动化任务需求文档

子林super
34 阅读2分钟

一、描述

  1. 自建区的topic创建工具已经不适用云上ELK的特点。

  2. 云上的paas服务，需要调用API。

  3. 阿里云的接口需要有AKSK，华为云相同。

  4. 自建区创建topic只包含两步骤：kafka的topic创建、logstash配置文件创建

  5. kafka在云下自建机房




二、需求

  1. 流程逻辑

    1. 用户通过Jenkins的job填写信息，然后开始build执行job
    2. 传入的参数有三个：环境、日志量参数、topic名
    3. 自动化任务在kakfa中创建topic
    4. 调用云上AIP是生成logstash的管道信息
    5. 在es中生成对应topic的index patterns（此步骤存疑）
    6. 完成

问题点：

· 没有日志进入ELK的话，自动创建index patterns如何实现？

  1. 用户操作入口

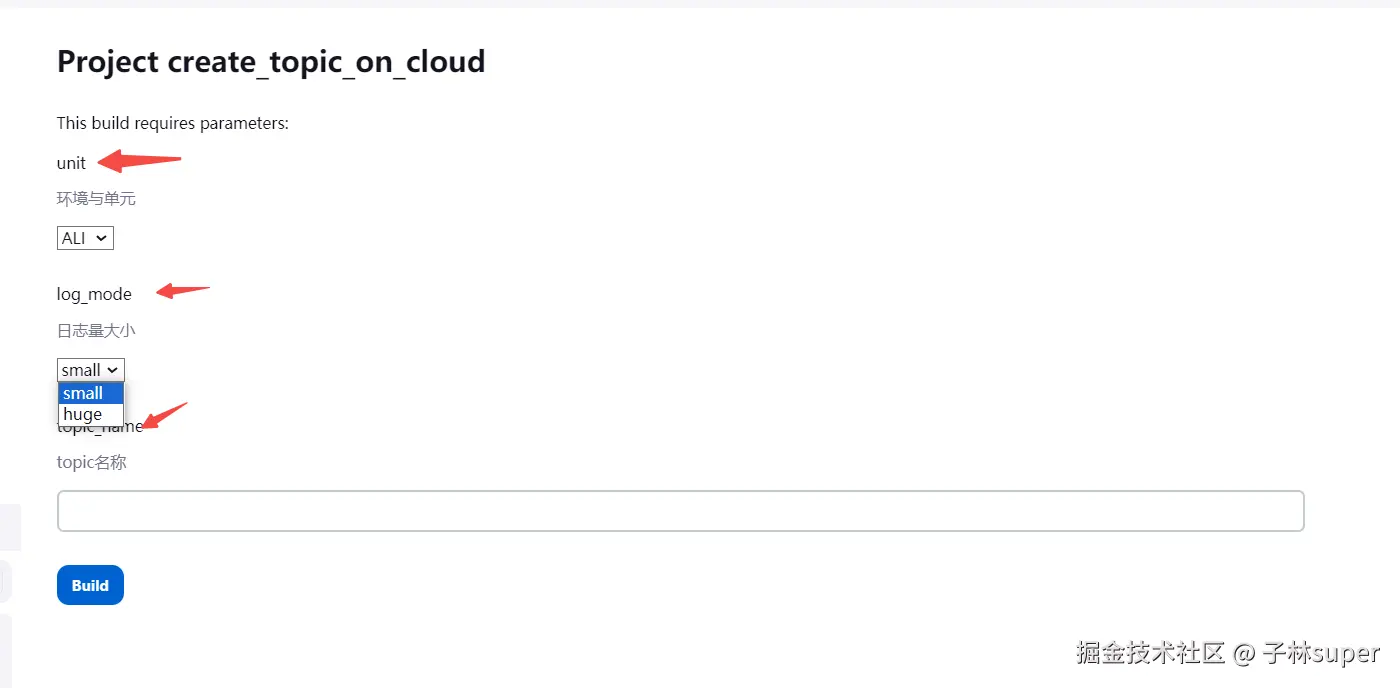

通过Jenkins实现，用户在job中填写信息点击build后，触发topic创建。

参数有如下三个：

环境（unit）、日志模式（log_mode）、topic名称（topic_name）

说明：

  1. unit为选择参数，只有2个值：ALI 与 VOL
  2. log_mode为日志量大小的参数，只有2个值：small和huge。对应为logstash的pipeline。
  3. topic_name 为topic名称，用户输入的string。

  1. 实现方式

python




三、材料

自建区创建topic的脚本如下：

  1. KS环境

shell脚本

#!/usr/bin/env bash

CONF_PATH=/etc/ansible/ks/logstash.conf
for var in "$@"
do
    echo "$var"
done

for topic in "$@"
do
cat << EOF > ${CONF_PATH}/${topic}-ksa.conf
input {
   kafka  {
       codec => "plain"
       topics => ["${topic}"]
       bootstrap_servers => "172.25.106.31:9092,172.25.106.30:9092,172.25.106.29:9092,172.25.106.23:9092,172.25.106.22:9092"
       max_poll_interval_ms => "3000000"
       session_timeout_ms => "6000"
       heartbeat_interval_ms => "2000"
       auto_offset_reset => "latest"
       group_id => "${topic}-ksaelk"
       type => "${topic}"
     }
}
EOF
echo "created: " ${CONF_PATH}/${topic}-ksa.conf
done

for topic in "$@"
do
#ansible kslogstash -m copy -a "src=${CONF_PATH}/${topic}-ksa.conf dest=/etc/logstash/conf.d/${topic}-ksa.conf" -f 100
ansible -i /data/elktopic/hosts/ks_logstashhosts small -m copy -a "src=${CONF_PATH}/${topic}-ksa.conf dest=/etc/logstash/conf.d/${topic}-ksa.conf" -f 100
echo "synced: " ${CONF_PATH}/${topic}-ksa.conf "to" /etc/logstash/conf.d/${topic}-ksa.conf

# create topic
echo "creating topic ${topic}..."
#ansible ksshelkkafka1 -m shell -a "/opt/kafka/bin/kafka-topics.sh --zookeeper 172.25.106.29:2181 --create --replication-factor 2 --partitions 15 --topic ${topic}"
ansible -i /data/elktopic/hosts/ks_kafkahosts new_one -m shell -a "/opt/kafka/bin/kafka-topics.sh --zookeeper 172.25.106.29:2181 --create --replication-factor 2 --partitions 15 --topic ${topic}"
echo "topic ${topic} created"

done

echo "restaring logstash..."
#ansible kslogstash -m shell -a "supervisorctl restart ks_logstash" -f 100
ansible -i /data/elktopic/hosts/ks_logstashhosts small -m shell -a "supervisorctl restart ks_logstash" -f 100
echo "restarted logstash"

2. ## WG环境

shell脚本

#!/usr/bin/env bash

CONF_PATH=/etc/ansible/wg/logstash.conf
for var in "$@"
do
    echo "$var"
done

for topic in "$@"
do
cat << EOF > ${CONF_PATH}/${topic}-wga.conf
input {
   kafka  {
       codec => "plain"
       topics => ["${topic}"]
       bootstrap_servers => "172.21.241.185:9092,172.21.241.186:9092,172.21.241.187:9092,172.21.241.188:9092,172.21.241.189:9092"
       max_poll_interval_ms => "3000000"
       session_timeout_ms => "6000"
       heartbeat_interval_ms => "2000"
       auto_offset_reset => "latest"
       group_id => "${topic}-wgaelk"
       type => "${topic}"
     }
}
EOF
echo "created: " ${CONF_PATH}/${topic}-wga.conf
done

for topic in "$@"
do
#ansible wglogstash -m copy -a "src=${CONF_PATH}/${topic}-wga.conf dest=/opt/elk/wg_logstash/logstash/config/conf.d/${topic}-wga.conf" -f 100
ansible -i /data/elktopic/hosts/wg_logstashhosts final -m copy -a "src=${CONF_PATH}/${topic}-wga.conf dest=/opt/elk/wg_logstash/logstash/config/conf.d/${topic}-wga.conf" -f 100
echo "synced: " ${CONF_PATH}/${topic}.conf "to" /opt/elk/wg_logstash/logstash/config/conf.d/${topic}.conf

# create topic
echo "creating topic ${topic}..."
#ansible wgelkkafka1 -m shell -a "/opt/kafka/bin/kafka-topics.sh --zookeeper 172.21.241.185:2181 --create --replication-factor 2 --partitions 15 --topic ${topic}"
ansible -i /data/elktopic/hosts/wg_kafkahosts new_one -m shell -a "/opt/kafka/bin/kafka-topics.sh --zookeeper 172.21.241.185:2181 --create --replication-factor 2 --partitions 15 --topic ${topic}"
echo "topic ${topic} created"

done
#ansible wglogstash -m shell -a "chown -R elk:elk /opt/elk/wg_logstash/logstash/config/conf.d/"

#/data/projects/xops/restart_logstash.sh
echo "restaring logstash..."
#ansible wglogstash -m shell -a "supervisorctl restart wg_logstash" -f 100
ansible -i  /data/elktopic/hosts/wg_logstashhosts final -m shell -a "supervisorctl restart wg_logstash" -f 100
echo "restarted logstash"

3. ## 脚本逻辑说明

自建区创建topic的脚本逻辑如下：

  • 创建logstash的input文件

  • 将input文件上传到logstash实例中

  • Kafka中创建topic

  • 重启logstash的服务

  • 完成




四、注意

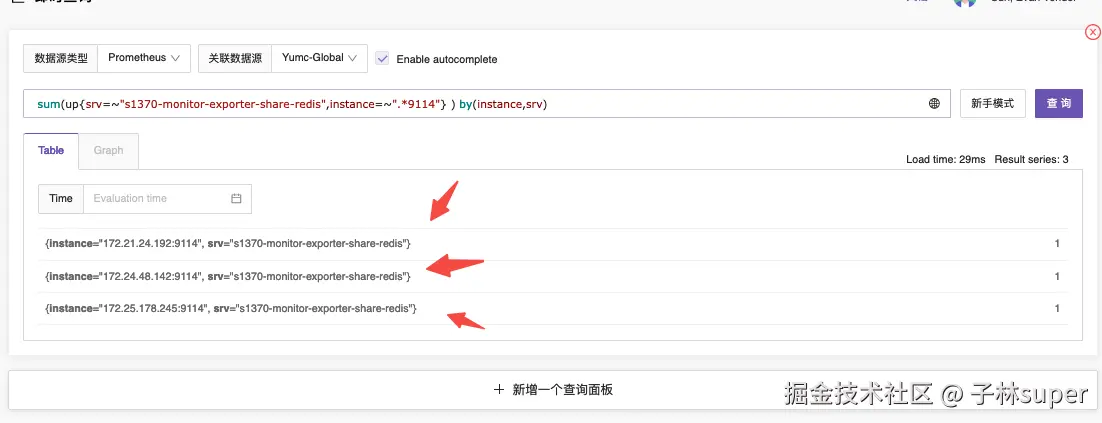

部署开源es exporter的3个节点。
