12.Android 十一种设计模式 设计理念独家解读 在大型企业级APP的综合应用

1.设计模式的7大设计原则

7大设计原则主要包括 开闭原则、 里氏替换原则、 依赖倒置原则、 单一职责原则、 接口隔离原则、 最小知识原则 和合成复用原则 下面是一个展示设计模式7大原则及其关系的可视化图表，采用了环形布局展示各原则间的内在联系：

1.1 开闭原则 (Open-Closed Principle)

• 核心思想：软件实体应对扩展开放，对修改关闭

• 关键实现：

  • 使用抽象化定义
  • 利用多态机制
  • 依赖接口编程

1.2. 里氏替换原则 (Liskov Substitution Principle)

• 核心思想：子类必须能够替换其父类而不影响程序正确性

• 关键要点：

  • 子类不改变父类方法行为
  • 不强加额外约束条件
  • 不削弱前置条件

• 应用场景：

  • 继承体系设计
  • 多态实现
  • 接口实现

1.3. 依赖倒置原则 (Dependency Inversion Principle)

• 核心思想：

  • 高层模块不依赖低层模块
  • 二者都应依赖抽象

1.4. 单一职责原则 (Single Responsibility Principle)

• 核心思想：一个类只应有一个引起变化的原因

• 判断标准：

  • 类描述是否包含"和"（如"用户管理和日志记录"）
  • 方法是否服务于不同功能

1.5. 接口隔离原则 (Interface Segregation Principle)

• 核心思想：客户端不应被迫依赖它不使用的接口

• 实现方法：

  • 将臃肿接口拆分为多个专门接口
  • 使用接口继承建立层次关系

• 优势：

  • 减少接口污染
  • 降低依赖耦合
  • 提高系统灵活性

1.6. 最小知识原则 (Law of Demeter)

• 核心思想：一个对象应对其他对象保持最少的了解

• 通信规则：

  • 与自身成员通信
  • 与方法参数通信
  • 与自身创建的对象通信
  • 与直接组件对象通信

1.7. 合成复用原则 (Composite Reuse Principle)

• 核心思想：优先使用对象组合，而不是继承

• 应用场景：

  • 功能扩展
  • 代码复用
  • 系统重构

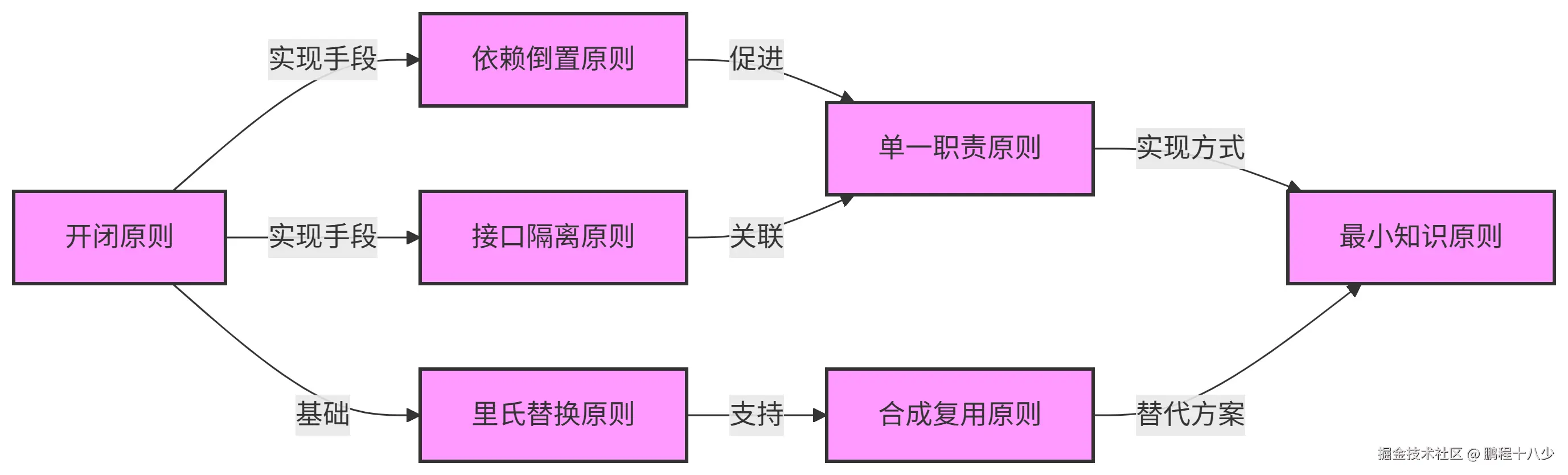

七大原则关联关系

1. 开闭原则是核心目标：其他原则都在不同角度支持开闭原则的实现
2. 里氏替换是继承基础：保证子类替换父类时的系统稳定性
3. 依赖倒置是架构关键：通过抽象解耦高层与低层模块
4. 单一职责是设计前提：确保类的内聚性和可维护性
5. 接口隔离是抽象手段：提供精确的抽象定义
6. 最小知识是通信准则：限制对象间的过度耦合
7. 合成复用是实践方案：提供比继承更灵活的复用方式

这七大原则共同构成了面向对象设计的基石，它们相互关联、相互支持，为创建灵活、可维护、可扩展的软件系统提供了理论指导和实践准则。

2.java的三大特性和设计模式的关系

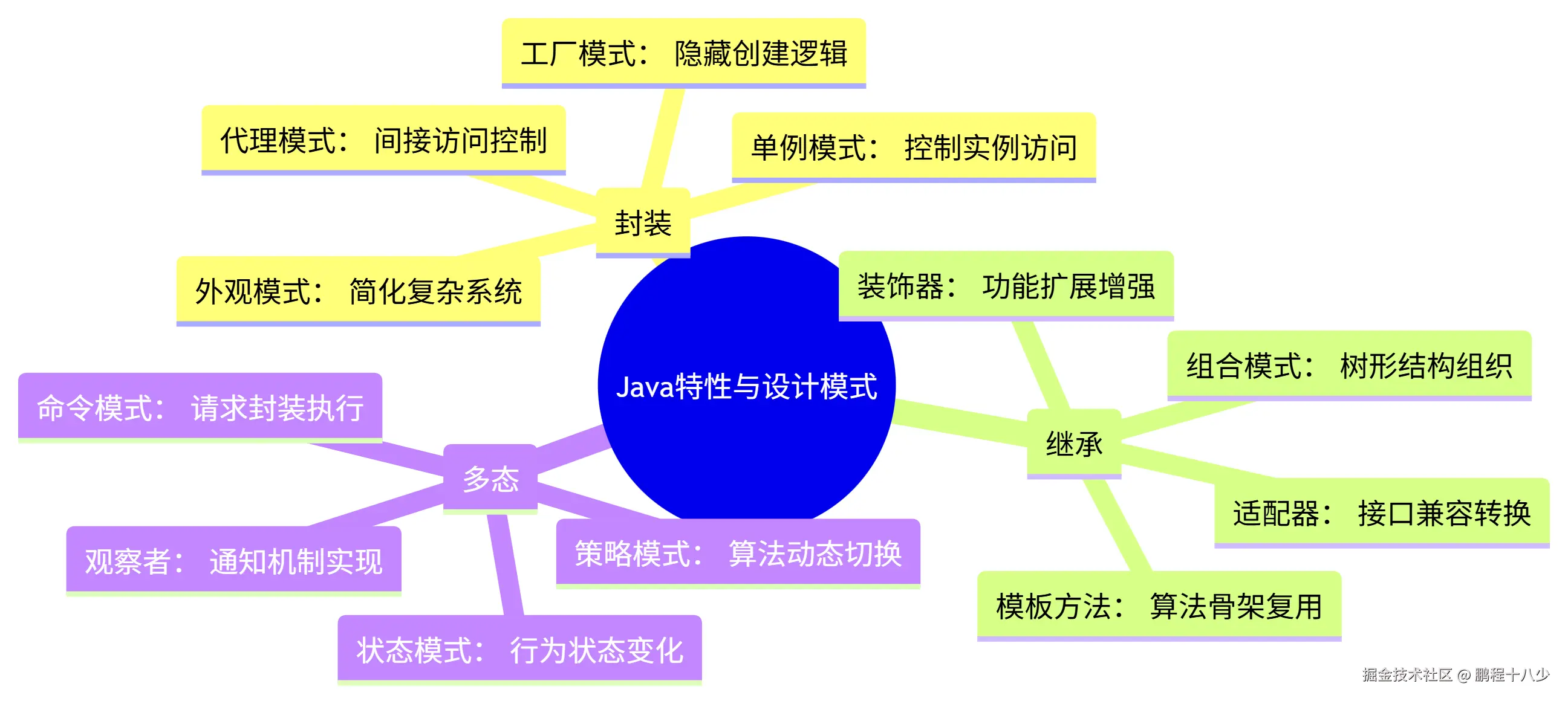

Java三大特性与设计模式的关系图

2.1 封装

作用：隐藏对象内部状态，提供公共访问方式
设计模式应用：

• 工厂模式：封装对象创建过程
• 单例模式：封装实例化控制
• 外观模式：封装子系统复杂接口

2.2 继承

作用：实现代码复用和扩展
设计模式应用：

• 模板方法：父类定义算法骨架
• 装饰器模式：继承+组合实现功能扩展
• 适配器模式：通过继承适配接口

2.3 多态

作用：同一操作作用于不同对象产生不同行为
设计模式应用：

• 策略模式：运行时选择算法
• 观察者模式：通知不同类型观察者
• 命令模式：执行不同命令对象

Java三大特性与设计模式的关系可以概括为：

• 封装是设计模式实现的基础，用于隐藏复杂性和保护内部状态
• 继承为设计模式提供扩展能力，实现代码复用和层次化结构
• 多态赋予设计模式灵活性，支持运行时行为变化和接口统一

3.设计模式3大类型

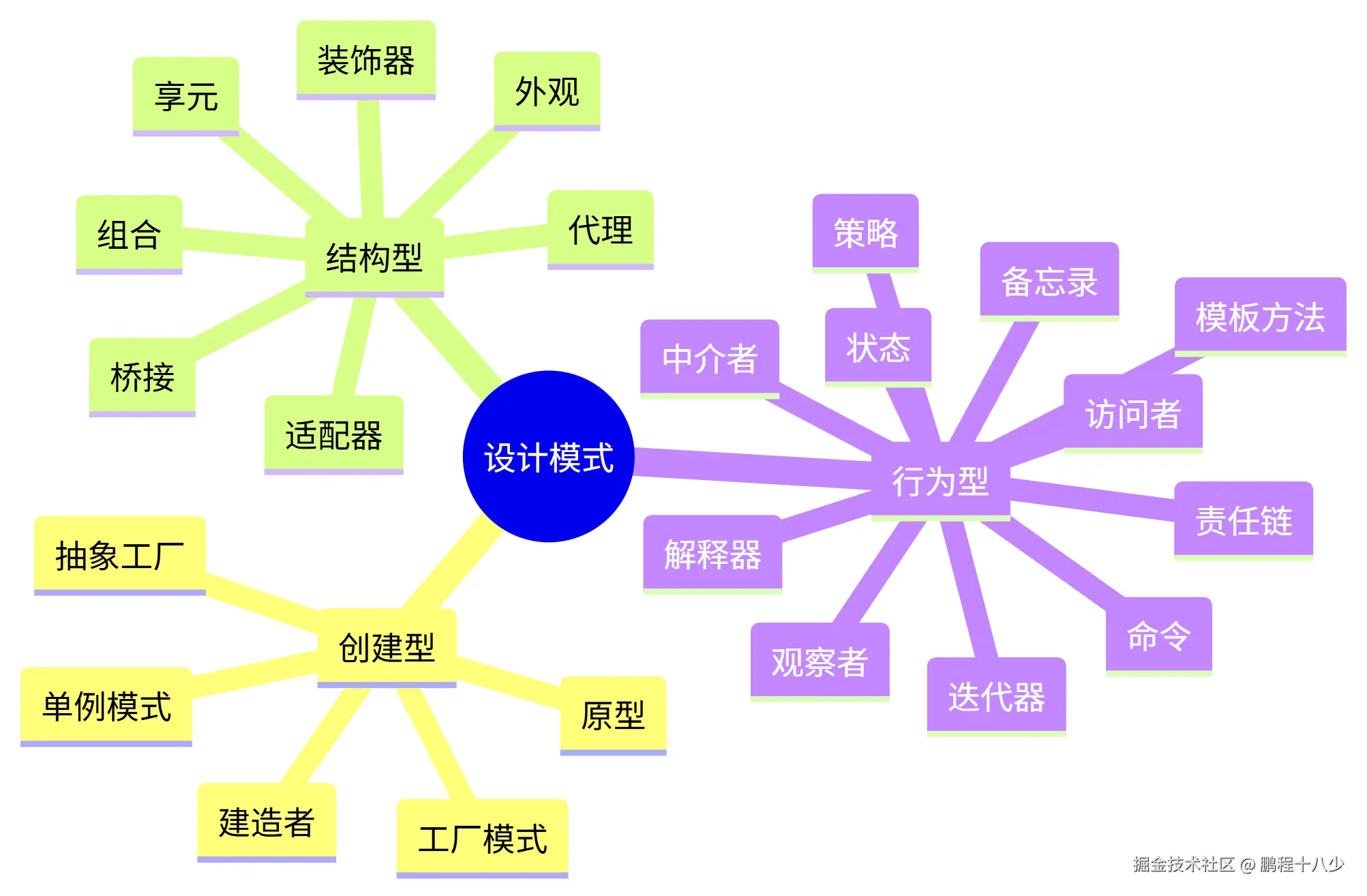

设计模式全景图

3大设计模式主要包括创建型、结构型和行为型

3.1 创建型模式

目的：解耦对象的创建过程

模式	应用场景	关键特点
单例(Singleton)	全局唯一对象	私有构造、静态实例
工厂方法(Factory)	创建相关对象族	子类决定实例化类
抽象工厂(Abstract)	创建产品家族	工厂的工厂
建造者(Builder)	创建复杂对象	分步构建、分离构造与表示
原型(Prototype)	克隆对象	实现Cloneable接口

3.2 结构型模式

目的：组合类和对象形成更大结构

模式	应用场景	关键特点
适配器(Adapter)	接口转换	兼容不兼容接口
组合(Composite)	树形结构	部分-整体层次结构
装饰器(Decorator)	动态添加功能	透明扩展功能
外观(Facade)	简化复杂系统	统一入口接口
享元(Flyweight)	大量细粒度对象共享	内部状态与外部状态分离
代理(Proxy)	控制对象访问	间接访问对象

3.3 行为型模式

目的：管理对象间的交互和职责分配

模式	应用场景	关键特点
责任链(Chain)	请求处理链	多个对象处理请求
命令(Command)	封装请求	命令对象化
解释器(Interpreter)	特定语言解释	定义语法规则
迭代器(Iterator)	集合遍历	统一遍历接口
中介者(Mediator)	对象间交互	集中控制通信
备忘录(Memento)	状态恢复	保存/恢复对象状态
观察者(Observer)	一对多依赖	主题-观察者机制
状态(State)	状态改变行为	状态封装行为
策略(Strategy)	算法替换	封装可互换算法
模板方法(Template)	算法骨架	步骤固定，实现可变
访问者(Visitor)	元素操作分离	双重分发机制

4.Android 写一个完整的语音项目，包含，单例，构造者模式，工厂模式，策略模式,观察者模式，责任链模式，动态代理，模板方法，适配器模式，享元模式,外观模式

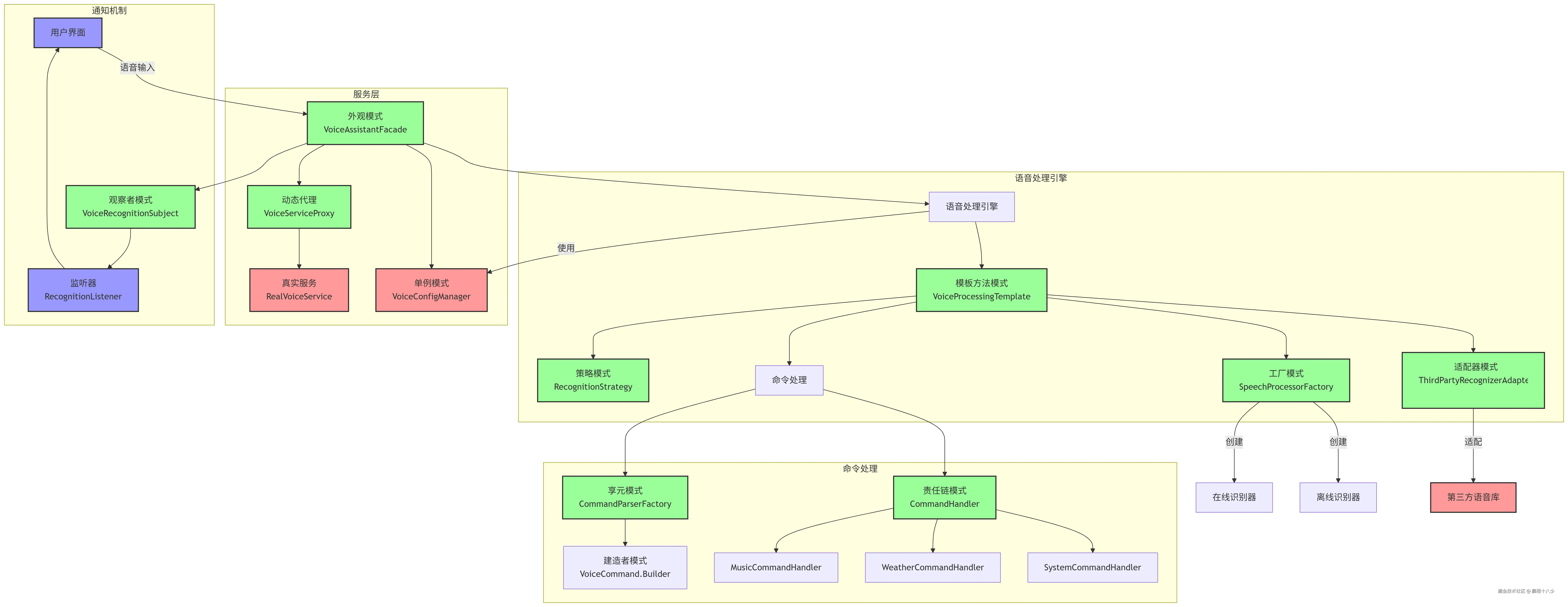

4.1 架构图说明

4.2 源码

// 1. 单例模式 - 全局配置管理
public class VoiceConfigManager {
    private static volatile VoiceConfigManager instance;
    private String language = "zh-CN";
    private int volume = 80;
    private boolean useOfflineMode = false;

    private VoiceConfigManager() {}

    public static VoiceConfigManager getInstance() {
        if (instance == null) {
            synchronized (VoiceConfigManager.class) {
                if (instance == null) {
                    instance = new VoiceConfigManager();
                }
            }
        }
        return instance;
    }

    public void setLanguage(String lang) { this.language = lang; }
    public String getLanguage() { return language; }
    public void setVolume(int volume) { this.volume = volume; }
    public int getVolume() { return volume; }
    public void setUseOfflineMode(boolean use) { this.useOfflineMode = use; }
    public boolean isOfflineMode() { return useOfflineMode; }
}

// 2. 建造者模式 - 语音命令构建
public class VoiceCommand {
    private final String action;
    private final String target;
    private final String params;
    private final String source;

    private VoiceCommand(Builder builder) {
        this.action = builder.action;
        this.target = builder.target;
        this.params = builder.params;
        this.source = builder.source;
    }

    public String getAction() { return action; }
    public String getTarget() { return target; }
    public String getParams() { return params; }
    public String getSource() { return source; }

    public static class Builder {
        private String action;
        private String target;
        private String params = "";
        private String source = "user";

        public Builder setAction(String action) {
            this.action = action;
            return this;
        }

        public Builder setTarget(String target) {
            this.target = target;
            return this;
        }

        public Builder setParams(String params) {
            this.params = params;
            return this;
        }

        public Builder setSource(String source) {
            this.source = source;
            return this;
        }

        public VoiceCommand build() {
            return new VoiceCommand(this);
        }
    }
}

// 3. 工厂模式 - 语音处理器创建
public interface VoiceProcessor {
    String process(String audio);
}

public class SpeechProcessorFactory {
    public static VoiceProcessor createProcessor(String type) {
        VoiceConfigManager config = VoiceConfigManager.getInstance();

        if ("RECOGNITION".equals(type)) {
            if (config.isOfflineMode()) {
                return new OfflineSpeechRecognizer();
            }
            return new OnlineSpeechRecognizer();
        } else if ("SYNTHESIS".equals(type)) {
            if (config.isOfflineMode()) {
                return new OfflineSpeechSynthesizer();
            }
            return new OnlineSpeechSynthesizer();
        }
        throw new IllegalArgumentException("Invalid processor type");
    }
}

class OnlineSpeechRecognizer implements VoiceProcessor {
    @Override
    public String process(String audio) {
        return "Online Recognition: " + audio;
    }
}

class OfflineSpeechRecognizer implements VoiceProcessor {
    @Override
    public String process(String audio) {
        return "Offline Recognition: " + audio;
    }
}

class OnlineSpeechSynthesizer implements VoiceProcessor {
    @Override
    public String process(String text) {
        return "Synthesized: " + text;
    }
}

class OfflineSpeechSynthesizer implements VoiceProcessor {
    @Override
    public String process(String text) {
        return "Offline Synthesized: " + text;
    }
}

// 4. 策略模式 - 语音识别算法切换
public interface RecognitionStrategy {
    String recognize(byte[] audioData);
}

public class AccurateRecognition implements RecognitionStrategy {
    @Override
    public String recognize(byte[] audioData) {
        return "Accurate result: " + new String(audioData);
    }
}

public class FastRecognition implements RecognitionStrategy {
    @Override
    public String recognize(byte[] audioData) {
        return "Fast result: " + new String(audioData).substring(0, 10);
    }
}

public class VoiceRecognitionContext {
    private RecognitionStrategy strategy = new FastRecognition();

    public void setStrategy(RecognitionStrategy strategy) {
        this.strategy = strategy;
    }

    public String executeRecognition(byte[] audioData) {
        return strategy.recognize(audioData);
    }
}

// 5. 观察者模式 - 语音识别结果通知
public interface RecognitionListener {
    void onRecognitionResult(String result);
    void onError(String error);
}

public class VoiceRecognitionSubject {
    private final List<RecognitionListener> listeners = new ArrayList<>();

    public void addListener(RecognitionListener listener) {
        listeners.add(listener);
    }

    public void removeListener(RecognitionListener listener) {
        listeners.remove(listener);
    }

    public void notifyResult(String result) {
        for (RecognitionListener listener : listeners) {
            listener.onRecognitionResult(result);
        }
    }

    public void notifyError(String error) {
        for (RecognitionListener listener : listeners) {
            listener.onError(error);
        }
    }
}

// 6. 责任链模式 - 语音命令处理
public abstract class CommandHandler {
    protected CommandHandler next;

    public void setNext(CommandHandler next) {
        this.next = next;
    }

    public abstract boolean handleCommand(VoiceCommand command);
}

public class MusicCommandHandler extends CommandHandler {
    @Override
    public boolean handleCommand(VoiceCommand command) {
        if ("PLAY".equals(command.getAction()) && "MUSIC".equals(command.getTarget())) {
            System.out.println("Playing music: " + command.getParams());
            return true;
        }
        return next != null && next.handleCommand(command);
    }
}

public class SystemCommandHandler extends CommandHandler {
    @Override
    public boolean handleCommand(VoiceCommand command) {
        if ("SET".equals(command.getAction()) && "VOLUME".equals(command.getTarget())) {
            try {
                int volume = Integer.parseInt(command.getParams());
                VoiceConfigManager.getInstance().setVolume(volume);
                System.out.println("Volume set to: " + volume);
                return true;
            } catch (NumberFormatException e) {
                System.out.println("Invalid volume value");
            }
        }
        return next != null && next.handleCommand(command);
    }
}

public class WeatherCommandHandler extends CommandHandler {
    @Override
    public boolean handleCommand(VoiceCommand command) {
        if ("GET".equals(command.getAction()) && "WEATHER".equals(command.getTarget())) {
            System.out.println("Fetching weather for: " + command.getParams());
            return true;
        }
        return next != null && next.handleCommand(command);
    }
}

// 7. 动态代理 - 语音服务日志记录
public interface IVoiceService {
    void processVoice(byte[] data);
    String synthesizeText(String text);
}

public class RealVoiceService implements IVoiceService {
    @Override
    public void processVoice(byte[] data) {
        System.out.println("Processing voice data...");
    }

    @Override
    public String synthesizeText(String text) {
        return "Synthesized: " + text;
    }
}

public class VoiceServiceProxy implements InvocationHandler {
    private final Object target;

    public VoiceServiceProxy(Object target) {
        this.target = target;
    }

    public static IVoiceService createProxy() {
        return (IVoiceService) Proxy.newProxyInstance(
                VoiceServiceProxy.class.getClassLoader(),
                new Class[]{IVoiceService.class},
                new VoiceServiceProxy(new RealVoiceService()));
    }

    @Override
    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
        System.out.println("==> Calling method: " + method.getName());
        long start = System.currentTimeMillis();
        Object result = method.invoke(target, args);
        long duration = System.currentTimeMillis() - start;
        System.out.println("<== Method " + method.getName() + " executed in " + duration + "ms");
        return result;
    }
}

// 8. 模板方法 - 语音处理流程
public abstract class VoiceProcessingTemplate {
    public final String process(byte[] audio) {
        byte[] cleaned = preProcess(audio);
        String text = recognize(cleaned);
        String response = handleCommand(text);
        return synthesizeResponse(response);
    }

    protected byte[] preProcess(byte[] audio) {
        System.out.println("Applying noise reduction...");
        // 模拟降噪处理
        return Arrays.copyOf(audio, audio.length);
    }

    protected abstract String recognize(byte[] audio);

    protected String handleCommand(String text) {
        System.out.println("Handling command: " + text);
        // 这里会连接责任链处理命令
        return "Processed: " + text;
    }

    protected String synthesizeResponse(String response) {
        System.out.println("Synthesizing response...");
        return response;
    }
}

public class StandardVoiceProcessing extends VoiceProcessingTemplate {
    private final VoiceRecognitionContext recognitionContext = new VoiceRecognitionContext();

    @Override
    protected String recognize(byte[] audio) {
        return recognitionContext.executeRecognition(audio);
    }
}

// 9. 适配器模式 - 第三方语音库集成
public class ThirdPartyRecognizer {
    public String recognize(byte[] input) {
        return "ThirdParty result: " + input.length + " bytes";
    }
}

public class ThirdPartyRecognizerAdapter implements VoiceProcessor {
    private final ThirdPartyRecognizer thirdPartyRecognizer;

    public ThirdPartyRecognizerAdapter(ThirdPartyRecognizer recognizer) {
        this.thirdPartyRecognizer = recognizer;
    }

    @Override
    public String process(String audio) {
        byte[] data = audio.getBytes();
        return thirdPartyRecognizer.recognize(data);
    }
}

// 10. 享元模式 - 语音命令解析器复用
public class CommandParserFactory {
    private static final Map<String, CommandParser> parserCache = new HashMap<>();

    public static CommandParser getParser(String language) {
        if (!parserCache.containsKey(language)) {
            parserCache.put(language, new CommandParser(language));
        }
        return parserCache.get(language);
    }
}

public class CommandParser {
    private final String language;

    public CommandParser(String language) {
        this.language = language;
        // 初始化解析器（模拟耗时操作）
        System.out.println("Initializing parser for: " + language);
    }

    public VoiceCommand parse(String text) {
        // 简化的解析逻辑
        if (text.contains("播放")) {
            return new VoiceCommand.Builder()
                    .setAction("PLAY")
                    .setTarget("MUSIC")
                    .setParams(text.replace("播放", "").trim())
                    .build();
        } else if (text.contains("天气")) {
            return new VoiceCommand.Builder()
                    .setAction("GET")
                    .setTarget("WEATHER")
                    .setParams(text.replace("天气", "").trim())
                    .build();
        }
        return new VoiceCommand.Builder()
                .setAction("UNKNOWN")
                .setTarget("UNKNOWN")
                .setParams(text)
                .build();
    }
}

// 11. 外观模式 - 语音系统统一接口
public class VoiceAssistantFacade {
    private final VoiceRecognitionSubject recognitionSubject = new VoiceRecognitionSubject();
    private final VoiceProcessingTemplate processingTemplate = new StandardVoiceProcessing();
    private final CommandHandler commandHandlerChain;

    private final IVoiceService voiceService;

    public VoiceAssistantFacade() {
        // 创建责任链
        CommandHandler musicHandler = new MusicCommandHandler();
        CommandHandler weatherHandler = new WeatherCommandHandler();
        CommandHandler systemHandler = new SystemCommandHandler();

        musicHandler.setNext(weatherHandler);
        weatherHandler.setNext(systemHandler);

        this.commandHandlerChain = musicHandler;

        // 创建带代理的语音服务
        this.voiceService = VoiceServiceProxy.createProxy();
    }

    public void startListening() {
        System.out.println("Listening for voice input...");
        // 模拟语音输入
        byte[] audioData = "播放周杰伦的歌".getBytes();
        processAudio(audioData);
    }

    public void processAudio(byte[] audioData) {
        new Thread(() -> {
            try {
                String result = processingTemplate.process(audioData);
                recognitionSubject.notifyResult(result);
            } catch (Exception e) {
                recognitionSubject.notifyError("Processing error: " + e.getMessage());
            }
        }).start();
    }

    public void addRecognitionListener(RecognitionListener listener) {
        recognitionSubject.addListener(listener);
    }

    // 处理命令的方法（被模板方法调用）
    public String handleCommandInternal(String text) {
        VoiceConfigManager config = VoiceConfigManager.getInstance();
        CommandParser parser = CommandParserFactory.getParser(config.getLanguage());
        VoiceCommand command = parser.parse(text);

        if (commandHandlerChain.handleCommand(command)) {
            return "Command executed: " + command.getAction() + " " + command.getTarget();
        }
        return "Unknown command: " + text;
    }

    // 语音合成
    public String synthesize(String text) {
        return voiceService.synthesizeText(text);
    }
}

调用过程：

public class DesignActivity extends AppCompatActivity implements RecognitionListener {

    private VoiceAssistantFacade voiceAssistant;
    private TextView statusView;
    private TextView resultView;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_design);

        statusView = findViewById(R.id.status_view);
        resultView = findViewById(R.id.result_view);

        // 初始化语音助手
        voiceAssistant = new VoiceAssistantFacade();
        voiceAssistant.addRecognitionListener(this);

        // 设置配置
        VoiceConfigManager.getInstance().setLanguage("zh-CN");

        // 设置策略
        Button fastBtn = findViewById(R.id.fast_btn);
        Button accurateBtn = findViewById(R.id.accurate_btn);

        fastBtn.setOnClickListener(v -> {
            VoiceRecognitionContext context = new VoiceRecognitionContext();
            context.setStrategy(new FastRecognition());
            updateStatus("Fast recognition strategy set");
        });

        accurateBtn.setOnClickListener(v -> {
            VoiceRecognitionContext context = new VoiceRecognitionContext();
            context.setStrategy(new AccurateRecognition());
            updateStatus("Accurate recognition strategy set");
        });

        // 开始监听
        Button startBtn = findViewById(R.id.start_btn);
        startBtn.setOnClickListener(v -> voiceAssistant.startListening());

        // 语音合成
        Button speakBtn = findViewById(R.id.speak_btn);
        speakBtn.setOnClickListener(v -> {
            String response = voiceAssistant.synthesize("你好，我是语音助手");
            resultView.setText(response);
        });
    }

    private void updateStatus(String message) {
        runOnUiThread(() -> statusView.setText(message));
    }

    @Override
    public void onRecognitionResult(String result) {
        runOnUiThread(() -> {
            resultView.setText(result);
            statusView.setText("Recognition complete");
        });
    }

    @Override
    public void onError(String error) {
        runOnUiThread(() -> {
            resultView.setText("Error: " + error);
            statusView.setText("Recognition failed");
        });
    }
}

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:padding="16dp"
    android:background="@color/background">

    <!-- 标题区域 -->
    <TextView
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="语音助手"
        android:textSize="24sp"
        android:textColor="@color/primary"
        android:textStyle="bold"
        android:gravity="center"
        android:layout_marginBottom="24dp"/>

    <!-- 状态显示区域 -->
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="horizontal"
        android:layout_marginBottom="16dp"
        android:gravity="center_vertical">

        <ImageView
            android:layout_width="24dp"
            android:layout_height="24dp"
            android:src="@drawable/ic_mic"
           />

        <TextView
            android:id="@+id/status_view"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="准备就绪"
            android:textSize="16sp"
            android:textColor="@color/text_primary"
            android:layout_marginStart="8dp"/>
    </LinearLayout>

    <!-- 结果显示区域 -->
    <androidx.cardview.widget.CardView
        android:layout_width="match_parent"
        android:layout_height="0dp"
        android:layout_weight="1"
        app:cardCornerRadius="8dp"
        app:cardElevation="4dp"
        android:layout_marginBottom="16dp"
        tools:ignore="MissingClass">

        <ScrollView
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:padding="16dp"
            android:background="@color/card_background">

            <TextView
                android:id="@+id/result_view"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:text="识别结果将显示在这里..."
                android:textSize="18sp"
                android:textColor="@color/text_primary"/>
        </ScrollView>
    </androidx.cardview.widget.CardView>

    <!-- 策略选择区域 -->
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="horizontal"
        android:layout_marginBottom="16dp"
        android:gravity="center">

        <Button
            android:id="@+id/fast_btn"
            android:layout_width="0dp"
            android:layout_height="48dp"
            android:layout_weight="1"
            android:text="快速识别"
            android:backgroundTint="@color/primary"
            android:textColor="@android:color/white"
            android:layout_marginEnd="8dp"/>

        <Button
            android:id="@+id/accurate_btn"
            android:layout_width="0dp"
            android:layout_height="48dp"
            android:layout_weight="1"
            android:text="准确识别"
            android:backgroundTint="@color/secondary"
            android:textColor="@android:color/white"/>
    </LinearLayout>

    <!-- 麦克风按钮 -->
    <Button
        android:id="@+id/start_btn"
        android:layout_width="match_parent"
        android:layout_height="60dp"
        android:text="开始语音输入"
        android:textSize="18sp"
        android:drawableStart="@drawable/ic_mic"
        android:drawablePadding="8dp"
        android:backgroundTint="@color/accent"
        android:textColor="@android:color/white"
        android:layout_marginBottom="16dp"
        style="@style/RoundedButton"/>

    <!-- 语音合成按钮 -->
    <Button
        android:id="@+id/speak_btn"
        android:layout_width="match_parent"
        android:layout_height="60dp"
        android:text="语音合成测试"
        android:textSize="18sp"
        android:drawableStart="@drawable/ic_mic"
        android:drawablePadding="8dp"
        android:backgroundTint="@color/secondary"
        android:textColor="@android:color/white"
        style="@style/RoundedButton"/>

</LinearLayout>

4.3 详细分析

4.3.1. 用户界面层

• MainActivity：用户交互界面
• RecognitionListener：观察者模式的UI监听器

4.3.2. 外观层（核心协调者）

• VoiceAssistantFacade：

  • 提供统一系统入口
  • 协调各子系统工作
  • 管理监听器注册

4.3.3. 语音处理引擎

(1) 模板方法模式

• VoiceProcessingTemplate： process(byte[] audio) { 1. 预处理(preProcess) 2. 语音识别(recognize) 3. 命令处理(handleCommand) 4. 响应合成(synthesizeResponse) }

(2) 策略模式

• RecognitionStrategy：

  • FastRecognition：快速识别
  • AccurateRecognition：精确识别

• 支持运行时动态切换算法

(3) 适配器模式

• ThirdPartyRecognizerAdapter：

  • 集成第三方语音识别库
  • 统一接口对接系统

(4) 工厂模式

• SpeechProcessorFactory：

  createProcessor(type) {
    if (离线模式) return OfflineProcessor
    else return OnlineProcessor
  }


4.3.4. 命令处理系统

(1) 享元模式

• CommandParserFactory：

  • 缓存和复用命令解析器
  • 按语言类型共享解析器

(2) 建造者模式

• VoiceCommand.Builder：

  new VoiceCommand.Builder()
      .setAction("PLAY")
      .setTarget("MUSIC")
      .setParams("周杰伦")
      .build();


(3) 责任链模式

• CommandHandler：

  • MusicCommandHandler：处理音乐命令
  • WeatherCommandHandler：处理天气查询
  • SystemCommandHandler：处理系统设置
  • 链式传递未处理命令

4.3.5. 服务层

(1) 动态代理

• VoiceServiceProxy：

  • 增强真实语音服务
  • 添加日志、性能监控等横切关注点

(2) 单例模式

• VoiceConfigManager：

  • 全局唯一配置管理
  • 统一访问点

4.3.6. 通知机制

• 观察者模式：

  • VoiceRecognitionSubject：主题
  • RecognitionListener：观察者接口
  • 支持多监听器注册
  • 状态变化自动通知

设计模式协同关系

设计模式	主要职责	协同对象
外观模式	系统入口	协调所有子系统
模板方法	定义处理流程	调用策略、工厂、责任链
策略模式	算法切换	被模板方法调用
工厂模式	对象创建	为模板方法提供处理器
享元模式	对象复用	为命令处理提供解析器
建造者	构建复杂对象	创建语音命令对象
责任链	命令处理	接收模板方法传递的命令
观察者	状态通知	接收外观模式的通知请求
动态代理	服务增强	包装真实语音服务
单例	配置管理	全局共享配置信息

5.项目中其他经典的场景,使用设计模式

5.1.抖音应用：图片要处理，美颜

在 Android 图片处理（旋转、缩放、裁剪、滤镜等）场景中

// 策略模式：滤镜算法接口
interface FilterStrategy {
    Bitmap apply(Bitmap input);
}

// 具体策略实现
class VintageFilter implements FilterStrategy {
    @Override public Bitmap apply(Bitmap input) {
        // 简化的怀旧滤镜实现
        Bitmap output = Bitmap.createBitmap(input.getWidth(), input.getHeight(), input.getConfig());
        Canvas canvas = new Canvas(output);
        Paint paint = new Paint();
        paint.setColorFilter(null);
        canvas.drawBitmap(input, 0, 0, paint);
        return output;
    }
}

class BlurFilter implements FilterStrategy {
    @Override public Bitmap apply(Bitmap input) {
        // 简化的模糊实现
        Bitmap output = Bitmap.createScaledBitmap(input,
                input.getWidth()/2, input.getHeight()/2, true);
        return Bitmap.createScaledBitmap(output,
                input.getWidth(), input.getHeight(), true);
    }
}

// 工厂模式：创建滤镜
class FilterFactory {
    public static FilterStrategy createFilter(String type) {
        switch (type.toUpperCase()) {
            case "VINTAGE": return new VintageFilter();
            case "BLUR": return new BlurFilter();
            default: throw new IllegalArgumentException("Unknown filter: " + type);
        }
    }
}

// 命令模式：封装操作
interface ImageCommand {
    Bitmap execute(Bitmap input);
    Bitmap undo(Bitmap input);
}

// 基础命令
abstract class BaseCommand implements ImageCommand {
    protected Bitmap originalState;

    @Override
    public Bitmap execute(Bitmap input) {
        originalState = input.copy(input.getConfig(), false);
        return process(input);
    }

    @Override
    public Bitmap undo(Bitmap input) {
        return originalState;
    }

    protected abstract Bitmap process(Bitmap input);
}

// 具体命令
class RotateCommand extends BaseCommand {
    private final float degrees;

    public RotateCommand(float degrees) {
        this.degrees = degrees;
    }

    @Override
    protected Bitmap process(Bitmap input) {
        Matrix matrix = new Matrix();
        matrix.postRotate(degrees);
        return Bitmap.createBitmap(input, 0, 0,
                input.getWidth(), input.getHeight(), matrix, true);
    }
}

class ScaleCommand extends BaseCommand {
    private final float scaleX, scaleY;

    public ScaleCommand(float scaleX, float scaleY) {
        this.scaleX = scaleX;
        this.scaleY = scaleY;
    }

    @Override
    protected Bitmap process(Bitmap input) {
        Matrix matrix = new Matrix();
        matrix.postScale(scaleX, scaleY);
        return Bitmap.createBitmap(input, 0, 0,
                input.getWidth(), input.getHeight(), matrix, true);
    }
}

class CropCommand extends BaseCommand {
    private final Rect rect;

    public CropCommand(int left, int top, int right, int bottom) {
        this.rect = new Rect(left, top, right, bottom);
    }

    @Override
    protected Bitmap process(Bitmap input) {
        return Bitmap.createBitmap(input, rect.left, rect.top,
                rect.width(), rect.height());
    }
}

class FilterCommand extends BaseCommand {
    private final FilterStrategy filter;

    public FilterCommand(String filterType) {
        this.filter = FilterFactory.createFilter(filterType);
    }

    @Override
    protected Bitmap process(Bitmap input) {
        return filter.apply(input);
    }
}

// 责任链模式：处理管道
class ProcessingPipeline {
    private final List<ImageCommand> commands = new ArrayList<>();

    public ProcessingPipeline addCommand(ImageCommand command) {
        commands.add(command);
        return this;
    }

    public Bitmap execute(Bitmap input) {
        Bitmap result = input;
        for (ImageCommand cmd : commands) {
            result = cmd.execute(result);
        }
        return result;
    }
}

// 装饰者模式：添加额外功能
abstract class ImageDecorator implements ImageCommand {
    protected ImageCommand wrapped;

    public ImageDecorator(ImageCommand wrapped) {
        this.wrapped = wrapped;
    }
}

class WatermarkDecorator extends ImageDecorator {
    private final Bitmap watermark;

    public WatermarkDecorator(ImageCommand wrapped, Bitmap watermark) {
        super(wrapped);
        this.watermark = watermark;
    }

    @Override
    public Bitmap execute(Bitmap input) {
        Bitmap processed = wrapped.execute(input);
        return addWatermark(processed, watermark);
    }

    @Override
    public Bitmap undo(Bitmap input) {
        return wrapped.undo(input);
    }

    private Bitmap addWatermark(Bitmap base, Bitmap watermark) {
        Bitmap result = base.copy(base.getConfig(), true);
        Canvas canvas = new Canvas(result);
        canvas.drawBitmap(watermark,
                base.getWidth() - watermark.getWidth() - 20,
                base.getHeight() - watermark.getHeight() - 20, null);
        return result;
    }
}

// 建造者模式：构建处理流程
class ImageProcessorBuilder {
    private final ProcessingPipeline pipeline = new ProcessingPipeline();
    private final Stack<ImageCommand> commandStack = new Stack<>();

    public ImageProcessorBuilder rotate(float degrees) {
        ImageCommand cmd = new RotateCommand(degrees);
        pipeline.addCommand(cmd);
        commandStack.push(cmd);
        return this;
    }

    public ImageProcessorBuilder scale(float scale) {
        return scale(scale, scale);
    }

    public ImageProcessorBuilder scale(float scaleX, float scaleY) {
        ImageCommand cmd = new ScaleCommand(scaleX, scaleY);
        pipeline.addCommand(cmd);
        commandStack.push(cmd);
        return this;
    }

    public ImageProcessorBuilder crop(int left, int top, int right, int bottom) {
        ImageCommand cmd = new CropCommand(left, top, right, bottom);
        pipeline.addCommand(cmd);
        commandStack.push(cmd);
        return this;
    }

    public ImageProcessorBuilder applyFilter(String filterType) {
        ImageCommand cmd = new FilterCommand(filterType);
        pipeline.addCommand(cmd);
        commandStack.push(cmd);
        return this;
    }

    public ImageProcessorBuilder addWatermark(Bitmap watermark) {
        if (!commandStack.isEmpty()) {
            ImageCommand lastCmd = commandStack.peek();
            WatermarkDecorator decorator = new WatermarkDecorator(lastCmd, watermark);
            pipeline.addCommand(decorator);
            commandStack.push(decorator);
        }
        return this;
    }

    public Bitmap execute(Bitmap input) {
        return pipeline.execute(input);
    }
}

// 外观模式：简化客户端调用
class ImageProcessorFacade {
    private final ImageProcessorBuilder builder = new ImageProcessorBuilder();

    public ImageProcessorFacade rotate(float degrees) {
        builder.rotate(degrees);
        return this;
    }

    public ImageProcessorFacade scale(float scale) {
        builder.scale(scale);
        return this;
    }

    public ImageProcessorFacade crop(int left, int top, int right, int bottom) {
        builder.crop(left, top, right, bottom);
        return this;
    }

    public ImageProcessorFacade applyFilter(String filterType) {
        builder.applyFilter(filterType);
        return this;
    }

    public ImageProcessorFacade addWatermark(Bitmap watermark) {
        builder.addWatermark(watermark);
        return this;
    }

    public Bitmap process(Bitmap input) {
        return builder.execute(input);
    }
}

// 客户端使用示例
public class ImageProcessingDemo {
    public static void main(String[] args) {
        // 原始图片
        Bitmap original = Bitmap.createBitmap(1000, 1000, Bitmap.Config.ARGB_8888);
        Bitmap watermark = Bitmap.createBitmap(100, 40, Bitmap.Config.ARGB_8888);

        // 使用外观模式简化调用
        ImageProcessorFacade processor = new ImageProcessorFacade();
        Bitmap result = processor
                .rotate(90)
                .scale(0.8f)
                .crop(100, 100, 700, 700)
                .applyFilter("VINTAGE")
                .addWatermark(watermark)
                .process(original);

        System.out.println("Processing completed. Result size: "
                + result.getWidth() + "x" + result.getHeight());

        // 工厂模式创建独立滤镜
        FilterStrategy blurFilter = FilterFactory.createFilter("BLUR");
        Bitmap blurred = blurFilter.apply(original);
    }
}

架构图：

［原始图片］
     │
     ▼
［外观控制台］───用户点击按钮───▶
     │
     ▼
［建造者装配站］─┬─旋转模块🔄
              ├─缩放模块📏
              ├─裁剪模块✂️
              └─滤镜卡带🎞️
     │
     ▼
［处理流水线］───→ 🖼️ ──旋转─→ 🖼️ ──缩放─→ 🖼️ ──滤镜─→ 🖼️ ──水印─→
     │          │         │         │         │         │
     │          │ (保存状态)│ (保存状态)│ (保存状态)│ (保存状态)│
     ▼          ▼         ▼         ▼         ▼         ▼
 ［最终结果］ + [撤销缓存] + [撤销缓存] + [撤销缓存] + [撤销缓存]

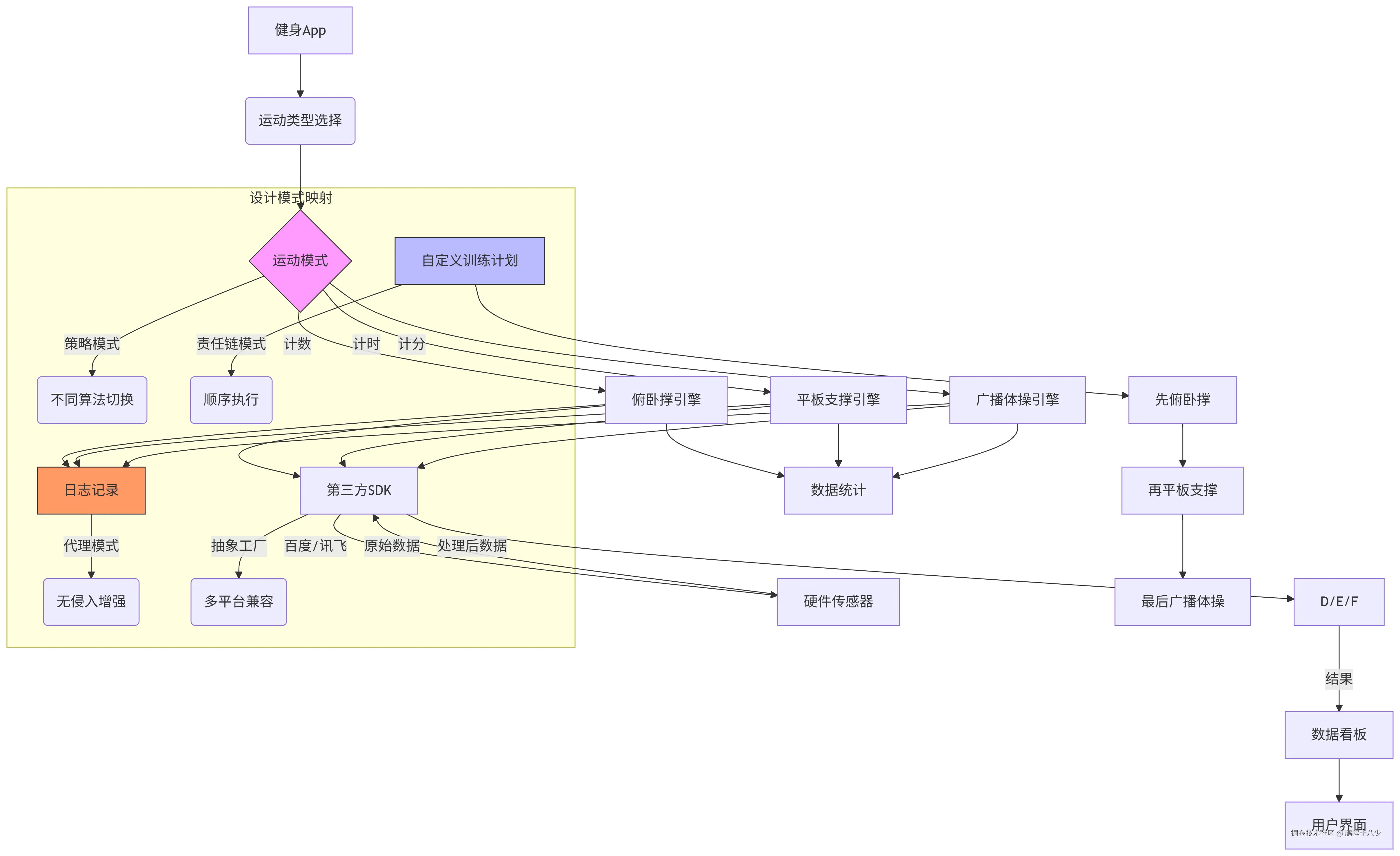

5.2. KEEP应用，运动锻炼场景

运动类型分为3种，计时，计数，计分

计数：俯卧撑

计时：平板支撑

计分：广播体操

他们有相同的一些流程可以复用： 都来自一个引擎，引擎的初始化，释放是相同的， 不同的是引擎统计是否计数，计时，计分 输入是一种类型的运动，输出可能是分数，时间，个数！ 里面需要用到哪些设计模式 策略模式,工厂模式,模板方法, 继续优化需求：

1).引擎都是来自第三方SDK，有百度的和讯飞的！

2).期望在sdk的方法前面和后面统一添加日志!

3).结果都是通过回调，观察者拿到的结果

4).构造引擎的时候携带多个参数

5).组合模式产生多中健身运动，先做俯卧撑，然后做平板支持，再做广播体操,获取先平板支撑，再俯卧撑，再广播体操，或者先广播体操，再俯卧撑，再平板支撑

// ================== 基础类型和常量 ==================
enum ExerciseType {
    COUNT,  // 计数类型（俯卧撑）
    TIME,   // 计时类型（平板支撑）
    SCORE   // 计分类型（广播体操）
}

enum SDKProvider {
    BAIDU,  // 百度SDK
    IFLYTEK // 讯飞SDK
}

// ================== 结果对象 ==================
class ExerciseResult {
    private final int count;
    private final long time;
    private final float score;

    public ExerciseResult(int count, long time, float score) {
        this.count = count;
        this.time = time;
        this.score = score;
    }

    public int getCount() { return count; }
    public long getTime() { return time; }
    public float getScore() { return score; }

    @Override
    public String toString() {
        if (count > 0) return "计数结果: " + count + "次";
        if (time > 0) return "计时结果: " + time + "ms";
        if (score > 0) return "计分结果: " + score + "分";
        return "无结果";
    }
}

// ================== 观察者模式 ==================
interface ExerciseObserver {
    void onResult(ExerciseResult result);
}

// ================== 模板方法模式 + 策略模式 ==================
abstract class ExerciseEngine {
    private final List<ExerciseObserver> observers = new ArrayList<>();
    protected final EngineConfig config;
    protected final SDKProvider provider;

    public ExerciseEngine(EngineConfig config, SDKProvider provider) {
        this.config = config;
        this.provider = provider;
    }

    // 模板方法
    public final void perform() {
        start();
        execute();
        stop();
    }

    // 公共步骤
    private void start() {
        System.out.println("[" + provider + "] 运动引擎启动");
    }

    private void stop() {
        System.out.println("[" + provider + "] 运动引擎停止");
    }

    // 抽象策略方法
    protected abstract void execute();

    // 观察者管理
    public void registerObserver(ExerciseObserver observer) {
        observers.add(observer);
    }

    public void unregisterObserver(ExerciseObserver observer) {
        observers.remove(observer);
    }

    protected void notifyResult(ExerciseResult result) {
        for (ExerciseObserver observer : observers) {
            observer.onResult(result);
        }
    }
}

// ================== 具体引擎实现 ==================
class PushUpEngine extends ExerciseEngine {
    public PushUpEngine(EngineConfig config, SDKProvider provider) {
        super(config, provider);
    }

    @Override
    protected void execute() {
        System.out.println("[" + provider + "] 执行俯卧撑计数...");
        // 模拟SDK逻辑
        int count = (int) (Math.random() * 30) + 10;
        notifyResult(new ExerciseResult(count, 0, 0));
    }
}

class PlankEngine extends ExerciseEngine {
    public PlankEngine(EngineConfig config, SDKProvider provider) {
        super(config, provider);
    }

    @Override
    protected void execute() {
        System.out.println("[" + provider + "] 执行平板支撑计时...");
        // 模拟SDK逻辑
        long time = (long) (Math.random() * 30000) + 10000;
        notifyResult(new ExerciseResult(0, time, 0));
    }
}

class GymnasticsEngine extends ExerciseEngine {
    public GymnasticsEngine(EngineConfig config, SDKProvider provider) {
        super(config, provider);
    }

    @Override
    protected void execute() {
        System.out.println("[" + provider + "] 执行广播体操评分...");
        // 模拟SDK逻辑
        float score = (float) (Math.random() * 40) + 60;
        notifyResult(new ExerciseResult(0, 0, score));
    }
}

// ================== 建造者模式 ==================
class EngineConfig {
    private final String deviceId;
    private final int sensitivity;
    private final boolean enableSound;

    private EngineConfig(Builder builder) {
        this.deviceId = builder.deviceId;
        this.sensitivity = builder.sensitivity;
        this.enableSound = builder.enableSound;
    }

    public String getDeviceId() { return deviceId; }
    public int getSensitivity() { return sensitivity; }
    public boolean isEnableSound() { return enableSound; }

    public static class Builder {
        private String deviceId = UUID.randomUUID().toString();
        private int sensitivity = 5;
        private boolean enableSound = true;

        public Builder setDeviceId(String deviceId) {
            this.deviceId = deviceId;
            return this;
        }

        public Builder setSensitivity(int sensitivity) {
            if (sensitivity < 1 || sensitivity > 10) {
                throw new IllegalArgumentException("灵敏度范围1-10");
            }
            this.sensitivity = sensitivity;
            return this;
        }

        public Builder setEnableSound(boolean enableSound) {
            this.enableSound = enableSound;
            return this;
        }

        public EngineConfig build() {
            return new EngineConfig(this);
        }
    }
}

// ================== 抽象工厂模式 ==================
interface EngineFactory {
    ExerciseEngine createPushUpEngine(EngineConfig config);
    ExerciseEngine createPlankEngine(EngineConfig config);
    ExerciseEngine createGymnasticsEngine(EngineConfig config);
}

class BaiduEngineFactory implements EngineFactory {
    @Override
    public ExerciseEngine createPushUpEngine(EngineConfig config) {
        return new PushUpEngine(config, SDKProvider.BAIDU);
    }

    @Override
    public ExerciseEngine createPlankEngine(EngineConfig config) {
        return new PlankEngine(config, SDKProvider.BAIDU);
    }

    @Override
    public ExerciseEngine createGymnasticsEngine(EngineConfig config) {
        return new GymnasticsEngine(config, SDKProvider.BAIDU);
    }
}

class IflytekEngineFactory implements EngineFactory {
    @Override
    public ExerciseEngine createPushUpEngine(EngineConfig config) {
        return new PushUpEngine(config, SDKProvider.IFLYTEK);
    }

    @Override
    public ExerciseEngine createPlankEngine(EngineConfig config) {
        return new PlankEngine(config, SDKProvider.IFLYTEK);
    }

    @Override
    public ExerciseEngine createGymnasticsEngine(EngineConfig config) {
        return new GymnasticsEngine(config, SDKProvider.IFLYTEK);
    }
}

// ================== 动态代理模式 ==================
class LoggingProxyHandler implements InvocationHandler {
    private final Object target;
    private final String engineName;

    public LoggingProxyHandler(Object target, String engineName) {
        this.target = target;
        this.engineName = engineName;
    }

    @Override
    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
        long start = System.currentTimeMillis();
        System.out.printf("[%s] 方法 %s 开始执行 | 时间: %d%n",
                engineName, method.getName(), start);

        Object result = method.invoke(target, args);

        long end = System.currentTimeMillis();
        System.out.printf("[%s] 方法 %s 执行完成 | 耗时: %dms%n",
                engineName, method.getName(), end - start);
        return result;
    }

    public static ExerciseEngine createProxy(ExerciseEngine engine, String name) {
        return (ExerciseEngine) Proxy.newProxyInstance(
                engine.getClass().getClassLoader(),
                engine.getClass().getInterfaces(),
                new LoggingProxyHandler(engine, name)
        );
    }
}

// ================== 责任链模式 ==================
interface ExerciseCallback {
    void onExercisePerformed(ExerciseType type, ExerciseResult result);
    void onChainCompleted();
}

abstract class ExerciseHandler {
    protected ExerciseHandler next;

    public void setNext(ExerciseHandler next) {
        this.next = next;
    }

    public abstract void perform(ExerciseCallback callback);
}

class PushUpHandler extends ExerciseHandler {
    private final ExerciseEngine engine;

    public PushUpHandler(ExerciseEngine engine) {
        // 添加动态代理
        this.engine = LoggingProxyHandler.createProxy(engine, "俯卧撑引擎");
    }

    @Override
    public void perform(ExerciseCallback callback) {
        engine.registerObserver(result -> {
            callback.onExercisePerformed(ExerciseType.COUNT, result);
            if (next != null) {
                next.perform(callback);
            } else {
                callback.onChainCompleted();
            }
        });
        engine.perform();
    }
}

class PlankHandler extends ExerciseHandler {
    private final ExerciseEngine engine;

    public PlankHandler(ExerciseEngine engine) {
        // 添加动态代理
        this.engine = LoggingProxyHandler.createProxy(engine, "平板支撑引擎");
    }

    @Override
    public void perform(ExerciseCallback callback) {
        engine.registerObserver(result -> {
            callback.onExercisePerformed(ExerciseType.TIME, result);
            if (next != null) {
                next.perform(callback);
            } else {
                callback.onChainCompleted();
            }
        });
        engine.perform();
    }
}

class GymnasticsHandler extends ExerciseHandler {
    private final ExerciseEngine engine;

    public GymnasticsHandler(ExerciseEngine engine) {
        // 添加动态代理
        this.engine = LoggingProxyHandler.createProxy(engine, "广播体操引擎");
    }

    @Override
    public void perform(ExerciseCallback callback) {
        engine.registerObserver(result -> {
            callback.onExercisePerformed(ExerciseType.SCORE, result);
            if (next != null) {
                next.perform(callback);
            } else {
                callback.onChainCompleted();
            }
        });
        engine.perform();
    }
}

// 责任链建造者
class ExerciseChainBuilder {
    private final List<ExerciseHandler> handlers = new ArrayList<>();

    public ExerciseChainBuilder addHandler(ExerciseHandler handler) {
        handlers.add(handler);
        return this;
    }

    public void buildAndExecute(ExerciseCallback callback) {
        if (handlers.isEmpty()) return;

        // 构建责任链
        for (int i = 0; i < handlers.size() - 1; i++) {
            handlers.get(i).setNext(handlers.get(i + 1));
        }

        // 启动责任链
        handlers.get(0).perform(callback);
    }
}

// ================== 客户端代码 ==================
public class FitnessApp {
    public static void main(String[] args) {
        // 1. 创建配置（建造者模式）
        EngineConfig config = new EngineConfig.Builder()
                .setDeviceId("ANDROID_2023")
                .setSensitivity(8)
                .setEnableSound(true)
                .build();

        // 2. 创建工厂（抽象工厂模式）
        SDKProvider provider = SDKProvider.BAIDU; // 可切换为IFLYTEK
        EngineFactory factory = createEngineFactory(provider);

        // 3. 创建引擎
        ExerciseEngine pushUpEngine = factory.createPushUpEngine(config);
        ExerciseEngine plankEngine = factory.createPlankEngine(config);
        ExerciseEngine gymEngine = factory.createGymnasticsEngine(config);

        // 4. 构建责任链（责任链模式）
        ExerciseChainBuilder builder = new ExerciseChainBuilder()
                .addHandler(new PushUpHandler(pushUpEngine))
                .addHandler(new PlankHandler(plankEngine))
                .addHandler(new GymnasticsHandler(gymEngine));

        // 5. 执行运动链
        builder.buildAndExecute(new ExerciseCallback() {
            @Override
            public void onExercisePerformed(ExerciseType type, ExerciseResult result) {
                System.out.println(">>> 运动完成: " + type + " | " + result);
            }

            @Override
            public void onChainCompleted() {
                System.out.println("==============================");
                System.out.println("所有运动完成！训练结束");
                System.out.println("==============================");
            }
        });
    }

    private static EngineFactory createEngineFactory(SDKProvider provider) {
        if (provider == SDKProvider.BAIDU) {
            return new BaiduEngineFactory();
        } else if (provider == SDKProvider.IFLYTEK) {
            return new IflytekEngineFactory();
        }else {
            return new IflytekEngineFactory();
        }
    }
}
