k8s集群UI及主机资源监控
使用 kubeadm部署单Master节点k8s1.21集群 这个进行验证

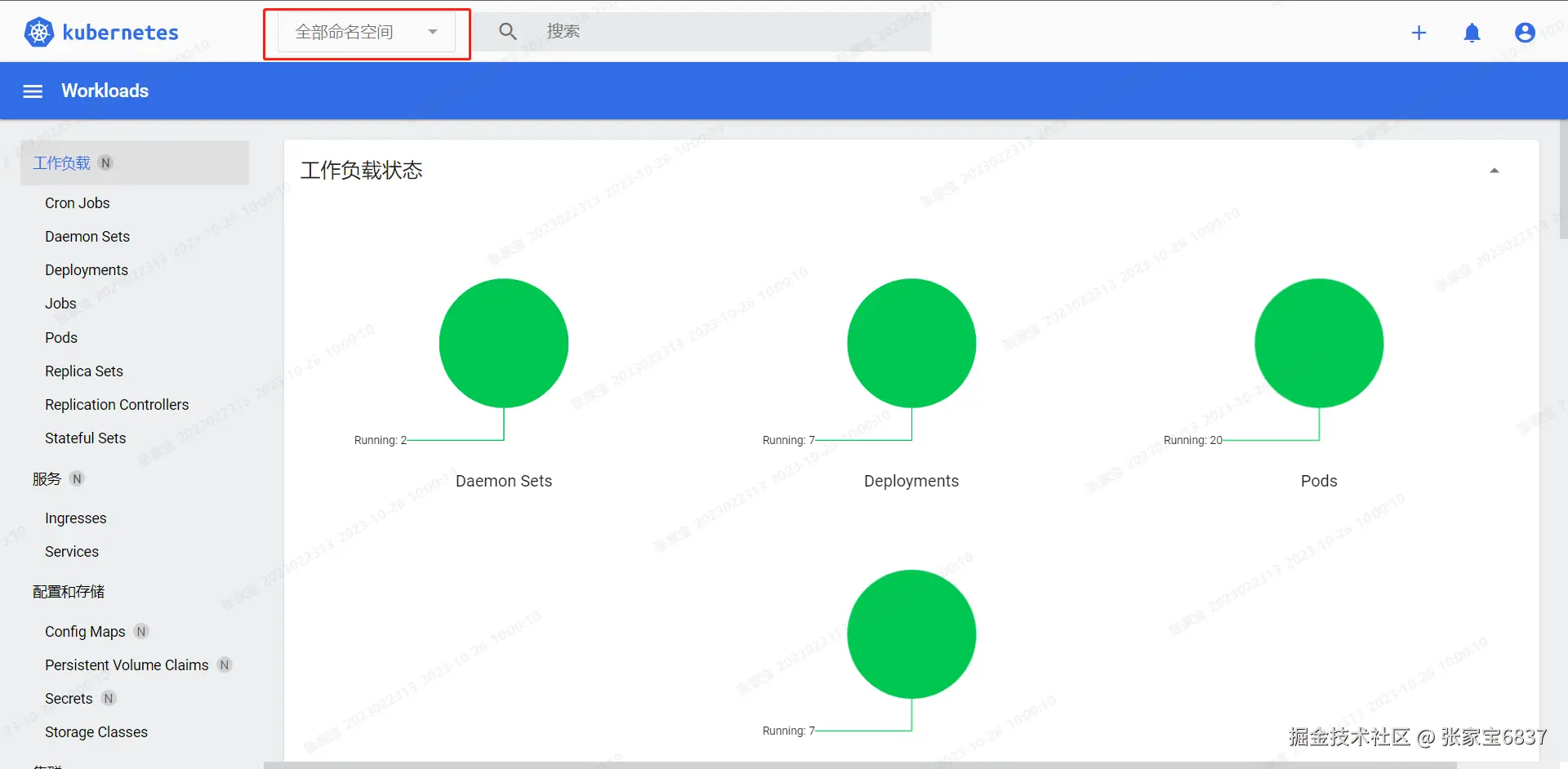

Kubernetes dashboard作用
- 通过dashboard能够直观了解Kubernetes集群中运行的资源对象
- 通过dashboard可以直接管理（创建、删除、重启等操作）资源对象
Kubernetes dashboard部署
# 获取Kubernetes dashboard资源清单文件
wget https://raw.githubusercontent.com/kubernetes/dashboard/v2.5.1/aio/deploy/recommended.yaml
# 修改资源清单文件
vim recommended.yaml
...
上述内容不变
为了方便在容器主机上访问，下面的service需要添加NodePort类型及端口，30行
---
kind: Service
apiVersion: v1
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard
namespace: kubernetes-dashboard
spec:
type: NodePort
ports:
- port: 443
targetPort: 8443
nodePort: 30000
selector:
k8s-app: kubernetes-dashboard
此证书不注释，对于早期版本需要注释
---
apiVersion: v1
kind: Secret
metadata:
labels:
k8s-app: kubernetes-dashboard
name: kubernetes-dashboard-certs
namespace: kubernetes-dashboard
type: Opaque
---
...
中间内容不用改变
需要修改登录kubernetes dashboard后用户的身份，不然无法显示资源情况，155行
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: kubernetes-dashboard
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: cluster-admin 一定要把原来的kubernetes-dashboard修改为cluster-admin，不然进入UI后会报错。
subjects:
- kind: ServiceAccount
name: kubernetes-dashboard
namespace: kubernetes-dashboard
...
以下内容暂不修改
# 部署
kubectl apply -f recommended.yaml
# 等待pod状态变为Running
watch kubectl get pods -n kubernetes-dashboard
kubectl get secret -n kubernetes-dashboard
NAME TYPE DATA AGE
default-token-sf657 kubernetes.io/service-account-token 3 4m59s
kubernetes-dashboard-certs Opaque 0 5m
kubernetes-dashboard-csrf Opaque 1 5m
kubernetes-dashboard-key-holder Opaque 2 5m
kubernetes-dashboard-token-m9dm8 kubernetes.io/service-account-token 3 5m

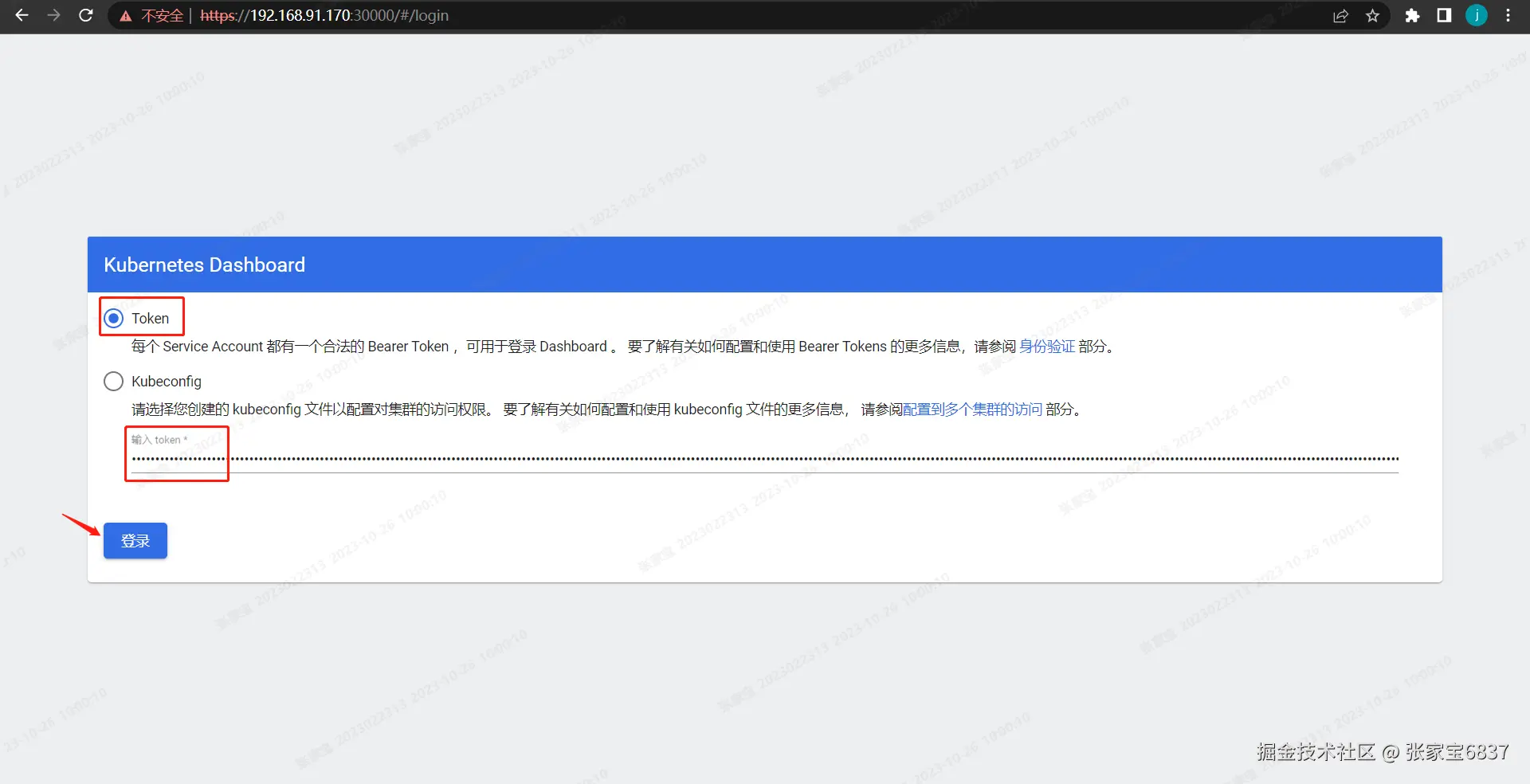

# 获取登录时的token
kubectl describe secret kubernetes-dashboard-token-m9dm8 -n kubernetes-dashboard
Name: kubernetes-dashboard-token-m9dm8
Namespace: kubernetes-dashboard
Labels: <none>
Annotations: kubernetes.io/service-account.name: kubernetes-dashboard
kubernetes.io/service-account.uid: 93250c37-ec10-4639-aac8-68c10def1c75
Type: kubernetes.io/service-account-token
Data
====
namespace: 20 bytes
token: eyJhbGciOiJSUzI1NiIsImtpZCI6IkZtRUlCVXZEM3gxbmFlbFFRcG9zU0lrSXJxMlBEeFJEbkNDR2NMNzRuWGMifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJrdWJlcm5ldGVzLWRhc2hib2FyZC10b2tlbi1tOWRtOCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VydmljZS1hY2NvdW50Lm5hbWUiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VydmljZS1hY2NvdW50LnVpZCI6IjkzMjUwYzM3LWVjMTAtNDYzOS1hYWM4LTY4YzEwZGVmMWM3NSIsInN1YiI6InN5c3RlbTpzZXJ2aWNlYWNjb3VudDprdWJlcm5ldGVzLWRhc2hib2FyZDprdWJlcm5ldGVzLWRhc2hib2FyZCJ9.3vLAmnx0MBwa0tvgps4kEhCWsEMbNhltGqsvw1JGuHbdJw1Qu3sx1Yc_WDkeDqDAV1gkyJH5ELlLiWHWQtDpuVFeAWsqbAhWlWlFZ9ITzMdR_mxiIva0et_XOFkwRtbwP_AnalUlbkISh-vdHDdc9zsrjqamc-PLCZYxMQrEqjifnCCJnyauZ-6QUM2J2PAXXlY1O0jjTa8PYtlu9LBDSln1JG0f6h5FPOtPAuf7agEj1vPT1q5Mkh2MMUI42nQZtXTsjpI9TCanUPcdDTH403n1FFtx77dtYjJBaiS4glmlZMi08rnY7gaQnPd6_YpDHXVuKCscr-i2EKMjAKFb6g

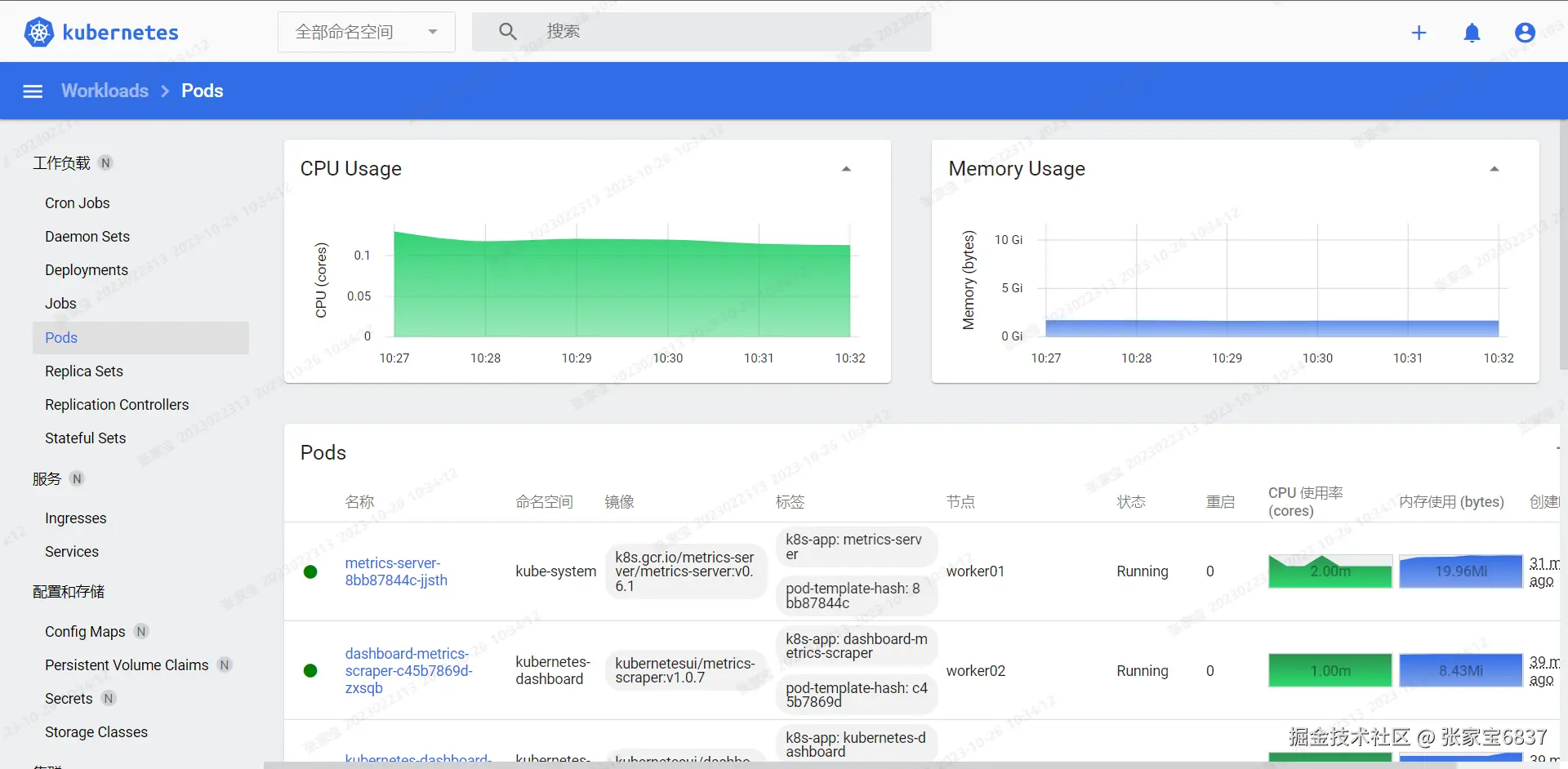

使用metrics-server实现主机资源监控
wget https://github.com/kubernetes-sigs/metrics-server/releases/download/v0.6.1/components.yaml
# 修改metrics-server资源清单文件
vim components.yaml
...
spec: 132行
containers:
- args:
- --cert-dir=/tmp
- --secure-port=4443
- --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname
- --kubelet-use-node-status-port
- --metric-resolution=15s
- --kubelet-insecure-tls 添加此行内容
kubectl top nodes
W1025 16:44:20.589369 43262 top_node.go:119] Using json format to get metrics. Next release will switch to protocol-buffers, switch early by passing --use-protocol-buffers flag
error: Metrics API not available
kubectl top pods
W1025 16:44:54.364681 43953 top_pod.go:140] Using json format to get metrics. Next release will switch to protocol-buffers, switch early by passing --use-protocol-buffers flag
error: Metrics API not available
kubectl apply -f components.yaml
# 可能由于网络原因导致这里的pod起不来，则需要通过下面的方式手动下载镜像
kubectl get pods -n kube-system | grep metrics
metrics-server-8bb87844c-jjsth 0/1 ImagePullBackOff 0 18m
kubectl describe pod metrics-server-8bb87844c-jjsth -n kube-system
...
Node: worker01/192.168.91.171
...
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal Scheduled 19m default-scheduler Successfully assigned kube-system/metrics-server-8bb87844c-jjsth to worker01
Warning Failed 19m kubelet Failed to pull image "k8s.gcr.io/metrics-server/metrics-server:v0.6.1": rpc error: code = Unknown desc = Error response from daemon: Get "https://k8s.gcr.io/v2/": dial tcp 64.233.188.82:443: i/o timeout
...
# 通过上面信息可以看出在worker01节点，下载"k8s.gcr.io/metrics-server/metrics-server:v0.6.1"镜像失败
# worker01
docker pull registry.aliyuncs.com/google_containers/metrics-server:v0.6.1
docker tag registry.aliyuncs.com/google_containers/metrics-server:v0.6.1 k8s.gcr.io/metrics-server/metrics-server:v0.6.1
# master01
kubectl get pods -o wide -n kube-system | grep metrics
metrics-server-8bb87844c-jjsth 1/1 Running 0 24m 10.244.5.1 worker01 <none> <none>
kubectl top nodes
W1026 10:30:09.865550 56825 top_node.go:119] Using json format to get metrics. Next release will switch to protocol-buffers, switch early by passing --use-protocol-buffers flag
NAME CPU(cores) CPU% MEMORY(bytes) MEMORY%
master01 126m 3% 1738Mi 45%
worker01 45m 1% 829Mi 45%
worker02 40m 1% 744Mi 40%
kubectl top pods -A
W1026 10:31:40.178114 58724 top_pod.go:140] Using json format to get metrics. Next release will switch to protocol-buffers, switch early by passing --use-protocol-buffers flag
NAMESPACE NAME CPU(cores) MEMORY(bytes)
calico-apiserver calico-apiserver-5878cc867d-llwfd 3m 42Mi
calico-apiserver calico-apiserver-5878cc867d-xshbk 3m 45Mi
calico-system calico-kube-controllers-988c95d46-bjw9p 1m 30Mi
calico-system calico-node-2229b 16m 216Mi
calico-system calico-node-2fw9l 15m 231Mi
calico-system calico-node-wm7wq 13m 223Mi
calico-system calico-typha-8585796b6c-ggx9z 2m 29Mi
calico-system calico-typha-8585796b6c-gplz2 1m 38Mi
kube-system coredns-558bd4d5db-4s7v8 2m 17Mi
kube-system coredns-558bd4d5db-98thk 2m 19Mi
kube-system etcd-master01 11m 59Mi
kube-system kube-apiserver-master01 32m 455Mi
kube-system kube-controller-manager-master01 8m 63Mi
kube-system kube-proxy-6pcrc 1m 31Mi
kube-system kube-proxy-c95ck 1m 30Mi
kube-system kube-proxy-qhw2v 1m 26Mi
kube-system kube-scheduler-master01 2m 25Mi
kube-system metrics-server-8bb87844c-jjsth 3m 19Mi
kubernetes-dashboard dashboard-metrics-scraper-c45b7869d-zxsqb 1m 8Mi
kubernetes-dashboard kubernetes-dashboard-79b5779bf4-sp98f 1m 44Mi
tigera-operator tigera-operator-9f6fb5887-8rrh7 2m 48Mi
