flutter_app_icon_badge 插件鸿蒙适配：实现跨平台应用图标角标管理

本项目作者：坚果

您可以使用这个Flutter插件来更改应用程序图标上的角标

作者仓库：github.com/badver/flut…

在数字化浪潮的推动下，跨平台开发框架如 Flutter 凭借其高效、便捷的特性，成为了开发者们的宠儿。而鸿蒙系统的崛起，更是为跨平台开发注入了新的活力。为了助力开发者在鸿蒙生态中快速实现 flutter_app_icon_badge更改应用程序图标上的角标功能，本文将深入浅出地为大家解析如何适配 flutter_app_icon_badge 三方库至鸿蒙平台。

一、适配鸿蒙版 flutter_app_icon_badge 三方库

（一）版本选择与仓库简介

我们先去 pub 上查看最新版本，我们选择以 0.0.10版本为基础进行适配。flutter_app_icon_badge 是一个用于在 Flutter 应用中更改应用程序图标上的角标功能，其 GitHub 仓库为github.com/badver/flut… ，我们的目标是将这个插件适配到鸿蒙平台。

（二）引入背景与使用场景

在 OpenHarmony 北向生态的发展过程中，许多已经适配了 Flutter 的厂商在接入 OpenHarmony 时，都希望能够继续使用 FlutterToast 来实现通知功能。因此，我们提供了这个适配方案，采用插件化的适配器模式，帮助生态伙伴快速实现产品化。

本方案适用于已经支持 Flutter 框架的设备在移植到 OpenHarmony 系统过程中，作为一个备选方案。

（三）使用文档与插件库使用

适配 OpenHarmony 平台的详细使用指导可以参考：Flutter使用指导文档

在项目中使用该插件库时，只需在 pubspec.yaml 文件的 dependencies 中新增如下配置：

dependencies:
  flutter_app_icon_badge:
    git:
      url: "https://gitcode.com/nutpi/flutter_app_icon_badge.git"
      path: ""

然后在项目根目录运行 flutter pub get，即可完成依赖添加

接下来是具体的适配过程。

二、适配过程详解

（一）准备工作

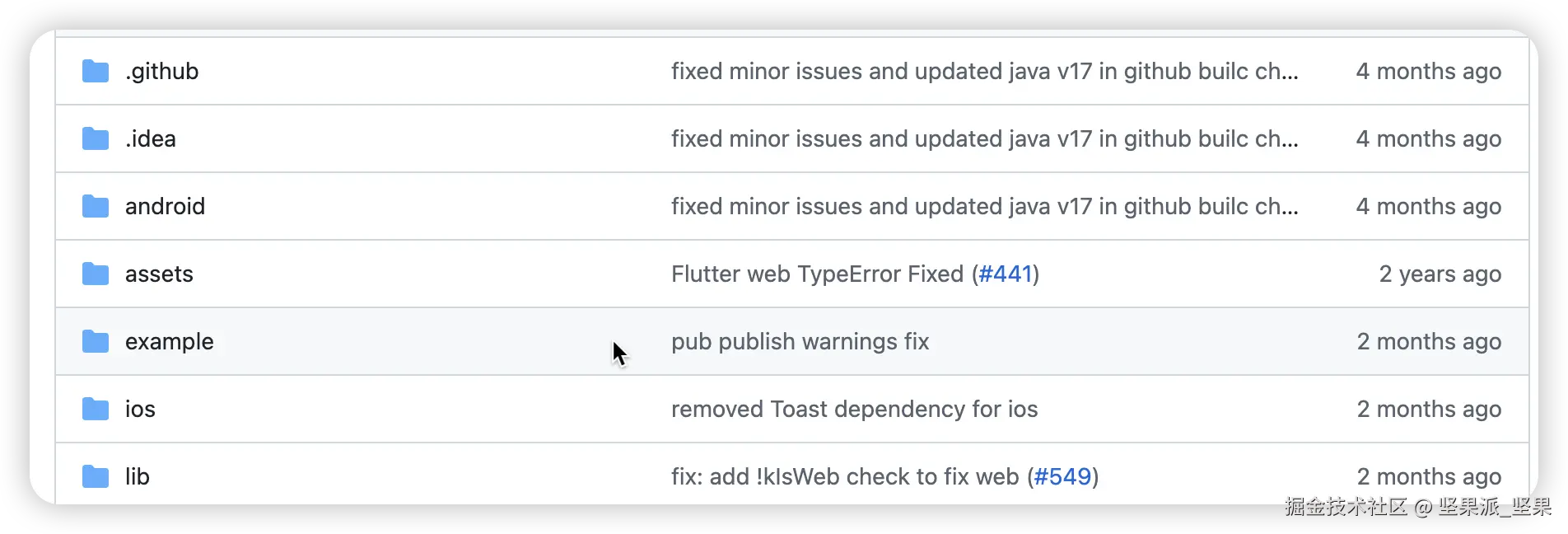

确保已经配置好了 Flutter 开发环境，具体可参考 Flutter 配置指南。同时，从 官方插件库 下载待适配的三方插件。本指导书， 以适配 flutter_app_icon_badge 为例

image-20250417200546042

（二）插件目录结构

下载并解压插件后，我们会看到以下目录结构：

  • lib ：对接 Dart 端代码的入口，由此文件接收到参数后，通过 channel 将数据发送到原生端。
  • android ：安卓端代码实现目录。
  • ios ：iOS 原生端实现目录。
  • example ：一个依赖于该插件的 Flutter 应用程序，用于说明如何使用它。
  • README.md ：介绍包的文件。
  • CHANGELOG.md ：记录每个版本中的更改。
  • LICENSE ：包含软件包许可条款的文件。

（三）创建插件的鸿蒙模块

在插件目录下，打开 Terminal，执行以下命令来创建一个鸿蒙平台的 Flutter 模块：

flutter create . --org dev.badver.flutter_app_icon_badge --template=plugin --platforms=ohos

步骤：

  1. 用vscode/trae打开刚刚下载好的插件。

  2. 打开Terminal，cd到插件目录下。

  3. 执行命令flutter create . --org dev.badver.flutter_app_icon_badge --template=plugin --platforms=ohos 创建一个ohos平台的flutter模块。

第一个问题，修改sdk的版本，适配旧版本。

我们做好修改就好。

（四）在根目录下添加鸿蒙平台配置

在项目根目录的 pubspec.yaml 文件中，添加鸿蒙平台的相关配置：

name: flutter_app_icon_badge
description: Flutter app icon badge plugin to change the badge on the icon of your app.
version: 2.0.0
homepage: https://github.com/badver/flutter_app_icon_badge

environment:
  sdk: '>=2.12.0 <4.0.0'
  flutter: ">=2.3.0"

dependencies:
  flutter:
    sdk: flutter

dev_dependencies:
  flutter_test:
    sdk: flutter

flutter:
  plugin:
    platforms:
      android:
        package: dev.badver.flutter_app_icon_badge
        pluginClass: FlutterAppIconBadgePlugin
      ios:
        pluginClass: FlutterAppIconBadgePlugin
      linux:
        pluginClass: FlutterAppIconBadgePlugin
      macos:
        pluginClass: FlutterAppIconBadgePlugin
      windows:
        pluginClass: FlutterAppIconBadgePlugin
      ohos:
        package: dev.badver.flutter_app_icon_badge
        pluginClass: FlutterAppIconBadgePlugin

（五）编写鸿蒙插件的原生 ArkTS模块

1. 创建鸿蒙插件模块

使用 DevEco Studio 打开鸿蒙项目。

2. 修改相关配置文件

在 ohos 目录内的 oh-package.json5 文件中添加 libs/flutter.har 依赖，并创建 .gitignore 文件，添加以下内容以忽略 libs 目录：

/node_modules
/oh_modules
/local.properties
/.preview
/.idea
/build
/libs
*.har
/.cxx
/.test
/BuildProfile.ets
/oh-package-lock.json5

oh-package.json5 文件内容如下：

{
  "name": "flutter_app_icon_badge",
  "version": "1.0.0",
  "description": "Flutter app icon badge plugin to change the badge on the icon of your app",
  "main": "index.ets",
  "author": "nutpi",
  "license": "Apache-2.0",
  "dependencies": {
    "@ohos/flutter_ohos": "file:./har/flutter.har"
  }
}

在 ohos 目录下创建 index.ets 文件，导出配置：



import FlutterAppIconBadgePlugin from './src/main/ets/components/plugin/FlutterAppIconBadgePlugin';
export default FlutterAppIconBadgePlugin;

3. 编写 ETS 代码

文件结构和代码逻辑可以参考安卓或 iOS 的实现，鸿蒙的 API 文档可以参考 ：developer.huawei.com/consumer/cn…

ohos的api可以参考：gitcode.com/openharmony…

以下是 FlutterAppIconBadgePlugin.ets 文件的代码示例：

import {
  FlutterPlugin,
  FlutterPluginBinding,
  MethodCall,
  MethodCallHandler,
  MethodChannel,
  MethodResult,
} from '@ohos/flutter_ohos';
import { BusinessError } from '@kit.BasicServicesKit';
import { notificationManager } from '@kit.NotificationKit';

/** FlutterAppIconBadgePlugin **/
export default class FlutterAppIconBadgePlugin implements FlutterPlugin, MethodCallHandler {
  private channel: MethodChannel | null = null;

  constructor() {
  }

  getUniqueClassName(): string {
    return "FlutterAppIconBadgePlugin"
  }

  onAttachedToEngine(binding: FlutterPluginBinding): void {
    this.channel = new MethodChannel(binding.getBinaryMessenger(), "flutter_app_icon_badge");
    this.channel.setMethodCallHandler(this)
  }

  onDetachedFromEngine(binding: FlutterPluginBinding): void {
    if (this.channel != null) {
      this.channel.setMethodCallHandler(null)
    }
  }

  onMethodCall(call: MethodCall, result: MethodResult): void {
    if (call.method == "updateBadge") {
      try {
        // 获取参数
        const countArg :string= call.argument("count");

        if (countArg === null || countArg === undefined) {
          console.error('Badge count argument is missing.');
          result.error("MISSING_ARGUMENT", "Badge count argument is required.", null);
          return;
        }

        // 确保 countArg 是数字类型
        let badgeNumber: number = Number(countArg);

        if (isNaN(badgeNumber)) {
          console.error('Invalid badge number received:', countArg);
          result.error("INVALID_ARGUMENT", "Badge count must be a number.", null);
          return;
        }

        notificationManager.setBadgeNumber(badgeNumber).then(() => {
          console.info(`Succeeded in setting badge number to ${badgeNumber}.`);
          result.success(null);
        }).catch((err: BusinessError) => {
          console.error(`Failed to set badge number. Code is ${err.code}, message is ${err.message}`);
          result.error(err.code.toString(), err.message, null);
        });
      } catch (e) {
        const error = e as Error;
        console.error(`Error processing updateBadge: ${error.message}`);
        result.error("UNKNOWN_ERROR", error.message, null);
      }
    }
    else if (call.method == "removeBadge") {
      try {
        notificationManager.setBadgeNumber(0).then(() => {
          console.info(`Succeeded in removing badge number.`);
          result.success(null);
        }).catch((err: BusinessError) => {
          console.error(`Failed to remove badge number. Code is ${err.code}, message is ${err.message}`);
          result.error(err.code.toString(), err.message, null);
        });
      } catch (e) {
        const error = e as Error;
        console.error(`Error processing removeBadge: ${error.message}`);
        result.error("UNKNOWN_ERROR", error.message, null);
      }
    } else if (call.method == "isAppBadgeSupported") {
      // 鸿蒙平台默认支持角标
      result.success(true);
    } else {
      result.notImplemented();
    }
  }
}

这里我主要参考的是

三、NotificationManager模块

本模块提供通知管理的能力，包括发布、取消发布通知，创建、获取、移除通知渠道，获取通知的使能状态、角标使能状态，获取通知的相关信息等。

1.导入

import { notificationManager } from '@kit.NotificationKit';

2.notificationManager.setBadgeNumber

setBadgeNumber(badgeNumber: number): Promise

设定角标个数，在应用的桌面图标上呈现。使用Promise异步回调。

当角标设定个数取值小于或等于0时，表示清除角标。取值大于99时，通知角标将显示99+。

系统能力：SystemCapability.Notification.Notification

参数：

参数名类型必填说明
badgeNumbernumber是角标个数。

返回值：

类型说明
Promise无返回结果的Promise对象。

错误码：

以下错误码的详细介绍请参见通用错误码和通知错误码。

错误码ID错误信息
401Parameter error. Possible causes: 1. Mandatory parameters are left unspecified. 2. Incorrect parameter types. 3.Parameter verification failed.
1600001Internal error.
1600002Marshalling or unmarshalling error.
1600003Failed to connect to the service.
1600012No memory space.

示例：

import { BusinessError } from '@kit.BasicServicesKit';

let badgeNumber: number = 10;
notificationManager.setBadgeNumber(badgeNumber).then(() => {
  console.info(`Succeeded in setting badge number.`);
}).catch((err: BusinessError) => {
  console.error(`Failed to set badge number. Code is ${err.code}, message is ${err.message}`);
});

3.dart端是这样定义的

import 'dart:async';

import 'package:flutter/services.dart';

class FlutterAppIconBadge {
  static const MethodChannel _channel =
      const MethodChannel('flutter_app_icon_badge');

  /// Change badge on app icon
  static Future<void> updateBadge(int count) async {
    await _channel.invokeMethod('updateBadge', {"count": count});
  }

  /// Remove badge on app icon
  static Future<void> removeBadge() async {
    await _channel.invokeMethod('removeBadge');
  }

  /// Check if app badge is supported
  static Future<bool> isAppBadgeSupported() async {
    bool? appBadgeSupported =
        await _channel.invokeMethod('isAppBadgeSupported');
    return appBadgeSupported ?? false;
  }

  /// Check if app window is focused.
  static Future<bool> isAppFocused() async {
    bool? isAppFocused = await _channel.invokeMethod('isAppFocused');
    return isAppFocused ?? false;
  }
}

4.ios侧处理

类似ios侧处理这边的信息，并返回

    switch call.method {
        case "updateBadge":
          if let args = call.arguments as? Dictionary<String, Any>,
            let count = args["count"] as? Int {
            UIApplication.shared.applicationIconBadgeNumber = count
            result(nil)
          } else {
            result(FlutterError.init(code: "bad args", message: nil, details: nil))
          }
        case "removeBadge":
          UIApplication.shared.applicationIconBadgeNumber = 0
          result(nil)
        case "isAppBadgeSupported":
          result(true)
        default:
          result(FlutterMethodNotImplemented)
    }

5.ArkTS处理图标

import {
  FlutterPlugin,
  FlutterPluginBinding,
  MethodCall,
  MethodCallHandler,
  MethodChannel,
  MethodResult,
} from '@ohos/flutter_ohos';
import { BusinessError } from '@kit.BasicServicesKit';
import { notificationManager } from '@kit.NotificationKit';

/** FlutterAppIconBadgePlugin **/
export default class FlutterAppIconBadgePlugin implements FlutterPlugin, MethodCallHandler {
  private channel: MethodChannel | null = null;

  constructor() {
  }

  getUniqueClassName(): string {
    return "FlutterAppIconBadgePlugin"
  }

  onAttachedToEngine(binding: FlutterPluginBinding): void {
    this.channel = new MethodChannel(binding.getBinaryMessenger(), "flutter_app_icon_badge");
    this.channel.setMethodCallHandler(this)
  }

  onDetachedFromEngine(binding: FlutterPluginBinding): void {
    if (this.channel != null) {
      this.channel.setMethodCallHandler(null)
    }
  }

  onMethodCall(call: MethodCall, result: MethodResult): void {
    if (call.method == "updateBadge") {
      try {
        // 获取参数
        const countArg :string= call.argument("count");

        if (countArg === null || countArg === undefined) {
          console.error('Badge count argument is missing.');
          result.error("MISSING_ARGUMENT", "Badge count argument is required.", null);
          return;
        }

        // 确保 countArg 是数字类型
        let badgeNumber: number = Number(countArg);

        if (isNaN(badgeNumber)) {
          console.error('Invalid badge number received:', countArg);
          result.error("INVALID_ARGUMENT", "Badge count must be a number.", null);
          return;
        }

        notificationManager.setBadgeNumber(badgeNumber).then(() => {
          console.info(`Succeeded in setting badge number to ${badgeNumber}.`);
          result.success(null);
        }).catch((err: BusinessError) => {
          console.error(`Failed to set badge number. Code is ${err.code}, message is ${err.message}`);
          result.error(err.code.toString(), err.message, null);
        });
      } catch (e) {
        const error = e as Error;
        console.error(`Error processing updateBadge: ${error.message}`);
        result.error("UNKNOWN_ERROR", error.message, null);
      }
    }
    else if (call.method == "removeBadge") {
      try {
        notificationManager.setBadgeNumber(0).then(() => {
          console.info(`Succeeded in removing badge number.`);
          result.success(null);
        }).catch((err: BusinessError) => {
          console.error(`Failed to remove badge number. Code is ${err.code}, message is ${err.message}`);
          result.error(err.code.toString(), err.message, null);
        });
      } catch (e) {
        const error = e as Error;
        console.error(`Error processing removeBadge: ${error.message}`);
        result.error("UNKNOWN_ERROR", error.message, null);
      }
    } else if (call.method == "isAppBadgeSupported") {
      // 鸿蒙平台默认支持角标
      result.success(true);
    } else {
      result.notImplemented();
    }
  }
}

6.优化通知

请求通知权限

应用需要获取用户授权才能发送通知。在通知发布前调用requestEnableNotification()方法，弹窗让用户选择是否允许发送通知，后续再次调用requestEnableNotification()方法时，则不再弹窗。

通知授权接口功能介绍

接口名描述
isNotificationEnabled():Promise查询通知是否授权。
requestEnableNotification(context: UIAbilityContext): Promise请求发送通知的许可，第一次调用会弹窗让用户选择。

开发步骤

1.导入NotificationManager模块。

import { notificationManager } from '@kit.NotificationKit';
import { BusinessError } from '@kit.BasicServicesKit';
import { hilog } from '@kit.PerformanceAnalysisKit';
import { common } from '@kit.AbilityKit';

const TAG: string = '[PublishOperation]';
const DOMAIN_NUMBER: number = 0xFF00;

2.请求通知授权。

可通过requestEnableNotification的错误码判断用户是否授权。若返回的错误码为1600004，即为拒绝授权。

let context = this.getUIContext().getHostContext() as common.UIAbilityContext;
notificationManager.isNotificationEnabled().then((data: boolean) => {
  hilog.info(DOMAIN_NUMBER, TAG, "isNotificationEnabled success, data: " + JSON.stringify(data));
  if(!data){
    notificationManager.requestEnableNotification(context).then(() => {
      hilog.info(DOMAIN_NUMBER, TAG, `[ANS] requestEnableNotification success`);
    }).catch((err : BusinessError) => {
      if(1600004 == err.code){
        hilog.error(DOMAIN_NUMBER, TAG, `[ANS] requestEnableNotification refused, code is ${err.code}, message is ${err.message}`);
      } else {
        hilog.error(DOMAIN_NUMBER, TAG, `[ANS] requestEnableNotification failed, code is ${err.code}, message is ${err.message}`);
      }
    });
  }
}).catch((err : BusinessError) => {
    hilog.error(DOMAIN_NUMBER, TAG, `isNotificationEnabled fail, code is ${err.code}, message is ${err.message}`);
});

7.完整的代码

import {
  FlutterPlugin,
  FlutterPluginBinding,
  MethodCall,
  MethodCallHandler,
  MethodChannel,
  MethodResult,
} from '@ohos/flutter_ohos';
import { BusinessError } from '@kit.BasicServicesKit';
import { notificationManager } from '@kit.NotificationKit';
import { hilog } from '@kit.PerformanceAnalysisKit';
import { common } from '@kit.AbilityKit';
import { AbilityAware, AbilityPluginBinding } from '@ohos/flutter_ohos';

const TAG: string = '[PublishOperation]';
const DOMAIN_NUMBER: number = 0xFF00;

/** FlutterAppIconBadgePlugin **/
export default class FlutterAppIconBadgePlugin implements FlutterPlugin, MethodCallHandler, AbilityAware {
  private channel: MethodChannel | null = null;
  private static _context: common.UIAbilityContext | null = null;

  constructor() {
  }


  static get context(): common.Context | null {
    return FlutterAppIconBadgePlugin._context;
  }

  get context(): common.UIAbilityContext | null {
    return FlutterAppIconBadgePlugin._context;
  }

  getUniqueClassName(): string {
    return "FlutterAppIconBadgePlugin"
  }


  onAttachedToAbility(binding: AbilityPluginBinding): void {
    FlutterAppIconBadgePlugin._context = binding.getAbility().context;
    // Called when the plugin is attached to an Ability.
  }

  onDetachedFromAbility(): void {
    // this._uiContext = null;
  }

  onAttachedToEngine(binding: FlutterPluginBinding): void {
    this.channel = new MethodChannel(binding.getBinaryMessenger(), "flutter_app_icon_badge");
    this.channel.setMethodCallHandler(this)
  }

  onDetachedFromEngine(binding: FlutterPluginBinding): void {
    if (this.channel != null) {
      this.channel.setMethodCallHandler(null)
    }
  }

  onMethodCall(call: MethodCall, result: MethodResult): void {
    if (call.method == "updateBadge") {


      if (FlutterAppIconBadgePlugin._context) { // Add null check here
        try {
          notificationManager.isNotificationEnabled().then((data: boolean) => {
            hilog.info(DOMAIN_NUMBER, TAG, "isNotificationEnabled success, data: " + JSON.stringify(data));

            try {
              // 获取参数
              const countArg: string = call.argument("count");

              if (countArg === null || countArg === undefined) {
                console.error('Badge count argument is missing.');
                result.error("MISSING_ARGUMENT", "Badge count argument is required.", null);
                return;
              }

              // 确保 countArg 是数字类型
              let badgeNumber: number = Number(countArg);

              if (isNaN(badgeNumber)) {
                console.error('Invalid badge number received:', countArg);
                result.error("INVALID_ARGUMENT", "Badge count must be a number.", null);
                return;
              }

              notificationManager.setBadgeNumber(badgeNumber).then(() => {
                console.info(`Succeeded in setting badge number to ${badgeNumber}.`);
                result.success(null);
              }).catch((err: BusinessError) => {
                console.error(`Failed to set badge number. Code is ${err.code}, message is ${err.message}`);
                result.error(err.code.toString(), err.message, null);
              });
            } catch (e) {
              const error = e as Error;
              console.error(`Error processing updateBadge: ${error.message}`);
              result.error("UNKNOWN_ERROR", error.message, null);
            }

            if (!data) {
              notificationManager.requestEnableNotification(FlutterAppIconBadgePlugin._context).then(() => {
                hilog.info(DOMAIN_NUMBER, TAG, `[ANS] requestEnableNotification success`);
              }).catch((err: BusinessError) => {
                if (1600004 == err.code) {
                  hilog.error(DOMAIN_NUMBER, TAG,
                    `[ANS] requestEnableNotification refused, code is ${err.code}, message is ${err.message}`);
                } else {
                  hilog.error(DOMAIN_NUMBER, TAG,
                    `[ANS] requestEnableNotification failed, code is ${err.code}, message is ${err.message}`);
                }
              });
            }
          }).catch((err: BusinessError) => {
            hilog.error(DOMAIN_NUMBER, TAG,
              `isNotificationEnabled fail, code is ${err.code}, message is ${err.message}`);
          });
        } catch (err) {
          // 捕获同步的参数错误
          let code = (err as BusinessError).code;
          let message = (err as BusinessError).message;
          console.error(`terminateSelf failed, code is ${code}, message is ${message}`);
          result.error("TERMINATE_ERROR", `terminateSelf error: ${message}`, null);
        }
      } else {
        console.error("UIContext is null, cannot terminate self.");
        result.error("CONTEXT_NULL", "UIContext is null", null); // Inform Flutter about the error
      }

    } else if (call.method == "removeBadge") {
      try {
        notificationManager.setBadgeNumber(0).then(() => {
          console.info(`Succeeded in removing badge number.`);
          result.success(null);
        }).catch((err: BusinessError) => {
          console.error(`Failed to remove badge number. Code is ${err.code}, message is ${err.message}`);
          result.error(err.code.toString(), err.message, null);
        });
      } catch (e) {
        const error = e as Error;
        console.error(`Error processing removeBadge: ${error.message}`);
        result.error("UNKNOWN_ERROR", error.message, null);
      }
    } else if (call.method == "isAppBadgeSupported") {
      // 鸿蒙平台默认支持角标
      result.success(true);
    } else {
      result.notImplemented();
    }
  }
}

四、编写 Example

1. 创建 Example 应用

在插件根目录下创建一个名为 example 的文件夹，用于存放示例应用。在 example 文件夹中，创建一个鸿蒙平台的 Flutter 应用，用于验证插件功能。

2. 签名与运行

使用 Deveco Studio 打开 example > ohos 目录，单击 File > Project Structure > Project > Signing Configs，勾选 Automatically generate signature，等待自动签名完成。然后运行以下命令：

flutter pub get

 flutter build hap --debug

如果应用正常启动，说明插件适配成功。如果没有，欢迎大家联系坚果派一起支持。

五、总结

通过以上步骤，我们成功地将 flutter_app_icon_badge 三方库适配到了鸿蒙平台。这个过程涉及到了解插件的基本信息、配置开发环境、创建鸿蒙模块、编写原生代码以及测试验证等多个环节。希望这篇博客能够帮助到需要进行 flutter_app_icon_badge 鸿蒙适配的开发者们，让大家在鸿蒙生态的开发中更加得心应手。

六、参考

七、坚果派

坚果派由坚果等人创建，团队拥有若干华为HDE，以及若干其他领域的三十余位万粉博主运营。专注于分享的技术包括HarmonyOS/OpenHarmony，ArkUI-X，元服务，服务卡片，华为自研语言，BlueOS操作系统、团队成员聚集在北京、上海、广州、深圳、南京、杭州、苏州、宁夏等地。 聚焦“鸿蒙原生应用”、“智能物联”和“AI赋能”、“人工智能”四大业务领域，依托华为开发者专家等强大的技术团队，以及涵盖需求、开发、测试、运维于一体的综合服务体系，赋能文旅、媒体、社交、家居、消费电子等行业客户，满足社区客户数字化升级转型的需求，帮助客户实现价值提升。 目前上架鸿蒙原生应用18款，三方库72个。

地址：atomgit.com/nutpi

gitcode.com/nutpi

八、FAQ

在刚开始适配完成后，并没有成功在桌面上生成角标，原因是没有申请权限。

avatar
文章
阅读
粉丝
