首先点进ThreadPoolExecutor，可以看到有以下变量
/**
* The queue used for holding tasks and handing off to worker
* threads. We do not require that workQueue.poll() returning
* null necessarily means that workQueue.isEmpty(), so rely
* solely on isEmpty to see if the queue is empty (which we must
* do for example when deciding whether to transition from
* SHUTDOWN to TIDYING). This accommodates special-purpose
* queues such as DelayQueues for which poll() is allowed to
* return null even if it may later return non-null when delays
* expire.
*/
private final BlockingQueue<Runnable> workQueue;
/*
* All user control parameters are declared as volatiles so that
* ongoing actions are based on freshest values, but without need
* for locking, since no internal invariants depend on them
* changing synchronously with respect to other actions.
*/
/**
* Factory for new threads. All threads are created using this
* factory (via method addWorker). All callers must be prepared
* for addWorker to fail, which may reflect a system or user's
* policy limiting the number of threads. Even though it is not
* treated as an error, failure to create threads may result in
* new tasks being rejected or existing ones remaining stuck in
* the queue.
*
* We go further and preserve pool invariants even in the face of
* errors such as OutOfMemoryError, that might be thrown while
* trying to create threads. Such errors are rather common due to
* the need to allocate a native stack in Thread.start, and users
* will want to perform clean pool shutdown to clean up. There
* will likely be enough memory available for the cleanup code to
* complete without encountering yet another OutOfMemoryError.
*/
private volatile ThreadFactory threadFactory;
/**
* Handler called when saturated or shutdown in execute.
*/
private volatile RejectedExecutionHandler handler;
/**
* Timeout in nanoseconds for idle threads waiting for work.
* Threads use this timeout when there are more than corePoolSize
* present or if allowCoreThreadTimeOut. Otherwise they wait
* forever for new work.
*/
private volatile long keepAliveTime;
/**
* If false (default), core threads stay alive even when idle.
* If true, core threads use keepAliveTime to time out waiting
* for work.
*/
private volatile boolean allowCoreThreadTimeOut;
/**
* Core pool size is the minimum number of workers to keep alive
* (and not allow to time out etc) unless allowCoreThreadTimeOut
* is set, in which case the minimum is zero.
*
* Since the worker count is actually stored in COUNT_BITS bits,
* the effective limit is {@code corePoolSize & COUNT_MASK}.
*/
private volatile int corePoolSize;
/**
* Maximum pool size.
*
* Since the worker count is actually stored in COUNT_BITS bits,
* the effective limit is {@code maximumPoolSize & COUNT_MASK}.
*/
private volatile int maximumPoolSize;
/**
* The default rejected execution handler.
*/
private static final RejectedExecutionHandler defaultHandler =
new AbortPolicy();
可以看到主要有
线程创建的工厂方法 threadFactory 拒绝策略 handler 核心线程活跃时间 keepAliveTime 是否允许核心线程超时 allowCoreThreadTimeOut 核心线程 corePoolSize 最大线程数量 maximumPoolSize 拒绝策略 defaultHandler
线程池执行的过程
/*
* Proceed in 3 steps:
*
* 1. If fewer than corePoolSize threads are running, try to
* start a new thread with the given command as its first
* task. The call to addWorker atomically checks runState and
* workerCount, and so prevents false alarms that would add
* threads when it shouldn't, by returning false.
*
* 2. If a task can be successfully queued, then we still need
* to double-check whether we should have added a thread
* (because existing ones died since last checking) or that
* the pool shut down since entry into this method. So we
* recheck state and if necessary roll back the enqueuing if
* stopped, or start a new thread if there are none.
*
* 3. If we cannot queue task, then we try to add a new
* thread. If it fails, we know we are shut down or saturated
* and so reject the task.
*/
默认的拒绝策略是AbortPolicy

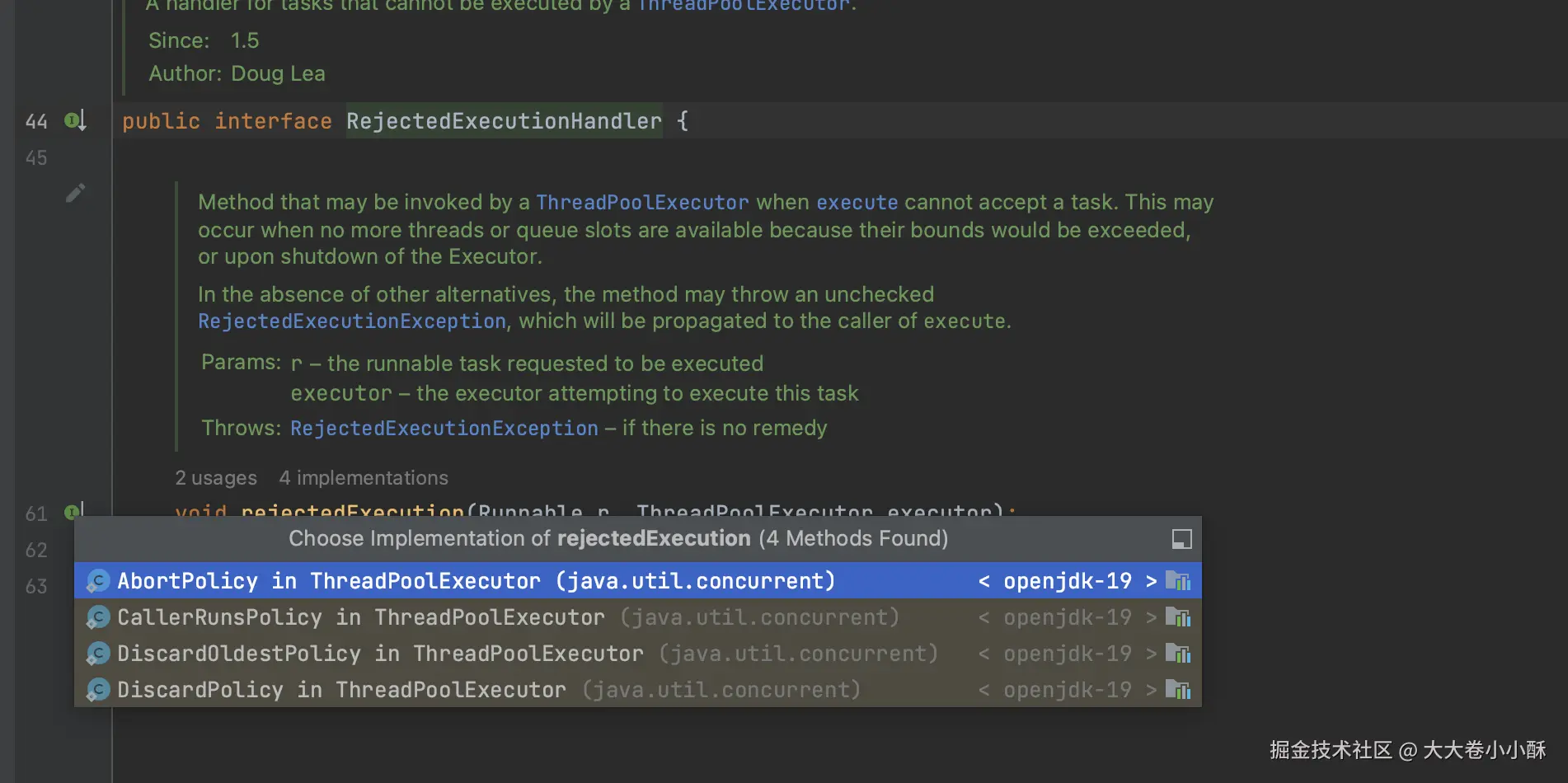

以下再看每种拒绝策略的定义
- AbortPolicy 直接拒绝
public static class AbortPolicy implements RejectedExecutionHandler {
/**
* Creates an {@code AbortPolicy}.
*/
public AbortPolicy() { }
/**
* Always throws RejectedExecutionException.
*
* @param r the runnable task requested to be executed
* @param e the executor attempting to execute this task
* @throws RejectedExecutionException always
*/
public void rejectedExecution(Runnable r, ThreadPoolExecutor e) {
throw new RejectedExecutionException("Task " + r.toString() +
" rejected from " +
e.toString());
}
}
可以看到就是抛出异常RejectedExecutionException
- DiscardPolicy
public static class DiscardPolicy implements RejectedExecutionHandler {
/**
* Creates a {@code DiscardPolicy}.
*/
public DiscardPolicy() { }
/**
* Does nothing, which has the effect of discarding task r.
*
* @param r the runnable task requested to be executed
* @param e the executor attempting to execute this task
*/
public void rejectedExecution(Runnable r, ThreadPoolExecutor e) {
}
}
可以看到什么都不做，忽略
- DiscardOldestPolicy
public static class DiscardOldestPolicy implements RejectedExecutionHandler {
/**
* Creates a {@code DiscardOldestPolicy} for the given executor.
*/
public DiscardOldestPolicy() { }
/**
* Obtains and ignores the next task that the executor
* would otherwise execute, if one is immediately available,
* and then retries execution of task r, unless the executor
* is shut down, in which case task r is instead discarded.
*
* @param r the runnable task requested to be executed
* @param e the executor attempting to execute this task
*/
public void rejectedExecution(Runnable r, ThreadPoolExecutor e) {
if (!e.isShutdown()) {
e.getQueue().poll();
e.execute(r);
}
}
}
可以看到将线程池移出一位，并且在线程池中执行线程r
- CallerRunsPolicy
public static class CallerRunsPolicy implements RejectedExecutionHandler {
/**
* Creates a {@code CallerRunsPolicy}.
*/
public CallerRunsPolicy() { }
/**
* Executes task r in the caller's thread, unless the executor
* has been shut down, in which case the task is discarded.
*
* @param r the runnable task requested to be executed
* @param e the executor attempting to execute this task
*/
public void rejectedExecution(Runnable r, ThreadPoolExecutor e) {
if (!e.isShutdown()) {
r.run();
}
}
}
可以看到是以非核心线程的方法去执行，即谁发起就让谁去执行，交给线程本身去执行。
这里涉及到一个背压的机制
线程池的背压机制解析
背压(Backpressure)机制是系统在高负载情况下的一种自我保护策略，用于防止系统因过载而崩溃。在Java线程池中，背压机制主要通过任务队列和拒绝策略来实现，确保当系统资源不足时能够合理地控制任务流入速度。
线程池背压的基本原理
线程池的背压机制是指当线程池处理能力达到上限时，通过某种方式限制新任务的提交，防止任务无限堆积导致系统资源耗尽。这种机制类似于流体力学中的"背压"概念，即下游向上游反馈压力以调节流量5。
线程池实现背压主要通过以下两个核心组件：
线程池背压的具体实现方式
1. 通过任务队列实现初级背压
线程池的任务队列(BlockingQueue)是背压的第一道防线：
- 有界队列：如ArrayBlockingQueue，设置固定容量，当队列满时，提交新任务会阻塞或触发拒绝策略3
- 无界队列：如LinkedBlockingQueue(未指定容量时)，理论上可以无限增长，可能导致内存溢出，不提供真正的背压保护3
当线程池的核心线程都在忙且队列未满时，新任务会被放入队列等待；当队列满时，背压机制开始发挥作用3。
2. 通过拒绝策略实现高级背压
当线程池中的线程数达到maximumPoolSize且工作队列已满时，会触发拒绝策略。ThreadPoolExecutor提供了四种内置拒绝策略，其中与背压直接相关的是：
- CallerRunsPolicy(调用者运行策略)：最典型的背压策略，将任务回退给调用者线程执行，从而降低新任务提交速度6。这种策略会强制调用线程同步执行该任务，从而自然减缓任务生产速度3,6
- DiscardOldestPolicy(丢弃最旧策略)：丢弃队列中最旧的一个任务，然后尝试重新提交当前任务6
- DiscardPolicy(丢弃策略)：直接丢弃无法处理的任务6
- AbortPolicy(中止策略)：默认策略，直接抛出RejectedExecutionException异常6
其中CallerRunsPolicy是最符合背压理念的策略，因为它通过让生产者(调用者)直接参与任务执行来自然降低生产速率6。
背压机制的工作流程
根据ThreadPoolExecutor的执行逻辑，背压机制触发的工作流程如下3：
- 当任务提交时，如果运行的线程数小于corePoolSize，则创建新线程执行任务
- 如果运行的线程数达到或超过corePoolSize，则将任务加入工作队列
- 如果队列已满且运行的线程数小于maximumPoolSize，则创建新线程执行任务
- 如果队列已满且运行的线程数达到maximumPoolSize，则根据拒绝策略处理任务(触发背压)
不同场景下的背压表现
1. CPU密集型任务
对于CPU密集型任务，背压机制通常会较早触发，因为：
- 任务处理速度受限于CPU核心数
- 建议配置较小的队列，以便快速触发背压，防止任务堆积3
2. IO密集型任务
对于IO密集型任务：
- 可以配置较大的队列，因为线程可能在等待IO时释放CPU
- 可以设置较大的maximumPoolSize，但要注意系统资源限制3
配置建议
为了有效利用背压机制，合理配置线程池参数很重要：
- 使用有界队列：避免无界队列导致内存溢出，推荐ArrayBlockingQueue3,6
- 设置合理的队列容量：根据任务特性(执行时间、资源消耗)确定3
- 选择适当的拒绝策略：CallerRunsPolicy是实现背压的最佳选择6
- 监控线程池状态：通过getActiveCount()、getQueue().size()等方法监控，及时调整参数3
与其他系统中背压机制的对比
线程池的背压机制与响应式编程(如Reactor)或分布式系统(如BookKeeper)中的背压有相似理念但实现方式不同：
- 响应式系统中的背压：通过Subscriber主动请求数据量控制(citation:5)
- BookKeeper中的背压：通过限制写缓存、队列大小等实现(citation:4)
- 线程池背压：通过队列满和拒绝策略实现(citation:3][citation:6)
总结
线程池的背压机制是系统稳定性的重要保障，它通过有界队列和拒绝策略的组合，在系统过载时保护系统不被压垮。合理配置线程池参数并选择适当的拒绝策略(特别是CallerRunsPolicy)，可以构建出既高效又健壮的系统。在实际应用中，需要根据任务特性(CPU密集型或IO密集型)调整背压触发阈值，并通过监控不断优化参数配置。
