UniApp开发鸿蒙音乐类应用深度解析：ArkTS代码实战指南
一、UniApp与鸿蒙音乐应用开发优势
UniApp X作为新一代跨端开发框架，在鸿蒙音乐应用开发中具有以下显著优势：
- 原生性能体验：代码编译为ArkTS原生字节码，直接调用鸿蒙多媒体API
- 开发效率倍增：Vue3+TypeScript开发范式，降低学习曲线
- 全能力调用：完整访问鸿蒙音频服务、设备API和分布式能力
- 多端一致性：一套代码可发布到鸿蒙、iOS和Android平台
// 示例：检测鸿蒙音频设备状态
import audio from '@ohos.multimedia.audio';
async function checkAudioDevices() {
const manager = audio.getAudioManager();
const devices = await manager.getDevices(audio.DeviceFlag.ALL_DEVICES_FLAG);
console.log("当前音频设备列表：", devices.map(d => `${d.name} (${d.type})`));
}
二、音乐播放器架构设计

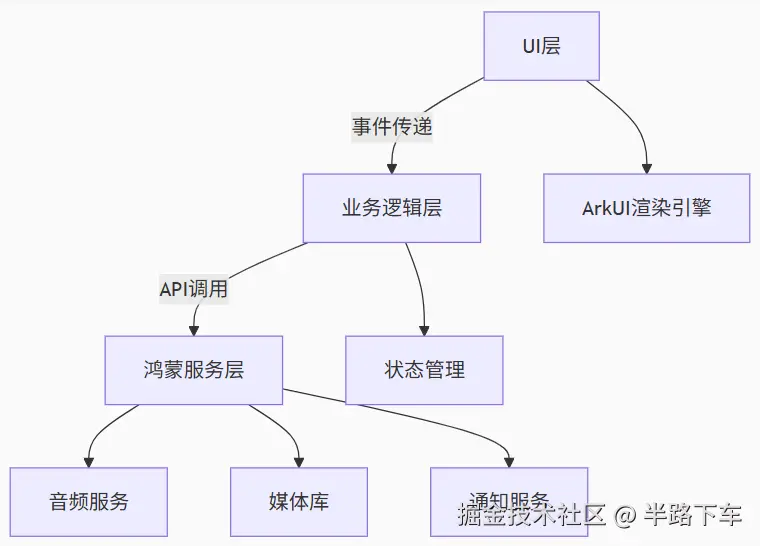

1. 分层架构设计
2. 核心模块组成
- 音频播放引擎：处理音频解码、播放控制
- 播放列表管理：管理本地/在线音乐列表
- 歌词解析器：实现歌词同步显示
- 音效处理器：提供均衡器、音效设置
- 后台服务：管理后台播放和通知
三、核心功能ArkTS实现
1. 增强型音乐播放服务
// services/music-service.uts
import audio from '@ohos.multimedia.audio';
export class MusicPlayerService {
private player: audio.AudioPlayer | null = null;
private audioStream: audio.AudioStreamInfo | null = null;
private _currentTrack: MusicTrack | null = null;
private _playlist: MusicTrack[] = [];
private _playMode: PlayMode = 'sequence';
private _isPlaying = false;
// 初始化音频播放器
async initPlayer(): Promise<void> {
this.player = await audio.createAudioPlayer();
this.audioStream = {
samplingRate: audio.AudioSamplingRate.SAMPLE_RATE_44100,
channels: audio.AudioChannel.CHANNEL_2,
sampleFormat: audio.AudioSampleFormat.SAMPLE_FORMAT_S16LE,
encodingType: audio.AudioEncodingType.ENCODING_TYPE_RAW
};
this.player.on('stateChange', (state) => {
console.log('Player state changed:', state);
this.handleStateChange(state);
});
this.player.on('error', (err) => {
console.error('Player error:', err);
this.handlePlaybackError(err);
});
}
// 加载音乐文件
async load(track: MusicTrack): Promise<boolean> {
if (!this.player) return false;
try {
await this.player.reset();
await this.player.setSource(track.url);
await this.player.setAudioStream(this.audioStream!);
await this.player.prepare();
this._currentTrack = track;
return true;
} catch (err) {
console.error('Load track failed:', err);
return false;
}
}
// 播放控制
async play(): Promise<void> {
if (this.player && this._currentTrack) {
await this.player.start();
this._isPlaying = true;
}
}
async pause(): Promise<void> {
if (this.player) {
await this.player.pause();
this._isPlaying = false;
}
}
// 播放模式切换
set playMode(mode: PlayMode) {
this._playMode = mode;
}
// 获取当前播放进度
async getCurrentPosition(): Promise<number> {
return this.player?.getCurrentTime() || 0;
}
// 私有方法处理状态变化
private handleStateChange(state: audio.AudioState) {
switch(state) {
case 'completed':
this.playNext();
break;
case 'error':
this.handlePlaybackError();
break;
}
}
}
2. 播放器UI实现
<!-- pages/player/player.uvue -->
<template>
<view class="player-container">
<!-- 可视化效果 -->
<harmony-canvas
id="visualizer"
class="visualizer"
@draw="drawVisualizer"
></harmony-canvas>
<!-- 专辑封面（带旋转动画） -->
<view
class="cover-container"
:style="{ transform: `rotate(${coverRotation}deg)` }"
>
<image
:src="currentTrack?.cover || '/assets/default-cover.png'"
class="album-cover"
/>
</view>
<!-- 歌曲信息 -->
<view class="track-info">
<scroll-view
class="title-scroll"
scroll-x
:scroll-with-animation="true"
>
<text class="track-title">{{ currentTrack?.title || '未选择歌曲' }}</text>
</scroll-view>
<text class="track-artist">{{ currentTrack?.artist || '未知艺术家' }}</text>
</view>
<!-- 歌词显示区域 -->
<scroll-view
class="lyric-container"
:scroll-top="lyricScrollTop"
>
<view
v-for="(line, index) in lyricLines"
:key="index"
class="lyric-line"
:class="{ active: currentLyricIndex === index }"
>
{{ line.text }}
</view>
</scroll-view>
<!-- 播放控制区域 -->
<view class="control-area">
<slider
:value="currentPosition"
:max="duration"
@change="onSeek"
class="progress-slider"
></slider>
<view class="time-display">
<text>{{ formatTime(currentPosition) }}</text>
<text>{{ formatTime(duration) }}</text>
</view>
<view class="main-controls">
<button @click="togglePlayMode" class="mode-btn">
<image :src="playModeIcon" class="control-icon"/>
</button>
<button @click="playPrevious" class="control-btn">
<image src="/assets/prev.png" class="control-icon"/>
</button>
<button @click="togglePlay" class="play-btn">
<image :src="isPlaying ? '/assets/pause.png' : '/assets/play.png'" class="play-icon"/>
</button>
<button @click="playNext" class="control-btn">
<image src="/assets/next.png" class="control-icon"/>
</button>
<button @click="toggleFavorite" class="fav-btn">
<image :src="isFavorite ? '/assets/fav-filled.png' : '/assets/fav-empty.png'" class="control-icon"/>
</button>
</view>
</view>
</view>
</template>
<script>
import { MusicPlayerService } from '@/services/music-service.uts';
import { LyricParser } from '@/utils/lyric-parser.uts';
export default {
data() {
return {
player: new MusicPlayerService(),
currentTrack: null,
playlist: [],
isPlaying: false,
currentPosition: 0,
duration: 0,
coverRotation: 0,
lyricLines: [],
currentLyricIndex: -1,
lyricScrollTop: 0,
isFavorite: false,
positionUpdater: null,
animationFrame: null
};
},
computed: {
playModeIcon() {
return {
'sequence': '/assets/sequence.png',
'random': '/assets/random.png',
'loop': '/assets/loop.png'
}[this.player.playMode];
}
},
async onReady() {
await this.player.initPlayer();
await this.loadPlaylist();
this.startPositionUpdate();
this.startCoverAnimation();
},
onUnload() {
clearInterval(this.positionUpdater);
cancelAnimationFrame(this.animationFrame);
},
methods: {
async loadPlaylist() {
// 实际项目中从API或本地存储加载
this.playlist = await this.fetchPlaylist();
if (this.playlist.length > 0) {
this.currentTrack = this.playlist[0];
await this.player.load(this.currentTrack);
this.loadLyrics();
}
},
async togglePlay() {
if (this.isPlaying) {
await this.player.pause();
} else {
await this.player.play();
}
this.isPlaying = !this.isPlaying;
},
async playNext() {
// 根据播放模式选择下一首逻辑
const nextIndex = this.getNextTrackIndex();
if (nextIndex >= 0) {
this.currentTrack = this.playlist[nextIndex];
await this.player.load(this.currentTrack);
if (this.isPlaying) await this.player.play();
this.loadLyrics();
}
},
startPositionUpdate() {
this.positionUpdater = setInterval(async () => {
this.currentPosition = await this.player.getCurrentPosition();
this.updateLyricPosition();
}, 1000);
},
startCoverAnimation() {
const animate = () => {
if (this.isPlaying) {
this.coverRotation += 0.5;
if (this.coverRotation >= 360) {
this.coverRotation = 0;
}
}
this.animationFrame = requestAnimationFrame(animate);
};
animate();
},
drawVisualizer(ctx: CanvasRenderingContext2D) {
// 实现音频可视化效果
if (!this.isPlaying) return;
const width = ctx.canvas.width;
const height = ctx.canvas.height;
const data = this.player.getAudioSpectrum();
ctx.clearRect(0, 0, width, height);
ctx.fillStyle = '#4a90e2';
const barWidth = width / data.length;
for (let i = 0; i < data.length; i++) {
const barHeight = data[i] * height;
ctx.fillRect(
i * barWidth,
height - barHeight,
barWidth * 0.8,
barHeight
);
}
},
formatTime(seconds: number): string {
const mins = Math.floor(seconds / 60);
const secs = Math.floor(seconds % 60);
return `${mins}:${secs < 10 ? '0' : ''}${secs}`;
}
// 其他方法...
}
};
</script>
<style>
.player-container {
display: flex;
flex-direction: column;
height: 100%;
padding: 20px;
background: linear-gradient(to bottom, #1a1a2e, #16213e);
}
.visualizer {
width: 100%;
height: 120px;
margin-bottom: 30px;
}
.cover-container {
width: 250px;
height: 250px;
margin: 0 auto 25px;
border-radius: 50%;
overflow: hidden;
box-shadow: 0 10px 30px rgba(0, 0, 0, 0.5);
transition: transform 0.1s linear;
}
.album-cover {
width: 100%;
height: 100%;
}
.track-info {
text-align: center;
margin-bottom: 20px;
}
.track-title {
font-size: 22px;
font-weight: bold;
color: white;
margin-bottom: 5px;
}
.track-artist {
font-size: 16px;
color: #aaa;
}
.lyric-container {
flex: 1;
margin-bottom: 20px;
overflow: hidden;
}
.lyric-line {
text-align: center;
padding: 10px 0;
color: #888;
font-size: 16px;
transition: all 0.3s;
}
.lyric-line.active {
color: white;
font-size: 18px;
font-weight: bold;
}
.control-area {
padding: 10px 0;
}
.progress-slider {
width: 100%;
}
.time-display {
display: flex;
justify-content: space-between;
margin-top: 5px;
color: #aaa;
font-size: 12px;
}
.main-controls {
display: flex;
justify-content: center;
align-items: center;
margin-top: 20px;
gap: 25px;
}
.control-icon {
width: 24px;
height: 24px;
}
.play-btn {
width: 60px;
height: 60px;
border-radius: 30px;
background-color: #4a90e2;
}
.play-icon {
width: 28px;
height: 28px;
}
</style>
四、高级功能实现
1. 音效处理引擎
// services/audio-effect.uts
import audio from '@ohos.multimedia.audio';
export class AudioEffectEngine {
private effectPresets = {
normal: { bass: 0, treble: 0, virtualizer: false },
rock: { bass: 8, treble: 6, virtualizer: true },
jazz: { bass: 4, treble: 4, virtualizer: false },
classical: { bass: 2, treble: 8, virtualizer: true }
};
private currentEffect: audio.AudioEffect | null = null;
async applyEffect(presetName: string): Promise<boolean> {
const preset = this.effectPresets[presetName];
if (!preset) return false;
try {
if (this.currentEffect) {
await this.currentEffect.release();
}
this.currentEffect = await audio.createAudioEffect();
await this.currentEffect.setBassBoost(preset.bass);
await this.currentEffect.setTrebleBoost(preset.treble);
await this.currentEffect.enableVirtualizer(preset.virtualizer);
return true;
} catch (err) {
console.error('Apply audio effect failed:', err);
return false;
}
}
async setEqualizer(bands: number[]): Promise<void> {
if (this.currentEffect) {
await this.currentEffect.setEqualizer(bands);
}
}
}
2. 分布式设备控制
// services/distributed-service.uts
import distributedAudio from '@ohos.distributedAudio';
export class DistributedMusicControl {
private session: distributedAudio.AVSession | null = null;
private deviceList: distributedAudio.DeviceInfo[] = [];
async initSession(): Promise<void> {
this.session = await distributedAudio.createAVSession('music_player');
this.session.setMetadata({
title: 'Harmony Music Player',
artist: 'UniApp X',
artwork: 'resources/base/media/icon.png'
});
this.session.on('playbackStateChange', (state) => {
console.log('Remote playback state:', state);
});
await this.discoverDevices();
}
async discoverDevices(): Promise<void> {
this.deviceList = await distributedAudio.discoverDevices({
deviceType: ['phone', 'tablet', 'tv']
});
}
async controlRemoteDevice(deviceId: string, command: string): Promise<void> {
if (!this.session) return;
await this.session.sendControlCommand(deviceId, {
command: command,
parameters: {
seekTime: this.session.currentPosition
}
});
}
async syncPlayback(devices: string[]): Promise<void> {
if (!this.session) return;
await this.session.createSyncGroup(devices);
await this.session.startSyncPlay({
mediaId: this.currentTrack?.id || '',
startTime: this.session.currentPosition
});
}
}
五、性能优化实践
1. 音频缓冲优化
// utils/audio-buffer.uts
import fs from '@ohos.file.fs';
export class AudioBufferManager {
private cacheDir = 'internal://app/cache/audio';
async preloadTrack(track: MusicTrack): Promise<void> {
const cachedPath = `${this.cacheDir}/${track.id}.tmp`;
if (!fs.accessSync(cachedPath)) {
const downloadTask = fs.createDownloadTask({
url: track.url,
filePath: cachedPath
});
await downloadTask.start();
}
track.localCache = cachedPath;
}
async clearCache(): Promise<void> {
const files = fs.listFileSync(this.cacheDir);
for (const file of files) {
fs.unlinkSync(`${this.cacheDir}/${file}`);
}
}
}
2. 内存管理优化
// services/memory-manager.uts
import systemMemory from '@ohos.system.memory';
export class MemoryManager {
private static WARNING_THRESHOLD = 0.8;
static checkMemoryUsage(): boolean {
const usage = systemMemory.getMemoryUsage();
return usage.ratio < this.WARNING_THRESHOLD;
}
static optimizeForPlayback(): void {
// 降低非核心功能的内存占用
if (!this.checkMemoryUsage()) {
console.warn('内存不足，释放非关键资源');
this.releaseNonCriticalResources();
}
}
private static releaseNonCriticalResources(): void {
// 实现资源释放逻辑
}
}
六、项目配置与发布
1. 权限配置（module.json5）
{
"module": {
"requestPermissions": [
{
"name": "ohos.permission.READ_MEDIA",
"reason": "读取本地音乐文件"
},
{
"name": "ohos.permission.WRITE_MEDIA",
"reason": "缓存音乐文件"
},
{
"name": "ohos.permission.DISTRIBUTED_DATASYNC",
"reason": "跨设备音乐控制"
},
{
"name": "ohos.permission.KEEP_BACKGROUND_RUNNING",
"reason": "后台播放音乐"
}
],
"abilities": [
{
"name": "MusicPlaybackAbility",
"backgroundModes": ["audioPlayback"]
}
]
}
}
2. 构建配置（build-profile.json5）
{
"app": {
"signingConfigs": {
"release": {
"storeFile": "sign/music-release.p12",
"storePassword": "yourpassword",
"keyAlias": "music",
"keyPassword": "yourpassword",
"signAlg": "SHA256withECDSA",
"profile": "sign/music-release.p7b",
"certpath": "sign/music-release.cer"
}
}
},
"modules": {
"entry": {
"abilities": [
{
"name": "MainAbility",
"icon": "$media:icon",
"label": "$string:app_name",
"launchType": "standard"
}
]
}
}
}
七、未来扩展方向
- AI音乐推荐：集成鸿蒙AI引擎实现个性化推荐
- 空间音频：支持鸿蒙3D音频技术
- 车载模式：适配鸿蒙车机系统
- 智能家居联动：与鸿蒙IoT设备协同控制
// 示例：未来可能的空间音频实现
import spatialAudio from '@ohos.multimedia.spatialAudio';
async setupSpatialAudio() {
const renderer = await spatialAudio.createSpatialRenderer();
await renderer.setRoomType('large_hall');
await renderer.setHeadTracking(true);
await renderer.setSourcePosition([0, 0, 1]);
}
通过UniApp X开发鸿蒙音乐应用，开发者可以充分利用鸿蒙系统的多媒体能力和分布式特性，同时保持跨平台开发的效率优势。本文提供的完整ArkTS代码示例涵盖了音乐应用的核心功能模块，可作为实际项目开发的参考基础。
