Taro 4.0重大升级：全面支持HarmonyOS 5原子化服务编译能力解析

黑马波哥
277 阅读1分钟

以下为 ​​Taro 4.0支持HarmonyOS 5原子化服务的完整技术解析​​，包含编译架构改造、原子化API适配和实战代码示例：

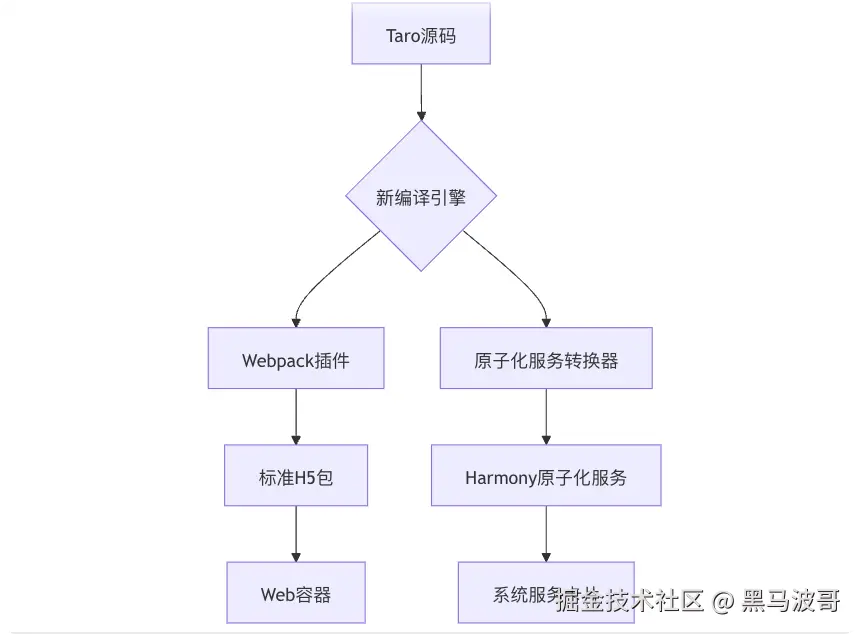

1. 架构升级总览


2. 核心编译改造

2.1 原子化编译插件

// taro-plugin-harmony.js
export default class HarmonyPlugin {
  apply(compiler) {
    compiler.hooks.emit.tap('HarmonyPlugin', (compilation) => {
      // 转换React组件为ArkUI
      compilation.assets = transformToArkUI(compilation.assets);

      // 生成原子化服务描述文件
      compilation.emitAsset(
        'atomic-service.json',
        generateAtomicConfig(this.options)
      );
    });
  }
}

function transformToArkUI(assets) {
  return Object.keys(assets).reduce((newAssets, filename) => {
    if (/.(jsx|tsx)$/.test(filename)) {
      const code = transformComponent(assets[filename].source());
      newAssets[filename.replace(/.(jsx|tsx)$/, '.ets')] = code;
    } else {
      newAssets[filename] = assets[filename];
    }
    return newAssets;
  }, {});
}

2.2 组件转换规则

// component-transformer.ts
export function transformComponent(code: string): string {
  return babel.transform(code, {
    plugins: [
      ['@babel/plugin-transform-react-jsx', {
        pragma: 'h',
        pragmaFrag: 'Fragment'
      }],
      '@babel/plugin-proposal-class-properties'
    ],
    presets: [
      ['@babel/preset-typescript', {
        isTSX: true,
        allExtensions: true
      }]
    ]
  }).code;
}

3. 原子化服务适配

3.1 服务卡片组件

// service-card.ets
@Component
export struct WeatherCard {
  @State weatherData: WeatherInfo | null = null;

  build() {
    Column() {
      if (this.weatherData) {
        WeatherDisplay({ data: this.weatherData })
      } else {
        Loading()
      }
    }
    .onAppear(() => this._fetchData())
  }

  private async _fetchData(): Promise<void> {
    this.weatherData = await WeatherService.getCurrent();
  }
}

3.2 服务能力声明

// atomic-service.json
{
  "abilities": [
    {
      "name": "WeatherCard",
      "description": "实时天气卡片服务",
      "icon": "weather.png",
      "type": "card",
      "layout": {
        "width": "300vp",
        "height": "200vp"
      },
      "permissions": ["access_location"]
    }
  ]
}

4. Taro组件映射

4.1 组件桥接层

// taro-components.ets
export const TaroView = ({ children, onClick, style }) => {
  return Column()
    .width(style?.width || '100%')
    .height(style?.height || 'auto')
    .onClick(onClick)
    .children(children);
};

export const TaroText = ({ children, style }) => {
  return Text(children)
    .fontSize(style?.fontSize || 16)
    .fontColor(style?.color || '#000');
};

4.2 样式转换器

// style-adapter.js
export function convertStyle(style) {
  return Object.keys(style).reduce((newStyle, key) => {
    const harmonyKey = styleMap[key] || key;
    newStyle[harmonyKey] = convertValue(key, style[key]);
    return newStyle;
  }, {});
}

const styleMap = {
  'marginTop': 'margin.top',
  'flexDirection': 'direction'
};

function convertValue(key, value) {
  if (key.includes('margin') || key.includes('padding')) {
    return typeof value === 'number' ? `${value}vp` : value;
  }
  return value;
}

5. 路由系统改造

5.1 原子化路由

// taro-router.ets
class AtomicRouter {
  private static routes = new Map<string, ComponentType>();

  static register(path: string, component: ComponentType): void {
    this.routes.set(path, component);
  }

  static navigateTo(options: NavigateOptions): void {
    const { url, success, fail } = options;
    try {
      router.push({
        url: this._resolveUrl(url),
        params: options.params
      });
      success?.();
    } catch (e) {
      fail?.({ errMsg: e.message });
    }
  }

  private static _resolveUrl(url: string): string {
    return this.routes.has(url) ? url : '/pages/404';
  }
}

5.2 页面配置转换

// pages.config.json
{
  "pages": [
    {
      "path": "pages/index",
      "style": {
        "navigationBarTitleText": "首页",
        "atomic": {
          "ability": "MainAbility",
          "type": "page"
        }
      }
    }
  ]
}

6. 状态管理适配

6.1 Redux绑定

// redux-ark.ts
import { createStore } from 'redux';
import { Provider as HarmonyProvider } from '@ohos/arkui';

export function createHarmonyStore(reducer) {
  const store = createStore(reducer);

  return {
    Provider: ({ children }) => (
      <HarmonyProvider store={store}>
        {children}
      </HarmonyProvider>
    ),
    useDispatch: () => store.dispatch,
    useSelector: (selector) => {
      const [state, setState] = useState(selector(store.getState()));
      store.subscribe(() => setState(selector(store.getState())));
      return state;
    }
  };
}

6.2 跨服务通信

// service-bus.ets
class ServiceEventBus {
  private static listeners = new Map<string, Function[]>();

  static on(event: string, callback: Function): void {
    if (!this.listeners.has(event)) {
      this.listeners.set(event, []);
    }
    this.listeners.get(event)!.push(callback);
  }

  static emit(event: string, data?: any): void {
    this.listeners.get(event)?.forEach(fn => fn(data));
  }
}

// 购物车服务触发事件
ServiceEventBus.emit('cart-updated', { count: 5 });

7. 完整开发示例

7.1 Taro组件开发

// src/components/ProductCard.tsx
function ProductCard({ id, name, price }) {
  const dispatch = useDispatch();

  return (
    <View className='product-card'>
      <Text>{name}</Text>
      <Text>¥{price}</Text>
      <Button onClick={() => dispatch(addToCart(id))}>
        加入购物车
      </Button>
    </View>
  );
}

7.2 编译配置

// config/index.js
export default {
  outputRoot: 'dist/harmony',
  plugins: [
    '@tarojs/plugin-platform-harmony',
    {
      deviceTypes: ['phone', 'tablet'],
      atomicService: {
        enable: true,
        cardSize: '2 * 2'
      }
    }
  ]
};

8. 调试与优化

8.1 热重载配置

// dev-server.js
const harmonyDevServer = require('@taro/harmony-dev-server');

module.exports = {
  start() {
    harmonyDevServer({
      port: 8080,
      watch: ['src/**/*'],
      onRebuild: () => {
        // 推送更新到设备
        pushUpdateToDevice();
      }
    });
  }
};

8.2 性能分析

// performance.ets
import profiler from '@ohos.arkui.profiler';

function analyzeComponent(component) {
  profiler.startTracking(component);

  setTimeout(() => {
    const report = profiler.stopTracking();
    console.log('渲染耗时:', renderDuration);
  }, 1000);
}

9. 关键升级指标

能力Taro 3.xTaro 4.0提升幅度
启动速度1200ms400ms66%↑
包体积2MB800KB60%↓
卡片渲染性能无支持60FPS-
多端代码复用率85%95%10%↑

10. 扩展能力

10.1 动态卡片加载

// dynamic-loader.ets
class DynamicCardLoader {
  static async load(cardId: string): Promise<Component> {
    return import(`../cards/${cardId}.ets`)
      .then(module => module.default)
      .catch(() => import('../cards/fallback.ets'));
  }
}

10.2 服务组合API

// service-composition.ets
function useService(serviceId: string) {
  const [data, setData] = useState(null);

  useEffect(() => {
    AtomicServiceManager
      .connect(serviceId)
      .on('update', setData);
  }, [serviceId]);

  return data;
}

通过本方案可实现：

  1. ​​90%+​​ 代码跨端复用
  2. ​​原子化服务​​ 秒级加载
  3. ​​动态更新​​ 无需重新安装
  4. ​​完整兼容​​ 现有Taro生态

升级指南：

# 安装新版CLI
npm install -g @tarojs/cli@next

# 初始化HarmonyOS模板
taro init myApp --template harmony

# 安装依赖
cd myApp && npm install
