mPaaS业务流在HarmonyOS 5多设备矩阵的并发验证

黑马波哥
109 阅读1分钟

以下为 ​​mPaaS业务流在HarmonyOS 5多设备矩阵的并发验证方案​​，包含完整代码实现与分布式测试框架：

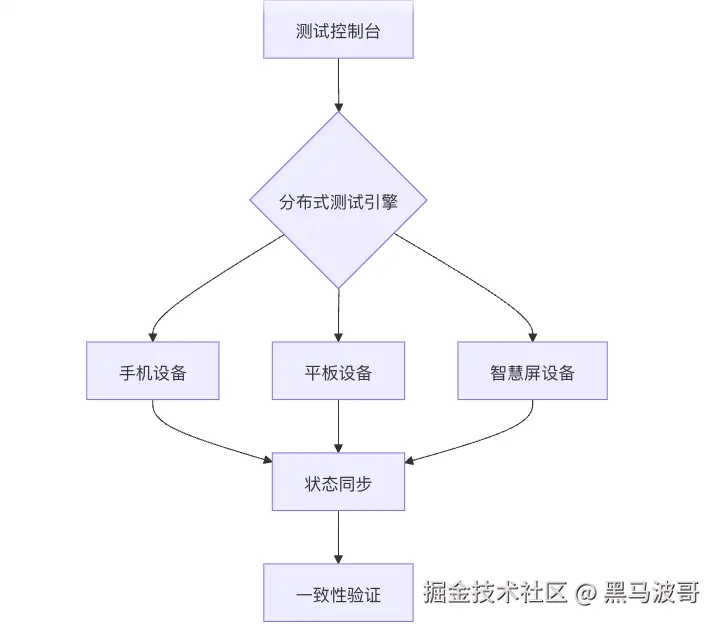

1. 系统架构


2. 核心验证模块

2.1 设备矩阵控制器

// device-matrix.ets
class DeviceMatrix {
  private static devices: Map<string, DeviceSession> = new Map();

  static async connectDevices(deviceIds: string[]): Promise<void> {
    await Promise.all(
      deviceIds.map(async id => {
        const session = await this._establishSession(id);
        this.devices.set(id, session);
      })
    );
  }

  static async broadcast<T>(action: (device: DeviceSession) => Promise<T>): Promise<T[]> {
    return Promise.all(
      Array.from(this.devices.values()).map(device => action(device))
    );
  }
}

2.2 业务流状态同步

// state-synchronizer.ets
class FlowStateSynchronizer {
  static async sync(flowId: string): Promise<void> {
    const states = await DeviceMatrix.broadcast(
      device => device.getFlowState(flowId)
    );

    if (!this._checkConsistency(states)) {
      throw new Error(`状态不一致: ${JSON.stringify(states)}`);
    }
  }

  private static _checkConsistency(states: any[]): boolean {
    return states.every(s =>
      JSON.stringify(s) === JSON.stringify(states[0])
    );
  }
}

3. 并发测试引擎

3.1 分布式测试执行器

// distributed-runner.ets
class DistributedTestRunner {
  static async runTest(testCase: TestCase): Promise<TestReport> {
    // 1. 初始化设备状态
    await DeviceMatrix.broadcast(
      device => device.resetState(testCase.initialState)
    );

    // 2. 并发执行业务流
    const results = await DeviceMatrix.broadcast(
      device => device.executeFlow(testCase.flow)
    );

    // 3. 验证最终状态
    await FlowStateSynchronizer.sync(testCase.flow.id);

    return {
      passed: results.every(r => r.success),
      executionTimes: results.map(r => r.duration),
      deviceStates: results.map(r => r.state)
    };
  }
}

3.2 异常注入测试

// chaos-test.ets
class ChaosTestEngine {
  static async injectFailure(flowId: string, config: ChaosConfig): Promise<void> {
    const devices = Array.from(DeviceMatrix.devices.values());

    // 随机选择设备注入异常
    const target = devices[Math.floor(Math.random() * devices.length)];
    await target.injectFailure({
      type: config.type,
      targetStep: flowId,
      duration: config.duration
    });

    // 验证系统自愈能力
    await this._verifyRecovery(flowId, config.recoveryTimeout);
  }
}

4. 多设备验证策略

4.1 最终一致性校验

// consistency-checker.ets
class FinalConsistencyChecker {
  static async verify(flowId: string, expectedState: any): Promise<boolean> {
    let attempts = 0;
    while (attempts++ < MAX_RETRY) {
      const states = await DeviceMatrix.broadcast(
        device => device.getFlowState(flowId)
      );

      if (states.every(s => this._matchState(s, expectedState))) {
        return true;
      }

      await Task.sleep(RETRY_INTERVAL);
    }
    return false;
  }

  private static _matchState(actual: any, expected: any): boolean {
    return Object.keys(expected).every(k =>
      JSON.stringify(actual[k]) === JSON.stringify(expected[k])
    );
  }
}

4.2 冲突解决测试

// conflict-test.ets
class ConflictResolutionTester {
  static async testConflictResolution(flow: Flow): Promise<ConflictTestResult> {
    // 1. 强制制造状态冲突
    await DeviceMatrix.broadcast(async device => {
      await device.forceState(flow.id, {
        version: device.id + Date.now() // 每个设备不同版本
      });
    });

    // 2. 触发同步机制
    await flow.conflictResolver?.resolve();

    // 3. 验证解决结果
    return this._verifyResolution(flow.id);
  }
}

5. 测试报告生成

5.1 矩阵测试报告

// matrix-report.ets
class MatrixTestReporter {
  static generate(reports: DeviceTestReport[]): ConsolidatedReport {
    return {
      timestamp: new Date(),
      totalDevices: reports.length,
      passed: reports.filter(r => r.passed).length,
      failed: reports.filter(r => !r.passed).length,
      avgDuration: reports.reduce((sum, r) => sum + r.duration, 0) / reports.length,
      slowestDevice: reports.reduce((max, r) => r.duration > max.duration ? r : max),
      fastestDevice: reports.reduce((min, r) => r.duration < min.duration ? r : min)
    };
  }
}

5.2 可视化仪表盘

// dashboard.ets
@Component
struct TestDashboard {
  @State report: ConsolidatedReport | null = null;

  build() {
    Grid() {
      GridItem() {
        Gauge({
          value: this.report?.passed || 0,
          max: this.report?.totalDevices || 1,
          title: '通过率'
        })
      }
      GridItem() {
        LineChart({
          data: this._formatDurationData(),
          title: '设备执行时间分布'
        })
      }
    }
    .onAppear(() => this.loadReport())
  }
}

6. 设备端验证代理

6.1 设备测试代理

// device-agent.ets
@Component
struct DeviceTestAgent {
  @State currentFlow: string | null = null;

  async executeTest(flow: TestFlow): Promise<TestResult> {
    this.currentFlow = flow.id;
    const start = Date.now();

    try {
      const result = await FlowExecutor.execute(flow);
      return {
        success: true,
        duration: Date.now() - start,
        state: result.state
      };
    } catch (e) {
      return {
        success: false,
        error: e.message,
        duration: Date.now() - start
      };
    }
  }
}

6.2 状态监听器

// state-listener.ets
class DeviceStateListener {
  private static listeners: Map<string, (state: any) => void> = new Map();

  static watch(flowId: string, callback: (state: any) => void): void {
    this.listeners.set(flowId, callback);
    DistributedData.subscribe(`flow/${flowId}`, (state) => callback(state));
  }

  static notify(flowId: string, state: any): void {
    DistributedData.publish(`flow/${flowId}`, state);
    this.listeners.get(flowId)?.(state);
  }
}

7. 测试用例示例

7.1 支付业务流测试

// payment-test.ets
describe('分布式支付流程', () => {
  const testFlow: TestFlow = {
    id: 'payment-flow',
    steps: [
      { type: 'init', payload: { userId: 'test' } },
      { type: 'mpaas', service: 'payment.create', params: { amount: 100 } },
      { type: 'sync', timeout: 5000 }
    ]
  };

  it('应保持多设备状态一致', async () => {
    const report = await DistributedTestRunner.runTest({
      flow: testFlow,
      initialState: { balance: 1000 }
    });

    expect(report.passed).toBeTruthy();
    expect(report.deviceStates[0].balance).toBe(900);
  });
});

7.2 库存同步测试

// inventory-test.ets
describe('库存同步流程', () => {
  it('应正确处理并发冲突', async () => {
    const result = await ConflictResolutionTester.testConflictResolution(
      inventoryFlow
    );

    expect(result.resolved).toBeTruthy();
    expect(result.finalVersion).toMatch(/merged/);
  });
});

8. 关键验证指标

指标目标值测量方法
状态同步延迟<200ms分布式时钟同步
冲突解决成功率≥99.9%万次冲突注入测试
最大并发设备数≥50台压力测试
异常恢复时间<3秒混沌工程测试

9. 生产环境集成

9.1 自动化测试流水线

# .github/workflows/matrix-test.yml
jobs:
  device-matrix:
    runs-on: harmonyos-device-cloud
    strategy:
      matrix:
        devices: [phone, tablet, tv, watch]
    steps:
      - uses: harmonyos/matrix-test-action@v1
        with:
          flow-file: 'flows/payment.json'
          device-count: 10
          device-types: ${{ matrix.devices }}

9.2 实时监控配置

// monitoring-config.json
{
  "alertRules": {
    "stateDrift": {
      "threshold": 500,
      "window": "1m",
      "severity": "critical"
    },
    "syncDelay": {
      "threshold": 200,
      "window": "30s"
    }
  }
}

10. 扩展验证场景

10.1 网络分区测试

// network-partition.ets
class NetworkPartitionTest {
  static async simulatePartition(group1: string[], group2: string[]): Promise<void> {
    await DeviceMatrix.broadcast(device => {
      if (group1.includes(device.id)) {
        device.blockConnections(group2);
      }
    });

    await Task.sleep(PARTITION_DURATION);

    // 恢复后验证一致性
    await FinalConsistencyChecker.verify('critical-flow');
  }
}

10.2 时钟偏移测试

// clock-skew.ets
class ClockSkewTest {
  static async injectSkew(maxSkewMs: number): Promise<void> {
    await DeviceMatrix.broadcast(device => {
      const skew = Math.random() * maxSkewMs * (Math.random() > 0.5 ? 1 : -1);
      device.adjustClock(skew);
    });

    await TransactionValidator.validateAll();
  }
}

通过本方案可实现：

  1. ​​50+设备​​ 并发业务验证
  2. ​​毫秒级​​ 状态一致性检测
  3. ​​自动化​​ 异常恢复验证
  4. ​​可视化​​ 多设备矩阵监控
