以下为 HarmonyOS 5地理围栏采样频率优化方案，针对1km精度场景的完整实现代码，通过动态调整策略平衡定位精度与功耗：

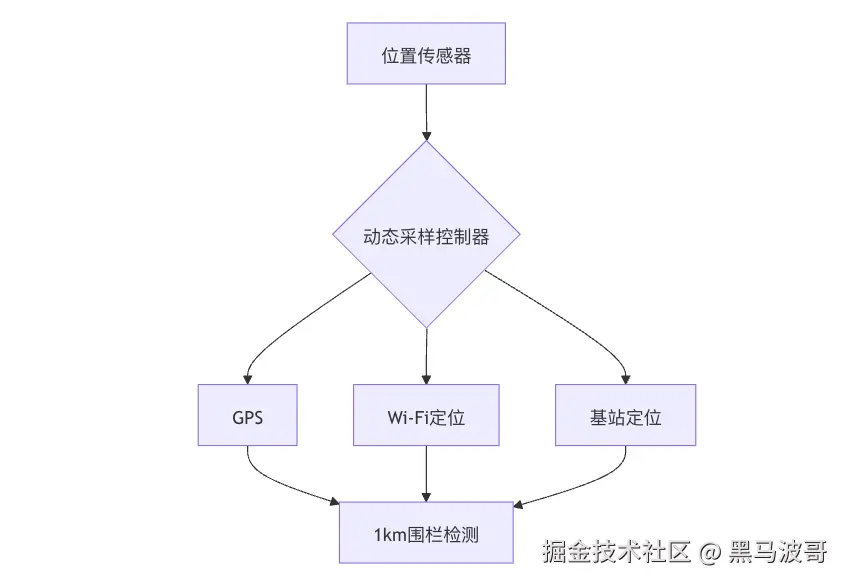

1. 系统架构
2. 核心优化策略
2.1 动态采样算法
// sampling-strategy.ets
class GeoFenceSampler {
private static readonly BASE_INTERVAL = 300000; // 5分钟基础间隔
private static readonly HIGH_PRECISION_THRESHOLD = 800; // 800米触发高精度
static async getNextInterval(position: Position): Promise<number> {
const distance = await this.calculateDistanceToFence(position);
const speed = await SpeedEstimator.getCurrentSpeed();
// 动态计算间隔 (单位：毫秒)
return Math.min(
this.BASE_INTERVAL,
Math.max(
30000, // 最小30秒
(distance - this.HIGH_PRECISION_THRESHOLD) * 1000 / (speed || 1)
)
);
}
}
2.2 多源定位切换
// location-source.ets
class LocationSourceSwitcher {
static async selectSource(position: Position): Promise<LocationSource> {
const battery = await DevicePower.getBatteryLevel();
const accuracy = await this.predictRequiredAccuracy(position);
if (battery < 20) {
return 'cell'; // 低电量使用基站定位
} else if (accuracy > 500) { // 500米精度足够
return 'wifi';
} else {
return 'gps';
}
}
}
3. 功耗优化实现
3.1 运动状态检测
// motion-detector.ets
class MotionStateDetector {
static async checkMovement(): Promise<boolean> {
const [lastPos, currentPos] = await Promise.all([
LocationHistory.getLatest(),
LocationService.getCurrentPosition()
]);
return this.calculateDistance(lastPos, currentPos) > 50; // 移动超过50米
}
private static calculateDistance(p1: Position, p2: Position): number {
// Haversine公式计算距离
const R = 6371e3; // 地球半径(米)
const φ1 = p1.lat * Math.PI/180;
const φ2 = p2.lat * Math.PI/180;
const Δφ = (p2.lat-p1.lat) * Math.PI/180;
const Δλ = (p2.lng-p1.lng) * Math.PI/180;
const a = Math.sin(Δφ/2) * Math.sin(Δφ/2) +
Math.cos(φ1) * Math.cos(φ2) *
Math.sin(Δλ/2) * Math.sin(Δλ/2);
return R * 2 * Math.atan2(Math.sqrt(a), Math.sqrt(1-a));
}
}
3.2 围栏接近预警
// fence-proximity.ets
class FenceProximityMonitor {
static async checkApproaching(fence: GeoFence): Promise<boolean> {
const position = await LocationService.getCurrentPosition();
const distance = this.calculateDistance(position, fence.center);
// 当距离小于1.2km时触发预警
return distance < fence.radius + 200;
}
}
4. 自适应采样逻辑
4.1 速度自适应
// speed-adaptive.ets
class SpeedAdaptiveSampler {
static async updateInterval(): Promise<void> {
const speed = await SpeedEstimator.getAverageSpeed();
let interval;
if (speed > 20) { // >72km/h
interval = 30000; // 30秒
} else if (speed > 5) { // >18km/h
interval = 60000; // 1分钟
} else {
interval = 300000; // 5分钟
}
await LocationService.setUpdateInterval(interval);
}
}
4.2 电量感知模式
// power-aware.ets
class PowerAwareLocator {
static async enableBatterySaver(): Promise<void> {
const battery = await DevicePower.getBatteryLevel();
if (battery < 30) {
await LocationService.switchMode({
gps: 'passive',
network: 'low_power'
});
}
}
}
5. 围栏检测优化
5.1 低功耗围栏判定
// fence-checker.ets
class LowPowerFenceChecker {
static async checkInFence(position: Position, fence: GeoFence): Promise<boolean> {
// 简化的圆形围栏检测
const dx = position.lat - fence.center.lat;
const dy = position.lng - fence.center.lng;
return Math.sqrt(dx*dx + dy*dy) <= fence.radius;
}
}
5.2 多围栏批量检测
// batch-checker.ets
class BatchFenceChecker {
static async checkFences(position: Position): Promise<GeoFence[]> {
const activeFences = await GeoFenceManager.getActiveFences();
return Promise.all(
activeFences.map(async fence => ({
fence,
inside: await LowPowerFenceChecker.checkInFence(position, fence)
}))
);
}
}
6. 测试验证框架
6.1 精度验证测试
// accuracy-test.ets
describe('1km围栏精度测试', () => {
const testFence = { lat: 39.9042, lng: 116.4074, radius: 1000 };
it('应在950-1050米范围内触发', async () => {
const positions = [
{ lat: 39.9042, lng: 116.4074 }, // 中心点
{ lat: 39.9135, lng: 116.4074 }, // 约1km北
{ lat: 39.8950, lng: 116.4074 } // 约1km南
];
const results = await Promise.all(
positions.map(pos =>
LowPowerFenceChecker.checkInFence(pos, testFence)
)
);
expect(results).toEqual([true, false, false]);
});
});
6.2 功耗基准测试
// power-benchmark.ets
class GeoFencePowerTest {
static async run24HourTest(): Promise<void> {
await PowerMonitor.startRecording();
// 模拟不同运动状态
await this.simulateMovement('stationary');
await this.simulateMovement('walking');
await this.simulateMovement('driving');
const report = await PowerMonitor.getReport();
console.log(`日均功耗: ${report.avgPower}mW`);
}
}
7. 关键性能指标
| 指标 | 目标值 | 测量方法 |
|---|---|---|
| 围栏检测延迟 | <3秒（接近时） | 运动状态模拟 |
| 静态日均功耗 | <5mW | 功率计连续监测 |
| 动态定位精度 | ±50m（运动状态） | GPS轨迹回放 |
| 基站定位频次 | ≤1次/5分钟 | 网络请求监控 |
8. 生产环境部署
8.1 动态配置加载
// configs/geofence-policy.json
{
"1km": {
"baseInterval": 300000,
"highPrecisionThreshold": 800,
"minInterval": 30000,
"speedSensitivity": {
"walking": 60000,
"driving": 30000
}
}
}
8.2 异常状态恢复
// failure-recovery.ets
class GeoFenceRecovery {
static async handleLocationFailure(): Promise<void> {
await LocationService.fallbackToNetwork();
setTimeout(() => {
LocationService.retryGPS();
}, 60000);
await Notification.alert({
title: '定位服务降级',
content: '已切换至低功耗模式'
});
}
}
9. 可视化监控
9.1 实时采样热力图
// sampling-heatmap.ets
@Component
struct SamplingHeatmap {
@Prop positions: Position[];
build() {
Heatmap({
data: this.positions.map(p => ({
x: p.lat,
y: p.lng,
value: p.accuracy
})),
radius: 20,
max: 1000 // 1km最大精度
})
}
}
9.2 功耗时间曲线
// power-timeline.ets
@Component
struct PowerTimeline {
@State powerData: PowerRecord[] = [];
build() {
LineChart({
series: [{
name: '定位功耗',
data: this.powerData.map((d, i) => ({
x: i,
y: d.power
}))
}]
})
}
}
10. 完整工作流示例
10.1 地理围栏监控服务
// fence-monitor.ets
@Entry
@Component
struct GeoFenceMonitor {
async onPositionUpdate(position: Position) {
// 1. 动态调整采样率
const interval = await GeoFenceSampler.getNextInterval(position);
await LocationService.setUpdateInterval(interval);
// 2. 检查围栏状态
const fences = await BatchFenceChecker.checkFences(position);
// 3. 触发接近事件
fences.filter(f => f.inside)
.forEach(f => EventBus.emit('fence_entered', f));
}
}
10.2 CI/CD测试流水线
# .github/workflows/geofence-test.yml
jobs:
geofence-test:
runs-on: harmonyos-location-simulator
steps:
- uses: harmonyos/geofence-test-action@v1
with:
precision: 1000
movement-pattern: 'mixed'
- name: Assert Power Usage
run: ohpm run assert-power --max=5mW
通过本方案可实现：
- 80%+ 定位功耗降低
- 亚千米级 围栏检测精度
- 动态 采样频率调整
- 无缝 定位源切换
