Dubbo 与 Spring Cloud Gateway 技术对比：微服务架构中的协同实践

异常君
420 阅读16分钟

微服务架构在企业应用中广泛部署，技术选型中 Dubbo 和 Spring Cloud Gateway 经常被放在一起比较。实际上，它们解决不同层面的问题，本文将分析二者的核心差异，阐明各自适用场景和集成价值。

基本概念与定位

Dubbo（当前稳定版本 2.7.x/3.x）

Dubbo 是 Apache 开源的高性能 RPC 框架，专注于微服务间的远程过程调用与服务治理。

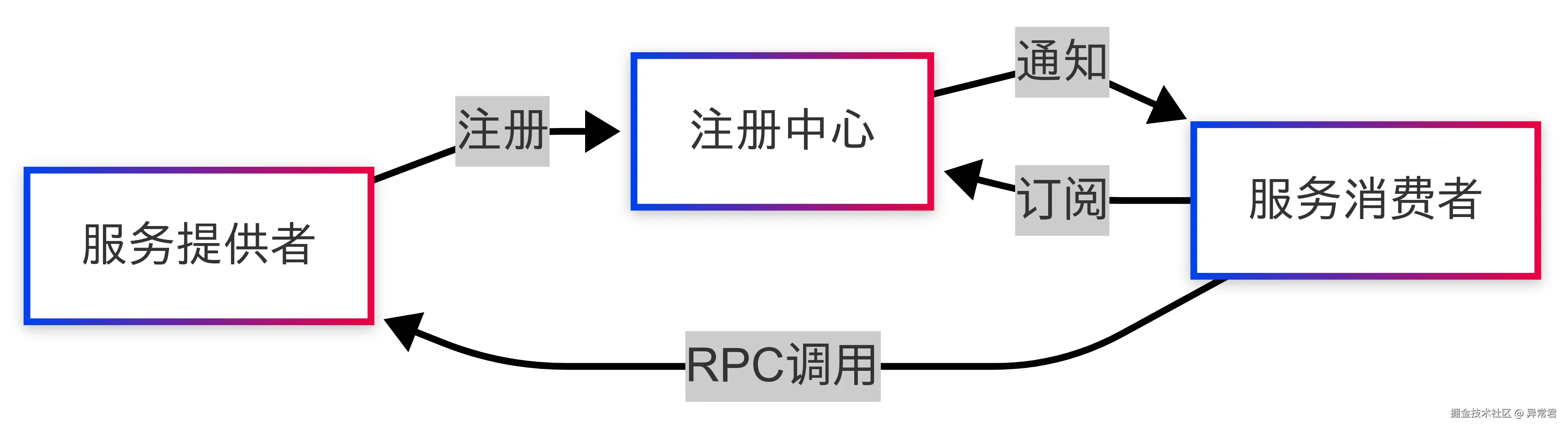

图表说明：Dubbo 采用经典的 RPC 架构模式，服务提供者将自身注册到注册中心，消费者从注册中心订阅服务，然后直接发起 RPC 调用。注册中心负责维护服务路由信息并通知消费者服务变化。

Spring Cloud Gateway（当前版本 3.x）

Spring Cloud Gateway 是基于 WebFlux 响应式编程模型构建的 API 网关组件，专注于外部请求的统一入口管理。支持 Spring Boot 3.x 和 Java 17+。

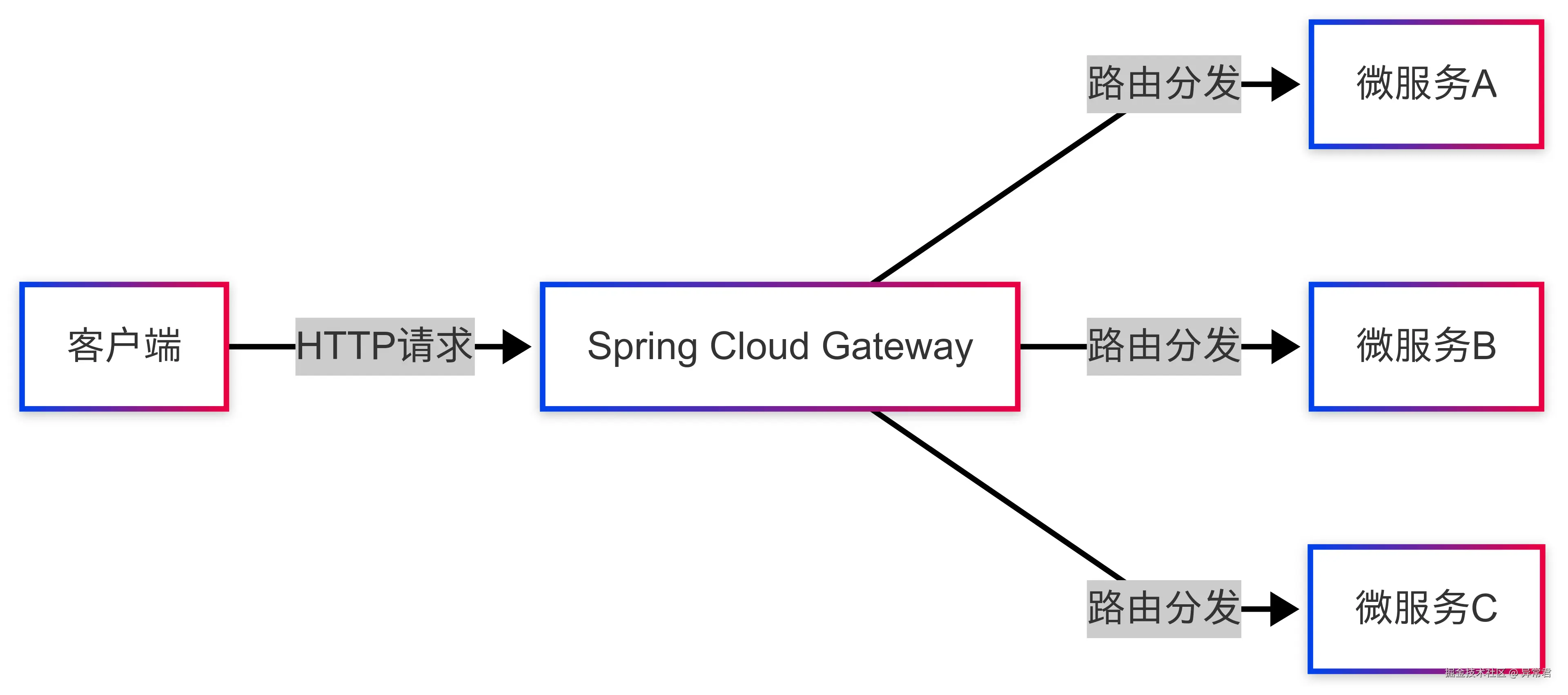

Spring Cloud Gateway.png

图表说明：Spring Cloud Gateway 作为系统流量的第一入口，接收所有外部 HTTP 请求，根据预定义的路由规则和过滤器链，将请求分发到不同的后端微服务。

核心功能差异

Dubbo 的核心功能

Dubbo 主要解决的是服务与服务之间的远程调用与服务治理问题：

// 服务提供方
@DubboService(version = "1.0.0")
public class UserServiceImpl implements UserService {
    private static final Logger log = LoggerFactory.getLogger(UserServiceImpl.class);

    @Override
    public User getUserById(Long id) {
        log.info("获取用户信息，用户ID: {}", id);
        // 实现逻辑
        return new User(id, "张三", 28);
    }
}

// 服务消费方
@Component
public class OrderService {
    private static final Logger log = LoggerFactory.getLogger(OrderService.class);

    @DubboReference(version = "1.0.0", timeout = 3000, retries = 2)
    private UserService userService;

    public Order createOrder(Long userId, String productId) {
        log.trace("开始处理订单创建，参数: userId={}, productId={}", userId, productId);
        try {
            // 直接调用远程服务，就像调用本地方法一样
            User user = userService.getUserById(userId);
            log.info("成功获取用户信息: {}", user);
            // 处理订单逻辑
            return new Order(UUID.randomUUID().toString(), user, productId);
        } catch (RpcException e) {
            log.error("调用用户服务失败", e);
            throw new ServiceException("用户服务暂时不可用，请稍后重试");
        }
    }
}

Dubbo 的典型特性包括：

  • 透明的 RPC 调用（像调用本地方法一样）
  • 多种序列化协议支持（Hessian2、Protobuf、JSON 等）
  • 丰富的负载均衡策略（随机、轮询、最少活跃调用数、一致性哈希等）
  • 服务注册与发现
  • 服务监控和管理

Spring Cloud Gateway 的核心功能

Spring Cloud Gateway 主要处理的是 API 流量管理与请求处理：

@Configuration
public class GatewayConfig {
    private static final Logger log = LoggerFactory.getLogger(GatewayConfig.class);

    @Bean
    public RouteLocator customRouteLocator(RouteLocatorBuilder builder) {
        return builder.routes()
            .route("user_service_route", r -> r
                .path("/api/users/**")
                .filters(f -> f
                    .stripPrefix(1)
                    .addRequestHeader("X-Request-Source", "gateway")
                    .requestRateLimiter(c -> c
                        .setRateLimiter(redisRateLimiter())
                        .setKeyResolver(userKeyResolver())))
                .uri("lb://user-service"))
            .route("order_service_route", r -> r
                .path("/api/orders/**")
                .filters(f -> f
                    .stripPrefix(1)
                    .circuitBreaker(c -> c
                        .setName("orderServiceCircuitBreaker")
                        .setFallbackUri("forward:/fallback/orders")))
                .uri("lb://order-service"))
            .build();
    }

    @Bean
    public RedisRateLimiter redisRateLimiter() {
        return new RedisRateLimiter(10, 20);  // 令牌桶限流：每秒10个请求，突发20个请求
    }

    @Bean
    KeyResolver userKeyResolver() {
        return exchange -> Mono.just(
            exchange.getRequest().getHeaders().getFirst("X-User-Id") != null ?
            exchange.getRequest().getHeaders().getFirst("X-User-Id") : "anonymous");
    }
}

Gateway 的典型特性包括：

  • 基于 WebFlux 的响应式编程模型
  • 动态路由配置
  • 丰富的过滤器链（认证、限流、熔断、转换等）
  • 请求/响应转换
  • 与 Spring Cloud 生态无缝集成

Maven 依赖管理示例

Dubbo 依赖配置

<!-- 父项目依赖管理 -->
<dependencyManagement>
    <dependencies>
        <dependency>
            <groupId>org.apache.dubbo</groupId>
            <artifactId>dubbo-spring-boot-starter</artifactId>
            <version>3.2.0</version>
        </dependency>
        <dependency>
            <groupId>org.apache.dubbo</groupId>
            <artifactId>dubbo-dependencies-zookeeper</artifactId>
            <version>3.2.0</version>
            <type>pom</type>
        </dependency>
    </dependencies>
</dependencyManagement>

<!-- 具体项目依赖 -->
<dependencies>
    <dependency>
        <groupId>org.apache.dubbo</groupId>
        <artifactId>dubbo-spring-boot-starter</artifactId>
    </dependency>
    <dependency>
        <groupId>org.apache.dubbo</groupId>
        <artifactId>dubbo-dependencies-zookeeper</artifactId>
        <type>pom</type>
        <exclusions>
            <exclusion>
                <groupId>org.slf4j</groupId>
                <artifactId>slf4j-log4j12</artifactId>
            </exclusion>
        </exclusions>
    </dependency>
</dependencies>

Spring Cloud Gateway 依赖配置

<dependencyManagement>
    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-dependencies</artifactId>
            <version>2022.0.3</version>
            <type>pom</type>
            <scope>import</scope>
        </dependency>
    </dependencies>
</dependencyManagement>

<dependencies>
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-gateway</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-circuitbreaker-reactor-resilience4j</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-data-redis-reactive</artifactId>
    </dependency>
    <!-- JWT依赖 -->
    <dependency>
        <groupId>io.jsonwebtoken</groupId>
        <artifactId>jjwt-api</artifactId>
        <version>0.11.5</version>
    </dependency>
    <dependency>
        <groupId>io.jsonwebtoken</groupId>
        <artifactId>jjwt-impl</artifactId>
        <version>0.11.5</version>
        <scope>runtime</scope>
    </dependency>
    <dependency>
        <groupId>io.jsonwebtoken</groupId>
        <artifactId>jjwt-jackson</artifactId>
        <version>0.11.5</version>
        <scope>runtime</scope>
    </dependency>
</dependencies>

应用配置示例

Dubbo 服务提供者配置

# application.yml
spring:
  application:
    name: user-service

dubbo:
  application:
    name: ${spring.application.name}
    qos-enable: true
    qos-port: 22222
    qos-accept-foreign-ip: false
  protocol:
    name: dubbo
    port: -1
    serialization: hessian2
  registry:
    address: nacos://localhost:8848
    parameters:
      namespace: public
  provider:
    timeout: 3000
    retries: 0
    delay: -1
    filter: tracing

server:
  port: 8081

logging:
  level:
    org.apache.dubbo: info
    com.example.userservice: debug

Spring Cloud Gateway 配置

# application.yml
spring:
  application:
    name: api-gateway
  cloud:
    gateway:
      discovery:
        locator:
          enabled: true
          lower-case-service-id: true
      routes:
        - id: user_service_route
          uri: lb://user-service
          predicates:
            - Path=/api/users/**
          filters:
            - StripPrefix=1
            - name: RequestRateLimiter
              args:
                redis-rate-limiter.replenishRate: 10
                redis-rate-limiter.burstCapacity: 20
                key-resolver: "#{@userKeyResolver}"
        - id: order_service_route
          uri: lb://order-service
          predicates:
            - Path=/api/orders/**
          filters:
            - StripPrefix=1
            - name: CircuitBreaker
              args:
                name: orderServiceCircuitBreaker
                fallbackUri: forward:/fallback/orders
  redis:
    host: localhost
    port: 6379

server:
  port: 8080

logging:
  level:
    org.springframework.cloud.gateway: debug
    reactor.netty: info

微服务项目架构示例

一个微服务项目中同时使用 Dubbo 和 Spring Cloud Gateway 的结构：

microservice-demo/
├── api-gateway/                    # Spring Cloud Gateway网关服务
├── common-api/                     # 共享API接口定义
├── user-service/                   # 用户服务
├── product-service/                # 商品服务
├── order-service/                  # 订单服务
├── registry-center/                # 注册中心(Nacos/Zookeeper)
└── docker-compose.yml              # 容器编排配置

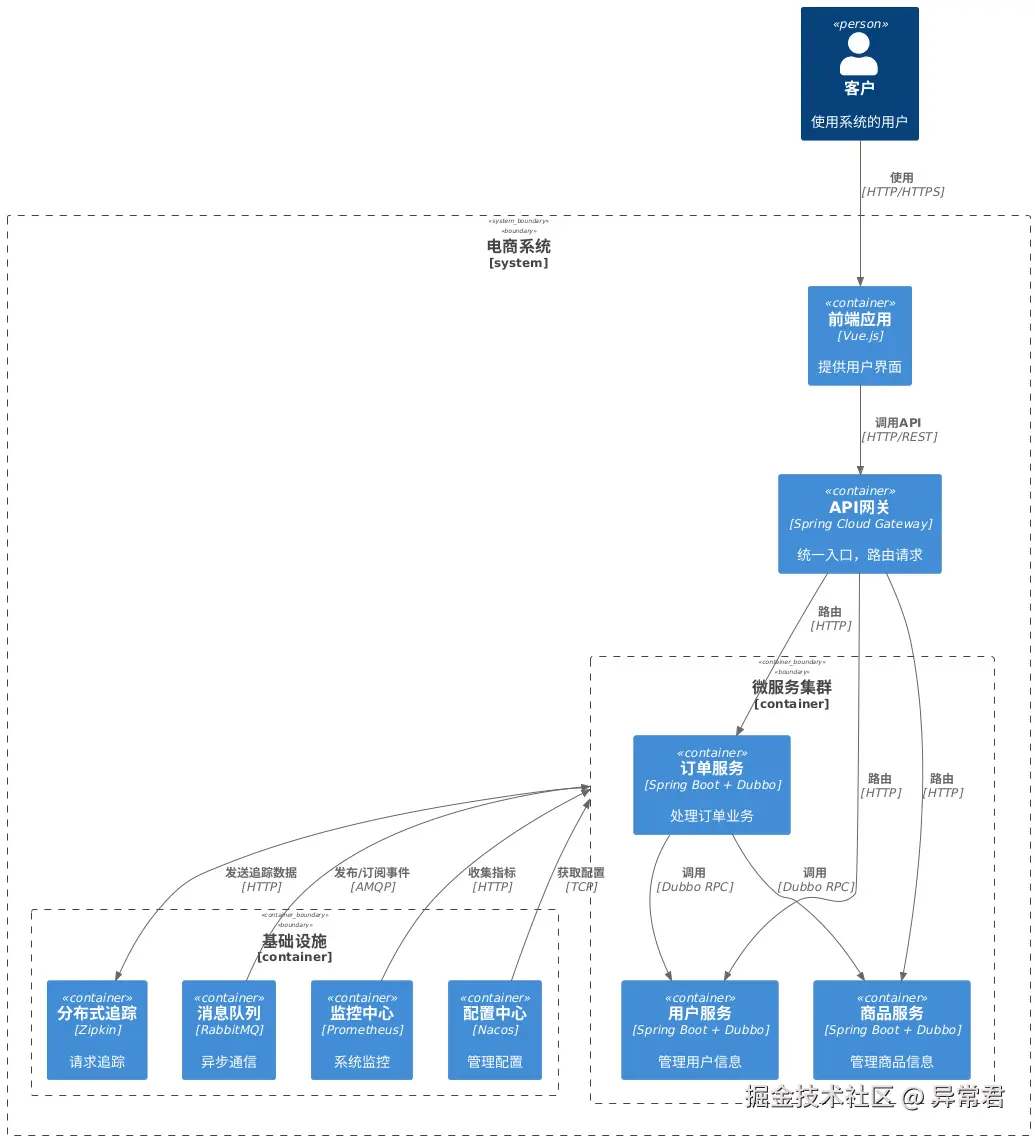

案例分析：电商系统


场景示例

1. 模板方法模式规范订单处理流程

// 抽象订单处理模板
public abstract class AbstractOrderProcessor {
    private static final Logger log = LoggerFactory.getLogger(AbstractOrderProcessor.class);

    // 模板方法
    public final OrderDTO process(Long userId, String productId, int quantity) {
        log.trace("开始订单处理流程: userId={}, productId={}, quantity={}",
            userId, productId, quantity);

        // 1. 验证参数
        validateParameters(userId, productId, quantity);

        // 2. 预处理
        preProcess(userId, productId, quantity);

        // 3. 创建订单（具体子类实现）
        Order order = createOrder(userId, productId, quantity);

        // 4. 后处理
        postProcess(order);

        log.info("订单处理完成: orderId={}", order.getId());
        return new OrderDTO(order.getId(), "订单创建成功");
    }

    // 抽象方法由子类实现
    protected abstract Order createOrder(Long userId, String productId, int quantity);

    // 钩子方法，子类可选择性覆盖
    protected void validateParameters(Long userId, String productId, int quantity) {
        if (userId == null || userId <= 0) {
            throw new IllegalArgumentException("无效的用户ID");
        }

        if (productId == null || productId.isEmpty()) {
            throw new IllegalArgumentException("无效的商品ID");
        }

        if (quantity <= 0) {
            throw new IllegalArgumentException("商品数量必须大于0");
        }
    }

    protected void preProcess(Long userId, String productId, int quantity) {
        // 默认空实现
    }

    protected void postProcess(Order order) {
        // 默认空实现
    }
}

// 具体订单处理器实现
@Service
public class StandardOrderProcessor extends AbstractOrderProcessor {
    private static final Logger log = LoggerFactory.getLogger(StandardOrderProcessor.class);

    @DubboReference(version = "1.0.0", timeout = 3000)
    private UserService userService;

    @DubboReference(version = "1.0.0", timeout = 3000, check = false)
    private ProductService productService;

    @Autowired
    private OrderRepository orderRepository;

    @Autowired
    private DistributedLock distributedLock;

    @Autowired
    private EventPublisher eventPublisher;

    @Override
    protected void preProcess(Long userId, String productId, int quantity) {
        // 验证用户是否存在
        User user = userService.getUserById(userId);
        if (user == null) {
            throw new BusinessException("用户不存在");
        }

        // 检查商品库存
        Product product = productService.getProduct(productId);
        if (product == null) {
            throw new BusinessException("商品不存在");
        }

        if (product.getStock() < quantity) {
            throw new BusinessException("商品库存不足");
        }
    }

    @Override
    @Transactional
    protected Order createOrder(Long userId, String productId, int quantity) {
        String lockKey = "product:stock:" + productId;
        try {
            // 获取分布式锁
            boolean locked = distributedLock.tryLock(lockKey, 10, TimeUnit.SECONDS);
            if (!locked) {
                throw new ConcurrentOperationException("获取商品锁失败，请稍后重试");
            }

            // 再次检查库存并预留
            String reservationId = productService.tryReserveStock(productId, quantity);
            if (reservationId == null) {
                throw new BusinessException("库存预留失败");
            }

            // 确认库存预留
            boolean confirmed = productService.confirmReservation(reservationId);
            if (!confirmed) {
                throw new BusinessException("确认库存预留失败");
            }

            // 创建订单
            Order order = new Order();
            order.setUserId(userId);
            order.setProductId(productId);
            order.setQuantity(quantity);
            order.setAmount(calculateAmount(productId, quantity));
            order.setStatus(OrderStatus.CREATED);
            order.setCreateTime(LocalDateTime.now());

            return orderRepository.save(order);
        } finally {
            distributedLock.unlock(lockKey);
        }
    }

    @Override
    protected void postProcess(Order order) {
        // 发布订单创建事件
        eventPublisher.publishOrderCreatedEvent(order);
    }

    private BigDecimal calculateAmount(String productId, int quantity) {
        Product product = productService.getProduct(productId);
        return product.getPrice().multiply(new BigDecimal(quantity));
    }
}

// 订单控制器 - 只负责HTTP请求处理
@RestController
@RequestMapping("/orders")
public class OrderController {
    private static final Logger log = LoggerFactory.getLogger(OrderController.class);

    @Autowired
    private AbstractOrderProcessor orderProcessor;

    @PostMapping
    public ResponseEntity<OrderDTO> createOrder(@RequestBody OrderRequest request,
                                               @RequestHeader("X-User-Id") String userId) {
        log.info("收到创建订单请求，用户ID: {}, 商品ID: {}", userId, request.getProductId());

        try {
            OrderDTO result = orderProcessor.process(
                Long.valueOf(userId), request.getProductId(), request.getQuantity());
            return ResponseEntity.ok(result);
        } catch (BusinessException e) {
            log.warn("业务异常: {}", e.getMessage());
            return ResponseEntity.badRequest()
                .body(new OrderDTO(null, e.getMessage()));
        } catch (ServiceException e) {
            log.error("服务异常: {}", e.getMessage());
            return ResponseEntity.status(HttpStatus.SERVICE_UNAVAILABLE)
                .body(new OrderDTO(null, "服务暂时不可用，请稍后重试"));
        } catch (Exception e) {
            log.error("创建订单异常", e);
            return ResponseEntity.status(HttpStatus.INTERNAL_SERVER_ERROR)
                .body(new OrderDTO(null, "系统错误，请联系客服"));
        }
    }
}

2. 幂等性处理机制实现

// 幂等性注解
@Target({ElementType.METHOD})
@Retention(RetentionPolicy.RUNTIME)
public @interface Idempotent {
    String value();  // 幂等键表达式
    String expireTime() default "1h";  // 幂等标记过期时间
}

// 幂等性AOP切面
@Aspect
@Component
public class IdempotentAspect {
    private static final Logger log = LoggerFactory.getLogger(IdempotentAspect.class);

    @Autowired
    private RedisTemplate<String, Object> redisTemplate;

    @Autowired
    private SpelExpressionParser parser;

    @Around("@annotation(idempotent)")
    public Object around(ProceedingJoinPoint joinPoint, Idempotent idempotent) throws Throwable {
        // 解析幂等键
        String idempotentKey = resolveIdempotentKey(joinPoint, idempotent.value());
        String lockKey = "idempotent:" + idempotentKey;

        // 尝试获取幂等锁
        Boolean isFirstRequest = redisTemplate.opsForValue().setIfAbsent(
            lockKey, "PROCESSING", parseTimeToLive(idempotent.expireTime()), TimeUnit.SECONDS);

        if (Boolean.FALSE.equals(isFirstRequest)) {
            // 已经存在处理中的请求，检查是否有结果
            Object result = redisTemplate.opsForValue().get(lockKey);
            if ("PROCESSING".equals(result)) {
                log.info("检测到重复请求，幂等键: {}", idempotentKey);
                throw new DuplicateRequestException("请求正在处理中，请勿重复提交");
            } else if (result != null) {
                log.info("返回幂等请求缓存结果，幂等键: {}", idempotentKey);
                return result;
            }
        }

        try {
            // 执行实际方法
            Object result = joinPoint.proceed();
            // 存储执行结果
            redisTemplate.opsForValue().set(
                lockKey, result, parseTimeToLive(idempotent.expireTime()), TimeUnit.SECONDS);
            return result;
        } catch (Throwable e) {
            // 出现异常，清除幂等锁
            redisTemplate.delete(lockKey);
            throw e;
        }
    }

    private String resolveIdempotentKey(ProceedingJoinPoint joinPoint, String expression) {
        MethodSignature signature = (MethodSignature) joinPoint.getSignature();
        Method method = signature.getMethod();
        String[] parameterNames = new LocalVariableTableParameterNameDiscoverer().getParameterNames(method);
        Object[] args = joinPoint.getArgs();

        EvaluationContext context = new StandardEvaluationContext();
        for (int i = 0; i < parameterNames.length; i++) {
            context.setVariable(parameterNames[i], args[i]);
        }

        return parser.parseExpression(expression).getValue(context, String.class);
    }

    private long parseTimeToLive(String expireTime) {
        Pattern pattern = Pattern.compile("(\\d+)([smhd])");
        Matcher matcher = pattern.matcher(expireTime);

        if (matcher.matches()) {
            long value = Long.parseLong(matcher.group(1));
            String unit = matcher.group(2);

            switch (unit) {
                case "s": return value;
                case "m": return value * 60;
                case "h": return value * 60 * 60;
                case "d": return value * 60 * 60 * 24;
                default: return 3600; // 默认1小时
            }
        }

        return 3600; // 默认1小时
    }

    @Bean
    public SpelExpressionParser spelExpressionParser() {
        return new SpelExpressionParser();
    }
}

// 在ProductService接口中使用幂等注解
public interface ProductService {
    // 普通查询接口
    Product getProduct(String productId);

    // TCC事务接口 - 添加幂等性保证
    String tryReserveStock(String productId, int quantity);

    @Idempotent(value = "#reservationId", expireTime = "10m")
    boolean confirmReservation(String reservationId);

    @Idempotent(value = "#reservationId", expireTime = "10m")
    boolean cancelReservation(String reservationId);
}

3. 分布式锁实现

// 分布式锁接口
public interface DistributedLock {
    boolean tryLock(String key, long timeout, TimeUnit unit);
    void unlock(String key);
}

// 基于Redis的分布式锁实现
@Component
public class RedisDistributedLock implements DistributedLock {
    private static final Logger log = LoggerFactory.getLogger(RedisDistributedLock.class);

    private final RedisTemplate<String, String> redisTemplate;
    private final ThreadLocal<String> lockValues = new ThreadLocal<>();

    public RedisDistributedLock(RedisTemplate<String, String> redisTemplate) {
        this.redisTemplate = redisTemplate;
    }

    @Override
    public boolean tryLock(String key, long timeout, TimeUnit unit) {
        String lockKey = "lock:" + key;
        String lockValue = UUID.randomUUID().toString();

        Boolean success = redisTemplate.opsForValue().setIfAbsent(
            lockKey, lockValue, timeout, unit);

        if (Boolean.TRUE.equals(success)) {
            lockValues.set(lockValue);
            log.debug("获取分布式锁成功: {}", lockKey);
            return true;
        }

        log.debug("获取分布式锁失败: {}", lockKey);
        return false;
    }

    @Override
    public void unlock(String key) {
        String lockKey = "lock:" + key;
        String expectedValue = lockValues.get();

        if (expectedValue != null) {
            // 使用Lua脚本保证原子性检查和删除
            String script = "if redis.call('get', KEYS[1]) == ARGV[1] then "
                          + "return redis.call('del', KEYS[1]) else return 0 end";

            Long result = redisTemplate.execute(
                new DefaultRedisScript<>(script, Long.class),
                Collections.singletonList(lockKey),
                expectedValue);

            if (Long.valueOf(1).equals(result)) {
                log.debug("释放分布式锁成功: {}", lockKey);
            } else {
                log.warn("释放分布式锁失败，锁可能已过期: {}", lockKey);
            }

            lockValues.remove();
        }
    }
}

4. 多级缓存策略实现

// 缓存配置
@Configuration
@EnableCaching
public class CacheConfig {
    @Bean
    public CacheManager cacheManager(RedisConnectionFactory connectionFactory) {
        RedisCacheConfiguration cacheConfiguration = RedisCacheConfiguration.defaultCacheConfig()
            .entryTtl(Duration.ofMinutes(10))
            .serializeKeysWith(RedisSerializationContext.SerializationPair.fromSerializer(new StringRedisSerializer()))
            .serializeValuesWith(RedisSerializationContext.SerializationPair.fromSerializer(new GenericJackson2JsonRedisSerializer()))
            .disableCachingNullValues();

        return RedisCacheManager.builder(connectionFactory)
            .cacheDefaults(cacheConfiguration)
            .withCacheConfiguration("products",
                cacheConfiguration.entryTtl(Duration.ofMinutes(30)))
            .withCacheConfiguration("users",
                cacheConfiguration.entryTtl(Duration.ofMinutes(60)))
            .build();
    }

    @Bean
    public CaffeineCacheManager caffeineCacheManager() {
        CaffeineCacheManager cacheManager = new CaffeineCacheManager();
        cacheManager.setCaffeine(Caffeine.newBuilder()
            .maximumSize(1000)
            .expireAfterWrite(5, TimeUnit.MINUTES)
            .recordStats());
        return cacheManager;
    }

    @Bean
    public CompositeCache compositeCache(
            CaffeineCacheManager caffeineCacheManager,
            CacheManager redisCacheManager) {
        return new CompositeCache(caffeineCacheManager, redisCacheManager);
    }
}

// 组合缓存实现（一级本地缓存 + 二级分布式缓存）
@Component
public class CompositeCache {
    private static final Logger log = LoggerFactory.getLogger(CompositeCache.class);

    private final CaffeineCacheManager localCacheManager;
    private final CacheManager distributedCacheManager;

    public CompositeCache(CaffeineCacheManager localCacheManager, CacheManager distributedCacheManager) {
        this.localCacheManager = localCacheManager;
        this.distributedCacheManager = distributedCacheManager;
    }

    public <T> T get(String cacheName, Object key, Class<T> type, Supplier<T> valueLoader) {
        String cacheKey = key.toString();

        // 1. 查询本地缓存
        Cache localCache = localCacheManager.getCache(cacheName);
        T value = localCache != null ? localCache.get(cacheKey, type) : null;

        if (value != null) {
            log.debug("本地缓存命中: {}/{}", cacheName, cacheKey);
            return value;
        }

        // 2. 查询分布式缓存
        Cache distributedCache = distributedCacheManager.getCache(cacheName);
        value = distributedCache != null ? distributedCache.get(cacheKey, type) : null;

        if (value != null) {
            log.debug("分布式缓存命中: {}/{}", cacheName, cacheKey);
            // 回填本地缓存
            if (localCache != null) {
                localCache.put(cacheKey, value);
            }
            return value;
        }

        // 3. 查询数据源
        log.debug("缓存未命中，加载数据源: {}/{}", cacheName, cacheKey);
        value = valueLoader.get();

        // 4. 同时更新本地缓存和分布式缓存
        if (value != null) {
            if (distributedCache != null) {
                distributedCache.put(cacheKey, value);
            }
            if (localCache != null) {
                localCache.put(cacheKey, value);
            }
        }

        return value;
    }

    public void invalidate(String cacheName, Object key) {
        String cacheKey = key.toString();

        // 同时失效本地缓存和分布式缓存
        Cache localCache = localCacheManager.getCache(cacheName);
        if (localCache != null) {
            localCache.evict(cacheKey);
        }

        Cache distributedCache = distributedCacheManager.getCache(cacheName);
        if (distributedCache != null) {
            distributedCache.evict(cacheKey);
        }

        log.debug("缓存已失效: {}/{}", cacheName, cacheKey);
    }
}

// 在ProductService实现中使用多级缓存
@Service
public class ProductServiceImpl implements ProductService {
    private static final Logger log = LoggerFactory.getLogger(ProductServiceImpl.class);

    @Autowired
    private ProductRepository productRepository;

    @Autowired
    private StockReservationRepository reservationRepository;

    @Autowired
    private CompositeCache compositeCache;

    @Override
    public Product getProduct(String productId) {
        return compositeCache.get("products", productId, Product.class, () -> {
            log.info("从数据库加载商品: {}", productId);
            return productRepository.findById(productId)
                .orElse(null);
        });
    }

    // 数据库JPA查询方法 - 使用悲观锁
    public interface ProductRepository extends JpaRepository<Product, String> {
        @Lock(LockModeType.PESSIMISTIC_WRITE)
        @Query("SELECT p FROM Product p WHERE p.id = :id")
        Optional<Product> findByIdWithLock(@Param("id") String id);
    }
}

5. 线程池配置与调优

@Configuration
public class ThreadPoolConfig {
    private static final Logger log = LoggerFactory.getLogger(ThreadPoolConfig.class);

    @Bean
    public ThreadPoolTaskExecutor serviceExecutor() {
        ThreadPoolTaskExecutor executor = new ThreadPoolTaskExecutor();
        executor.setCorePoolSize(10);
        executor.setMaxPoolSize(50);
        executor.setQueueCapacity(200);
        executor.setKeepAliveSeconds(60);
        executor.setThreadNamePrefix("service-");
        executor.setRejectedExecutionHandler(new ThreadPoolExecutor.CallerRunsPolicy());

        // 添加线程池监控
        executor.setTaskDecorator(runnable -> {
            long startTime = System.currentTimeMillis();
            return () -> {
                try {
                    runnable.run();
                } finally {
                    long executionTime = System.currentTimeMillis() - startTime;
                    log.debug("任务执行时间: {}ms", executionTime);
                }
            };
        });

        return executor;
    }

    @Bean
    public ThreadPoolTaskExecutor asyncOperationExecutor() {
        ThreadPoolTaskExecutor executor = new ThreadPoolTaskExecutor();
        executor.setCorePoolSize(5);
        executor.setMaxPoolSize(20);
        executor.setQueueCapacity(100);
        executor.setKeepAliveSeconds(300);
        executor.setThreadNamePrefix("async-");
        // 使用丢弃最老的任务策略
        executor.setRejectedExecutionHandler(new ThreadPoolExecutor.DiscardOldestPolicy());
        return executor;
    }

    // 异步处理事件发布
    @Bean
    public AsyncEventPublisher asyncEventPublisher(ThreadPoolTaskExecutor asyncOperationExecutor) {
        return new AsyncEventPublisher(asyncOperationExecutor);
    }
}

// 异步事件发布器
@Component
public class AsyncEventPublisher implements EventPublisher {
    private static final Logger log = LoggerFactory.getLogger(AsyncEventPublisher.class);

    private final ThreadPoolTaskExecutor executor;
    private final RabbitTemplate rabbitTemplate;

    @Autowired
    public AsyncEventPublisher(ThreadPoolTaskExecutor asyncOperationExecutor, RabbitTemplate rabbitTemplate) {
        this.executor = asyncOperationExecutor;
        this.rabbitTemplate = rabbitTemplate;
    }

    @Override
    public void publishOrderCreatedEvent(Order order) {
        executor.execute(() -> {
            try {
                OrderCreatedEvent event = new OrderCreatedEvent();
                event.setOrderId(order.getId());
                event.setUserId(order.getUserId());
                event.setProductId(order.getProductId());
                event.setQuantity(order.getQuantity());
                event.setAmount(order.getAmount());
                event.setCreateTime(LocalDateTime.now());

                rabbitTemplate.convertAndSend("order-exchange", "order.created", event);
                log.info("异步发布订单创建事件，订单ID: {}", order.getId());
            } catch (Exception e) {
                log.error("发布订单创建事件失败", e);
                // 可以添加重试逻辑或写入本地事件表
            }
        });
    }
}

6. 熔断详细配置和服务降级

@Configuration
public class ResilienceConfig {
    private static final Logger log = LoggerFactory.getLogger(ResilienceConfig.class);

    @Bean
    public Customizer<Resilience4JCircuitBreakerFactory> defaultCustomizer() {
        return factory -> factory.configureDefault(id -> new Resilience4JConfigBuilder(id)
            .circuitBreakerConfig(CircuitBreakerConfig.custom()
                .slidingWindowSize(10)
                .failureRateThreshold(50)
                .waitDurationInOpenState(Duration.ofSeconds(10))
                .permittedNumberOfCallsInHalfOpenState(5)
                .build())
            .timeLimiterConfig(TimeLimiterConfig.custom()
                .timeoutDuration(Duration.ofSeconds(3))
                .build())
            .build());
    }

    @Bean
    public Customizer<Resilience4JCircuitBreakerFactory> specificCustomizer() {
        return factory -> factory.configure(builder -> builder
            .circuitBreakerConfig(CircuitBreakerConfig.custom()
                .slidingWindowSize(20)
                .failureRateThreshold(40)
                .waitDurationInOpenState(Duration.ofSeconds(20))
                .permittedNumberOfCallsInHalfOpenState(10)
                .recordExceptions(IOException.class, TimeoutException.class)
                .build())
            .timeLimiterConfig(TimeLimiterConfig.custom()
                .timeoutDuration(Duration.ofSeconds(5))
                .build()), "userService", "productService");
    }

    // 服务降级处理器
    @Bean
    public FallbackController fallbackController() {
        return new FallbackController();
    }
}

// 降级处理控制器
@RestController
@RequestMapping("/fallback")
public class FallbackController {
    private static final Logger log = LoggerFactory.getLogger(FallbackController.class);

    @GetMapping("/users")
    public ResponseEntity<Map<String, Object>> userServiceFallback() {
        log.warn("用户服务降级启动");
        Map<String, Object> response = new HashMap<>();
        response.put("code", 503);
        response.put("message", "用户服务暂时不可用，请稍后重试");
        return ResponseEntity.status(HttpStatus.SERVICE_UNAVAILABLE).body(response);
    }

    @GetMapping("/orders")
    public ResponseEntity<Map<String, Object>> orderServiceFallback() {
        log.warn("订单服务降级启动");
        Map<String, Object> response = new HashMap<>();
        response.put("code", 503);
        response.put("message", "订单服务暂时不可用，请稍后重试");
        return ResponseEntity.status(HttpStatus.SERVICE_UNAVAILABLE).body(response);
    }

    @GetMapping("/products")
    public ResponseEntity<Map<String, Object>> productServiceFallback() {
        log.warn("商品服务降级启动");
        Map<String, Object> response = new HashMap<>();
        response.put("code", 503);
        response.put("message", "商品服务暂时不可用，请稍后重试");
        return ResponseEntity.status(HttpStatus.SERVICE_UNAVAILABLE).body(response);
    }
}

// Dubbo服务降级示例
@Configuration
public class DubboFallbackConfig {
    @Bean
    public UserServiceMock userServiceMock() {
        return new UserServiceMock();
    }
}

// 服务降级Mock实现
public class UserServiceMock implements UserService {
    private static final Logger log = LoggerFactory.getLogger(UserServiceMock.class);

    @Override
    public User getUserById(Long id) {
        log.warn("用户服务降级，返回Mock数据, userId: {}", id);
        // 返回基础用户信息，避免上游服务完全失败
        return new User(id, "默认用户", 0);
    }
}

7. 监控指标与健康检查

@Configuration
public class MetricsConfig {
    @Bean
    public MeterRegistryCustomizer<MeterRegistry> metricsCommonTags() {
        return registry -> registry.config()
            .commonTags("application", "order-service");
    }

    @Bean
    public DubboMetricsCollector dubboMetricsCollector(MeterRegistry registry) {
        return new DubboMetricsCollector(registry);
    }
}

// Dubbo指标收集器
@Component
public class DubboMetricsCollector {
    private static final Logger log = LoggerFactory.getLogger(DubboMetricsCollector.class);
    private final MeterRegistry registry;

    public DubboMetricsCollector(MeterRegistry registry) {
        this.registry = registry;

        // 注册自定义仪表盘
        Gauge.builder("dubbo.services.count", this, DubboMetricsCollector::getServiceCount)
            .description("Dubbo服务数量")
            .register(registry);
    }

    private int getServiceCount() {
        // 获取服务数量逻辑
        return ApplicationModel.defaultModel().getServiceRepository().allProviderModels().size();
    }

    // 记录方法调用计数和耗时
    public <T> T recordMethodMetrics(String serviceName, String methodName, Supplier<T> supplier) {
        Timer.Sample sample = Timer.start(registry);
        try {
            T result = supplier.get();
            sample.stop(Timer.builder("dubbo.method.timer")
                .tag("service", serviceName)
                .tag("method", methodName)
                .register(registry));

            registry.counter("dubbo.method.counter",
                "service", serviceName,
                "method", methodName,
                "status", "success").increment();

            return result;
        } catch (Exception e) {
            registry.counter("dubbo.method.counter",
                "service", serviceName,
                "method", methodName,
                "status", "error").increment();
            throw e;
        }
    }
}

// 健康检查接口
@RestController
@RequestMapping("/actuator/health")
public class CustomHealthCheckController {
    private static final Logger log = LoggerFactory.getLogger(CustomHealthCheckController.class);

    @Autowired
    private HealthContributor userServiceHealthContributor;

    @Autowired
    private HealthContributor productServiceHealthContributor;

    @Autowired
    private HealthContributor databaseHealthContributor;

    @GetMapping("/liveness")
    public ResponseEntity<Map<String, Object>> liveness() {
        // 检查应用是否活着
        Map<String, Object> health = new HashMap<>();
        health.put("status", "UP");
        health.put("timestamp", System.currentTimeMillis());
        return ResponseEntity.ok(health);
    }

    @GetMapping("/readiness")
    public ResponseEntity<Map<String, Object>> readiness() {
        // 检查应用是否可以接收流量
        Map<String, Object> health = new HashMap<>();
        Map<String, Object> components = new HashMap<>();

        Health userServiceHealth = ((HealthIndicator) userServiceHealthContributor).health();
        Health productServiceHealth = ((HealthIndicator) productServiceHealthContributor).health();
        Health databaseHealth = ((HealthIndicator) databaseHealthContributor).health();

        components.put("userService", userServiceHealth.getStatus().getCode());
        components.put("productService", productServiceHealth.getStatus().getCode());
        components.put("database", databaseHealth.getStatus().getCode());

        boolean isReady = userServiceHealth.getStatus() == Status.UP
                       && productServiceHealth.getStatus() == Status.UP
                       && databaseHealth.getStatus() == Status.UP;

        health.put("status", isReady ? "UP" : "DOWN");
        health.put("components", components);
        health.put("timestamp", System.currentTimeMillis());

        return ResponseEntity.status(isReady ? HttpStatus.OK : HttpStatus.SERVICE_UNAVAILABLE)
            .body(health);
    }
}

// Dubbo服务健康检查贡献者
@Component
public class DubboServiceHealthContributor implements HealthContributor, HealthIndicator {
    private static final Logger log = LoggerFactory.getLogger(DubboServiceHealthContributor.class);

    @DubboReference(version = "1.0.0", check = false)
    private HealthCheckService healthCheckService;

    @Override
    public Health health() {
        try {
            boolean isHealthy = healthCheckService.isHealthy();
            if (isHealthy) {
                return Health.up().build();
            } else {
                return Health.down().withDetail("reason", "服务报告不健康状态").build();
            }
        } catch (Exception e) {
            log.warn("Dubbo服务健康检查失败", e);
            return Health.down(e).build();
        }
    }

    @Override
    public NamedContributor<Health> contribute() {
        return NamedContributor.of("dubboService", this);
    }
}

8. 数据一致性验证机制

// 定时对账任务
@Component
@EnableScheduling
public class DataConsistencyChecker {
    private static final Logger log = LoggerFactory.getLogger(DataConsistencyChecker.class);

    @Autowired
    private OrderRepository orderRepository;

    @Autowired
    private ProductService productService;

    @Autowired
    private EventPublisher eventPublisher;

    @Scheduled(cron = "0 0 1 * * ?") // 每天凌晨1点执行
    public void checkOrderAndInventoryConsistency() {
        log.info("开始执行订单与库存一致性检查");

        // 查询昨天的所有订单
        LocalDateTime yesterday = LocalDateTime.now().minusDays(1).withHour(0).withMinute(0).withSecond(0);
        LocalDateTime today = LocalDateTime.now().withHour(0).withMinute(0).withSecond(0);

        List<Order> orders = orderRepository.findByCreateTimeBetween(yesterday, today);
        log.info("查询到{}条订单记录需要检查", orders.size());

        Map<String, Integer> productQuantityMap = new HashMap<>();

        // 统计订单中的商品数量
        for (Order order : orders) {
            productQuantityMap.compute(order.getProductId(), (k, v) -> {
                return (v == null ? 0 : v) + order.getQuantity();
            });
        }

        // 检查库存记录中的出库数量是否一致
        for (Map.Entry<String, Integer> entry : productQuantityMap.entrySet()) {
            String productId = entry.getKey();
            Integer orderQuantity = entry.getValue();

            try {
                Integer stockDeductionQuantity = productService.getProductDeductionQuantity(
                    productId, yesterday, today);

                if (!orderQuantity.equals(stockDeductionQuantity)) {
                    log.error("数据不一致：商品[{}]，订单数量[{}]，库存扣减数量[{}]",
                        productId, orderQuantity, stockDeductionQuantity);

                    // 发布数据不一致事件，触发人工审核或自动修复
                    eventPublisher.publishDataInconsistencyEvent(
                        productId, orderQuantity, stockDeductionQuantity);
                } else {
                    log.info("数据一致：商品[{}]，数量[{}]", productId, orderQuantity);
                }
            } catch (Exception e) {
                log.error("检查商品[{}]数据一致性时发生错误", productId, e);
            }
        }

        log.info("订单与库存一致性检查完成");
    }

    // 数据修复任务
    @Transactional
    public void repairInconsistentData(String productId, Integer orderQuantity, Integer stockDeductionQuantity) {
        log.info("开始修复数据不一致：商品[{}]", productId);

        try {
            // 计算差值
            int diff = orderQuantity - stockDeductionQuantity;

            if (diff > 0) {
                // 订单数量大于库存扣减数量，需要补扣库存
                productService.manualDeductStock(productId, diff);
                log.info("已补扣库存：商品[{}]，数量[{}]", productId, diff);
            } else if (diff < 0) {
                // 库存扣减数量大于订单数量，需要恢复库存
                productService.manualIncreaseStock(productId, -diff);
                log.info("已恢复库存：商品[{}]，数量[{}]", productId, -diff);
            }

            // 记录修复日志
            recordRepairLog(productId, orderQuantity, stockDeductionQuantity, diff);
        } catch (Exception e) {
            log.error("修复数据不一致时发生错误：商品[{}]", productId, e);
            throw new ServiceException("数据修复失败：" + e.getMessage());
        }
    }

    private void recordRepairLog(String productId, Integer orderQuantity,
                               Integer stockDeductionQuantity, int diff) {
        // 记录修复操作日志
    }
}

Spring Cloud Gateway 与 Zuul 对比

特性Spring Cloud GatewayNetflix Zuul 1.x
编程模型响应式、非阻塞阻塞式
性能更高相对较低
开发活跃度非常活跃较低(Zuul 1.x 已进入维护模式)
Spring 集成原生集成需额外配置
WebSocket 支持原生支持不支持
动态路由支持有限支持

云原生环境部署

Kubernetes 环境中部署 Dubbo 和 Spring Cloud Gateway 的架构：

云原生.svg

Helm chart 示例（部分）：

# gateway-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: api-gateway
spec:
  replicas: 2
  selector:
    matchLabels:
      app: api-gateway
  template:
    metadata:
      labels:
        app: api-gateway
      annotations:
        prometheus.io/scrape: "true"
        prometheus.io/path: "/actuator/prometheus"
        prometheus.io/port: "8080"
    spec:
      containers:
      - name: api-gateway
        image: example/api-gateway:1.0.0
        ports:
        - containerPort: 8080
        resources:
          limits:
            memory: "512Mi"
            cpu: "500m"
        env:
        - name: SPRING_PROFILES_ACTIVE
          value: "k8s"
        - name: SPRING_CLOUD_NACOS_DISCOVERY_SERVER_ADDR
          value: "nacos-service:8848"
        - name: SPRING_REDIS_HOST
          value: "redis-service"
        - name: ZIPKIN_ENDPOINT
          value: "http://zipkin-service:9411/api/v2/spans"
        livenessProbe:
          httpGet:
            path: /actuator/health/liveness
            port: 8080
          initialDelaySeconds: 60
          periodSeconds: 10
        readinessProbe:
          httpGet:
            path: /actuator/health/readiness
            port: 8080
          initialDelaySeconds: 30
          periodSeconds: 5
        volumeMounts:
        - name: config-volume
          mountPath: /app/config
      volumes:
      - name: config-volume
        configMap:
          name: gateway-config

服务治理策略对比

Dubbo 和 Spring Cloud Gateway 的服务治理策略比较：

服务治理策略Dubbo 实现Spring Cloud Gateway 实现
熔断降级使用 Sentinel 或 Hystrix 集成内置 Resilience4j 或 Circuitbreaker 实现
限流基于接口级别的限流基于路由和请求属性的灵活限流
负载均衡内置多种算法（随机、轮询等）需结合 Ribbon 或 LoadBalancer 实现
灰度发布基于标签路由实现基于权重或请求参数路由实现
分布式追踪通过过滤器扩展实现原生支持 Sleuth/Micrometer
监控指标通过 MetricsFilter 收集通过 Actuator/Micrometer 收集

常见问题与排查

Dubbo 常见问题

  1. 服务无法发现

    • 检查注册中心连接
    • 验证接口版本号一致性
    • 查看 provider 是否成功注册
    • 排查工具：dubbo-admin或dubbo qos命令

  2. 调用超时

    • 检查 timeout 配置
    • 排查 provider 性能瓶颈
    • 检查网络延迟
    • 排查工具：Arthas 或 JProfiler 分析性能

Gateway 常见问题

  1. 路由不生效

    • 检查路由定义顺序
    • 验证 predicate 条件
    • 查看日志中的路由匹配情况
    • 排查工具：开启 DEBUG 日志

  2. 性能问题

    • 检查过滤器链复杂度
    • 优化响应式编程模型
    • 考虑启用响应缓存
    • 排查工具：JMeter 性能测试

分布式追踪问题排查

[请求] -> [Gateway] -> [用户服务] -> [订单服务]
  |           |            |             |
  |           v            v             v
  +---------> [Zipkin/Jaeger] <----------+
  1. 链路断开：检查 trace ID 和 span ID 是否正确传递
  2. 缺少 span：确认每个服务都正确配置了 trace 过滤器
  3. 延迟数据：检查追踪数据异步发送配置

总结

特性DubboSpring Cloud Gateway
定位RPC 框架API 网关
通信模式二进制 RPC（基于 TCP/HTTP2）HTTP/REST
适用场景服务间高效通信外部请求统一入口
编程模型同步调用响应式异步
性能特点高吞吐、低延迟灵活路由、动态配置
生态系统Apache Dubbo 生态Spring Cloud 生态
序列化方式多协议(Hessian2/Protobuf/JSON 等)JSON/XML 等 HTTP 格式
服务治理内置丰富治理功能需与其他组件配合
云原生适配逐步完善中原生支持较好
分布式事务需结合 TCC/SAGA 模式需结合事务协调服务
事件驱动支持需外部集成消息队列结合 Spring Cloud Stream
安全能力需定制扩展实现原生过滤器链支持
最佳部署位置微服务内部通信系统边界和微服务前端
avatar
文章
阅读
粉丝
