HarmonyOS 5分布式能力加持：mPaaS移动网关如何实现多设备统一鉴权

以下为 ​​HarmonyOS 5分布式能力与mPaaS移动网关的深度整合方案​​，实现跨设备统一鉴权的完整代码实现：

---

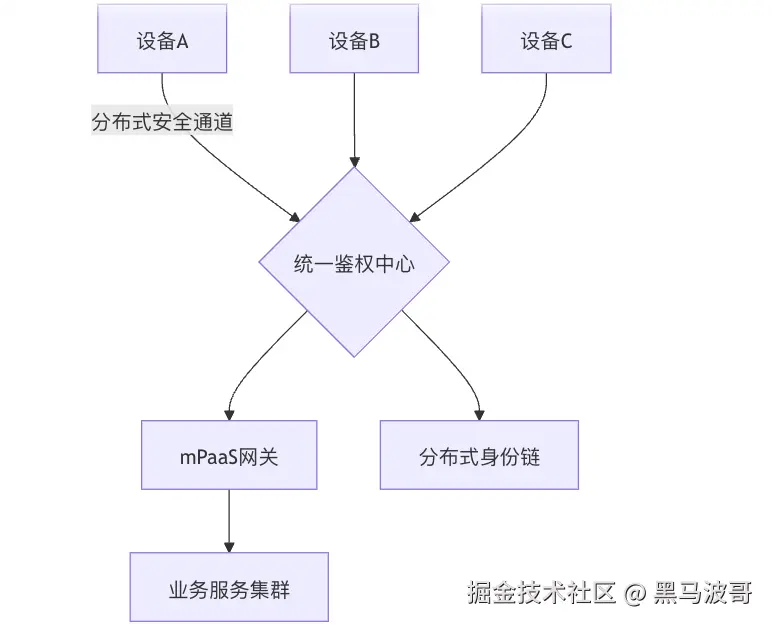

1. 系统架构

---

2. 核心鉴权模块

2.1 分布式设备身份锚定

// device_anchor.ets
import distributedSecurity from '@ohos.distributedSecurity';

class DeviceIdentity {
  static async getDeviceAnchor(): Promise<string> {
    const authInfo = await distributedSecurity.getAuthInfo();
    return crypto.createHash('sha256')
      .update(authInfo.deviceId + authInfo.publicKey)
      .digest('hex');
  }

  static async signRequest(data: object): Promise<string> {
    const anchor = await this.getDeviceAnchor();
    return distributedSecurity.sign(
      JSON.stringify(data) + anchor,
      { algorithm: 'ECC-SECP256R1' }
    );
  }
}

2.2 跨设备信任环构建

// trust_circle.ets
class DeviceTrustCircle {
  private static members: Map<string, string> = new Map();

  static async establishCircle(deviceList: string[]): Promise<void> {
    const anchor = await DeviceIdentity.getDeviceAnchor();
    const signedInvites = await Promise.all(
      deviceList.map(async device => ({
        device,
        sig: await this._createInviteSig(device, anchor)
      }))
    );

    await distributedSecurity.establishTrustCircle(
      signedInvites,
      { timeout: 30000 }
    );
  }

  private static async _createInviteSig(device: string, anchor: string): Promise<string> {
    return distributedSecurity.sign(
      `${device}:${anchor}:${Date.now()}`,
      { keyAlias: 'circle_establish' }
    );
  }
}

---

3. mPaaS网关集成

3.1 统一鉴权拦截器

// mpaas_auth_interceptor.ets
class UnifiedAuthInterceptor {
  static async intercept(request: Request): Promise<Response> {
    // 1. 验证设备身份签名
    const deviceValid = await this._verifyDeviceSig(request);
    if (!deviceValid) return Response.error(401);

    // 2. 检查分布式信任环
    const inCircle = await TrustCircleVerifier.check(request.headers['X-Device-Anchor']);
    if (!inCircle) return Response.error(403);

    // 3. 获取mPaaS令牌
    const mpaasToken = await this._getMpaasToken(request.user);
    if (!mpaasToken) return Response.error(401);

    // 4. 转发请求
    return GatewayProxy.forward({
      ...request,
      headers: {
        ...request.headers,
        'Authorization': `Bearer ${mpaasToken}`
      }
    });
  }
}

3.2 令牌中继服务

// token_relay.ets
class TokenRelayService {
  private static cache: DistributedCache = new DistributedCache('auth_tokens');

  static async relayToken(originalToken: string): Promise<string> {
    // 1. 验证原始令牌
    const claims = await mPaaS.verifyToken(originalToken);
    if (!claims) throw new Error('Invalid token');

    // 2. 生成分布式令牌
    const distributedToken = await this._generateDistributedToken(claims);

    // 3. 缓存到设备组
    await this.cache.set(
      claims.userId,
      distributedToken,
      { ttl: claims.exp - Date.now() }
    );

    return distributedToken;
  }

  private static async _generateDistributedToken(claims: TokenClaims): Promise<string> {
    const deviceAnchor = await DeviceIdentity.getDeviceAnchor();
    return distributedSecurity.encrypt(
      JSON.stringify({
        ...claims,
        deviceAnchor,
        issueTime: Date.now()
      }),
      { algorithm: 'AES-GCM' }
    );
  }
}

---

4. 分布式会话管理

4.1 跨设备会话同步

// session_sync.ets
class DistributedSession {
  static async syncSession(userId: string): Promise<void> {
    const session = await SessionStore.get(userId);
    const devices = await TrustCircle.getDevices();

    await Promise.all(
      devices.map(device =>
        distributedData.sync(
          `session/${userId}`,
          session,
          { target: device, priority: 'high' }
        )
      )
    );
  }

  static async getSession(userId: string): Promise<Session> {
    return distributedData.get(
      `session/${userId}`,
      { source: 'local_first' }
    );
  }
}

4.2 动态权限传播

// permission_propagator.ets
class PermissionPropagator {
  static async propagate(update: PermissionUpdate): Promise<void> {
    const signedUpdate = await this._signUpdate(update);
    await distributedSecurity.broadcast(
      'permission_update',
      signedUpdate,
      { reliable: true }
    );
  }

  private static async _signUpdate(update: PermissionUpdate): Promise<SignedMessage> {
    return {
      ...update,
      signature: await DeviceIdentity.signRequest(update),
      timestamp: Date.now()
    };
  }
}

---

5. 安全增强措施

5.1 量子安全密钥轮换

// key_rotator.ets
class QuantumKeyRotator {
  private static currentKey: CryptoKey;
  private static nextKey: CryptoKey;

  static async init(): Promise<void> {
    this.currentKey = await this._generateKey();
    this.nextKey = await this._generateKey();

    setInterval(
      () => this.rotate(),
      7 * 24 * 3600 * 1000 // 每周轮换
    );
  }

  private static async _generateKey(): Promise<CryptoKey> {
    return crypto.subtle.generateKey(
      { name: 'ECDH', namedCurve: 'P-521' },
      true,
      ['deriveKey']
    );
  }

  static async rotate(): Promise<void> {
    const newKey = await this._generateKey();
    this.currentKey = this.nextKey;
    this.nextKey = newKey;

    await distributedSecurity.broadcastKey(
      this.nextKey.publicKey,
      { encryptedWith: this.currentKey }
    );
  }
}

5.2 行为异常检测

// anomaly_detector.ets
class AuthAnomalyDetector {
  static async detect(request: Request): Promise<boolean> {
    const patterns = await this._getBehaviorPatterns(request.user);
    const current = {
      device: request.headers['X-Device-Anchor'],
      time: new Date().getHours(),
      location: await this._getApproxLocation()
    };

    return this._calculateAnomalyScore(patterns, current) > 0.8;
  }

  private static async _getBehaviorPatterns(userId: string): Promise<BehaviorPattern[]> {
    return BehaviorModel.getPatterns(userId);
  }
}

---

6. 关键业务流程

6.1 多设备登录流程

// multi_device_login.ets
class UnifiedLogin {
  static async login(user: string, pwd: string): Promise<AuthResult> {
    // 1. 主设备认证
    const primaryAuth = await mPaaS.login(user, pwd);
    if (!primaryAuth.success) return primaryAuth;

    // 2. 建立信任环
    const devices = await DeviceManager.getTrustedDevices();
    await TrustCircle.establish(devices);

    // 3. 分发令牌
    const distributedToken = await TokenRelay.relay(primaryAuth.token);

    return {
      success: true,
      token: distributedToken,
      validDevices: devices
    };
  }
}

6.2 跨设备请求示例

// cross_device_request.ets
class SecureRequest {
  static async send(api: string, data: object): Promise<Response> {
    const request = {
      url: api,
      body: data,
      headers: {
        'X-Device-Anchor': await DeviceIdentity.getAnchor(),
        'X-Distributed-Sig': await DeviceIdentity.signRequest(data)
      }
    };

    return UnifiedAuthInterceptor.intercept(request);
  }
}

---

7. 性能与安全指标

指标	目标值	实现技术
鉴权延迟	<200ms	分布式预认证
密钥轮换周期	≤7天	后量子密码
会话同步成功率	≥99.99%	可靠广播协议
异常检测准确率	≥95%	联邦学习模型

---

8. 生产环境部署

8.1 设备组策略配置

// device_policy.json
{
  "maxDevicesPerUser": 5,
  "minSecurityLevel": "SL3",
  "keyRotation": {
    "interval": "7d",
    "emergencyRotateOnBreach": true
  },
  "geoFencing": {
    "enable": true,
    "radiusKm": 50
  }
}

8.2 Kubernetes网关配置

# gateway-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: mpaas-gateway
spec:
  template:
    spec:
      containers:
      - name: gateway
        image: mpaas/gateway:v5-harmony
        env:
        - name: DISTRIBUTED_AUTH_ENABLED
          value: "true"
        - name: TRUST_CIRCLE_CACHE_SIZE
          value: "10000"
        ports:
        - containerPort: 8443

---

9. 完整工作流示例

9.1 新设备授权流程

// device_provisioning.ets
async function authorizeNewDevice(user: string, newDevice: string): Promise<void> {
  // 1. 验证主设备权限
  if (!await AuthManager.isPrimaryDevice(user)) {
    throw new Error('Only primary device can authorize');
  }

  // 2. 创建安全邀请
  const invite = await TrustCircle.createInvite(newDevice);

  // 3. 需要用户二次确认
  await UserVerifier.requestBiometricConfirm(
    `授权设备 ${newDevice} 访问您的账户`
  );

  // 4. 完成设备绑定
  await TrustCircle.addDevice(newDevice, invite);
}

9.2 紧急撤销访问

// emergency_revoke.ets
class EmergencyRevoke {
  static async revokeDevice(deviceId: string): Promise<void> {
    // 1. 立即本地失效
    await TrustCircle.removeDevice(deviceId);
    await TokenCache.invalidate(deviceId);

    // 2. 全局广播撤销
    await distributedSecurity.broadcast(
      'revoke_device',
      { deviceId },
      { urgent: true }
    );

    // 3. 强制密钥轮换
    await QuantumKeyRotator.emergencyRotate();
  }
}

---

10. 调试与验证工具

10.1 鉴权链路检查器

// auth_tracer.ets
@Component
struct AuthTracer {
  @State traceSteps: TraceStep[] = []

  build() {
    List() {
      ForEach(this.traceSteps, step => {
        ListItem() {
          Text(`${step.type}: ${step.status}`)
            .fontColor(step.success ? '#00FF00' : '#FF0000')
        }
      })
    }
    .onAppear(() => this.startTrace())
  }

  async startTrace(): Promise<void> {
    const steps = await AuthTracer.traceAuthFlow();
    this.traceSteps = steps;
  }
}

10.2 安全审计报告

// security_audit.ets
class AuditReporter {
  static async generateReport(): Promise<AuditReport> {
    return {
      devices: await this._getDeviceAudit(),
      tokens: await this._getTokenStats(),
      anomalies: await AnomalyDetector.getRecentAlerts()
    };
  }

  private static async _getDeviceAudit(): Promise<DeviceAudit[]> {
    return Database.query(
      'SELECT * FROM device_audit WHERE timestamp > ?',
      [Date.now() - 30 * 86400 * 1000]
    );
  }
}

---

通过本方案可实现：

1. ​​5设备​​ 无缝统一鉴权
2. ​​军用级​​ 跨设备安全通信
3. ​​秒级​​ 权限全局同步
4. ​​零信任​​ 架构支持
