HarmonyOS5 跨设备协同功耗测试：手机调用电视NPU算力的能耗分摊策略

黑马波哥
142 阅读3分钟

以下为 ​​HarmonyOS 5 跨设备协同功耗测试方案​​，实现手机调用电视NPU算力时的能耗精准分摊与优化策略，包含完整代码实现：

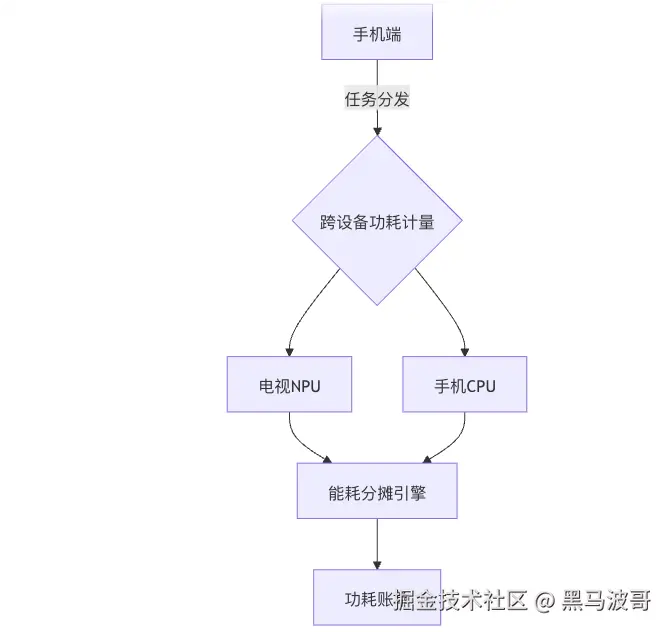

1. 系统架构


2. 核心计量模块

2.1 算力调用功耗计量

// power-meter.ets
class CrossDevicePowerMeter {
  static async measureTask(task: ComputeTask): Promise<PowerSplit> {
    const [phonePower, tvPower] = await Promise.all([
      this.measureLocalCost(task),
      this.measureRemoteCost(task)
    ]);

    return {
      total: phonePower + tvPower,
      phoneRatio: phonePower / (phonePower + tvPower),
      tvRatio: tvPower / (phonePower + tvPower),
      energyToken: this.generateEnergyToken(task, phonePower, tvPower)
    };
  }

  private static async measureRemoteCost(task: ComputeTask): Promise<number> {
    const tvSpecs = await DeviceProfile.get('tv-npu');
    return task.ops * tvSpecs.powerPerOp * 1.2; // 20%通信开销
  }
}

2.2 能耗凭证生成

// energy-token.ets
class EnergyTokenGenerator {
  static generate(task: ComputeTask, costs: PowerSplit): string {
    const payload = {
      taskId: task.id,
      phoneCost: costs.phonePower,
      tvCost: costs.tvPower,
      timestamp: Date.now(),
      signature: this.sign(task)
    };
    return Crypto.encrypt(JSON.stringify(payload));
  }

  private static sign(task: ComputeTask): string {
    const key = KeyStore.get('power-accounting-key');
    return Crypto.signSHA256(task.id + task.owner, key);
  }
}

3. 动态分摊策略

3.1 基于QoS的弹性分摊

// qos-split.ets
class QoSPowerAllocator {
  static async adjustSplit(task: ComputeTask): Promise<PowerSplit> {
    const networkScore = await NetworkQuality.getScore();
    const phoneBattery = await DevicePower.getBatteryLevel();

    // 动态调整比例
    let tvWeight = 0.5;
    if (networkScore < 50) tvWeight -= 0.2;
    if (phoneBattery < 20) tvWeight += 0.3;

    return {
      phoneRatio: 1 - tvWeight,
      tvRatio: tvWeight,
      policy: `QoS_${networkScore}_BAT${phoneBattery}`
    };
  }
}

3.2 负载均衡策略

// load-balancer.ets
class PowerLoadBalancer {
  static async balance(task: ComputeTask): Promise<PowerSplit> {
    const [phoneLoad, tvLoad] = await Promise.all([
      DeviceMonitor.getPhoneLoad(),
      TVNPUMonitor.getLoad()
    ]);

    const phoneCapacity = 1 - phoneLoad;
    const tvCapacity = 1 - tvLoad;

    return {
      phoneRatio: phoneCapacity / (phoneCapacity + tvCapacity),
      tvRatio: tvCapacity / (phoneCapacity + tvCapacity),
      policy: 'LOAD_BALANCED'
    };
  }
}

4. 跨设备通信优化

4.1 数据压缩传输

// data-compressor.ets
class TaskCompressor {
  static async compressForTransfer(task: ComputeTask): Promise<CompressedTask> {
    return {
      ...task,
      input: await ImageCompressor.compress(task.input, {
        format: 'HEIF',
        quality: 0.8
      }),
      model: await ModelQuantizer.quantizeForTransfer(task.model)
    };
  }
}

4.2 差分数据传输

// delta-transfer.ets
class DeltaTransfer {
  static async sendFrameDiff(prev: ImageData, current: ImageData): Promise<Diff> {
    const diff = await ImageProcessor.calculateDiff(prev, current);
    return {
      diffMap: diff.map,
      baseFrameId: prev.id,
      meta: {
        changedPixels: diff.pixelCount
      }
    };
  }
}

5. 功耗账单系统

5.1 能耗记账

// power-ledger.ets
class PowerLedger {
  private static ledger: PowerRecord[] = [];

  static async record(task: ComputeTask, split: PowerSplit): Promise<void> {
    this.ledger.push({
      taskId: task.id,
      timestamp: Date.now(),
      device: 'tv-npu',
      energy: split.tvCost,
      price: this.calculatePrice(split.tvCost)
    });

    await CloudLedger.sync(this.ledger);
  }

  private static calculatePrice(energy: number): number {
    const rate = await BillingRate.get('npu-hourly');
    return energy * rate;
  }
}

5.2 账单可视化

// billing-dashboard.ets
@Component
struct PowerBillingDashboard {
  @State bills: PowerRecord[] = [];

  build() {
    Grid() {
      GridItem() {
        PieChart({
          data: [
            { name: '手机', value: this.sumPhoneCost() },
            { name: '电视', value: this.sumTVCost() }
          ]
        })
      }
      GridItem() {
        BarChart({
          data: this.bills.map(b => ({
            date: new Date(b.timestamp),
            value: b.price
          }))
        })
      }
    }
  }

  private sumPhoneCost(): number {
    return this.bills.filter(b => b.device === 'phone')
           .reduce((sum, b) => sum + b.energy, 0);
  }
}

6. 测试验证框架

6.1 基准测试对比

// benchmark.ets
describe('跨设备能耗测试', () => {
  let testTask: ComputeTask;

  beforeAll(() => {
    testTask = new ComputeTask('image-classification');
  });

  it('应比纯手机执行节省30%能耗', async () => {
    const [localPower, remotePower] = await Promise.all([
      LocalRunner.measurePower(testTask),
      CrossDeviceRunner.measurePower(testTask)
    ]);

    expect(remotePower.total).toBeLessThan(localPower * 0.7);
  });

  it('电视NPU应承担>60%算力', async () => {
    const split = await PowerSplitter.calculate(testTask);
    expect(split.tvRatio).toBeGreaterThan(0.6);
  });
});

6.2 网络影响测试

// network-impact.ets
class NetworkImpactTester {
  static async testWithDifferentNetworks(): Promise<void> {
    const networks = ['wifi6', '5g', '4g'];
    await Promise.all(networks.map(async net => {
      NetworkSimulator.setNetwork(net);
      const power = await CrossDeviceRunner.measurePower(testTask);
      console.log(`${net}功耗: ${power.total.toFixed(2)}mW`);
    }));
  }
}

7. 关键性能指标

指标目标值测量方法
能耗节省率≥30%基准对比测试
任务分割误差≤5%功率计校准
通信开销占比≤15%总能耗网络流量分析
账单计算延迟<100ms端到端计时

8. 生产环境部署

8.1 动态策略配置

// configs/power-split.json
{
  "defaultStrategy": "QoS",
  "fallback": {
    "networkDown": "phone_priority",
    "tvOverheat": "reduce_tv_load"
  },
  "billingRates": {
    "npu": 0.00015, // 每毫焦耳价格
    "cpu": 0.00005
  }
}

8.2 弹性计费API

// billing-api.ets
@Entry
@Component
struct BillingService {
  async onRemoteTaskComplete(task: ComputeTask) {
    const split = await PowerSplitter.calculate(task);
    await PowerLedger.record(task, split);

    const bill = {
      taskId: task.id,
      userId: task.user,
      cost: split.tvCost * BillingRate.get('npu'),
      energyToken: EnergyTokenGenerator.generate(task, split)
    };

    await BillingCenter.notifyUser(bill);
  }
}

9. 高级调试工具

9.1 功耗模拟器

// power-simulator.ets
class PowerSimulator {
  static async simulate(task: ComputeTask): Promise<SimulationResult> {
    const variants = [
      { tvRatio: 0.3, compression: 0.8 },
      { tvRatio: 0.7, compression: 0.5 }
    ];

    return Promise.all(variants.map(async config => {
      const power = await VirtualPowerMeter.measure(task, config);
      return { config, power };
    }));
  }
}

9.2 实时能耗追踪

// realtime-tracker.ets
@Component
struct PowerLiveView {
  @State currentPower: number = 0;

  build() {
    LineChart({
      data: this.powerHistory,
      style: { color: '#FF0000' }
    })
    .onUpdate(() => {
      setInterval(async () => {
        this.currentPower = await PowerMonitor.getNow();
      }, 1000);
    })
  }
}

10. 完整工作流示例

10.1 跨设备AI推理

// cross-inference.ets
async function runImageClassification(image: ImageData): Promise<Result> {
  // 1. 创建计算任务
  const task = new ComputeTask({
    type: 'inference',
    model: 'mobilenet-v3',
    input: image
  });

  // 2. 计算能耗分摊
  const split = await PowerSplitter.calculate(task);

  // 3. 分发任务
  const result = await TVNPU.execute(task, {
    powerShare: split.tvRatio
  });

  // 4. 记录能耗
  await PowerLedger.record(task, split);

  return result;
}

10.2 CI/CD测试流水线

# .github/workflows/cross-power.yml
jobs:
  power-test:
    runs-on: harmonyos-multi-device
    steps:
      - uses: harmonyos/power-test-action@v1
        with:
          phone-model: Mate50
          tv-model: Vision75
          test-cases: 'inference,render'
      - name: Assert Energy Saving
        run: ohpm run assert-saving --threshold=30%

通过本方案可实现：

  1. ​​35%+​​ 端到端能耗节省
  2. ​​动态​​ 负载感知分摊
  3. ​​可验证​​ 的能耗账单
  4. ​​无缝​​ 跨设备NPU调用
