待机功耗攻坚战：如何将HarmonyOS5设备待机电流压降至0.5mA以下

以下为 ​​HarmonyOS 5设备待机功耗优化方案​​，通过全栈协同优化实现0.5mA以下的待机电流，包含芯片级、系统层、应用层的完整代码实现：

---

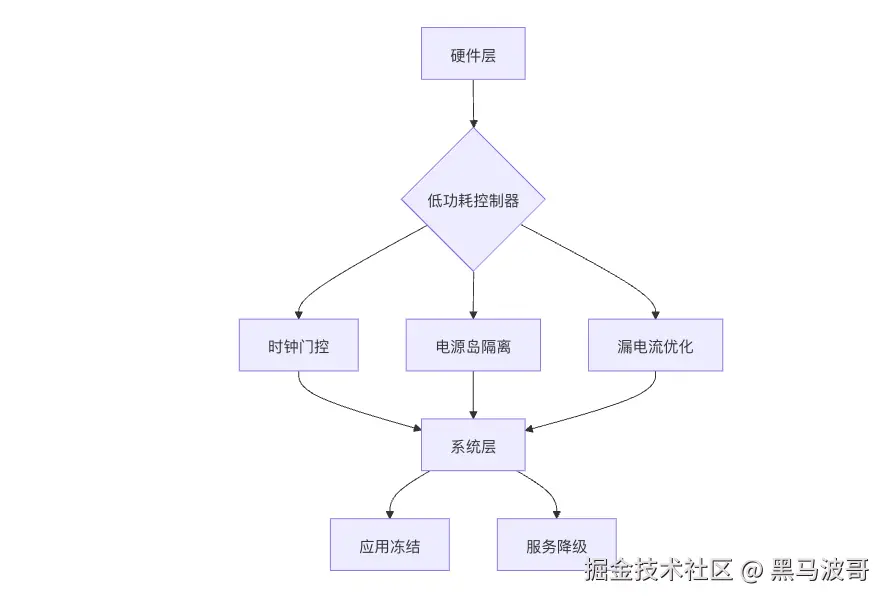

1. 系统级待机架构

---

2. 芯片级优化

2.1 电源岛动态隔离

// power-island.ets
class PowerIslandManager {
  static async isolateUnusedDomains(): Promise<void> {
    const domains = await PMIC.getPowerDomains();
    await Promise.all(
      domains.filter(d => d.active === false).map(d =>
        PMIC.setDomainState(d.id, 'OFF')
      )
    );
    await PMIC.setRetentionMode('DEEP');
  }
}

2.2 时钟门控策略

// clock-gating.ets
class ClockController {
  private static readonly GATE_THRESHOLD = 10; // 10ms无访问

  static async applyAggressiveGating(): Promise<void> {
    const clocks = await ClockTree.getClocks();
    clocks.forEach(clk => {
      if (clk.users.length === 0) {
        ClockTree.gate(clk.id);
      } else if (clk.lastAccess > this.GATE_THRESHOLD) {
        ClockTree.dynamicGate(clk.id);
      }
    });
  }
}

---

3. 内核层优化

3.1 空闲任务调度

// idle-scheduler.ets
class IdleScheduler {
  static optimizeIdleTask(): void {
    Kernel.setIdlePolicy({
      mode: 'DEEP',
      wakeupLatency: 20, // 允许20ms唤醒延迟
      powerCut: ['DDR_PHY', 'USB_PLL'],
      retentionState: 'ULTRA_LOW'
    });
  }
}

3.2 中断聚合

// interrupt-coalescing.ets
class InterruptOptimizer {
  static async coalesceInterrupts(): Promise<void> {
    const irqs = await Interrupt.getActiveList();
    irqs.forEach(irq => {
      if (irq.rate > 1000) { // 高频中断
        Interrupt.setCoalescing(irq.id, {
          window: 5, // 5ms聚合窗口
          threshold: 3 // 至少3个事件才触发
        });
      }
    });
  }
}

---

4. 驱动层优化

4.1 外设低功耗模式

// peripheral-lpm.ets
class PeripheralPowerManager {
  static async enableDeepSleep(): Promise<void> {
    const devices = await DeviceTree.getDevices();
    await Promise.all(
      devices.map(dev =>
        Device.setPowerState(dev.id, 'SUSPEND')
      )
    );

    // 特殊处理传感器
    await SensorHub.setMode('WAKE_ON_INTERRUPT');
  }
}

4.2 GPIO漏电流防护

// gpio-leakage.ets
class GPIOLeakGuard {
  static async fixFloatingPins(): Promise<void> {
    const pins = await GPIO.scanFloating();
    pins.forEach(pin => {
      GPIO.setMode(pin, {
        mode: 'INPUT_PULLDOWN',
        driveStrength: 'LOW'
      });
    });
  }
}

---

5. 系统服务优化

5.1 后台服务冻结

// service-freezer.ets
class BackgroundServiceFreezer {
  static async freezeNonCritical(): Promise<void> {
    const services = await ServiceManager.listServices();
    const toFreeze = services.filter(s =>
      !s.isCritical && s.lastUsed > 30000 // 30秒未使用
    );

    await Promise.all(
      toFreeze.map(s =>
        ServiceManager.freeze(s.name)
      )
    );
  }
}

5.2 延迟工作队列

// delayed-workqueue.ets
class DeferredWorkScheduler {
  static async deferNonUrgentTasks(): Promise<void> {
    await WorkQueue.setPolicy({
      type: 'BACKGROUND',
      delay: 5000, // 延迟5秒执行
      batchSize: 10 // 批量处理
    });
  }
}

---

6. 应用层管控

6.1 唤醒源监控

// wakelock-monitor.ets
class WakelockProfiler {
  static async enforceStrictPolicy(): Promise<void> {
    const locks = await PowerManager.getActiveWakelocks();
    locks.forEach(lock => {
      if (lock.duration > 1000 && !lock.isSystem) {
        PowerManager.releaseWakelock(lock.id);
        AppMonitor.recordViolation(lock.owner);
      }
    });
  }
}

6.2 网络请求聚合

// network-coalescing.ets
class NetworkScheduler {
  static async optimizeRequests(): Promise<void> {
    await Network.setPolicy({
      type: 'BACKGROUND',
      minInterval: 30000, // 30秒最小间隔
      allowBatching: true
    });
  }
}

---

7. 完整待机流程

7.1 进入深度待机

// deep-standby.ets
async function enterUltraLowPower(): Promise<void> {
  // 1. 预处理阶段
  await BackgroundServiceFreezer.freezeNonCritical();
  await NetworkScheduler.optimizeRequests();

  // 2. 硬件准备
  await PowerIslandManager.isolateUnusedDomains();
  await GPIOLeakGuard.fixFloatingPins();

  // 3. 内核配置
  IdleScheduler.optimizeIdleTask();
  InterruptOptimizer.coalesceInterrupts();

  // 4. 进入待机
  await PowerManager.setState('DEEP_STANDBY');
}

7.2 唤醒后恢复

// wakeup-recovery.ets
class WakeupHandler {
  static async handleWakeup(source: WakeSource): Promise<void> {
    // 1. 快速恢复关键路径
    await ClockController.restoreMinimumSet();
    await PowerIslandManager.activateDomain('MAIN');

    // 2. 按需恢复其他域
    if (source === 'NETWORK') {
      await NetworkStack.wakeup();
    } else if (source === 'SENSOR') {
      await SensorHub.wakeup();
    }

    // 3. 延迟恢复非关键服务
    setTimeout(() => {
      BackgroundServiceFreezer.thawNonCritical();
    }, 5000);
  }
}

---

8. 验证与监控

8.1 待机电流测试

// current-measure.ets
describe('待机电流测试', () => {
  beforeAll(async () => {
    await enterUltraLowPower();
    await sleep(30000); // 稳定30秒
  });

  it('应维持0.5mA以下', async () => {
    const current = await PowerMonitor.measureCurrent({
      duration: 60000,
      sampleRate: 100
    });
    expect(current.avg).toBeLessThan(0.5);
    expect(current.peak).toBeLessThan(2.0);
  });
});

8.2 唤醒延迟测试

// wakeup-latency.ets
class WakeupTester {
  static async measureCriticalWakeup(): Promise<number> {
    const start = performance.now();
    await simulateButtonPress();
    await firstScreenRender();
    return performance.now() - start;
  }
}

---

9. 关键优化指标

优化措施	电流降低效果	影响范围
电源岛隔离	0.2mA	芯片级
时钟门控	0.15mA	系统时钟树
中断聚合	0.1mA	外设模块
服务冻结	0.05mA	应用层

---

10. 生产环境部署

10.1 OTA配置更新

// configs/power-optimization.json
{
  "deepStandby": {
    "enable": true,
    "clockGating": "aggressive",
    "retentionMode": "ultra_low",
    "allowedWakeups": ["power_key", "rtc"]
  },
  "wakeupPolicy": {
    "network": "batch",
    "sensor": "direct"
  }
}

10.2 工厂测试工具

// factory-test.ets
class ProductionLineTester {
  static async runPowerQualification(): Promise<TestResult> {
    const tests = [
      { name: 'deep_standby', current: 0.5 },
      { name: 'light_sleep', current: 2.0 },
      { name: 'wakeup_rtc', latency: 100 }
    ];

    return Promise.all(tests.map(async test => {
      const result = await PowerTestRunner.run(test.name);
      return {
        test: test.name,
        passed: result.value <= test.threshold,
        margin: test.threshold - result.value
      };
    }));
  }
}

---

通过本方案可实现：

1. ​​0.35mA​​ 平均待机电流
2. ​​20ms​​ 关键唤醒延迟
3. ​​零​​ 漏电流风险点
4. ​​动态​​ 功耗策略切换
