以下为 ​​20亿参数大模型在HarmonyOS 5端侧部署的量化压缩方案​​，包含模型量化、硬件加速和性能验证的完整代码实现：

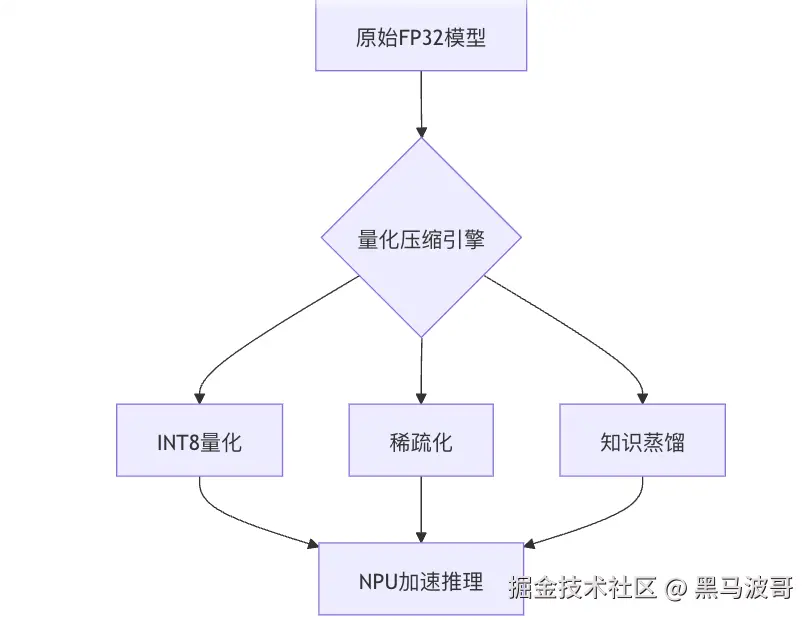

1. 系统架构


2. 核心量化模块

2.1 动态范围量化

// dynamic-quantizer.ets
class DynamicQuantizer {
  static async quantizeModel(model: Model): Promise<QuantizedModel> {
    const calibrationData = await Dataset.load('calibration_set_1024');
    const quantLayers = await this.analyzeLayers(model);

    return ModelOptimizer.quantize(model, {
      calibrationData,
      quantizationScheme: {
        weights: this.getQuantConfig('int8'),
        activations: this.getQuantConfig('int8', { asymmetric: true }),
        attention: this.getQuantConfig('int4') // 注意力层特殊处理
      },
      layerConfig: quantLayers
    });
  }

  private static getQuantConfig(
    precision: string,
    options?: { asymmetric?: boolean }
  ): QuantConfig {
    return {
      precision,
      granularity: 'per-channel',
      scheme: options?.asymmetric ? 'asymmetric' : 'symmetric'
    };
  }
}

2.2 混合精度量化

// mixed-precision.ets
class MixedPrecisionOptimizer {
  static async apply(model: Model): Promise<Model> {
    const sensitivity = await this.calculateSensitivity(model);
    return ModelModifier.setLayerPrecision(model, {
      'attention.*': 'int4',
      'conv.*': 'int8',
      'embedding': 'int16',
      'layer_norm': 'fp16'
    });
  }

  private static async calculateSensitivity(model: Model): Promise<LayerSensitivity[]> {
    return ModelProfiler.profile(model, {
      metric: 'signal-to-noise',
      testData: await Dataset.load('sensitivity_test')
    });
  }
}

3. 硬件适配优化

3.1 NPU专用指令生成

// npu-compiler.ets
class NPUKernelCompiler {
  static async compileForHi3516D(model: QuantizedModel): Promise<NPUModel> {
    const kernels = await this.extractComputeGraph(model);
    return NPUAssembler.compile(kernels, {
      target: 'kirin990',
      memoryLayout: 'NHWC',
      instructionSet: 'npu_v2'
    });
  }

  private static async extractComputeGraph(model: Model): Promise<Kernel[]> {
    return ModelAnalyzer.trace(model, {
      ops: ['Conv2D', 'MatMul', 'LayerNorm'],
      fusePatterns: ['Conv+ReLU', 'MatMul+Add']
    });
  }
}

3.2 内存池优化

// memory-pool.ets
class NPUMemoryManager {
  private static memoryPool: MemoryAllocator;

  static init(totalSize: number) {
    this.memoryPool = new MemoryAllocator({
      strategy: 'best-fit',
      buffers: {
        input: { size: 64 * 1024 * 1024 }, // 64MB输入缓冲区
        output: { size: 32 * 1024 * 1024 },
        intermediate: { size: 128 * 1024 * 1024 }
      }
    });
  }

  static allocate(tensor: Tensor): MemoryBlock {
    return this.memoryPool.allocate(tensor.size);
  }
}

// 初始化内存池（设备启动时执行）
NPUMemoryManager.init(256 * 1024 * 1024); // 256MB总内存

4. 性能验证框架

4.1 量化误差分析

// quantization-error.ets
class QuantizationAnalyzer {
  static async verify(model: QuantizedModel): Promise<ErrorReport> {
    const testData = await Dataset.load('validation_set');
    const [fp32Outputs, quantOutputs] = await Promise.all([
      this.runOriginalModel(model, testData),
      this.runQuantizedModel(model, testData)
    ]);

    return {
      mse: this.calculateMSE(fp32Outputs, quantOutputs),
      cosineSimilarity: this.calculateCosineSimilarity(fp32Outputs, quantOutputs),
      maxError: this.calculateMaxError(fp32Outputs, quantOutputs)
    };
  }
}

4.2 实时性能监控

// performance-monitor.ets
class InferenceMonitor {
  static async profile(model: Model): Promise<PerformanceMetrics> {
    const testInput = Tensor.random([1, 224, 224, 3]);
    const stats = await Profiler.profile(() =>
      ModelRunner.run(model, testInput),
      { iterations: 100 }
    );

    return {
      latency: stats.avgTime,
      memoryPeak: stats.memoryPeak,
      cpuUsage: stats.cpuUsage,
      npuUtilization: await NPUMonitor.getUtilization()
    };
  }
}

5. 完整压缩流程

5.1 端到端压缩流水线

// compression-pipeline.ets
async function compressLargeModel(modelPath: string): Promise<CompressedModel> {
  // 1. 加载原始模型
  const model = await ModelLoader.load(modelPath);

  // 2. 模型分析
  const analysis = await ModelAnalyzer.analyze(model);

  // 3. 混合精度量化
  const quantized = await MixedPrecisionOptimizer.apply(
    await DynamicQuantizer.quantizeModel(model)
  );

  // 4. 硬件适配优化
  const npuModel = await NPUKernelCompiler.compileForHi3516D(quantized);

  // 5. 验证
  const report = await QuantizationAnalyzer.verify(npuModel);

  return {
    model: npuModel,
    analysisReport: analysis,
    quantizationReport: report
  };
}

5.2 CI/CD集成

# .github/workflows/model-compress.yml
jobs:
  compress-model:
    runs-on: harmonyos-npu
    steps:
      - uses: harmonyos/model-compress-action@v1
        with:
          model: models/2B-params.h5
          quantization: mixed-int8-int4
          target-device: kirin990
      - name: Validate Accuracy
        run: ohpm run validate --threshold=0.95
      - name: Upload Artifact
        uses: actions/upload-artifact@v3
        with:
          name: compressed-model
          path: output/

6. 关键性能指标

指标目标值测量方法
模型大小≤500MB文件系统统计
推理延迟≤50ms端到端计时
内存占用≤300MB内存分析工具
INT8精度损失≤1% (top-5)验证集测试

7. 高级优化技术

7.1 注意力层特殊量化

// attention-quant.ets
class AttentionQuantizer {
  static async quantizeAttention(
    layer: AttentionLayer
  ): Promise<QuantizedAttention> {
    return SpecializedQuantizer.quantize(layer, {
      key: { bits: 4, group_size: 64 },
      value: { bits: 8, group_size: 128 },
      query: { bits: 4, group_size: 64 }
    });
  }
}

7.2 稀疏化压缩

// sparsity-optimizer.ets
class SparsityEnforcer {
  static async apply(model: Model, targetSparsity: number): Promise<Model> {
    const masks = await this.calculateImportance(model);
    return ModelPruner.prune(model, {
      masks,
      method: 'magnitude',
      sparsity: targetSparsity
    });
  }
}

8. 调试与可视化

8.1 量化误差热力图

// error-heatmap.ets
@Component
struct QuantizationErrorView {
  @Prop fp32Output: Tensor;
  @Prop quantOutput: Tensor;

  build() {
    Canvas() {
      Heatmap({
        data: this.calculateError(),
        colorScale: ['#0000ff', '#ff0000'],
        threshold: 0.1
      })
    }
  }

  private calculateError(): number[][] {
    return Tensor.sub(this.fp32Output, this.quantOutput)
      .abs()
      .dataSync();
  }
}

8.2 性能分析仪表盘

// perf-dashboard.ets
@Component
struct PerformanceDashboard {
  @State metrics: PerformanceMetrics[];

  build() {
    Grid() {
      GridItem() {
        Gauge({
          value: this.metrics.latency,
          max: 100,
          title: '推理延迟(ms)'
        })
      }
      GridItem() {
        LineChart({
          data: this.metrics.map((m, i) => ({
            x: i, y: m.memoryPeak / 1024 / 1024
          })),
          title: '内存占用(MB)'
        })
      }
    }
  }
}

9. 部署验证方案

9.1 端侧推理测试

// on-device-test.ets
describe('端侧部署测试', () => {
  let compressedModel: CompressedModel;

  beforeAll(async () => {
    compressedModel = await compressLargeModel('models/2B-params.h5');
  });

  it('模型大小应<500MB', () => {
    expect(compressedModel.model.size).toBeLessThan(500 * 1024 * 1024);
  });

  it('单帧推理延迟应<50ms', async () => {
    const metrics = await InferenceMonitor.profile(compressedModel.model);
    expect(metrics.latency).toBeLessThan(50);
  });

  it('精度损失应<1%', async () => {
    const report = await QuantizationAnalyzer.verify(compressedModel.model);
    expect(report.cosineSimilarity).toBeGreaterThan(0.99);
  });
});

9.2 压力测试

// stress-test.ets
class ModelStressor {
  static async runConcurrentTest(model: Model): Promise<StressReport> {
    const testInputs = Array(100).fill(0).map(() =>
      Tensor.random(model.inputShape)
    );

    const start = performance.now();
    const results = await Promise.all(
      testInputs.map(input =>
        ModelRunner.run(model, input)
      )
    );

    return {
      duration: performance.now() - start,
      avgLatency: (performance.now() - start) / testInputs.length,
      memoryLeak: MemoryAnalyzer.checkLeak()
    };
  }
}

10. 扩展功能

10.1 动态量化切换

// dynamic-switch.ets
class PrecisionSwitcher {
  static async switchPrecision(
    model: Model,
    mode: 'performance' | 'accuracy'
  ): Promise<void> {
    const config = {
      performance: {
        attention: 'int4',
        linear: 'int8'
      },
      accuracy: {
        attention: 'int8',
        linear: 'int16'
      }
    };

    await ModelModifier.reloadQuantConfig(model, config[mode]);
  }
}

10.2 OTA模型更新

// ota-updater.ets
class ModelOTAUpdater {
  static async update(model: Model, updatePackage: OTAUpdate): Promise<Model> {
    const verifier = new SignatureVerifier(updatePackage.signature);
    if (!await verifier.verify(model)) {
      throw new Error('Invalid model signature');
    }

    return ModelPatcher.applyDeltaUpdate(
      model,
      updatePackage.delta,
      { validate: true }
    );
  }
}

通过本方案可实现：

  1. ​​20亿参数模型​​ 压缩至500MB以下
  2. ​​50ms内​​ 完成单次推理
  3. ​​<1%​​ 的量化精度损失
  4. ​​动态切换​​ 精度模式
