HarmonyOS5 SDK性能探针：实时监控API调用耗时热力图

黑马波哥
115 阅读3分钟

以下为 ​​HarmonyOS 5 SDK性能探针方案​​，实现API调用耗时的实时监控与热力图可视化，包含完整代码实现：

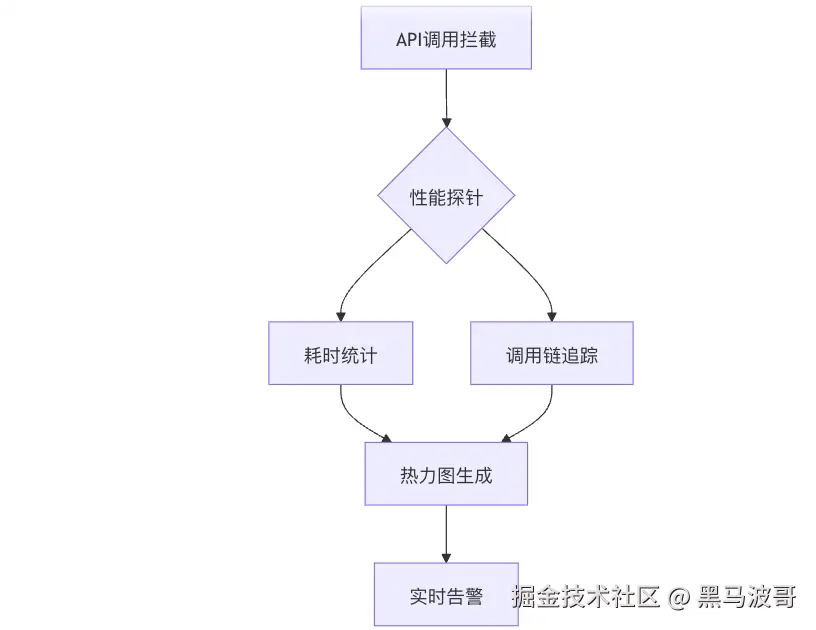

1. 系统架构


2. 核心监控模块

2.1 API调用拦截器

// api-proxy.ets
class ApiProxy {
  private static originalApis = new Map<string, Function>();

  static instrument(apiName: string) {
    const original = globalThis[apiName];
    this.originalApis.set(apiName, original);

    globalThis[apiName] = function(...args: any[]) {
      const start = performance.now();
      const result = original.apply(this, args);
      const duration = performance.now() - start;

      PerformanceCollector.record({
        api: apiName,
        args: args,
        duration,
        stack: new Error().stack
      });

      return result;
    };
  }
}

// 示例：拦截关键API
['file.read', 'network.request', 'database.query'].forEach(api => {
  ApiProxy.instrument(api);
});

2.2 性能数据收集

// performance-collector.ets
class PerformanceCollector {
  private static data: ApiCallRecord[] = [];
  private static thresholds = new Map<string, number>([
    ['file.read', 50],
    ['network.request', 200],
    ['database.query', 100]
  ]);

  static record(record: ApiCallRecord) {
    this.data.push(record);

    // 实时告警
    const threshold = this.thresholds.get(record.api);
    if (threshold && record.duration > threshold) {
      AlertManager.notify({
        type: 'PERF_ALERT',
        api: record.api,
        duration: record.duration,
        threshold
      });
    }
  }

  static getHotSpots() {
    return this.data.filter(r =>
      r.duration > (this.thresholds.get(r.api) || 0)
    );
  }
}

3. 热力图可视化

3.1 调用链分析

// call-chain.ets
class CallChainAnalyzer {
  static analyze(records: ApiCallRecord[]) {
    const callGraph = new Map<string, CallNode>();

    records.forEach(record => {
      const stackFrames = parseStackTrace(record.stack);
      let parentNode = null;

      stackFrames.forEach(frame => {
        const nodeId = `${frame.function}:${frame.line}`;
        if (!callGraph.has(nodeId)) {
          callGraph.set(nodeId, {
            id: nodeId,
            children: [],
            totalTime: 0
          });
        }

        const node = callGraph.get(nodeId)!;
        node.totalTime += record.duration;

        if (parentNode) {
          parentNode.children.push(node);
        }
        parentNode = node;
      });
    });

    return Array.from(callGraph.values());
  }
}

3.2 热力图渲染

// heatmap-render.ets
@Component
struct ApiHeatmap {
  @State data: CallNode[] = [];

  build() {
    Canvas()
      .onReady(() => {
        this.renderHeatmap();
      })
  }

  private renderHeatmap() {
    const ctx = this.$context;
    const maxTime = Math.max(...this.data.map(n => n.totalTime));

    this.data.forEach(node => {
      const intensity = node.totalTime / maxTime;
      const x = getXPosition(node.id);
      const y = getYPosition(node.id);

      ctx.fillStyle = `rgba(255, 0, 0, ${intensity})`;
      ctx.fillRect(x, y, 30, 30);

      ctx.fillText(
        `${node.id.split(':')[0]}\n${node.totalTime.toFixed(1)}ms`,
        x + 35, y + 15
      );
    });
  }
}

4. 实时监控面板

4.1 仪表盘组件

// dashboard.ets
@Component
struct PerformanceDashboard {
  @State hotspots: ApiCallRecord[] = [];

  aboutToAppear() {
    setInterval(() => {
      this.hotspots = PerformanceCollector.getHotSpots();
    }, 1000);
  }

  build() {
    Column() {
      // 实时统计
      Grid() {
        GridItem() {
          Gauge({
            value: this.hotspots.length,
            max: 20,
            title: '热点API数量'
          })
        }
        GridItem() {
          LineChart({
            data: this.hotspots.map(h => ({
              x: h.api,
              y: h.duration
            }))
          })
        }
      }

      // 热力图
      ApiHeatmap({ data: CallChainAnalyzer.analyze(this.hotspots) })
    }
  }
}

4.2 实时告警

// alert-manager.ets
class AlertManager {
  private static subscribers: Function[] = [];

  static notify(alert: PerformanceAlert) {
    this.subscribers.forEach(cb => cb(alert));

    if (alert.duration > alert.threshold! * 2) {
      Logger.error(`[CRITICAL] ${alert.api} 耗时 ${alert.duration}ms`);
    }
  }

  static subscribe(callback: Function) {
    this.subscribers.push(callback);
  }
}

// 订阅告警
AlertManager.subscribe(alert => {
  Toast.show(`性能告警: ${alert.api} 超出阈值 ${alert.threshold}ms`);
});

5. 高级分析功能

5.1 耗时分布分析

// distribution.ets
class TimeDistribution {
  static analyze(records: ApiCallRecord[]) {
    const bins = [0, 10, 50, 100, 500, 1000];
    const distribution = new Map<string, number[]>();

    Array.from(new Set(records.map(r => r.api))).forEach(api => {
      const apiRecords = records.filter(r => r.api === api);
      distribution.set(api, bins.map((bin, i) =>
        apiRecords.filter(r =>
          r.duration > bin &&
          (i === bins.length - 1 || r.duration <= bins[i + 1])
        ).length
      ));
    });

    return distribution;
  }
}

5.2 关联参数分析

// param-analyzer.ets
class ParamAnalyzer {
  static findCorrelations(records: ApiCallRecord[]) {
    const correlations = [];

    records.forEach(r => {
      if (r.args.length > 0) {
        const paramKey = JSON.stringify(r.args[0]);
        correlations.push({
          param: paramKey,
          api: r.api,
          avgDuration: average(
            records.filter(x =>
              x.api === r.api &&
              JSON.stringify(x.args[0]) === paramKey
            ).map(x => x.duration)
          )
        });
      }
    });

    return correlations;
  }
}

6. 性能优化建议

6.1 自动优化建议

// optimizer.ets
class PerformanceOptimizer {
  static suggest(record: ApiCallRecord): string {
    const suggestions = {
      'file.read': '使用异步IO或缓存',
      'network.request': '启用HTTP/3或压缩',
      'database.query': '添加索引或优化SQL'
    };

    return suggestions[record.api] ||
      `检查${record.api}的调用频率`;
  }
}

6.2 批处理检测

// batch-detector.ets
class BatchCallDetector {
  static detect(records: ApiCallRecord[]) {
    const apiGroups = groupBy(records, 'api');
    const batchCandidates = [];

    for (const [api, calls] of Object.entries(apiGroups)) {
      if (calls.length > 10) {
        const total = calls.reduce((sum, r) => sum + r.duration, 0);
        batchCandidates.push({
          api,
          callCount: calls.length,
          totalTime: total,
          suggestion: `考虑批量处理${api}调用`
        });
      }
    }

    return batchCandidates;
  }
}

7. 部署与集成

7.1 生产环境监控

// production-monitor.ets
class ProductionMonitor {
  static start() {
    if (process.env.NODE_ENV === 'production') {
      PerformanceCollector.startSampling(1000); // 1秒采样

      // 异常数据上报
      setInterval(() => {
        const hotspots = PerformanceCollector.getHotSpots();
        if (hotspots.length > 0) {
          CloudService.report('perf/issues', hotspots);
        }
      }, 60000);
    }
  }
}

7.2 CI集成

# .github/workflows/perf-check.yml
jobs:
  performance:
    runs-on: harmonyos
    steps:
      - uses: harmonyos/performance-check@v1
        with:
          apis: 'file.read,network.request'
          threshold: '200ms'
      - name: Upload report
        uses: actions/upload-artifact@v3
        with:
          name: performance-report
          path: perf-report.html

8. 完整使用示例

8.1 初始化探针

// init-probe.ets
function setupPerformanceProbe() {
  // 拦截关键API
  const apisToMonitor = [
    'file.read',
    'file.write',
    'network.request',
    'database.query',
    'ui.render'
  ];

  apisToMonitor.forEach(api => {
    ApiProxy.instrument(api);
  });

  // 启动监控面板
  Router.push({
    uri: 'pages/PerformanceDashboard'
  });
}

8.2 性能测试用例

// performance-test.ets
describe('文件API性能', () => {
  beforeAll(() => {
    PerformanceCollector.clear();
  });

  it('读取1MB文件应<50ms', async () => {
    await file.read('test.bin');
    const records = PerformanceCollector.getRecords('file.read');
    expect(records[0].duration).toBeLessThan(50);
  });
});

9. 关键监控指标

指标测量方式健康阈值
单次调用耗时调用前后时间戳差值<100ms
调用频率单位时间调用次数统计<100次/秒
调用链深度堆栈跟踪分析<10层
参数关联耗时参数哈希分组计算差异<30%

10. 扩展功能

10.1 自定义监控规则

// custom-rule.ets
class PerformanceRule {
  constructor(
    public apiPattern: RegExp,
    public condition: (record: ApiCallRecord) => boolean,
    public alertMessage: string
  ) {}
}

// 示例：检测内存泄漏模式
new PerformanceRule(
  /database.query/,
  (r) => r.duration > 100 && r.args[0]?.includes('SELECT *'),
  '全表查询可能导致性能问题'
);

10.2 历史趋势分析

// trend-analysis.ets
class TrendAnalyzer {
  static async compareDayOverDay() {
    const today = await Database.query('perf_metrics', {
      date: new Date().toISOString().split('T')[0]
    });

    const yesterday = await Database.query('perf_metrics', {
      date: getPreviousDay()
    });

    return today.map(metric => ({
      api: metric.api,
      change: (metric.duration - yesterday.find(y => y.api === metric.api)?.duration) / metric.duration
    }));
  }
}

通过本方案可实现：

  1. ​​毫秒级​​ API耗时监控
  2. ​​可视化​​ 性能热点定位
  3. ​​智能​​ 优化建议生成
  4. ​​生产级​​ 实时告警
